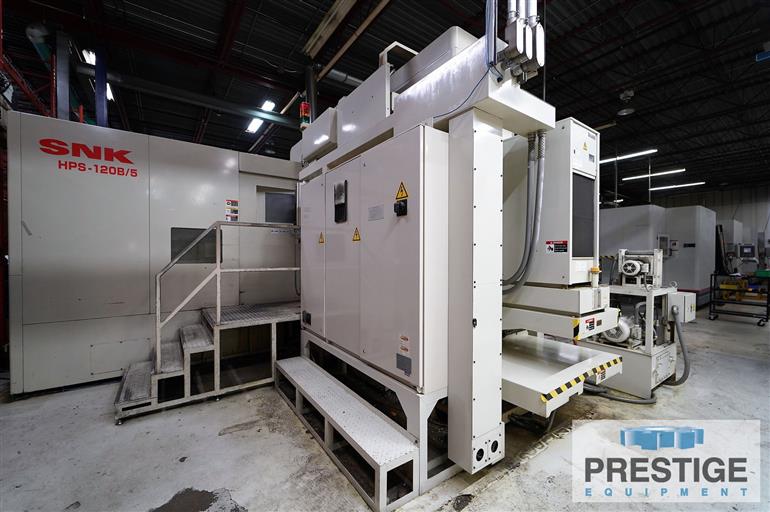

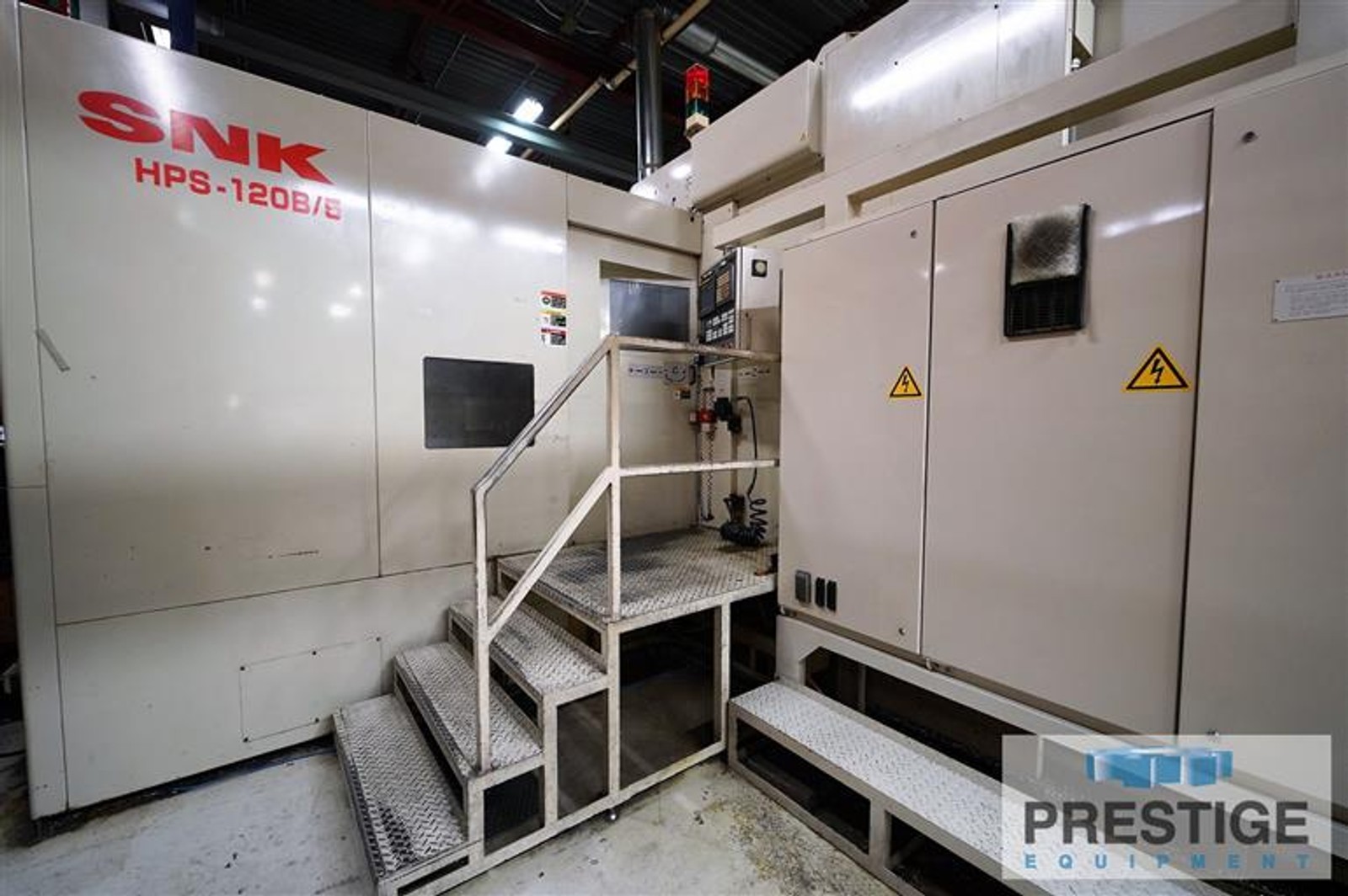

SNK HPS-120B, 5-Axis, X-124", Y-52", Z-28", Swivel Spindle, 20K RPM, 2APC 120" x 48", 60 ATC, Fanuc 15MA, 2005, #30023

Manufacturer

SNK

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

30023

Model

HPS-120B 5-Axis

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #30023

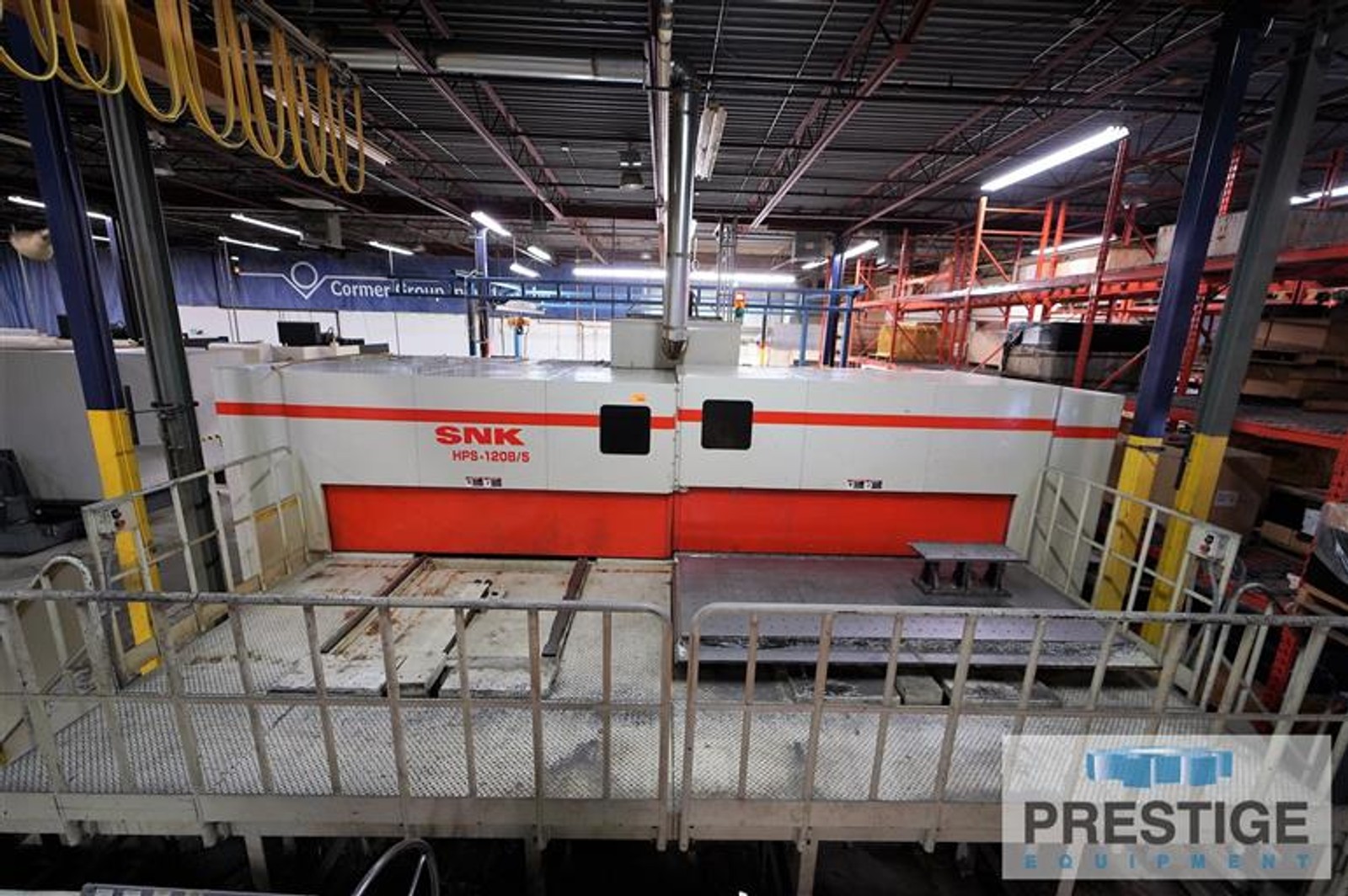

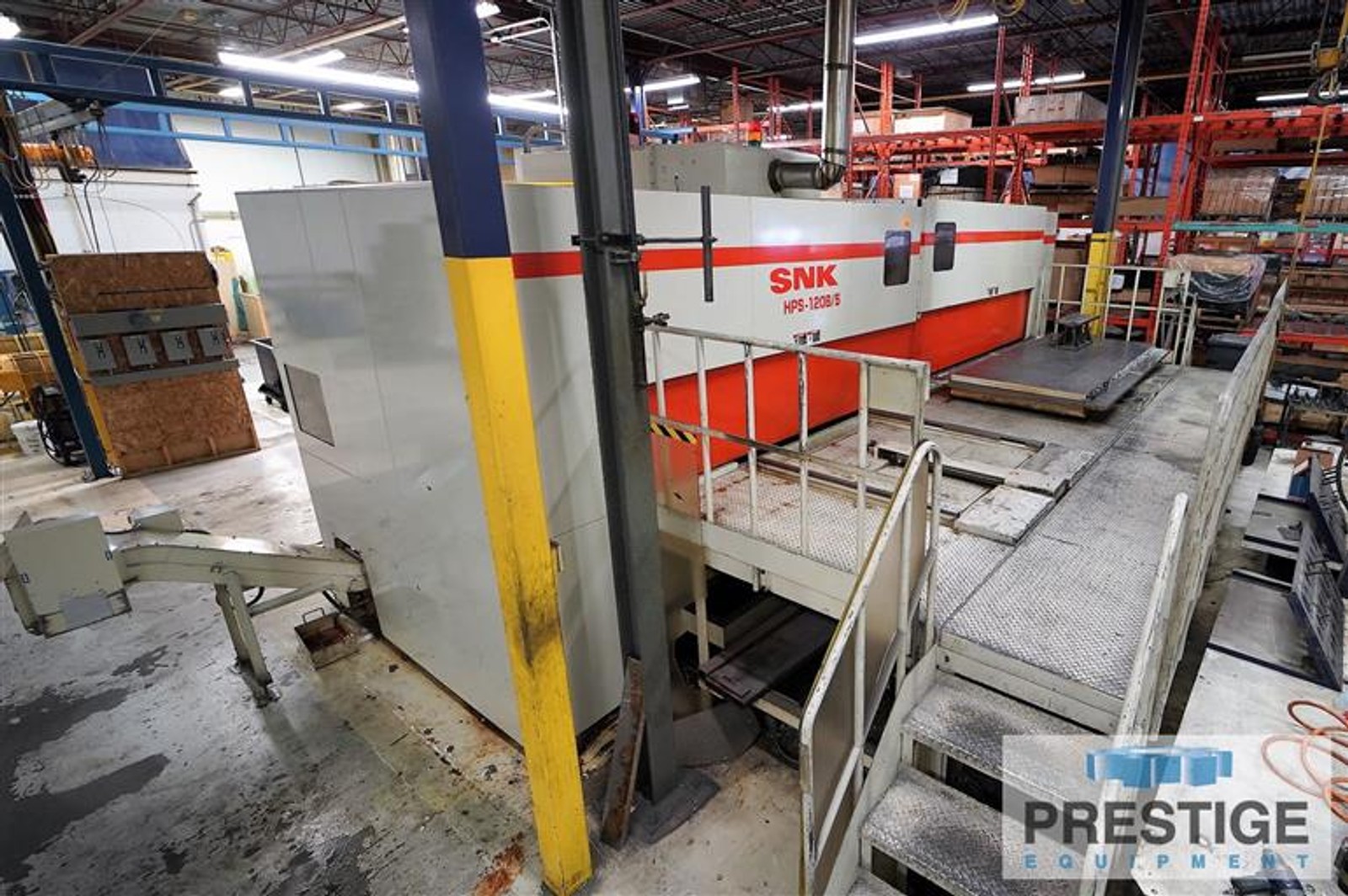

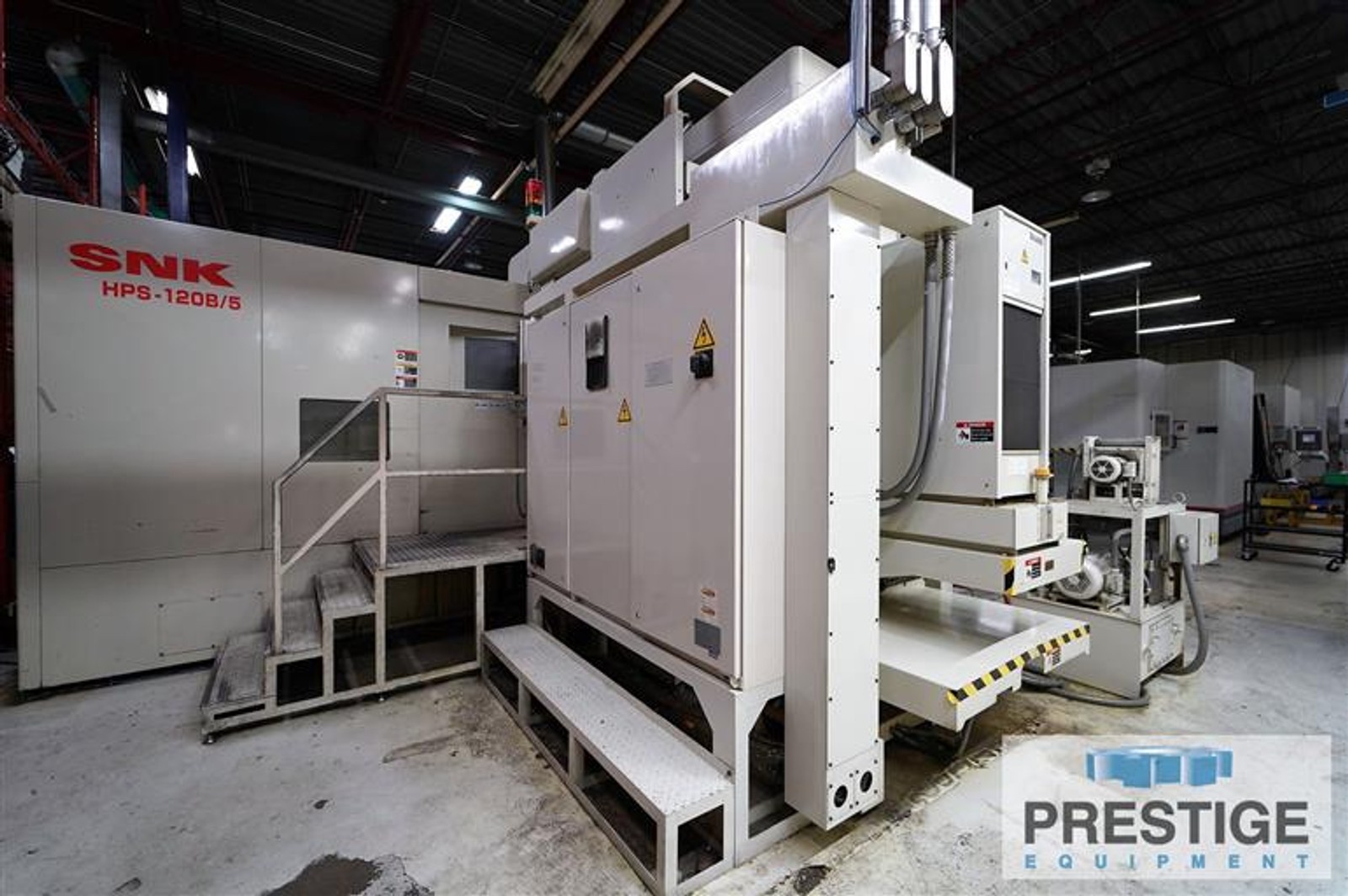

SNK HPS-120B 5-Axis CNC Horizontal High Speed Aerospace Profiler

FEATURES:

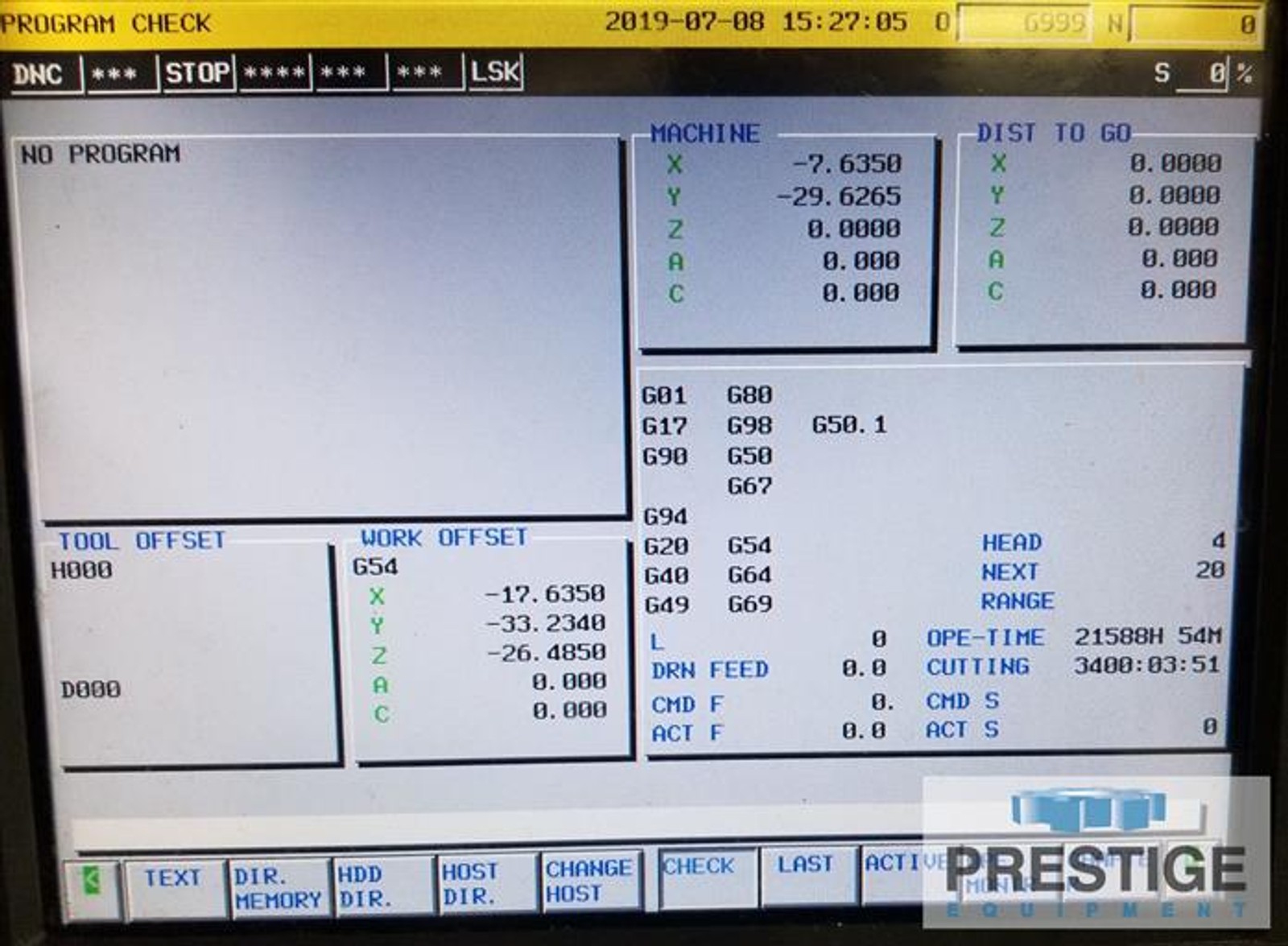

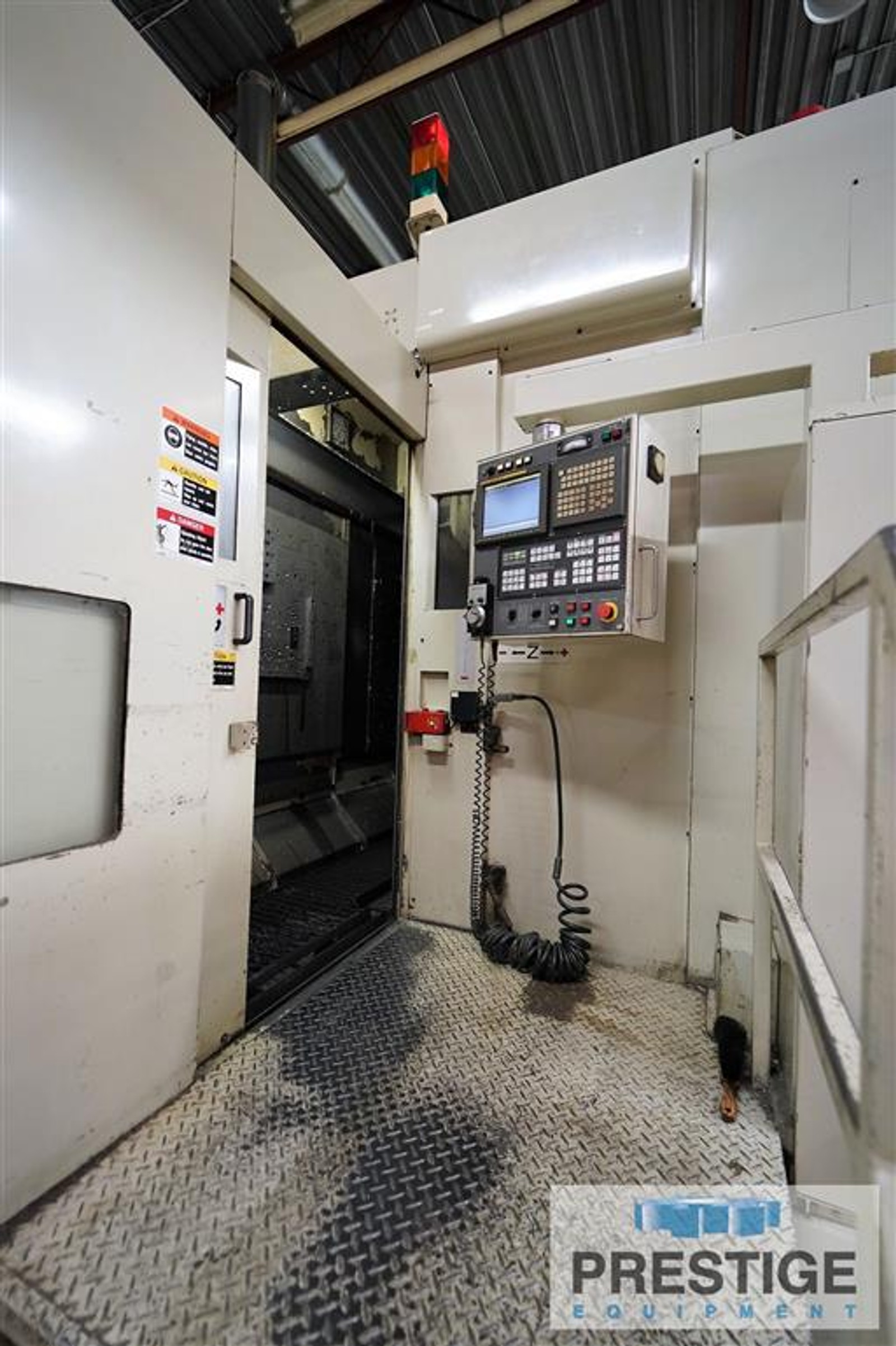

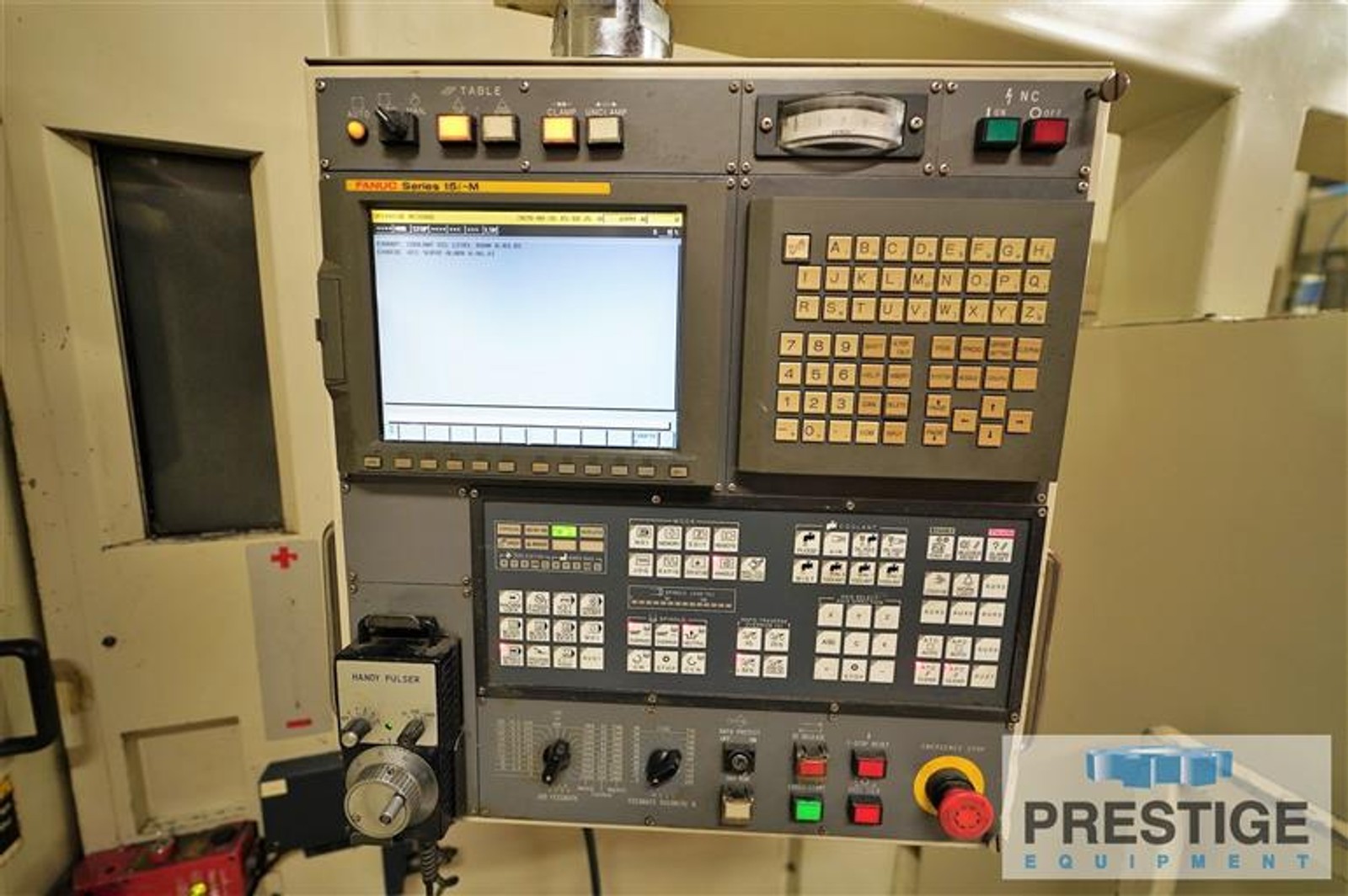

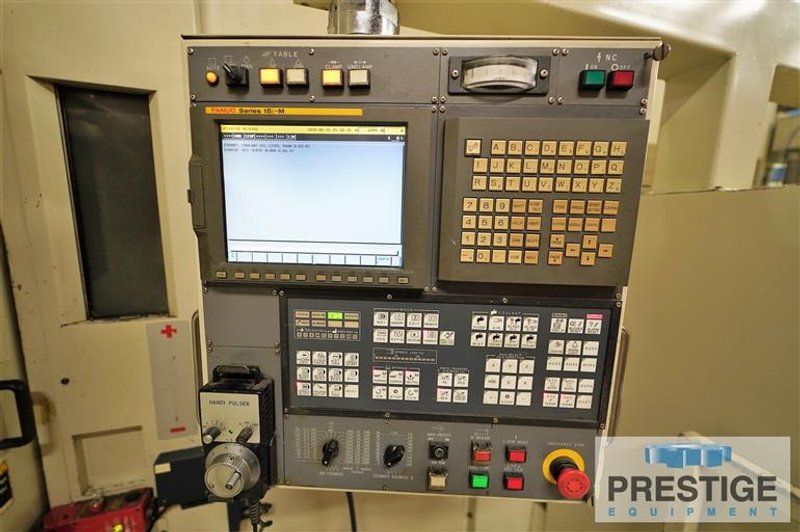

FANUC 15iMA 5-Axis CNC Control

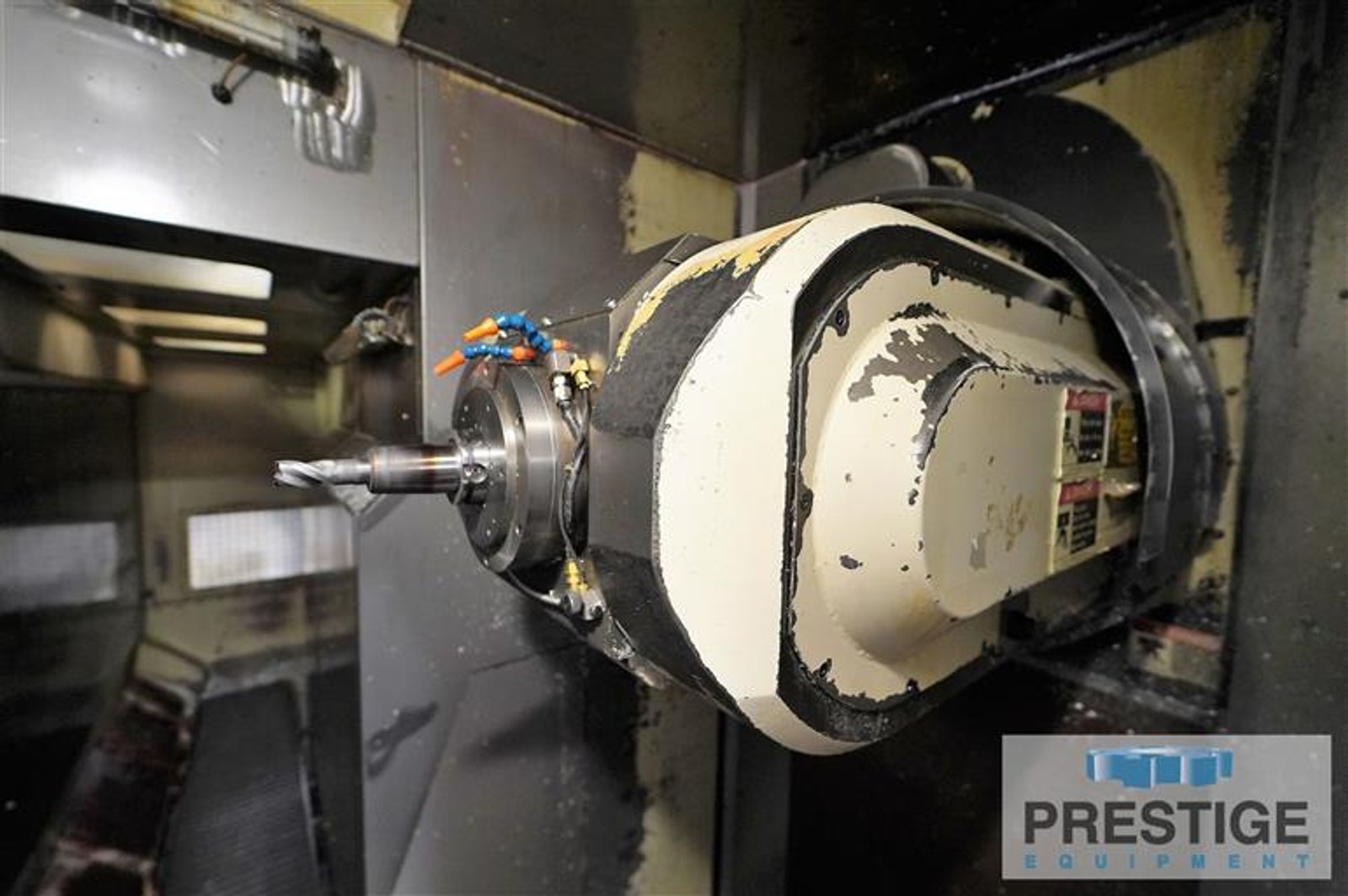

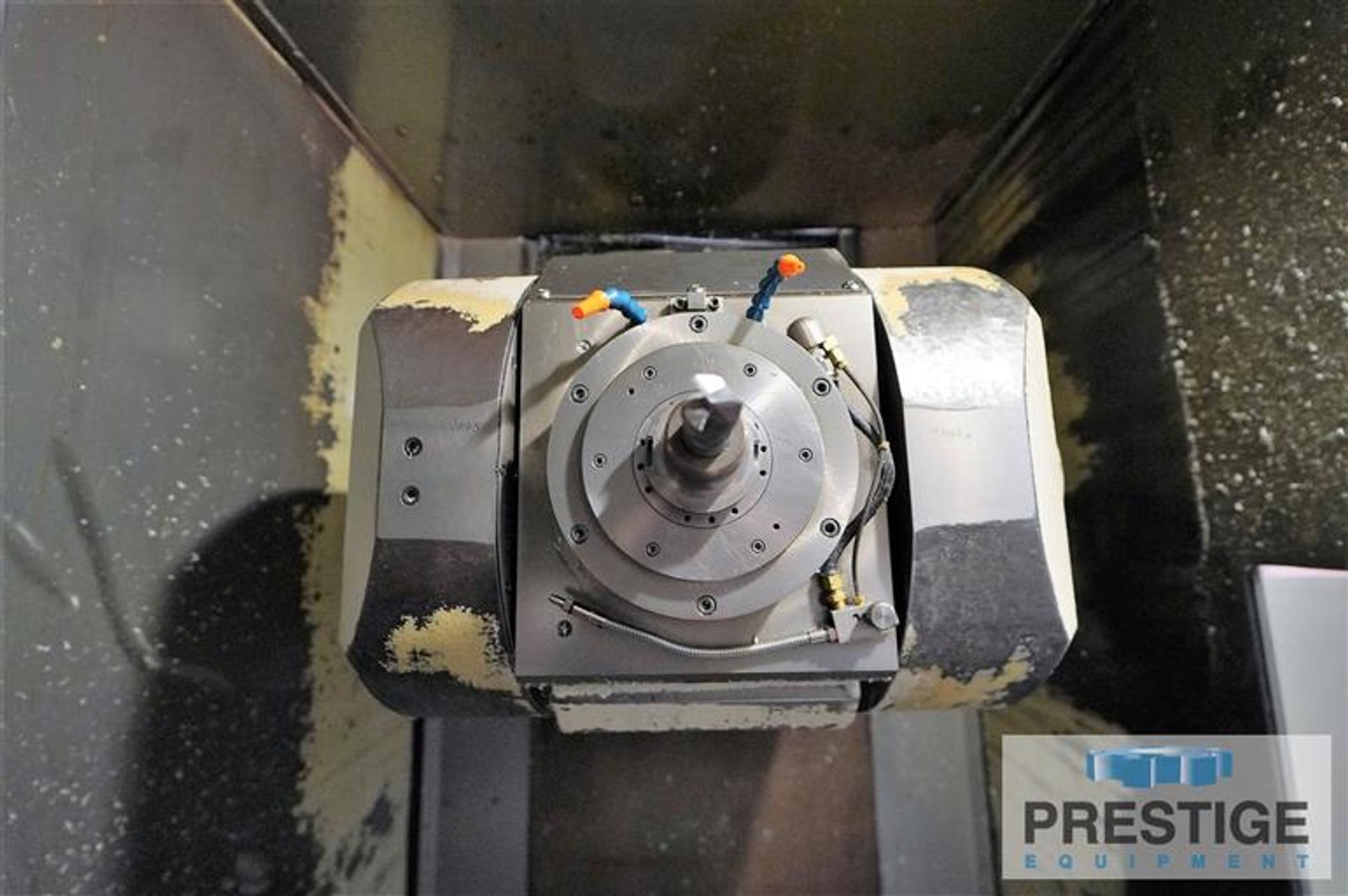

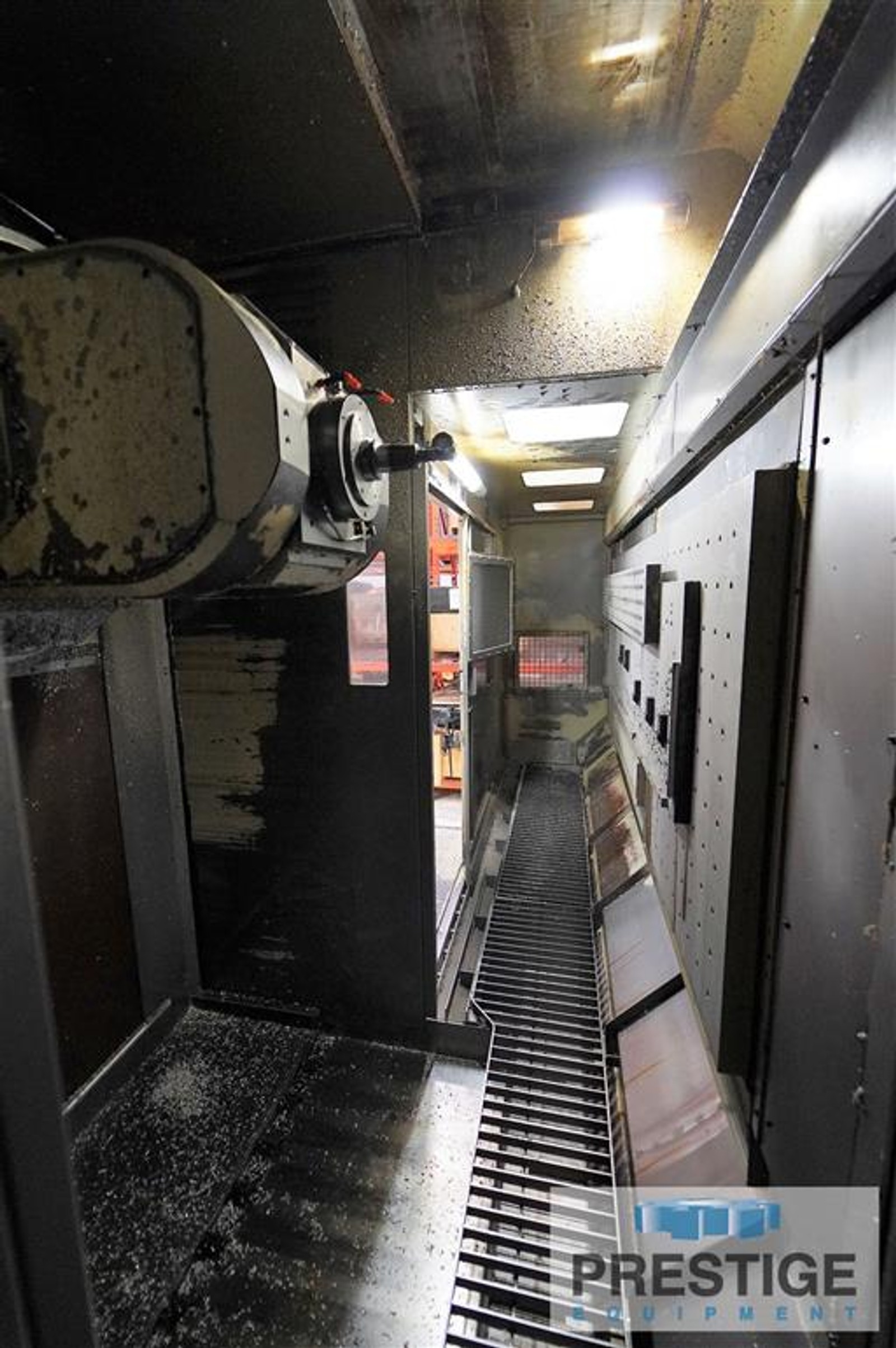

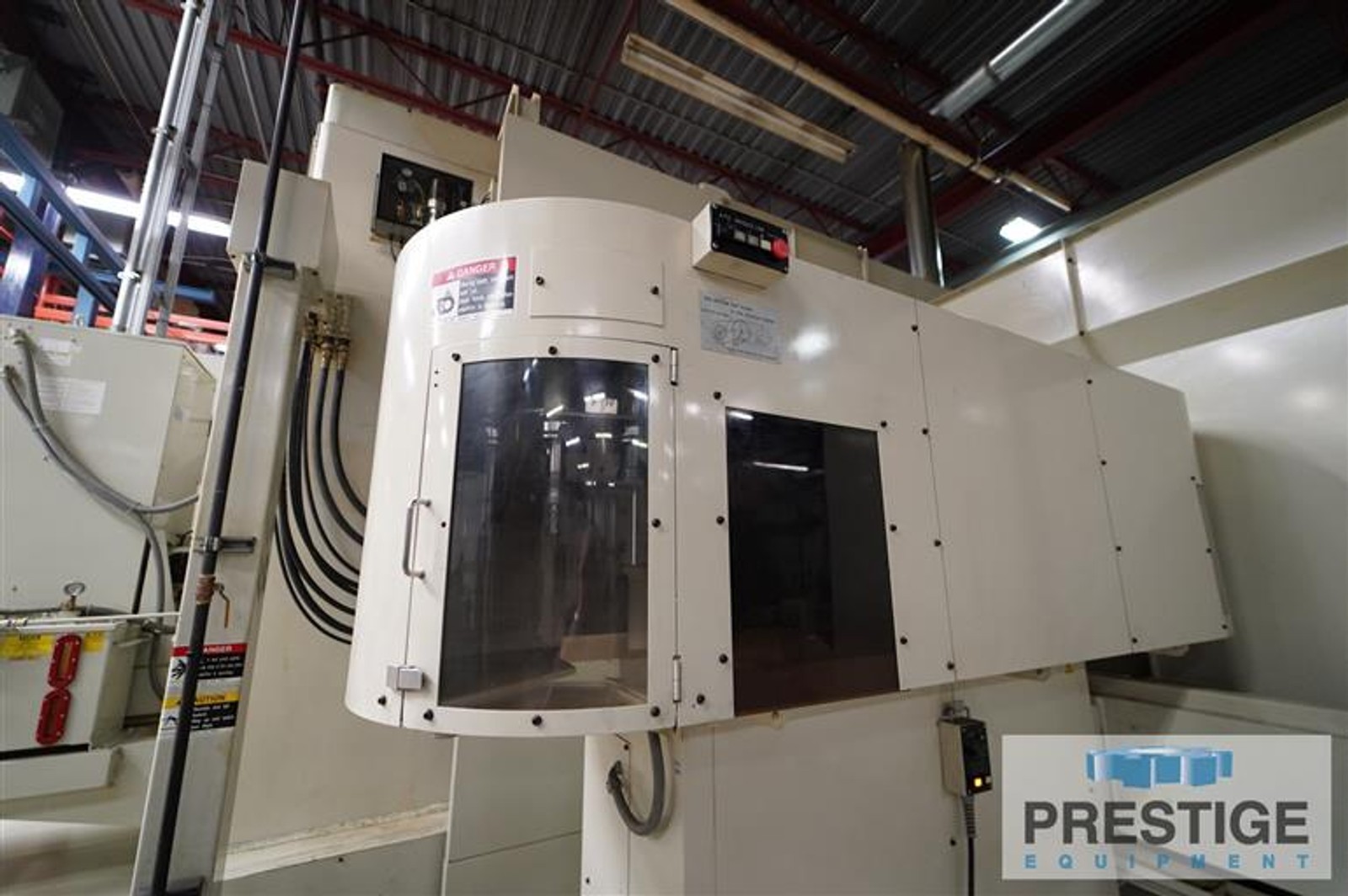

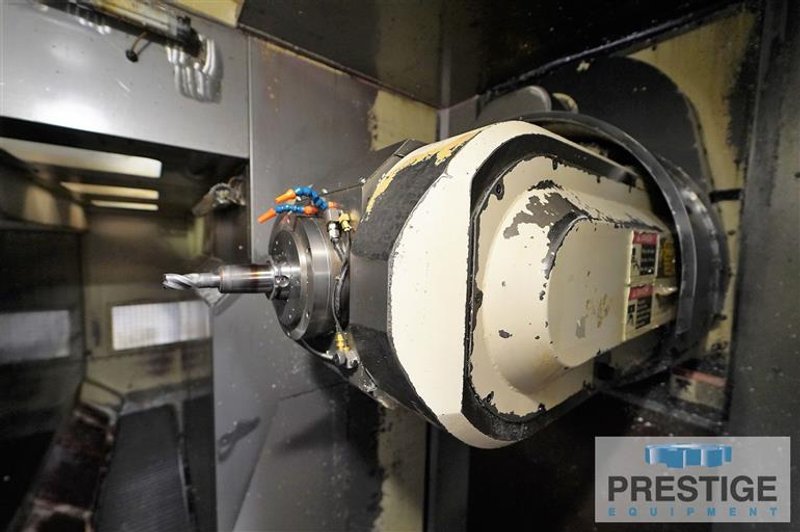

2-Axis Swivel Head
(2) 120" x 48.05" Pallets
2-Station Automatic Pallet Changer

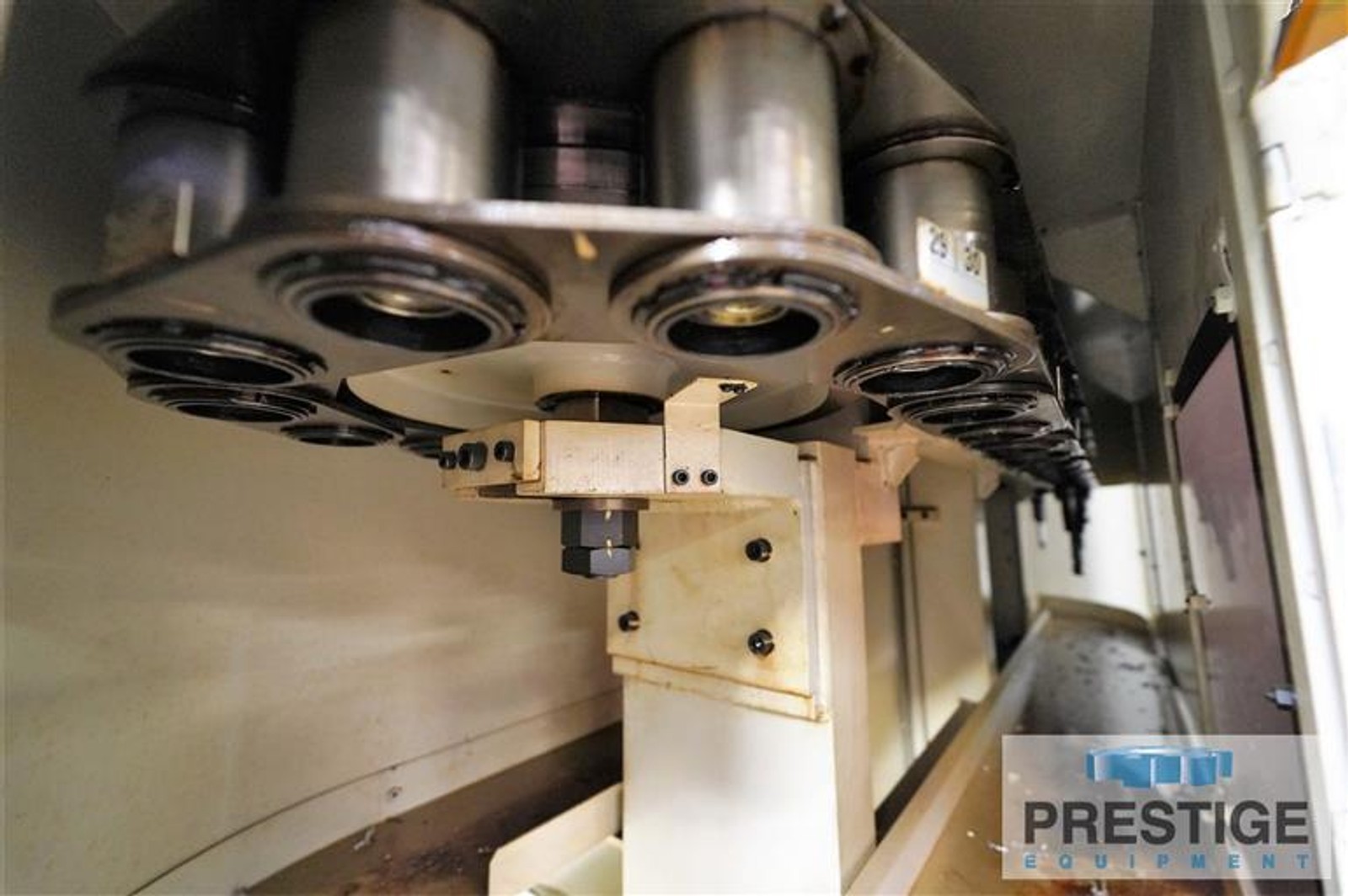

60-Position ATC
Coolant Through Spindle
Brand New Spare Spindle Head

SPECIFICATIONS:
X-Axis Travel ......................... 124.01"
Y-Axis Travel ......................... 51.96"
Z-Axis Travel ......................... 28.03"
A-Axis Spindle Head Tilt .............. +/-90 Degrees
C-Axis Spindle Head Rotation .......... +/-270 Degrees
Spindle Tilt Center To Spindle End .... 11.81"

SPINDLE:
Spindle Speeds ....................... 2000-20,000 RPM
Spindle Nose ......................... HSK-80A
Spindle Drive Motor .................. 39 HP

TABLE:
Number Of Pallets .................... 2
Pallet Size .......................... 120" x 48.03"
Permissable Workpiece Weight ......... 8800 Lbs.
Table Positioning, Setup ............. Horizontal
Table Positioning, Machining ......... Vertical 90 Degrees

FEED RATES:
Rapid Traverse, X & Z Axes ........... 944.88 IPM
Rapid Traverse, Y-Axis ............... 787.4 IPM
Rapid Traverse, A & C Axes ........... 0-1800 DPM
Cutting Feedrate, XYZ Axes ........... 0.03"-787.4 IPM
Cutting Feedrate, A & C Axes ......... 0-1800 DPM
Table Top to Horizontal Spindle ...... 28.03"

EQUIPPED WITH:
FANUC 15iMA 5-Axis CNC Control
2-Axis Swivel Head
(2) 120" x 48.05" Pallets
2-Station Automatic Pallet Changer
60-Position Automatic Tool Changer
Coolant Through Spindle
Brand New Spare Spindle Head
Full Splash Enclosure

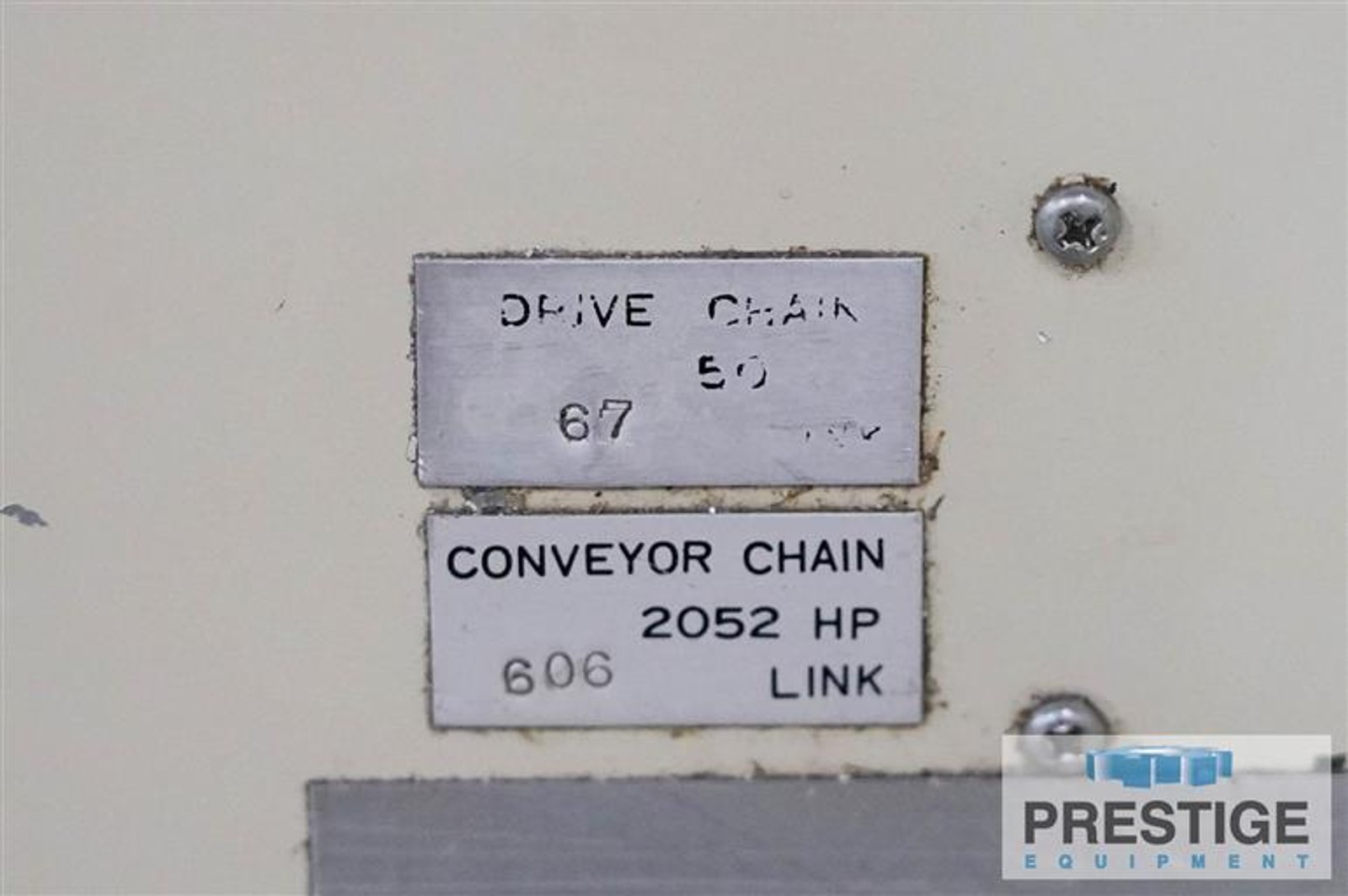

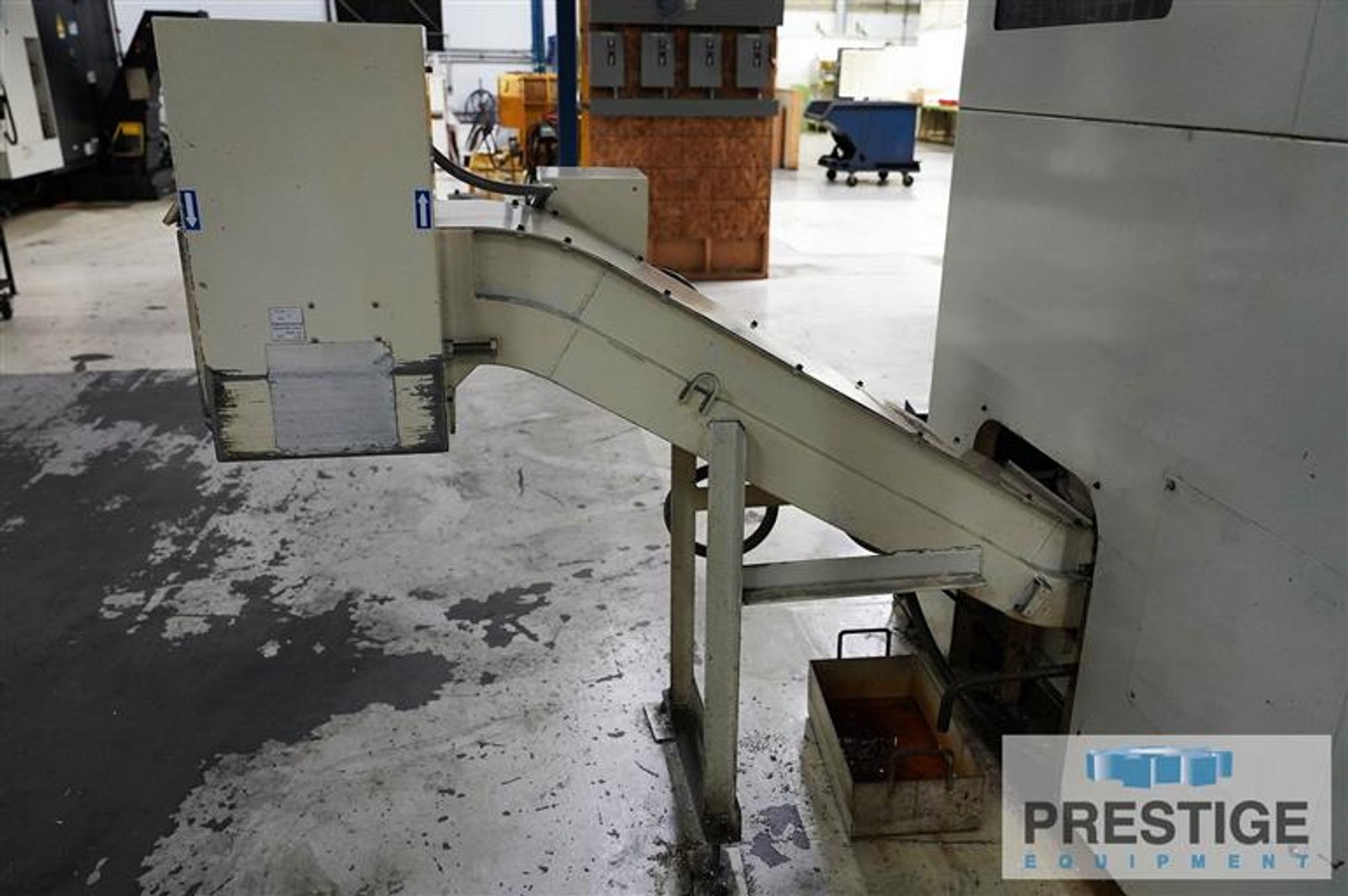

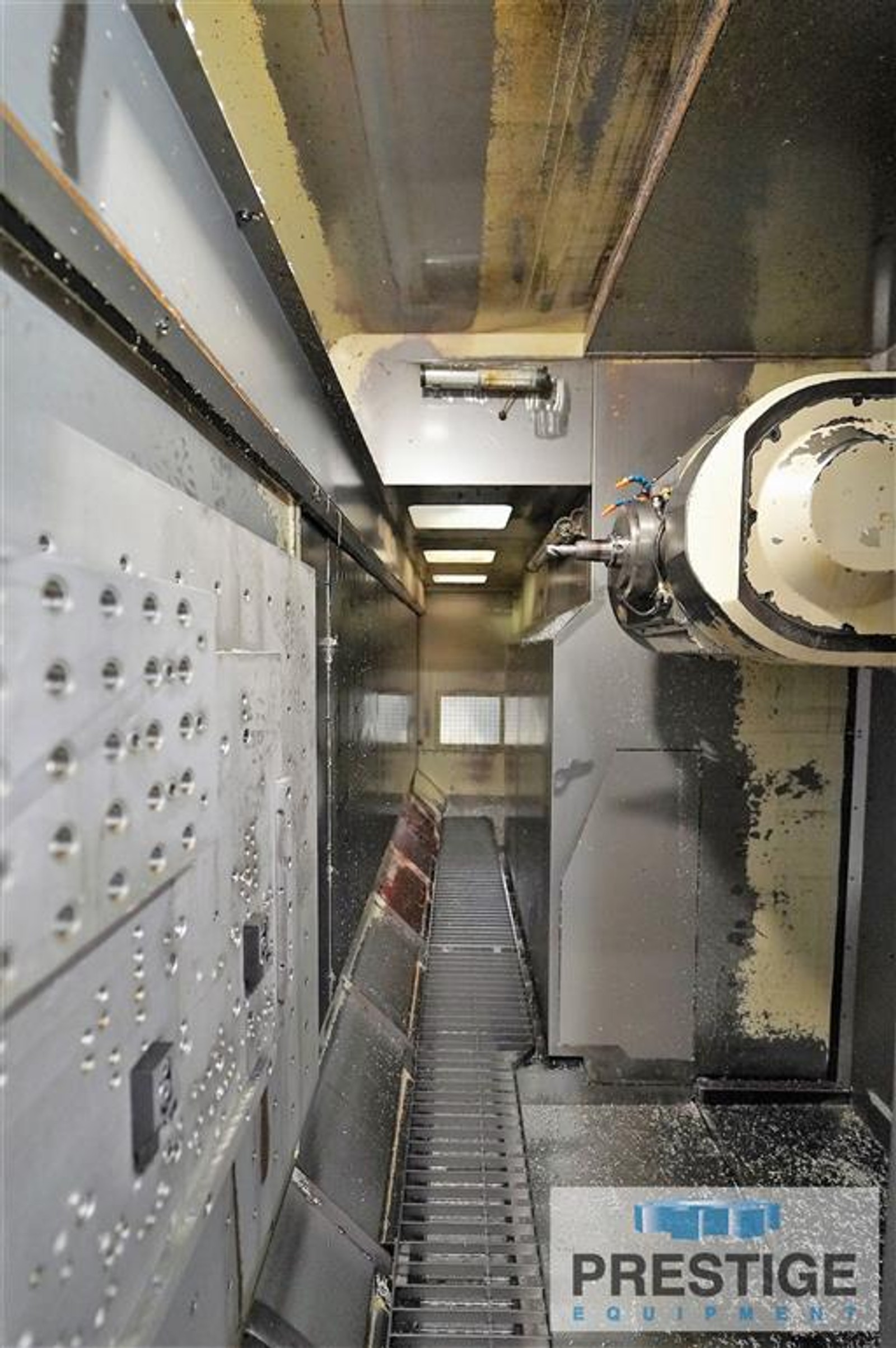

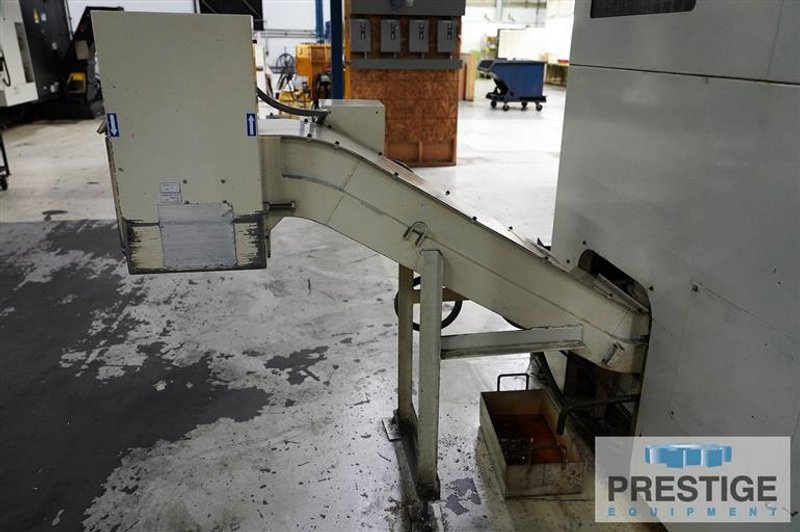

Chip Conveyor

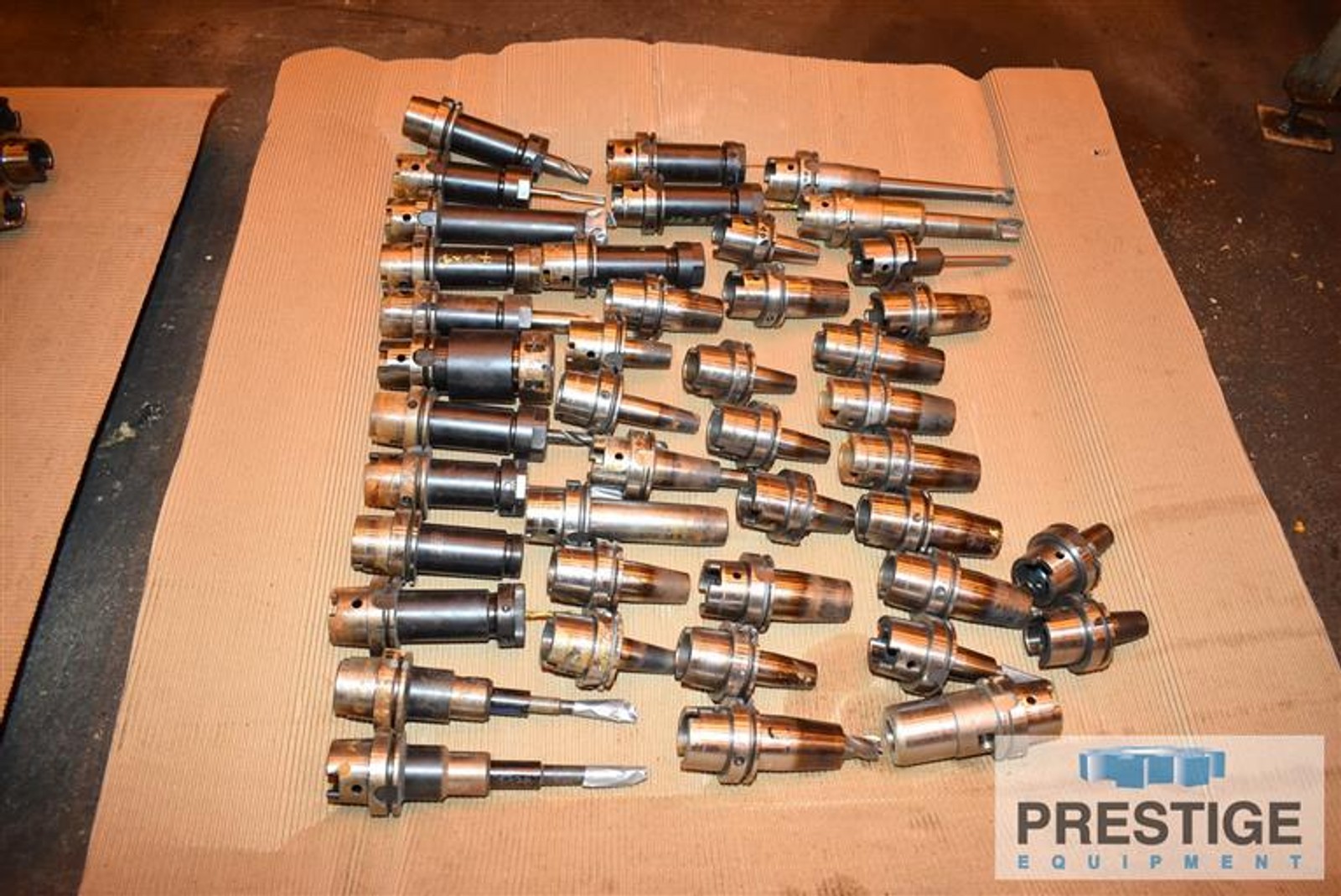

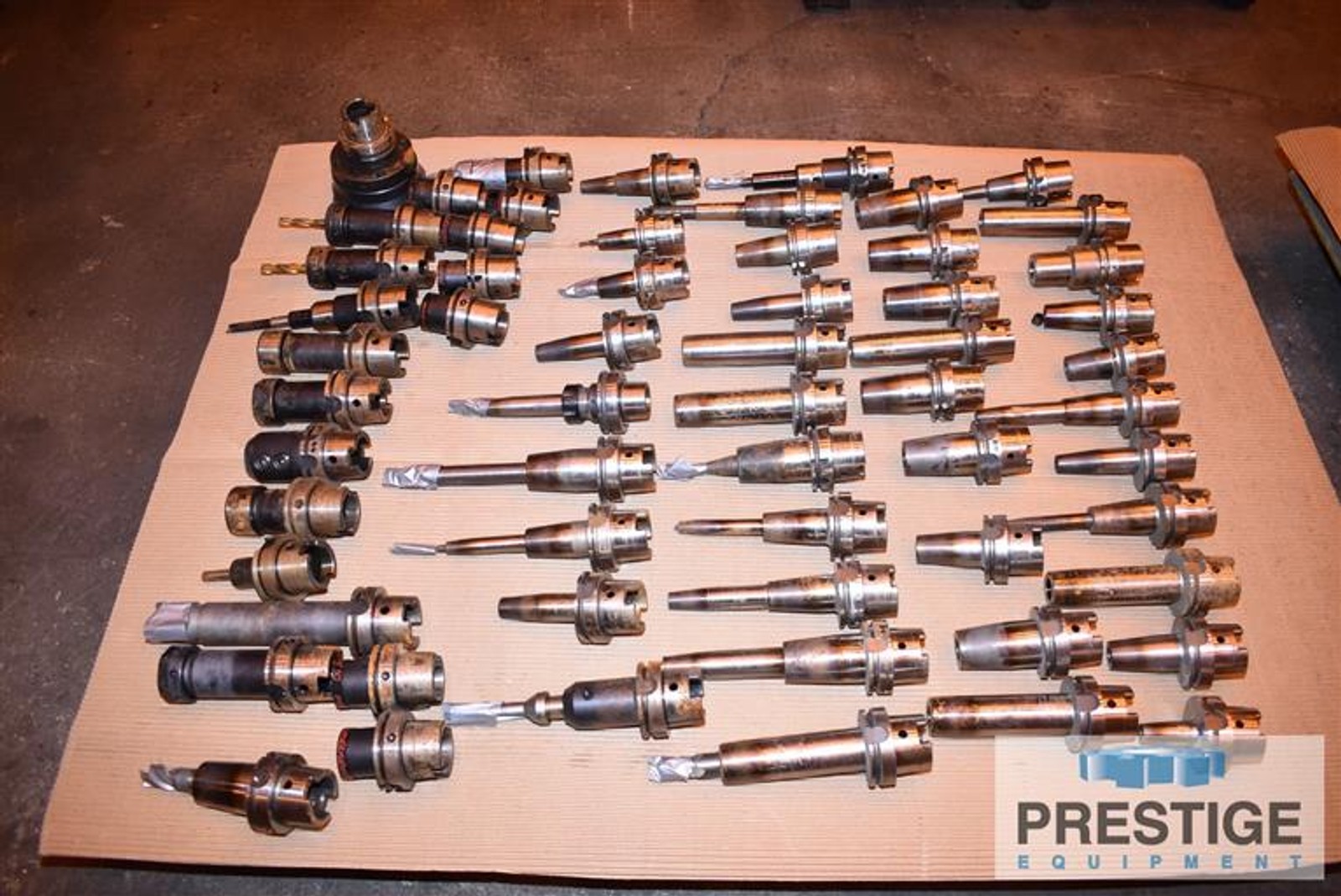

Tooling
