LVD-Strippit Lynx 3015, 5' x 10' 2 KW Fiber Laser, IPG Resonator, Low Hours 2018 #32531

Manufacturer

Strippit/LVD

Category

Laser Cutting

Type

LASERS

Stock

32531

Model

Lynx 3015

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32531

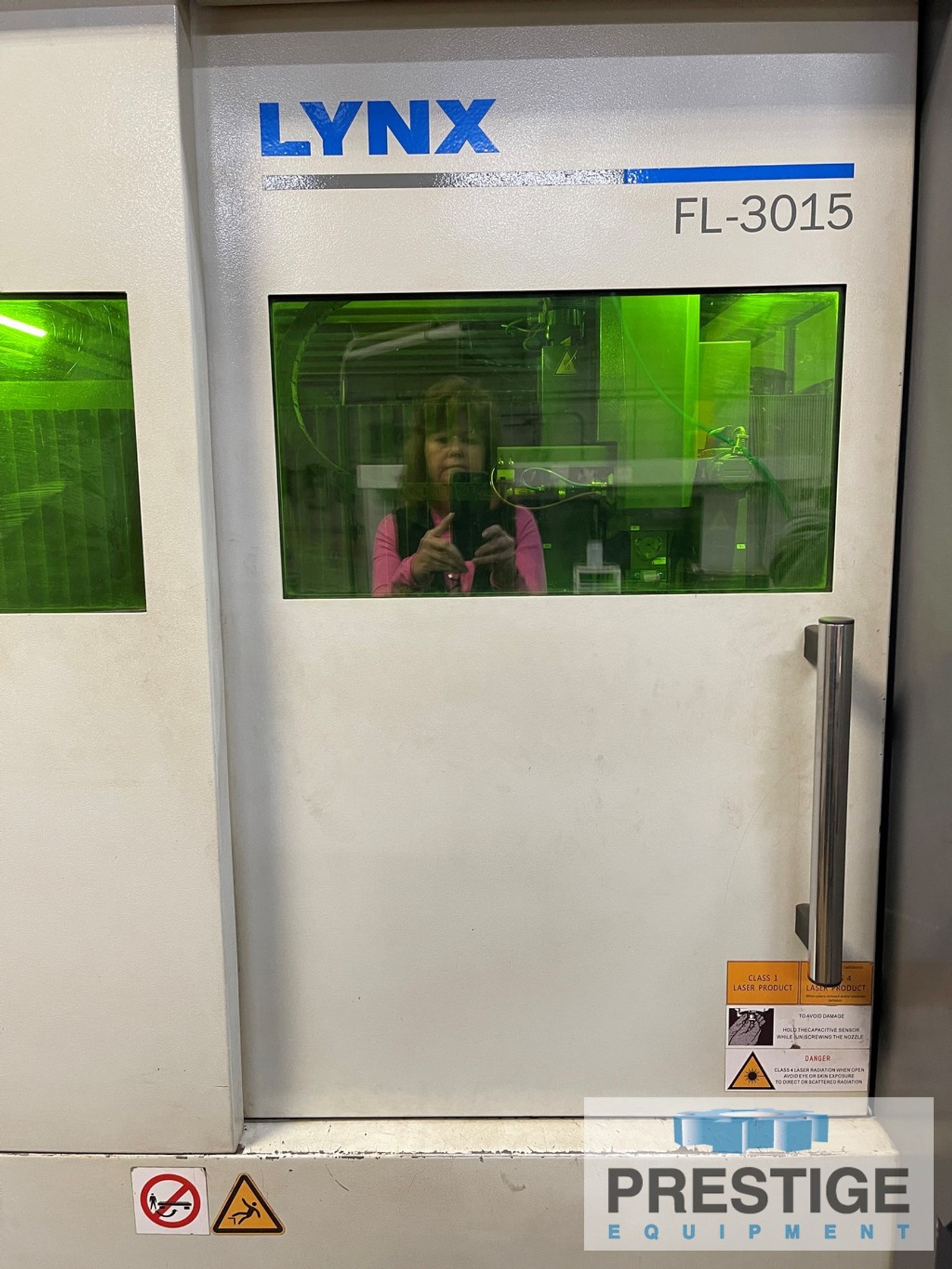

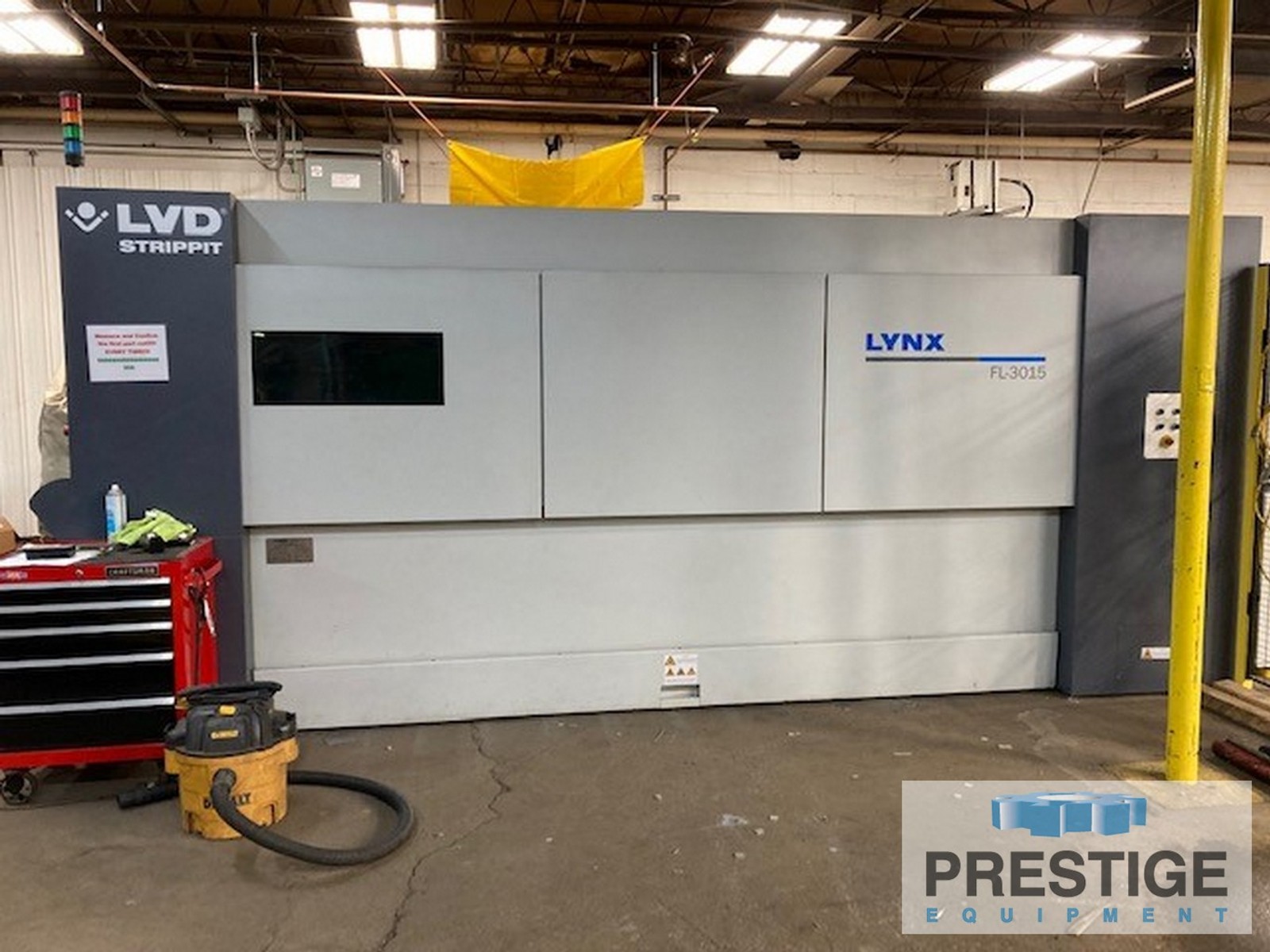

LVD-Strippit Lynx 3015 2 KW Fiber Laser

FEATURES:
IPG 2 KW Laser Resonator
Siemens L-CNC With 15" Touch Screen
Dust Collector

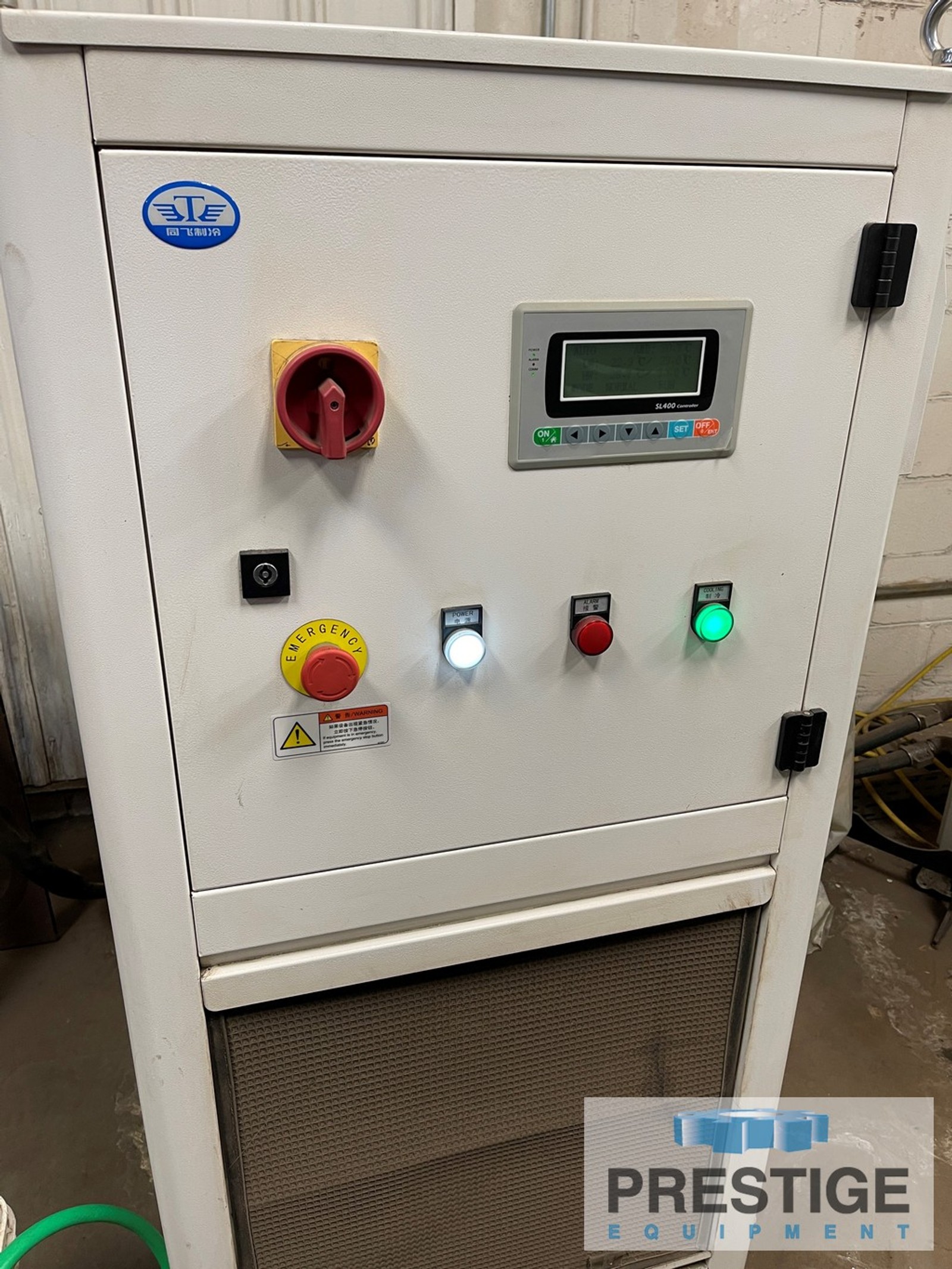

Chiller

CAPACITY:
Laser Output .......................... 2 KW
X-Axis Working Range .................. 120"
Y-Axis Working Range .................. 60"
Max. Material Thickness - Mild Steel .. 1/2"
Max. Material Thickness - Stainless ... 1/4"
Max. Material Thickness - Aluminum .... 5/16"
Maximum Sheet Weight on Table ......... 1,598 Lbs.
Approximate Overall Dimensions......... 35' x 20' x 8'
Approximate Weight .................... 27,558 Lbs.

EQUIPPED WITH:

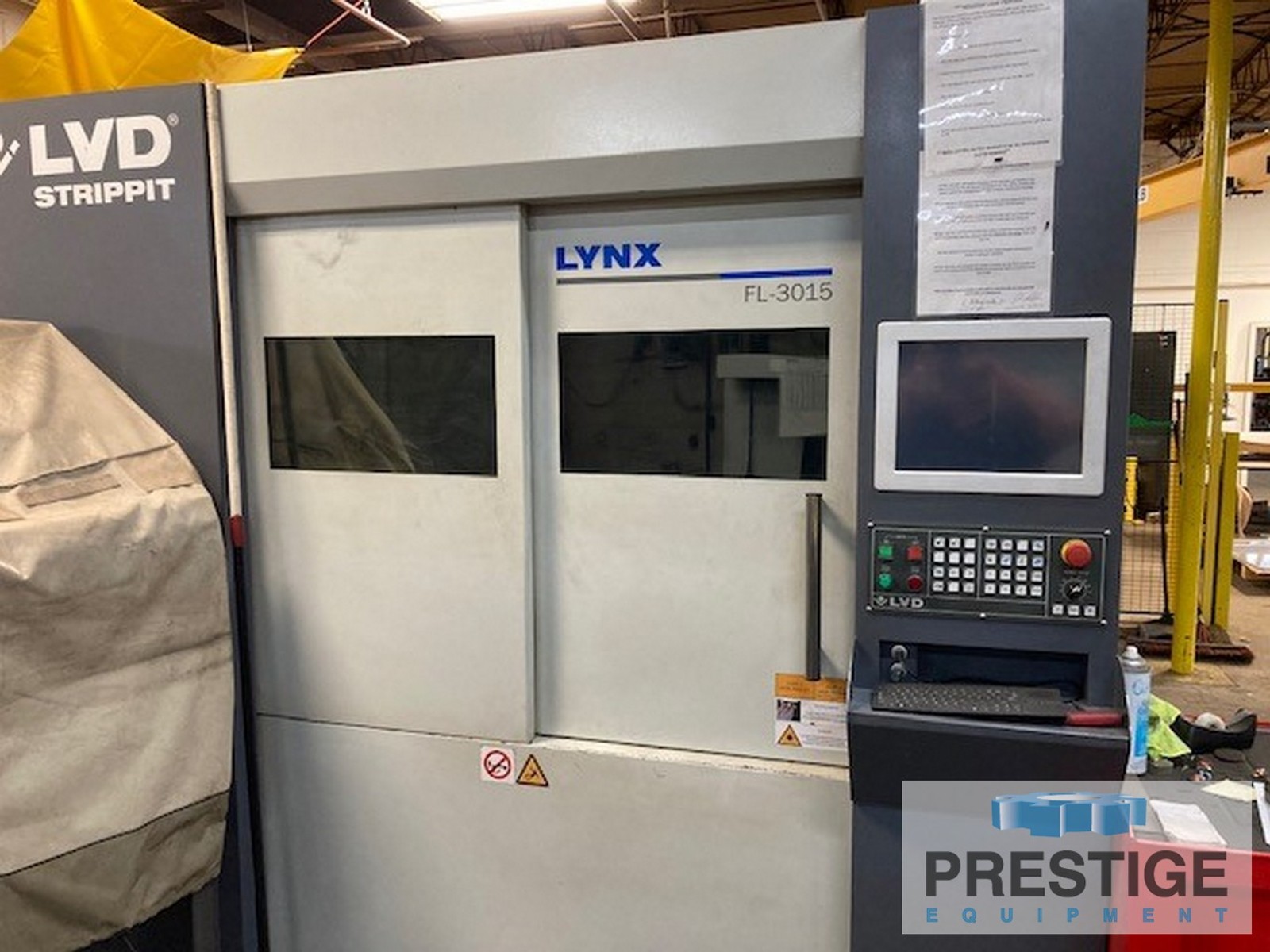

Siemens L-CNC With 15" Touch Screen
Control memory capacity: 1 GB RAM 2 X 4 GB Flash

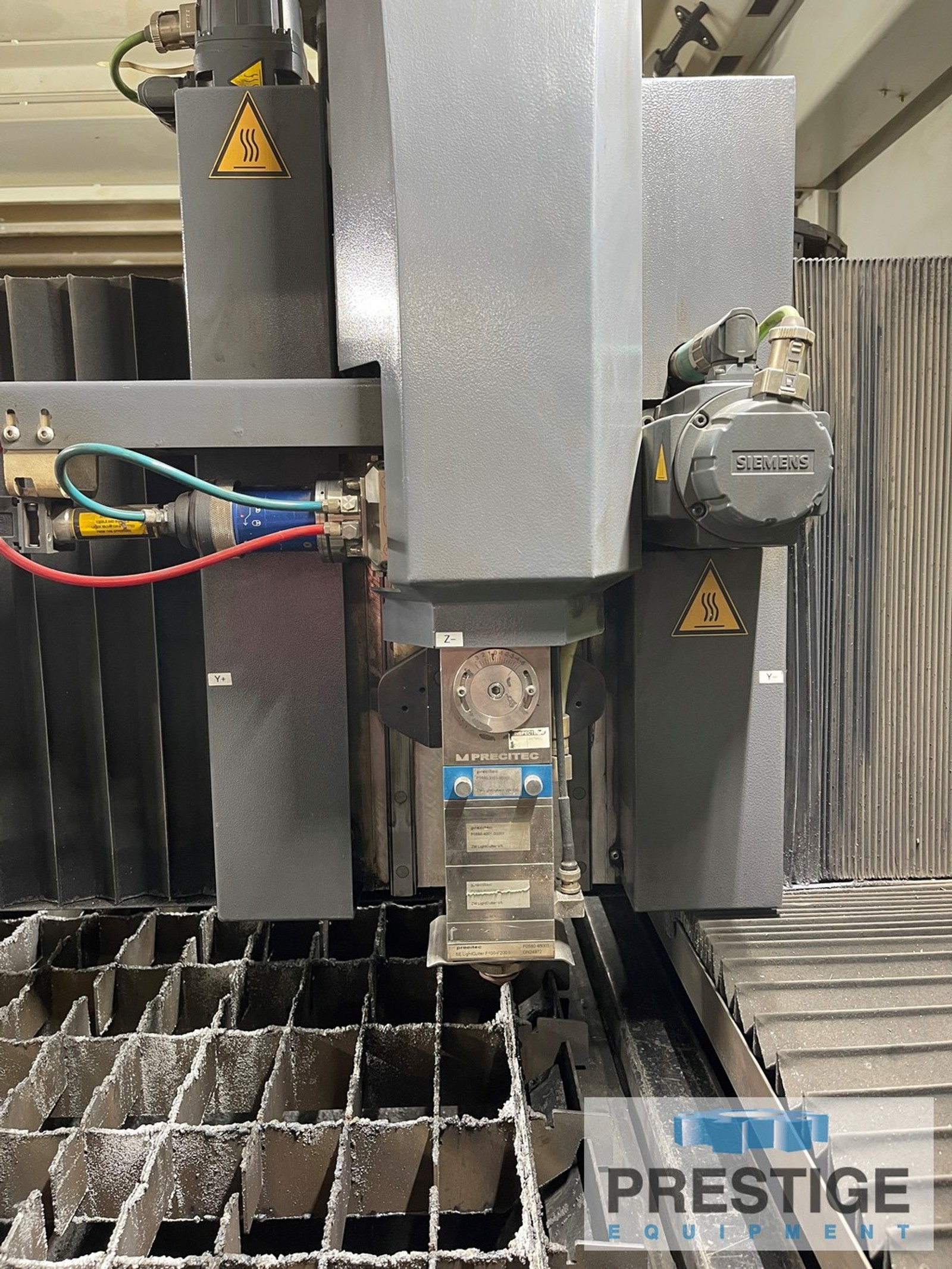

Manual focus cutting head Precitec light cutter with 200 mm lens
Manual safety door and enclosure

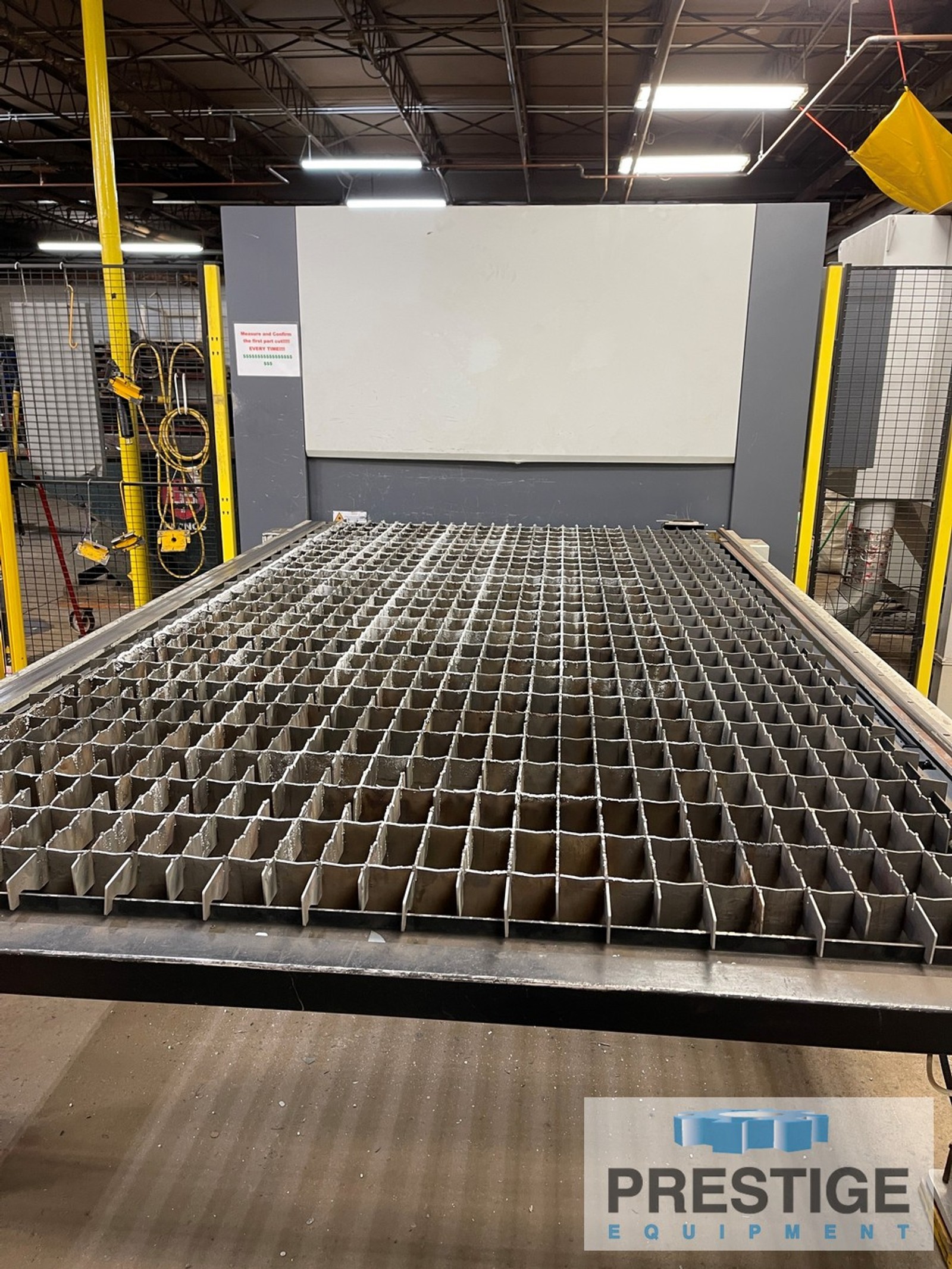

Dual Pallet Changer
Chiller

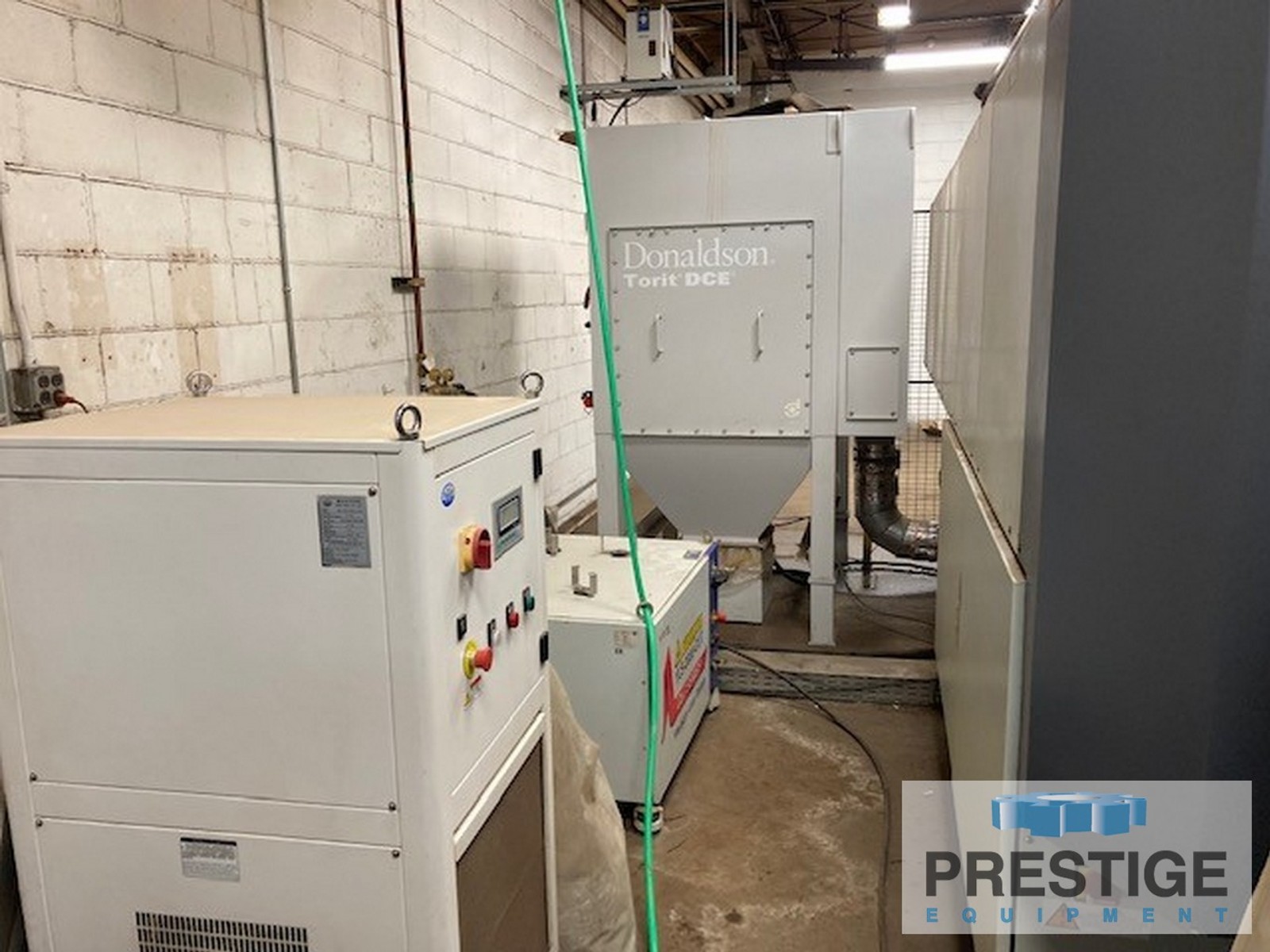

Dust Collector
(1) 10lb Firetrace ABC Dry Chemical suppression system for Torit 2-4 unit

NOTE:
Current Laser Operating Hours: 3,300
Inspect In Plant Under Power
