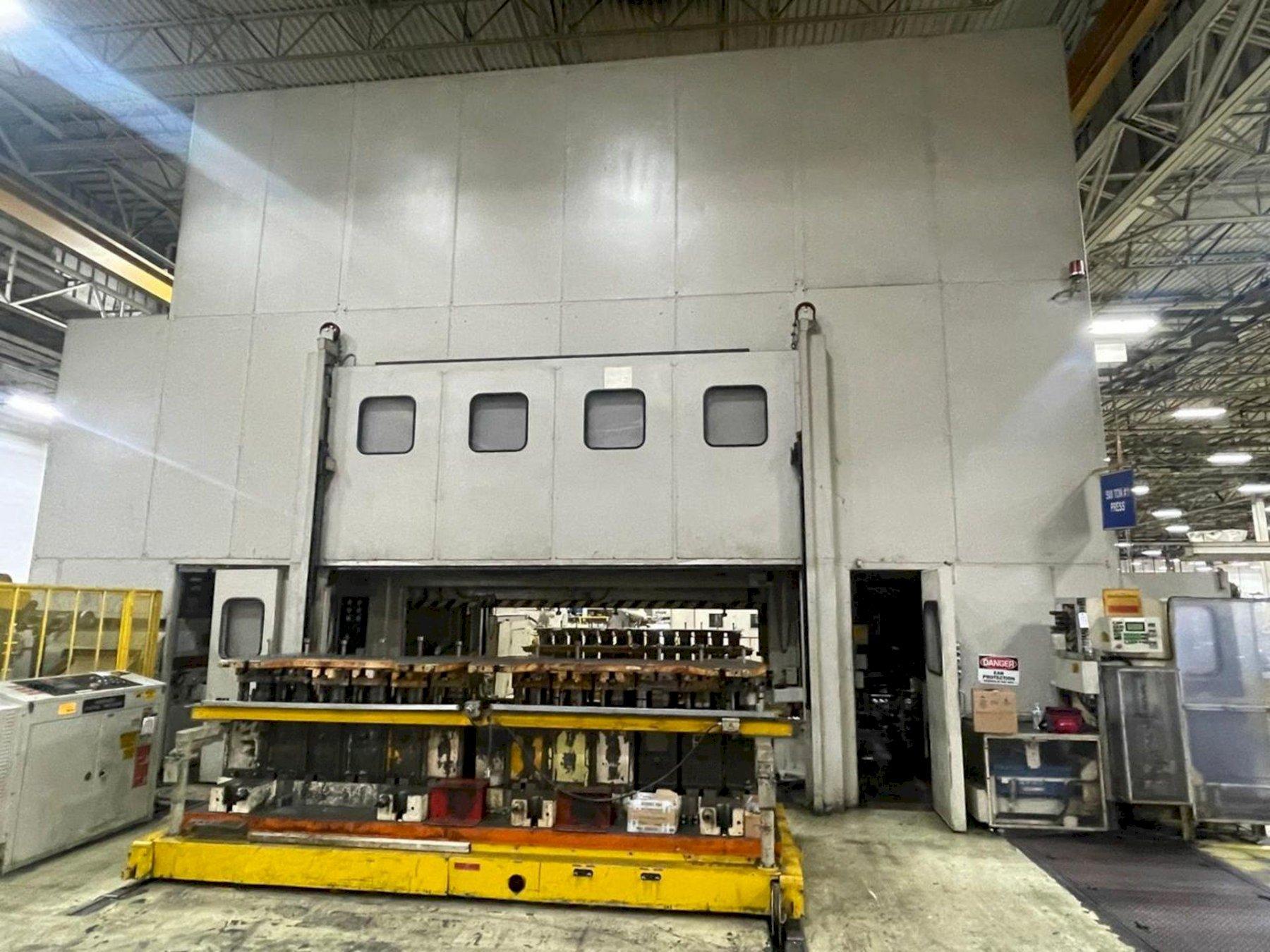

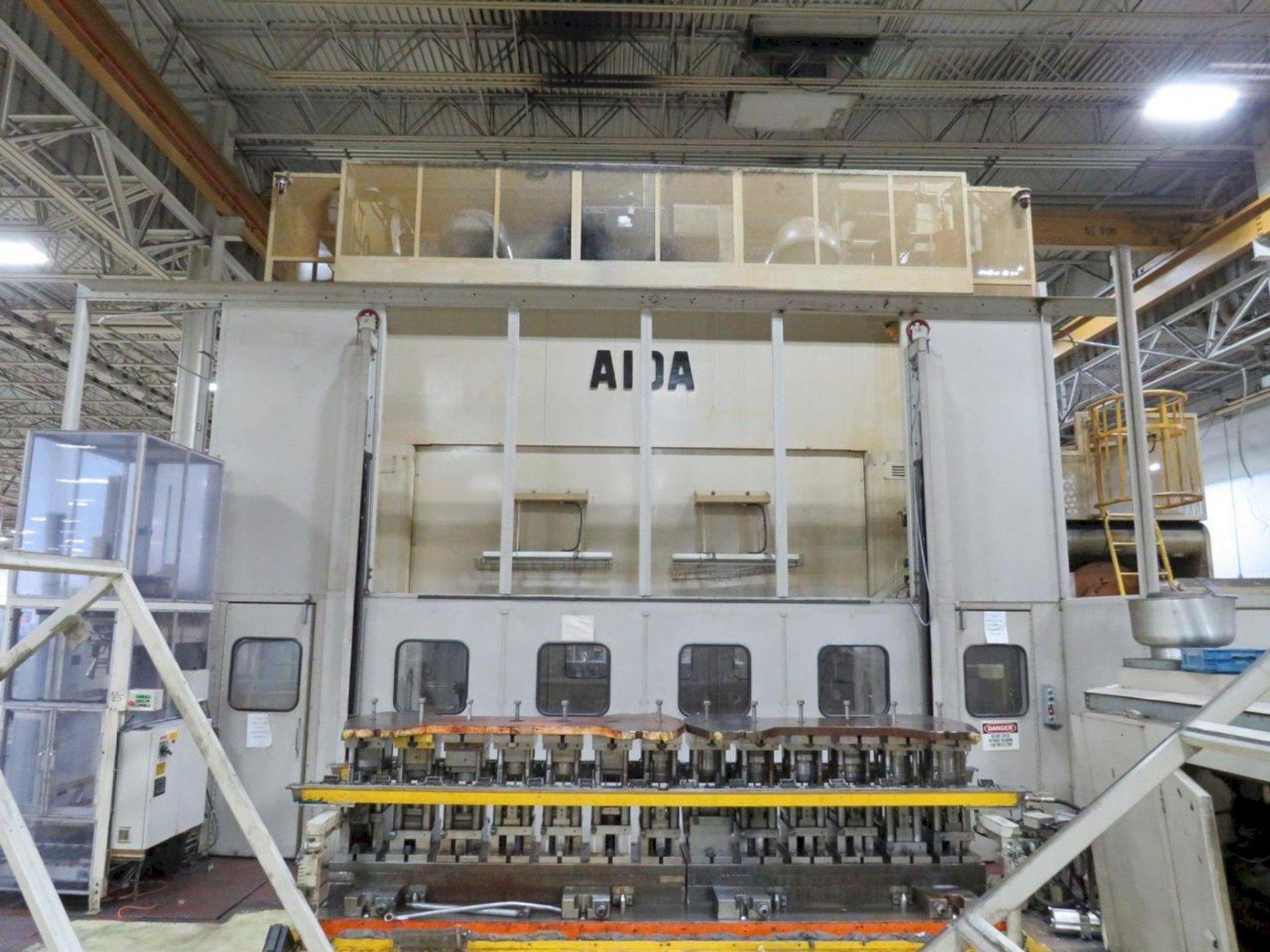

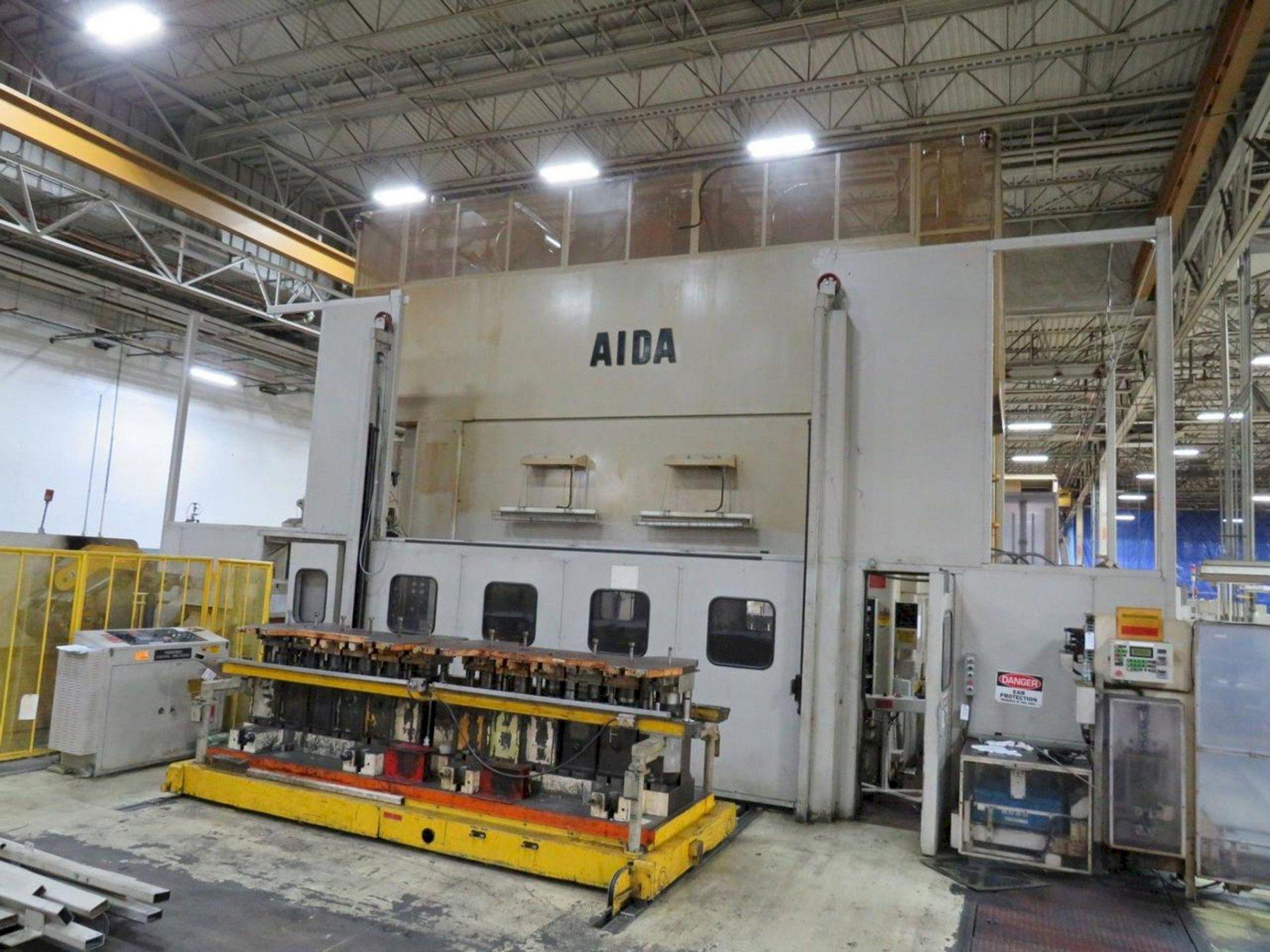

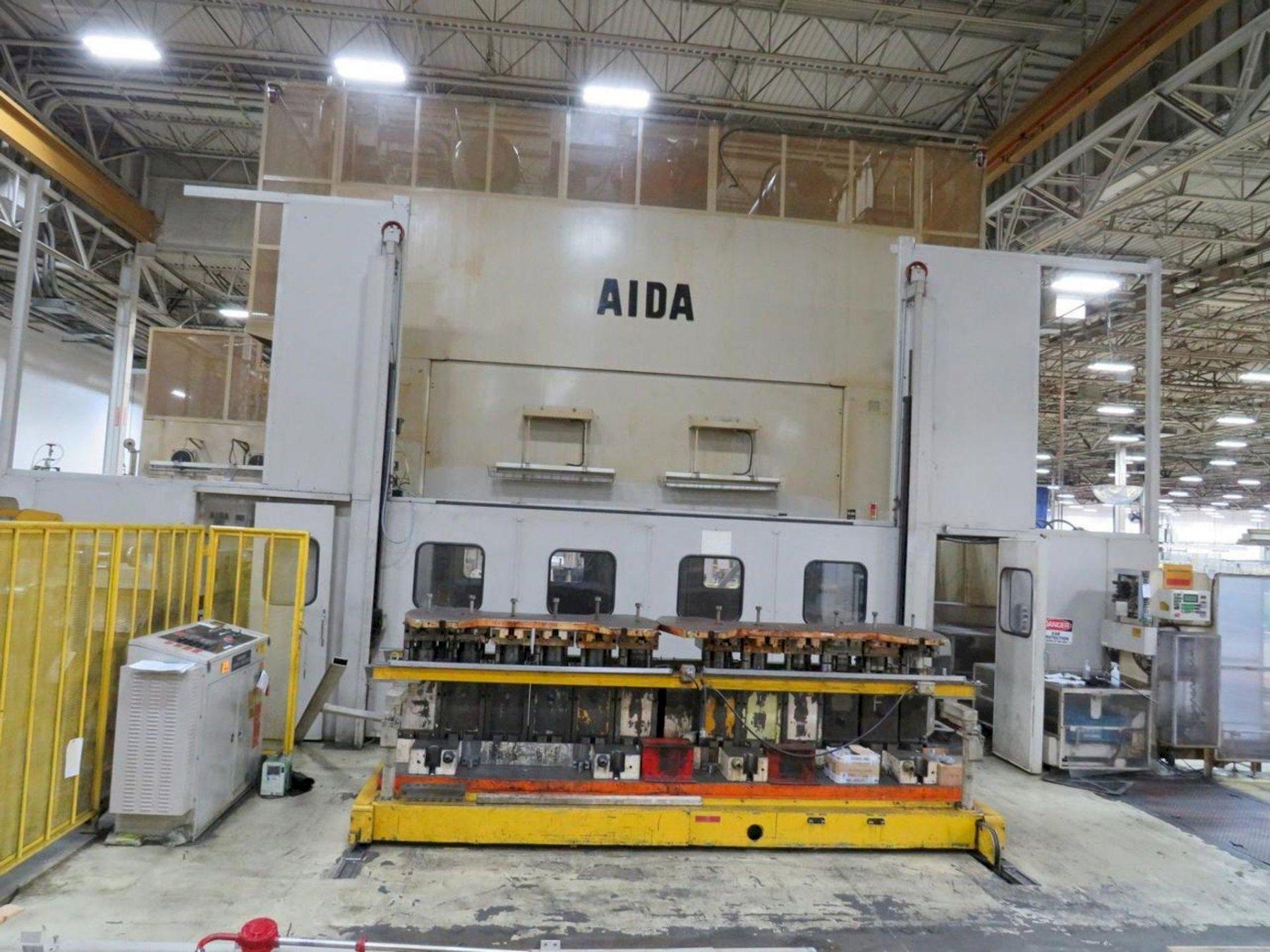

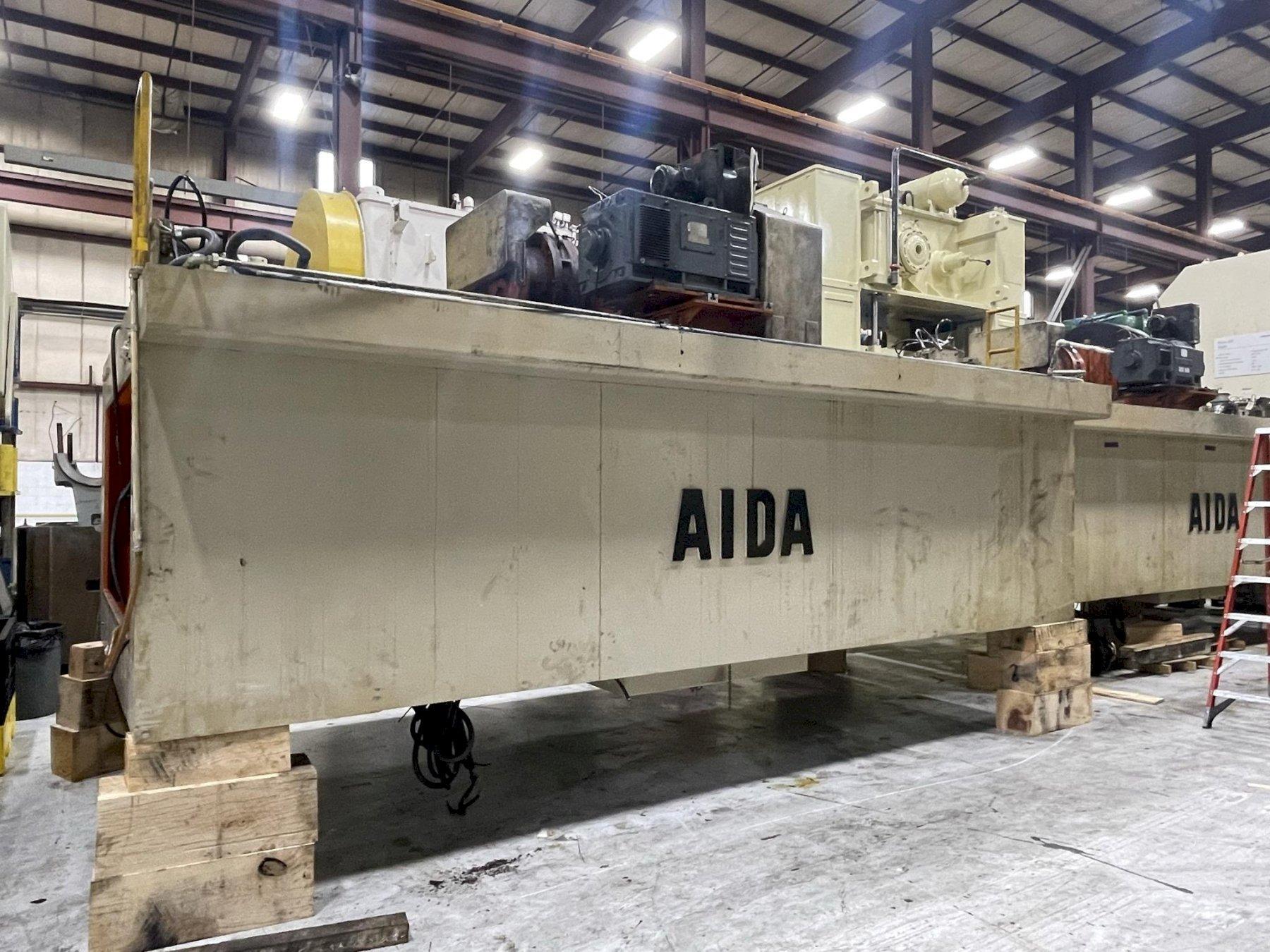

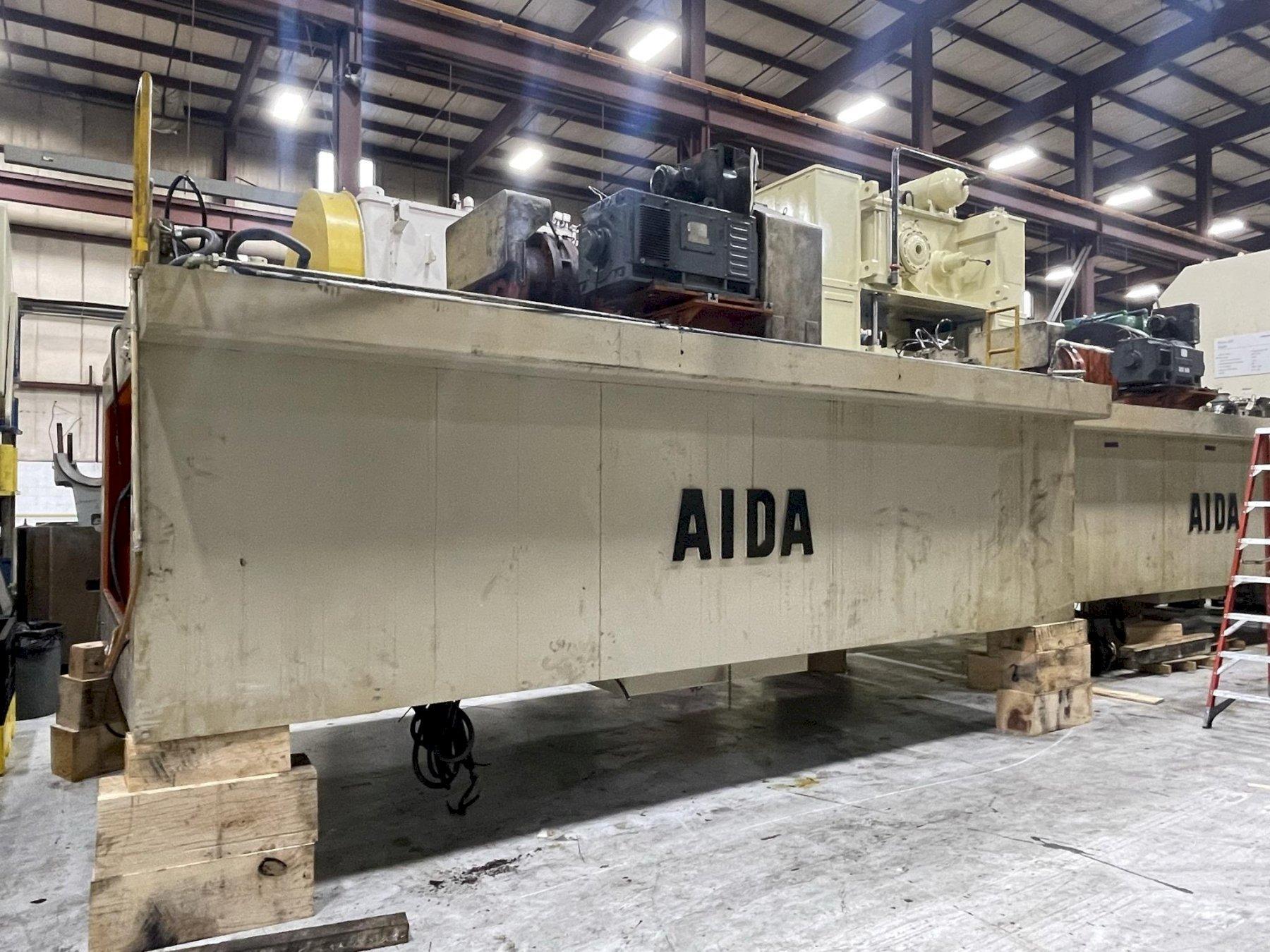

500 metric Ton Aida TMX-S2 Straight Side Double Crank Mechanical Progressive Die Metal Stamping

Stock

2826

Model

TMX-S2-500

Dealer Location

Michigan

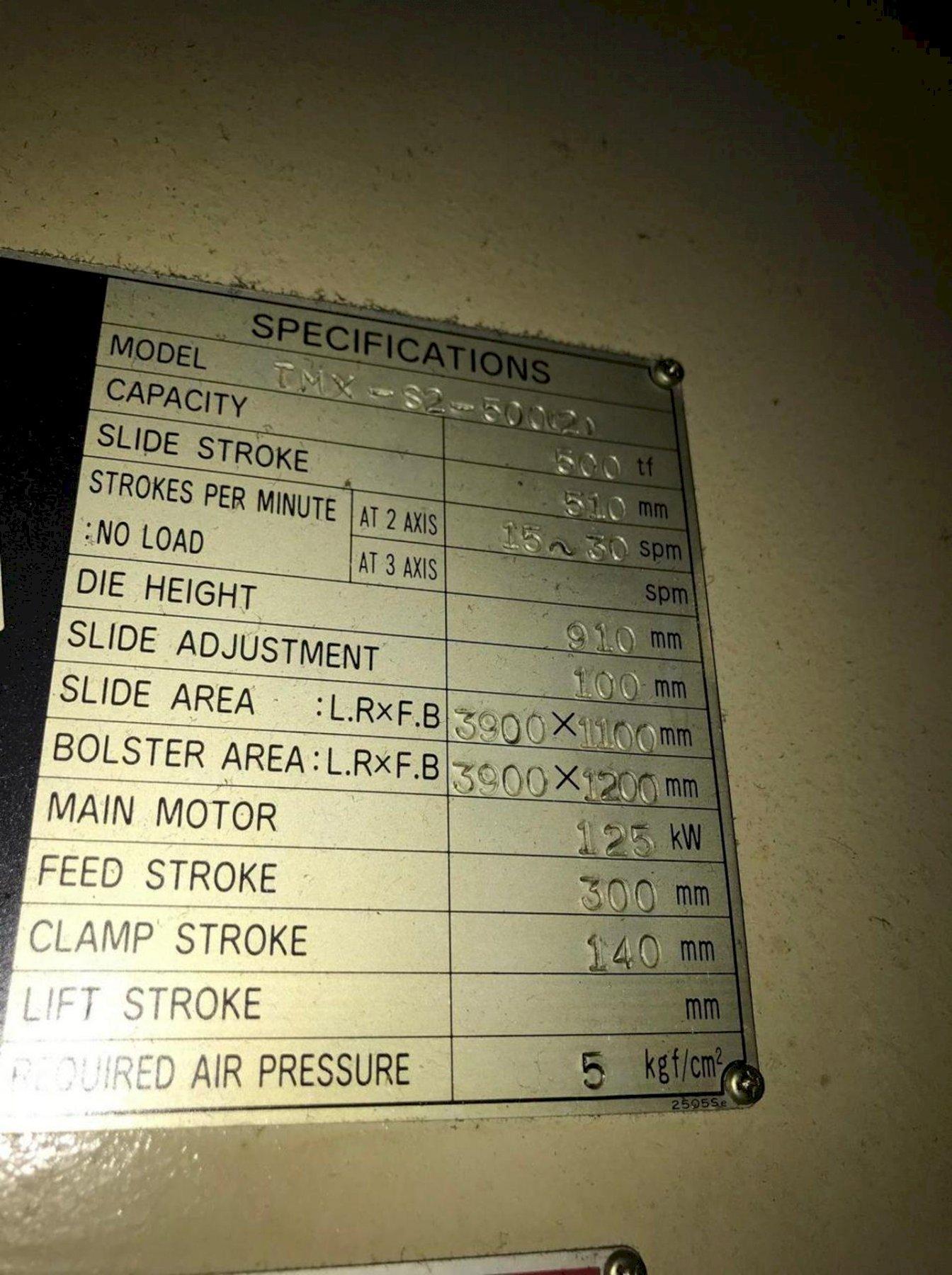

Spec Sheet

Tonnage - 500
Stroke - 20 inches
Shut Height - 45 inches
Adjustment - 3.93 inches
Bed Size - 153.5" LR x 47.3" FB Bed Area
Ram Area - 153.5" LR x 43.3" FB Slide Area
SPM - 15-30 VSPM


Standard Specifications
Used Aida Mechanical Straight Side Press
Aida Press Model TMX-S2-500
500 metric Ton Capacity
20" Stroke
35.82" Die Height on Bolster
46" Shut Height on Bed
3.93" Motorized Adjustment
153.5" LR x 47.3" FB Bed Area
153.5" LR x 43.3" FB Slide Area
15-30 VSPM

Equipment and Features
Hydraulic Clutch and Brake
Hydraulic Overloads
Air Counterbalances
59.5" Wide Windows
Recirculating Lube System

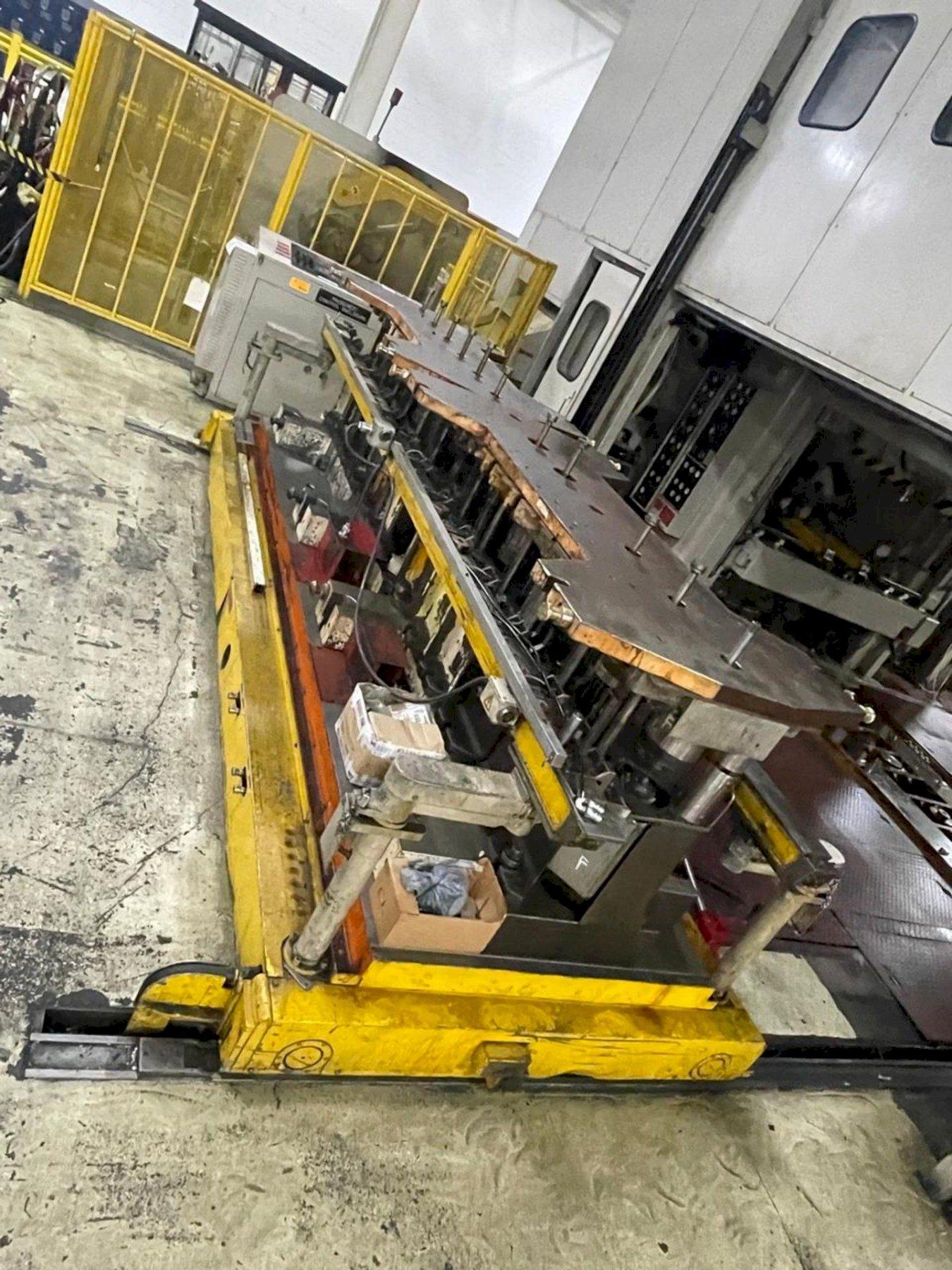

Dual Rolling Bolster
Die Cushions
Free Standing Console Control

This Used Aida Mechanical Straight Side 550-ton Capacity Press can be inspected in our Livonia Michigan Warehouse!
