5.9" TOSHIBA BP-150.R22 , 60 ATC, X-160", Y-100", B-Axis Rotary Table, TSC, 2500 RPM, Tosnuc 999, 2014, #32498

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32498

Model

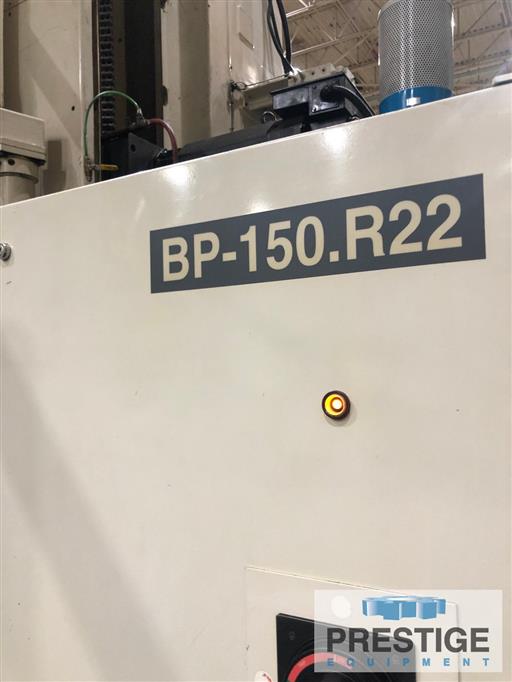

BP-150.R22

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32498

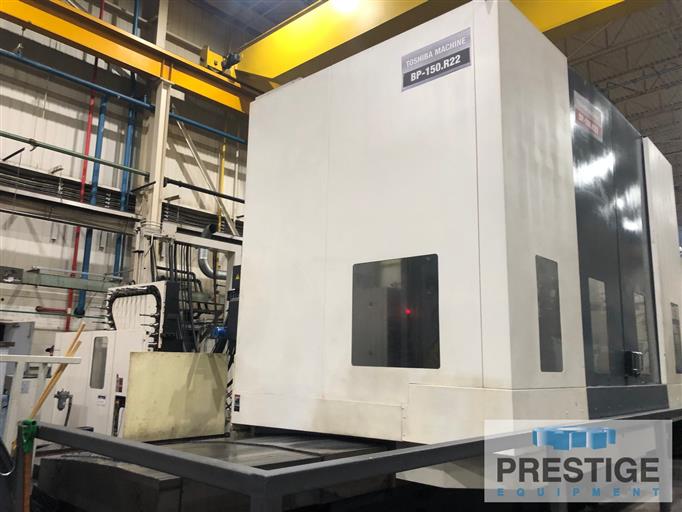

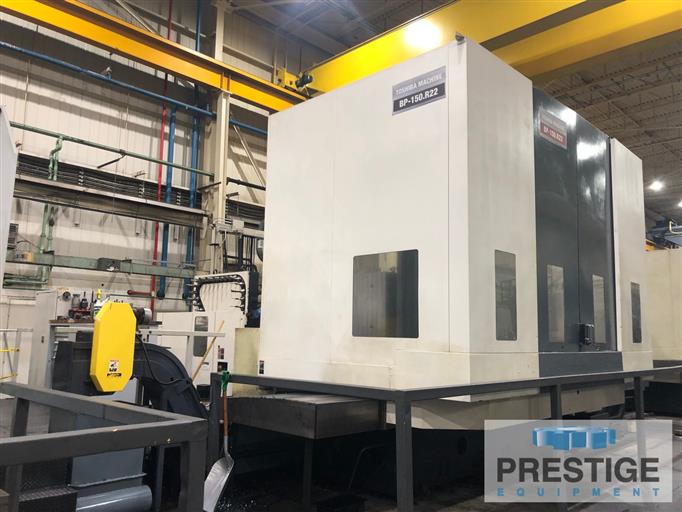

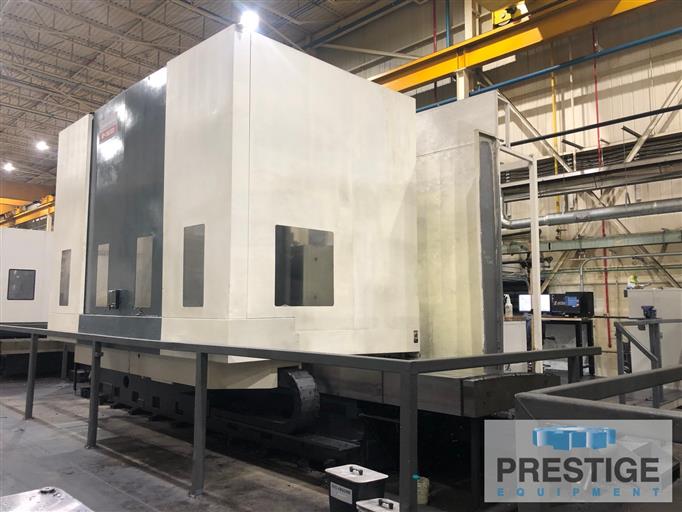

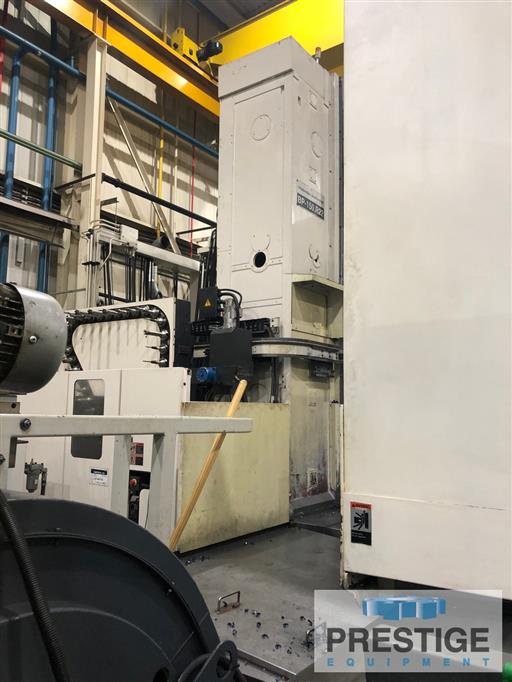

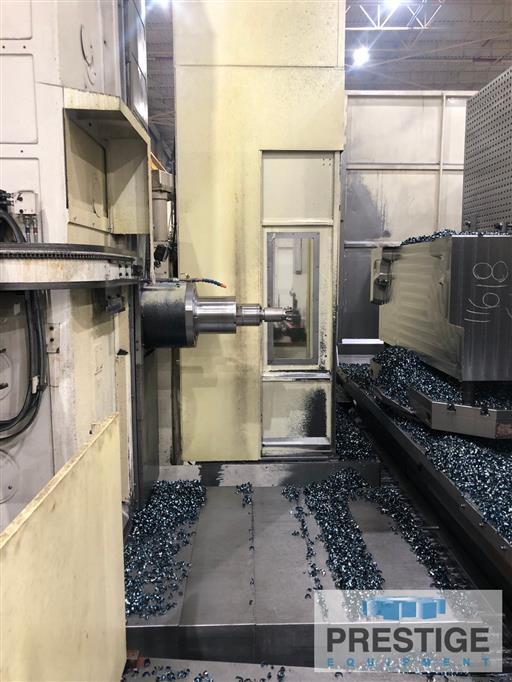

Toshiba BP-150.R22 5.9" CNC Table Type Boring Mill

FEATURES:

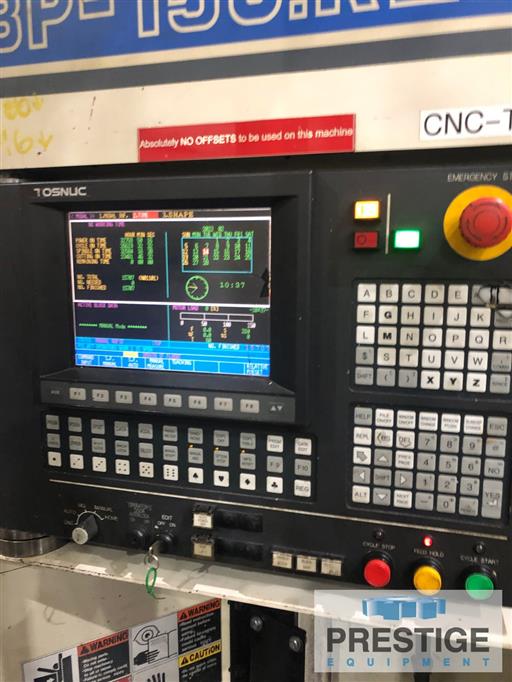

Tosnuc 999 CNC Control w/ 1200M of Part Program Storage
60-Station Automatic Tool Changer
Thru Spindle Coolant
Air Blow
Full Chip & Splash Enclosure
Chip Conveyor
40/30 HP Spindle Motor

CAPACITY:

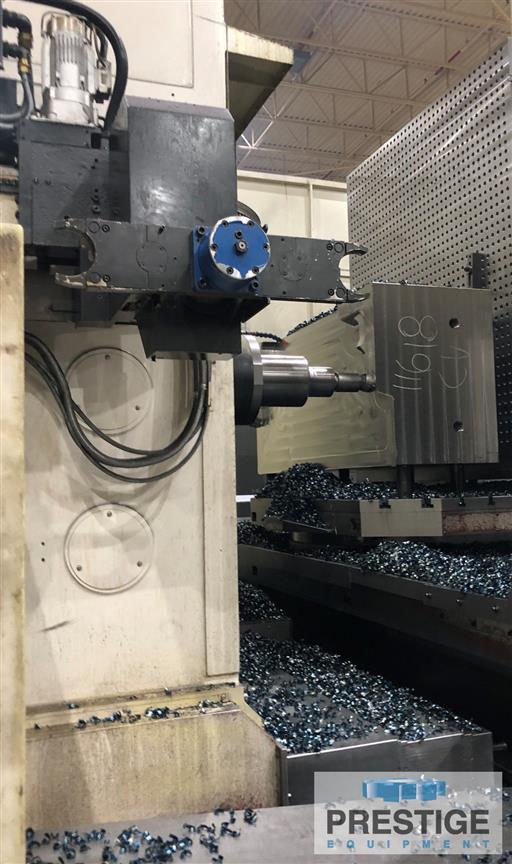

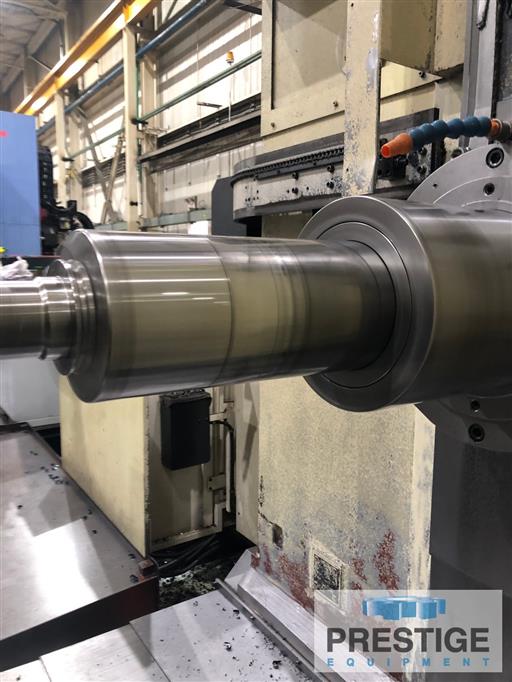

Spindle Diameter ...................... 5.9"
Taper In Spindle ...................... CAT #50
Vertical Travel, Y-Axis ............... 100"
Cross Travel, X-Axis .................. 160"
Spindle Travel, Z-Axis ................ 28"
Column Travel, W-Axis ................. 60"
Table Size (Built In B-Axis) .......... 86.6" x 70.8"
Table Load Capacity ................... 44,000 lbs
Table Indexing B-Axis ................. 0.001 Degree
Spindle Speeds (3-Ranges) ............. 5-2500 RPM

EQUIPPED WITH:
Tosnuc 999 CNC Control w/ 1200M of Part Program Storage
60-Station Automatic Tool Changer
Thru Spindle Coolant
Air Blow
Full Chip & Splash Enclosure
Chip Conveyor
40/30 HP Spindle Motor
