180 Ton Piranha , 161" OA, 141" BH, Delem DA-66T 6-Axis CNC, Crowning, Sheet Supports, Brand New, #32511

Manufacturer

PIRANHA

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

32511

Model

180-13

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32511

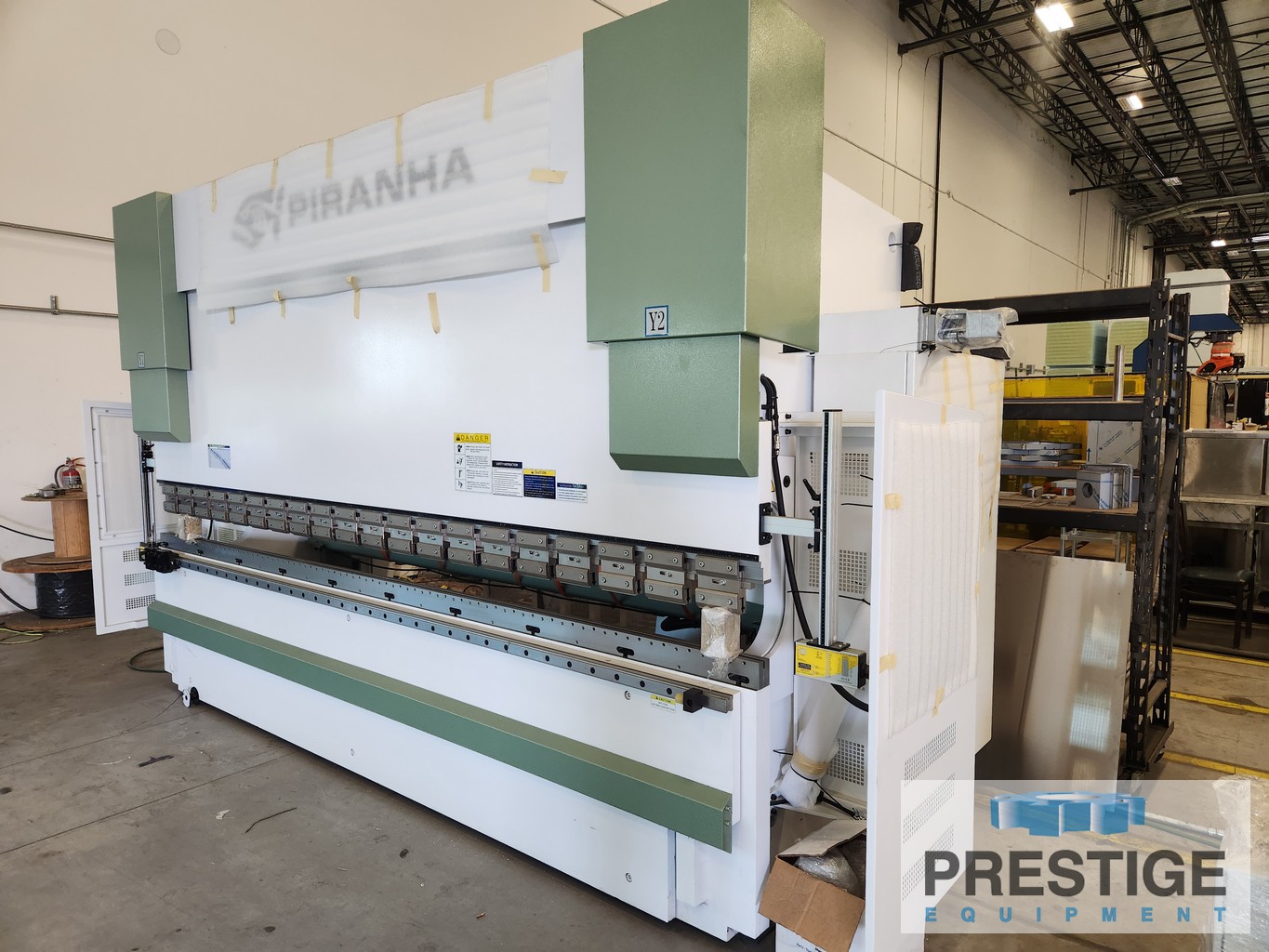

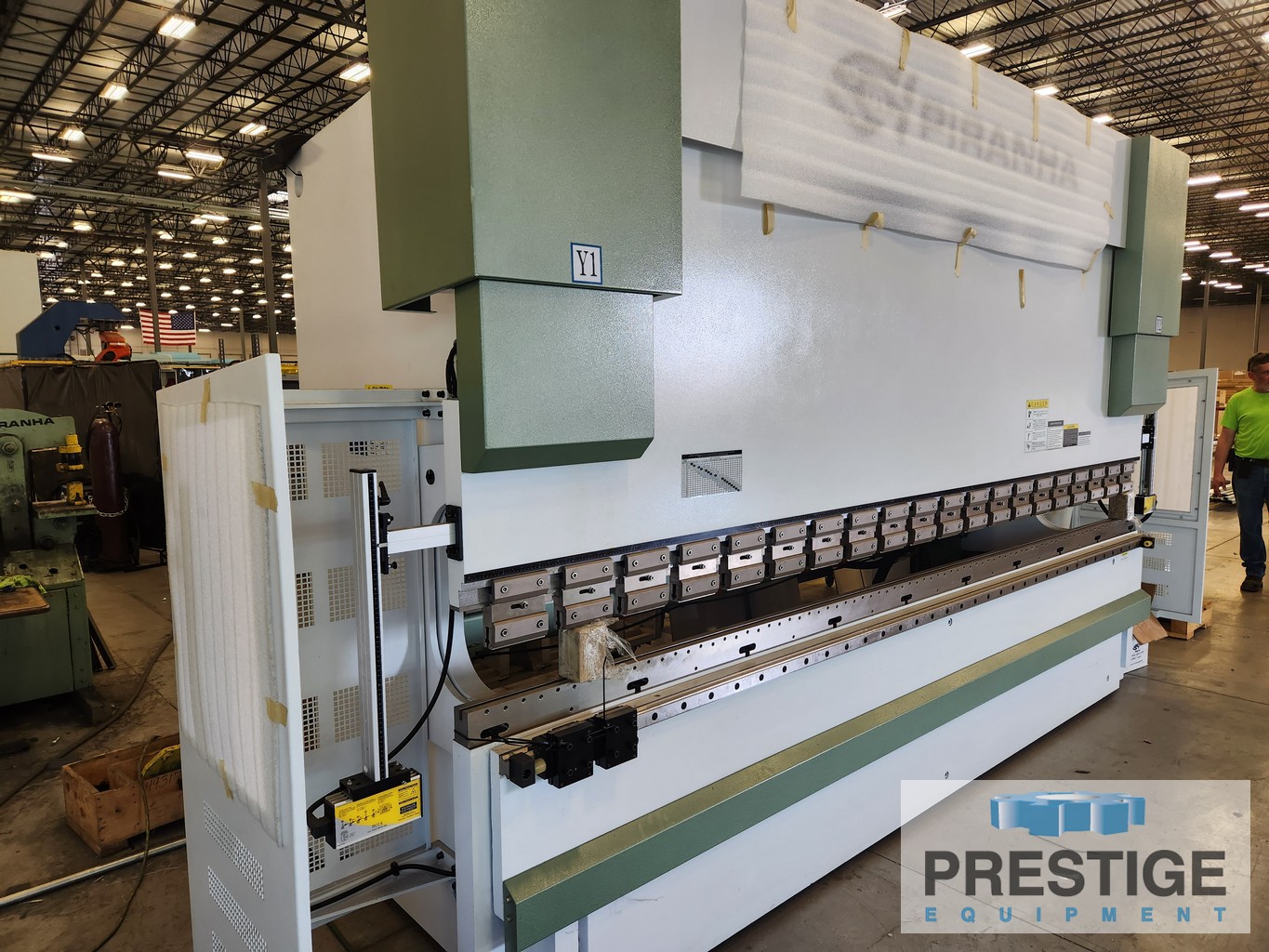

180 Ton x 13' Piranha 6-Axis CNC Hydraulic Press Brake

FEATURES:
Delem DA-66T 6-Axis CNC Control

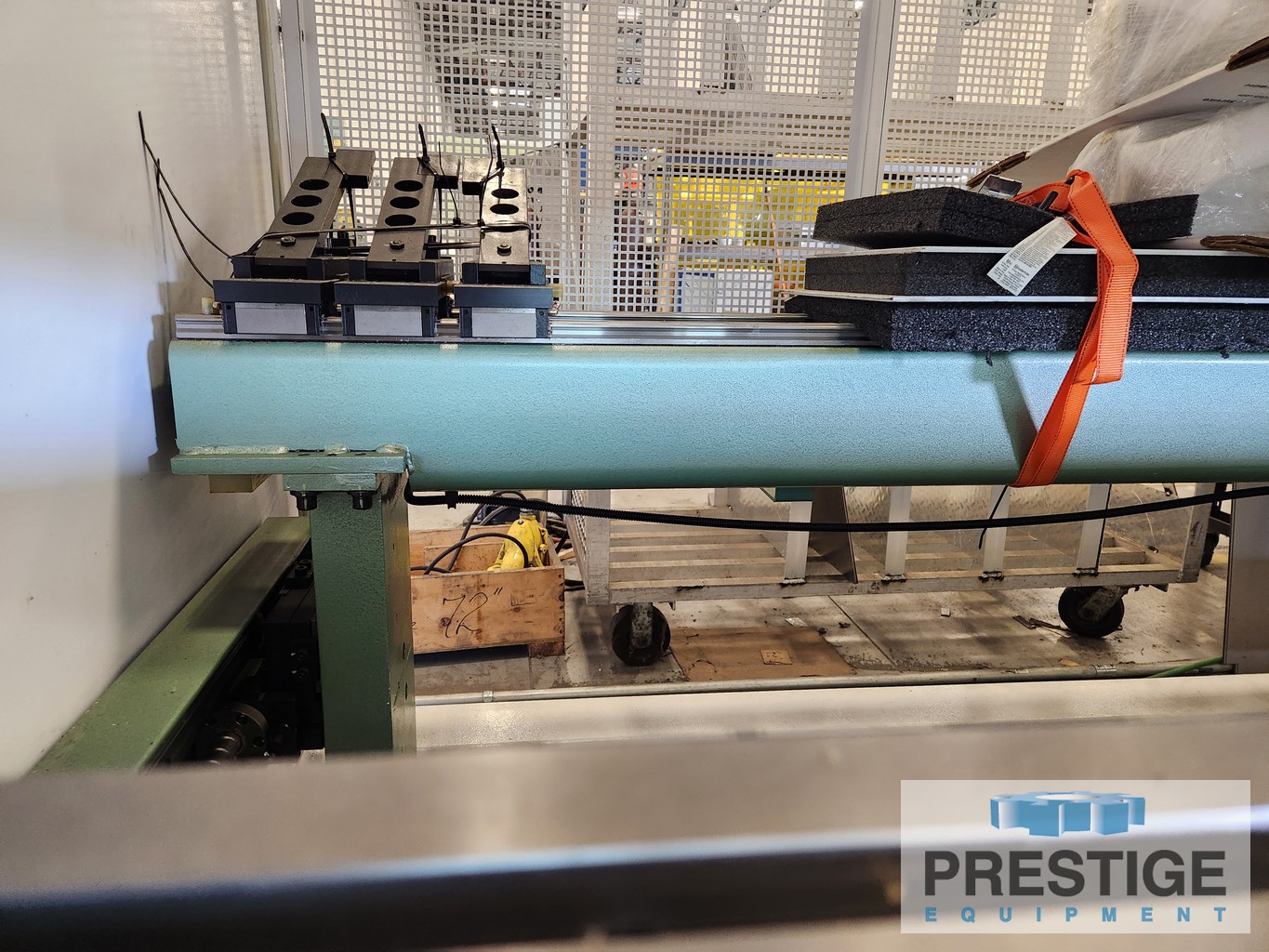

4-Axis CNC Back Gauge (X,R,Z1,Z2)

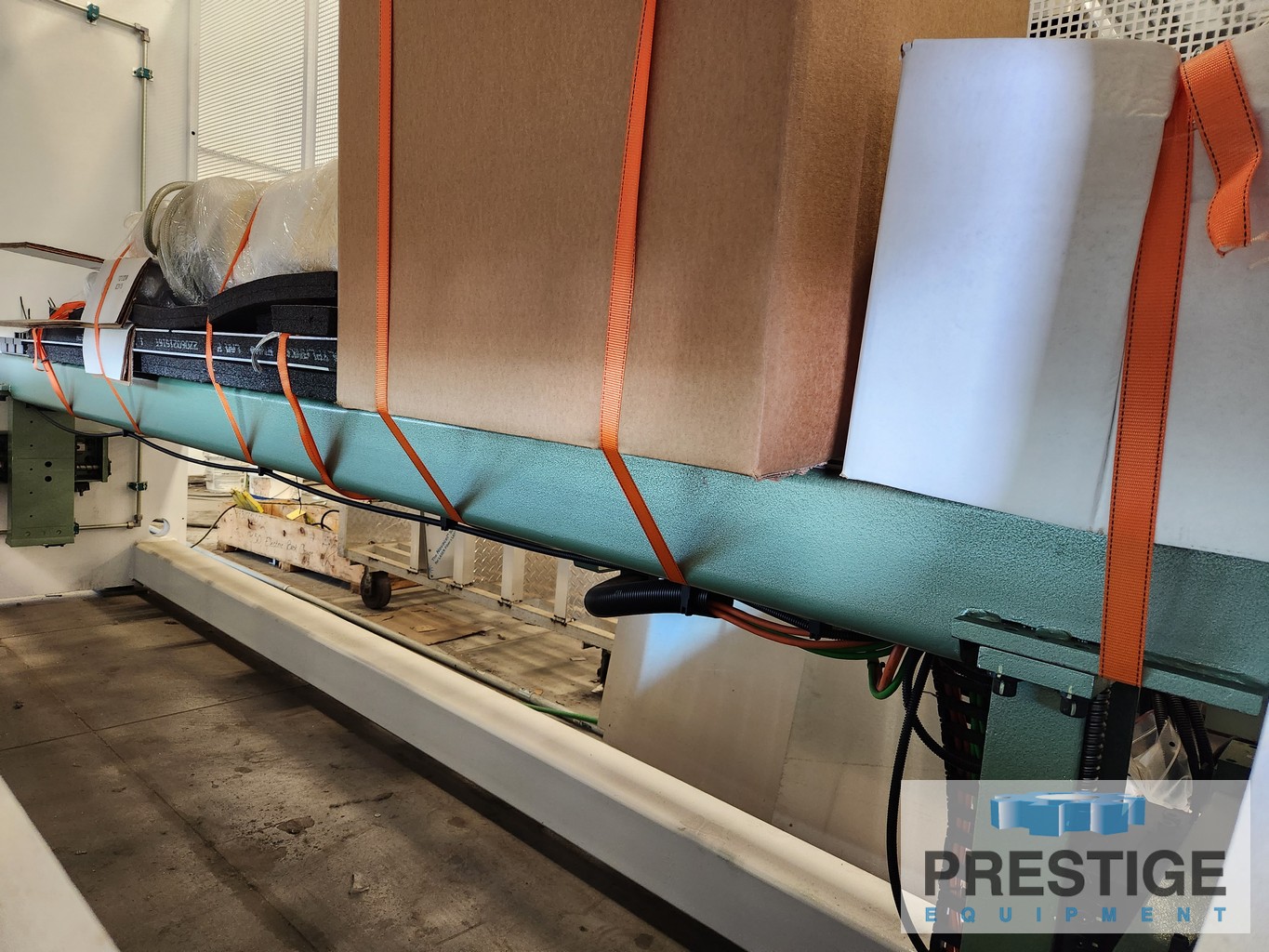

Linear Guided Front Sheet Supports
Hydraulic Crowning System built into Bed

CAPACITY:
Tonnage Capacity ...................... 180 Ton
Overall Length of Bed and Ram ......... 161.4"
Distance Between Housings ............. 141.5""
Stroke Length ......................... 8.5"
Open Height ........................... 17.3"
Closed Height ......................... 8.8"
Throat Depth .......................... 16.1"
Approach Speed ........................ 401 IPM
Work Speed ............................ 26 IPM
Return Speed .......................... 330 IPM
Repeatability ......................... 0.0004"
Motor ................................. 20 HP
Approximate Dimensions ................ 197" x 73" x 105"
Approximate Weight .................... 32,000 Lbs

EQUIPPED WITH:
Delem DA-66T 6-Axis CNC Control
4-Axis CNC Back Gauge (X,R,Z1,Z2)
Linear Guided Front Sheet Supports
Hydraulic Crowning System built into Bed

NOTE:
Brand New Machine, Never Used
