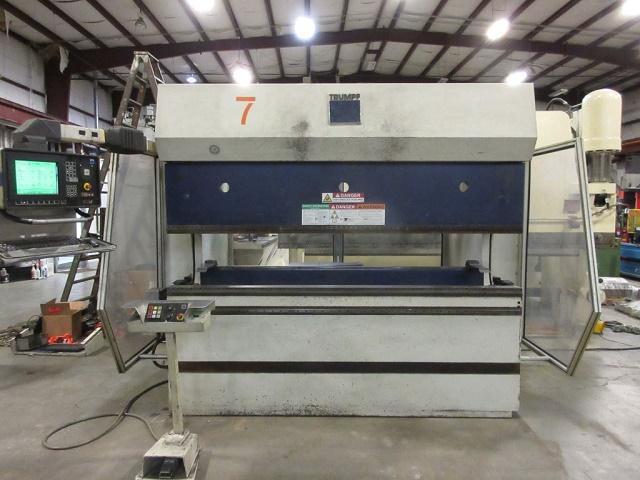

2000 Trumpf V85S CNC Press Brake (#4841)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

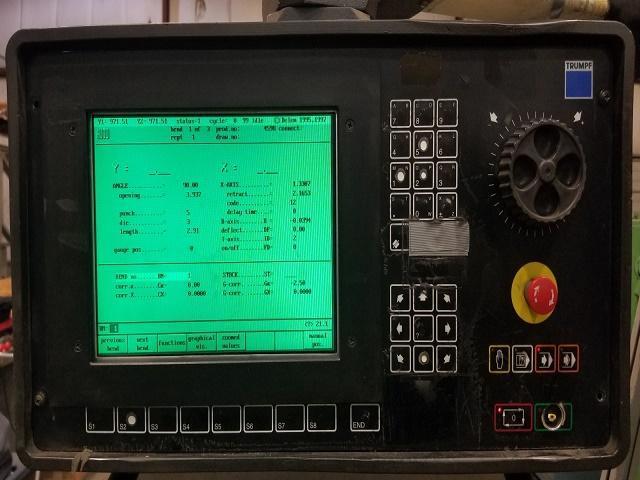

95 Tons X 8’ Press Brake with Delem DA65 6 - Axis Control, Foot / Palm Button Pedestal, CNC Crowning, Hydraulic Upper Tool Clamping, Y1, Y2, X, R, Z1, Z2 and I - Axis.

GENERAL SPECIFICATIONS
Capacity:                95 Tons
Overall Bending Length:        100”
Distance Between Housings:    89”
Stroke:                8.5”
Open Height:                15.15”
Shut Height:                6.65”
Throat Depth:            16.14”
Main Motor:                15 HP / 460V / 3 PH
Approximate Overall Size:        126” X 83” X 94” H
Approximate Weight:        19,000 Lbs

INCLUDES: Delem DA65 6 - Axis Control, Foot / Palm Button Pedestal, CNC Crowning, Hydraulic Upper Tool Clamping, Y1, Y2, X, R, Z1, Z2 and I - Axis.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
