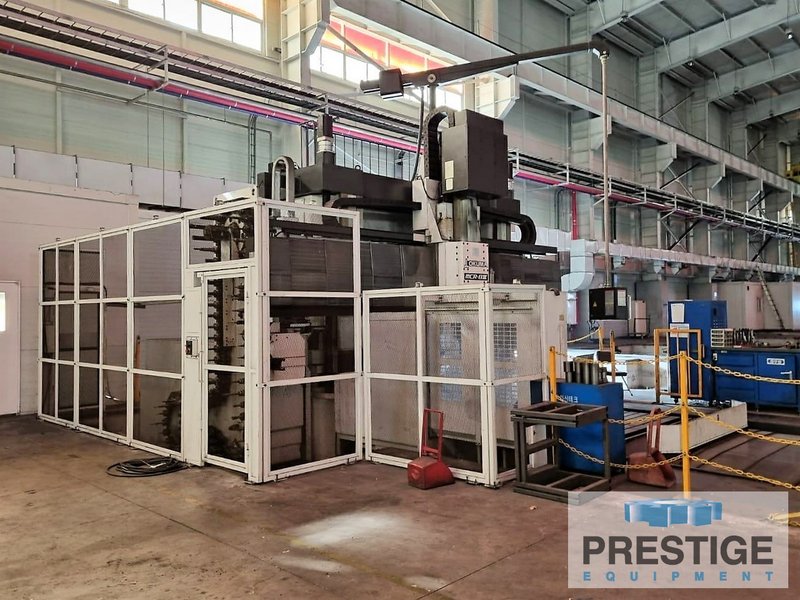

Okuma MCR-B III 5-Face, X-189", Y-146", Z-32", 201" x 83" Table, 120" Btw Column, 72 ATC, 2AAC, OSP-P300M, 2013, #32470

Manufacturer

OKUMA

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32470

Model

MCR-B III 30/50 5-Face

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32470

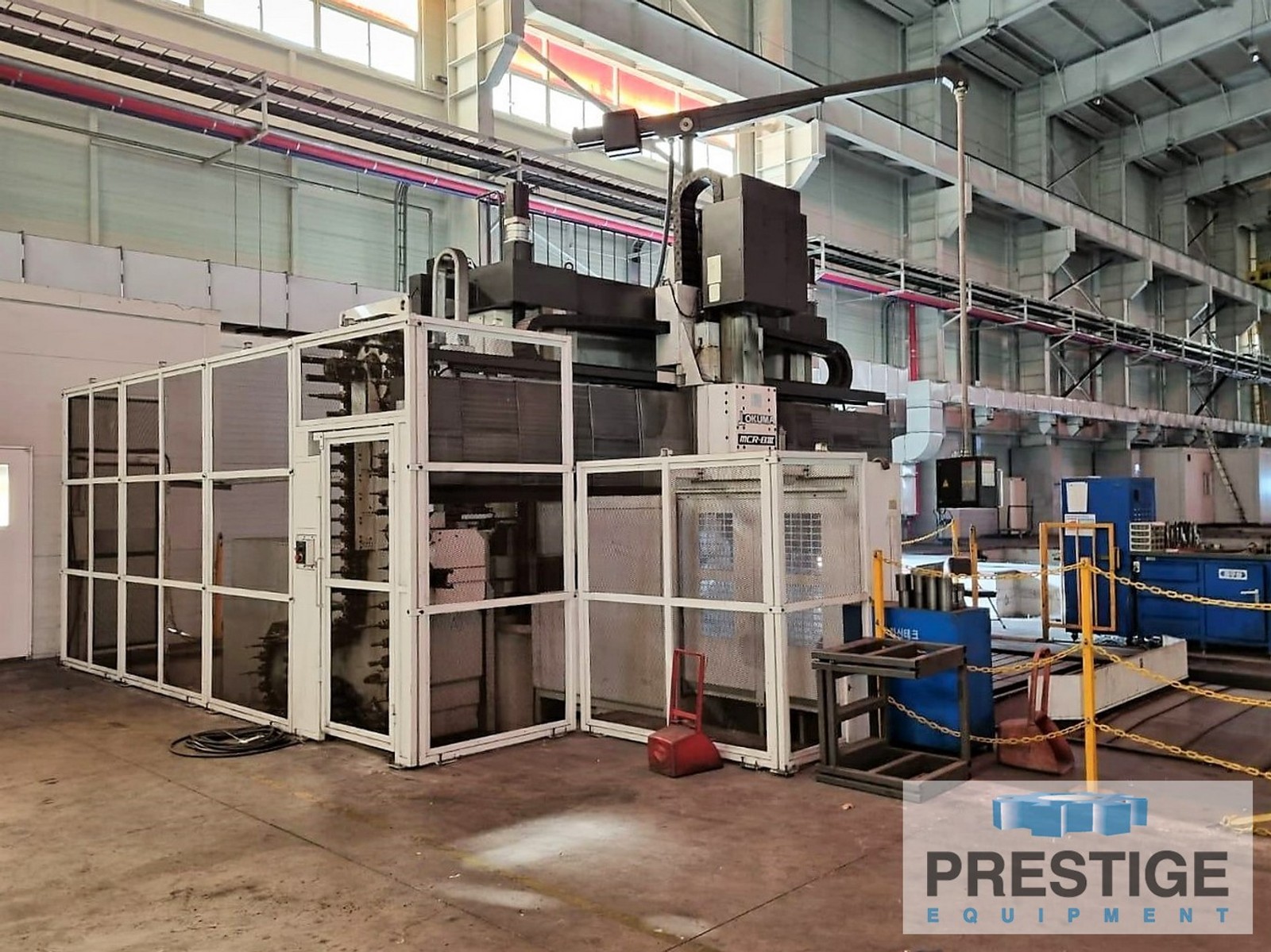

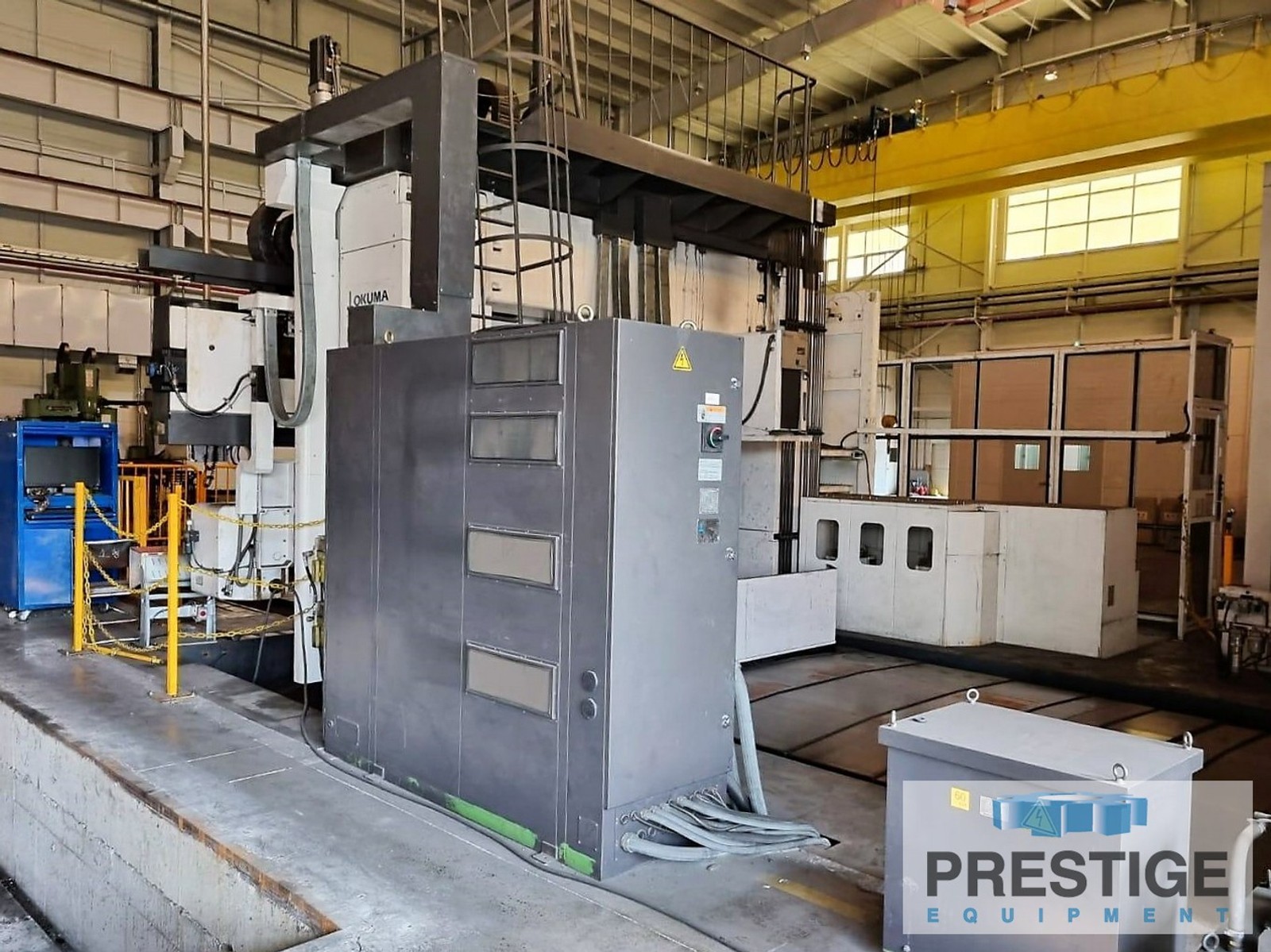

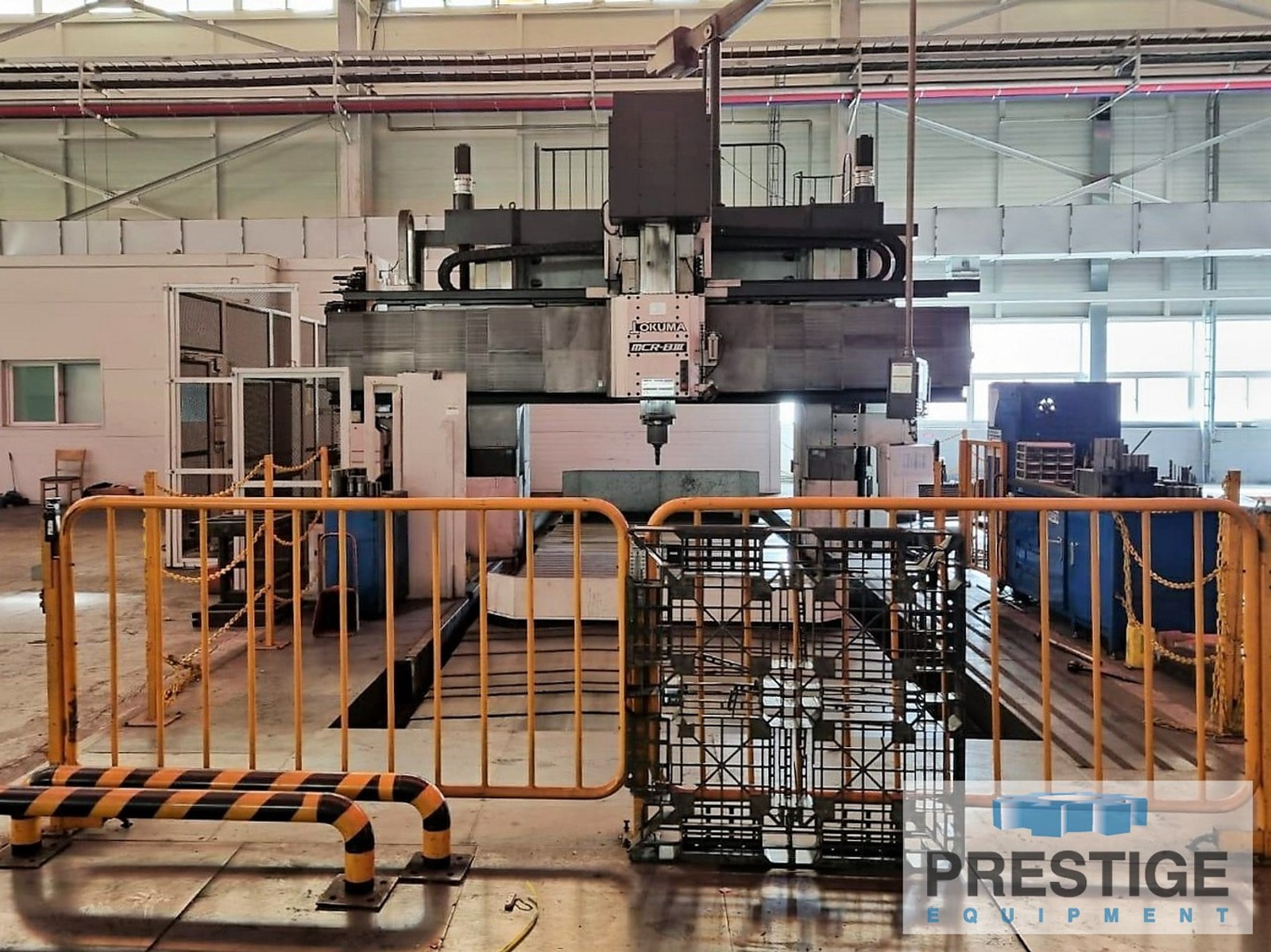

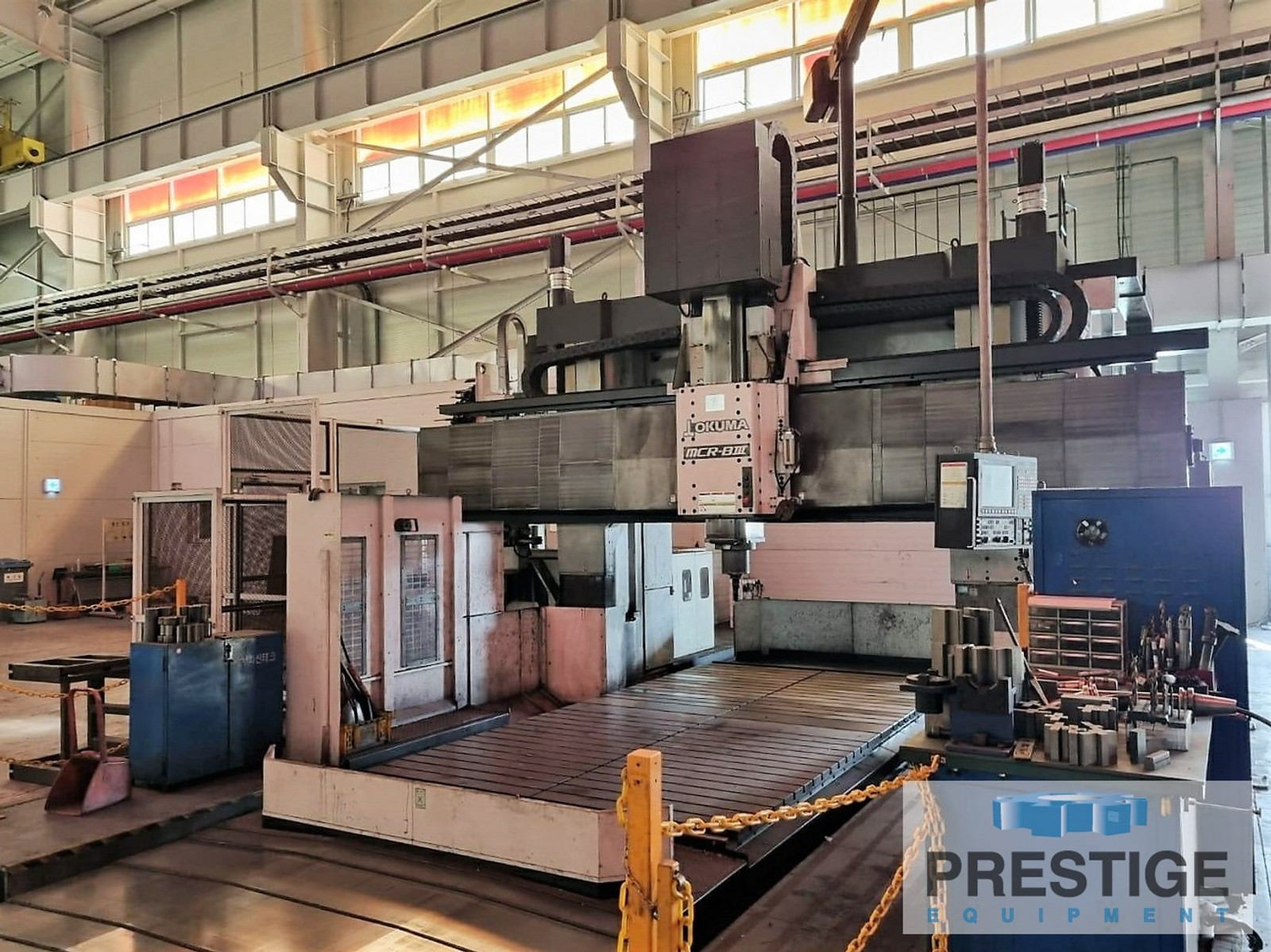

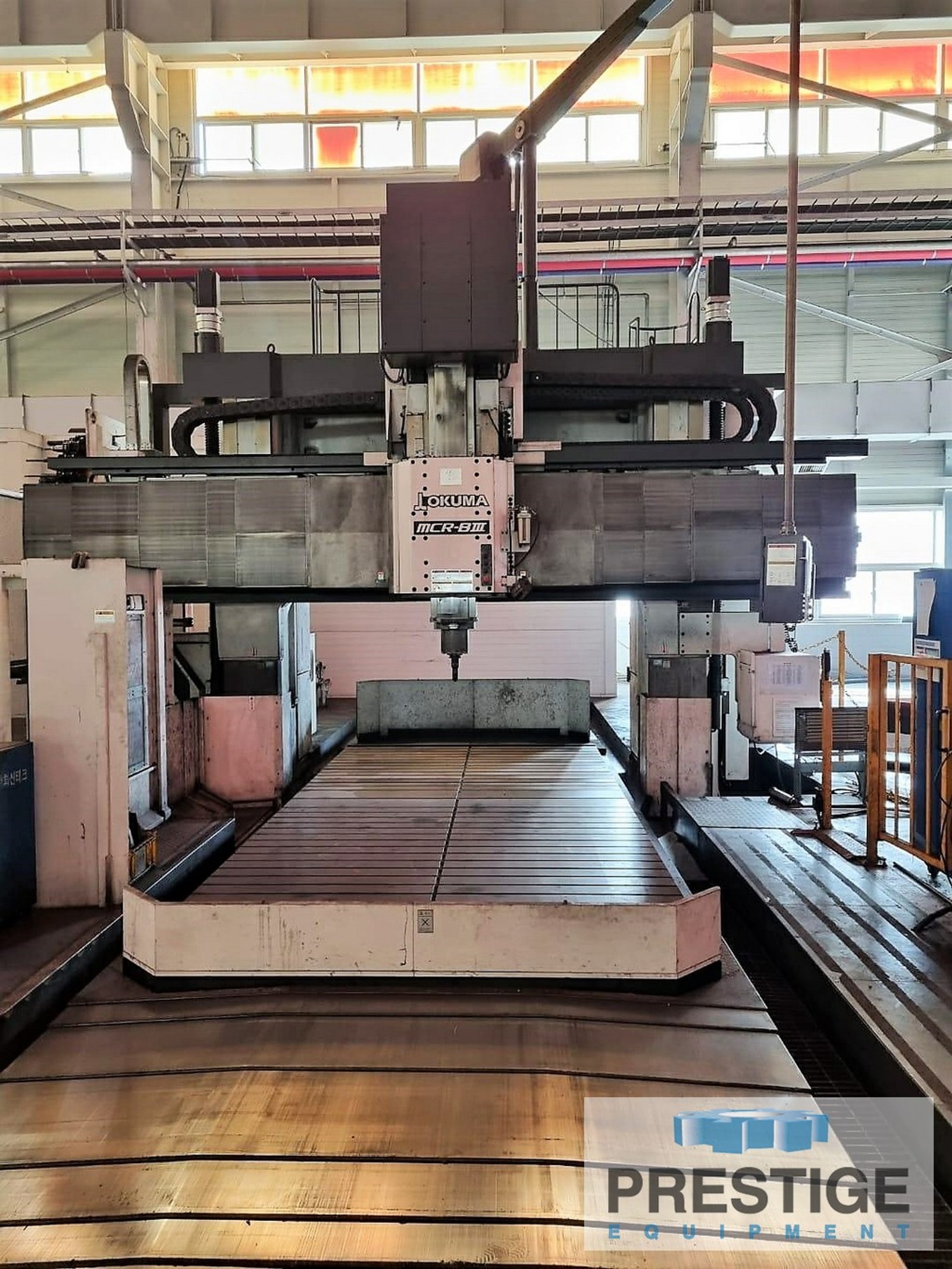

Okuma MCR-B III 30/50 5-Face CNC Double Column Vertical Machining Center

FEATURES:
OSP P300M CNC Control
72-Position ATC
2-Station Auto Head Changer

SPECIFICATIONS:
Table Size ............................ 200.78" x 82.76"
Max Table Load ........................ 40,000 Lbs.
Effective Width Between Colums ........ 120.08"
X-Axis Travel ......................... 188.97"
Y-Axis Travel ......................... 145.66"
Z-Axis Travel ......................... 31.5"
W-Axis Travel ......................... 39"
Max Distance Spindle To Table Top ..... 0-72.83"
Spindle Speed, Max. ................... 8000 RPM
Number of Speed Ranges ................ 2
Spindle Taper ......................... BT-50
Automatic Tool Changer ................ 72 ATC
Automatic Head Changer ................ 2 AAC
Working Feeds ......................... 393.7 IPM
Rapid Feeds ........................... 590.55 IPM
Main Motor ............................ 40 HP
Machine Dimensions .................... 313.8" x 480.3"
Machine Height ........................ 269.7"
Machine Weight ........................ 127,900 Lbs.

EQUIPPED WITH:
OSP-P300M CNC Control

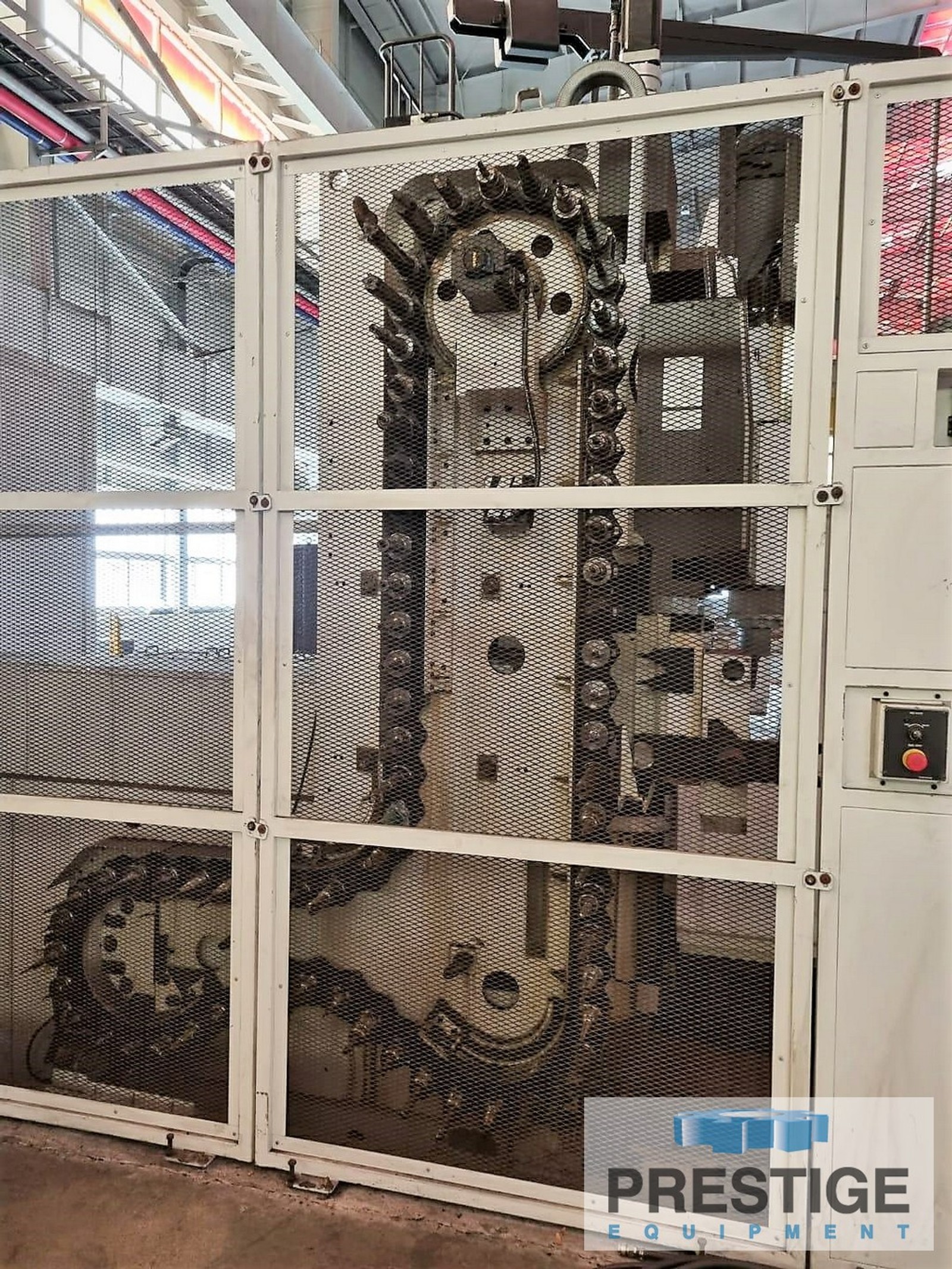

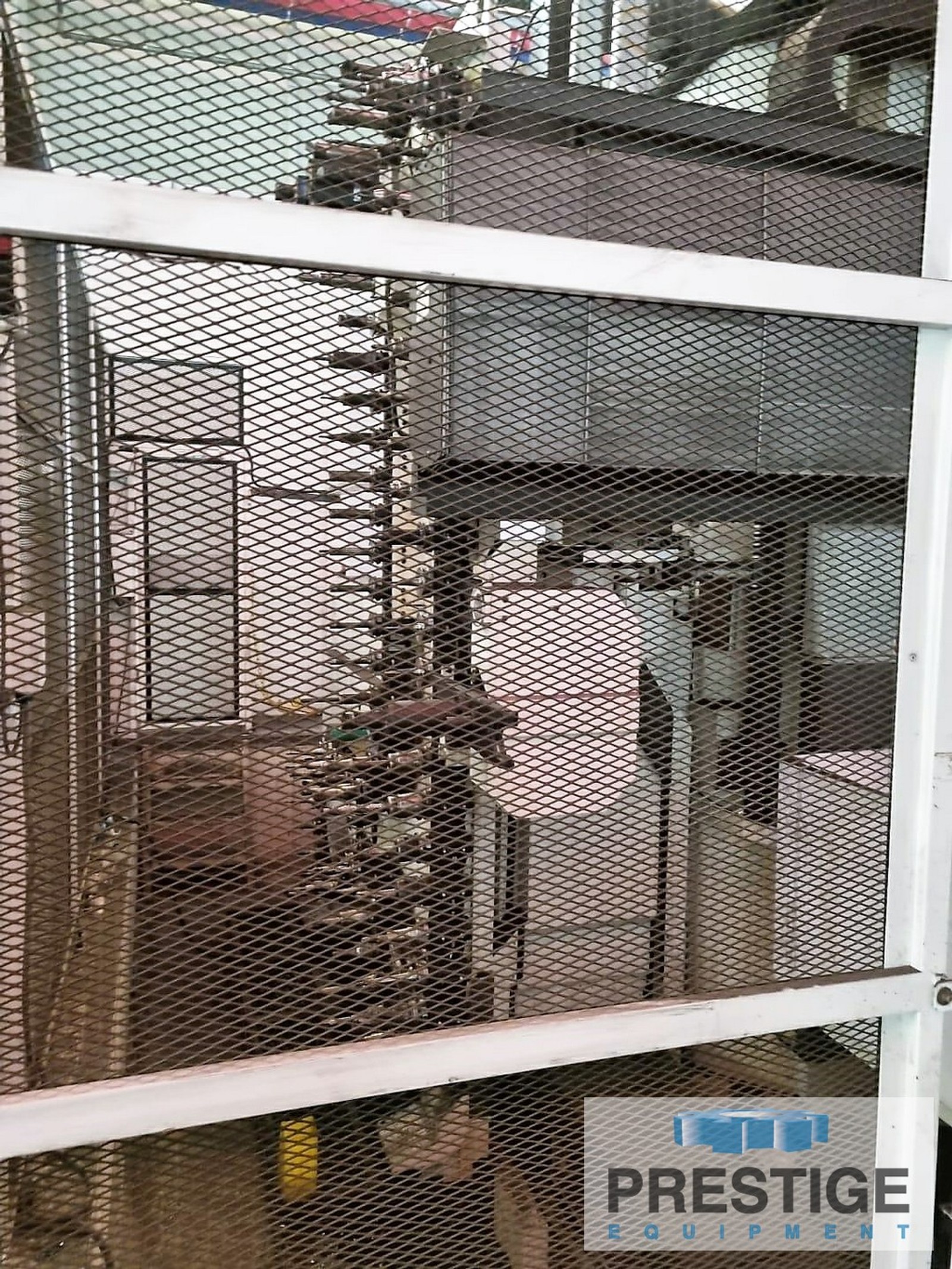

72-Position Automatic Tool Changer

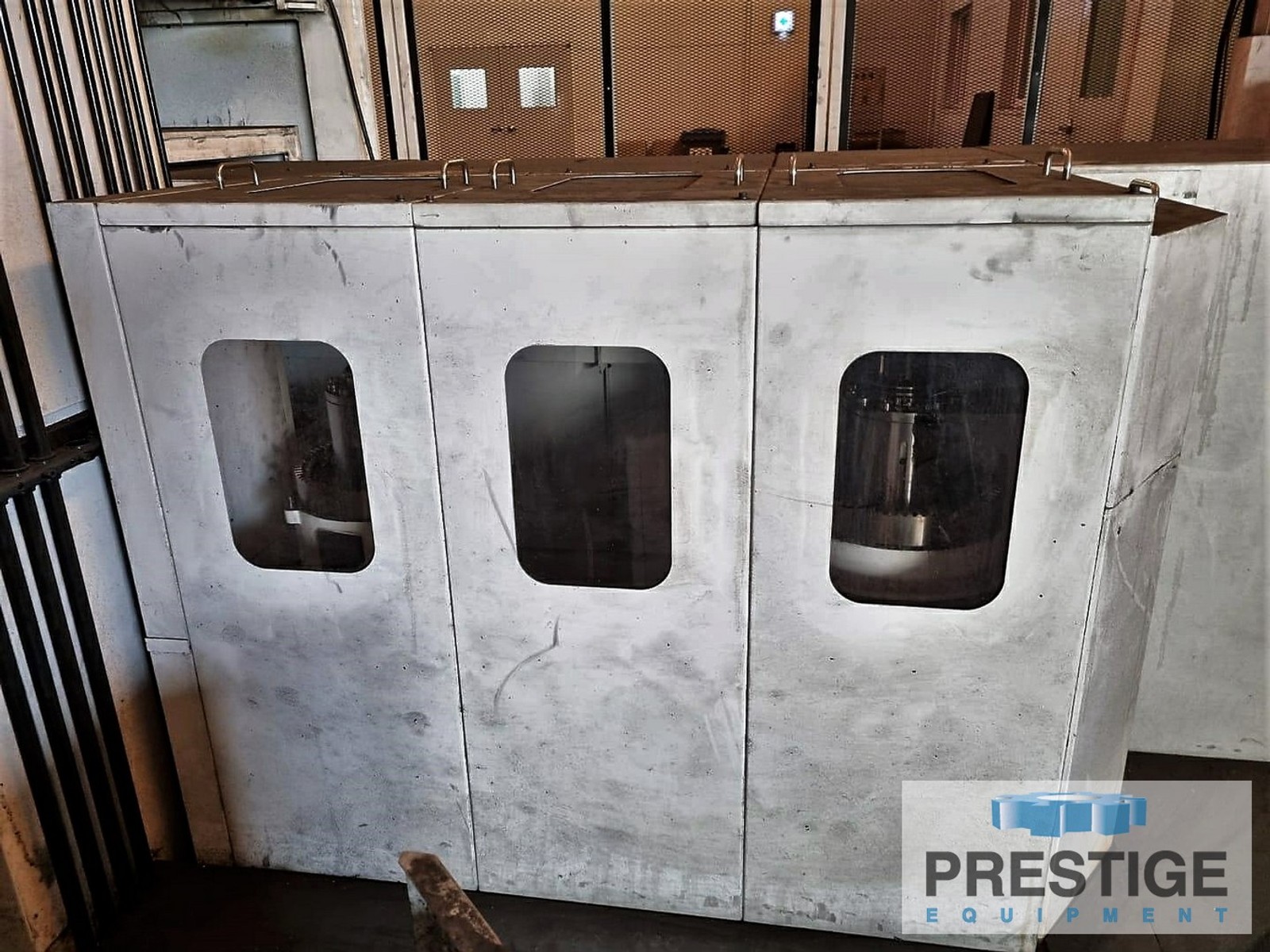

2-Station Automatic Attachment Changer
Scale Feedback System - X,Y,Z
Super-NURBS X,Y,Z,B,C High Speed, High Precision
TAS-S&TAS-T Thermo-Friendly Concept
Tool Breakage Detection
Auto Tool Length Offset For Touch Sensor
Oil Mist

LOCATION:
Under Power In Plant
