Doosan BM2035M, X-137", Y-80", Z-31.5", 12k RPM, 72" x 137" Tbl, 86" B.C, 40-ATC, Fanuc 31iB CNC, 40 HP, #32493

Manufacturer

DOOSAN

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32493

Model

BM2035M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32493

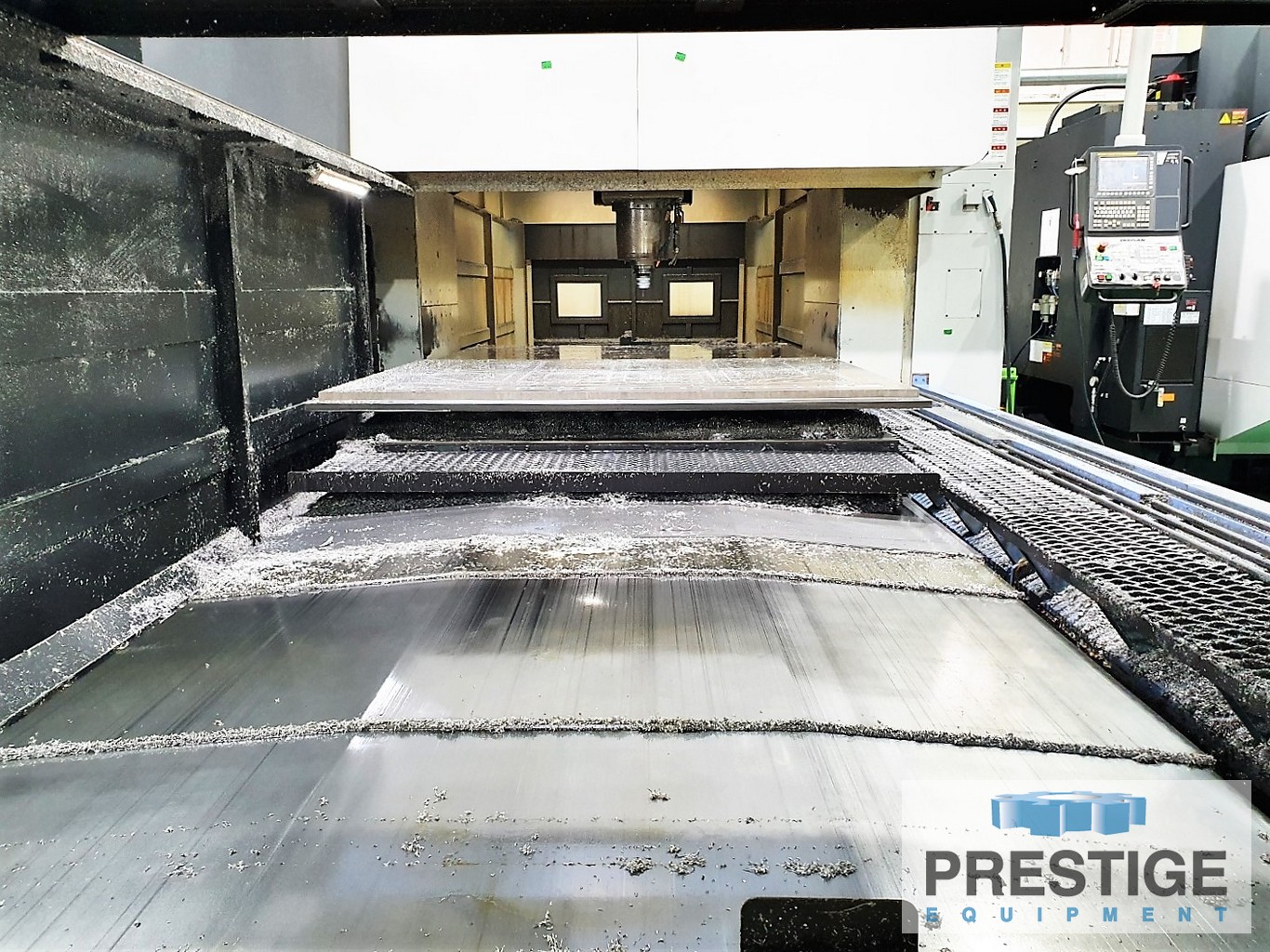

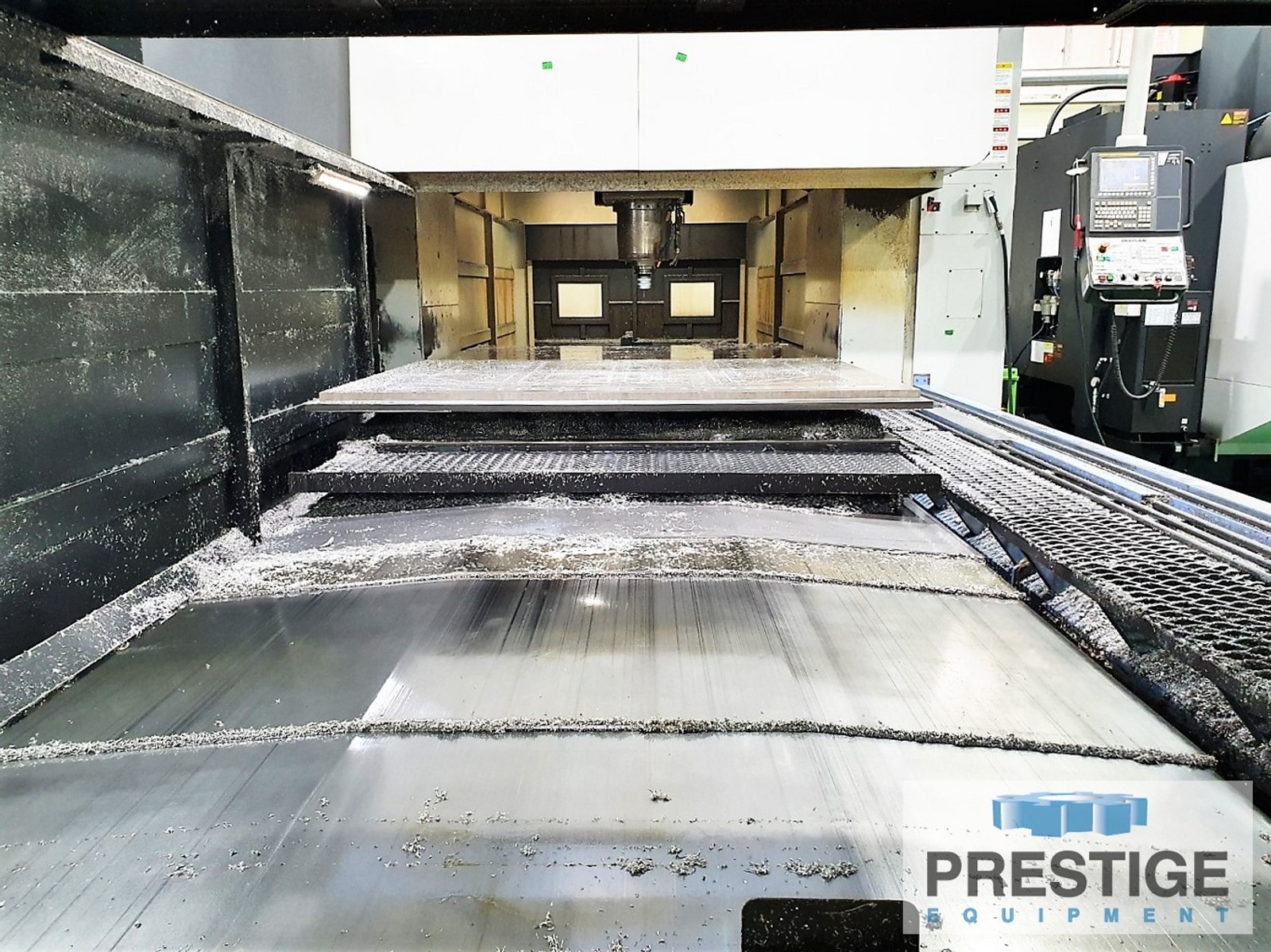

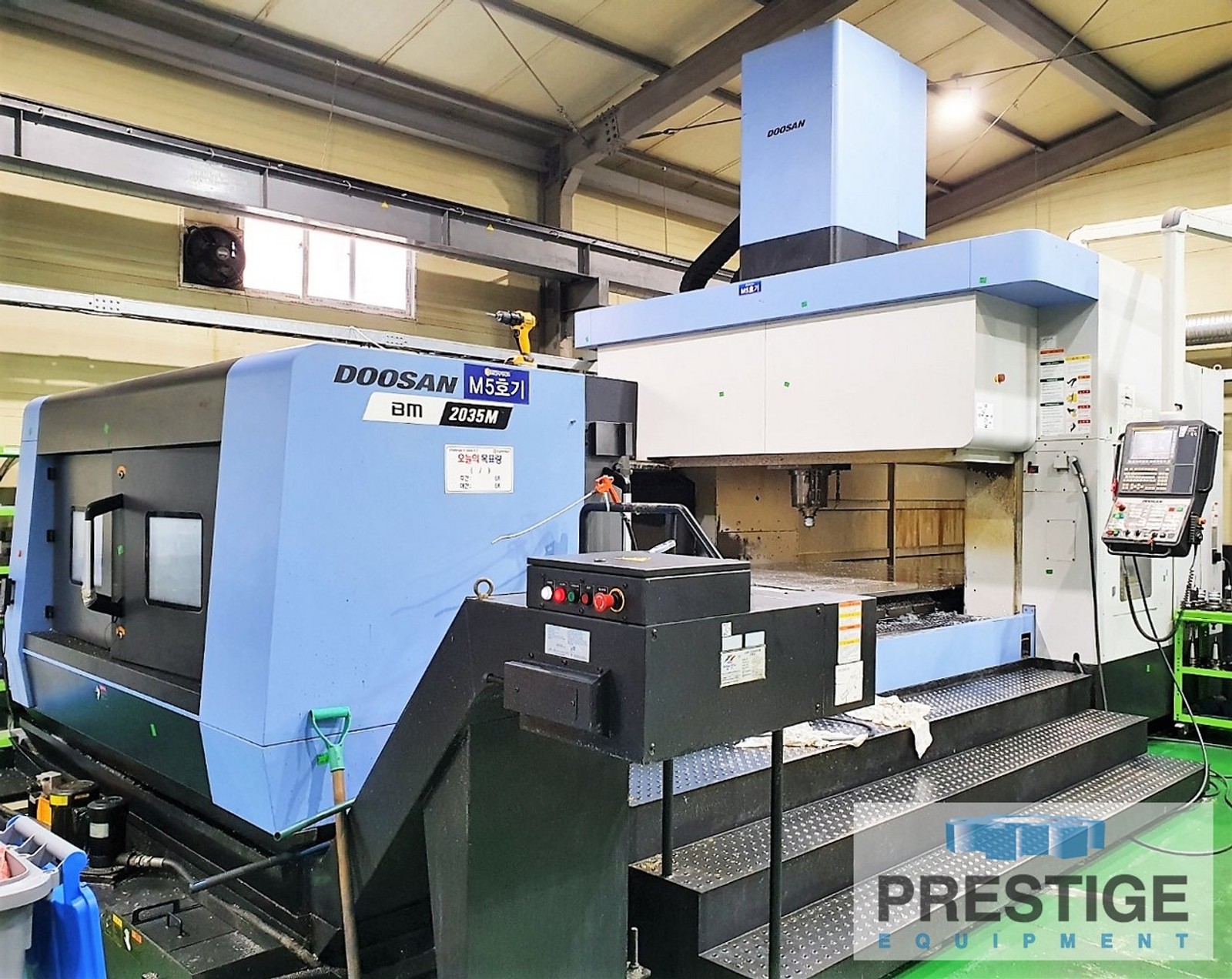

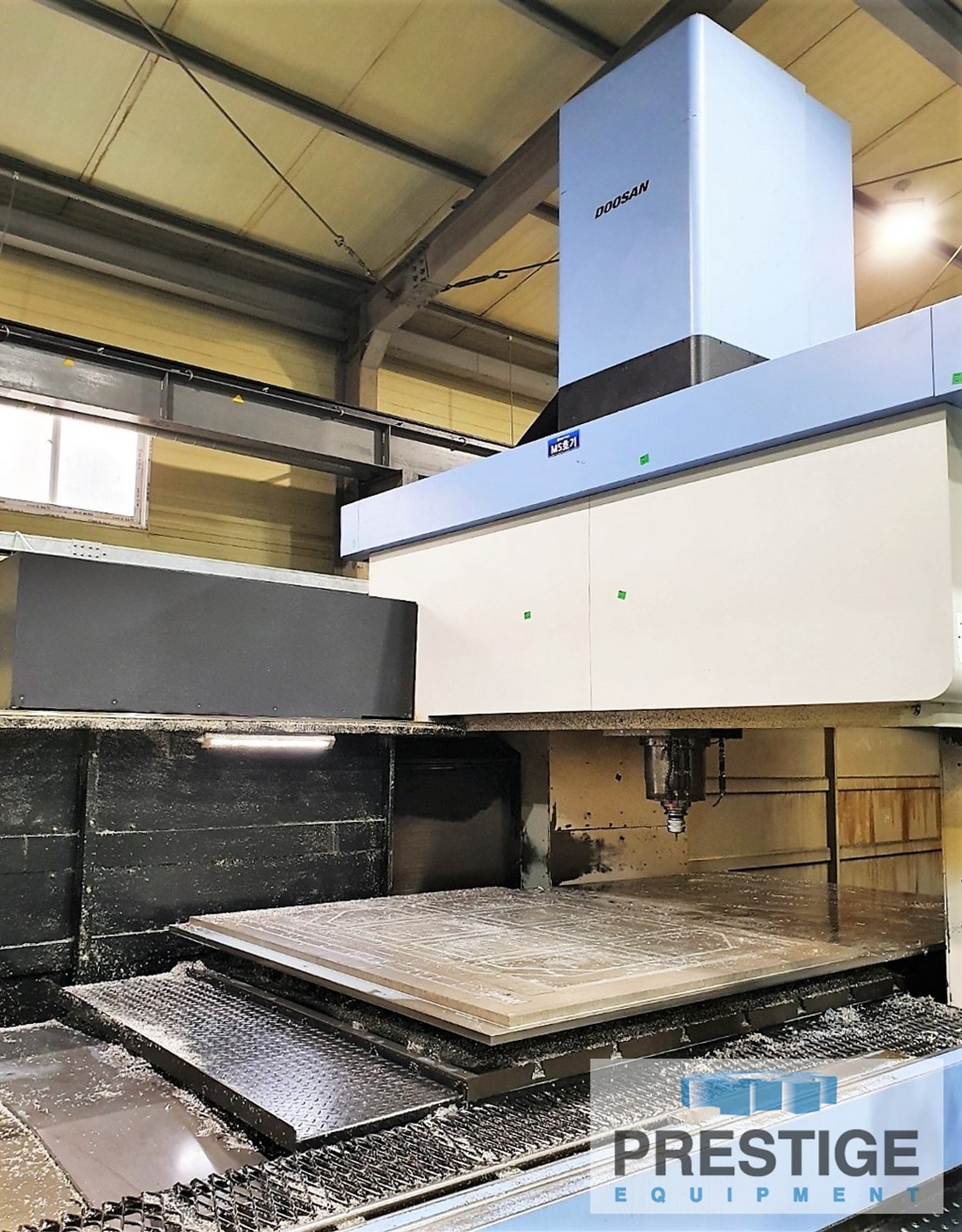

Doosan BM2035M CNC Bridge Type Vertical Machining Center

FEATURES:

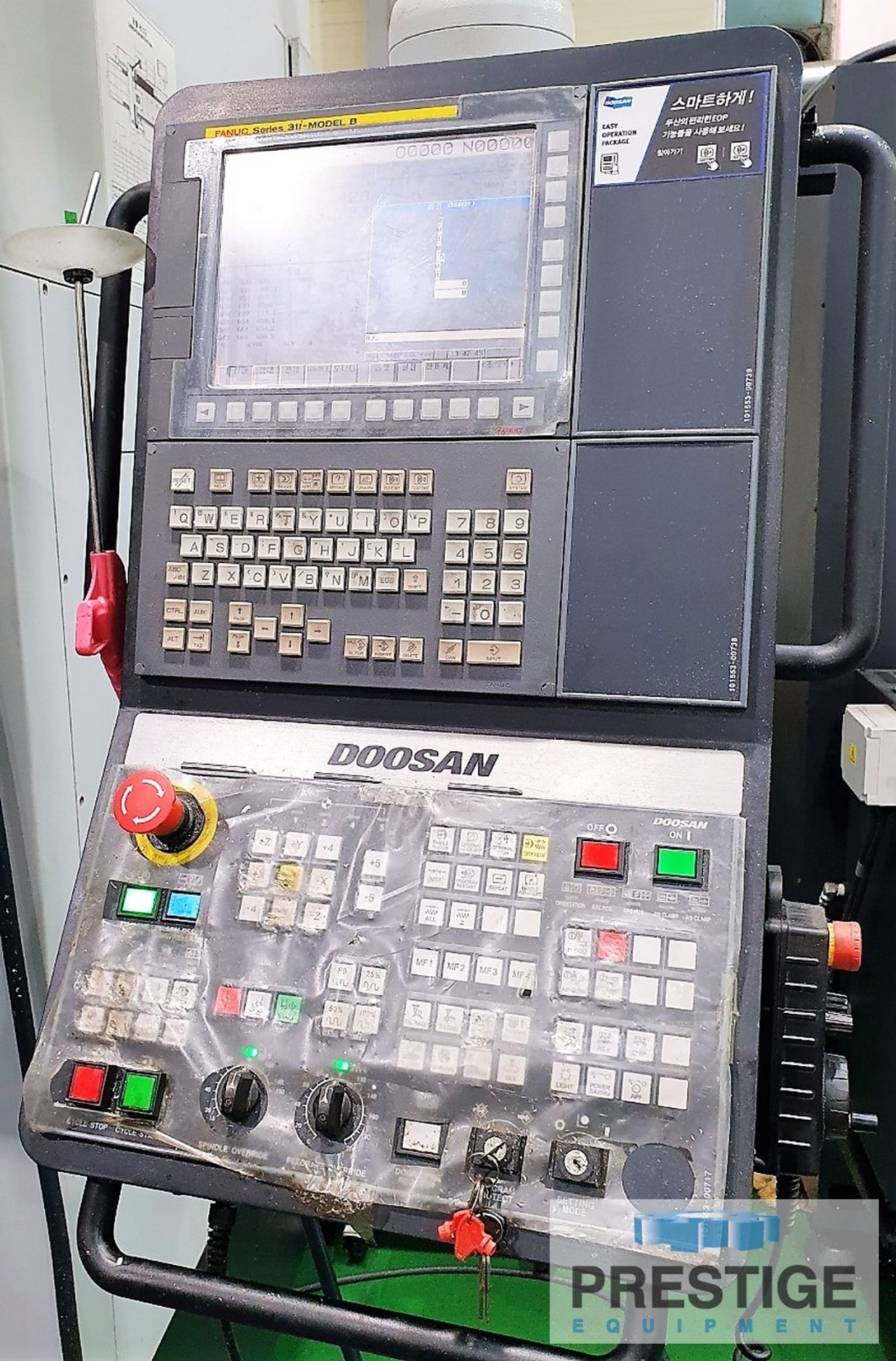

Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
12,000 RPM Spindle
Scales on X/Y/Z Axes

SPECIFICATION:
Table Dimensions ...................... 72.83" x 137.79"
X-Axis Travel ......................... 137.79"
Y-Axis Travel ......................... 80.70"
Z-Axis Travel ......................... 31.49"
Distance Between Columns .............. 86.61"
Distance Spindle Nose - Table ......... 7.87" - 39.37"
Spindle Speed ......................... 12,000 RPM
Spindle Taper ......................... BT-50 Big Plus
Maximum Workpiece Weight .............. 10 Ton
Main Motor ............................ 40 HP

EQUIPPED WITH:
Fanuc 31iB CNC Control
40-Station Automatic Tool Changer
12,000 RPM Spindle
Scales on X/Y/Z Axes
Helical Interpolation
Flood Coolant
40 HP Motor
Full Enclosure
Chip Conveyor
