Amada FM-B-3613GNT Electrical Press Brake (#4821)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

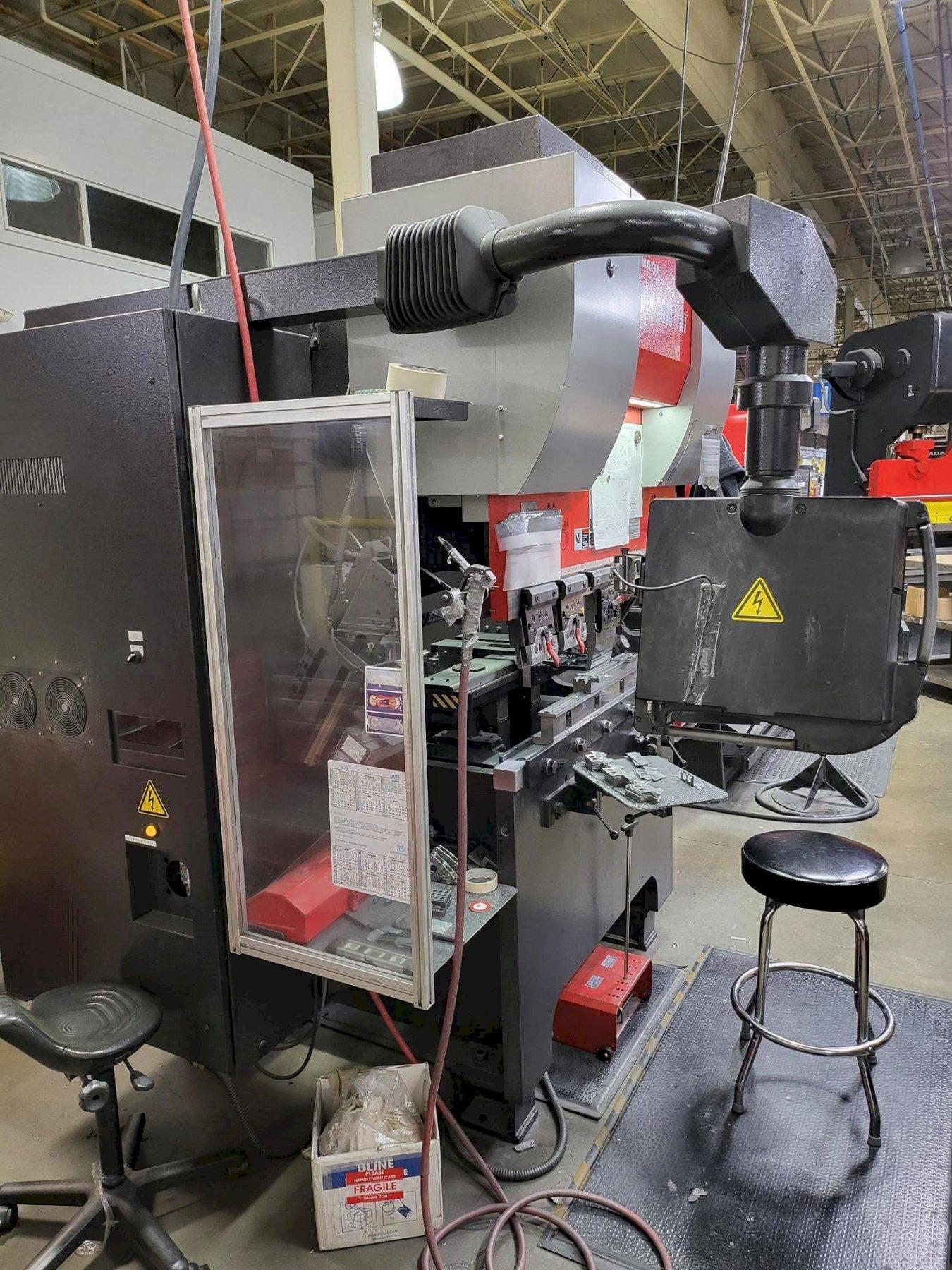

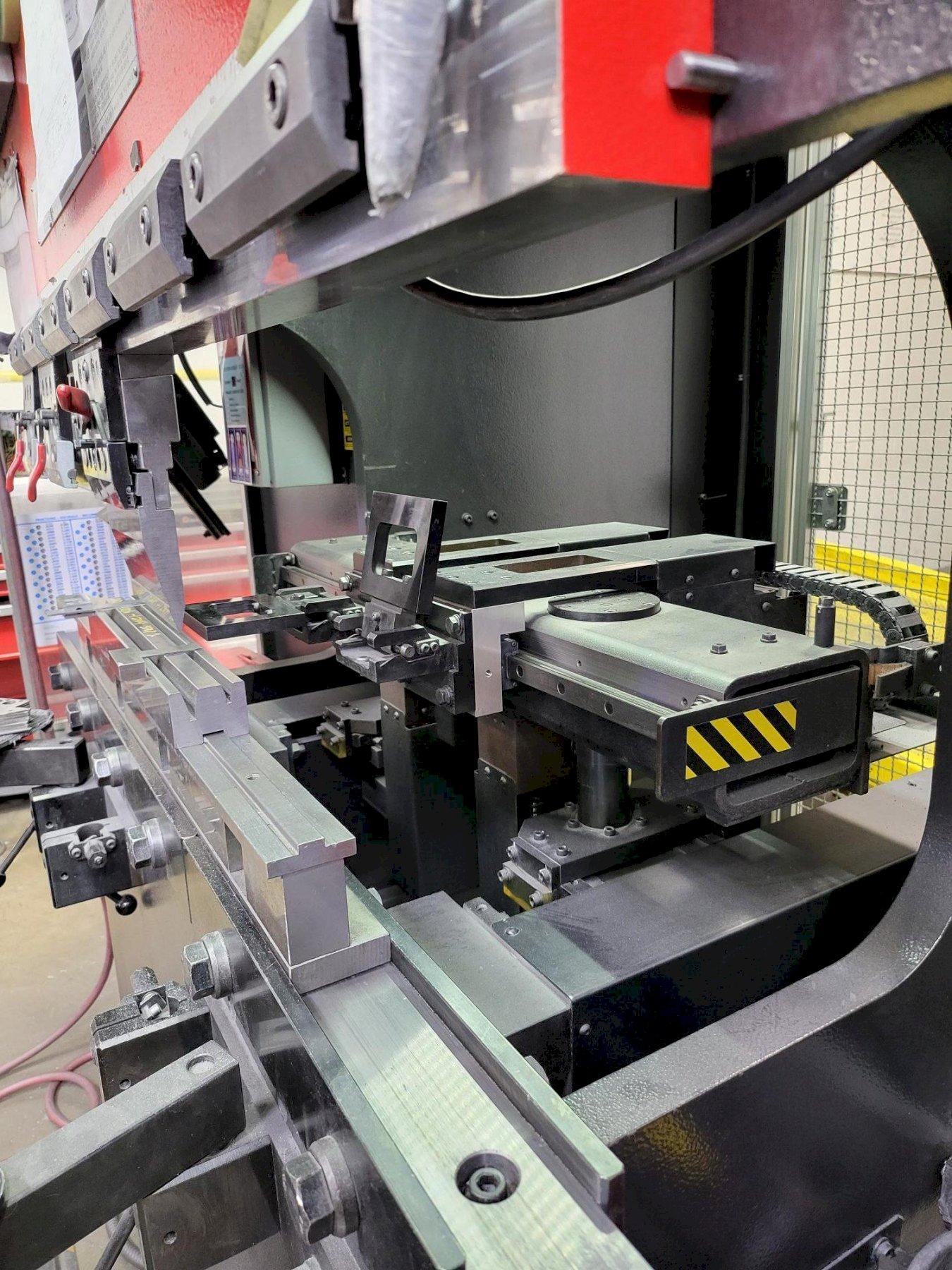

36 Ton X 52.28” Electrical Press Brake with AMNC CNC Controller, 5 - Axis Backgauge (X1, X2, Z1, Z2, R), Servo Driven System and Intelligent Foot Pedal.

GENERAL SPECIFICATIONS
Nominal Force:                36 Tons
Table Length:                    52.28”
Distance Between Frames:            37.79”
Throat Depth:                16.14”
Open Height:                    16.53”
Open Height w/ Distance Pieces:        11.81”
Stroke Length:                5.9”
Working Height:                35” / 39” /41”
Table Width:                    2.36”
Approach Speed:                3.93” Per Sec
Bending Speed:                .1 mm - 20 mm Per Sec
Return Speed:                3.93” Per Sec
Servo Motor Power:                5.3 Hp X 2 Motors
Total Power Requirements:            17.8 HP

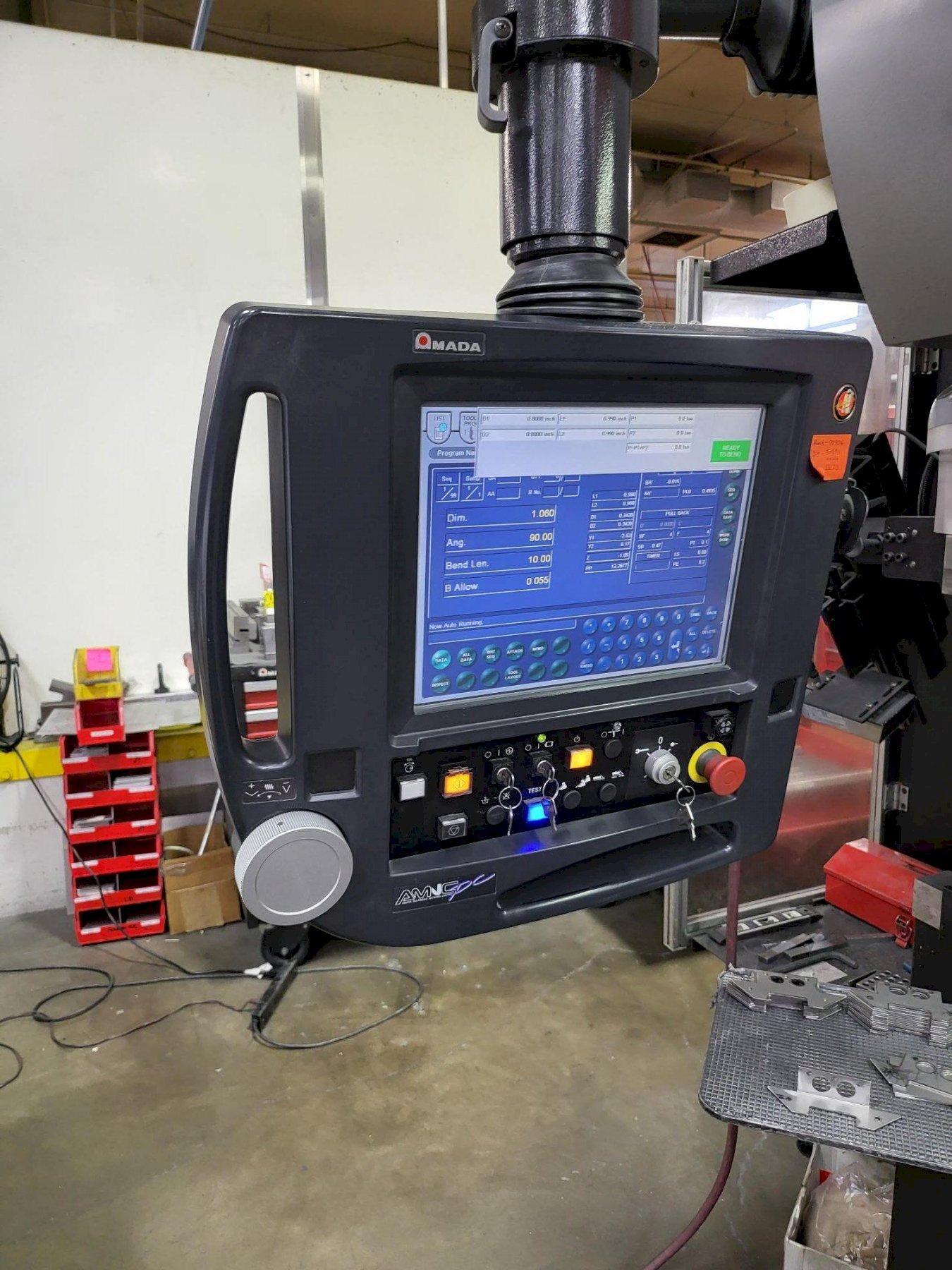

INCLUDES: AMNC CNC Controller, 5 - Axis Backgauge (X1, X2, Z1, Z2, R), Servo Driven System and Intelligent Foot Pedal.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
