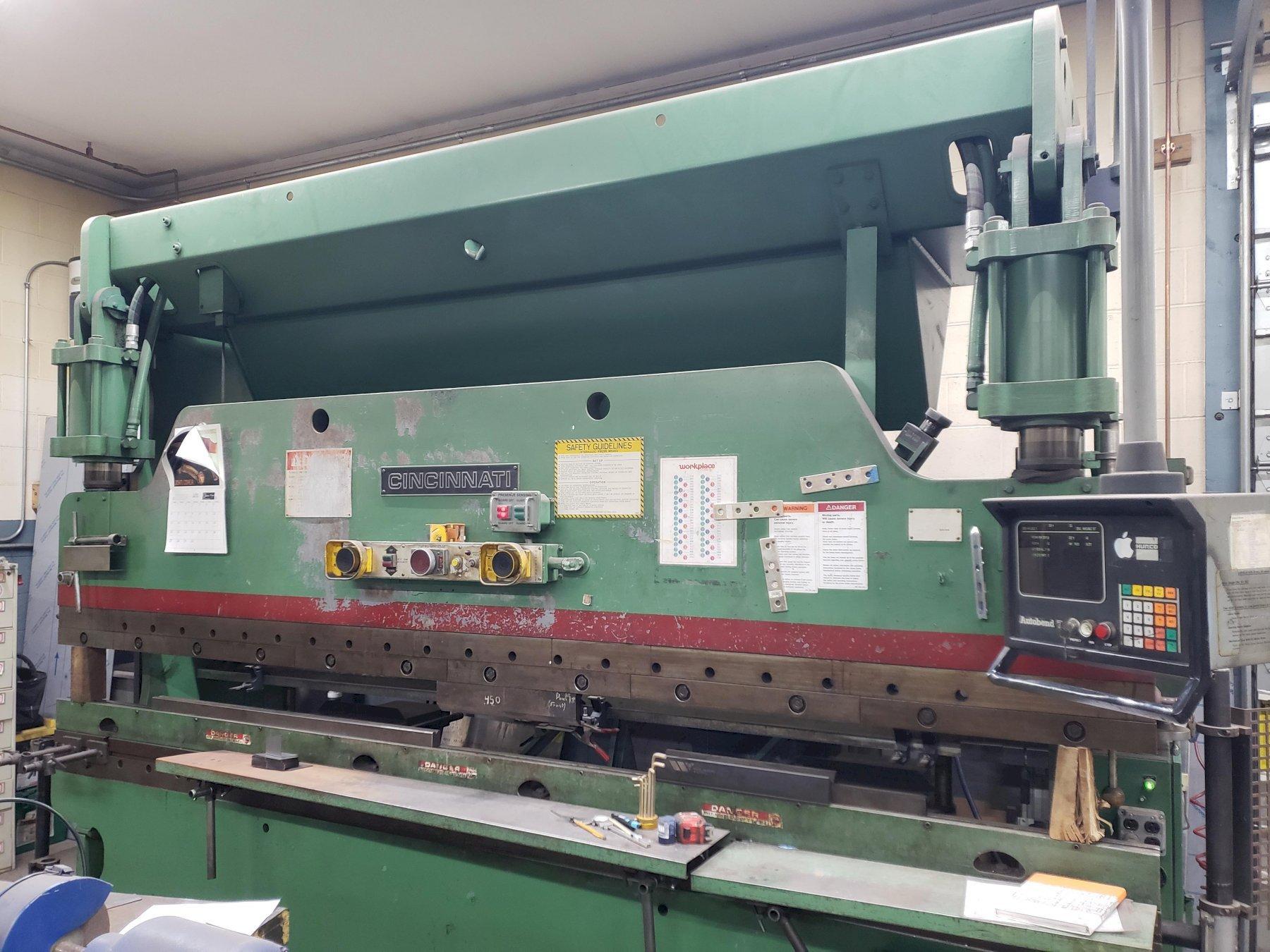

1985 Cincinnati 90CBX10 Press Brake (#4823)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



90 Ton X 12’ Hydraulic Press Brake with Hurco Autobend 7 Controller, Narrow Filler Block, Electric Foot Switch, Dual Palm Buttons, Interlocked Construction Adjustable Tonnage Control, Micromeeter Ram Tilt Adjustment and Clevis Mounted Self Aligning Cylinders.

GENERAL SPECIFICATIONS
Capacity:                    90 Tons
Bed Length:                    12’
Bending Capacity:                10’ X 12 Gauge / 5’ X ¼”
Distance Between Housings:        8’ 6”
Stroke:                    8”
Throat:                    7”
Overall Die Surface:                10”
Die Space - Open:                15”
Closed:                    7”
High Ram Speed:                150 IPM
Medium Ram Speed:            71 IPM
Low Ram Speed:                21 IPM
Return Speed:                136 IPM
Back Gauge Range:                24”
R - Axis Adjustment (Manual):        2” - 10”
Motor:                        15 HP
Approximate Overall Dimensions:        5’ X 13’ X  116” H
Approximate Weight:            17,000 Lbs

INCLUDES: Hurco Autobend 7 Controller, Narrow Filler Block, Electric Foot Switch, Dual Palm Buttons, Interlocked Construction Adjustable Tonnage Control, Micromeeter Ram Tilt Adjustment and Clevis Mounted Self Aligning Cylinders.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
