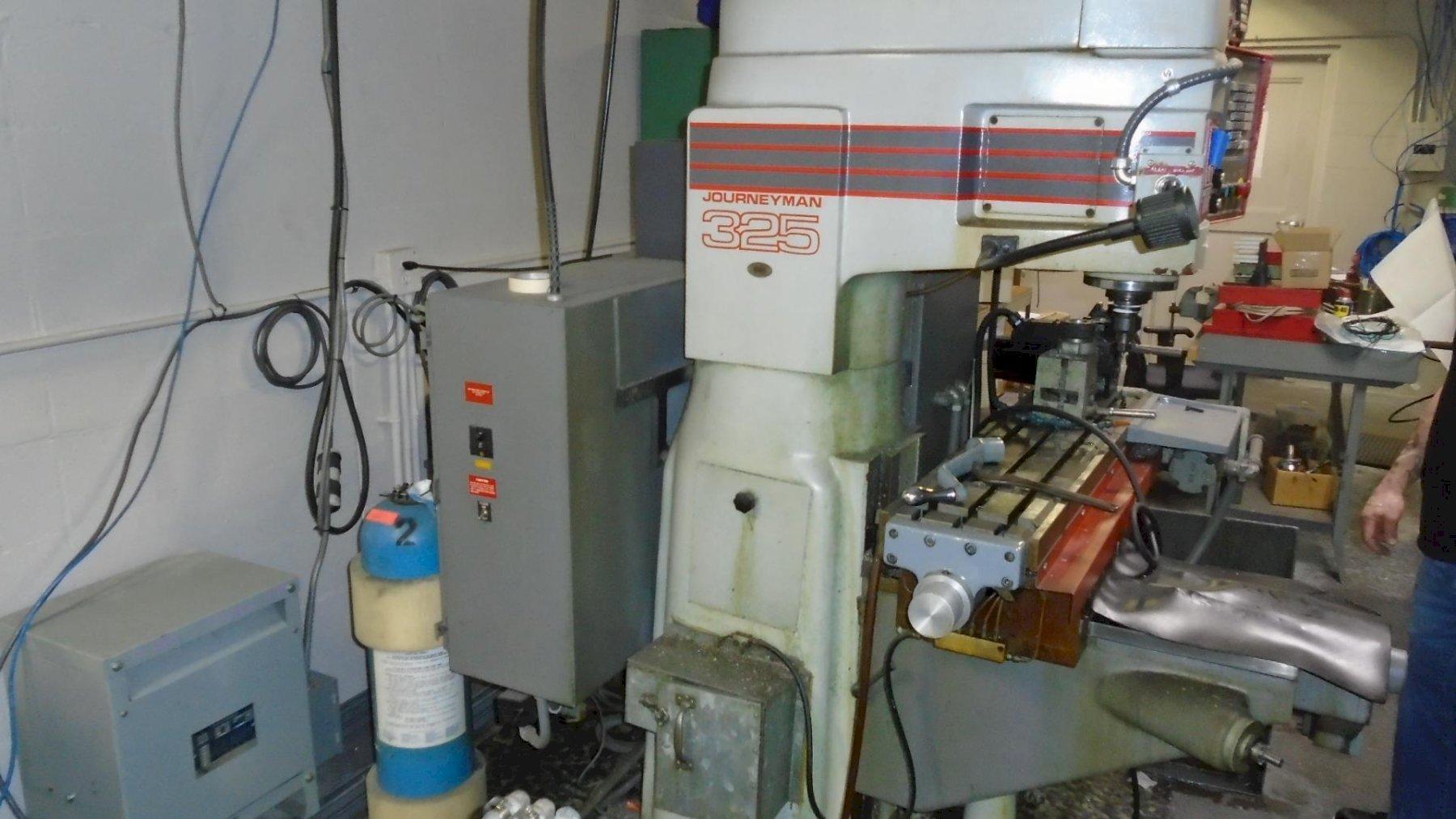

1985 Tree Journeyman 325 Vertical Mill (#4816)

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



27” X 14” X 6” CNC Milling Machine with Dynapath Controls, CAT 40 Spindle Taper.

GENERAL SPECIFICATIONS
Overall Table Size:                    10” X 44”
Max. Weight on Table:                500 Lbs
Quill Diameter:                    4.0”
Spindle to Table:                     0 - 21.25”
X - Axis Travel:                    27”
Y - Axis Travel:                    14”
Z - Axis Travel:                    6”
Knee Travel:                        15.75”
Rapid Feed Rate X & Y Axes:            250 IPM
Rapid Feed Rate Z - Axis:                200 IPM
Throat Distance:                    14.1”
Spindle Speeds:                    50 - 6,000 RPM
Spindle Motor:                    5 HP
Electrical Supply:                    230V / 3Ph / 60 Hz
Floor Space:                        92” X 64” X 83”
Machine Weight:                    4,700 Lbs

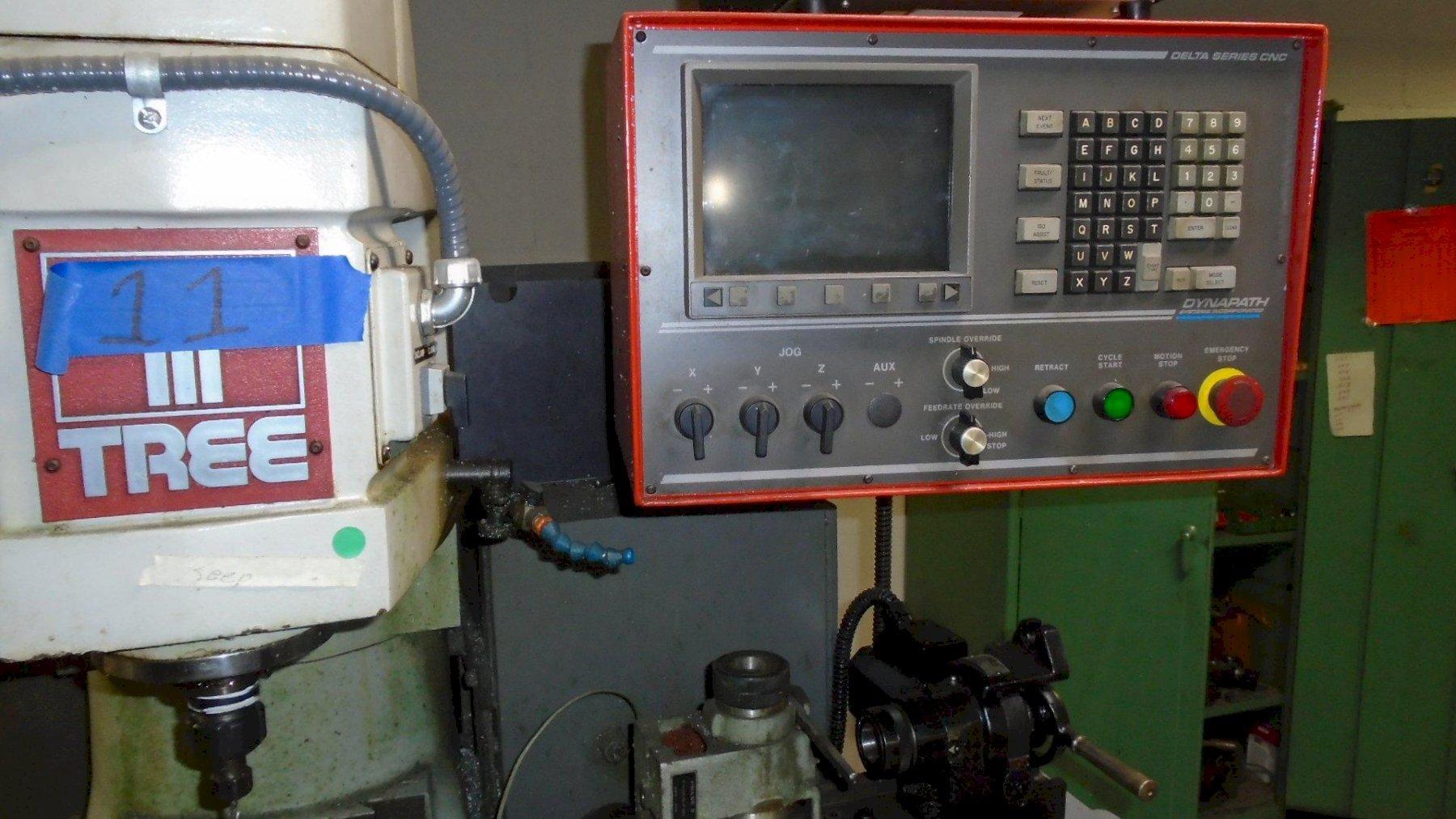

INCLUDES: Dynapath Controls, CAT 40 Spindle Taper.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
