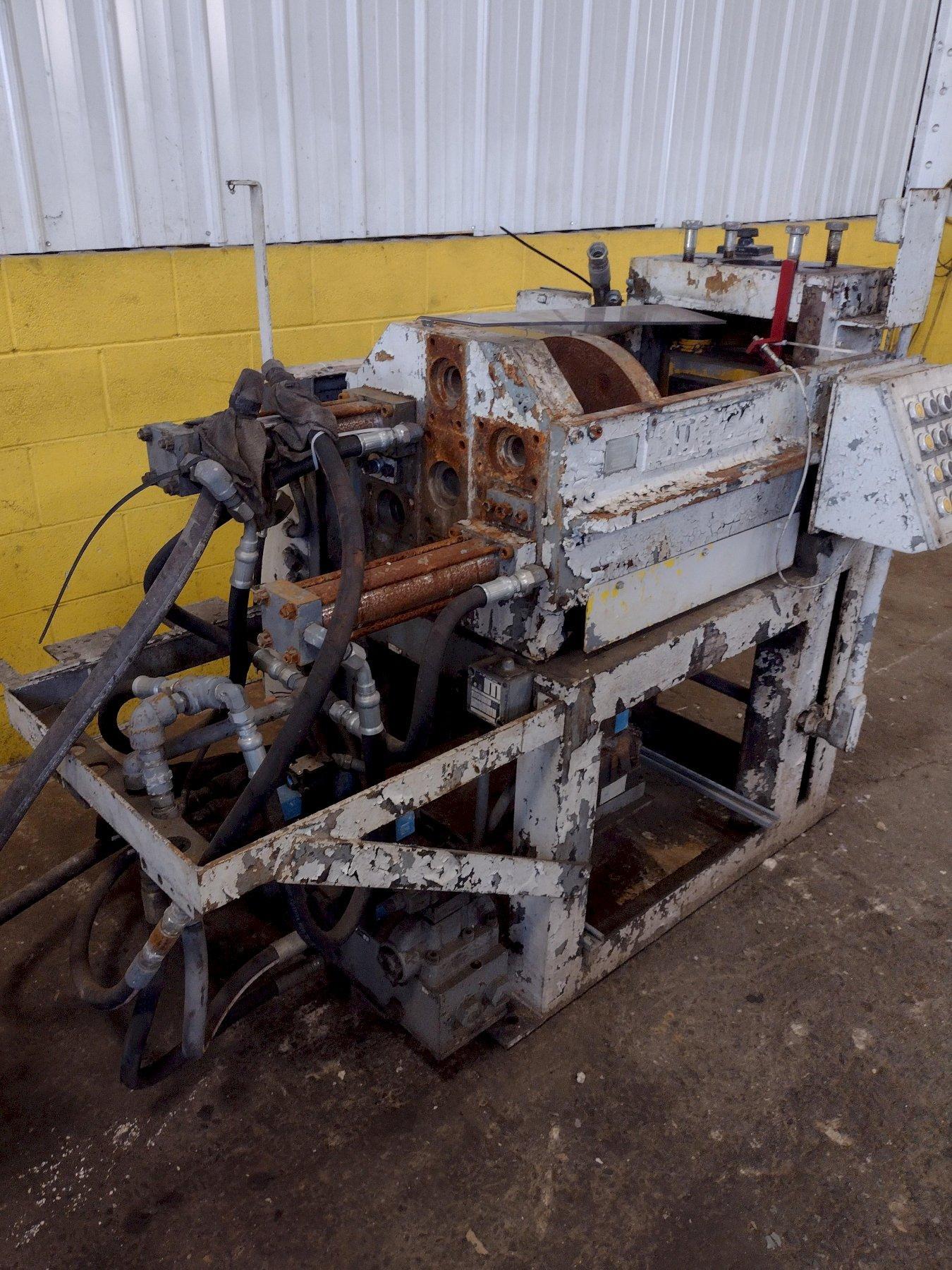

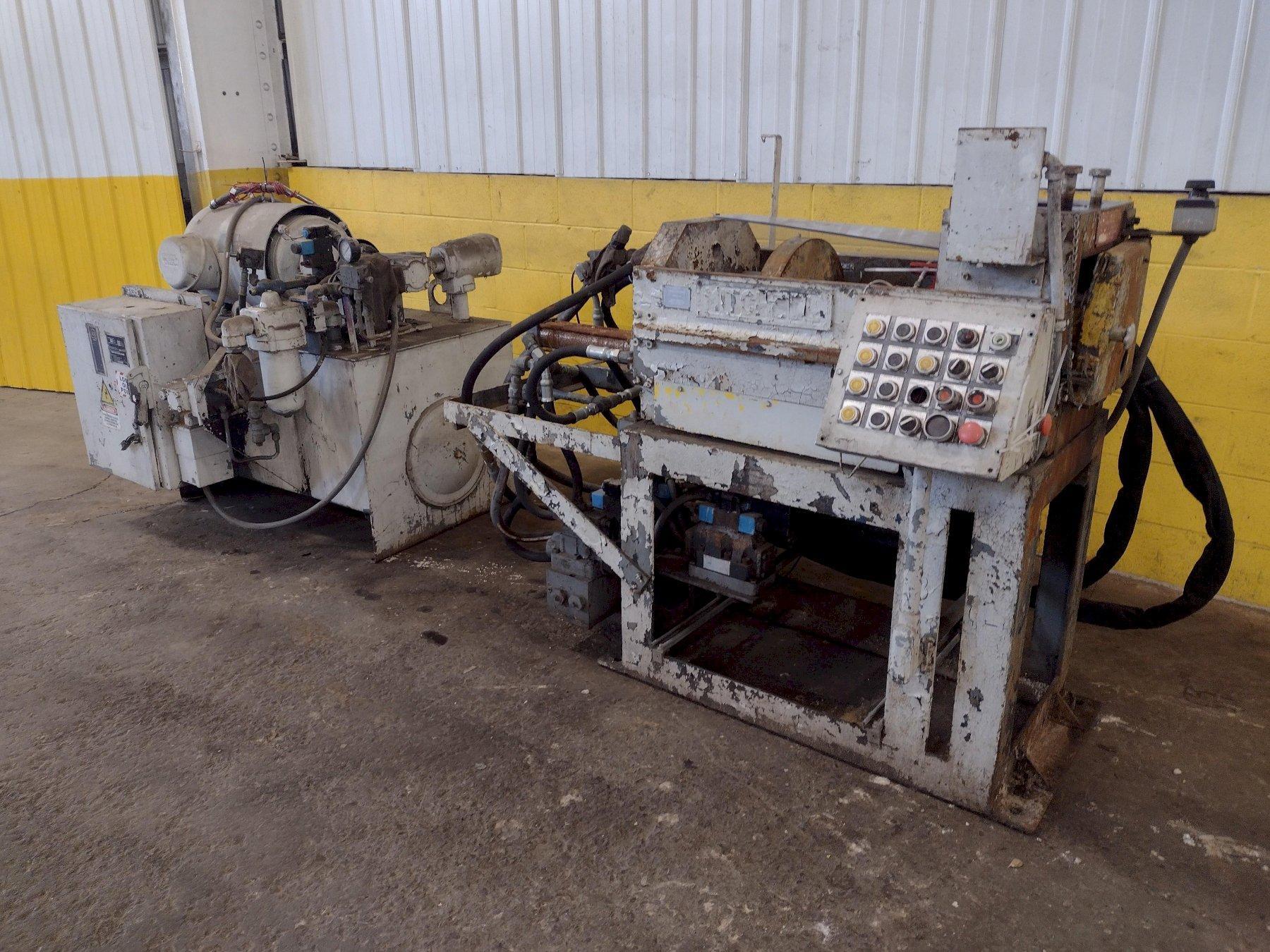

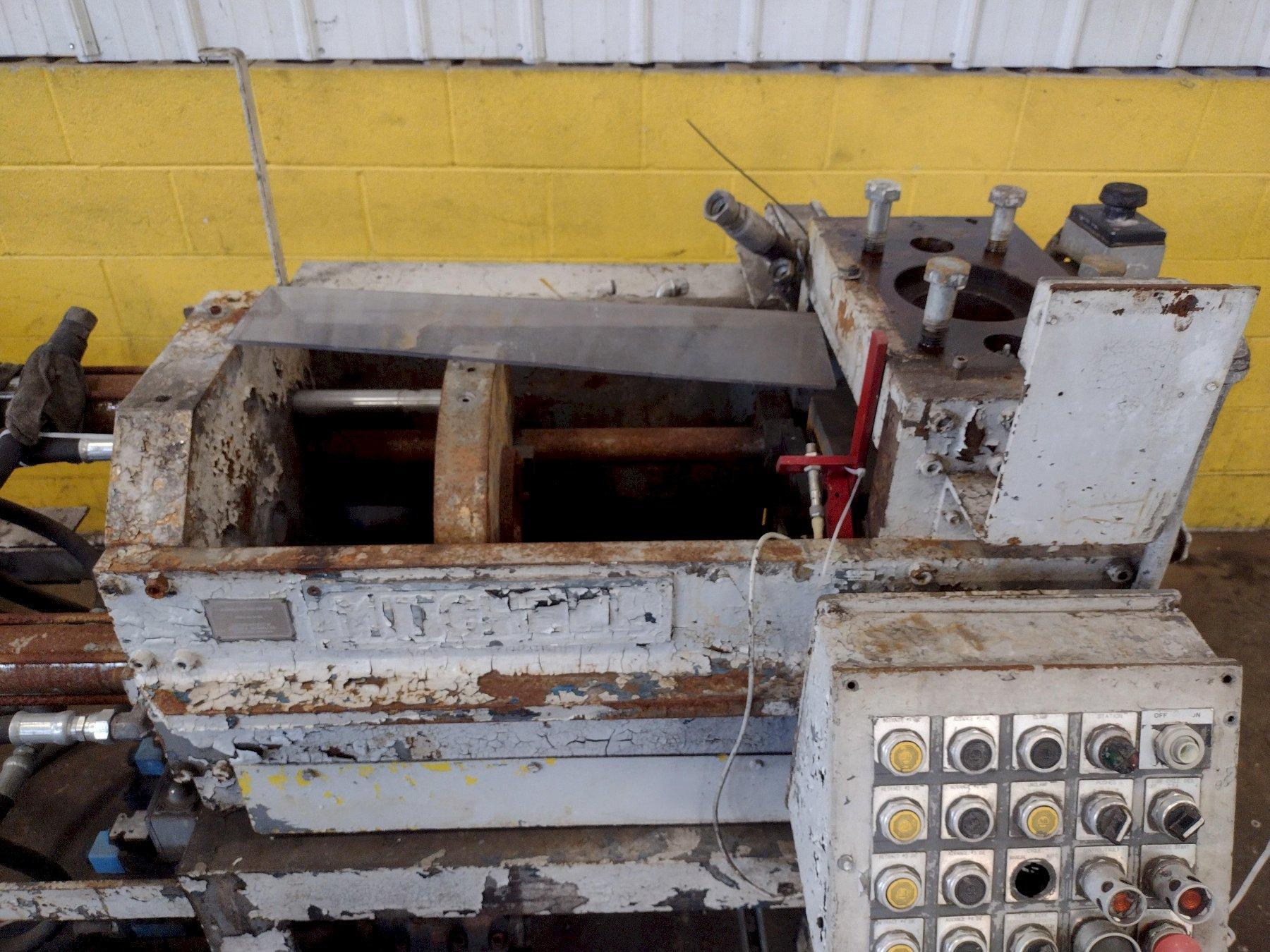

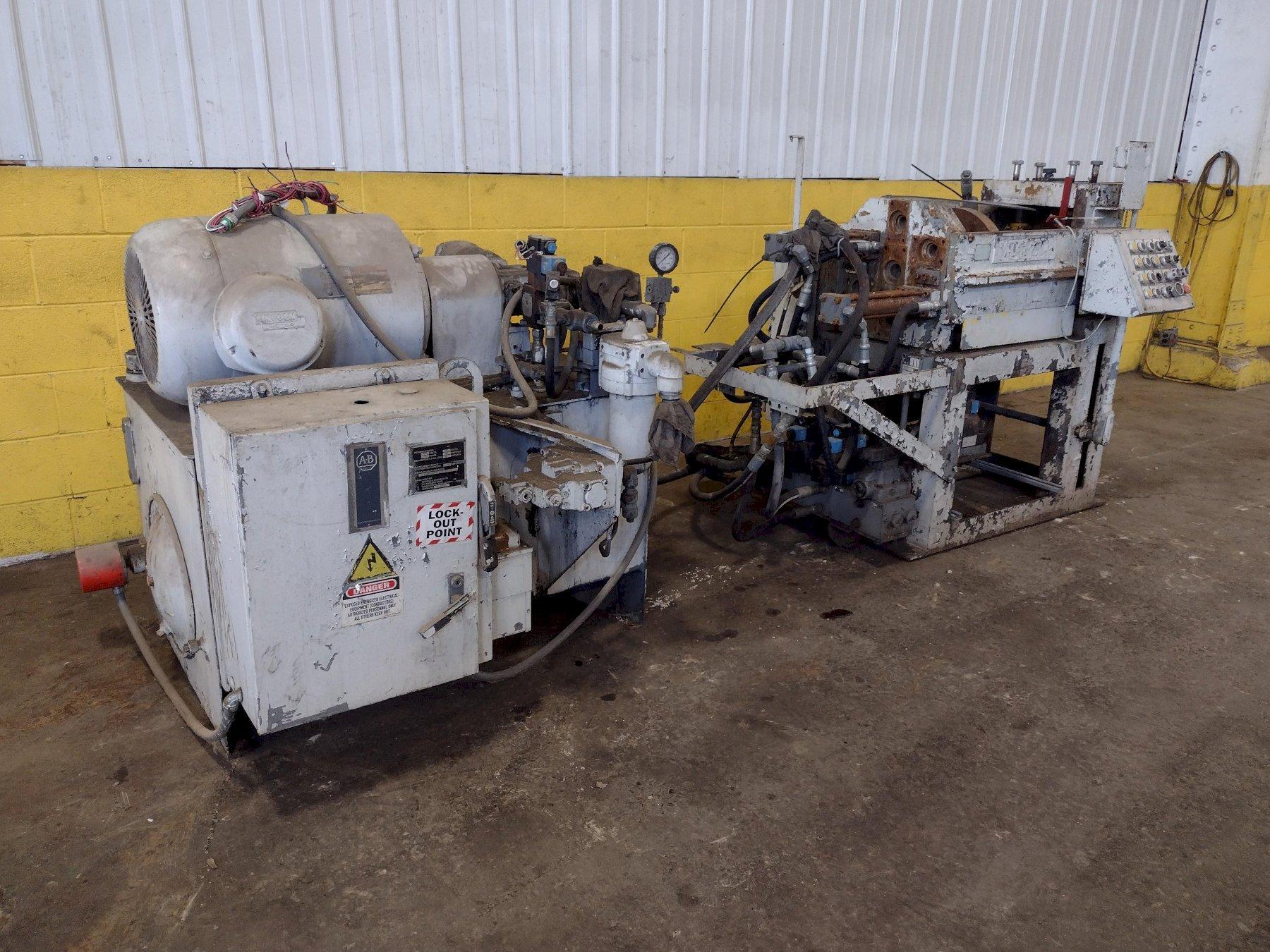

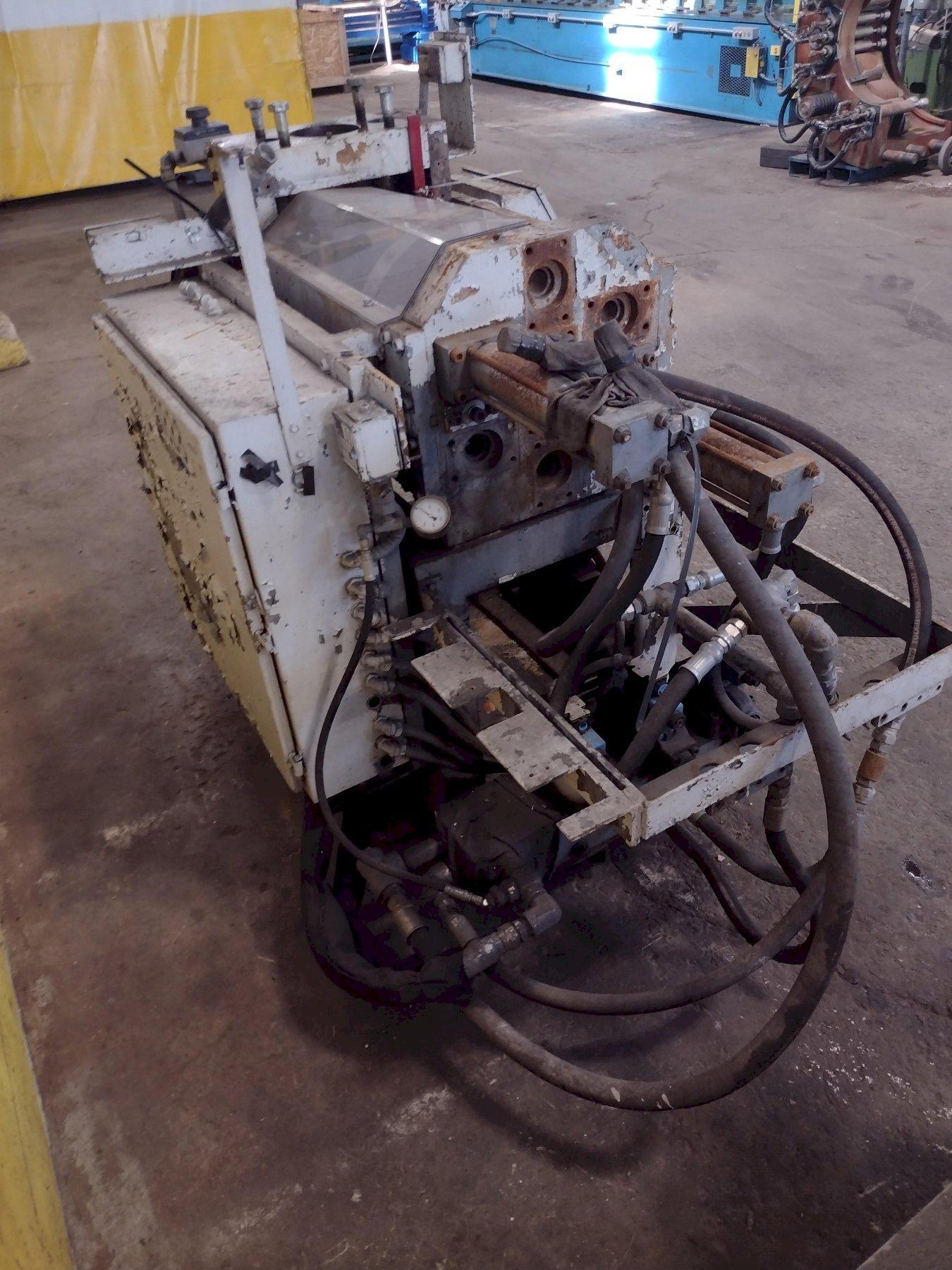

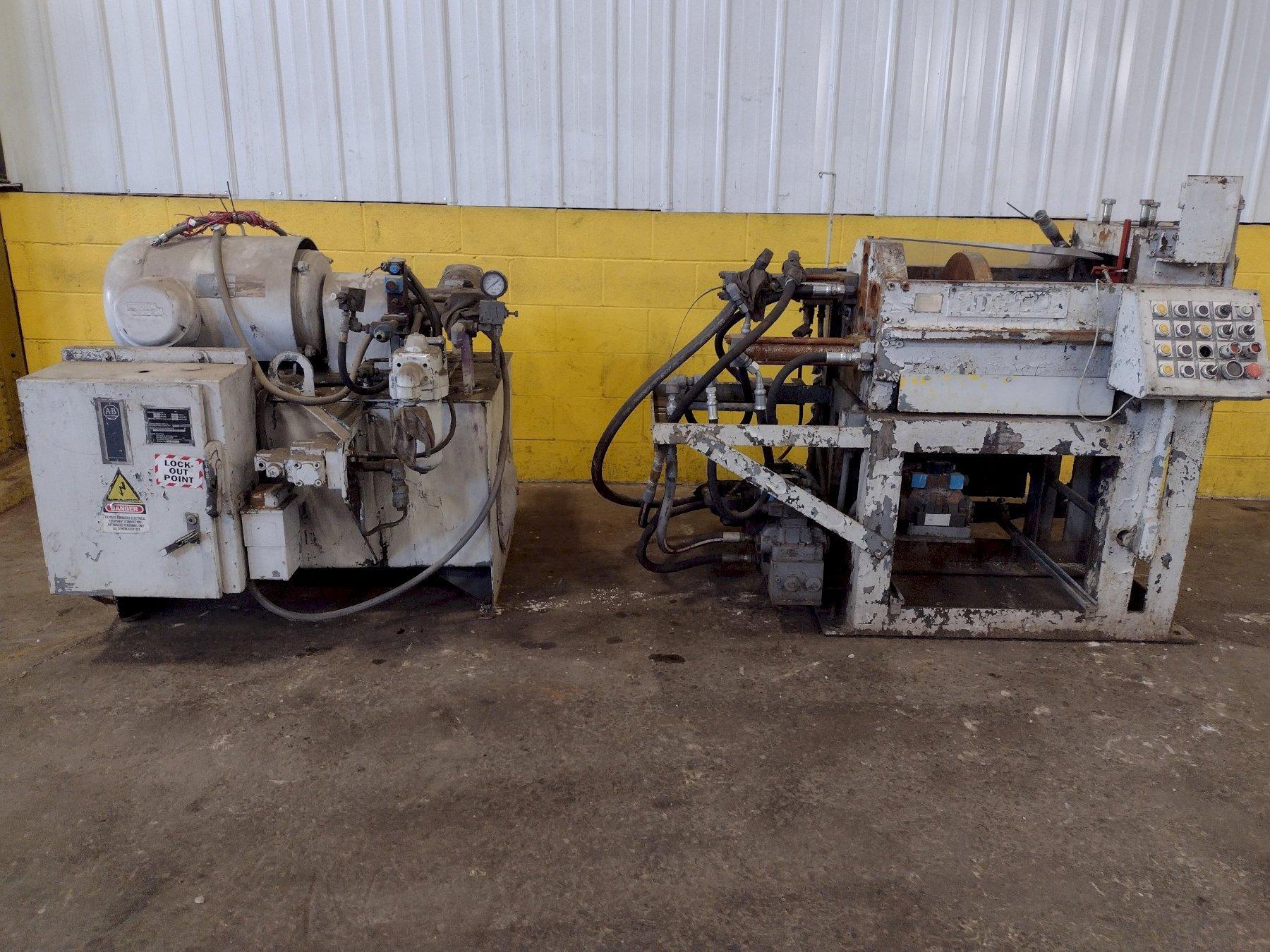

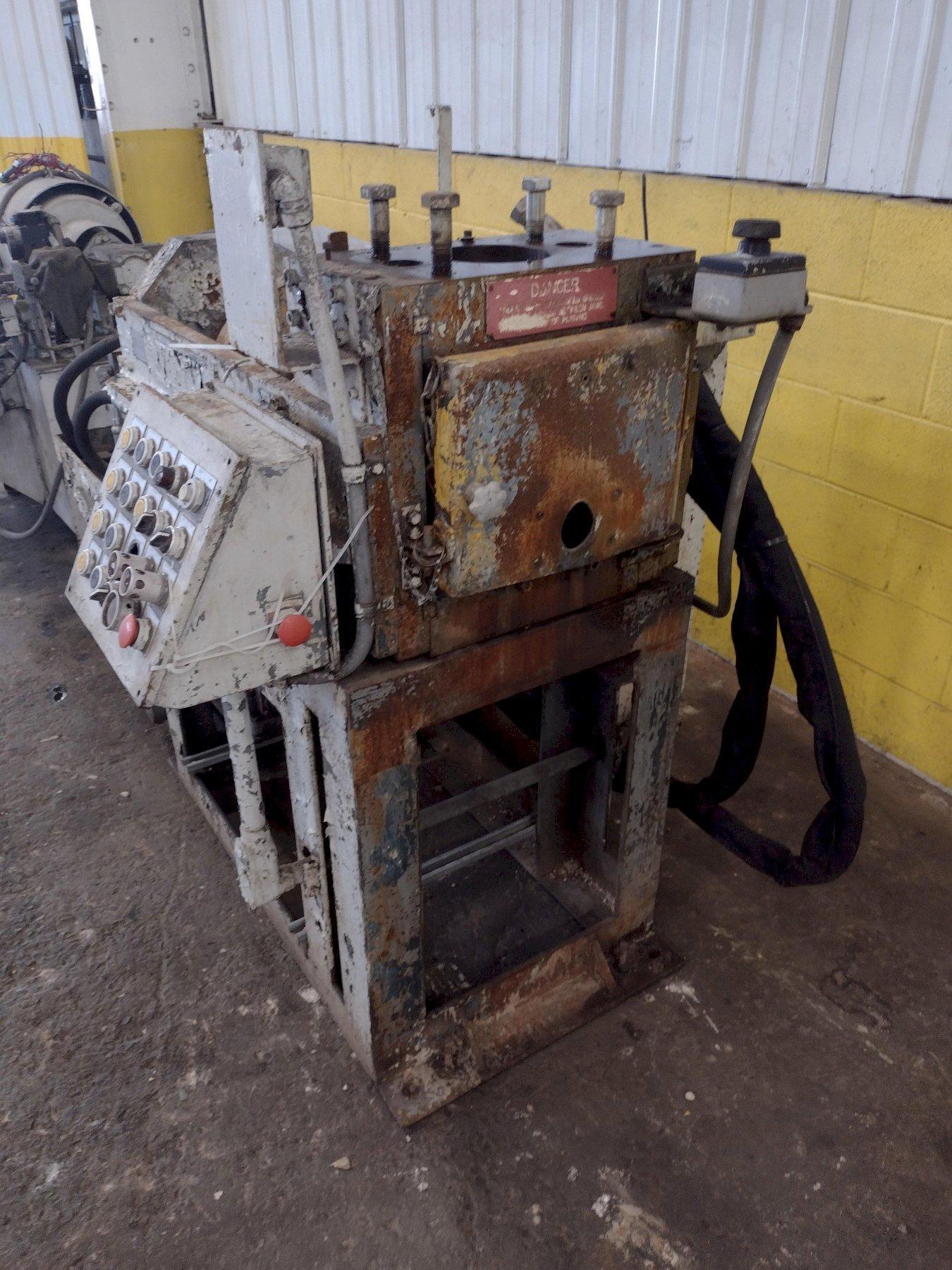

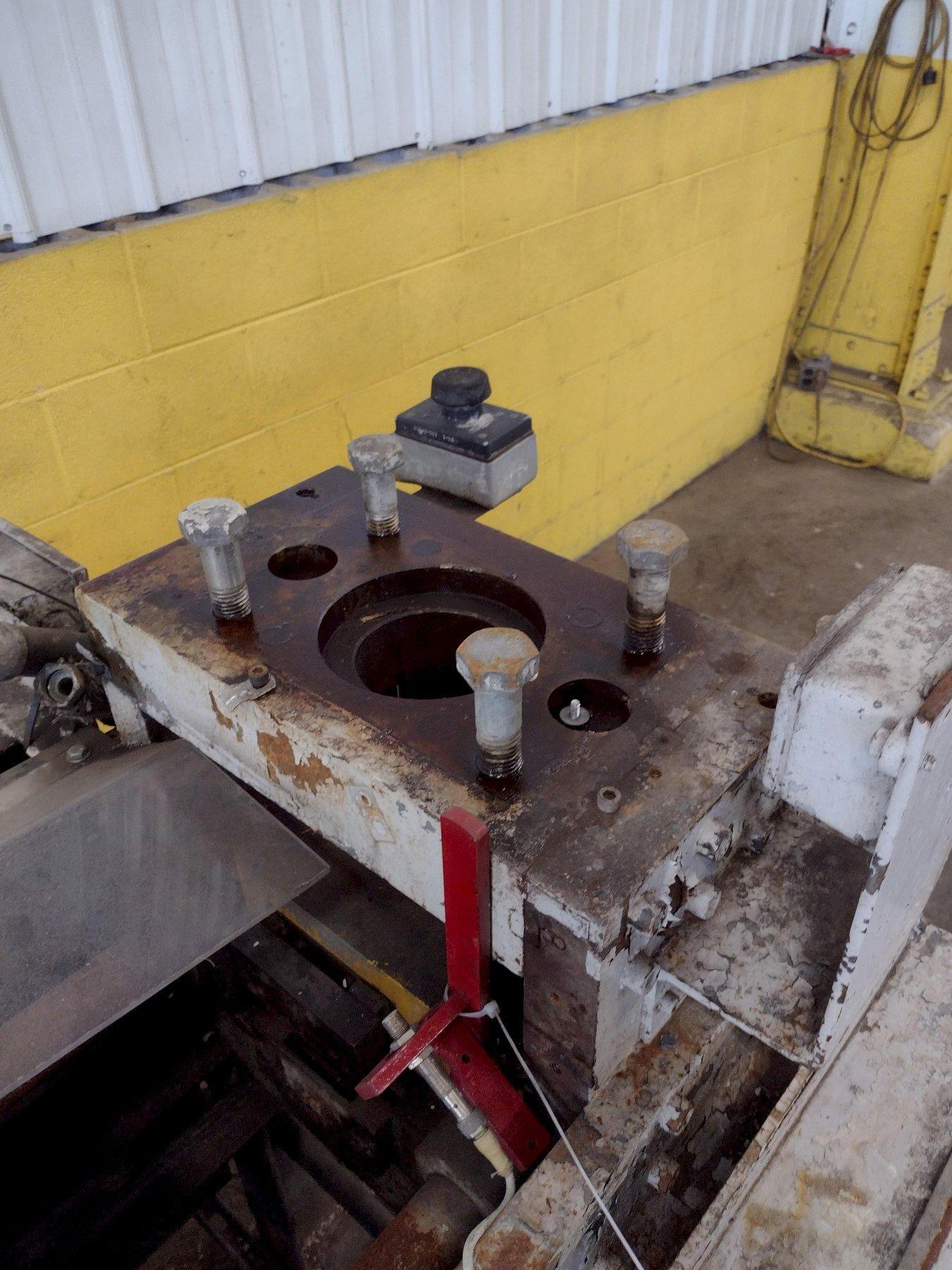

25,000 LB. MITCHELL MODEL #PP550 (4) DIE IN LINE TUBULAR CONVEYOR ROLL SHAFT END FORMING MACHINE

Manufacturer

MITCHELL

Category

Tube Machinery

Type

TUBE END FORMING MACHINERY

Stock

15297

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .................................... PP550

RATED TUBE SIZES:
1-3/4" O.D. x .165" WALL
1-1/4" O.D. x .120" WALL
3/4" O.D. x .156" WALL

MIN CAPACITY OF CROSSHEADS(RATED):
#1, 2 & 3 .................................. 29.500 LBS @ 3000 PSI
#4 ......................................... 24,900 LBS @ 3000 PSI

MAX CAPACITY OF CROSSHEADS(RATED):
#1, 2 & 3 .................................. 29,500 LBS @ 3000 PSI
$4 ......................................... 24,900 LBS @ 3000 PSI

POINTING DIES:
#1, 2 & 3 .................................. 5" OD (SPECIAL FLANGED)

CARBIDE INSERT DIES:
#4 ......................................... 3-1/2" OD CARBIDE

NUMBER OF POINT LENGTHS .................... INFINITE BY ADJUSTABLE

LIMIT SWITCH:
MAX TRAVEL OF DIES ......................... 12"

POINTING SPEEDS:
ADVANCE #1 DIE TO POINT LENGTH ............. 60 IPM @1000 PSI
ADVANCE #1, 2, & 3 DIES .................... 349 IPM @ 2500 PSI
RETRACT #1, 2 & 3 DIES ..................... 534 IPM @ 1000 PSI
ADVANCE #4 DIE ............................. 328 IPM @ 2500 PSI
RETRACT #4 DIE ............................. 442 IPM @ 1000 PSI

AUTOMATIC CYCLE ............................ 1, 2, 3 OR 4 PUSH

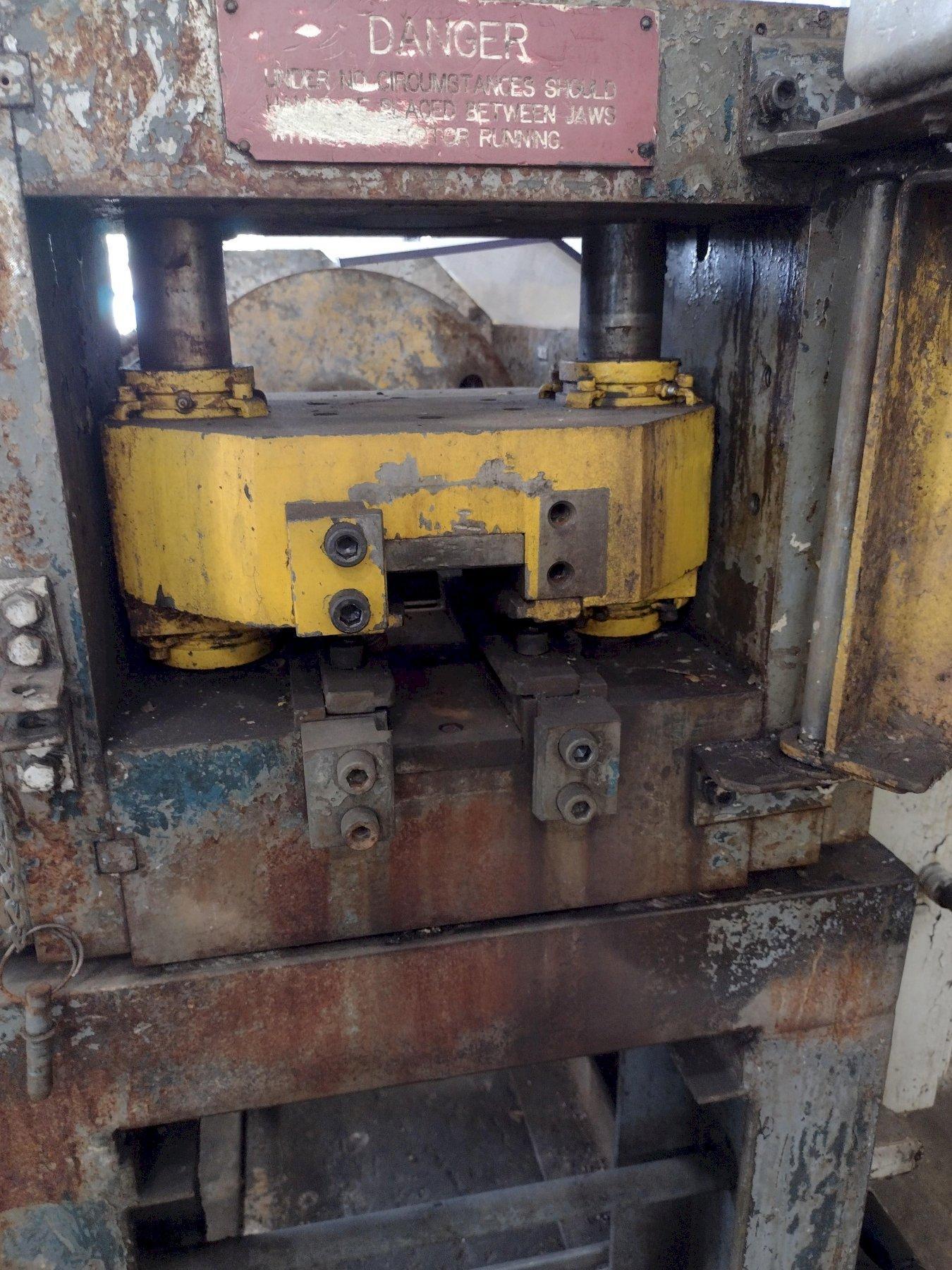

TUBE GRIPPER JAWS:
MAX OD (SINGLE SIDED FIXED) ................ 1-3/4" MAX OD
LENGTH OF GRIPPER JAWS ..................... 10"
MAX OPENING BETWEEN GRIPPER JAWS ........... 1-3/4"
CLAMPING MECHANISM ......................... DIRECT ACTING

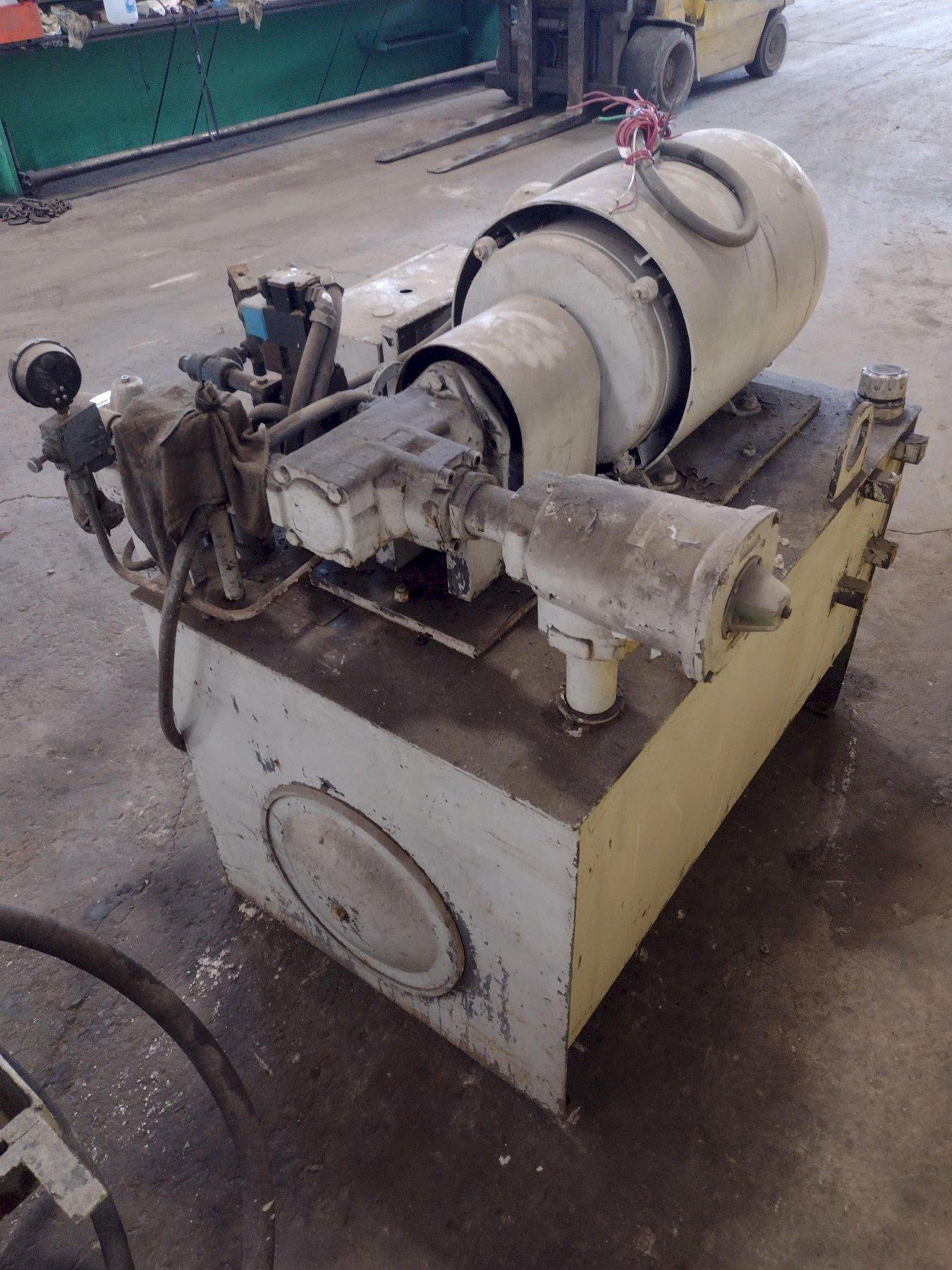

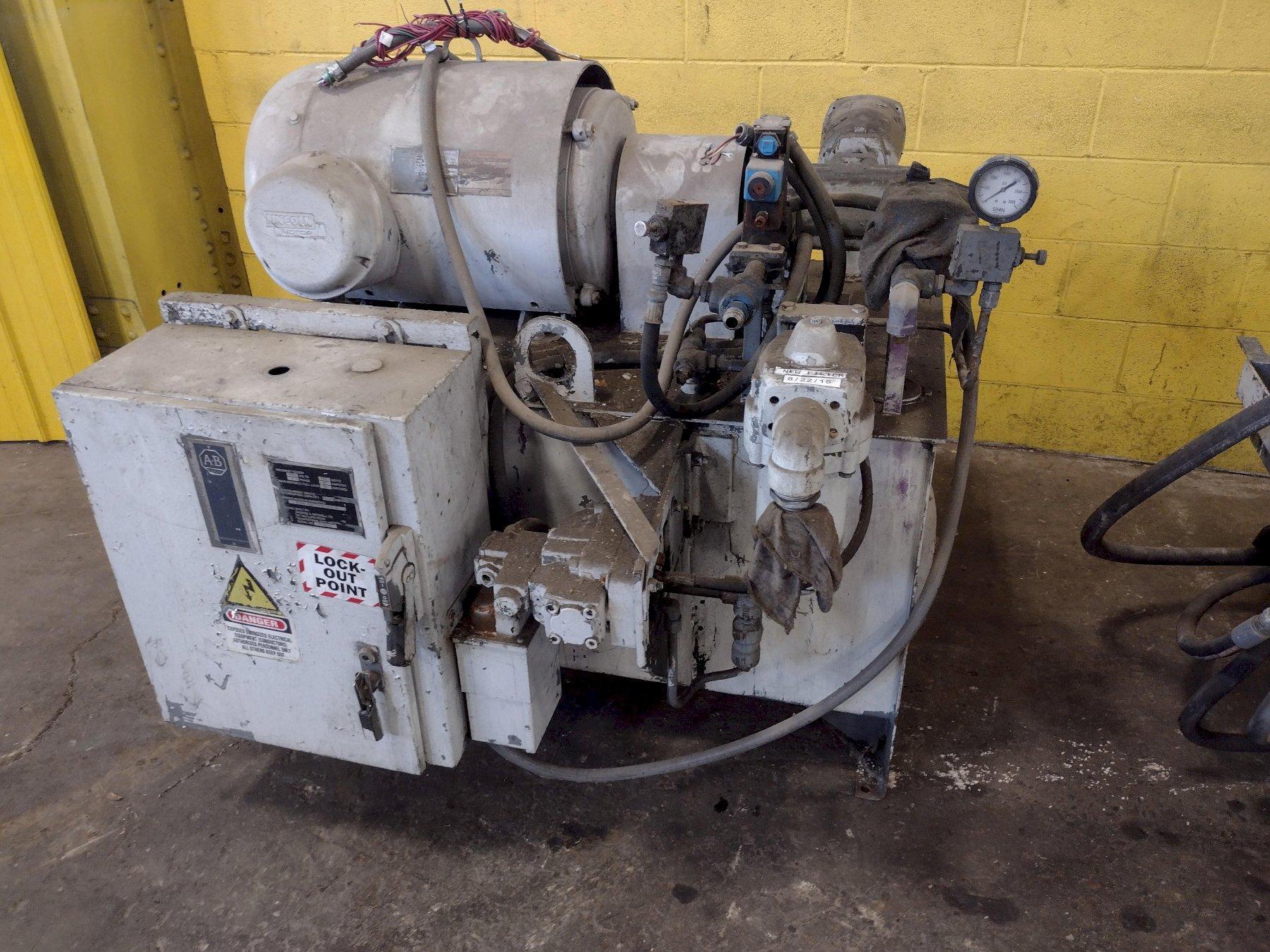

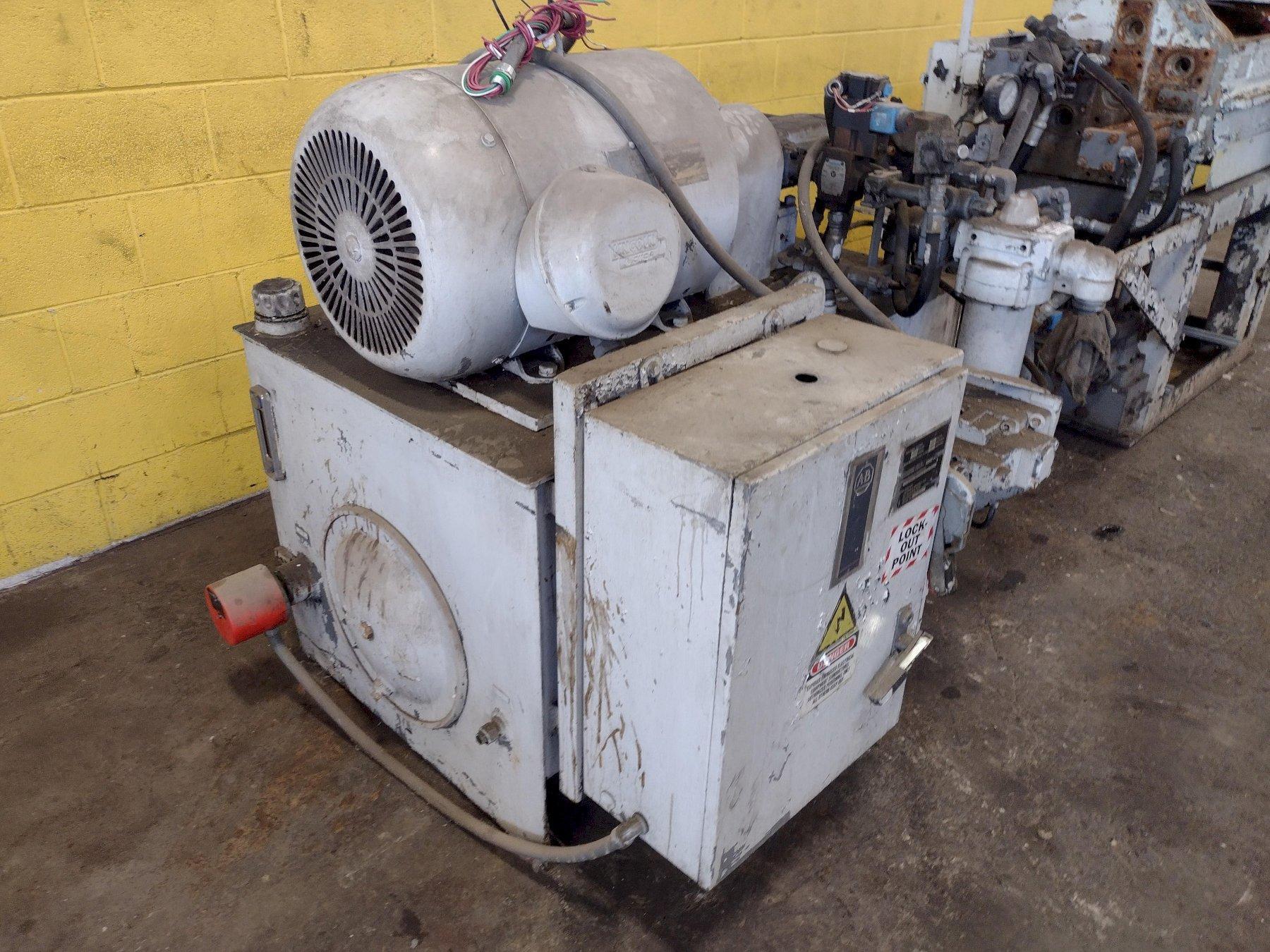

HYDRAULIC CYLINDER:
HYDRAULIC RESERVOIR ........................ 100 GALLONS
HYDRAULIC FLUID (PETROLEUM OIL) ............ 150-315 SUS @100E F

HYDRAULIC CYLINDERS:
#1, 2 & 3 DIE CROSSHEADS ................... (6) 2-1/2" BORE X 1-3/8" ROD
#4 DIE HOLDER .............................. (1) @ 3-1/4" BOR X 1-3/8" ROD
CLAMPING ................................... (1) @ 6" BORE X 3-1/2" ROD

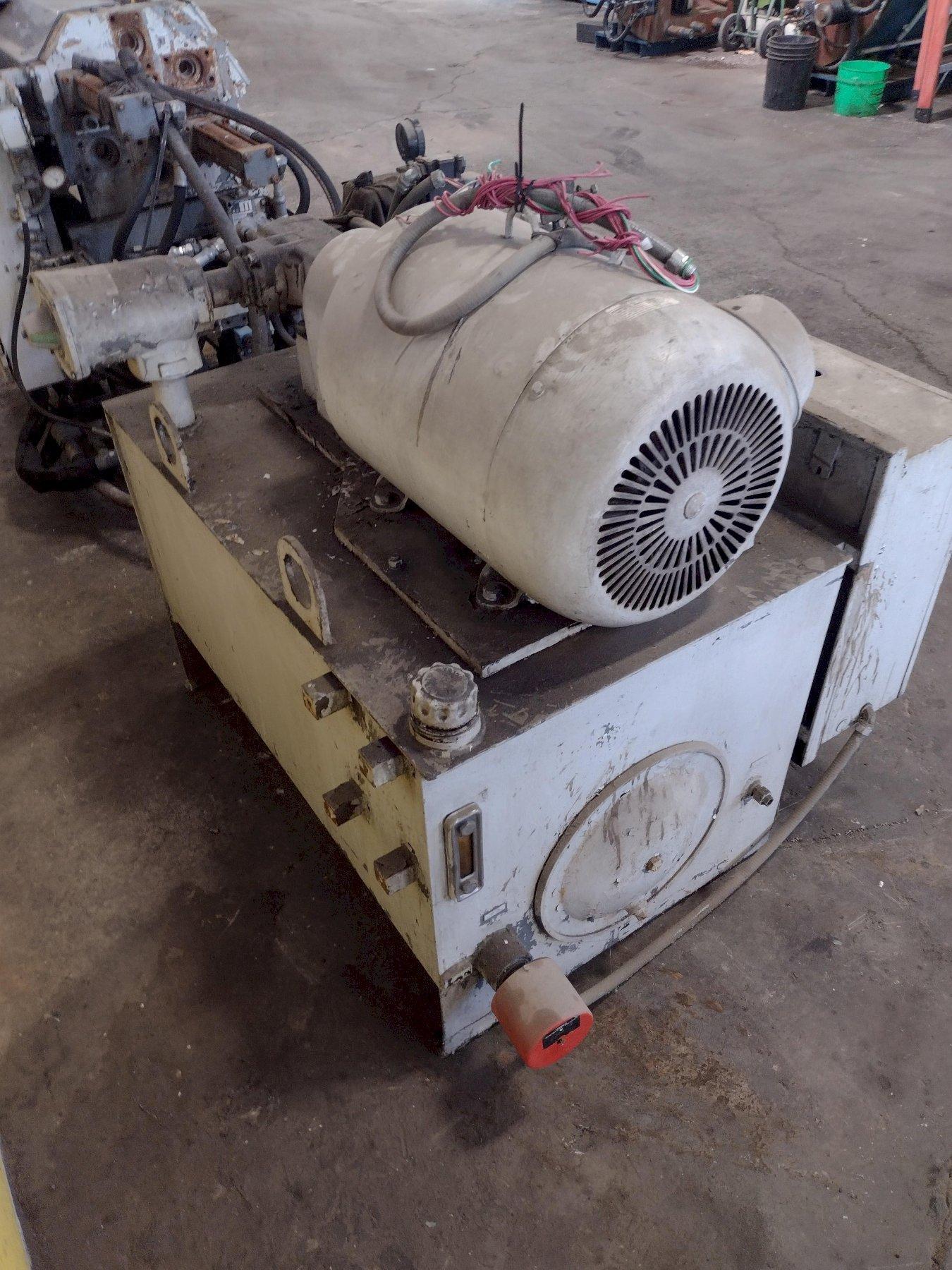

HYDRAULIC PUMP ............................. DOUBLE VANE PUMP
14.8 GPM @2500 PSI
11.8 GPM @ 2500 PSI

METHOD OF LUBING DIES ...................... LINCOLN LUBE
EJECTORS:
HYDRAULIC PUMP DRIVE MOTOR ................. 30HP/1200RPM/3PH/6HZ/TEFC/FR #326TC

HYDRAULIC PUMP DRIVE MOTOR STARTER SIZE 3 .. FULL VOLTAGE COMBINATION W/FUSED DISCONNECT IN NEMA 12 ENCLOSURE

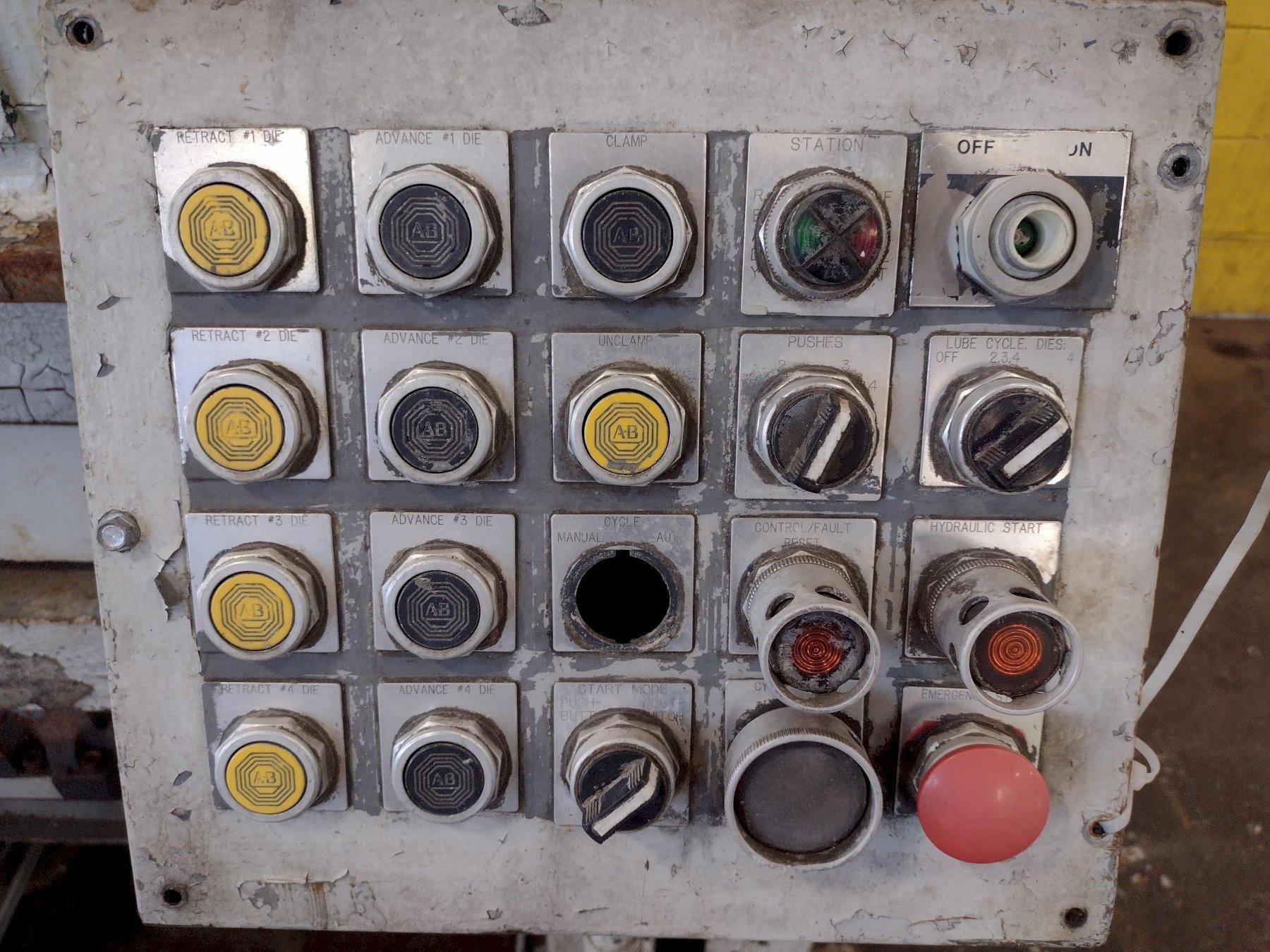

PROGRAMMABLE ELECTRICAL CONTROL ............ YES
MAIN POWER SUPPLY .......................... 460V/3PH/60HZ
CONTROL CIRCUIT ............................ 120V/SINGLE PHASE

SPECIAL TUNGSTEN CARBIDE FLANGED DIES FURNISHED FOR 1-1/4" DIA TUBES:

(1) - 1.050"
(1) - .875"
(1) - .756"

(1) PAIR SINGLE SIDED TRUE GRIPPER JAW ..... 1.250"
