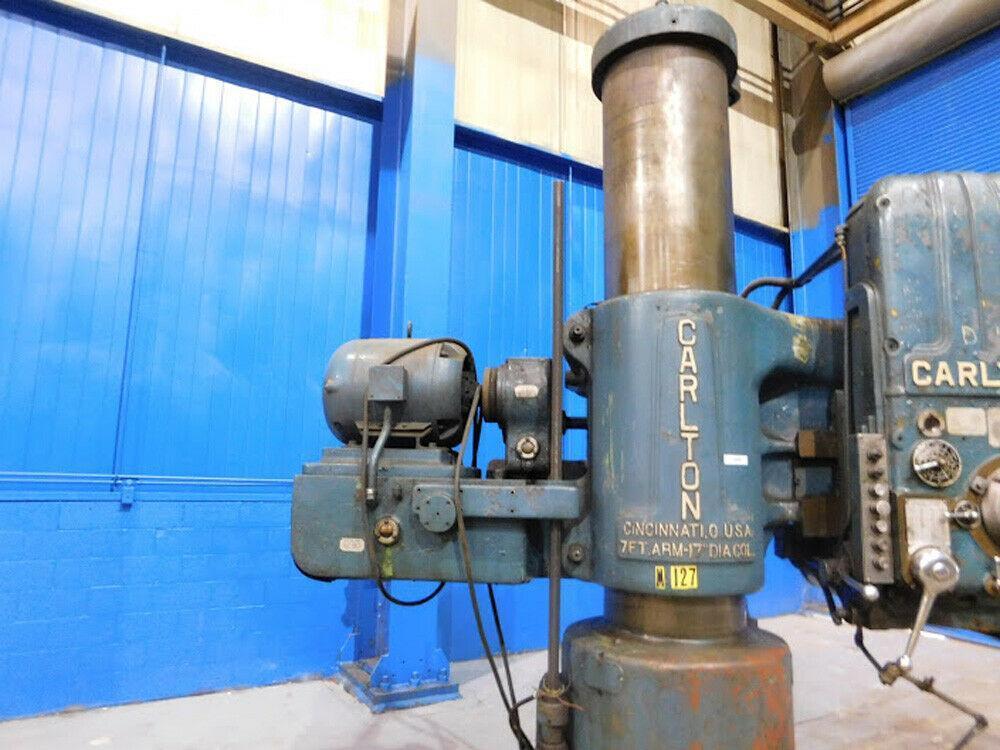

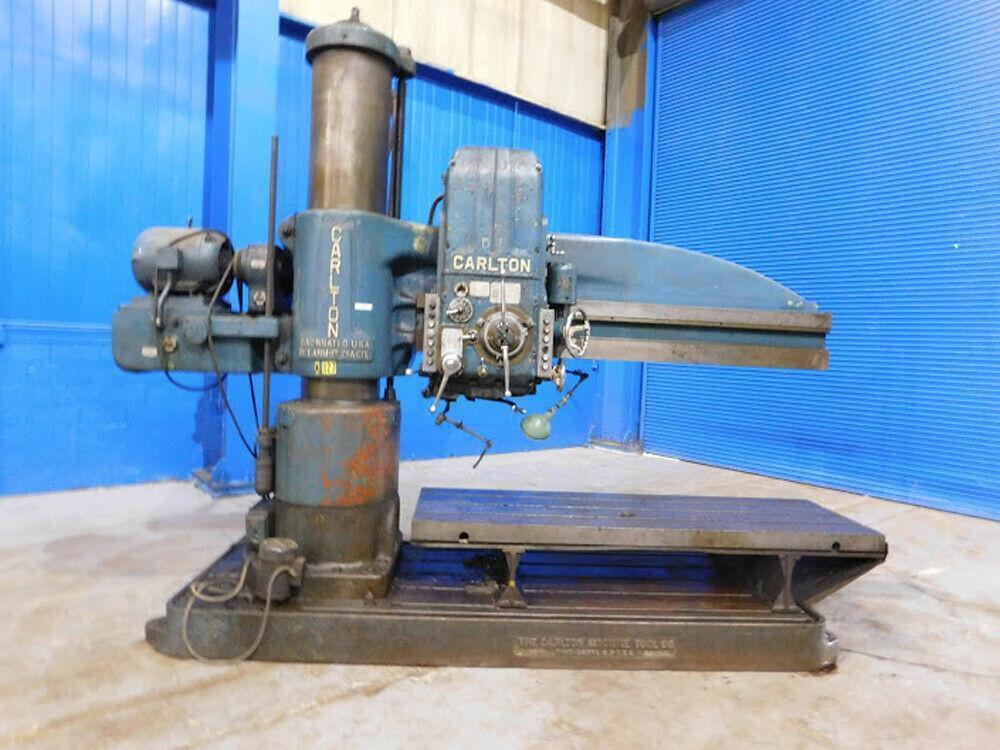

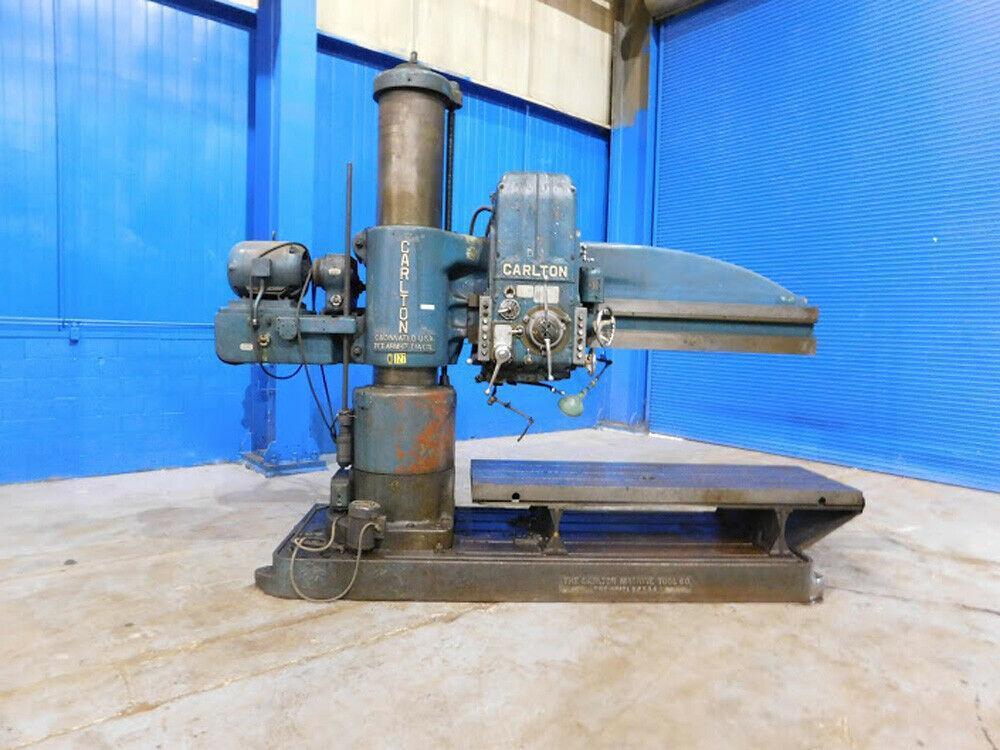

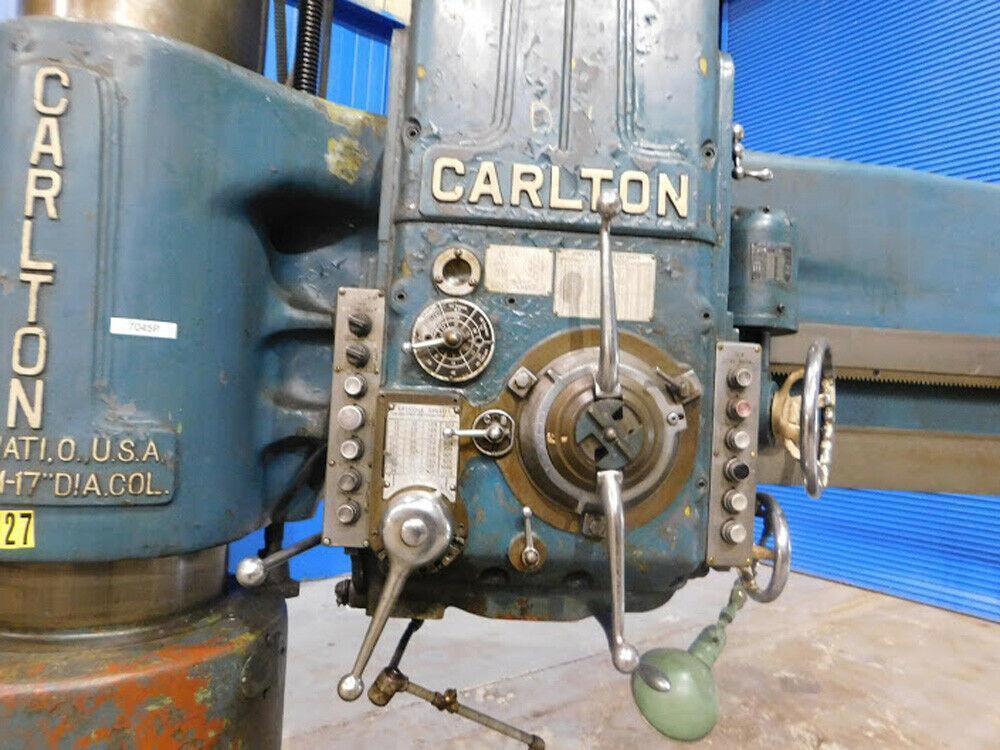

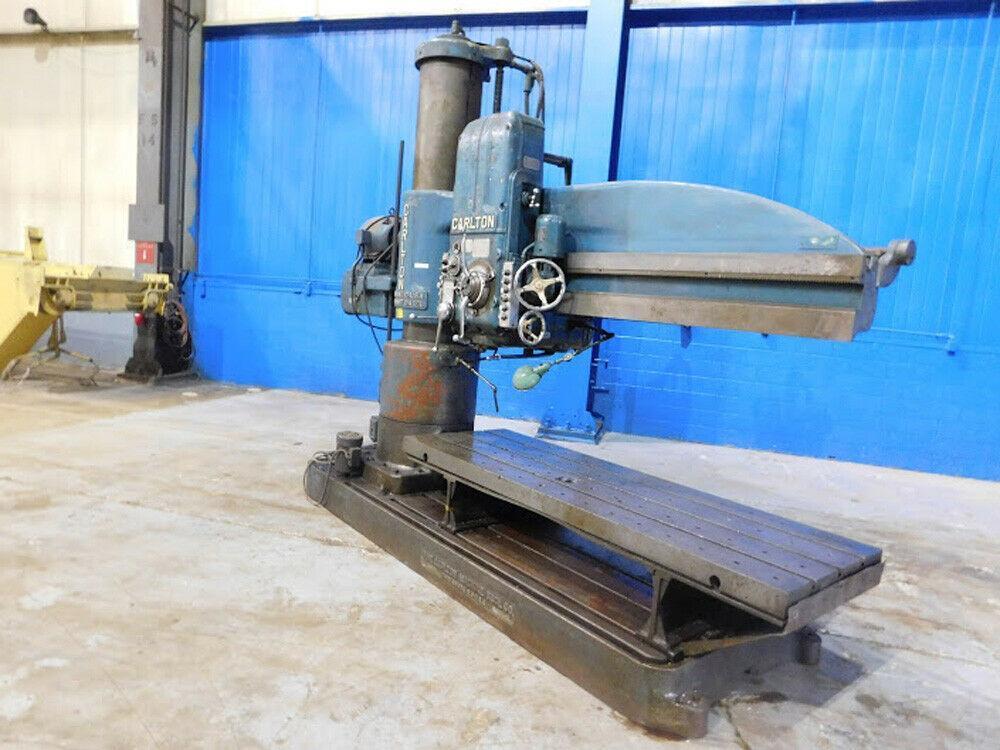

7' X 17" CARLTON MODEL #3A RADIAL DRILL: STOCK 15026

Manufacturer

CARLTON

Category

Drilling Machines

Type

DRILLS, RADIAL, RAM TYPE

Stock

15026

Model

07 X 17 4A

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



SERIAL .............................. 3A-3021
MODEL ............................... 3A
LENGTH OF ARM ....................... 84"
DIAMETER OF COLUMN .................. 17"
AREA OF BASE ........................ 84" X 51"
T-SLOTTED RISER TABLE ............... 15" HIGH
SPINDLE SPEEDS ...................... (36) 12 TO 1200 RPM
SPINDLE FEEDS ....................... (12) .004 TO .125 IPR
SPINDLE STROKE ...................... 18"
TAP LEADS ........................... 8, 11.5, 14, 18
TAPER IN SPINDLE .................... 6 MT
DISTANCE SPINDLE CENTER TO COLUMN ... 13-1/4" TO 72" MAX
DISTANCE SPINDLE TO BASE ............ 14-1/2" TO 72" MAX
POWER HEAD TRAVERSE ................. YES
POWER HEAD COLUMN CLAMPING .......... YES
POWER ELEVATION ..................... YES
COOLANT ............................. YES
AUTO LUBE SYSTEM .................... YES
MOTOR ............................... 15 HP
