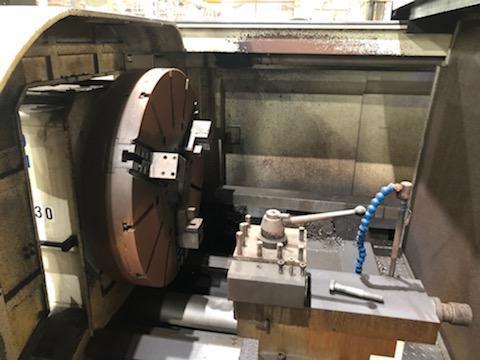

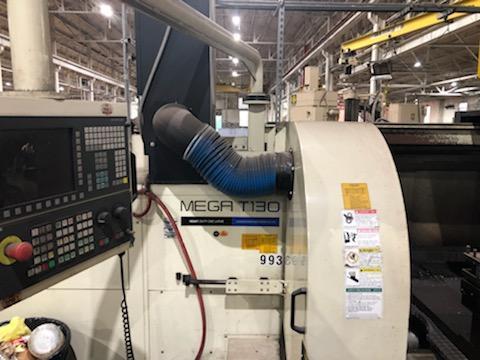

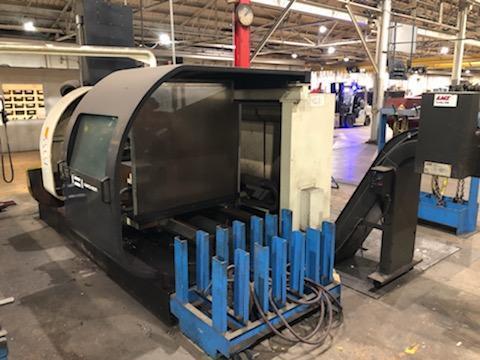

52” X 42” HWACHEON MODEL MEGA 130T CNC FACING T-LATHE: STOCK #14855

Manufacturer

HWACHEON

Category

Lathes

Type

LATHES, WHIRLING, CNC

Stock

14855

Model

MEGA 130T

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ............................................... MEGA 130T
MACHINE CENTER HEIGHT FROM BED ...................... 25.6"
MACHINE CENTER HEIGHT FROM FLOOR .................... 41.9"
MAX SWING OVER BED .................................. 52.0"
SWING OVER CARRIAGE ................................. 35.4"
MAX WORK PIECE WEIGHT ............................... 3,300 LBS
MAX DISTANCE BETWEEN FACE PLATE & 4 STATION TURRET .. 43.3"

SPINDLE:
SPINDLE NOSE ........................................ A2-15
SPINDLE SPEED ....................................... 4-400 RPM
SPINDLE HORSEPOWER (CONT./30MIN) .................... 30/25 (AC)
RAPID TRAVERSE RATE OF X-AXIS ....................... 157 IPM
RAPID TRAVERSE RATE OF Z-AXIS ....................... 157 IPM
FEED RATE ........................................... 0.04-157 IPM
MAX CUTTING FORCE ................................... 3,300 LBS
MAX SPINDLE TORQUE .................................. 13,019 FOOT POUNDS

AXIS TRAVELS:
X-AXIS CNC CONTROL .................................. 21.3"
Z-AXIS CNC CONTROL .................................. 47.2"
X2-AXIS MANUAL ...................................... 3.9"
Z2-AXIS MANUAL ...................................... 14.2"

BALL SCREWS & SERVO MOTORS:
X-AXIS BALL SCREW ................................... 1.5"
Z-AXIS BALL SCREW ................................... 2.0"
X-AXIS SERVO MOTOR .................................. 1.3 HP
Z-AXIS SERVO MOTOR .................................. 4.2 HP

TURRET:
4 POISTION MANUAL WITH CURVIC COUPLING .............. 10.4" SQ
SIZE OF TOOL HOLDERS ................................ 1.25"
INDEXING POSITION ................................... 90 DEGGREES

TOTAL POWER REQUIRED ................................ 125 AMPS
