Mighty Viper Pro-2716AG, X-106", Y-63", 67" B/C, CAT #50, Fanuc Oi-MF, 40 ATC, Coolant Thru Spindle, NEW MACHINE, #32456

Manufacturer

MIGHTY VIPER

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

32456

Model

Pro-2716AG

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32456

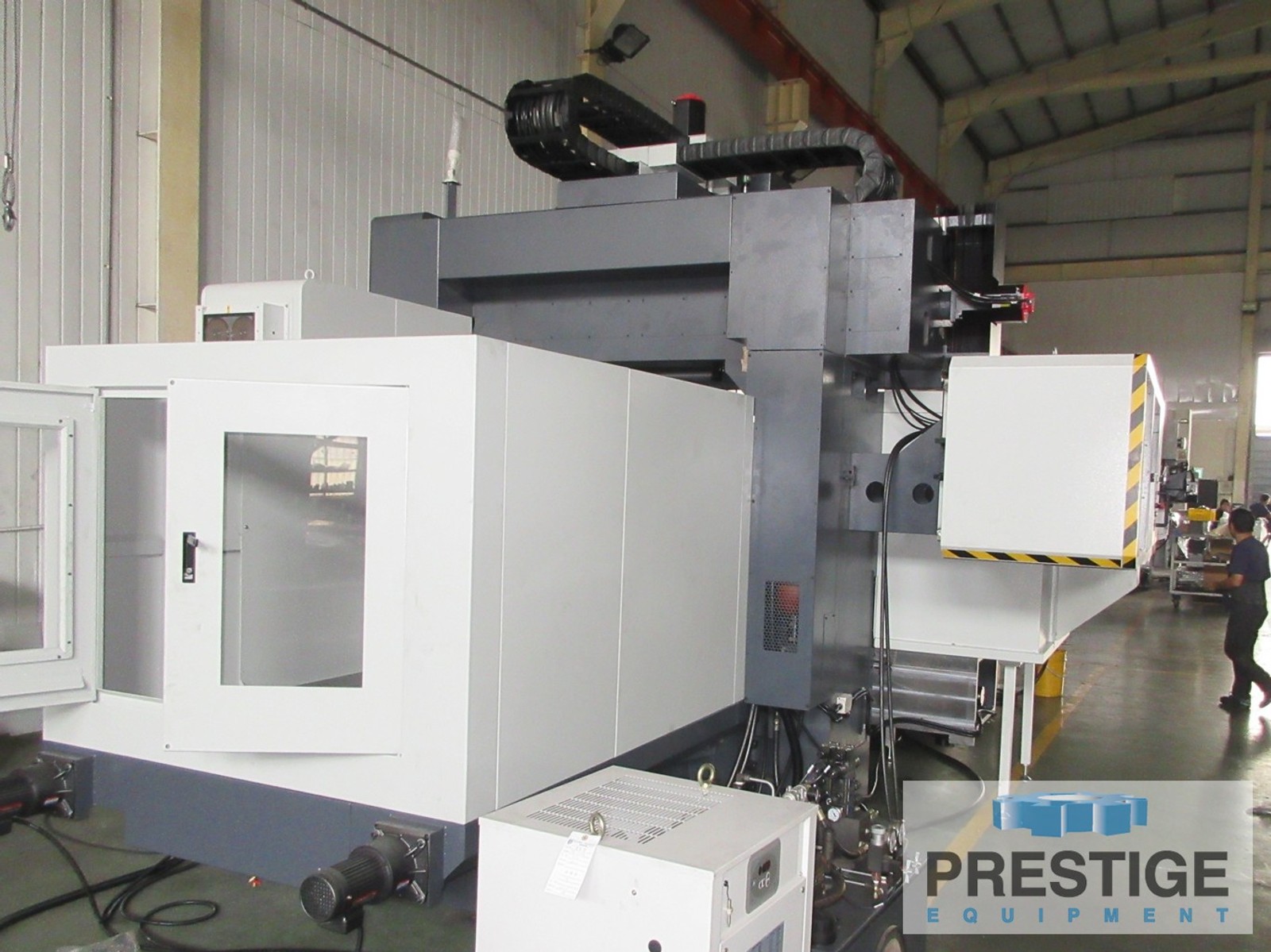

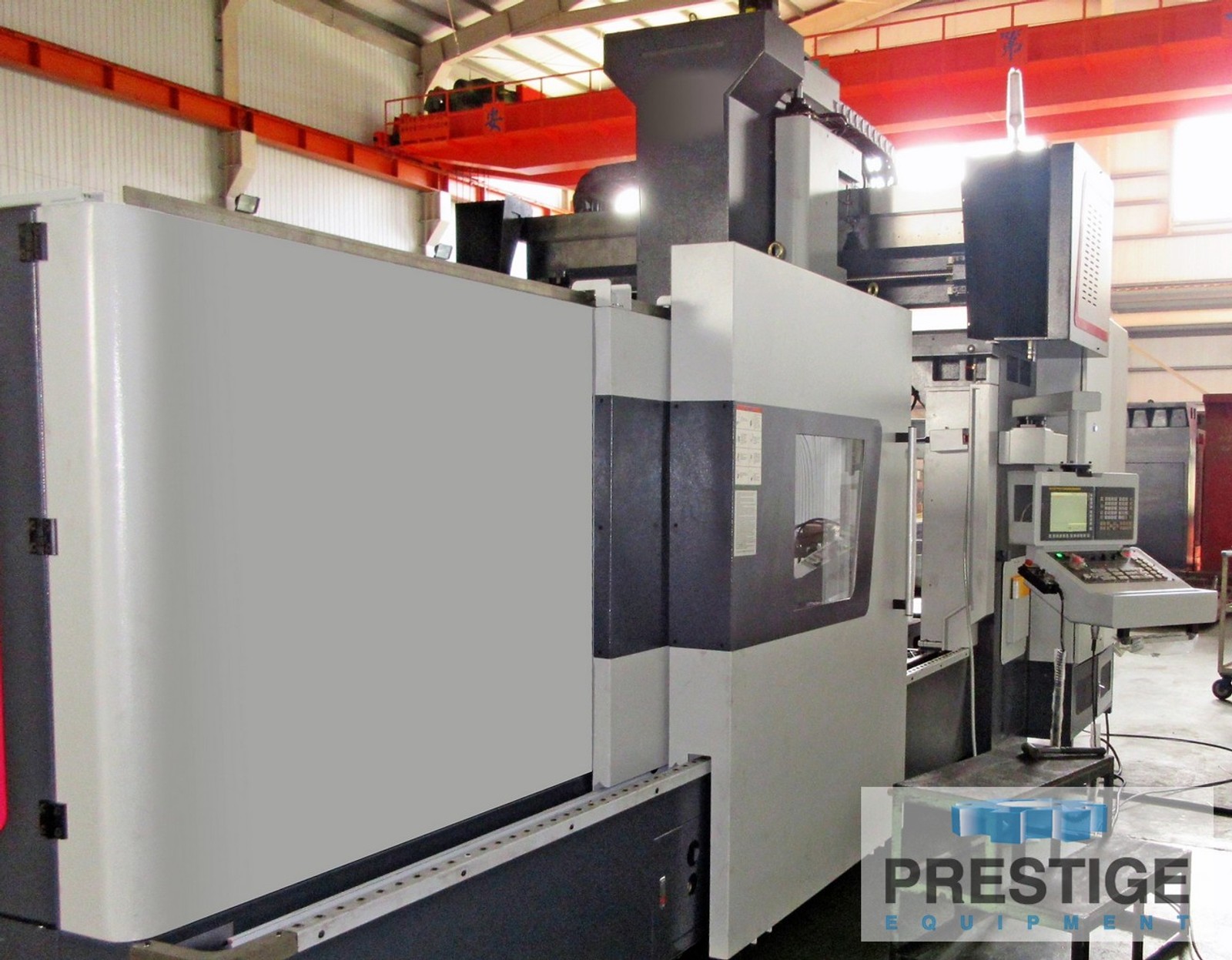

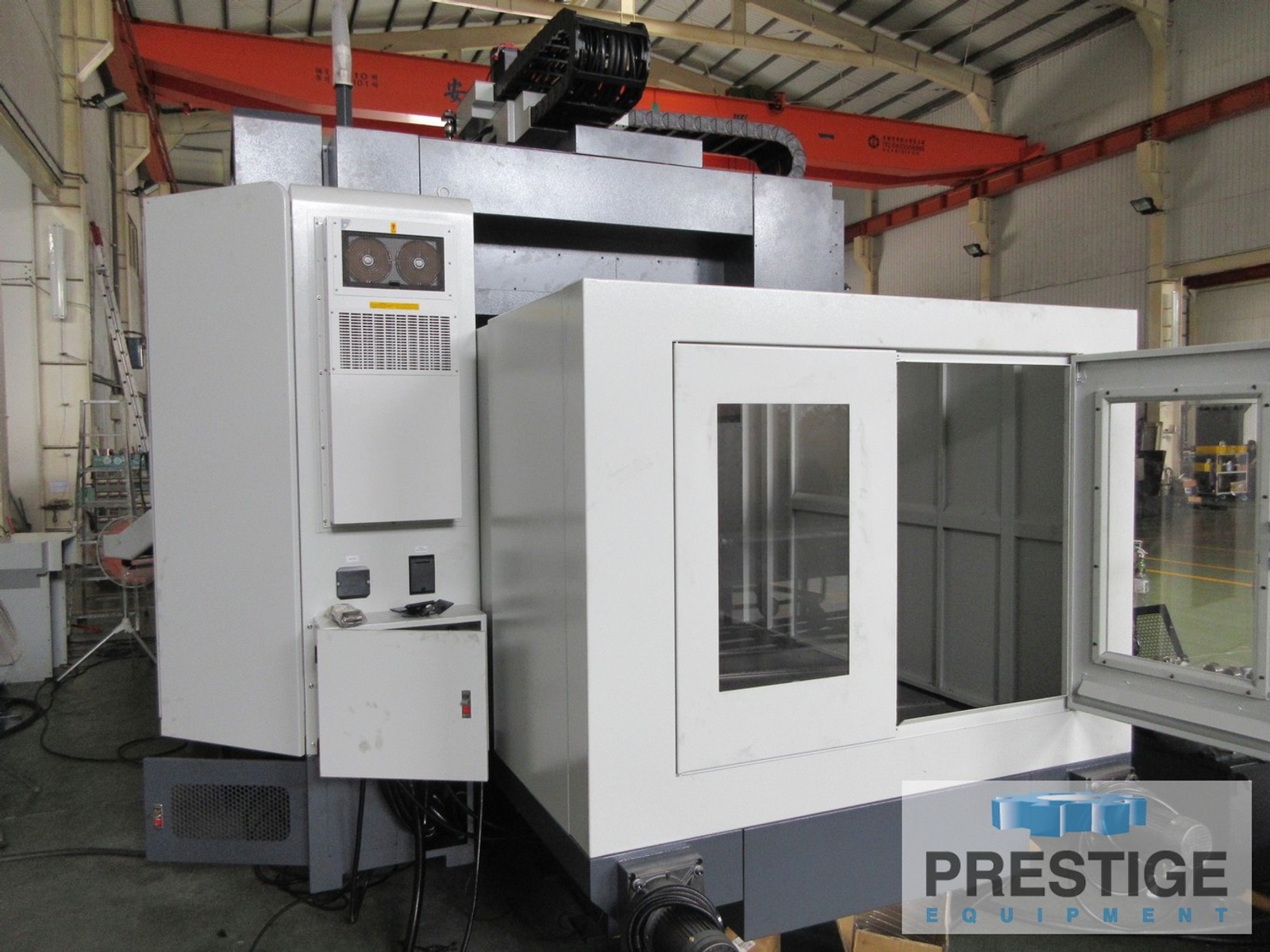

Mighty Viper Pro-2716AG CNC Double Column Vertical Machining Center

EQUIPPED WITH:
Fanuc Oi-MF CNC Control

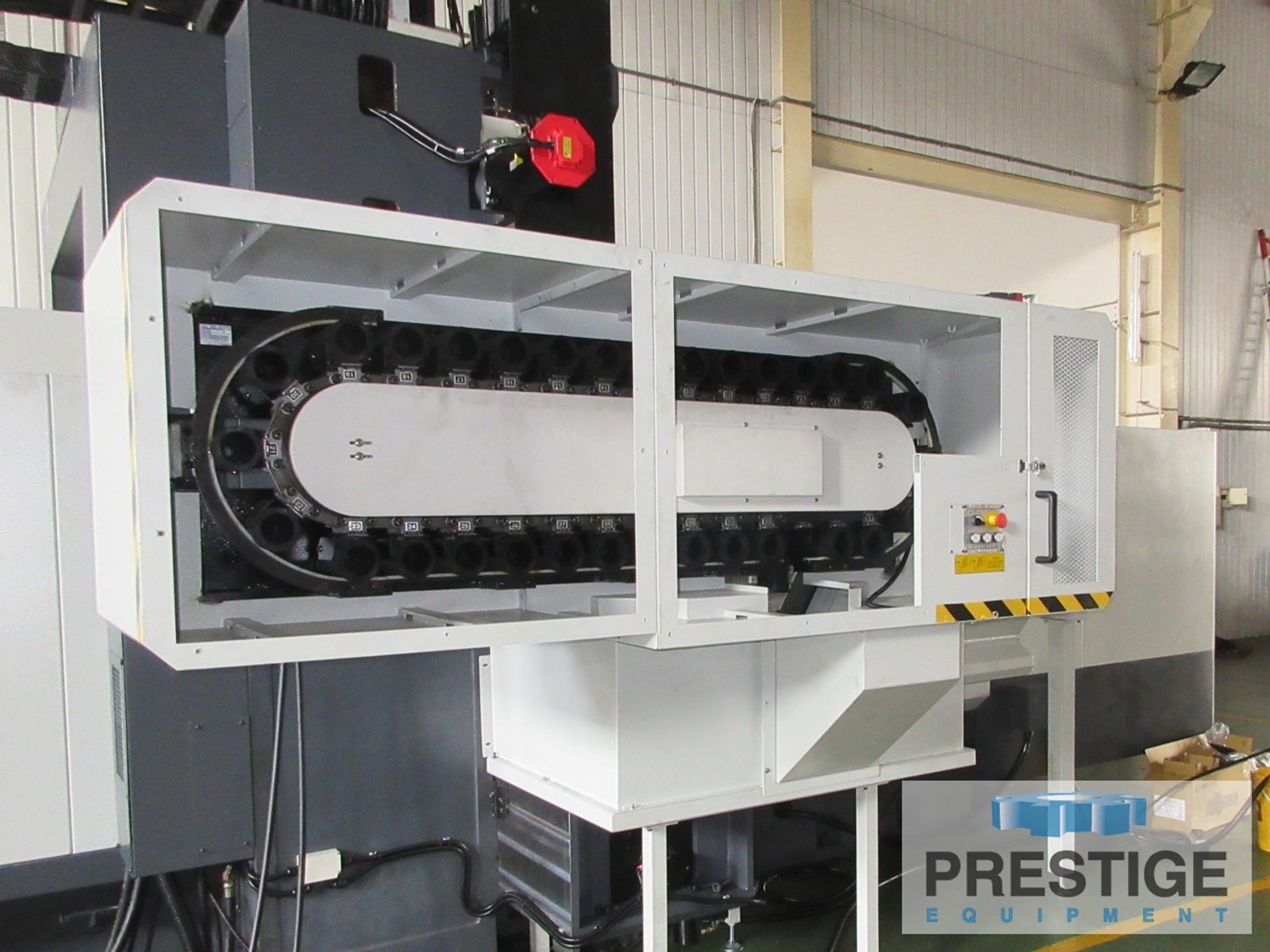

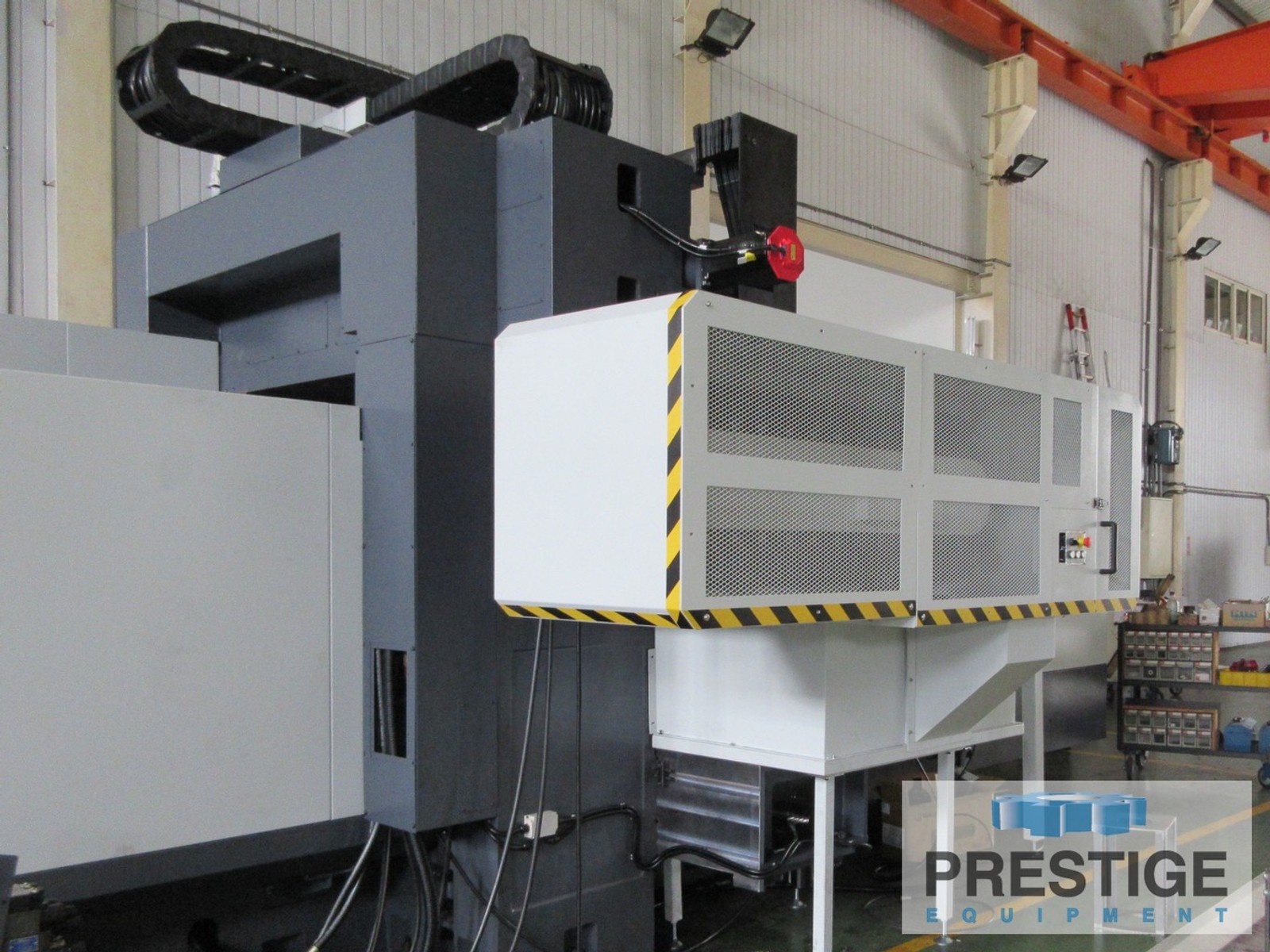

40-Position Automatic Tool Changer
300 PSI Coolant Thru Spindle with High Pressure Pump System
4th Axis Pre-Wired
Absolute Encoders on all three axes


CAPACITIES:
X-Axis Travel ......................... 106.6"
Y-Axis Travel ......................... 62.99"
Z-Axis Travel ......................... 31.49"
Distance Between Columns .............. 67"
Table Size ............................ 98.4" x 55.1"
Table Weight Capacity ................. 19,800 Lbs
Distance From Table to Floor .......... 33.5"
Distance from Spindle End to Table .... 5.9"-37.4"
Spindle Speeds ........................ 6,000 RPM
Spindle Motor ......................... 35 HP
Spindle Taper ......................... CAT 50
Cutting Feed Rate (X/Y/Z).............. 276 IPM
Rapid Traverse Rate (X/Y) ............. 472 IPM
Rapid Traverse Rate (Z) ............... 591 IPM
Approximate Machine Dimensions ........ 370" x 201" x 185"
Approximate Machine Weight ............ 48,400 Lbs.

EQUIPPED WITH:
Fanuc Oi-MF CNC Control
40-Position Automatic Tool Changer
300 PSI Coolant Thru Spindle with High Pressure Pump System
4th Axis Pre-Wired
Chip Conveyor
Full Guarding
Spindle Chiller
Coolant System
Centralized Automatic Lubrication System
Absolute Encoders on all three axes
Geared Head
Air Blow Thru Spindle
Spindle-Side Air Nozzle
Tri-Color Status Light
Rigid Tapping
Automatic Power Off
Heat Exchanger in Electrical Cabinet
Remote Manual Pulse Generator


NOTE:
NEW MACHINE, STILL IN CRATE
Installation and 12 month warranty included
