Poreba TCG-160 x 10M, 63" Swing, 393" Centers, Inch/Metric Threading, 100 HP, 63" 4-Jaw Chuck, Refurbished 2015, #32445

Manufacturer

POREBA

Category

Lathes

Type

LATHES, ENGINE

Stock

32445

Model

TCG-160 x 10M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32445

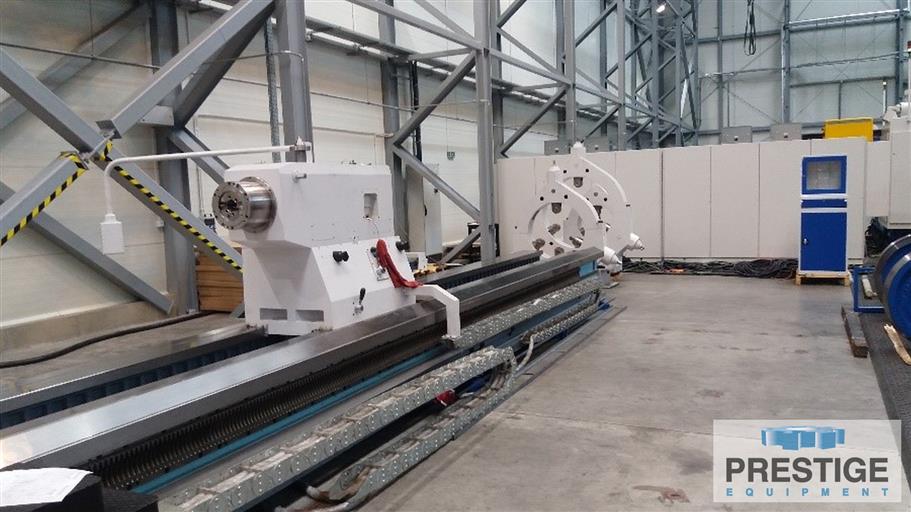

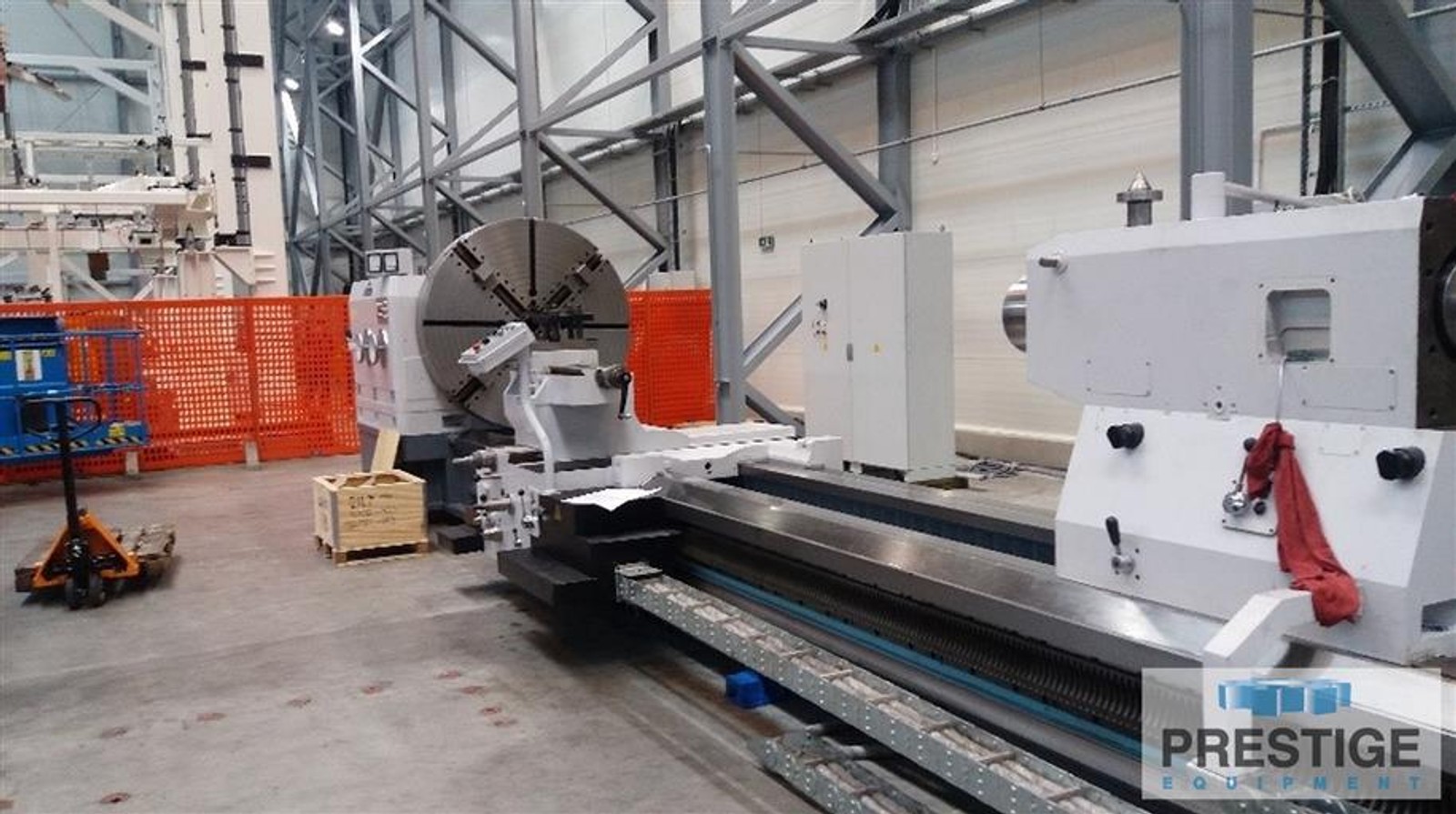

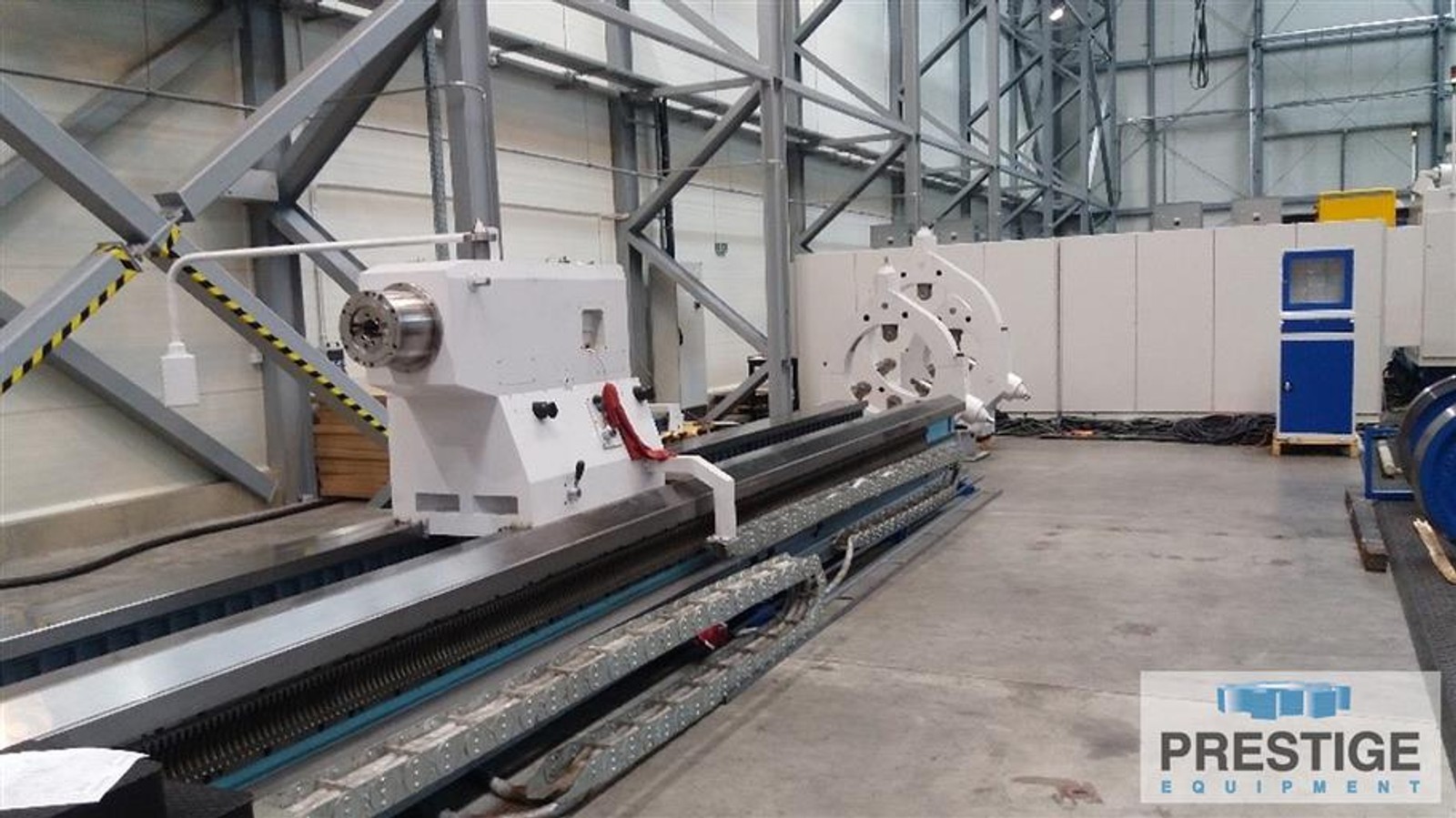

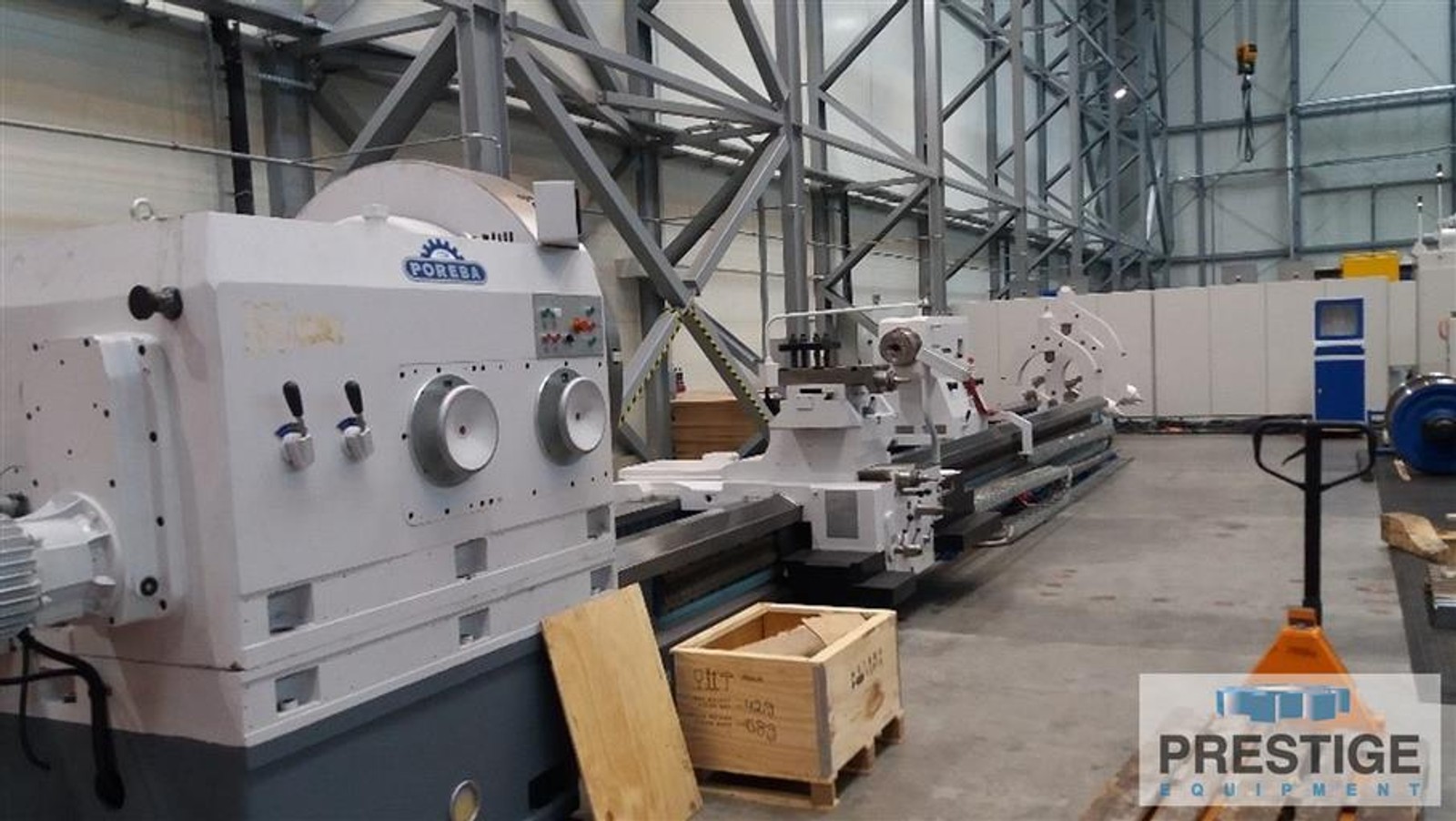

Poreba TCG-160 x 10M Heavy Duty Manual Lathe

FEATURES:
63" 4-Jaw Independent Chuck
Inch/Metric Threading
Power Tailstock
100 HP Main Spindle Motor
40 Ton Weight Capacity

CAPACITY:
Maximum Swing Over Bedways ............ 62.99"
Maximum Swing Over Carriage ........... 50.39"
Distance Between Centers .............. 393.70"
Width Of Bed .......................... 43.30"
Spindle Bore .......................... 4.13"
Spindle Speeds (24) ................... 1.6-200 RPM
Spindle Diameter of Front Bearing ..... 12.59"
Tailstock Quill Diameter .............. 11.02"
Tailstock Quill Travel ................ 7.87"
Tailstock Quill Taper ................. #6 MT
Weight Capcity Between Centers ........ 66,000 lbs
Weight Capacity With One Syeady Rest .. 77,000 lbs
Weight Capacity With Two Steady Rest .. 88,000 lbs

EQUIPPED WITH:
63" 4-Jaw Independent Chuck
Heavy Duty Tool Post
Change Gears for Thread Cutting and Taper Turning (Set of 54 Gears)
Inch/Metric Threading
Pendant Station on Carriage
Hardened Ways
Power Tailstock Quill
Power Tailstock
100 HP Main Spindle Motor

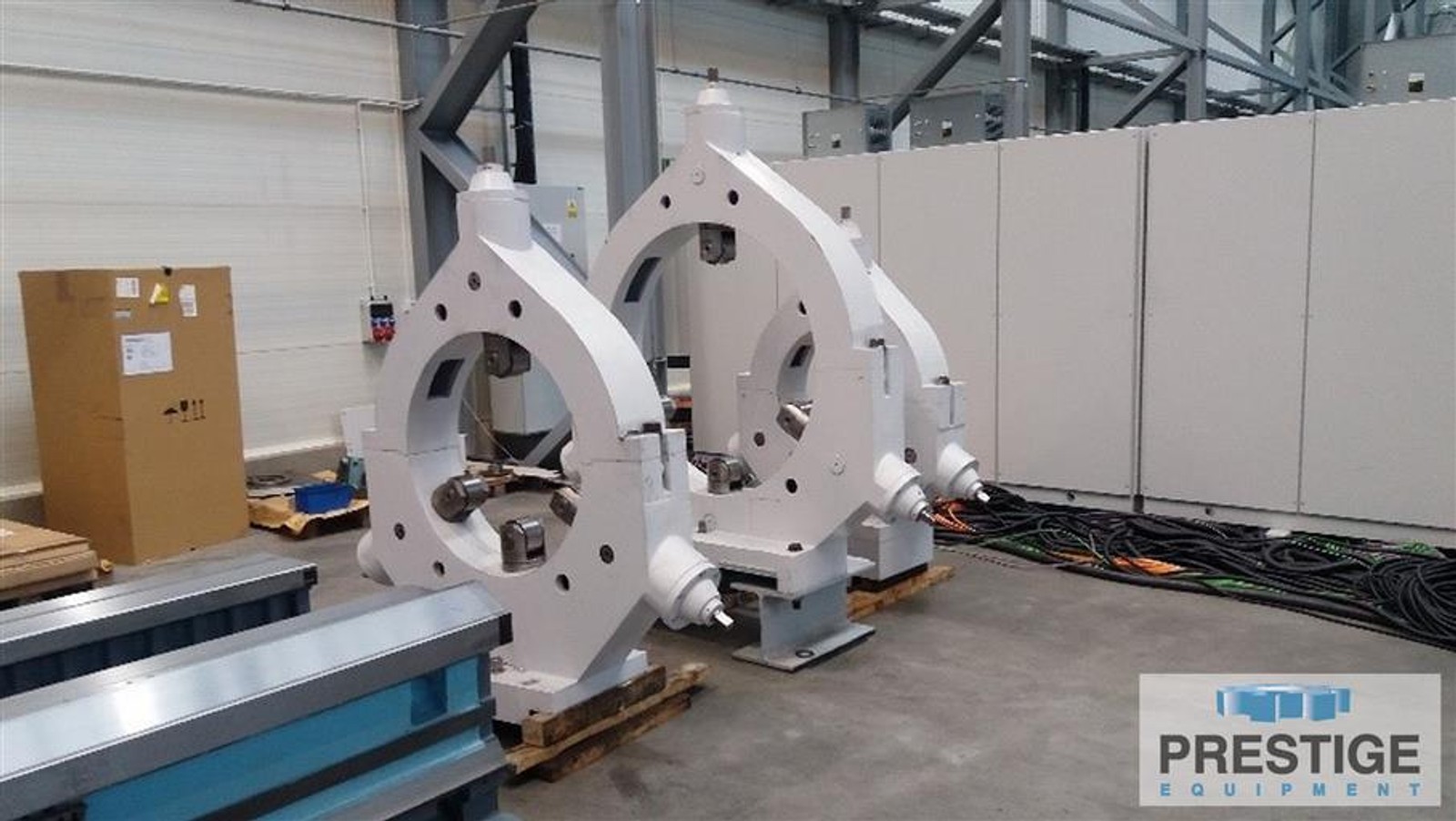

(3) Steady Rests

NOTE:
Machine completely refurbished in 2015 with geometry set in 2021
