Poreba TCF 200/5M, 78" x 196", 30 Ton Wt. Cap., 4.13" Spdl Bore,.5-152 RPM Fanuc O-T CNC, 74 HP, #32459

Manufacturer

POREBA

Category

Lathes

Type

LATHES, CNC

Stock

32459

Model

TCF-200/5M CNC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32459

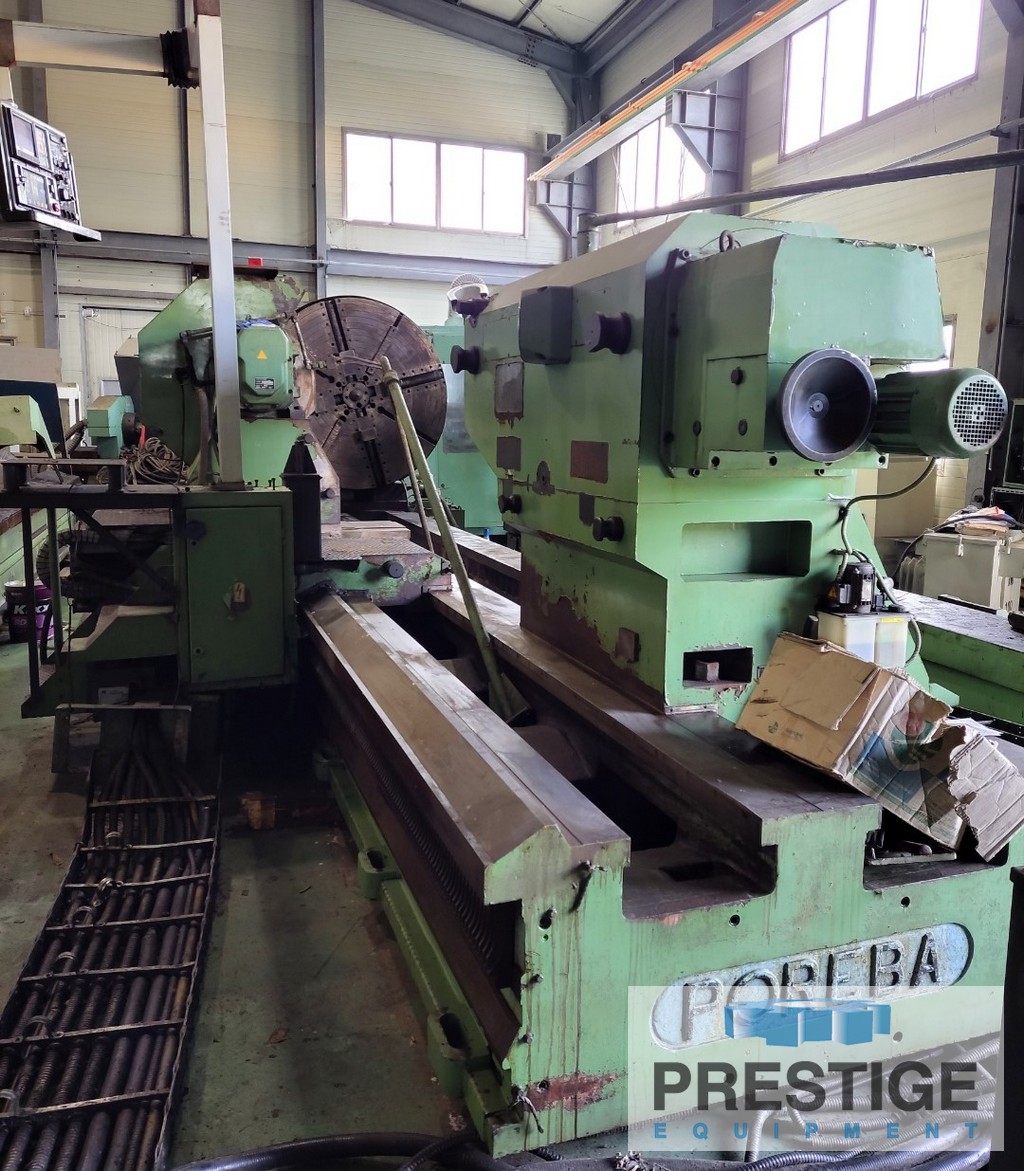

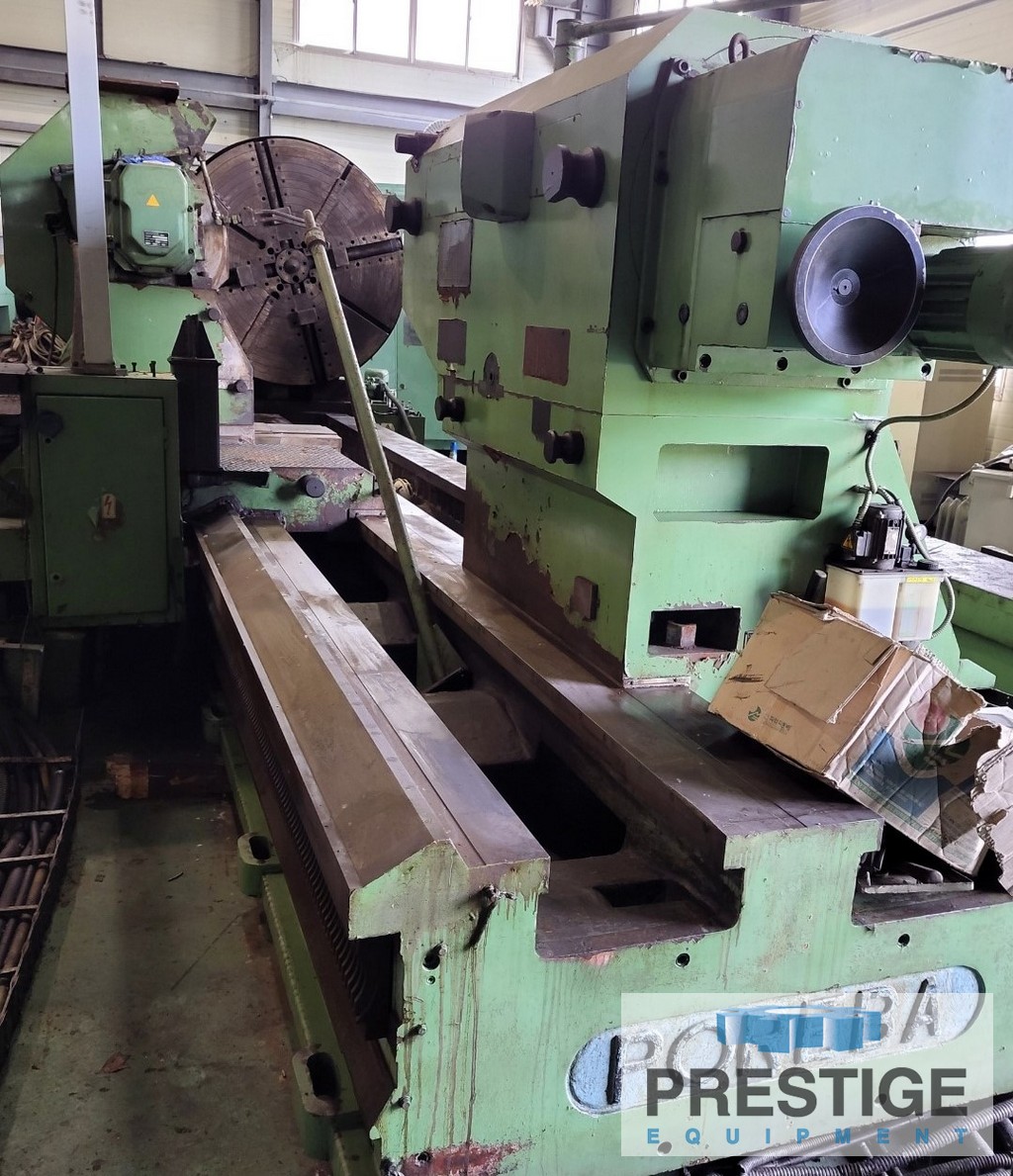

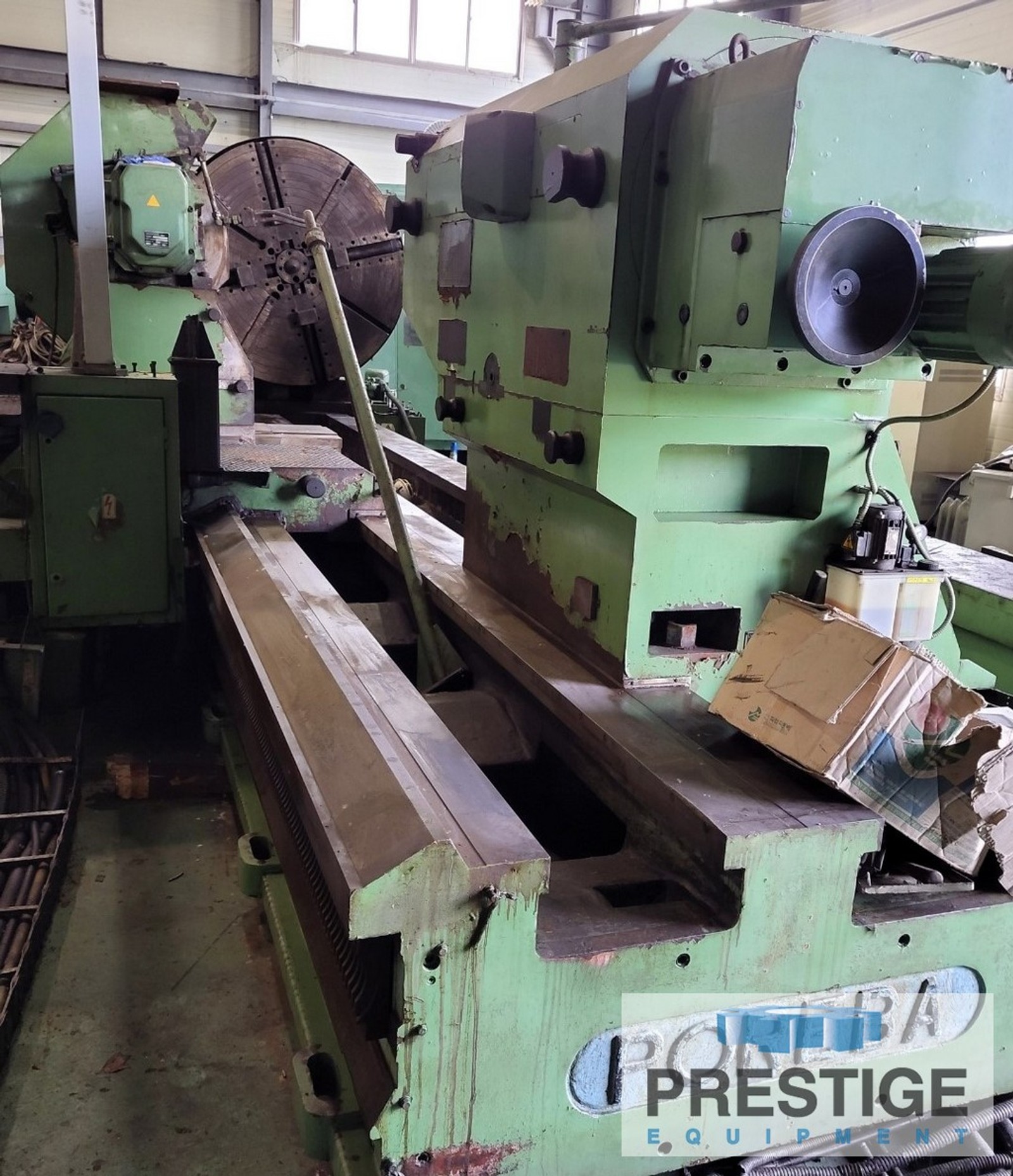

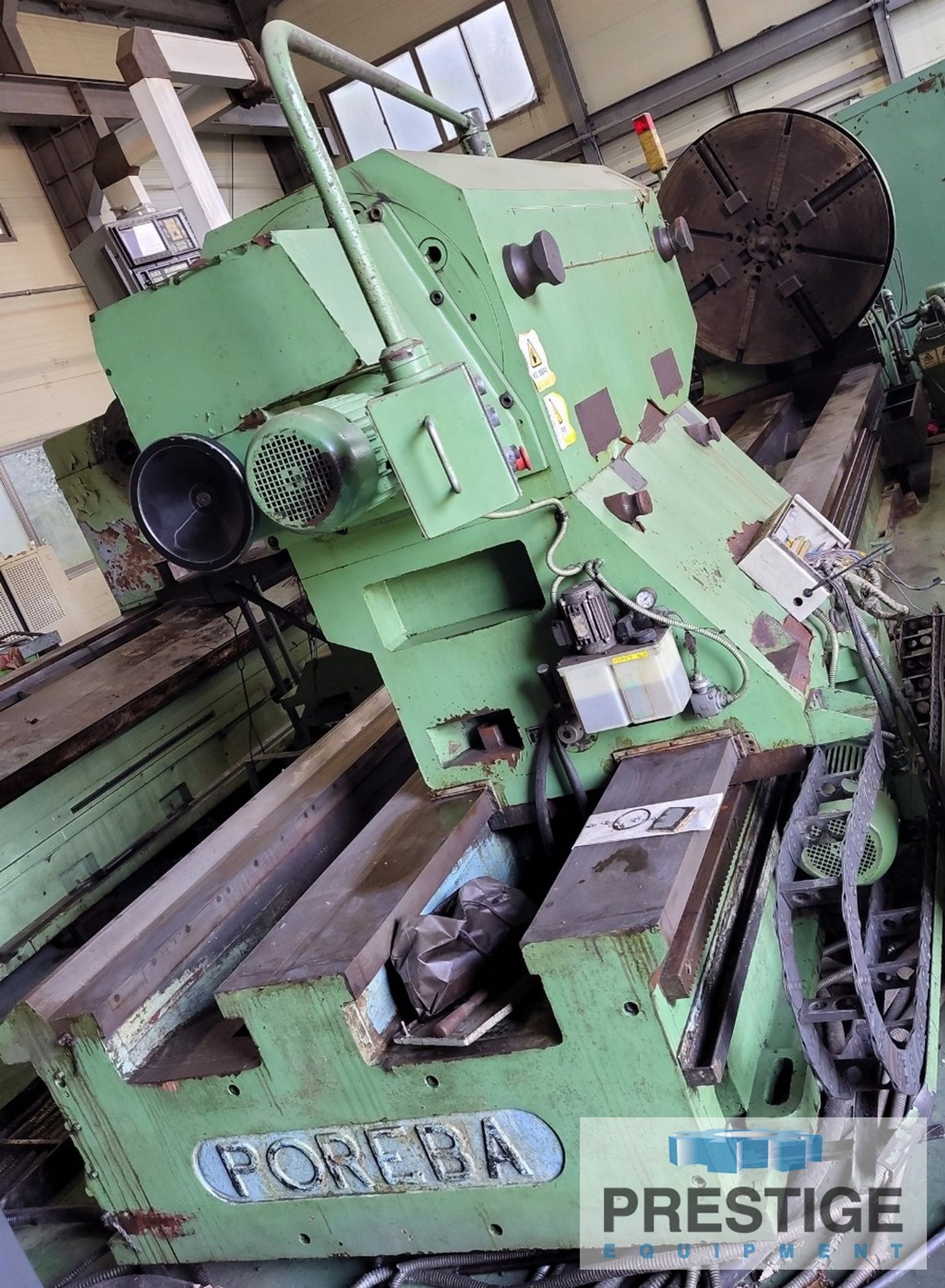

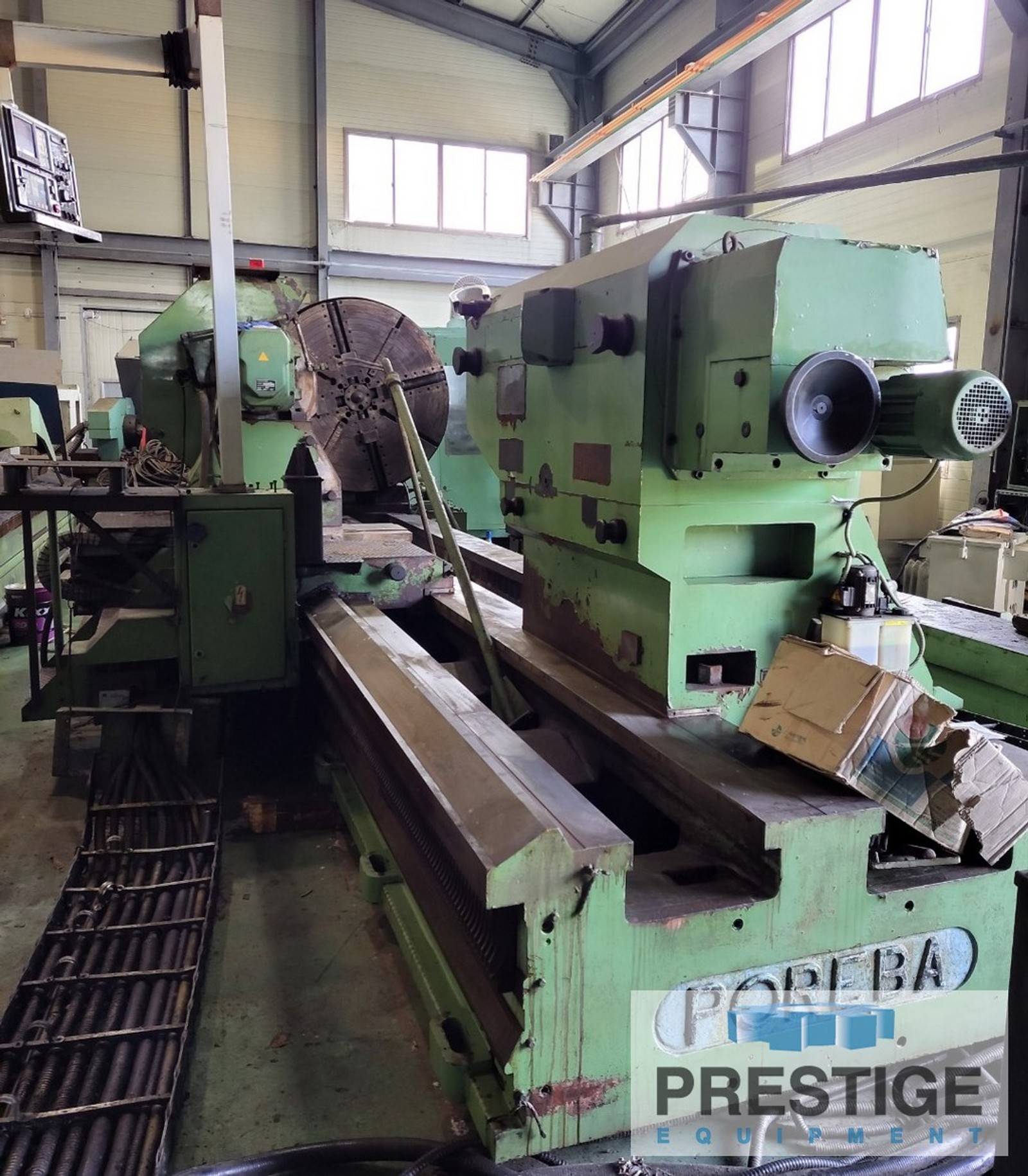

Poreba TCF-200 78" x 196" Heavy Duty CNC Lathe

FEATURES:
Fanuc O-TC CNC Control

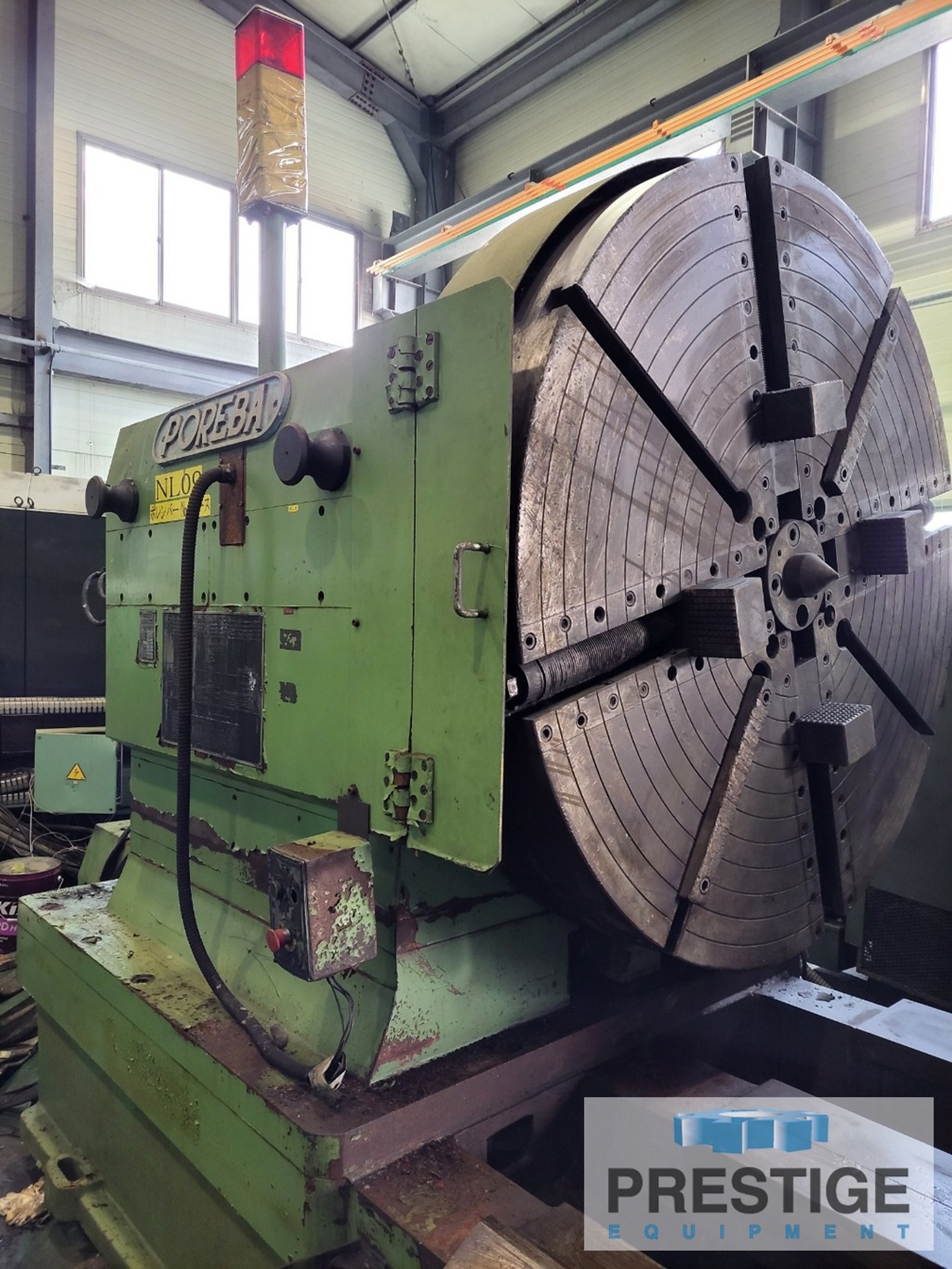

63" 4-Jaw Chuck
8-Position Baruffaldi Turret
Headstock Encoder & Thread Cutting Feed
3-Way Bed Construction; Carriage can Pass Tailstock
60,000 lbs. Weight Capacity Between Centers
74 HP Main Motor

SPECIFICATIONS:
Maximum Swing Over Bedways ............ 78.74"
Maximum Swing Over Cross Slide ........ 62.99"
Distance Between Centers .............. 196.85"
Center Height ......................... 39.37"
Bed Width ............................. 59.05"
Maximum Weight Between Centers ........ 60,000 Lbs.
Spindle Bore Diameter ................. 4.13"
Spindle Speeds, 3-Range ............... 0.5-195 RPM
Spindle Motor ........................ 74 HP
Length of Saddle Slideways ............ 55.11"
Saddle Cross Traverse ................. 19.68"
Longitudinal Feeds (Stepless).......... .0039-15.74 IPM
Cross Feeds (Stepless) ................ .0039-15.74 IPM
Longitudinal Saddle Rapid ............. 157.48 IPM
Cross Saddle Rapid .................... 78.74 IPM
Quill Diameter ........................ 17.71"
Quill Travel .......................... 7.87"
Thread Cutting Feed ................... .00039-9.84 IPR
Bed Height ............................ 23.62"
Electrics ............................ 440/3/60
Approx. Machine Dimensions ............ 380"L x 118.11" x 94.48"H
Machine Weight ....................... 101,200 lbs


EQUIPPED WITH:
Fanuc O-TC CNC Control
63" 4-Jaw Chuck
8-Position Baruffaldi Turret
Headstock Encoder & Thread Cutting Feed
3-Way Bed Construction; Carriage can Pass Tailstock
60,000 lbs. Weight Capacity Between Centers
74 HP Main Motor
