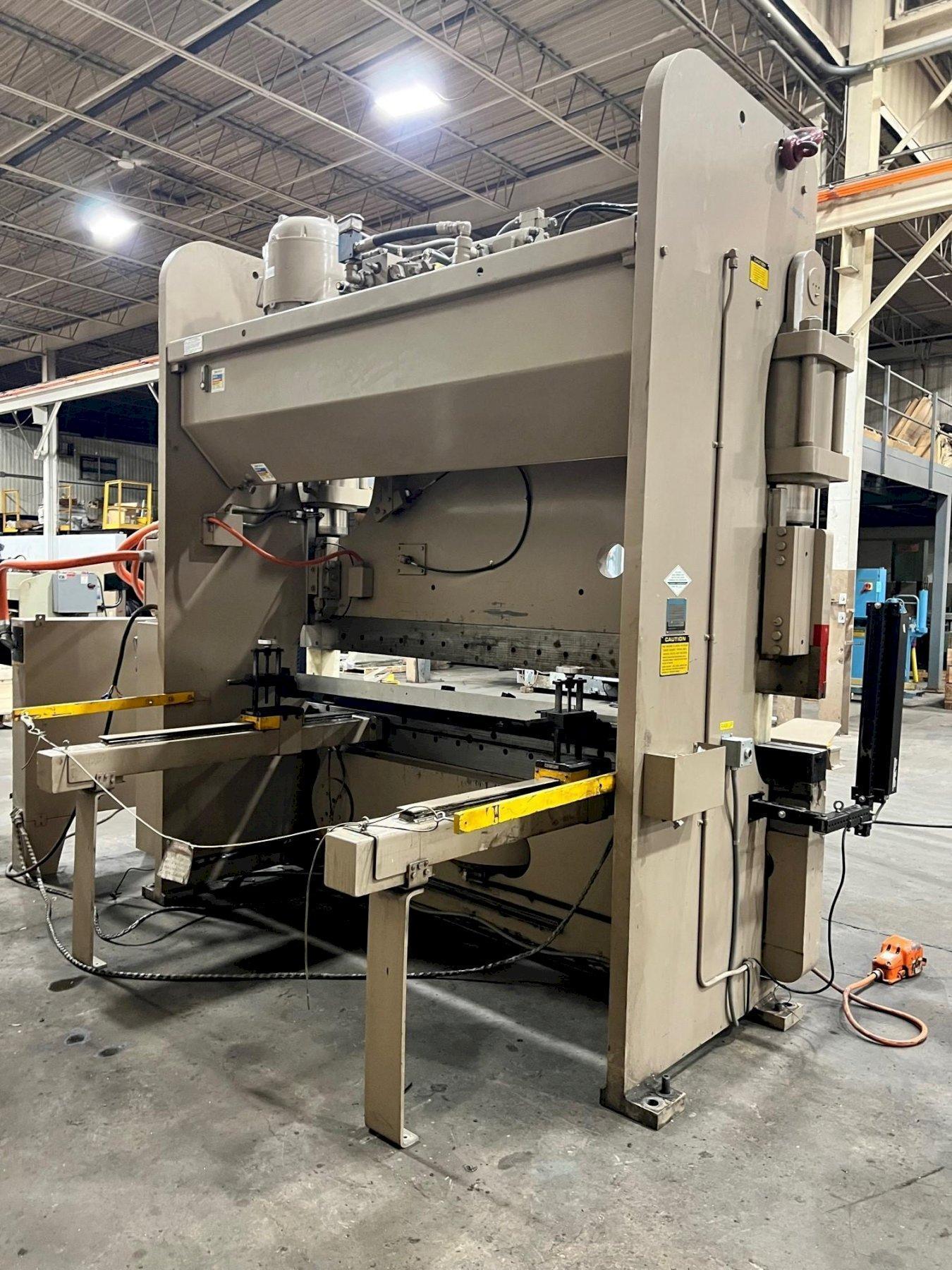

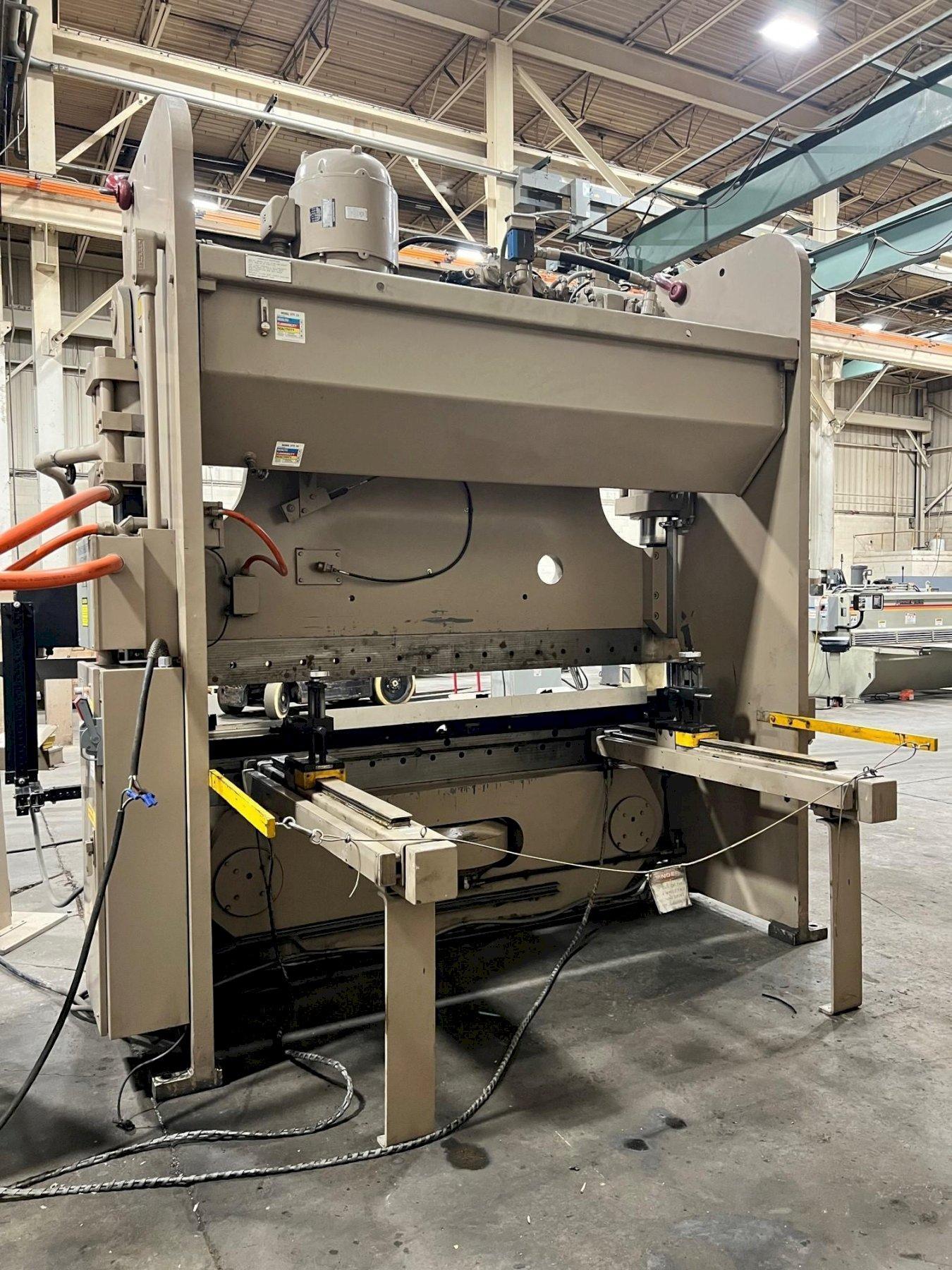

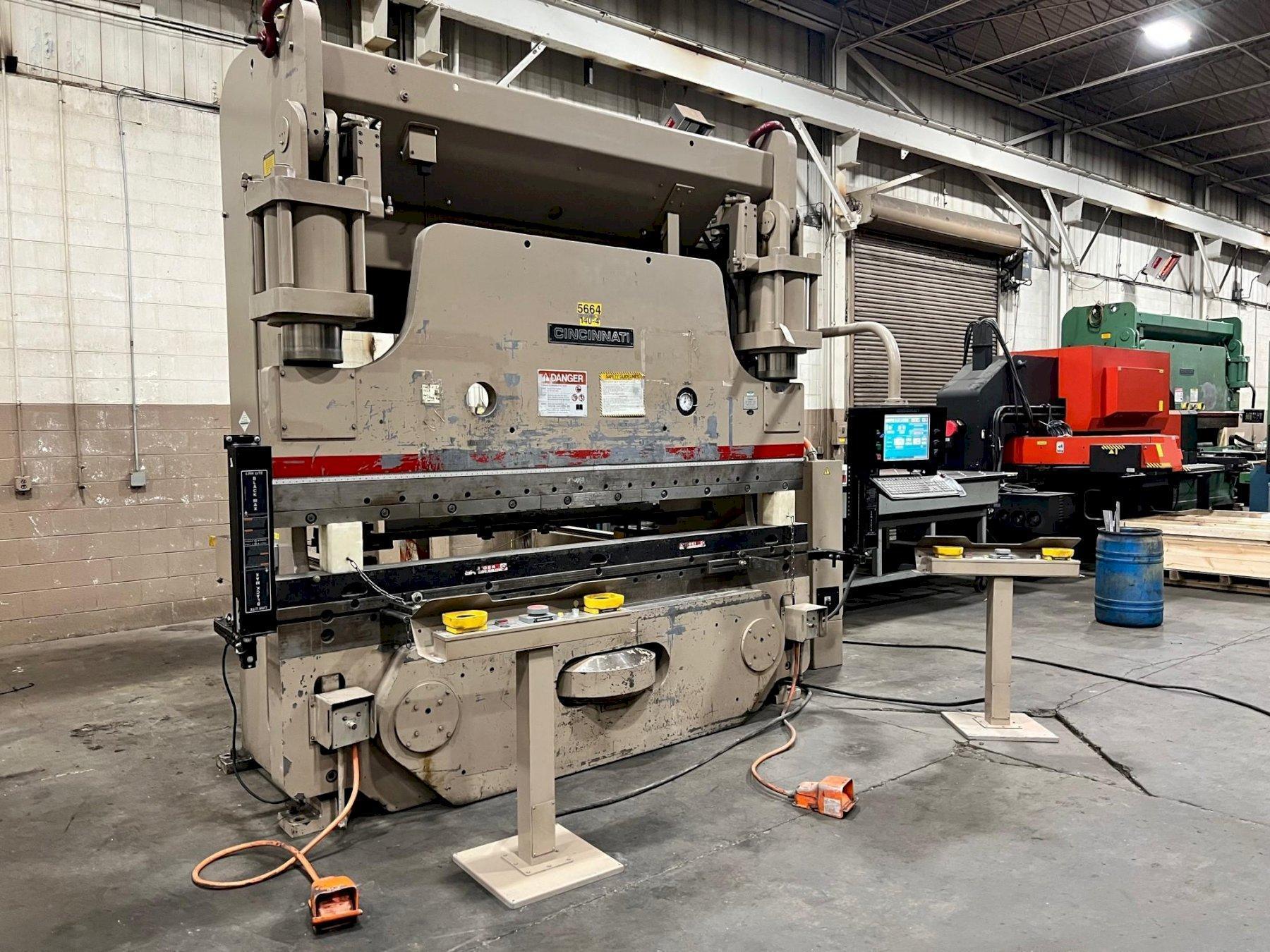

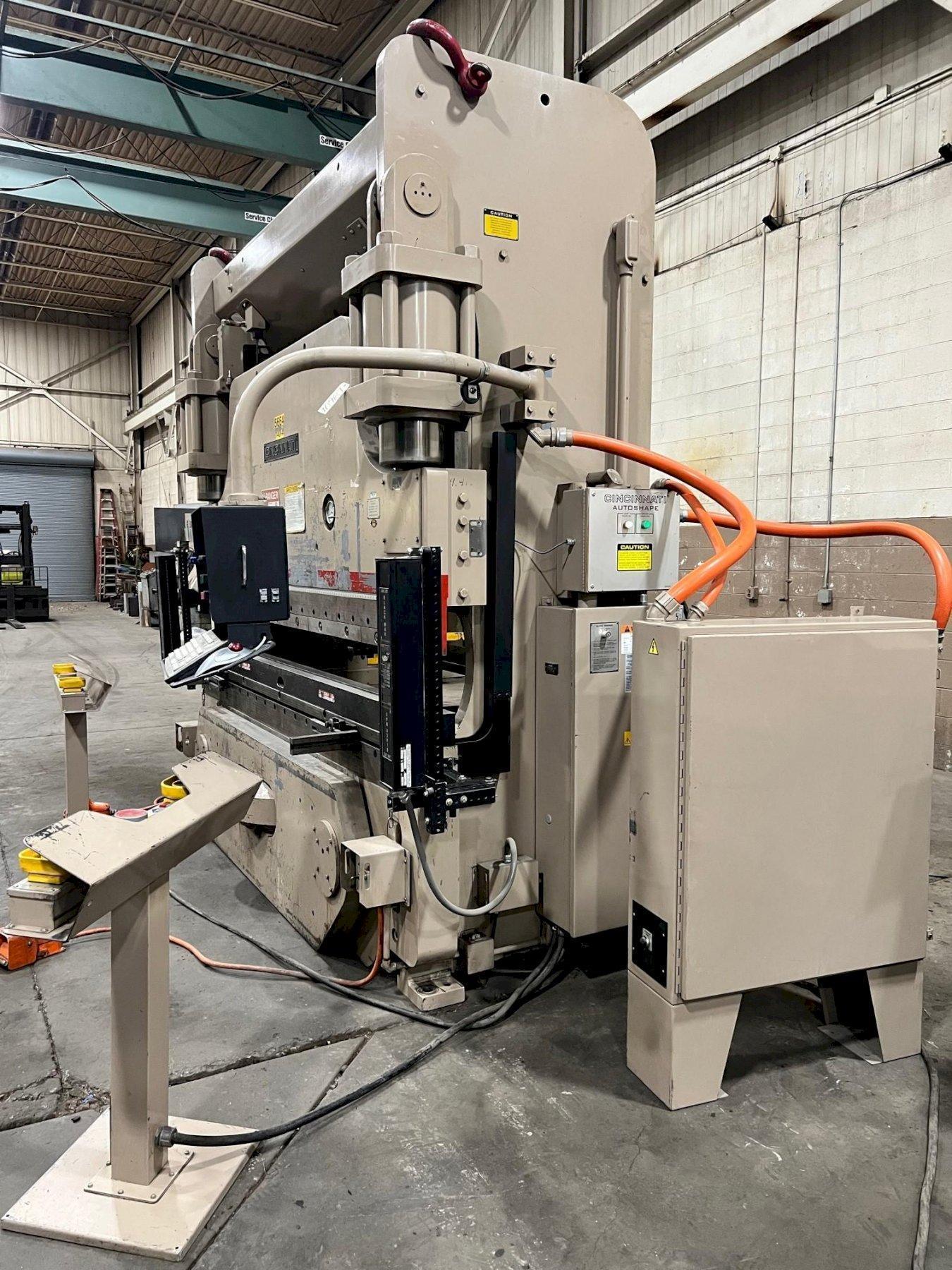

Cincinnati 230ASX8 Hydraulic Press Brake (#4808)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

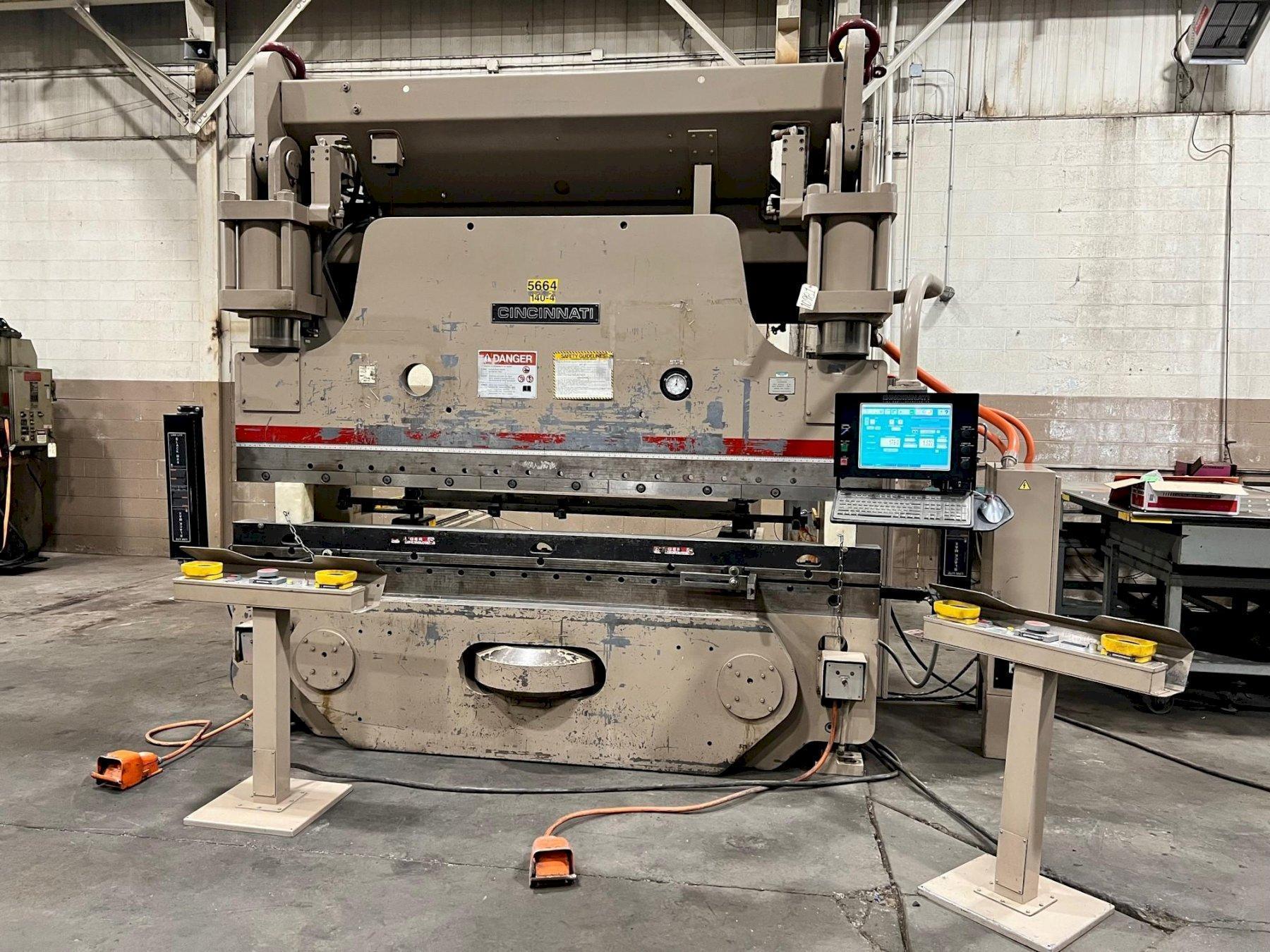

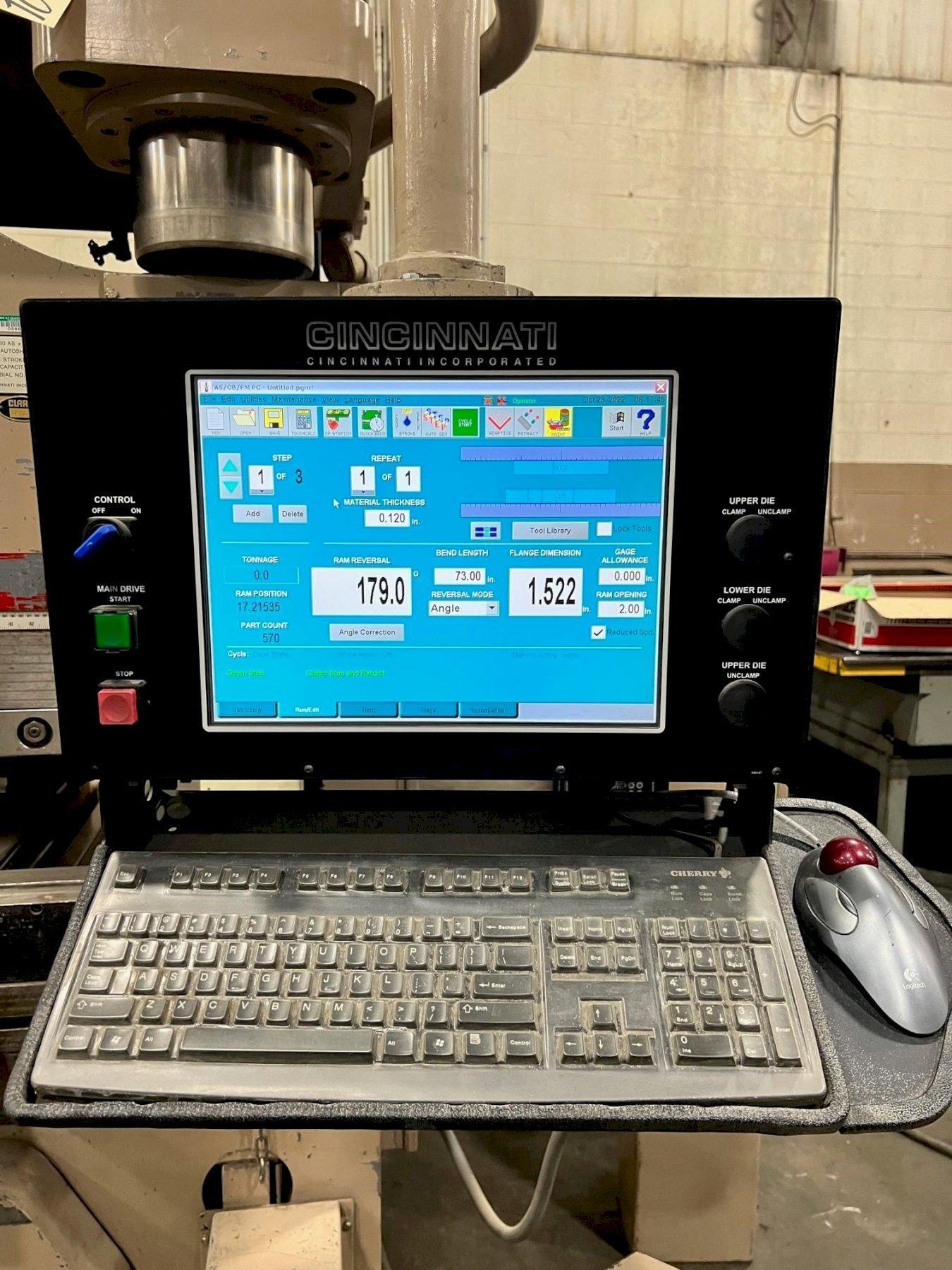

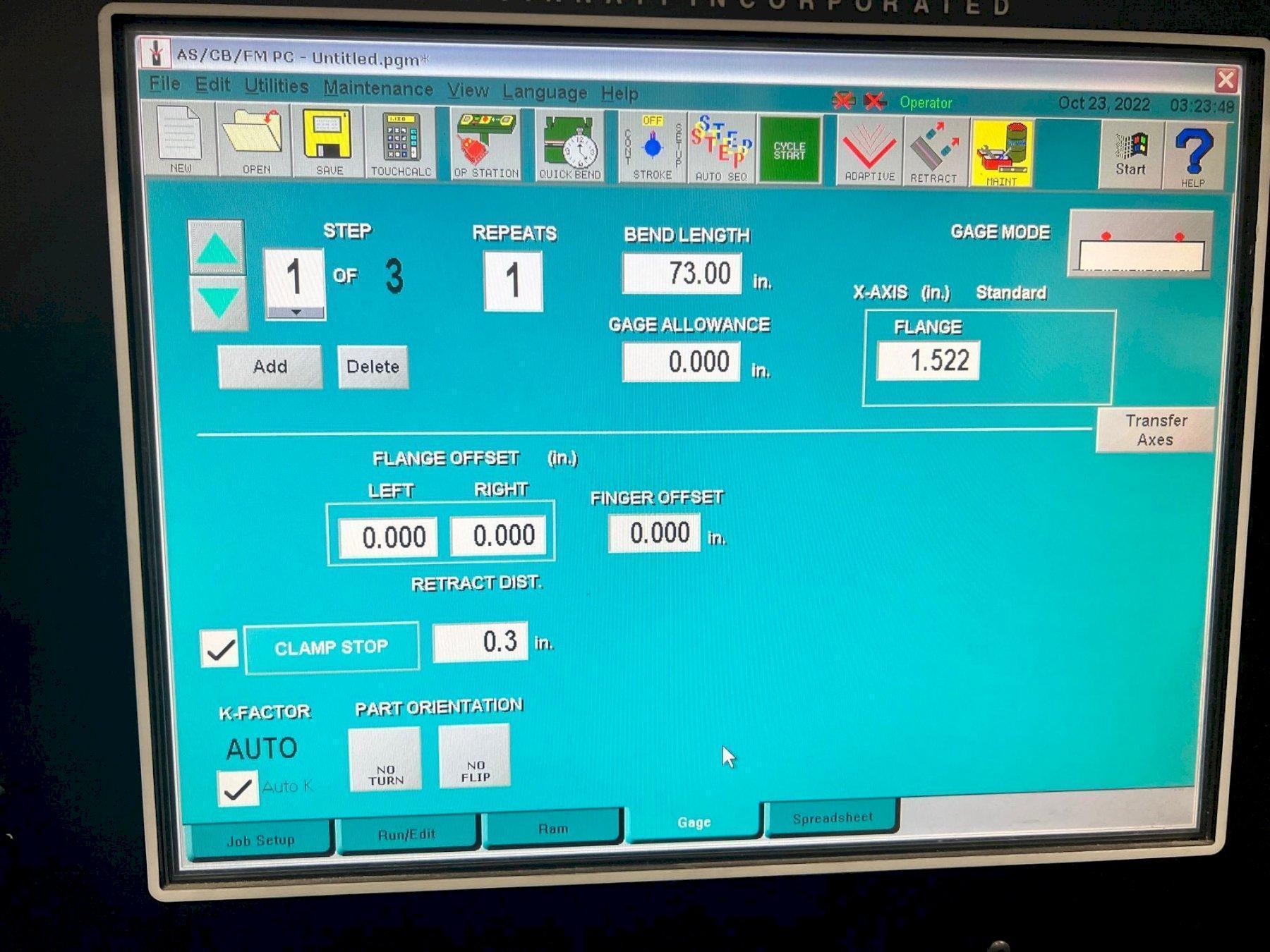

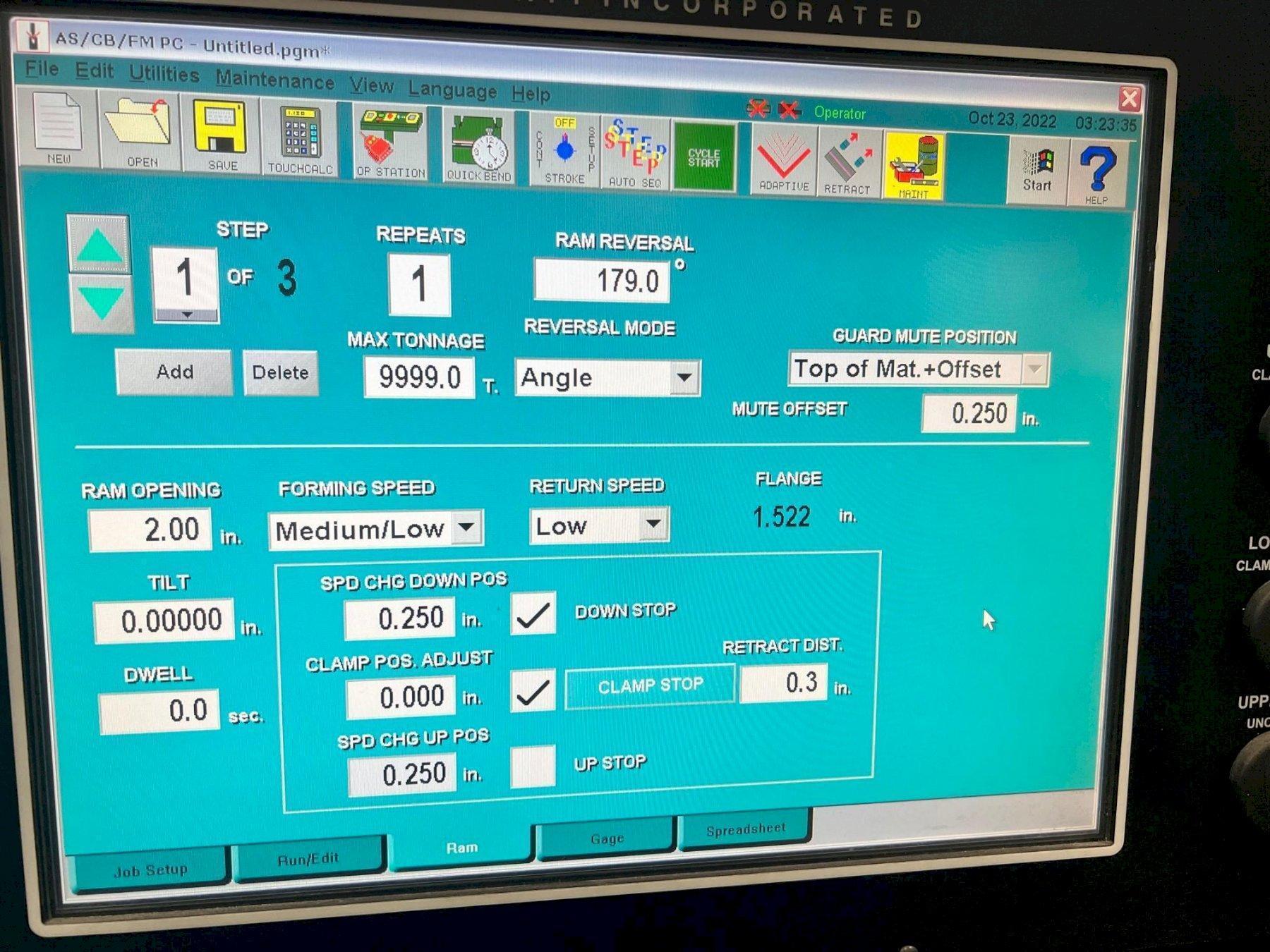

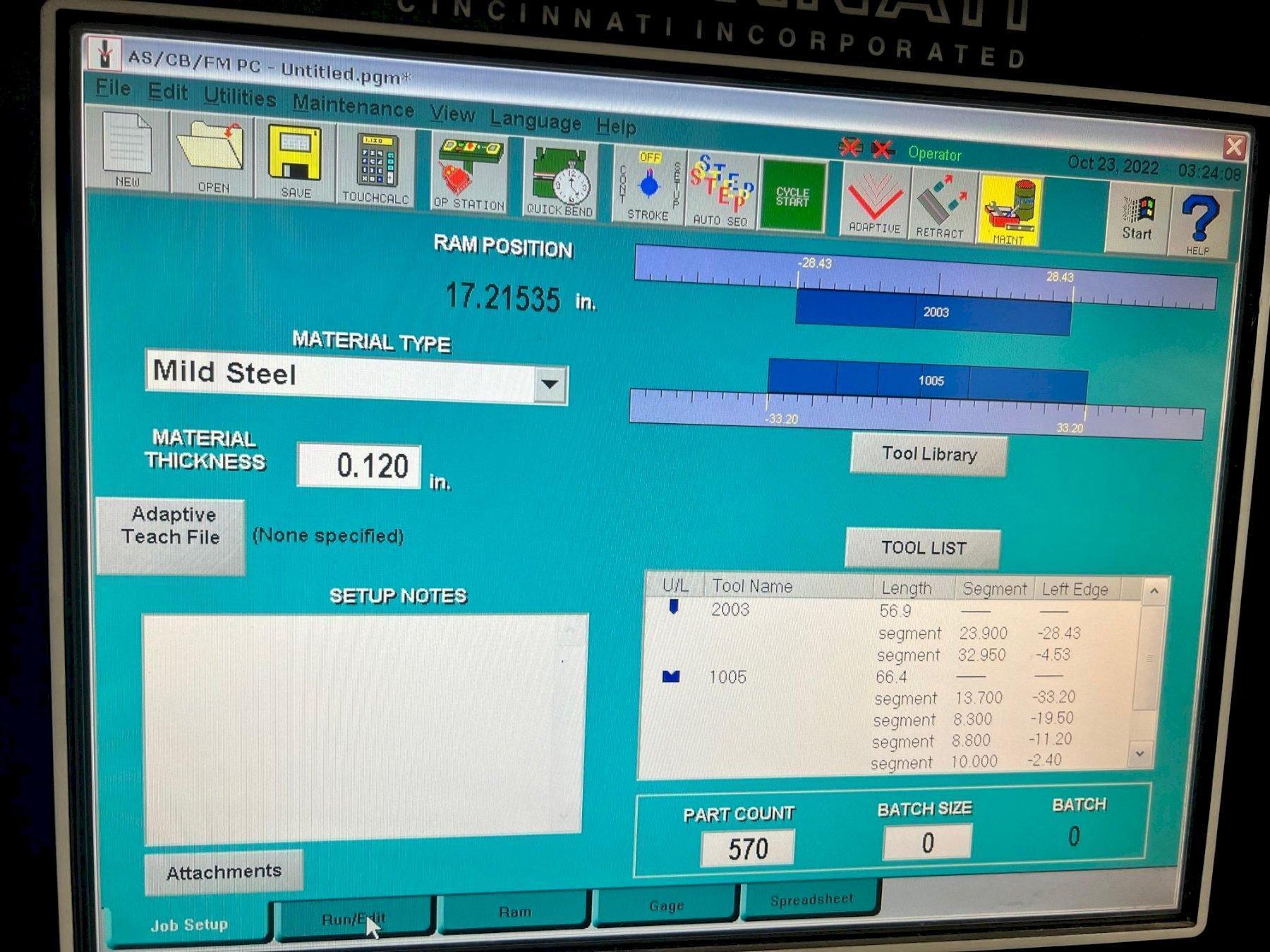

230 Ton X 10’ Hydraulic Press Brake with Cincinnati 4 - AxisTouch Screen CNC Controller, Automatic Hydraulic Crowning in Bed, 40” Independent Travel Backgauge w/ Manual R - Axis, (2) Portable Palm Stations, Power Ram Tilt, (2) Portable Foot Pedals, Tonnage Control, Stroke Speed Control, Sectionalized Ram Clamps, (4) Backgauge Fingers, (2) Front Support Arms, Full Length Die Holder and Link Lite Black Max Lite Curtains.

GENERAL SPECIFICATIONS
Tonnage:                        230 Tons
Bending Length:                    10’
Throat Depth:                    8”
Open Height:                    17”
Closed Height:                    7”
High Ram Speed:                    205 IPM
Medium Ram Speed:                56 IPM
Slow Ram Speed:                    15 IPM
Return Speed:                    212 IPM
Main Motor:                    35 HP
Oil Tank Capacity:                    125 Gallons
Voltage:                        220 / 440V 3 Phase (Wired for 440V)
Dimensions:                    165” X 70” X w/o Backgauge 103”, w/ Backgauge 127”
Weight:                        25,000 Lbs


INCLUDES: Cincinnati 4 - AxisTouch Screen CNC Controller, Automatic Hydraulic Crowning in Bed, 40” Independent Travel Backgauge w/ Manual R - Axis, (2) Portable Palm Stations, Power Ram Tilt, (2) Portable Foot Pedals, Tonnage Control, Stroke Speed Control, Sectionalized Ram Clamps, (4) Backgauge Fingers, (2) Front Support Arms, Full Length Die Holder and Link Lite Black Max Lite Curtains.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
