Kuracki KBH-22, 7.87" Spl., 8K RPM, X-118", Y-90", 60 ATC, 86"x76" B-Axis Table, 44K Tbl Cpty, Fanuc 16i-M, #32463

Manufacturer

KURAKI

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32463

Model

KBH-22

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32463

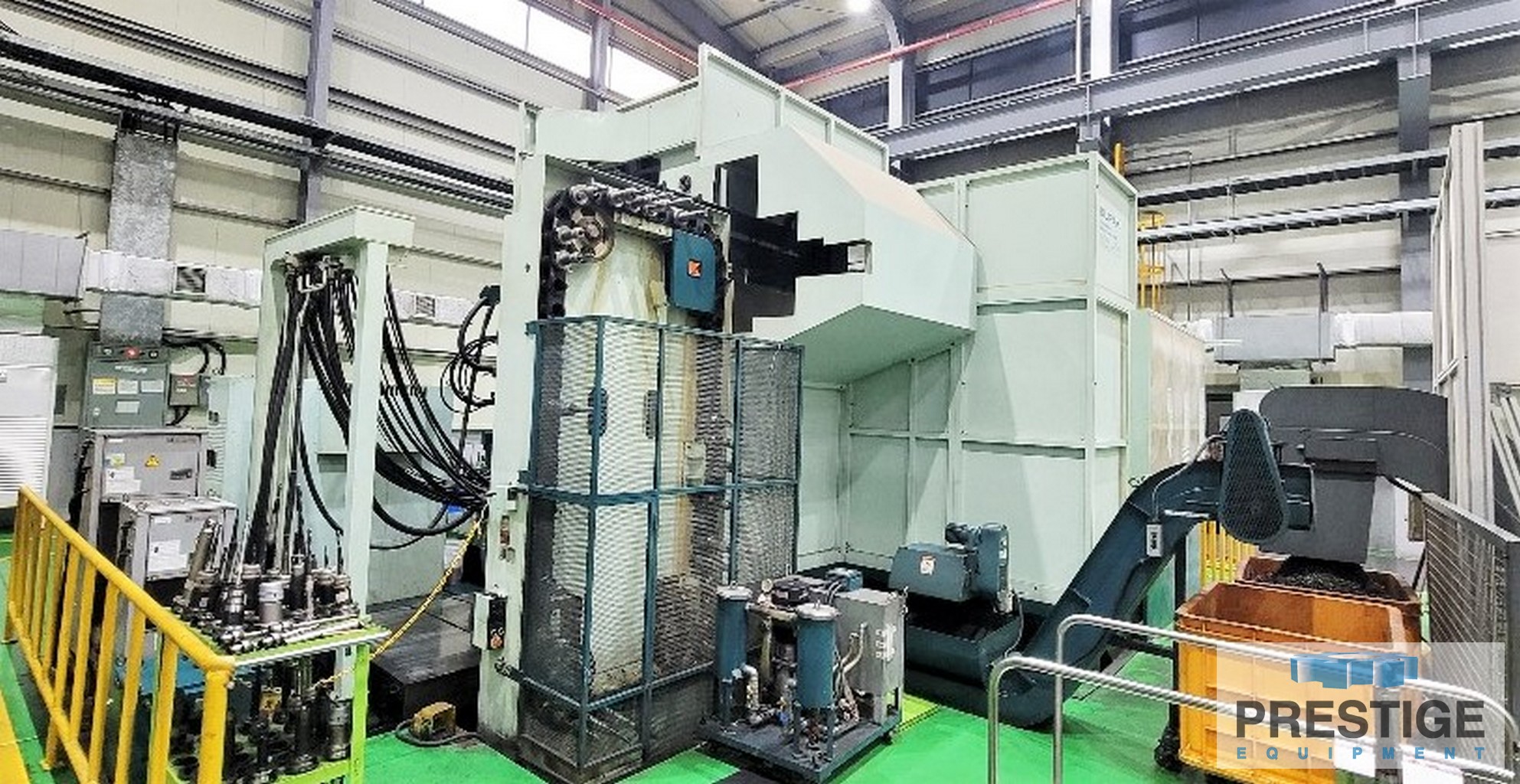

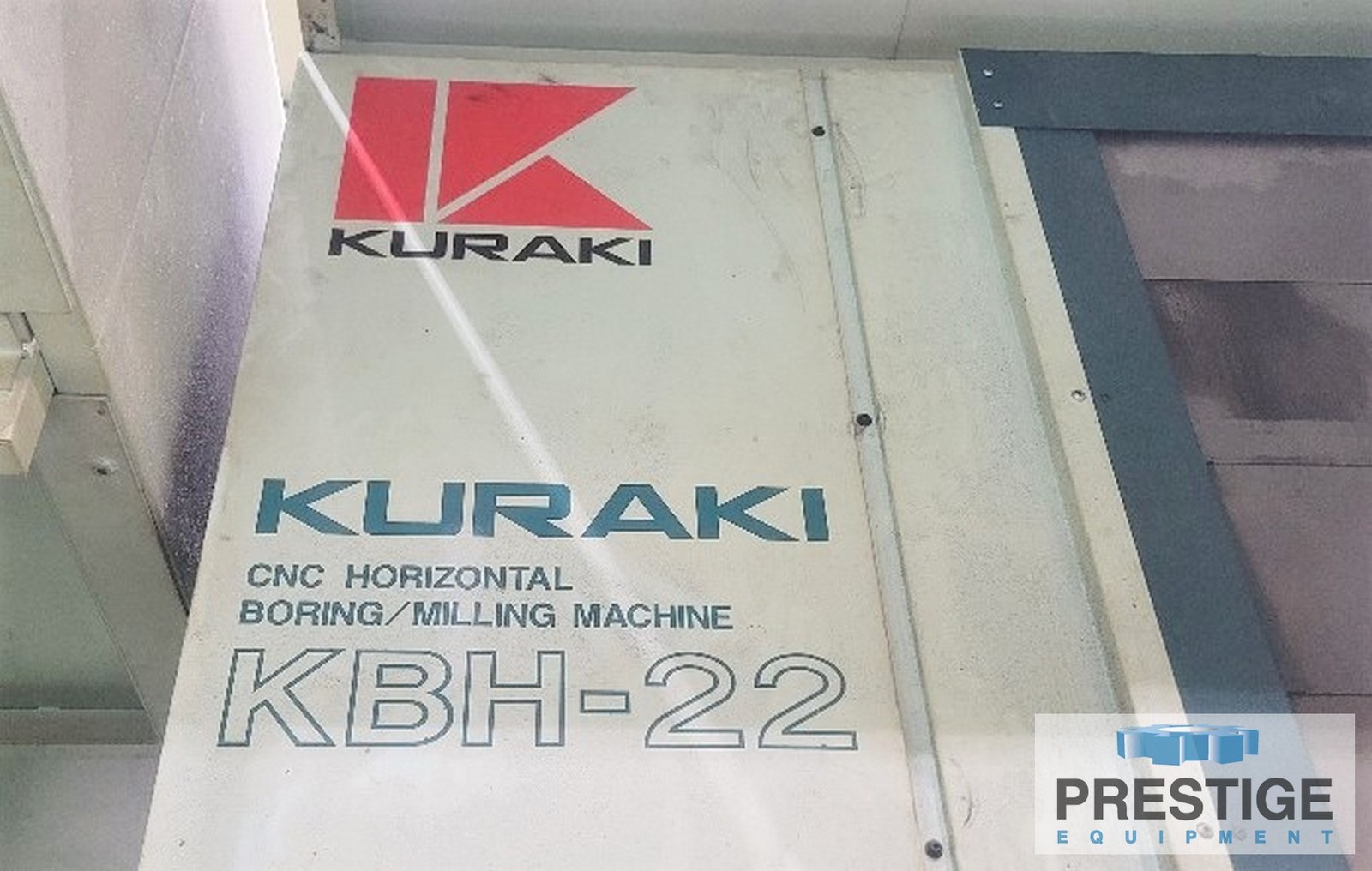

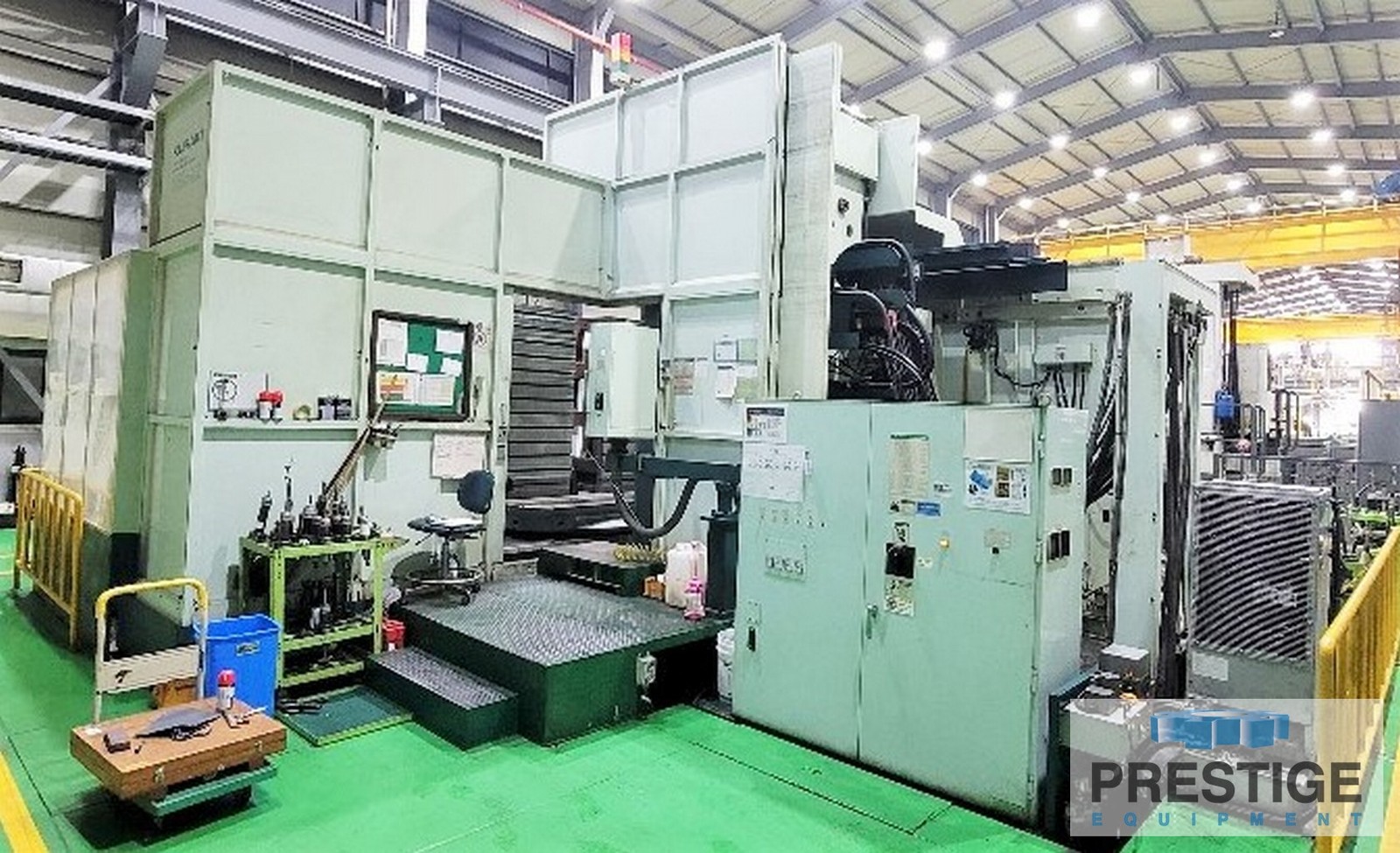

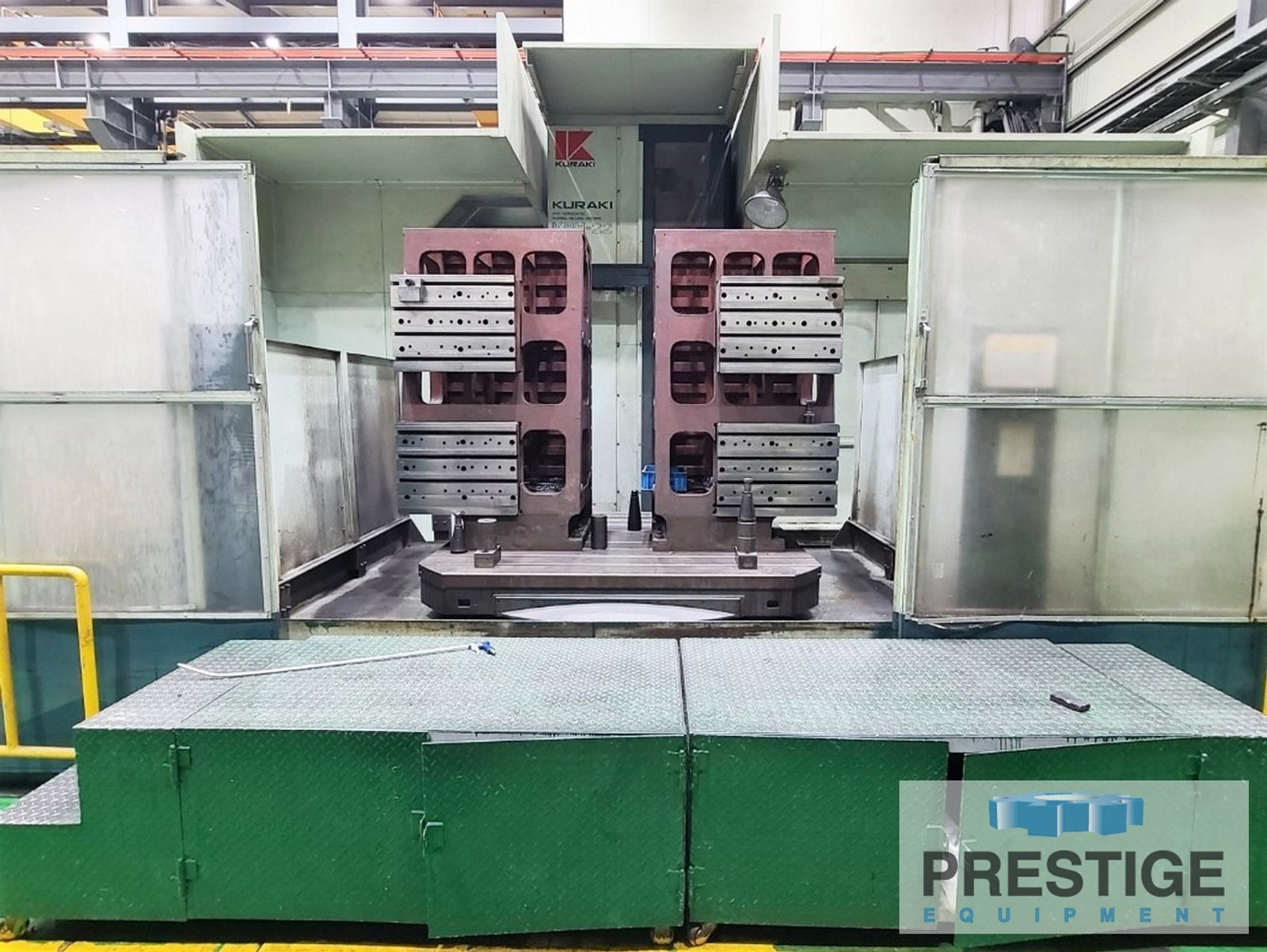

Kuraki KBH-22 High Speed 7.87" CNC Boring Mill

FEATURES:

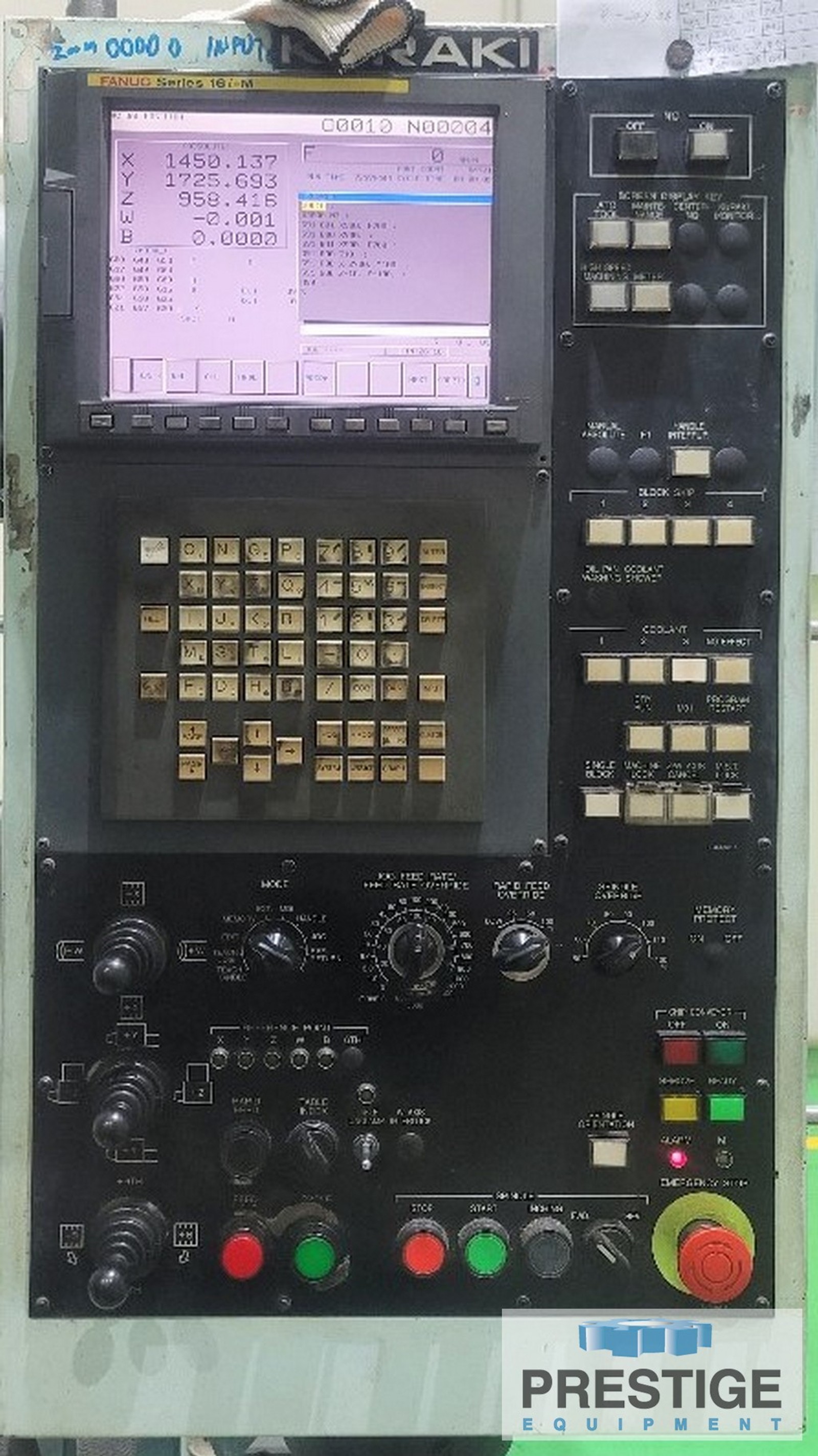

Fanuc 16i-M 4-Axis CNC Controls

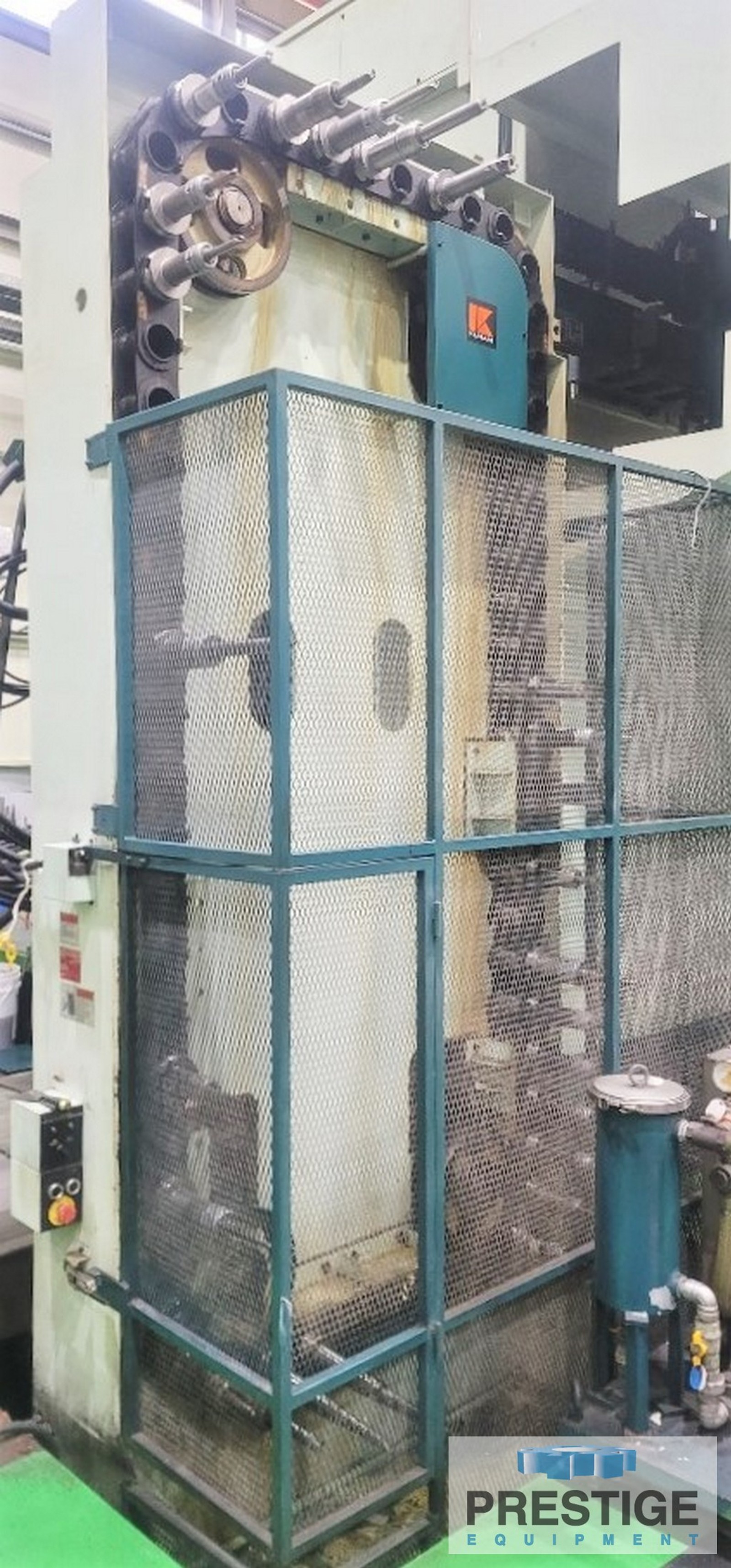

60-Station Automatic Tool Changer

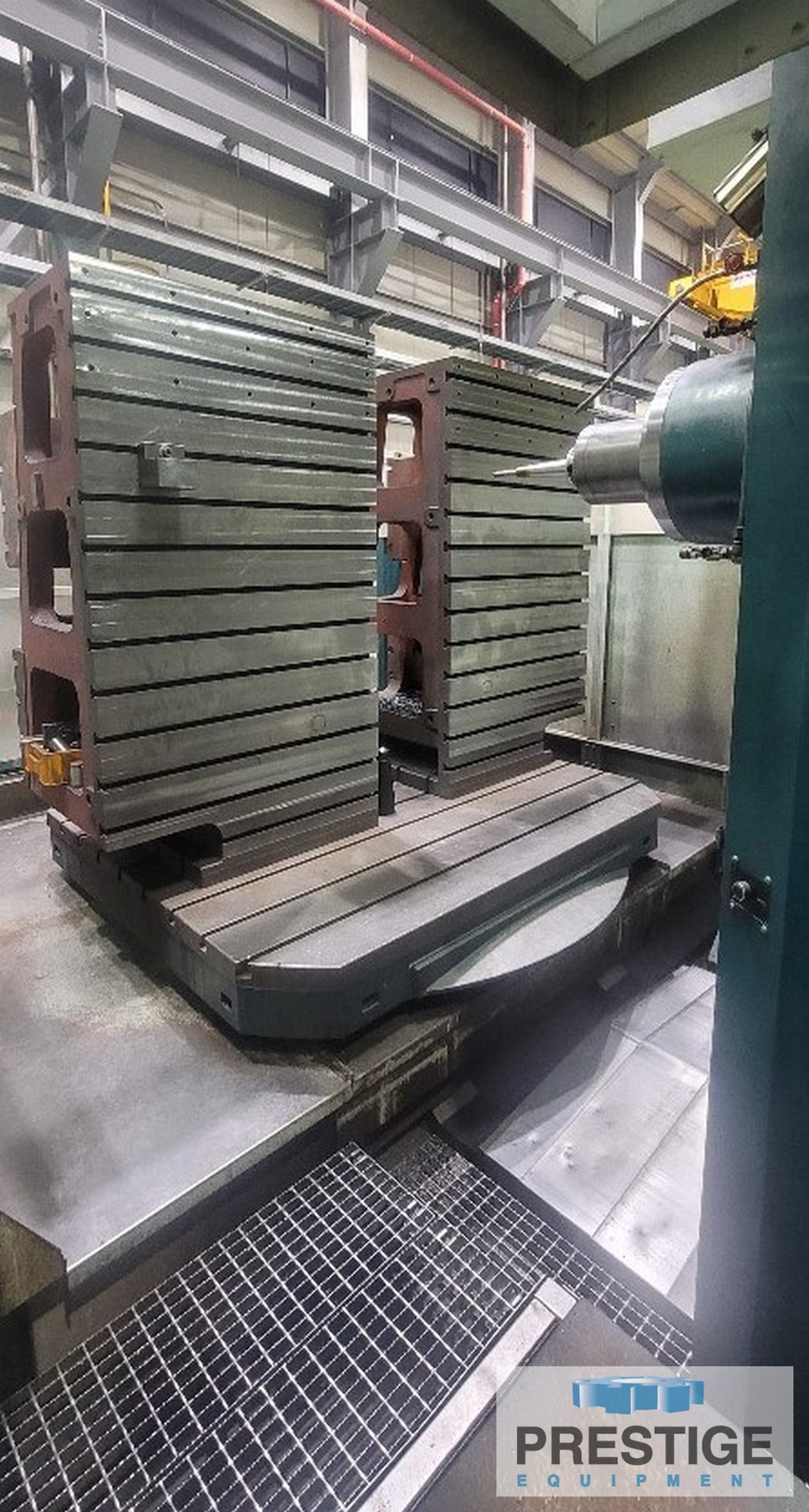

86.61" x 78.74" B-Axis Rotary Table
44,000 lb Table Capacity
Thru-Spindle Coolant

CAPACITY:

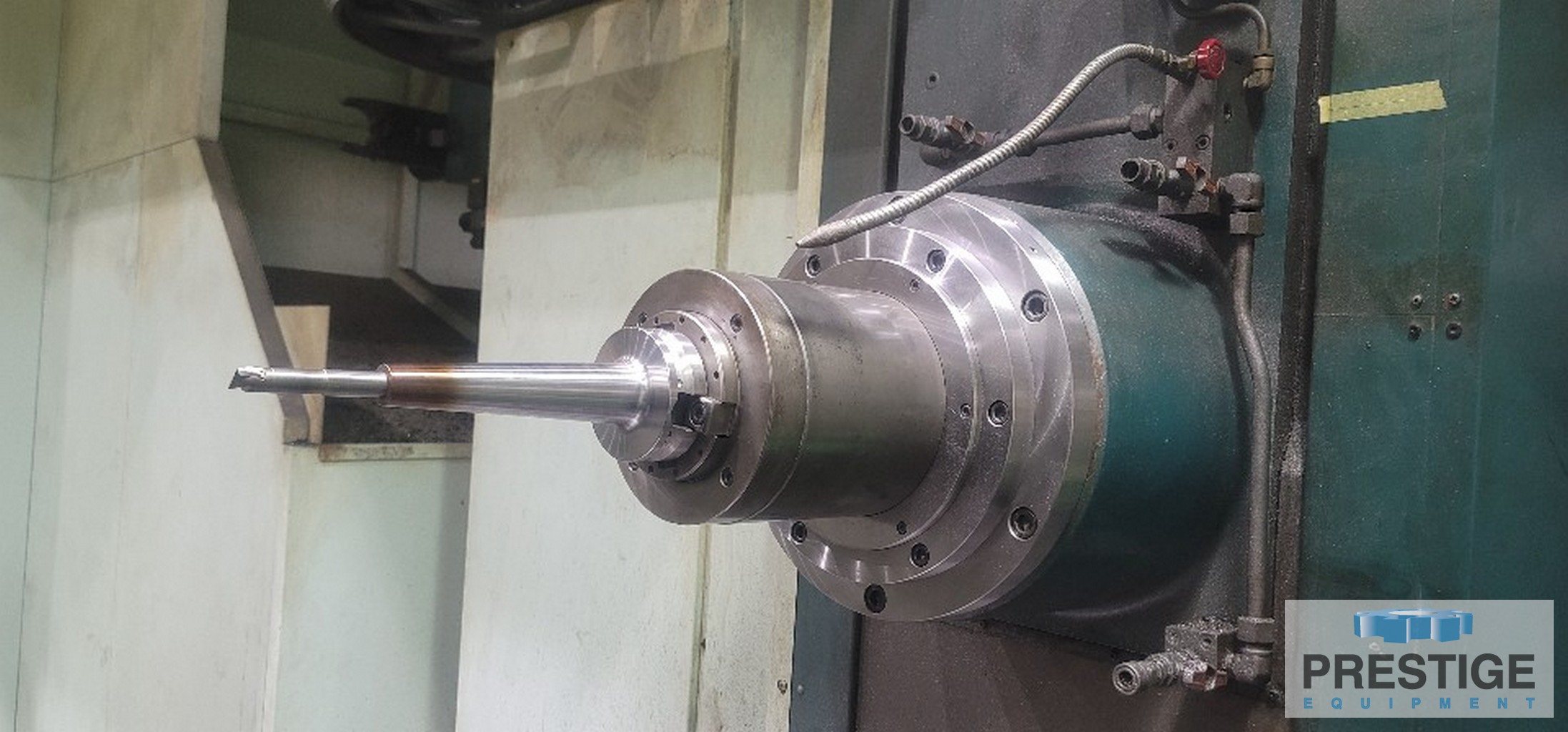

Spindle Diameter ...................... 7.87"
Spindle Taper ......................... #50 BT
Vertical Head Travel, Y-Axis .......... 90.55"
Table Travel, X-Axis .................. 118.11"
Spindle Travel, W-Axis ................ 15.74"
Column Travel, Z-Axis ................ 62.99"
Table Size ............................ 86.61" x 78.74"
Table Load Capacity ................... 44,000 LBS
Rotary Table, B-Axis .................. .001 Degrees
Spindle Speeds ........................ 50-8000 RPM
Spindle Speed Ranges .................. 2
Spindle Motor ......................... 40 HP (30 KW)
Floor Space ........................... 324.9" x 315"
Machine Height ........................ 212.6"
Machine Weight ........................ 92,500 lbs

EQUIPPED WITH:
Fanuc 16i-M CNC Control
60-Station Automatic Tool Changer
86.61" x 78.74" B-Axis Rotary Table
44,000 lb Table Capacity
Chip Auger & Chip Conveyor
Through Spindle Coolant
40 HP Spindle Motor
