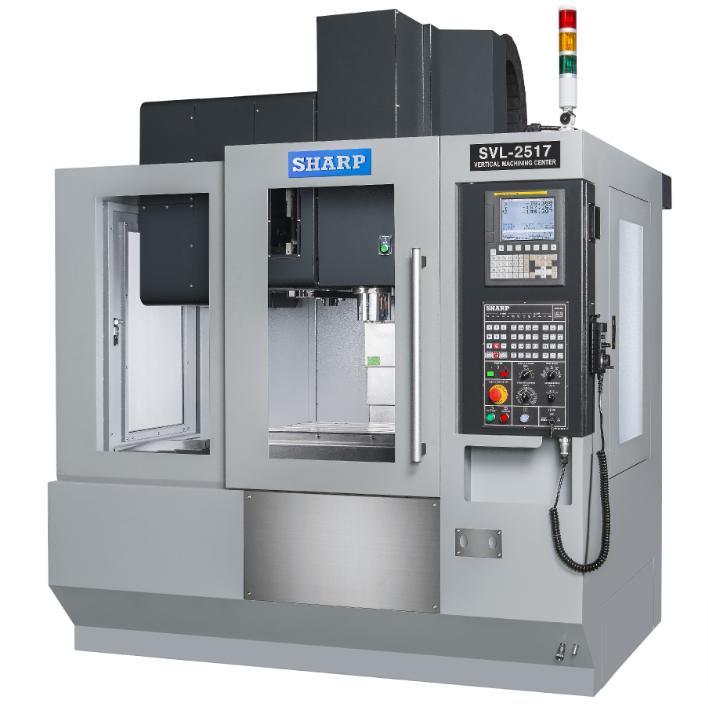

(4799) Sharp SVL-2517SX-F Vertical Machining Center

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



25.2” X 17” X 18.1” Mini Mill with Fanuc 0i-MF Control, CAT 40 Taper, Linear Roller Way, Spindle Chiller, 24 Capacity ATC, Air Blast at Tool Change, 42 Gallon Coolant System, Pull Out Style Chip Cabinet and Heat Exchange System for Electric Cabinet.

GENERAL SPECIFICATIONS
X - Axis Travel:                    25.2”
Y - Axis Travel:                    17”
Z - Axis Travel:                    18.1”
Worktable Size:                    27.5” X 16.5”
Rapid Traverse Rate:                1,417 in/min
Spindle Nose to Table:                3.15” - 21.26”
Spindle Center to Column:                19.29”
Max Workpiece Weight:                660 Lbs
T - Slot (Number x Width x Pitch):        5 X 0.7” X 80
Spindle Speed:                    12,000 RPM
Tool Capacity:                    24
Max Tool Diameter:                    3.94”
Max Tool Weight:                    15.4 Lbs

INCLUDES: Fanuc 0i-MF Control, CAT 40 Taper, Linear Roller Way, Spindle Chiller, 24 Capacity ATC, Air Blast at Tool Change, 42 Gallon Coolant System, Pull Out Style Chip Cabinet and Heat Exchange System for Electric Cabinet.port System.
