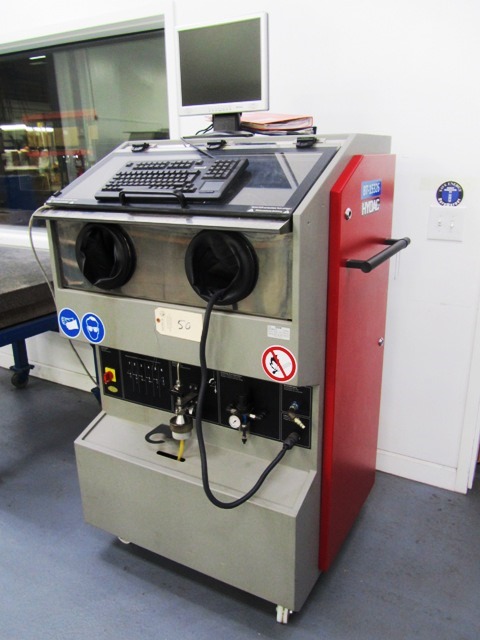

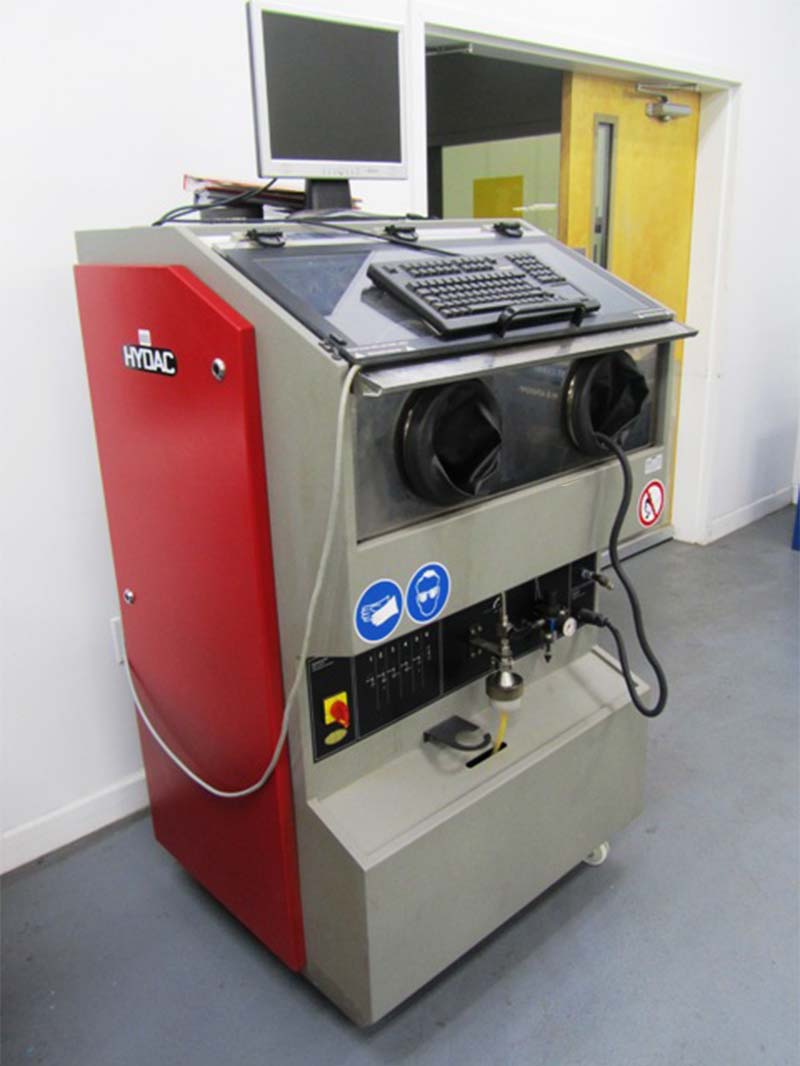

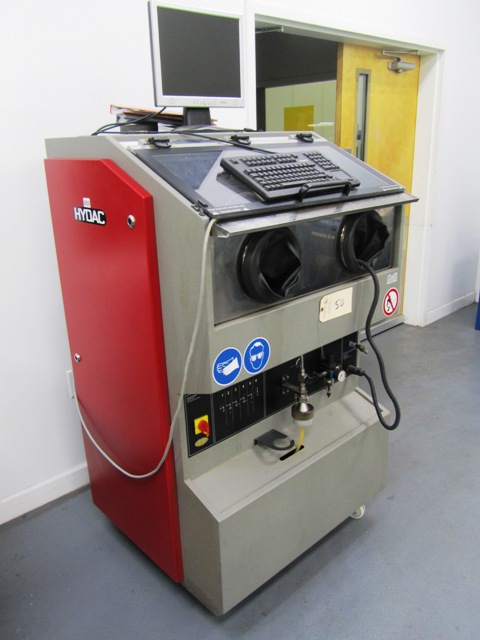

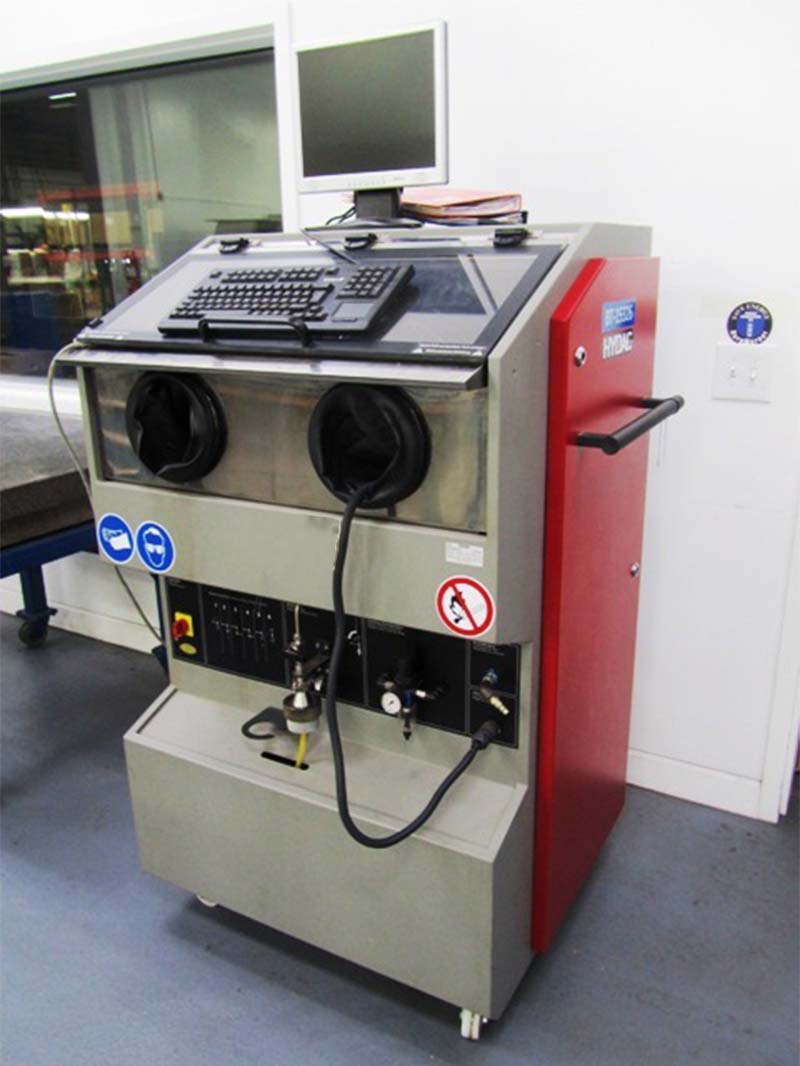

Hydac CTU-1000-K-Z-Z Contamination Test Unit

Manufacturer

Hydac

Stock

22390

Model

CTU-1000-K-Z-Z

Dealer Location

North Carolina

Spec Sheet

22390 Hydac CTU-1000-K-Z-Z Contamination Test Unit

Model: CTU-1000-K-Z-Z sn:NR 5681 mfg.2007

Specifications:
Membrane Holder: or Ø 47 to 50 mm filter membranes
Vacuum Strainer: for quicker filtration of the analysis fluid
Diffuser: Distribution of analysis fluid on the membrane
Operating Pressure: -12 to 87 psi (-0.8 to 6 bar)
Analysis Fluid Reservoir: 2x 20 l (1x reservoir, 1x suction reservoir)
Reservoir Change-Over: Automatic
Filtration of Analysis Fluid: Fine filtration according ISO 4406 min. ISO 12/9
Filter Clogging Indicator: 1 bar pressure setting
Filter Size, Filtration Rating: 2x LF BN/HC 60, 3 µm (1xx0 series) 2x MRF-1-E/1, 1µm (1xx1 series)
Integrated Drip Tray: 25 liter with drainage

Description: Gloves | View Window | PC Control Unit with Software
