4.33" Toshiba BTD110R16, X-78", Y-59", Tosnuc 888, 55" x 63" B-Axis Tbl, 38 ATC, CTS, #32436

Manufacturer

TOSHIBA

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

32436

Model

BTD110R16

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32436

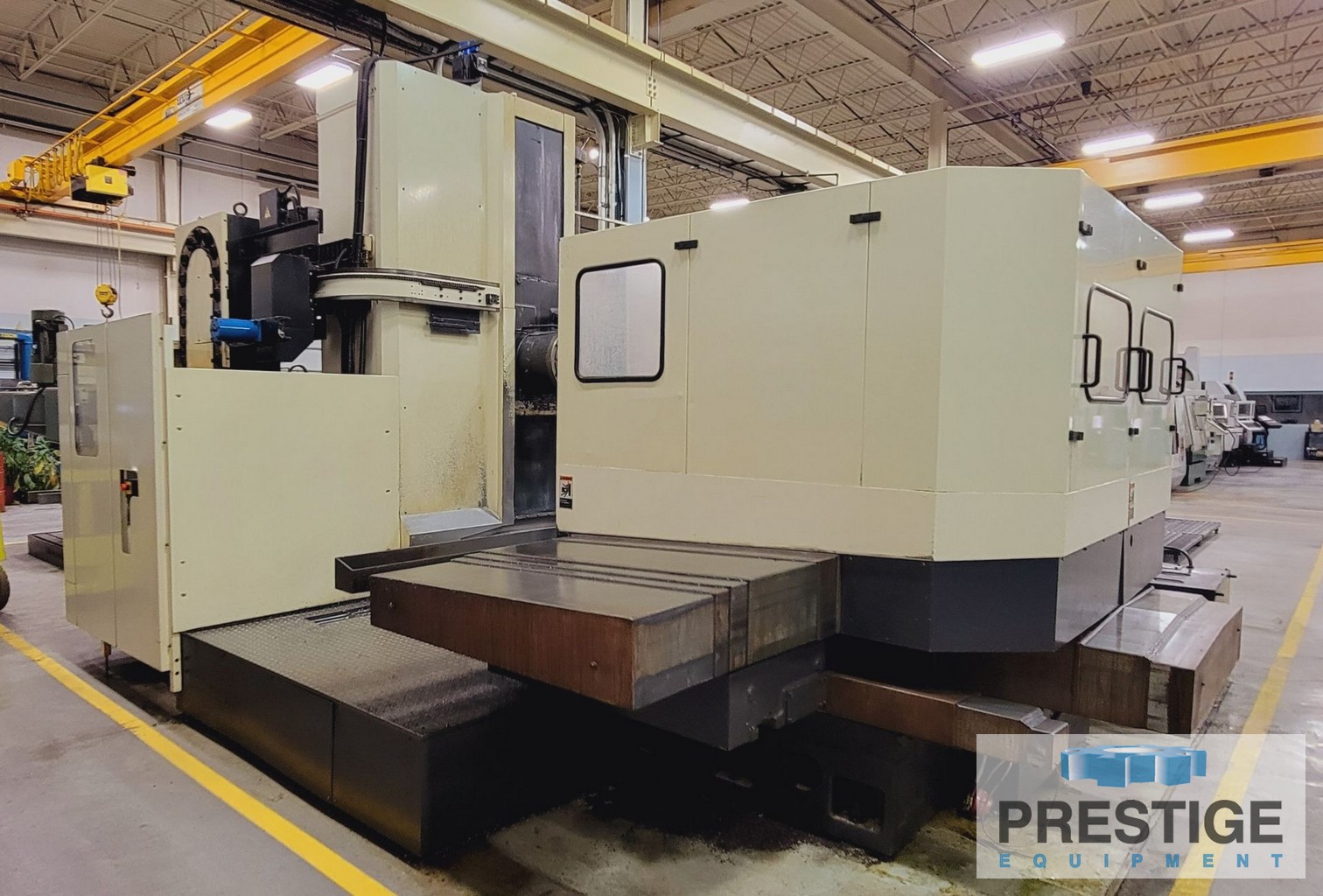

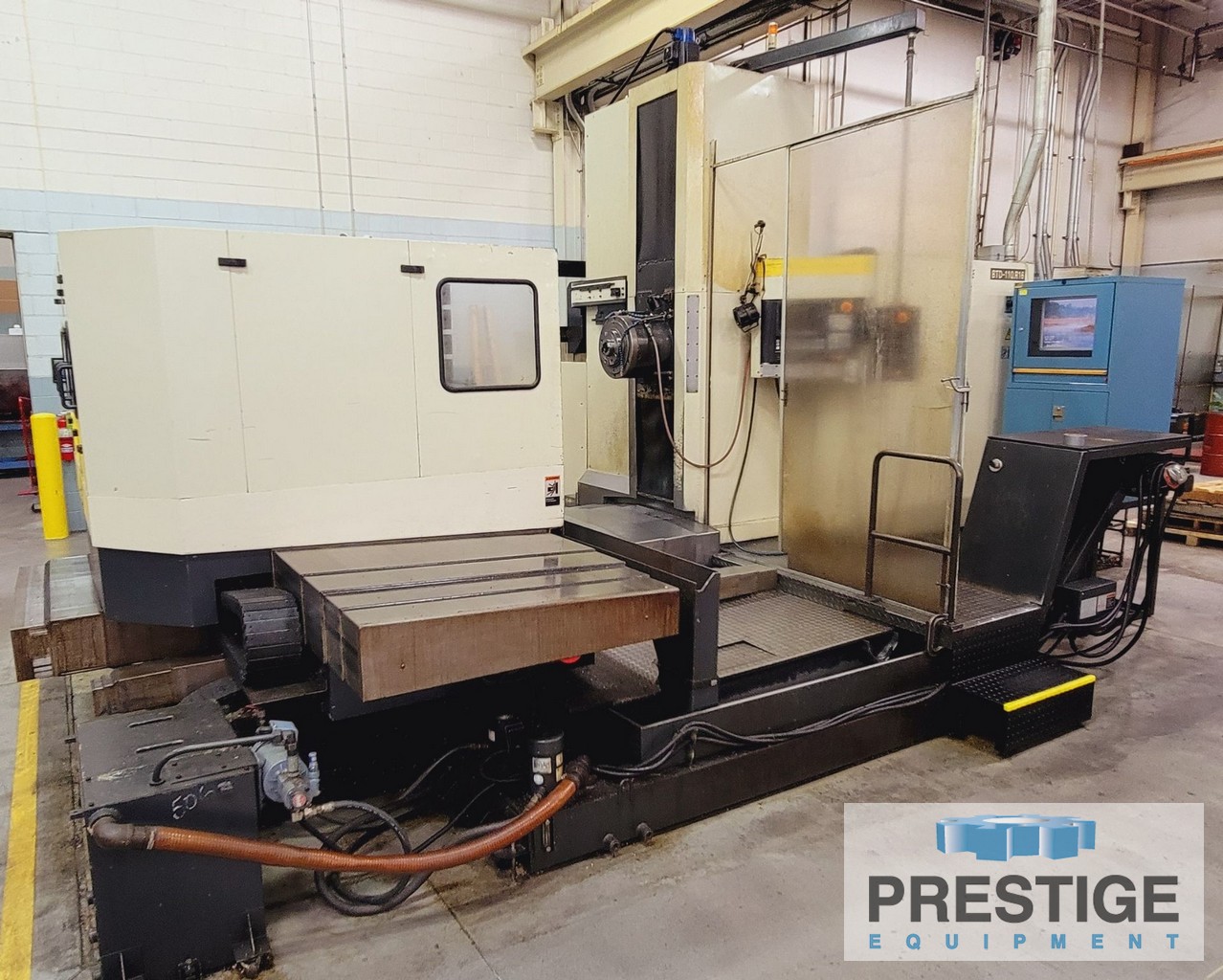

Toshiba BTD110R16 4.3" CNC Table Type Horizontal Boring Mill

FEATURES:
Tosnuc 888 4-Axis CNC Controls
38 Station Automatic Tool Changer
Through Spindle Coolant

SPECIFICATIONS:

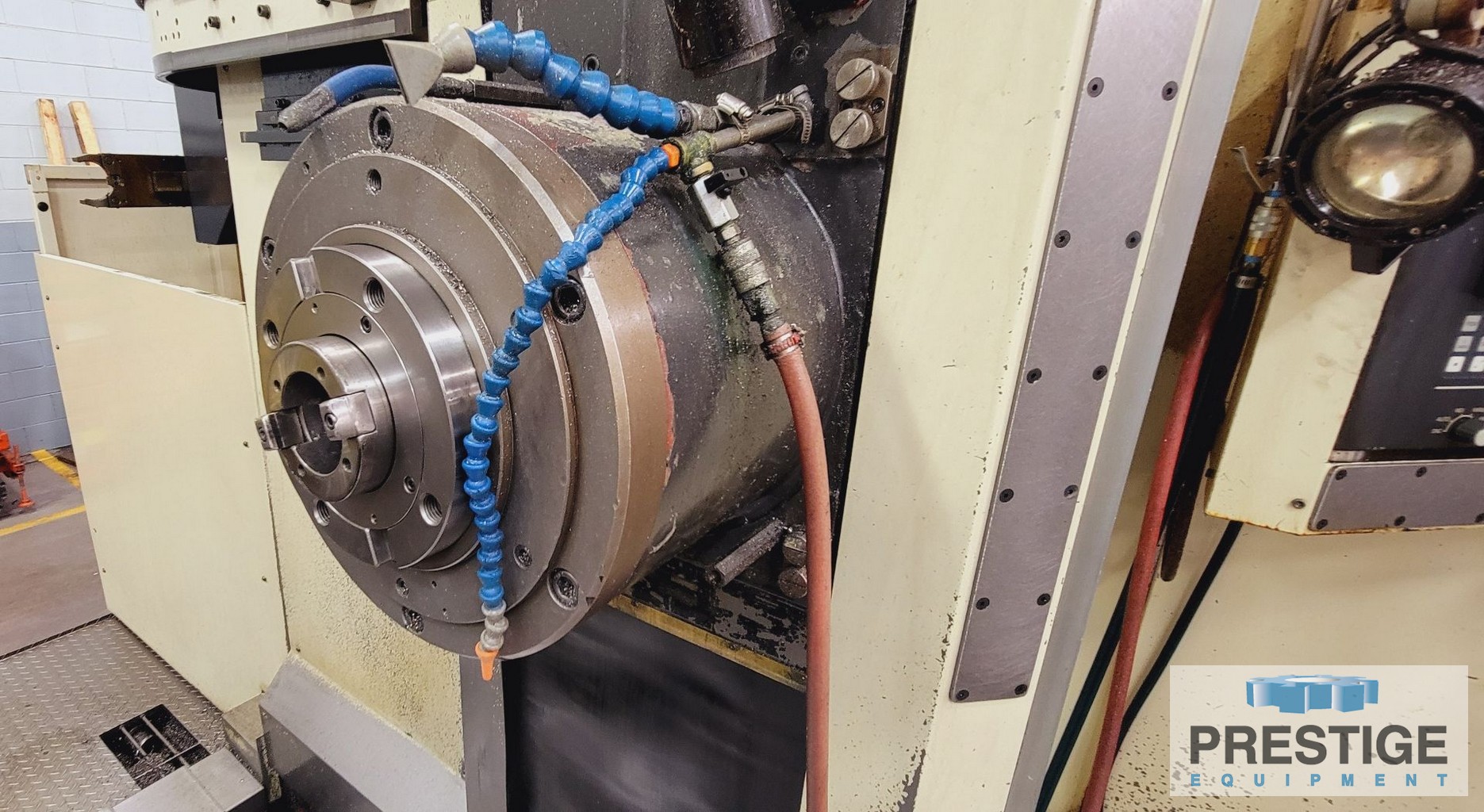

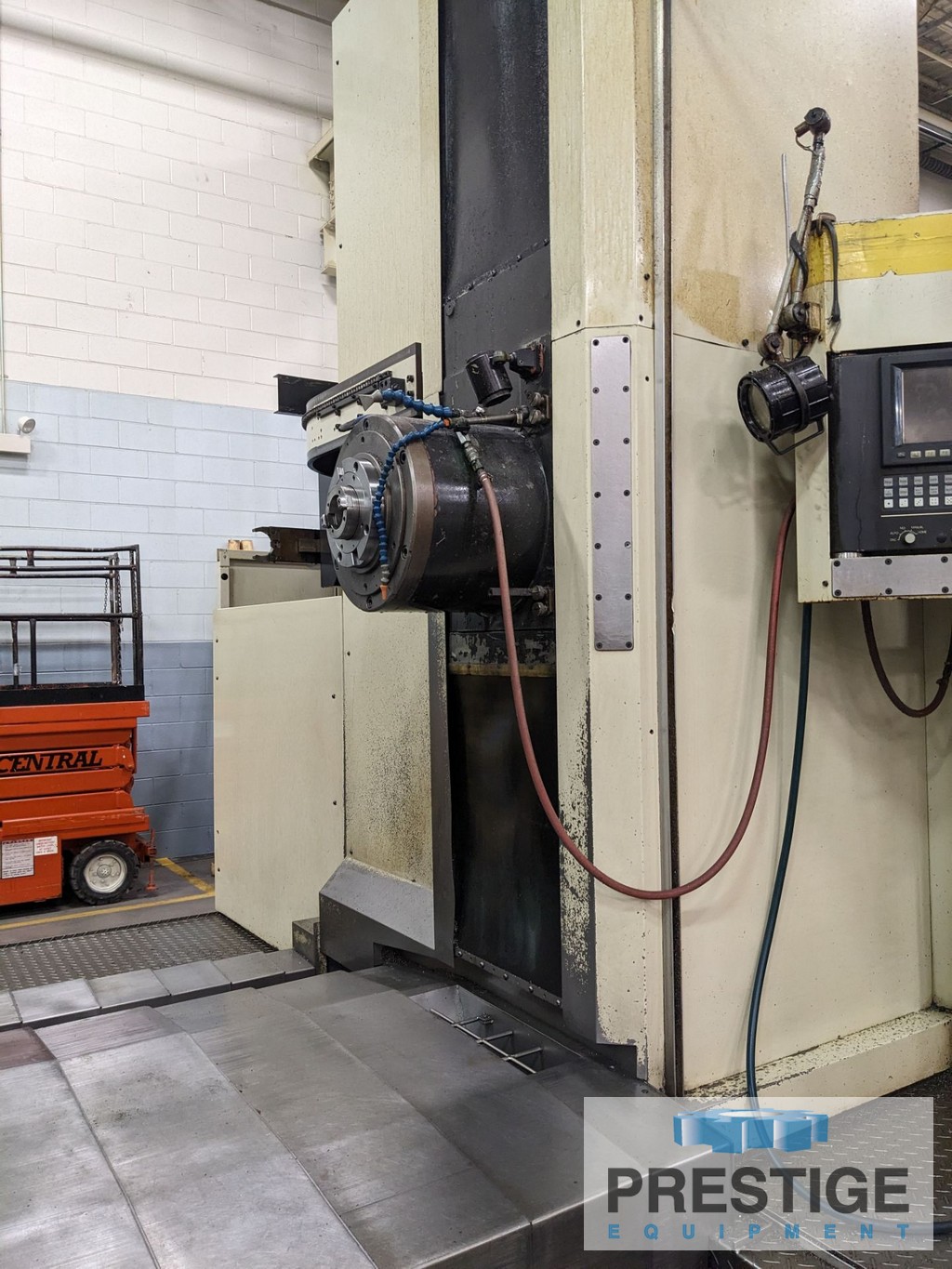

Spindle Diameter ...................... 4.33"
Taper In Spindle ...................... #50
Milling Spindle Diameter .............. 8.86"
Vertical Travel of Headstock, Y-Axis .. 59.05"
Table Cross Travel, X-Axis ............ 78.7"
Spindle Travel, Z-Axis ................ 19.68"
Saddle Travel, W-Axis ................. 57.08"
Spindle Speeds ........................ 5-3000 RPM
Spindle Motor ......................... 40 HP
Table Size, Built-in Rotary ........... 55.12" x 62.99"
Table Index ........................... 0.001 Degree
Table Capacity ........................ 13,860 Lbs
Feed Rates ............................ 0.04"-236.2"
Machine Footprint ..................... 250" x 260"
Machine Height ........................ 153"



EQUIPPED WITH:

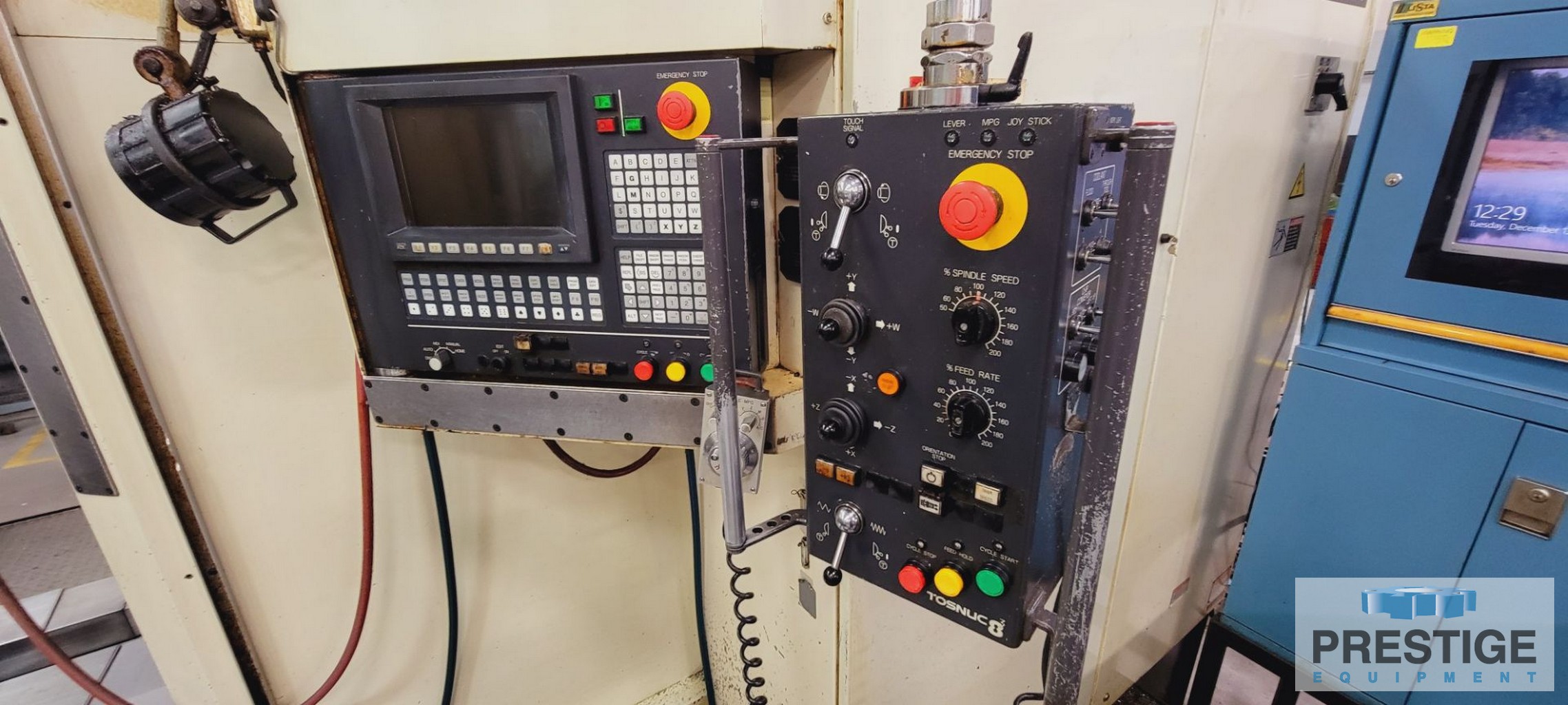

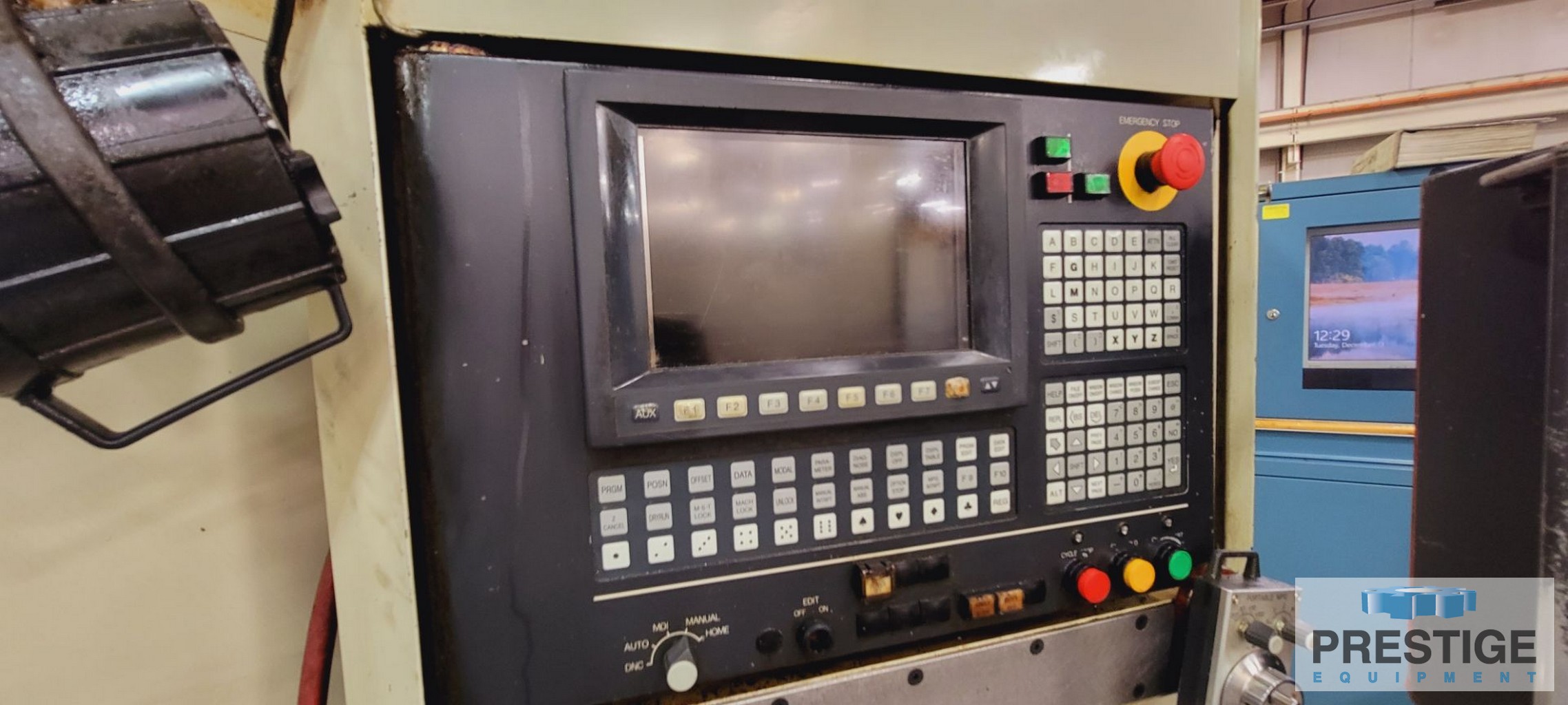

Tosnuc 888 CNC Control

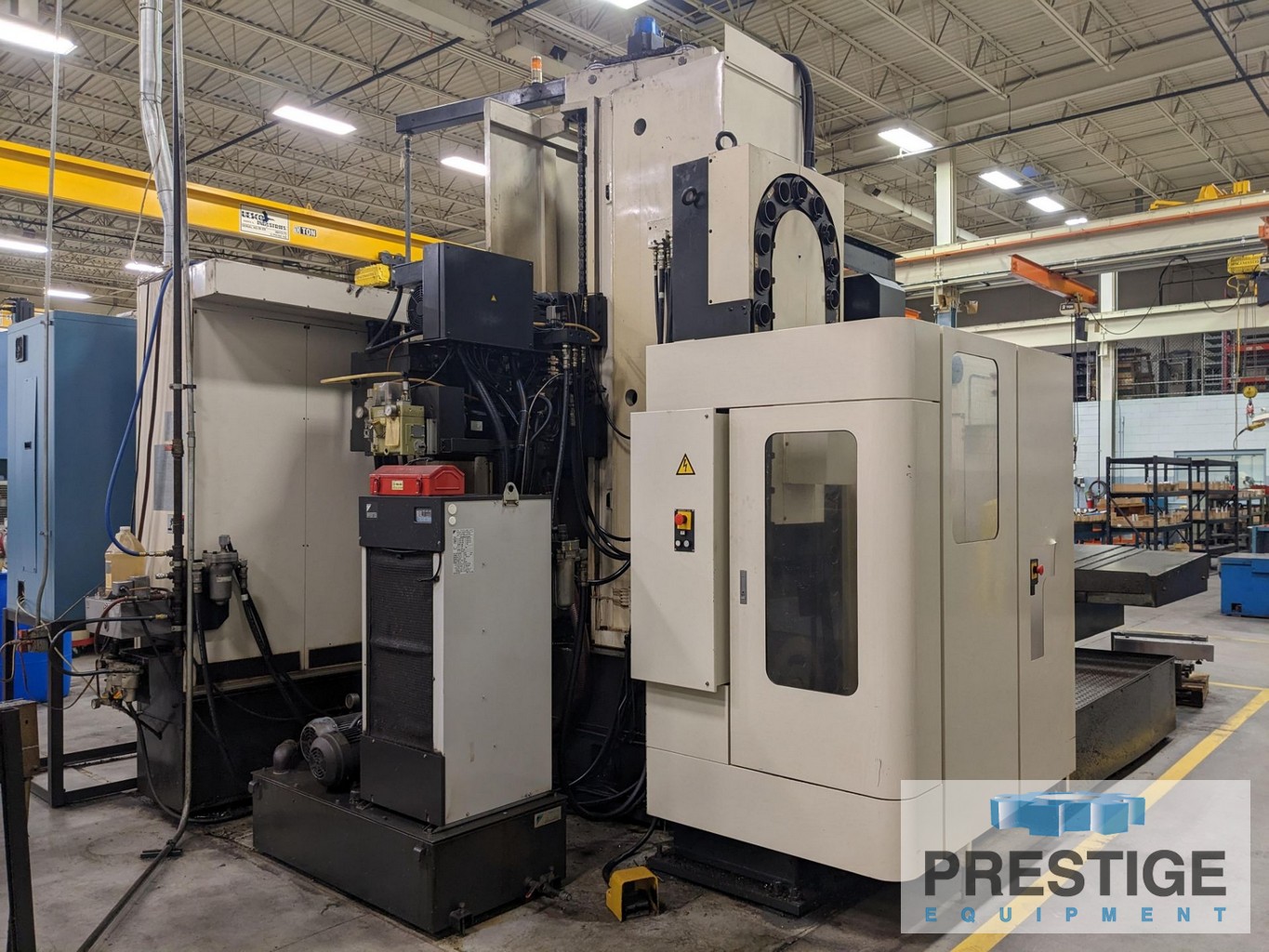

38 Station Automatic Tool Changer

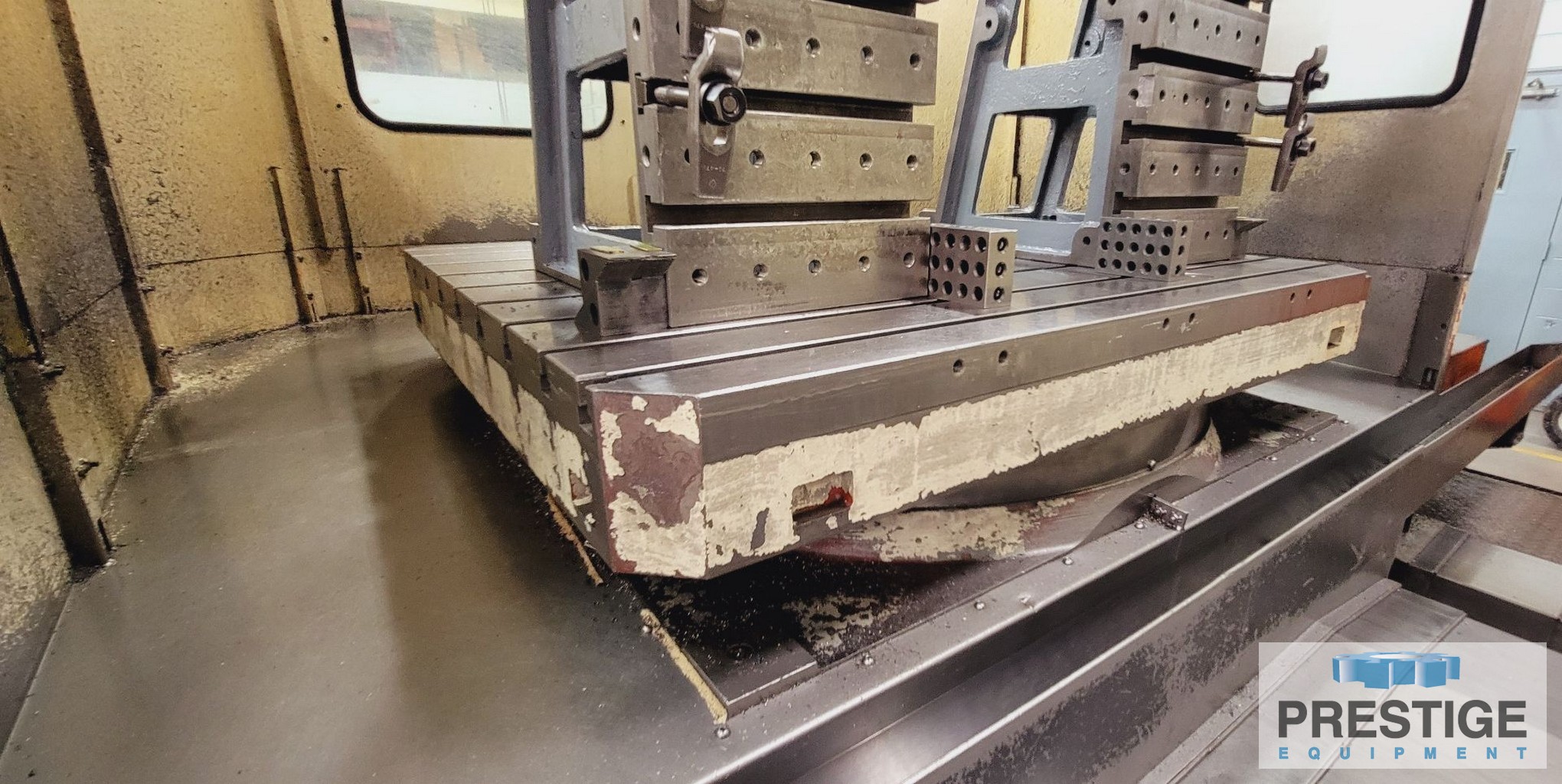

55.12" x 62.99" B-Axis Rotary Table
4-Way Bed Construction
Way Covers
Through Spindle Coolant
Chip Conveyor
40 HP Spindle Drive Motor

Available at Additional Cost:
(2) 15.75" x 39.25" x 24" T-Slotted Angle Plates
