Tarus TPTCGD511S, 2" Drill Dia, 3500 RPM, X-108", Y-60", Z-84", 60" x 108" Tbl, 15 HP, 2015 Retrofit #32443

Manufacturer

TARUS

Category

Drilling Machines

Type

DRILLS, GUN

Stock

32443

Model

TPTCGD511S

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32443

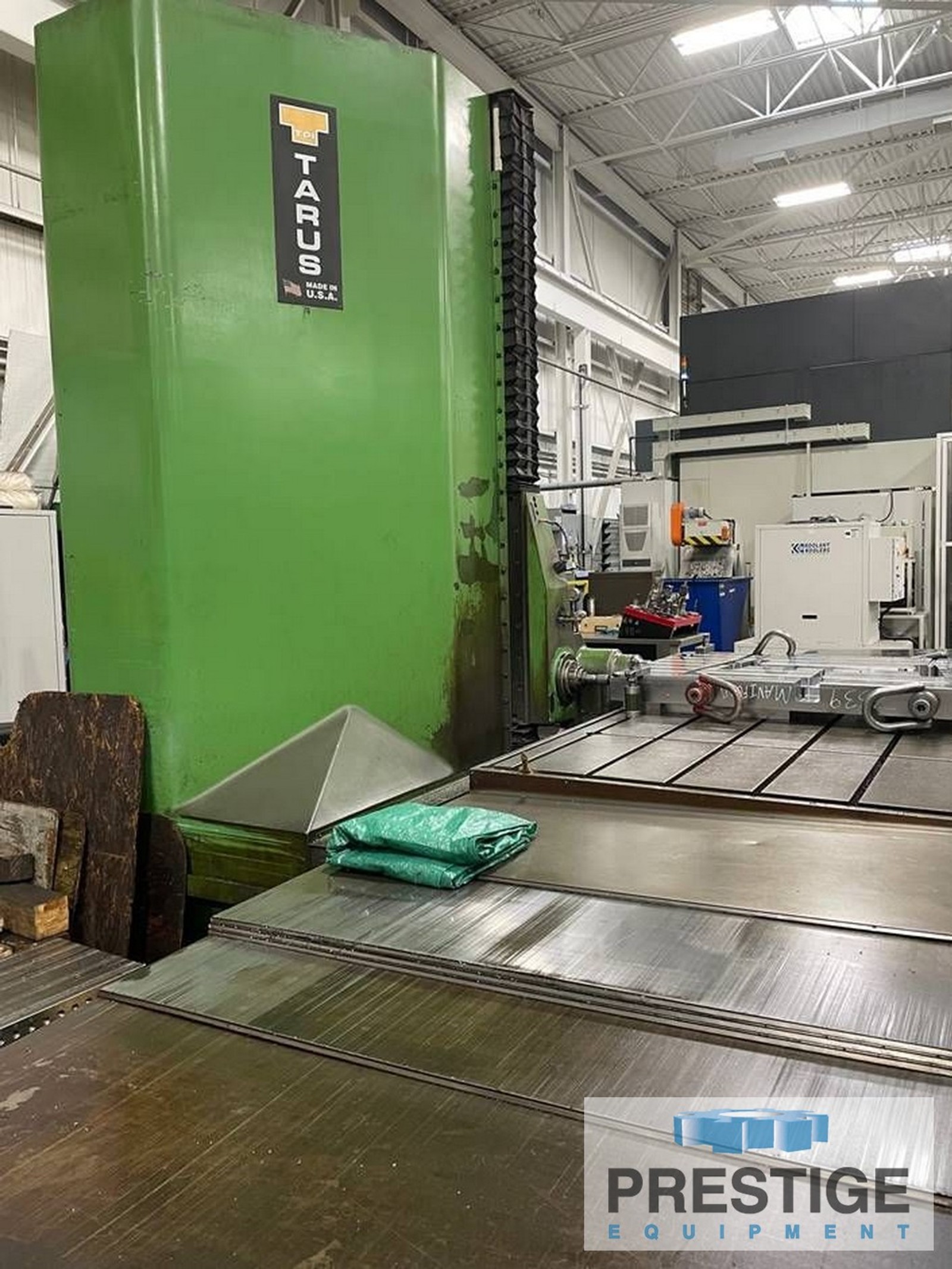

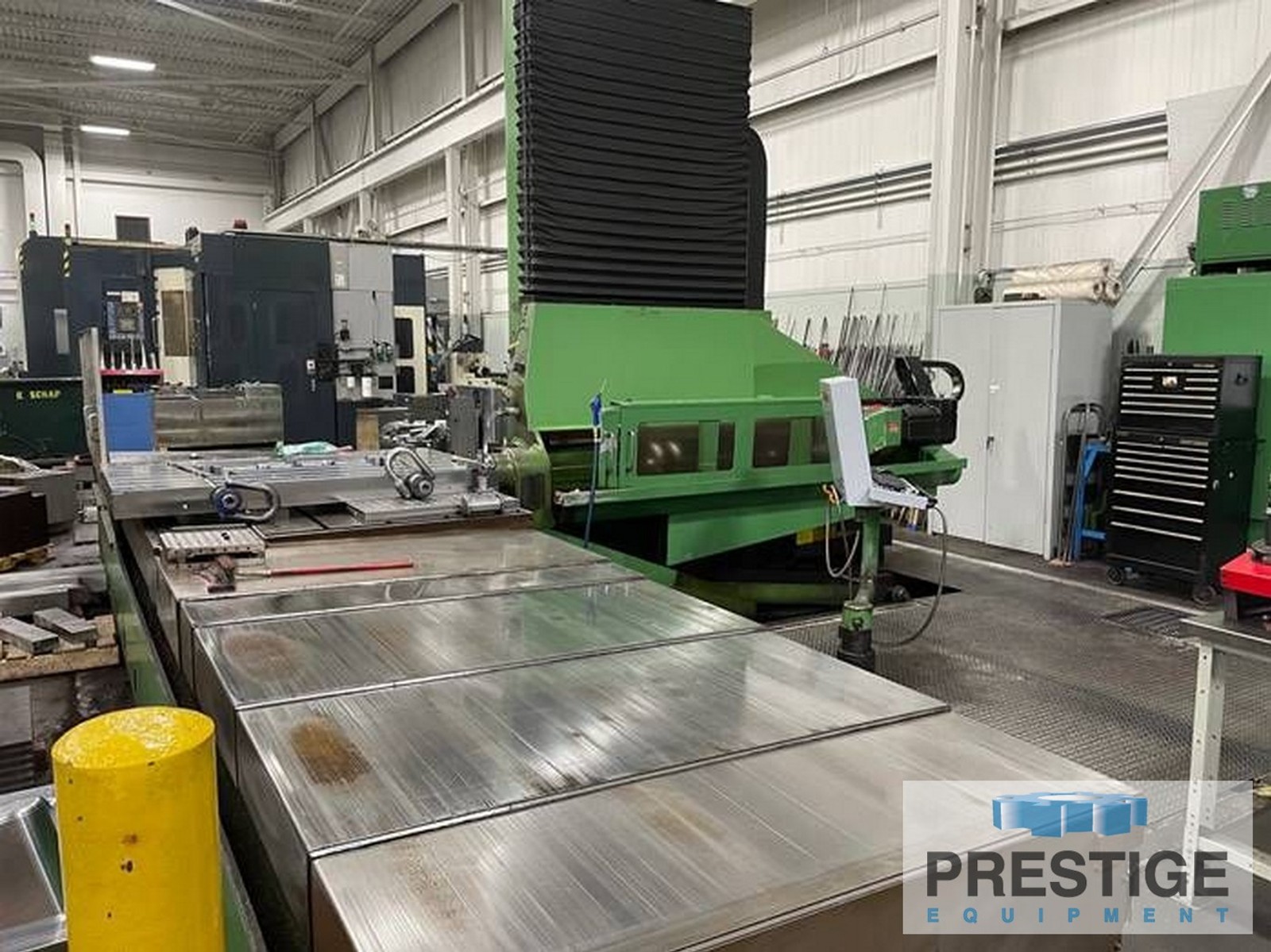

Tarus CNC Traveling Table Type Gun Drilling Machine

FEATURES:

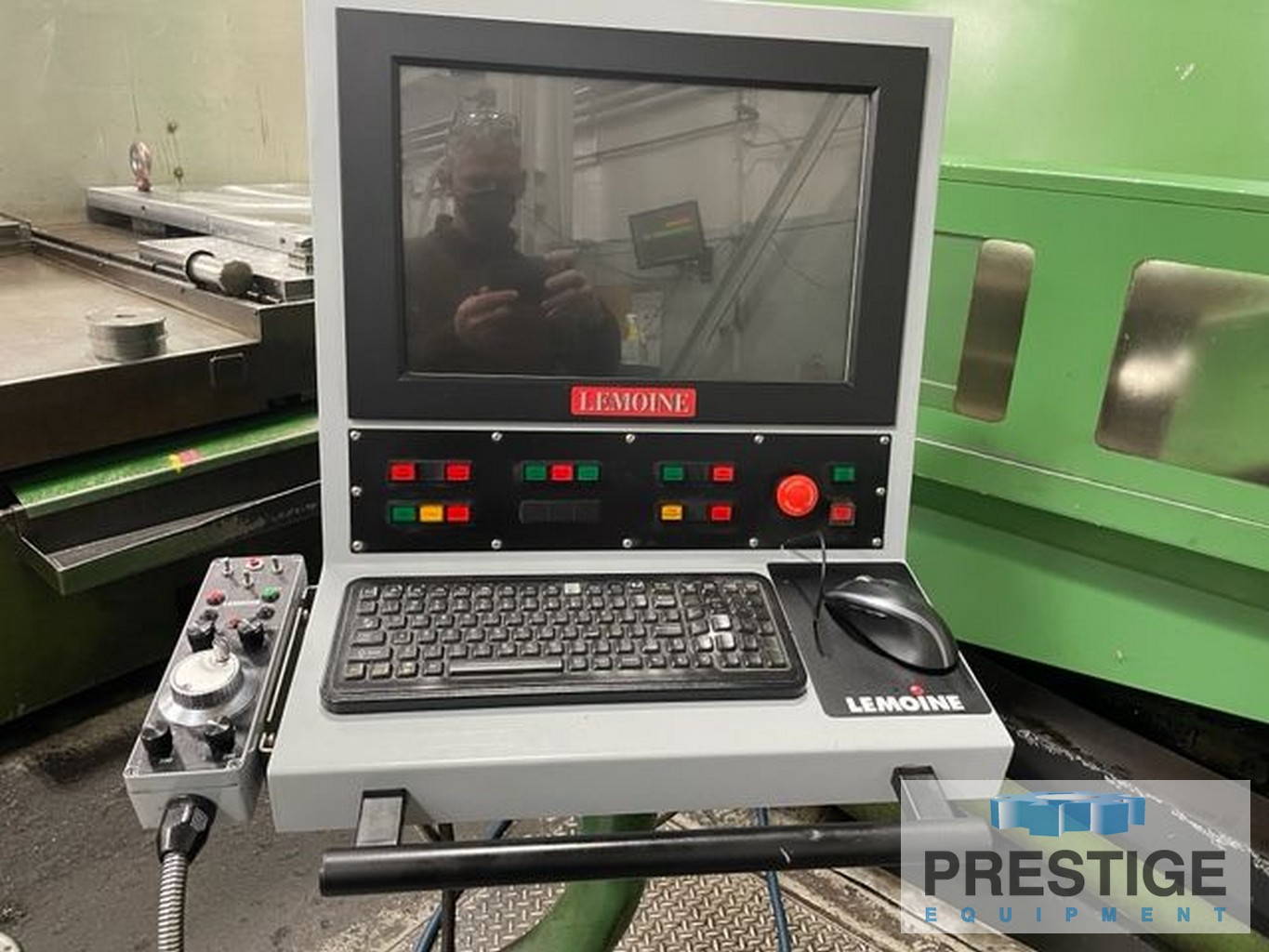

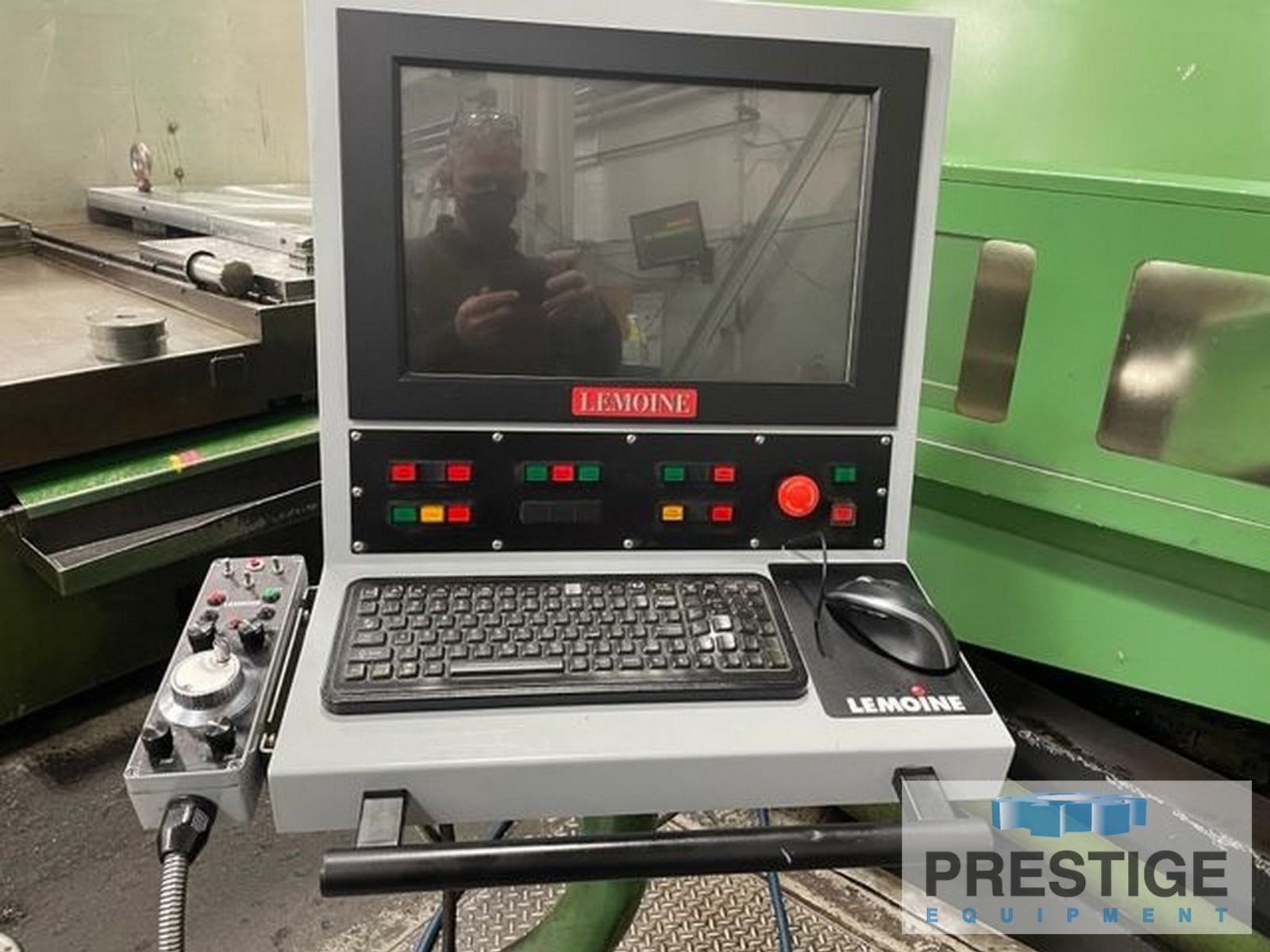

Lemoine G6 CNC Control, Retrofit 2015

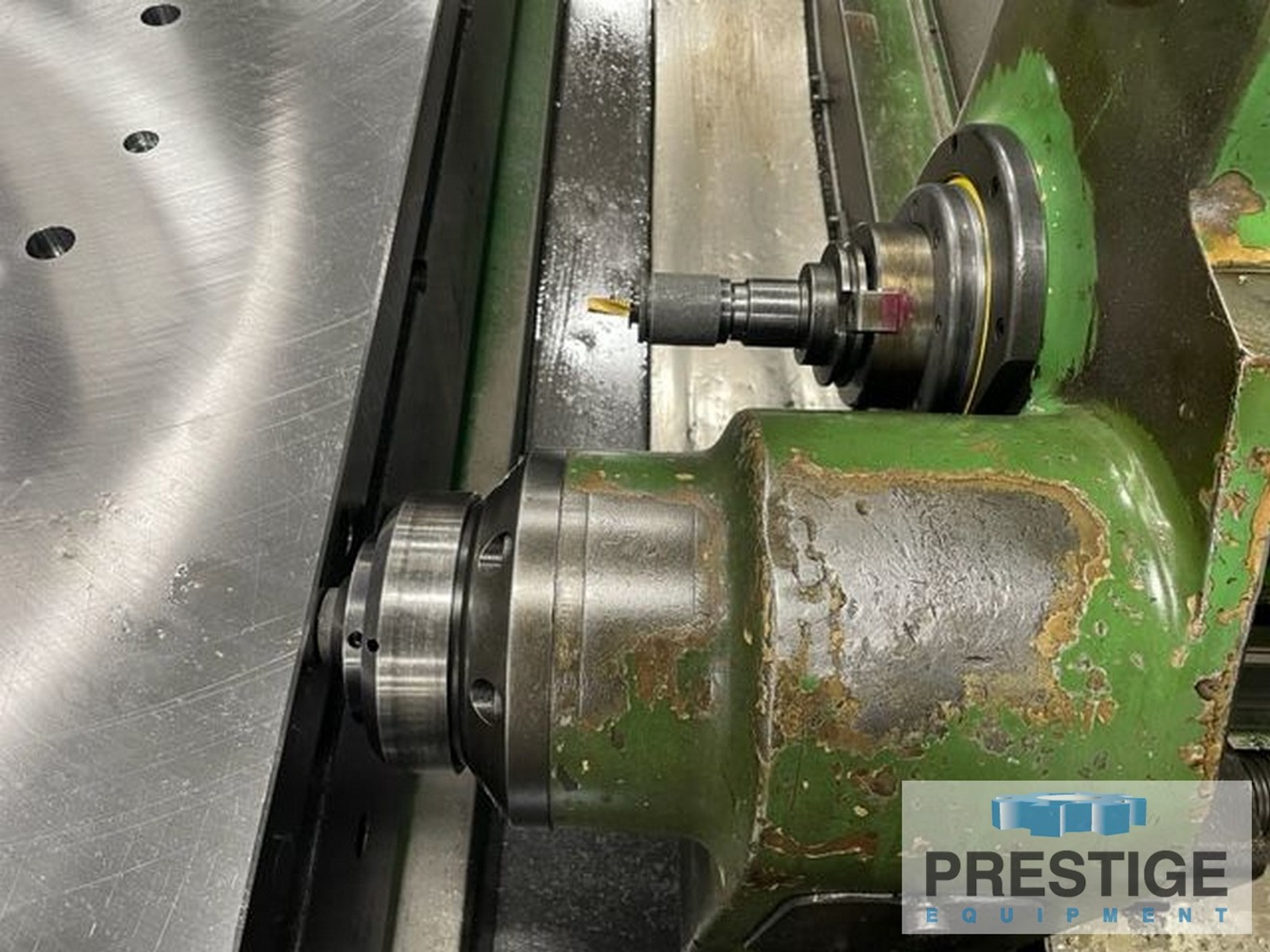

Auxillary Spindle for Tapping & Spot Facing 6" Quill Travel
15 HP Spindle Drive
Chip Conveyor


CAPACITY:
Maximum Drilling Diameter ............. 1.5"
Minimum Drilling Diameter ............. .1875"
Table Size, T-Slotted ................. 60" x 108"
X-Axis, Table ......................... 108"
Y-Axis Travel, Vertical ............... 60"
W-Axis Travel, Spindle ................ 84"
Z-Axis Travel, Headstock ............ 20"
Z1-Axis Travel, Auxillary Spindle .... 6"
Max. Spindle Speed .................... 3,500 RPM
Table Weight Capacity ................. 50,000 Lbs

EQUIPPED WITH:
Lemoine G6 CNC Control, Retrofit 2015
Auxillary Spindle for Tapping & Spot Facing
15 HP Spindle Drive
Chip Conveyor
Misc. Tooling
Coolant

NOTE:
Inspect in Plant Under Power
