165 Ton Aida Single Crank Gap Frame Press, 46" x 30" Bolster Area, 7.87" Stroke, 5,000 Lb. Uncoiler, 1985, #32432

Manufacturer

AIDA

Category

Presses

Type

PRESSES, GAP FRAME, (Single Crank)

Stock

32432

Model

NC1-165

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32432

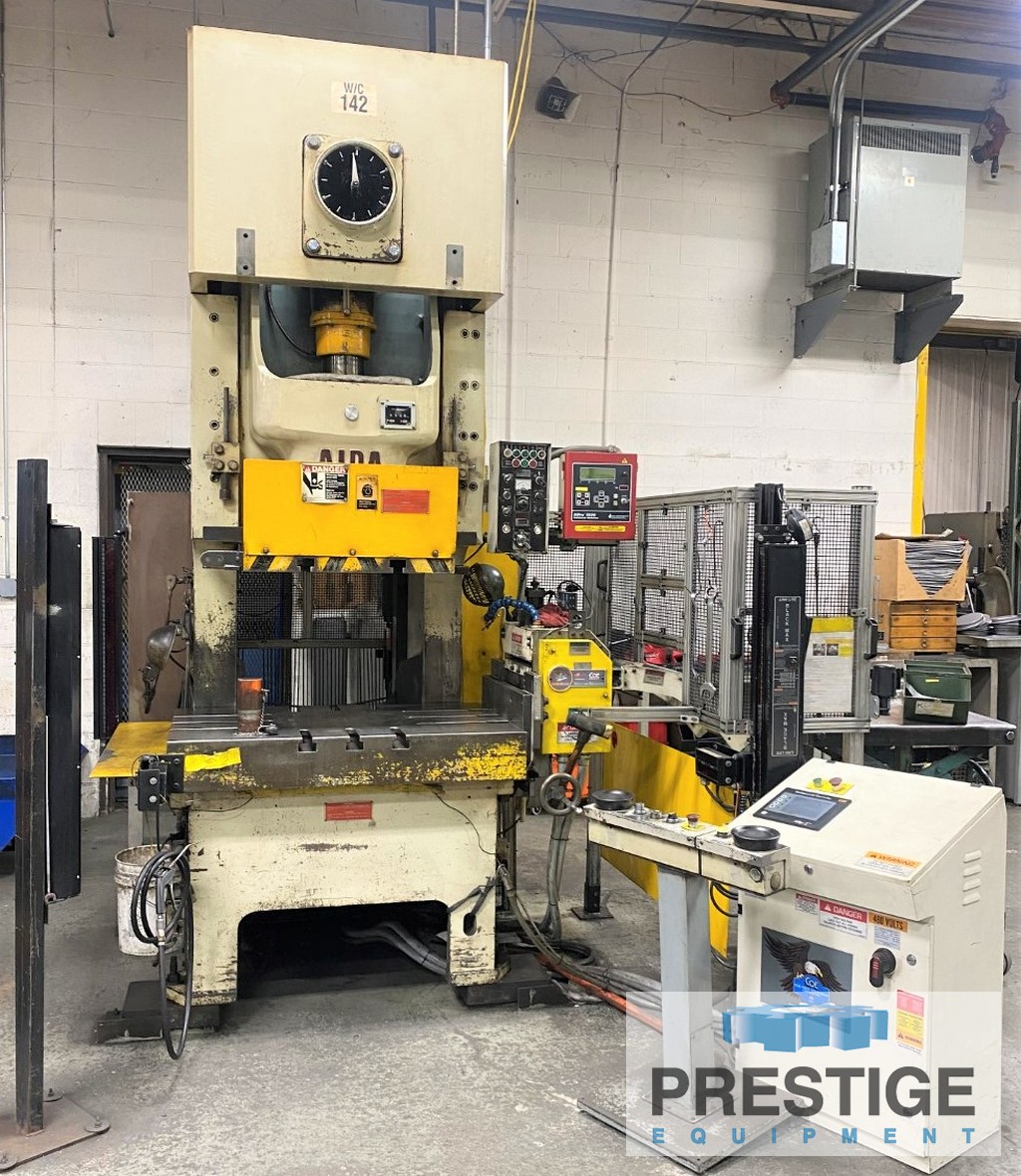

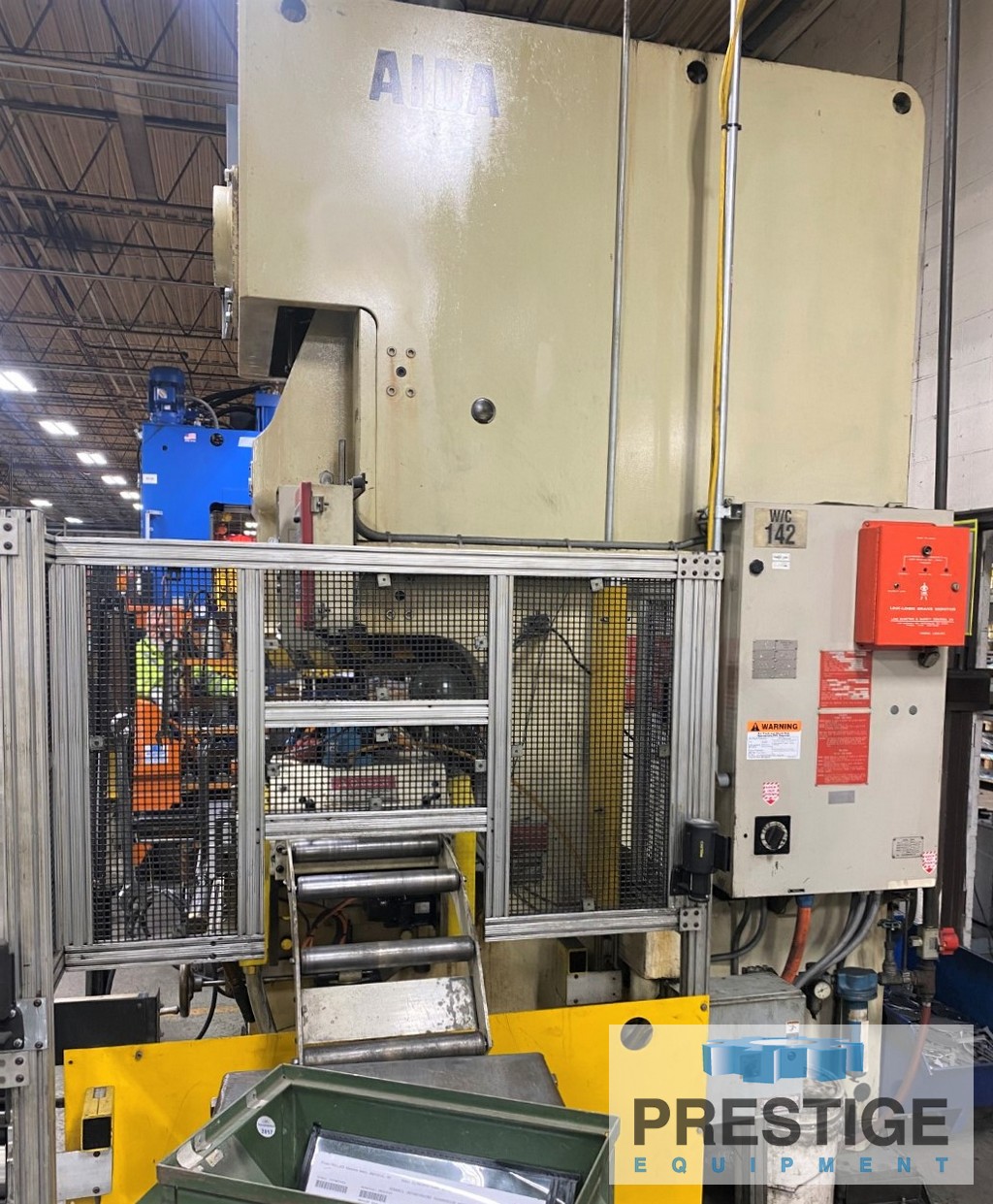

165 Ton Aida Single Crank Gap Frame Press

CAPACITY:
Tonnage Capacity ...................... 165 Tons
Slide Area ............................ 27.55" x 22.83"
Bolster Area .......................... 46.06" x 29.92"
Slide Stroke .......................... 7.87"
Die Height (Over Bolster) ............. 15.74"
Slide Adjustment ...................... 3.93"
Strokes Per Minute .................... 30-55 SPM
Main Motor ............................ 15 HP

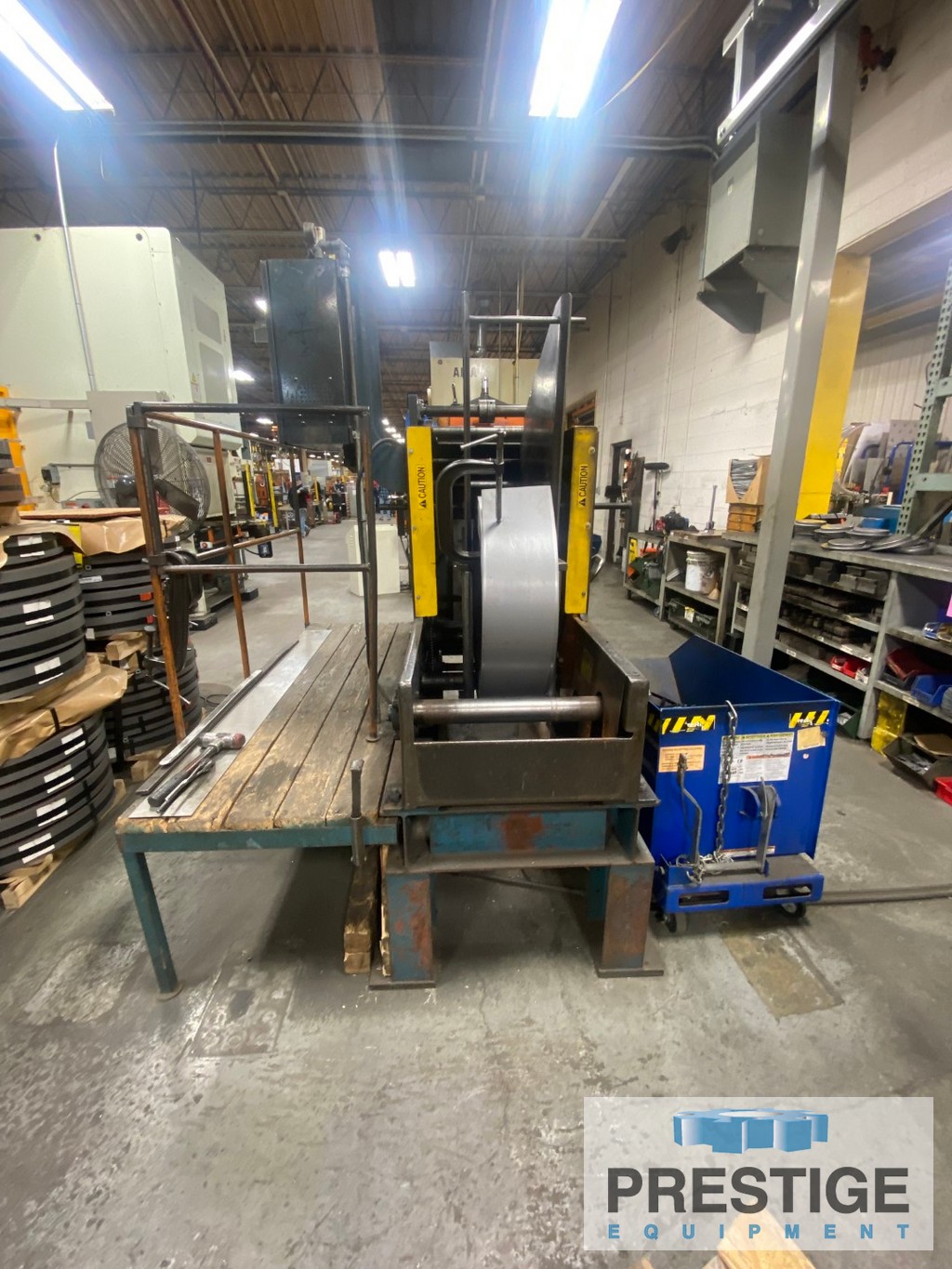

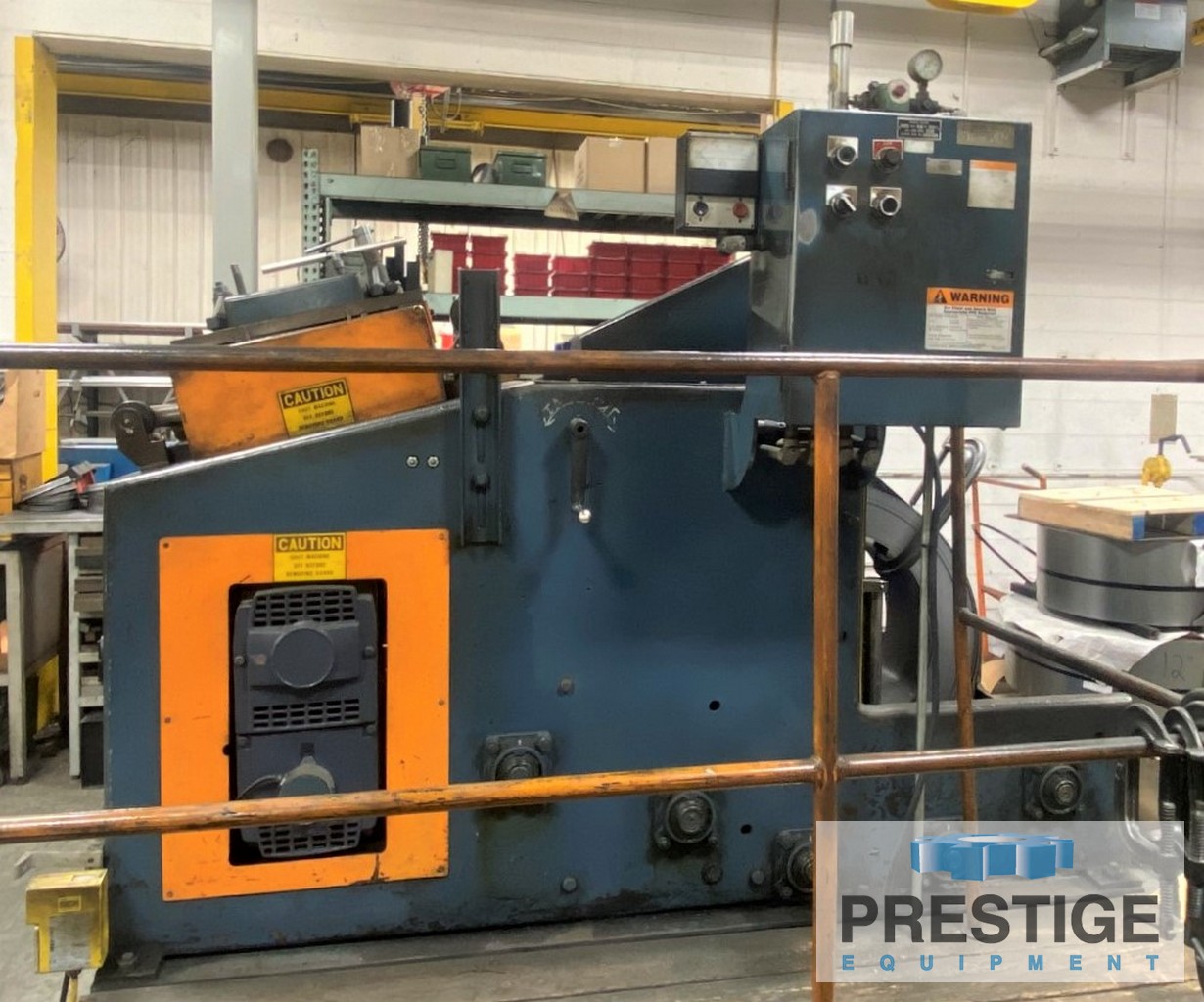

COOPER WEYMOUTH UNCOILER:
Model ................................. 12BCS
Maximum Coil Weight ................... 5,000 Lbs.
Maximum Coil O.D. ..................... 48" O.D.
STK Width ............................. 12"
Speed ................................. 120-600 IPM

EQUIPPED WITH:

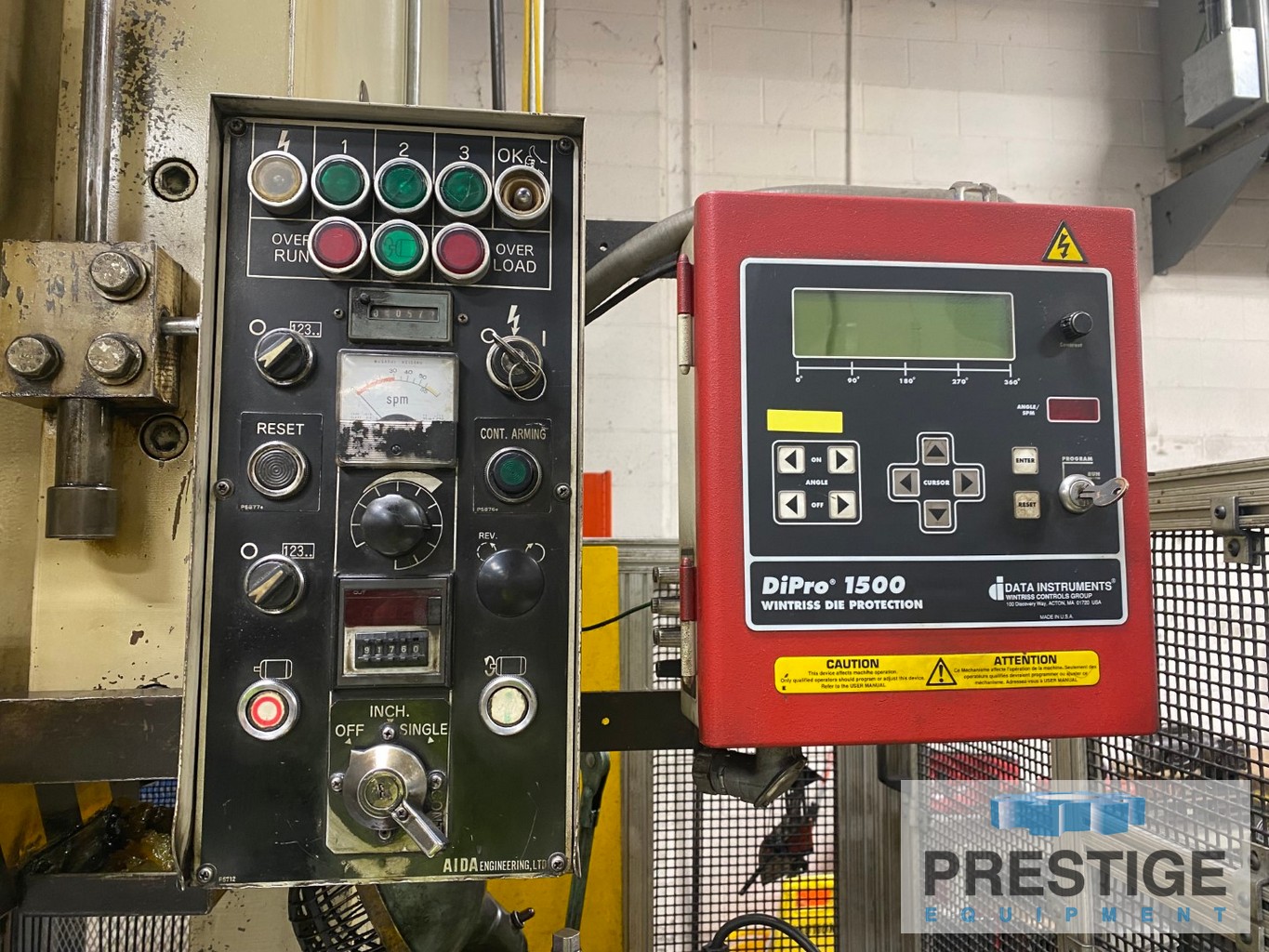

Aida Pendant Control

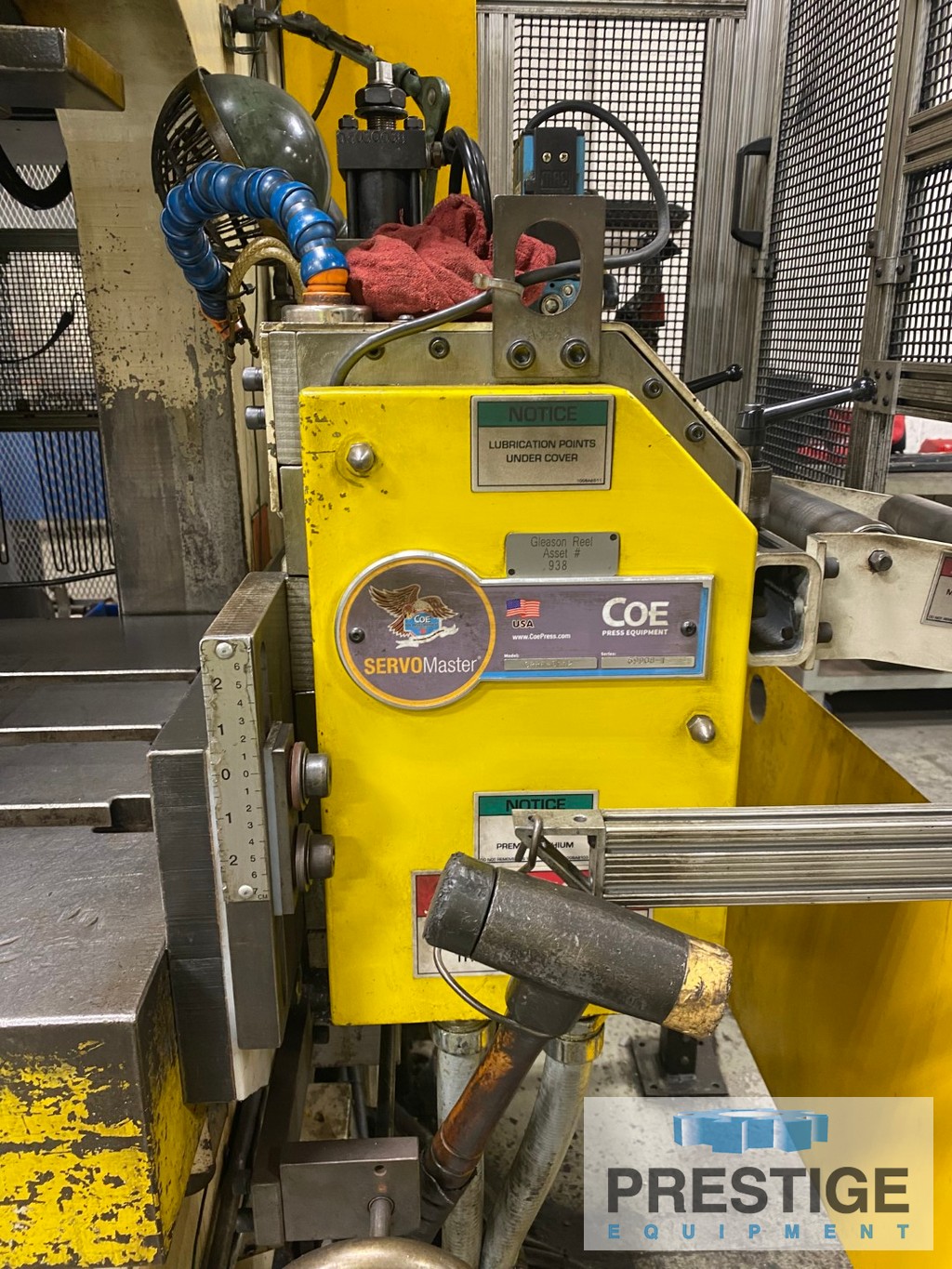

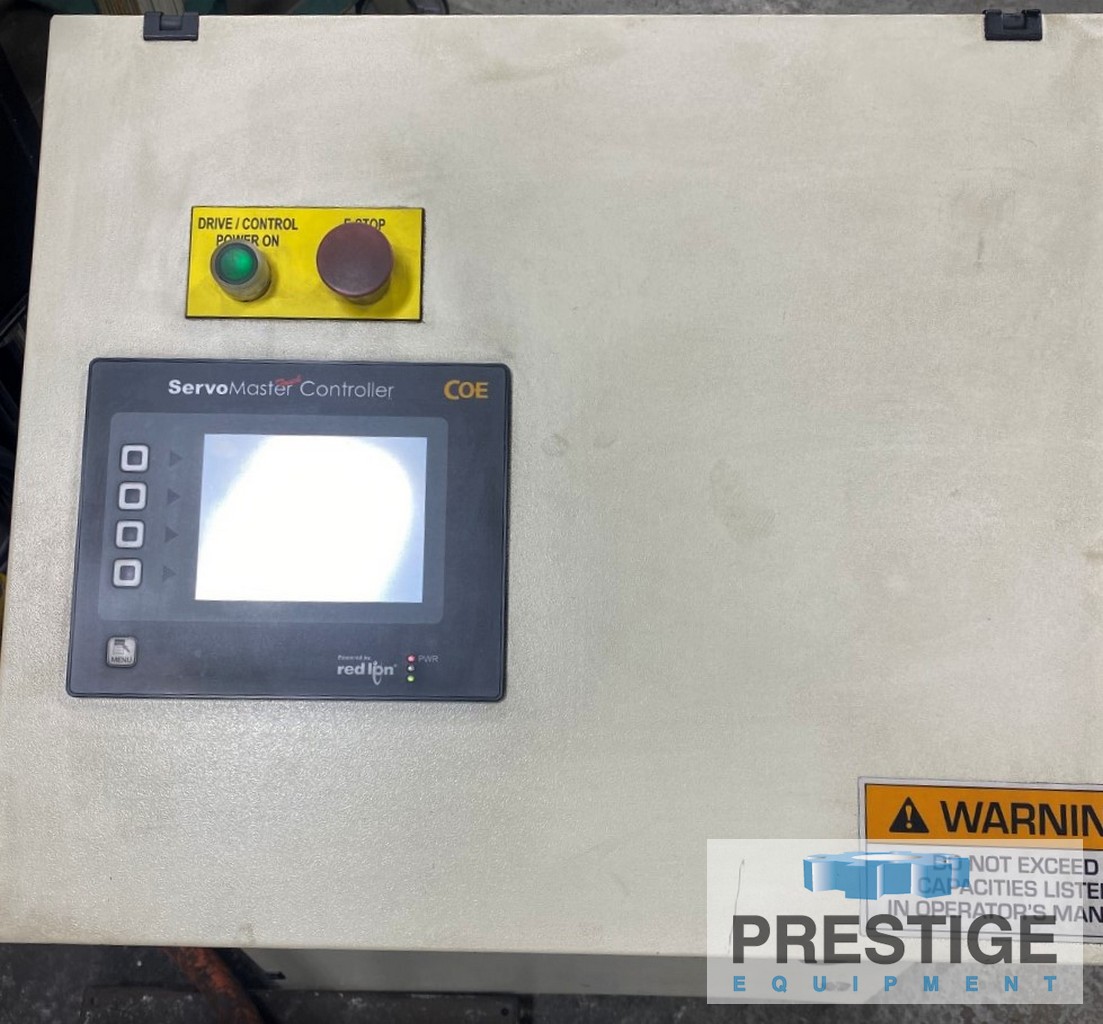

Coe Servo Master Servo Roll Feed Controller
DiPro 1500 Die Protection Controller

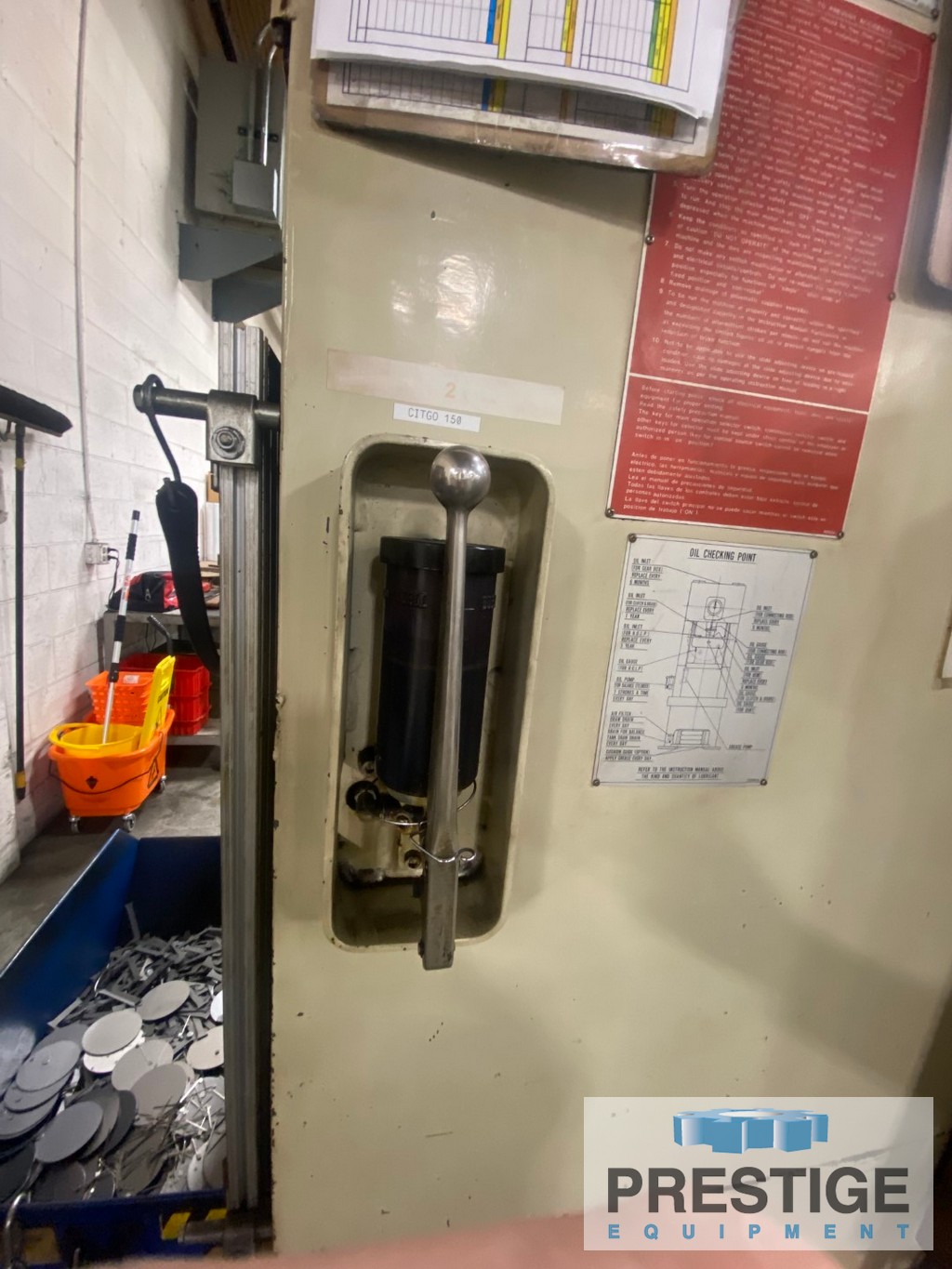

Automatic Lubrication
Power Slide Adjustment with Readouts
Palm Button Station
Adjustable Air Counterbalance System

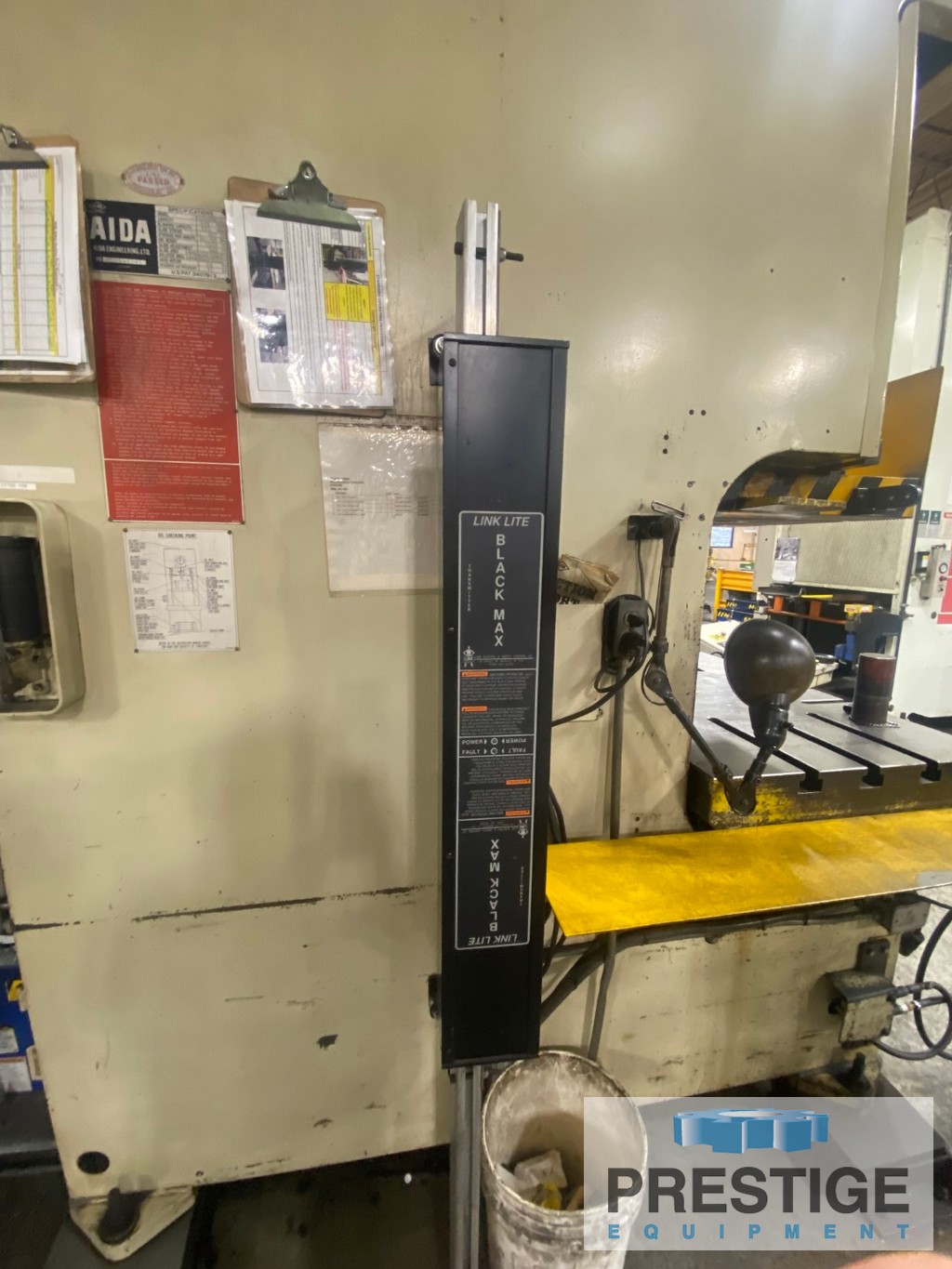

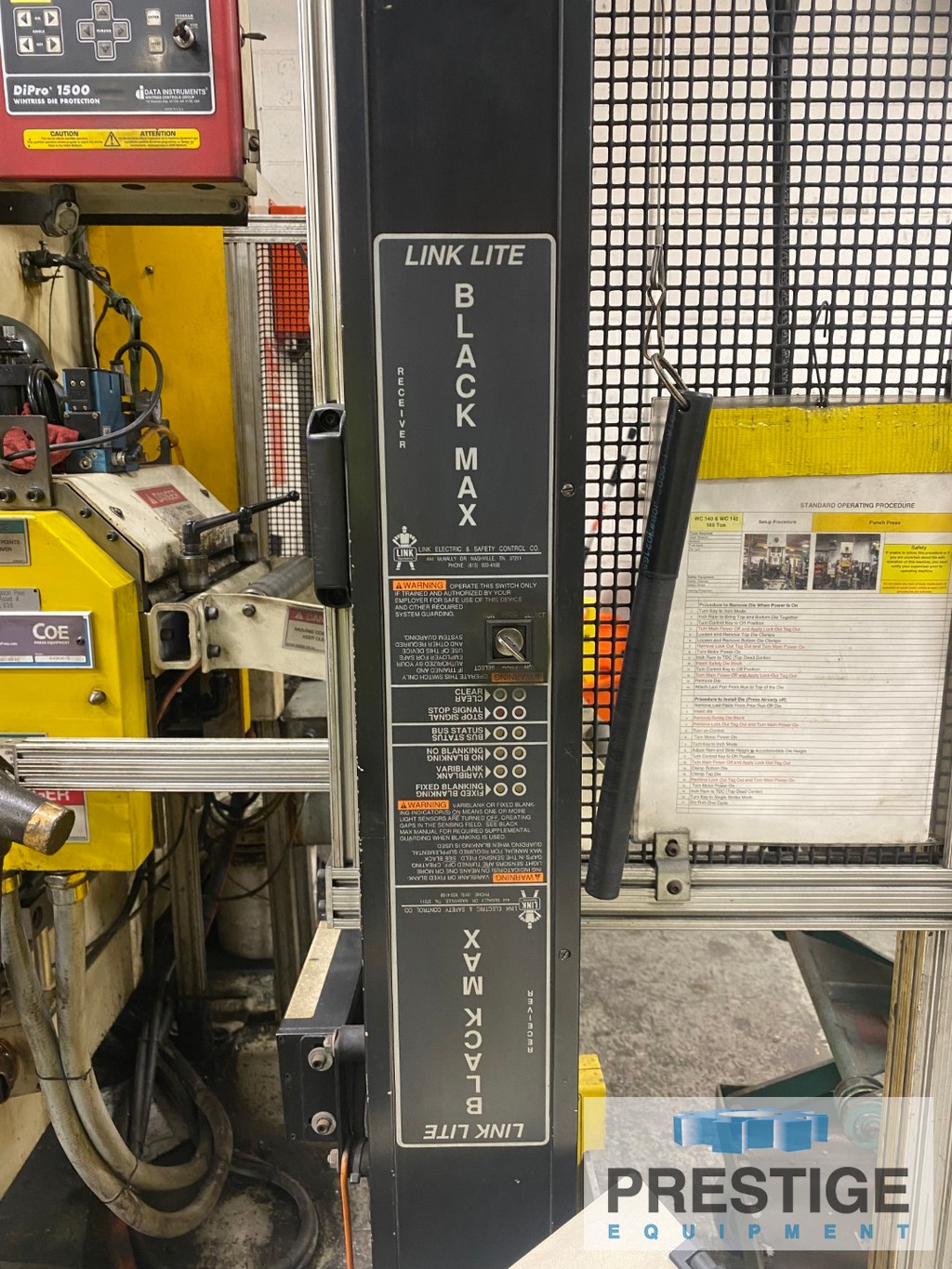

Link Lite Black Max Light Curtains
