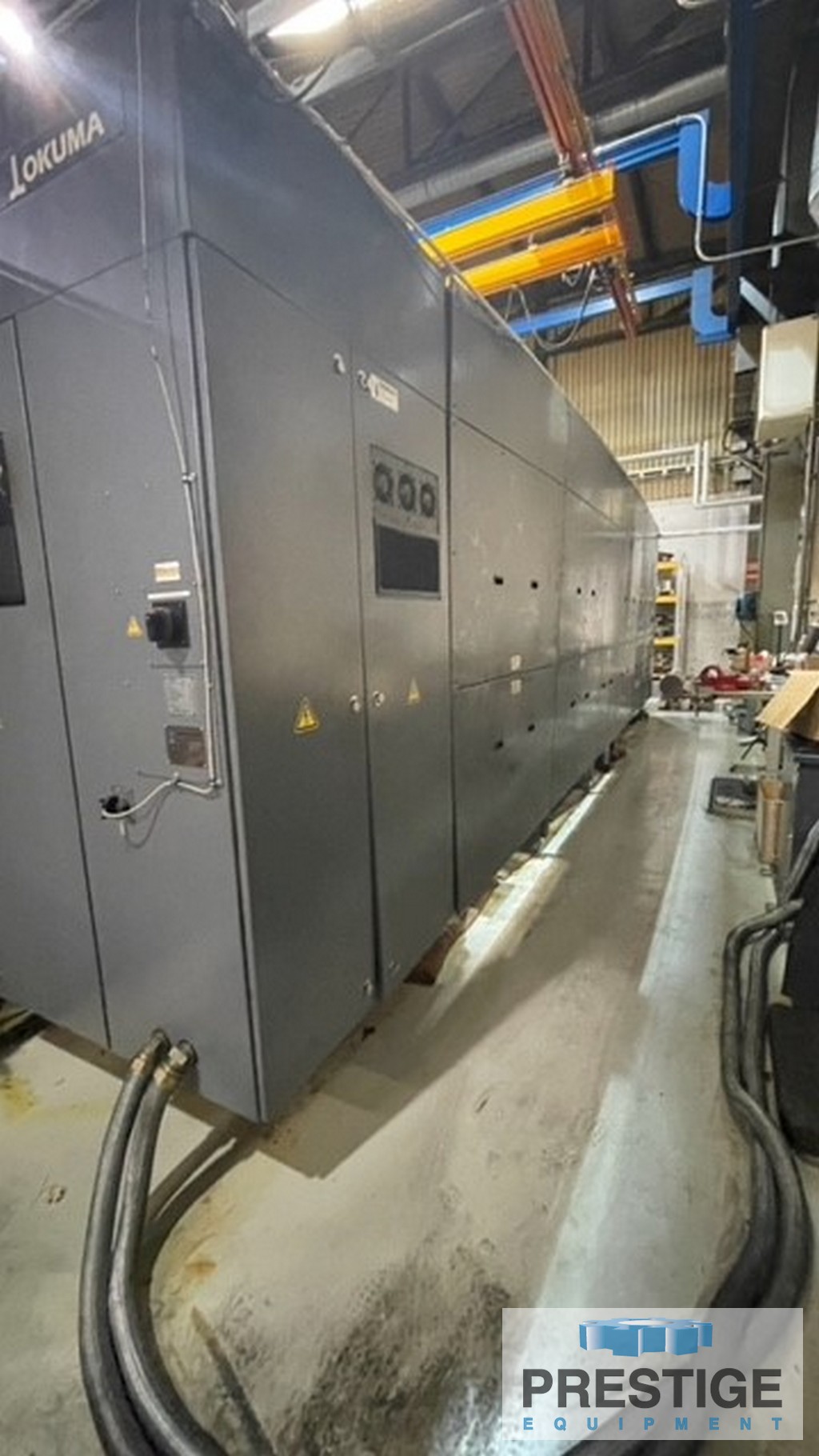

Okuma Macturn 550, U200L CNC, 28" x 133", B-Axis Milling Head, Lower Turret w/ Milling, Y, B & C Axis, 2008, #32418

Manufacturer

OKUMA

Category

Lathes

Type

LATHES, COMBINATION, CNC, (3-Axis Or More)

Stock

32418

Model

Macturn 550

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32418

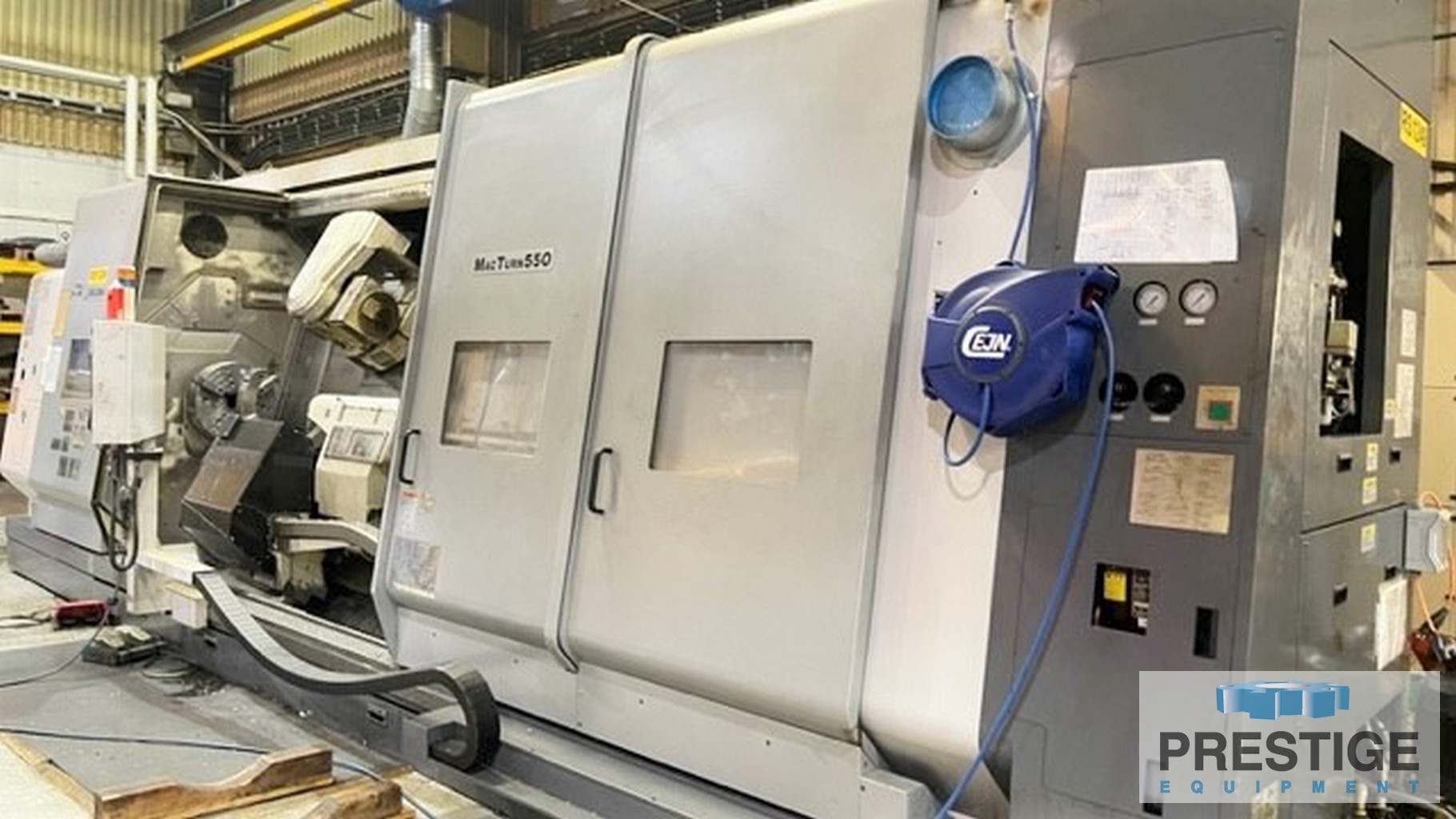

Okuma Macturn 550 28" x 131" Multi Axis CNC Lathe

FEATURES:

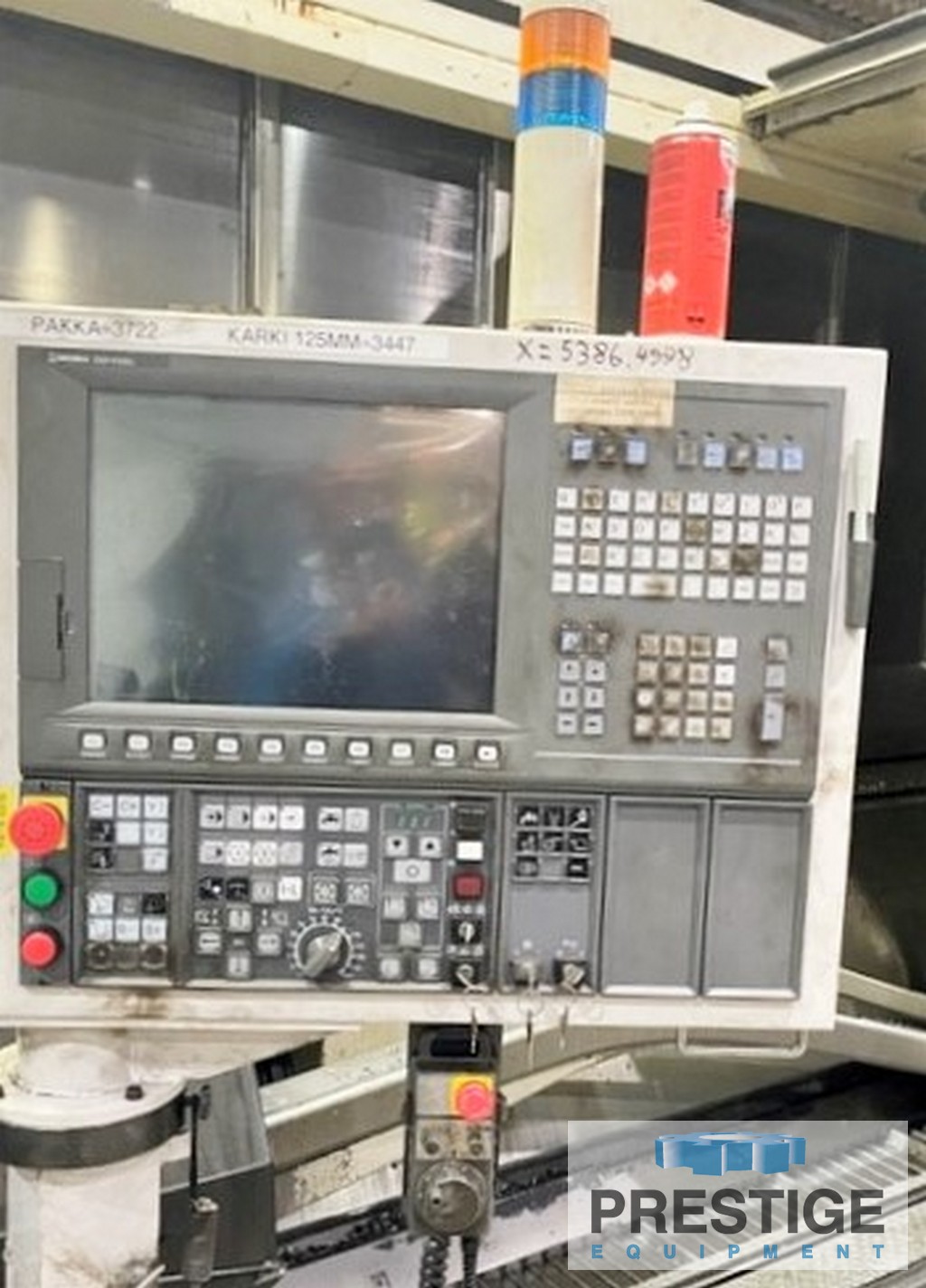

OSP U200L CNC Control

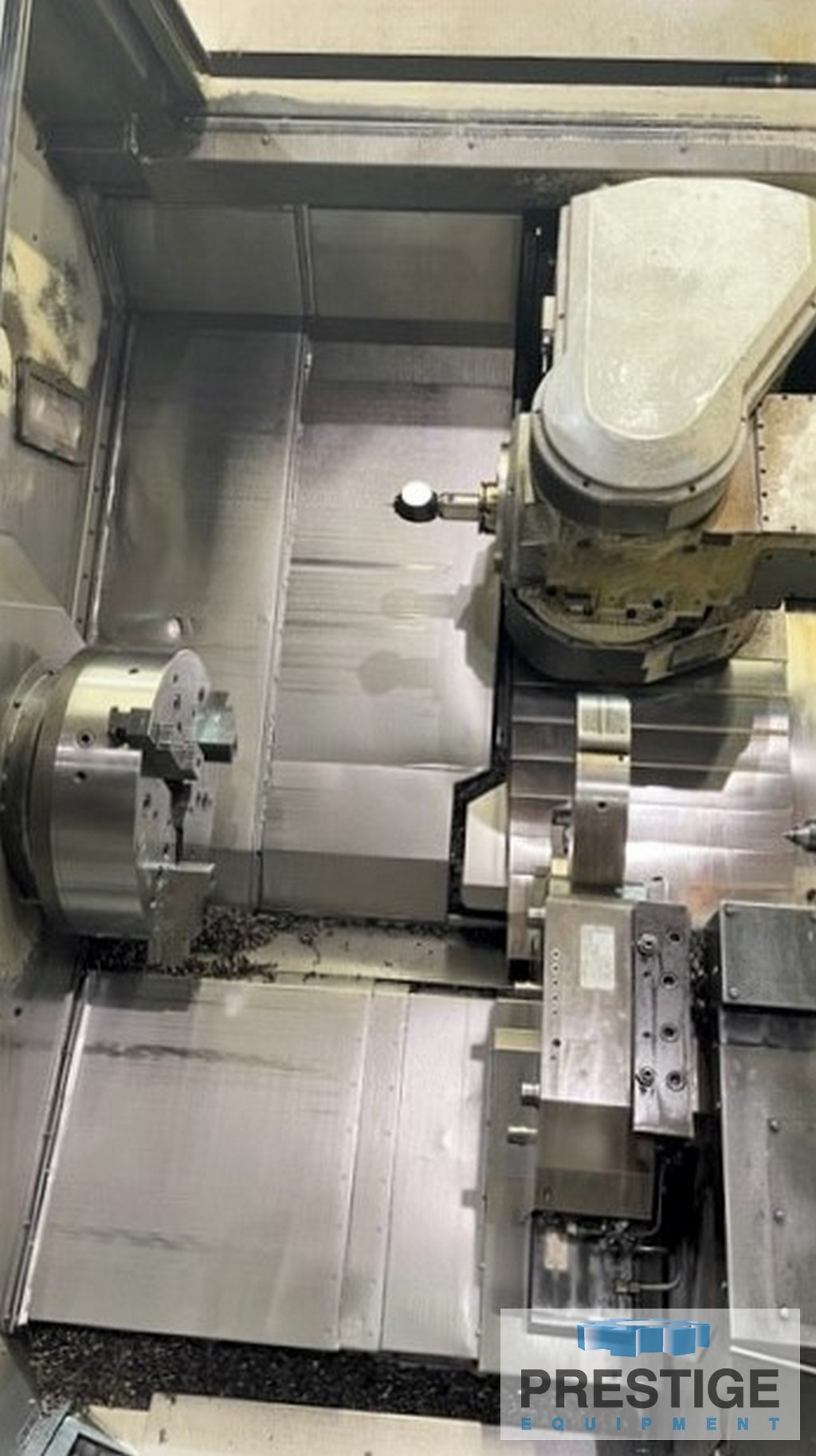

Lower Turret with Milling Function
50 Station Tool Magazine

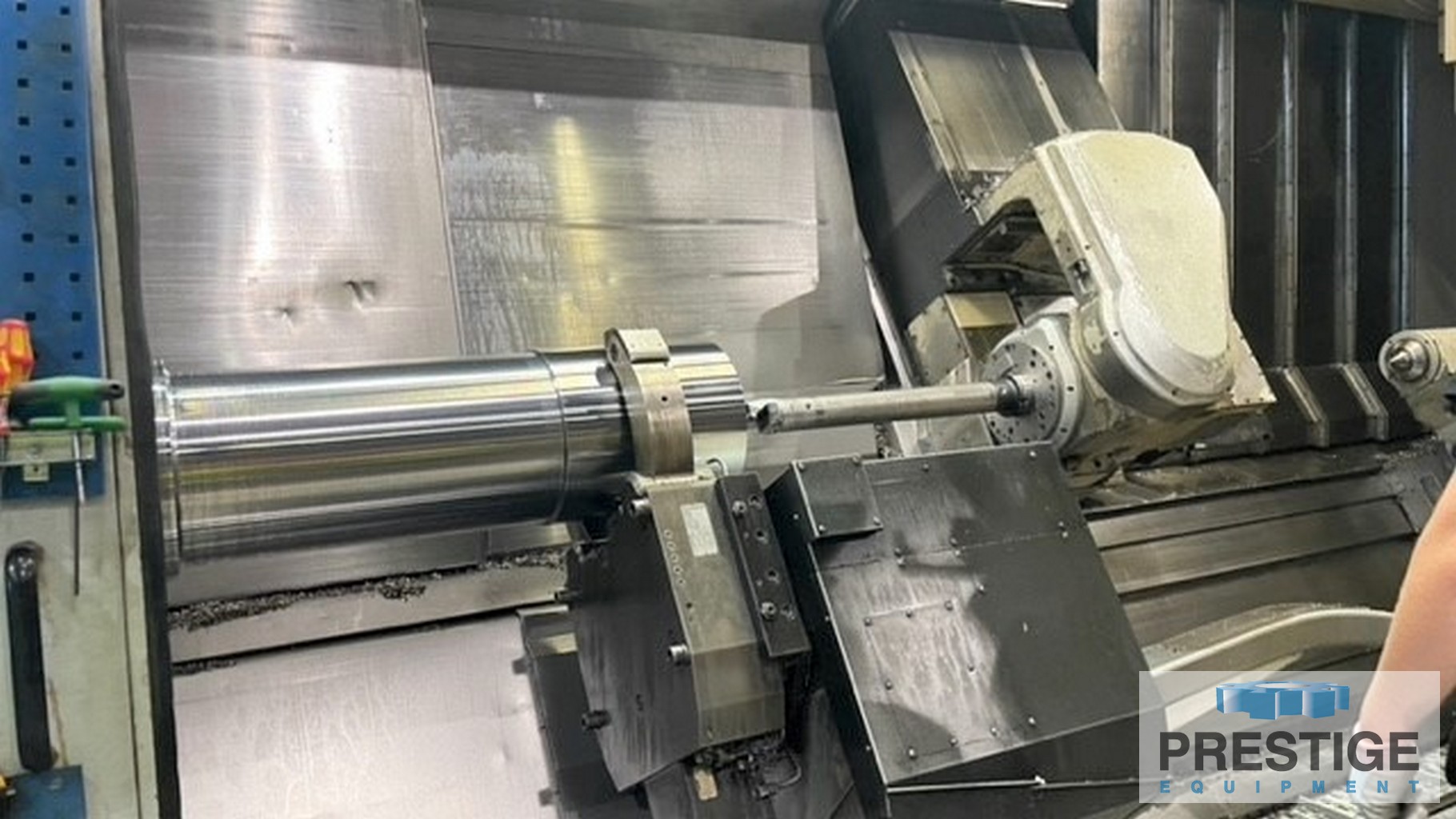

Y-Axis, C-Axis, B-Axis
Tailstock
Auto Doors
Swarf Conveyor

Specifications:
Swing Over Bed ........................ 21.65"
Swing Over Saddle . ................... 28.35"
Distance Between Center ............... 131.3"
Maximum Machining Diameter ............ 28.35"
X-Axis Travel, Upper Turret ........... 25.98"
X-Axis Travel, Lower Turret ........... 9.06"
Z-Axis Travel, Upper Turret ........... 87.20"
Z-Axis Travel, Lower Turret ........... 82.68"
Y-Axis Travel ......................... 9.84" (+/-4.92")
C-Axis Rotation, ...................... 0.001 Deg.
B-Axis Milling Spindle, ............... 0.001 Deg.
Main Spindle Speed, 2-Ranges .......... 35-3500 RPM
Main Spindle Nose ..................... A2-8
Main Spindle Bore ..................... 3.625"
Main Spindle Bearing Dia. ............. 4.72"
Main Spindle Motor .................... 50 HP / 40 HP
Main Spindle Indexing ................. 0.001 Deg.
Live Milling Speeds ................... 40-5000 RPM
B-Axis Milling Spindle Motor .......... 20 HP / 30 HP
Tool Changer .......................... 50 ATC
Tool Taper ............................ BT 50 Big Plus
Floor Space ........................... 243" x 121" x 123"
Approx. Weight ........................ 68,200 Lbs.

EQUIPPED WITH:
OSP U200L CNC Control
Lower Turret with Milling Function
50 Station Tool Magazine
Y-Axis, C-Axis, B-Axis
Tailstock
Auto Doors
Swarf Conveyor
