60 Ton Trumpf Trumabend C60, 82" OA, 69" BH, Trumpf 6-Axis CNC, Crowning, 2003, #32415

Manufacturer

TRUMPF

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, HYDRAULIC (Inch/Ton)

Stock

32415

Model

C60

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32415

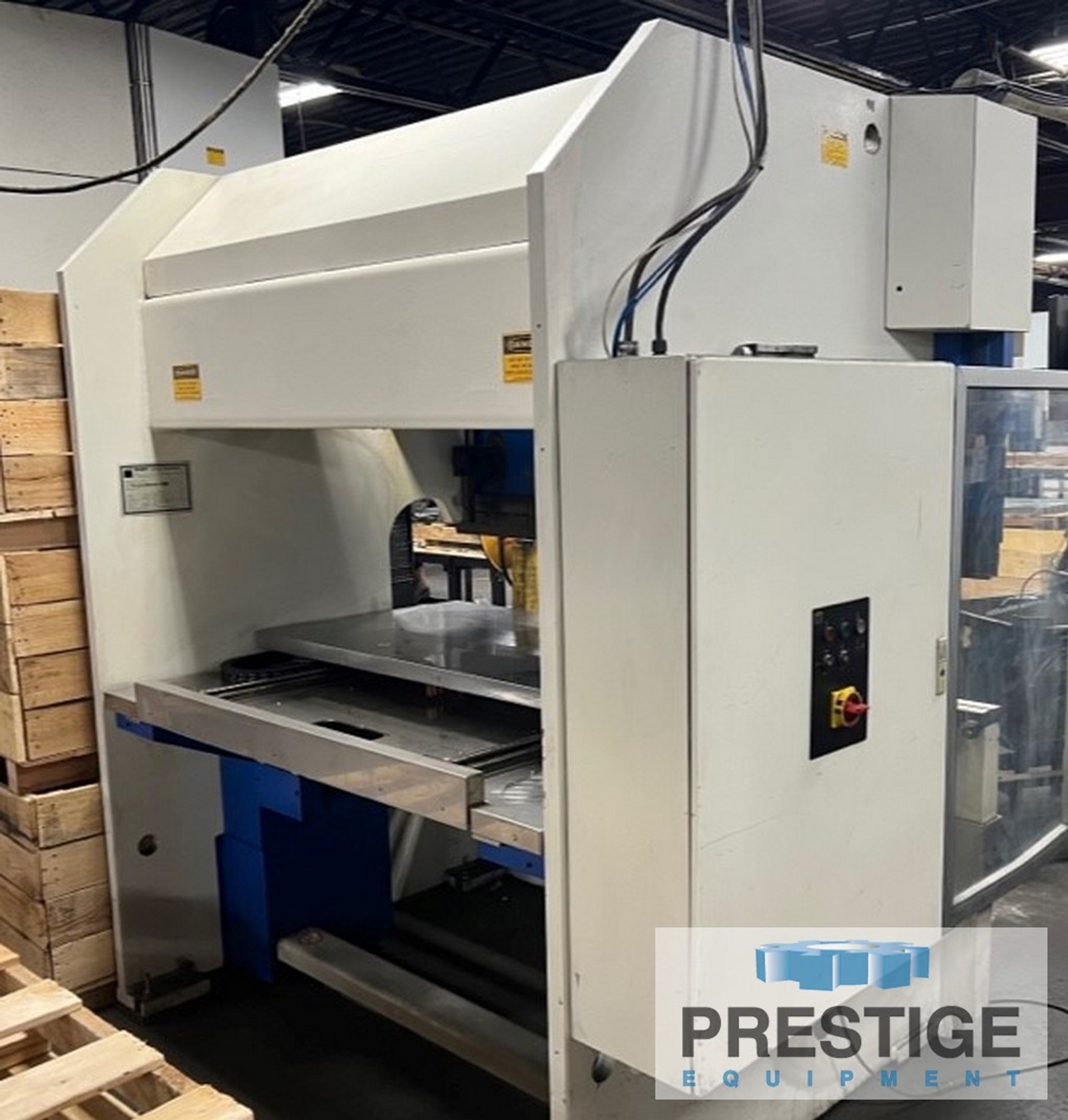

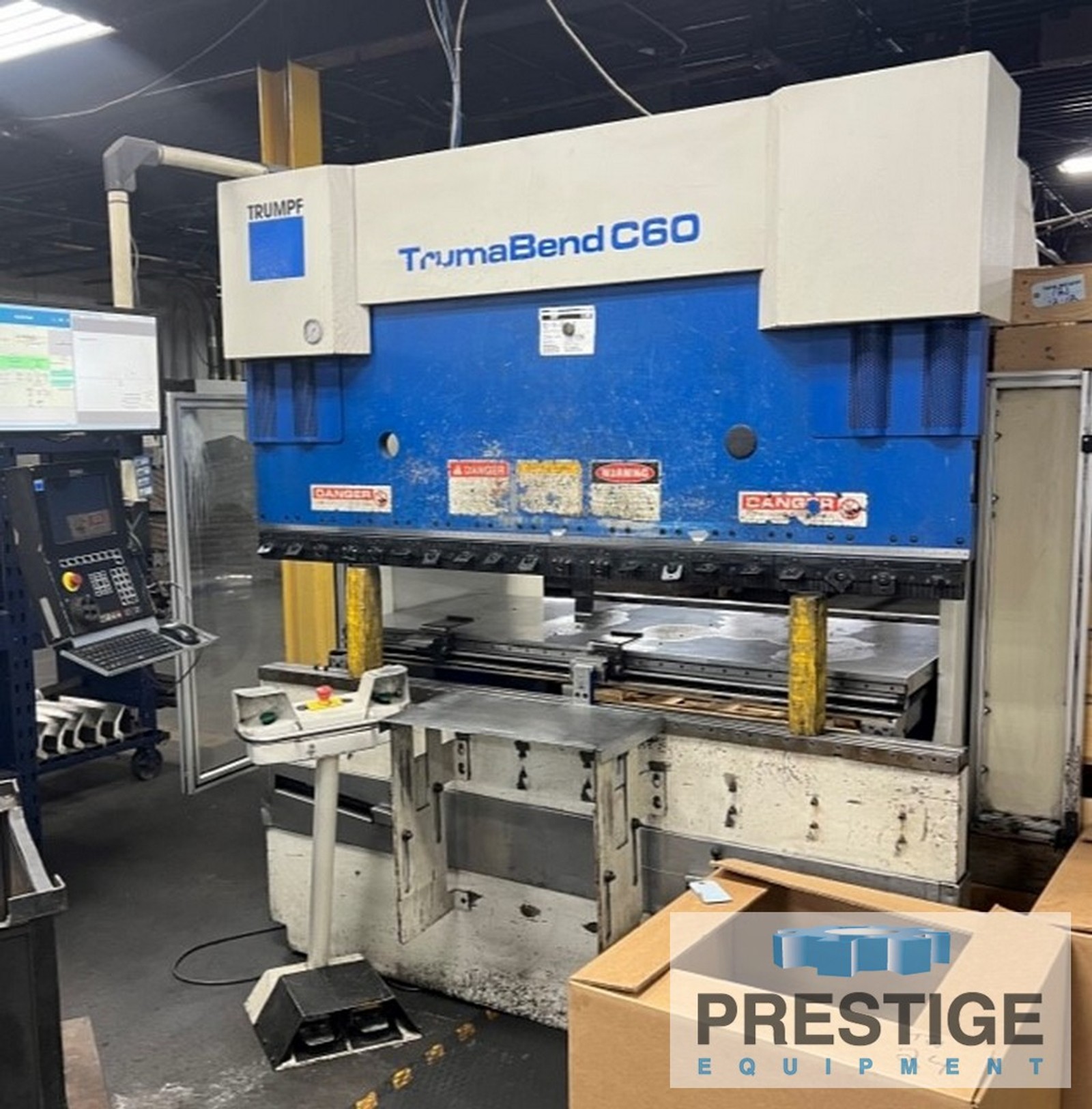

TRUMPF TrumaBend C60 60 Ton 6-Axis CNC Hydraulic Press Brake

CAPACITY:
Tonnage Capacity ...................... 67 Tons
Maximum Bending Length ................ 82"
Distance Between Housings ............. 69"
Stroke Length ......................... 8"
Throat Depth .......................... 16.5"
Travel In X-Axis (Back Gauge Range) ... 20"
Speed of Travel in X-Axis ............. 827 IPM
Travel In R-Axis (Back Gauge Up/Down) . 13"
Press Speed (Rapid Advance) ........... 236 IPM
Press Speed (Bending) ................. 47 IPM
Press Speed (Return) .................. 472 IPM
Main Motor ............................ 10 HP
Overall Dimensions .................... 96" x 65" x 95"
Overall Weight ........................ 10,780 Lbs.

EQUIPPED WITH:
Delem DA-65TW 6-Axis CNC Control
4-Axis CNC Back Gauge (R-1, X-1, Z-1, Z-2)
4-Cylinder Ram Drive
Full Set Of Upper Quick Clamp Tool Holders (Bolted to Machine)
Crowning System
Electric Foot Switch

NOTE:
Inspect In Plant Under Power
