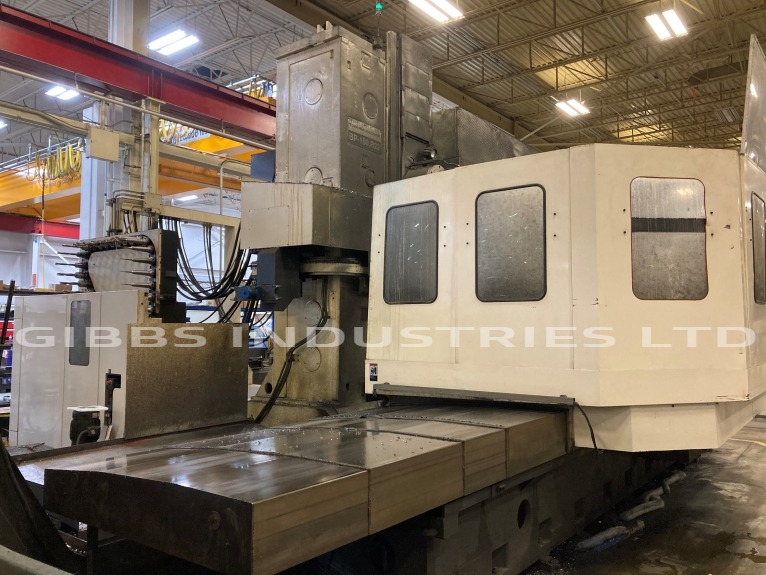

Toshiba BP-150.R22 4 Axis CNC Hz. Boring Mill, Tosnuc 999 CNC System, 70.8" x 86.6" Table, X=160", Y=100", Z=60", W=28", 2014

Manufacturer

Spec Sheet

TOSHIBA BP-150.R22 4 AXIS CNC HORIZONTAL BORING & MILLING MACHINE
Year: 2014

Equipped With:
Tosnuc 999 CNC System (32 Bit)
Measuring System: Glass Scales
Pendant Type Machine Operation Box
Automatic Spindle Clamping Unit
Spindle Orientation Stop Function
Spindle Speed Drop Monitoring Function
Constant Volume Mist Unit For Spindle Bearing Lubrication
Spindle Head Cooling Unit (Main Bearings, Motor Fange Oil Jacket)
Handwheel Feed Unit (Portable) For X, Y, Z, W & B Axes
Scale Feedback (X, Y & Z Axes)
Automatic Table Random Angle Indexing Unit (Every 0.0001 Degree)
Automatic Table Clamping Unit (Hydraulic)
Table Reference Piece
Table Oil Pan
Table Bed Slideway Cover
Column Bed Slideway Cover
Column Front Cover
Work Light
Hydraulic Unit For Spindle Head Hydraulic Pressure & Lubrication
(Including Cooling Unit)
Grounded Service Outlet (100V AC, 1.5A)
Assembly & Reassembly Tools For Maintenance
Installation Parts
Operator Call Lamp (1 Color)
Auto Power OFF Unit
Chip Cover "A" (Simple & Detachable)
Continuous Table Indexing Device 0.0001 Degree (NC Rotary Milling
Operation)
Flood Coolant Set
Flood Coolant Unit
Pump Capacity: 500 L/Min (13 Gal/Min) Head 5m (16.4')
Tank Capacity: 270 L (71.3 Gal)
Through-Spindle Type Coolant Set
Flood Coolant Set
Through-Spindle Type Coolant Unit
Pump Capacity: 1.2 Mpa [12 kgf/cm2] (170 PSI)
[With This Option, Coolant Tank is Larger & Spindle Head Unit Is Changed]
Automatic Tool Changer: 120 Tool Pods
Operator Covers
Chip Blaster Coolant Through Tool Upgrade
EV-60-230V - 60hz-480L-cs-wat, Dual Filters, 1000 PSI,
100G Tank, M-Code Option & Integration
Machine Preparation For 1000 PSI
Automatic Measuring Function Renishaw RMP60 Wireless Touch Probe
Chiller Unit: Spindle Oil

NC Options Included:
Inch/Metric
Helical Interpolation
Synchronous Tapping
Part Program Storage, 3000m, Registerable Programs: 256
10" TFT Liquid Crystal Display
User Floppy Disk
Number Of Fixture Offsets: 99 Sets
Random Angle Chamfering & Corner R Programming
Manual Centering Function
Teaching Function
Fixture Offset W To Z Conversion
RS 232C Port B
Programmable Mirror Image
Programmable Data Input
Plane Conversion
Circle Cutting Compensation
Program Check/Used Tool List Creation
Memory Lock
Shape Function
Lan Linkage

Specifications:
Travels:
X Axis Travel (Table Cross): 4064mm (160”)
Y Axis Travel (Headstock Vertical): 2524mm (100”)
Z Axis Travel (Column Longitudinal): 1524mm (60”)
W Axis Travel (Quill): 711.2mm (28”)
W Axis Quill Diameter: 150mm (5.9")
Distance (Table Surface To Spindle Center) 0-2540mm (0-100")
Distance (Table Center To Milling Spindle Gage Line): 813-2336mm (32-92")

Table:
Table Working Surface: 1800 x 2200mm (70.8" x 86.6")
Maximum Table Load: 20,000 kg (44,000 Lbs.)
Table Surface Configuration: 11 T-Slots, Size 22mm, Pitch 160mm
11 T-Slots, Size 0.8661", Pitch 6.292"
Minimum Table Indexing Angle: 0.0001 Degree B-Rotary Milling

Spindle:
Spindle Diameter: 150mm (5.9")
Spindle RPM: 2,500
Spindle Power: 37 KW
Spindle Gearbox: 2 Speed (Low/High)
Milling Spindle Nose Diameter: 250mm (9.84")
Spindle Taper: ISO 50 CAT 50V
Milling Spindle Bearing Inner Diameter: 200mm (8")
Spindle Drive Motor, (30 Minute/Cont.): AC 37/30 kw, AC 50/40 HP, Included
Long Nose: 248mm (Fixed) Plus W Positioning Of 711.2mm (28")

Feedrate:
Rapid Traverse X, Y & Z: 10,000mm/Min (393 IPM)
Rapid Traverse W Axis: 5,000mm/Min (196 IPM)
Rapid Traverse B Axis: 500 Degree/Min
Feedrate X, Y & Z: 1-6,000mm/Min (0.04-236.2 IPM)

Automatic Tool Changer:
Type Of Tool Shank: CAT 50 - V Flange
Type Of Retention Knob: MAS P50T-1/45 Deg
Tool Storage Capacity: ATC60
Maximum Tool Diameter:
Adjacent Pots Full: 125mm (4.9")
Adjacent Pots Empty: 240mm (9.4")
T-Type Bar: 400mm (15.7")
Maximum Tool Length: 400mm (15.7")
Maximum Tool Mass: 25 kg (55 Lbs.)
Tool Selection: Pot Address Random Short-Cut

Power: 220 Volts, 60 Cycle, 80 KVa
Compressed Air Supply, Pressure: 0.5-0.8M PA (72.5-116 PSI)
Flowrate: 750 N L/Min (18 SCFM) Or Over
