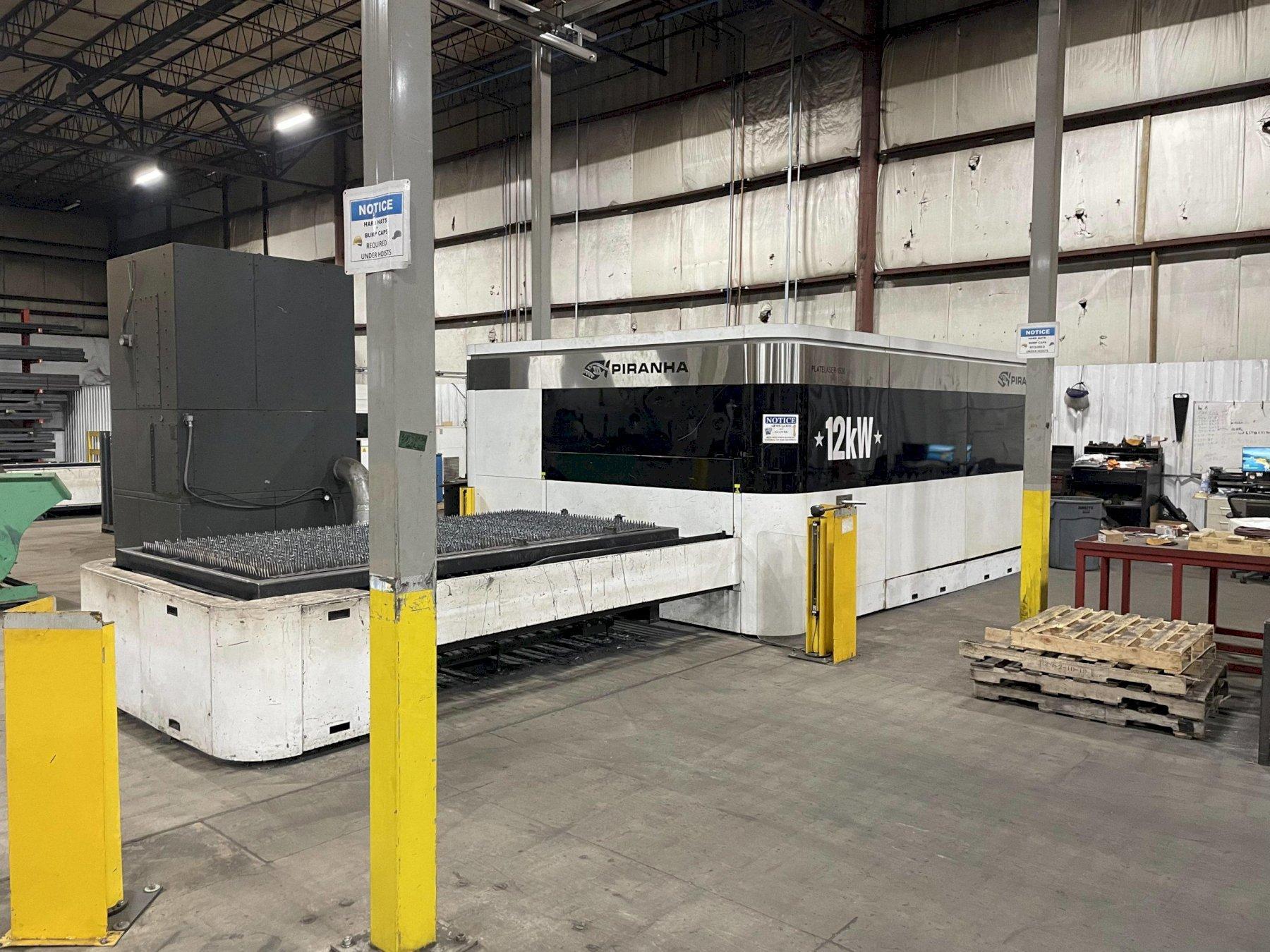

2017 Piranha 1530 Fiber Laser Cutting System (#4791)

Manufacturer

Category

Miscellaneous Machines

Type

MISCELLANEOUS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

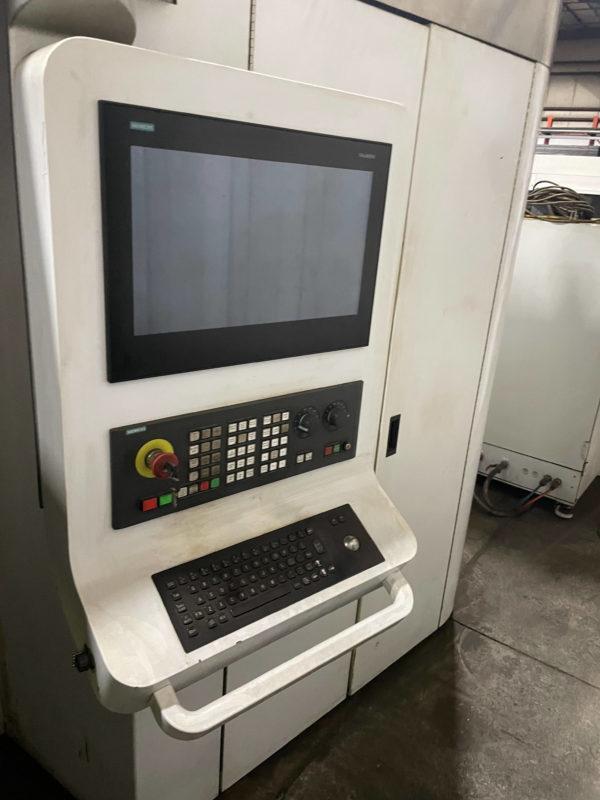

5’ X 10’ Fiber Laser with Windows Based CNC Controller, 12 Kw, Helical Rack and Pinion Positioning System, Red Diode Laser Pointer, Dual Pallet Shuttle System, Ball Transfer Table, Donaldson Torit DFO3-9 Dust Collection System, Koolant Koolers Chiller, Automatic Nozzle Changer, Automatic Lubrication System, Automatic Gas Control and Proportional Valve.

GENERAL SPECIFICATIONS
Max Power:                    12Kw
Cutting Head:                Lasermech Fibercut HR
Max Working Area:                61” X 122”
Approx. System Footprint:            14.4’ X 35.2’
Z - Axis Range:                6”
Max Axis Positioning Speed (X, Y):    9,055 IPM
Max Positioning Speed (Z):            10,000 IPM
Max Weight of Processed Material:    2,000 Lbs
Max Cut Aluminum:                ¾”
Max Cut Stainless Steel:            1”
Max Cut Carbon Steel:            1”
Max Cut Brass:                ½”
Max Cut Copper:                ½”

INCLUDES: Windows Based CNC Controller, 12 Kw, Helical Rack and Pinion Positioning System, Red Diode Laser Pointer, Dual Pallet Shuttle System, Ball Transfer Table, Donaldson Torit DFO3-9 Dust Collection System, Koolant Koolers Chiller, Automatic Nozzle Changer, Automatic Lubrication System, Automatic Gas Control and Proportional Valve.


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
