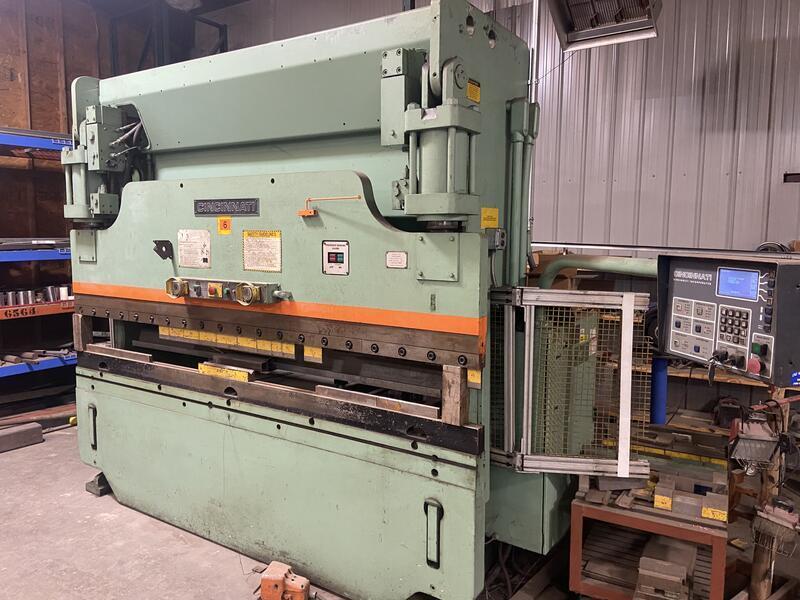

1998 Cincinnati 90CBIIX8 Hydraulic Press Brake (#4790)

Manufacturer

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

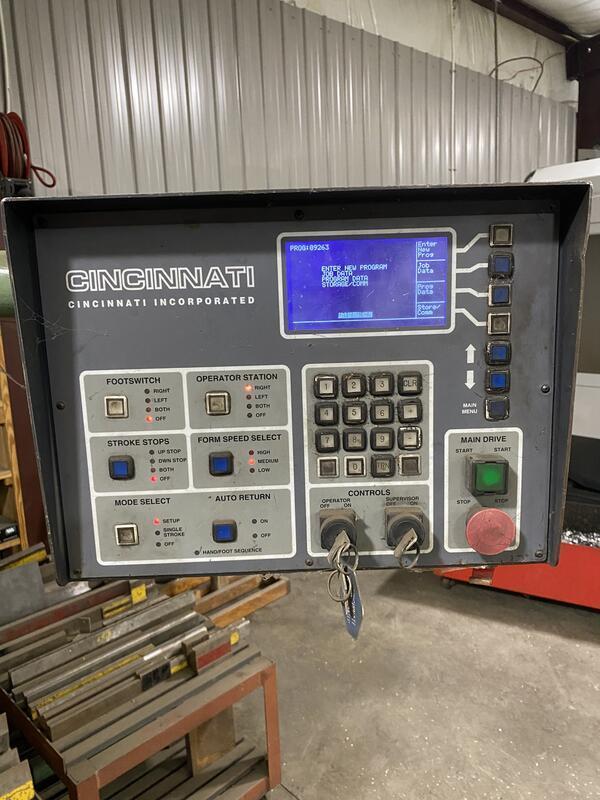

90 Ton X 10’ Hydraulic Press Brake with Cincinnati CNC 2 - Axis Back Gauge and Ram Control, Manual R - Axis, 3 - Speed, Adjustable Tonnage Control Lower Die Rail, Section Ram Clamps, 15 HP AC Motor, Dual Palm Buttons Mounted on Face of Machine with E - Stop, Remote Foot Pedal, Full Dovetail Slots Across Bed Face, Front & Rear Bed and Ram Machined for Angle Brackets and Micrometer Ram Tilt Adjustment

GENERAL SPECIFICATIONS
Capacity:                        90 Tons
Bending Capacity:                    10’ X 12 Gauge / 6’ 8” X 3/16” / 5’ X ¼”
Distance Between Housings:            8’ 6”
Stroke:                        8”
Throat:                        7”
Overall Die Surface:                    10”
Die Space - Open:                    15”
Die Space - Closed:                    7”
Ram Approach Speed:                260 IPM
High Speed:                        80 IPM
Medium Speed:                    20 IPM
Low Speed:                        10 IPM
Return Speed:                    280 IPM
Backguage Range:                    24”
R - Axis Adjustment (Manual):            2” - 10”
Motor:                            15 HP
Approx. Overall Dimensions:            60” X 120” X 116” H
Approx. Weight:                    14,000 Lbs

INCLUDES: Cincinnati CNC 2 - Axis Back Gauge and Ram Control, Manual R - Axis, 3 - Speed, Adjustable Tonnage Control Lower Die Rail, Section Ram Clamps, 15 HP AC Motor, Dual Palm Buttons Mounted on Face of Machine with E - Stop, Remote Foot Pedal, Full Dovetail Slots Across Bed Face, Front & Rear Bed and Ram Machined for Angle Brackets and Micrometer Ram Tilt Adjustment


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
