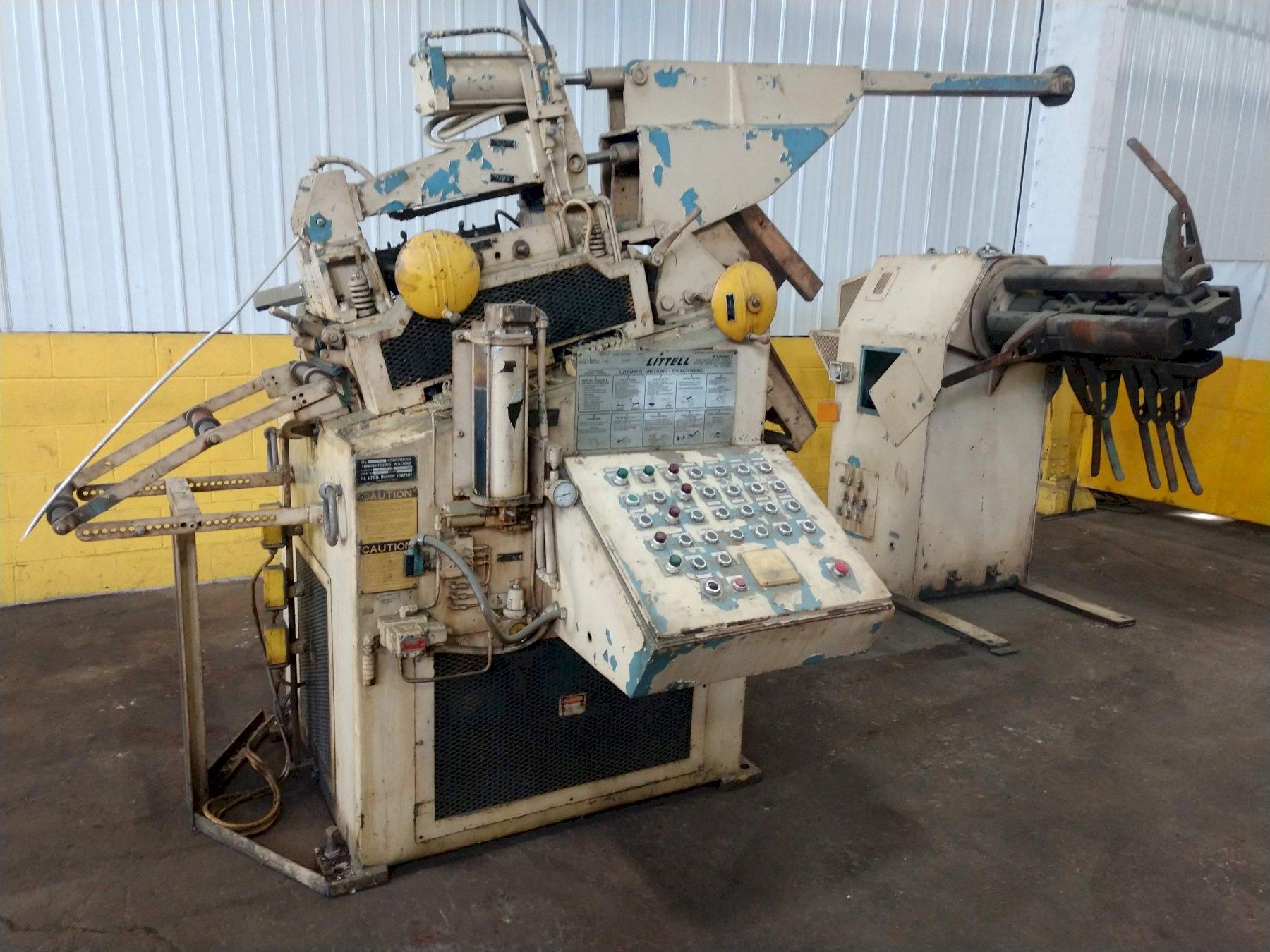

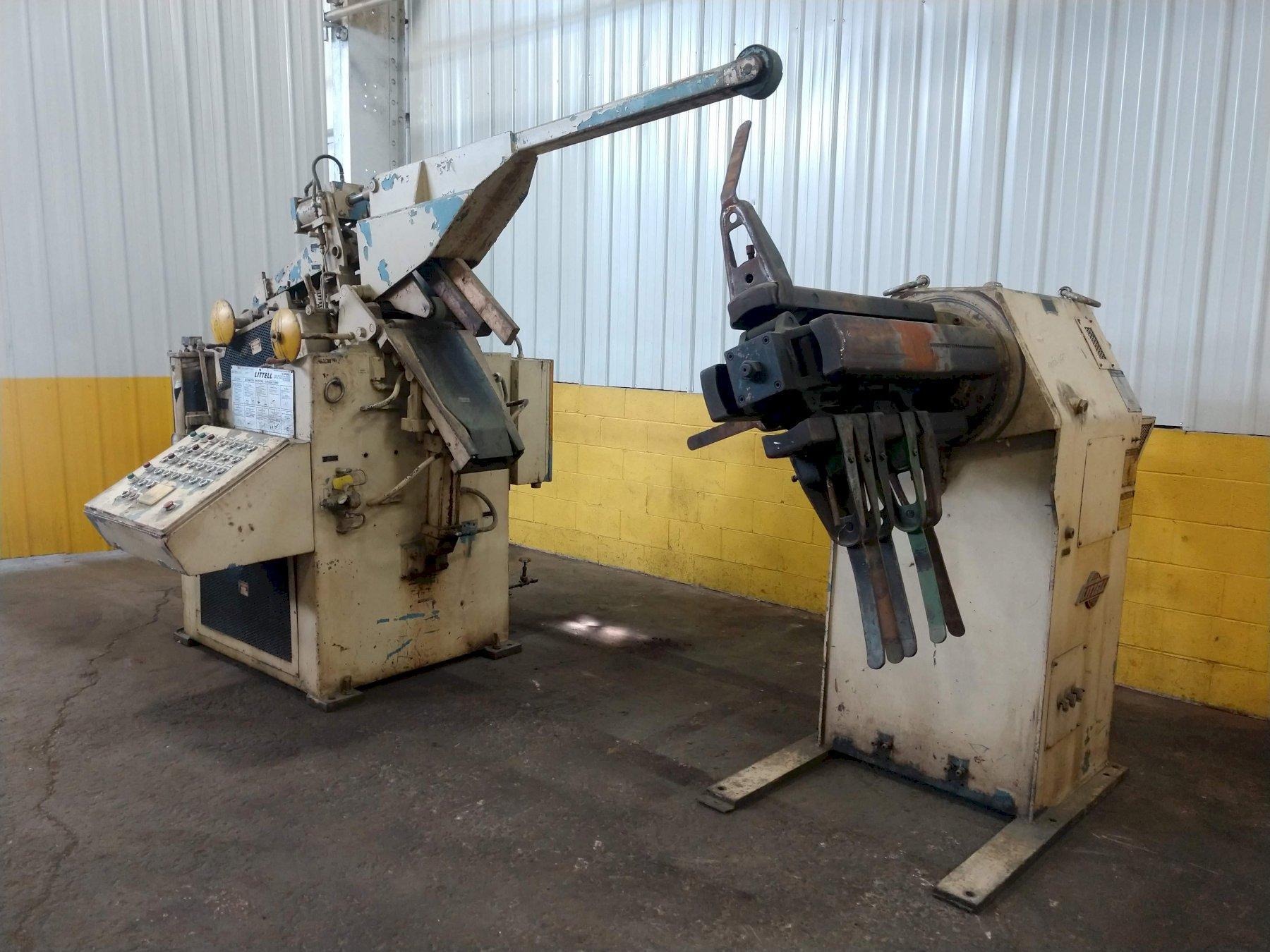

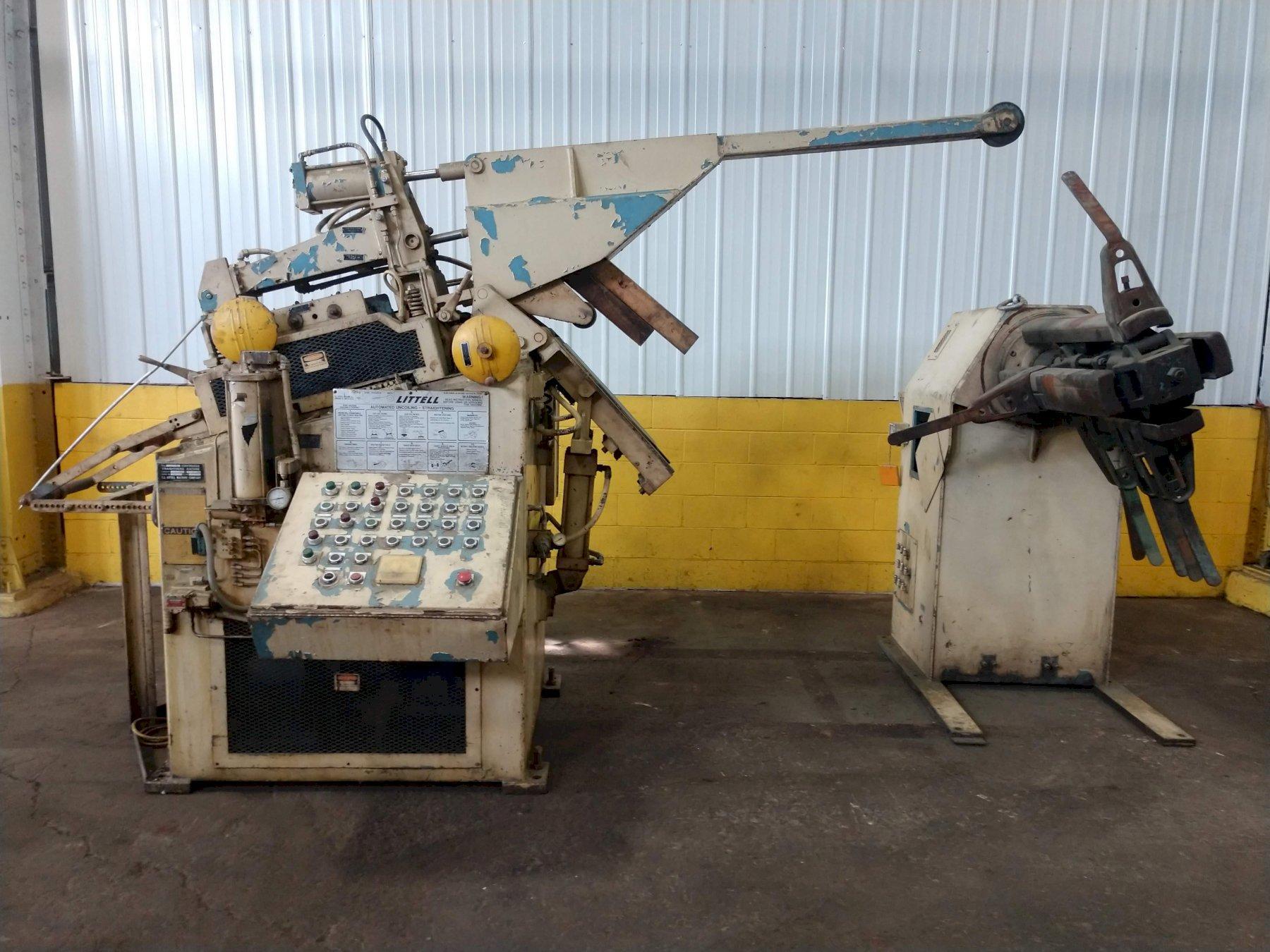

10,000 LB 5 TON X 12" X .156" LITTELL COIL FEED LINE WITH COIL REEL & STRAIGHTENER: STOCK 14941

Manufacturer

LITTELL

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

14941

Model

10,000 LB X 12" X .156"

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

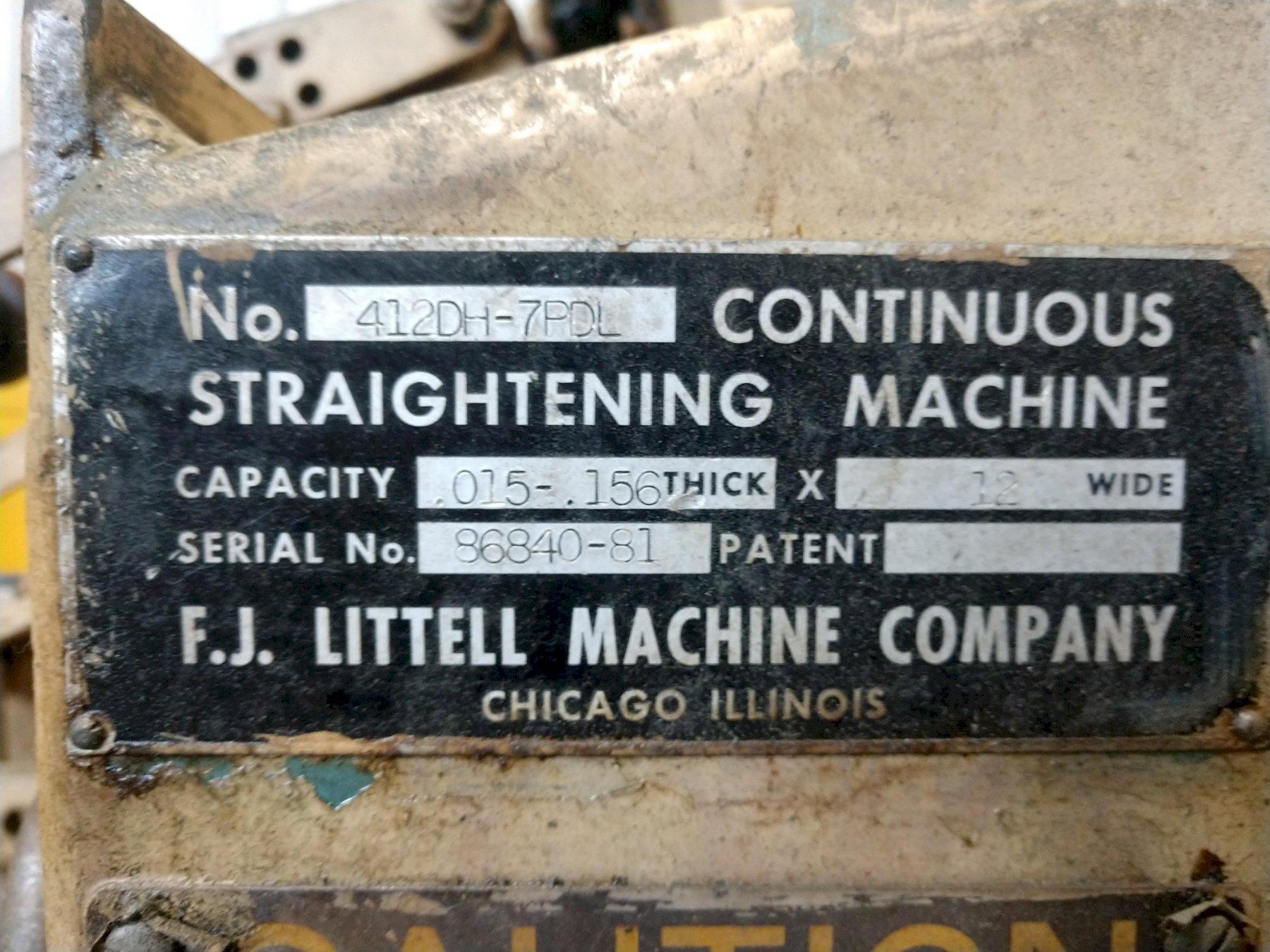

SERIAL .................... 8684081/8684181
MODEL ..................... 90 / 412DH-7PDL


LITTELL CONVENTIONAL COMPLETE COIL FEED LINE SPECIFICATIONS:

COIL WEIGHT CAPACITY ....... 10,000 LBS.
COIL WIDTH CAPACITY ........ 12"
STOCK THICKNESS CAPACITY ... .156" X 12" WIDE
EXPANSION RANGE ............ 20" - 24"
COIL OD CAPACITY ........... 72"

Littell Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 10,000 Lbs.
Coil width capacity: 12"
Stock thickness capacity: .156" x 12" Wide
Expansion range: 20" - 24"
Coil OD capacity: 72"

Littell Coil Reel and Powered Straightener Combination Equipment and Features:

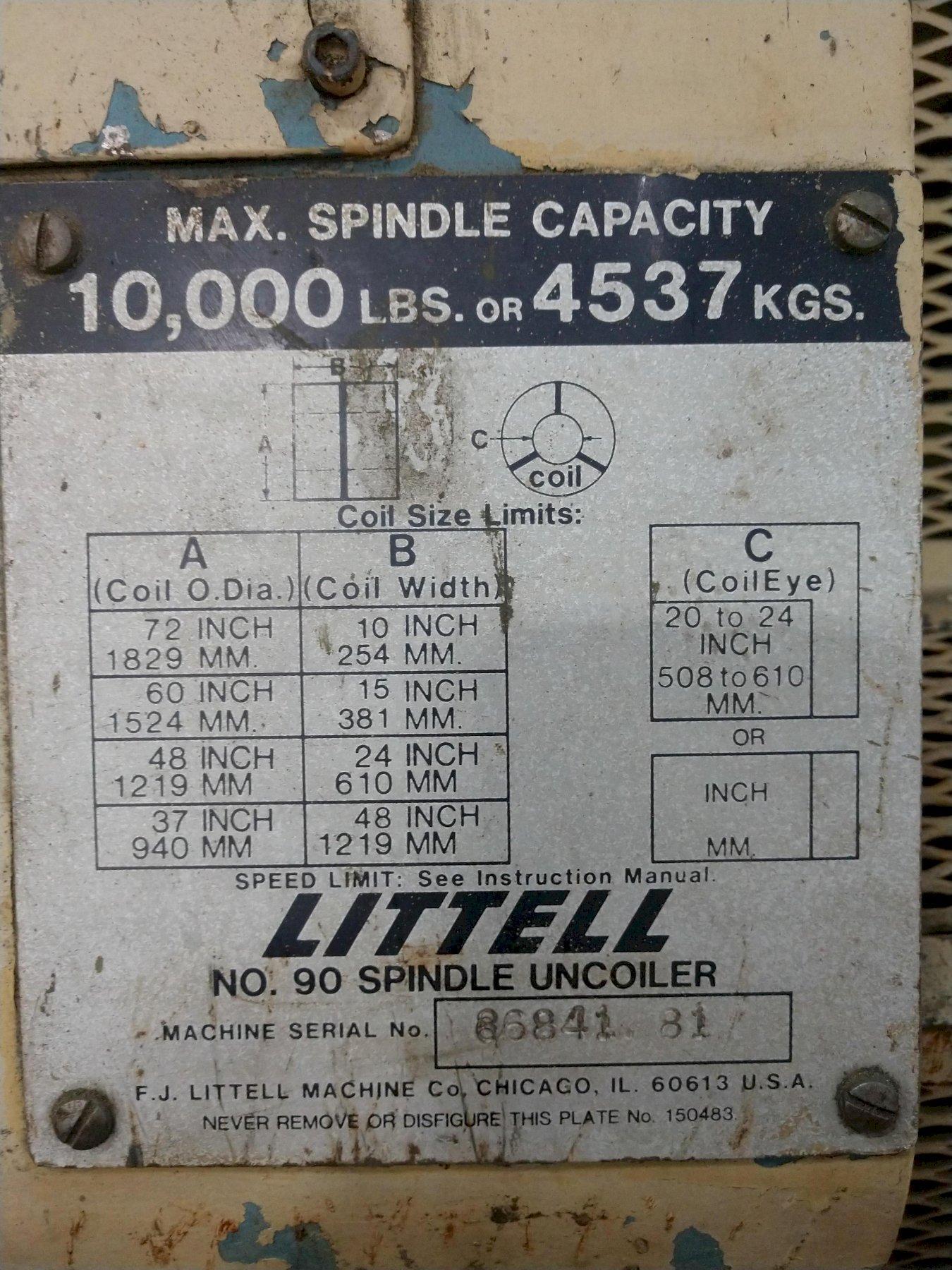

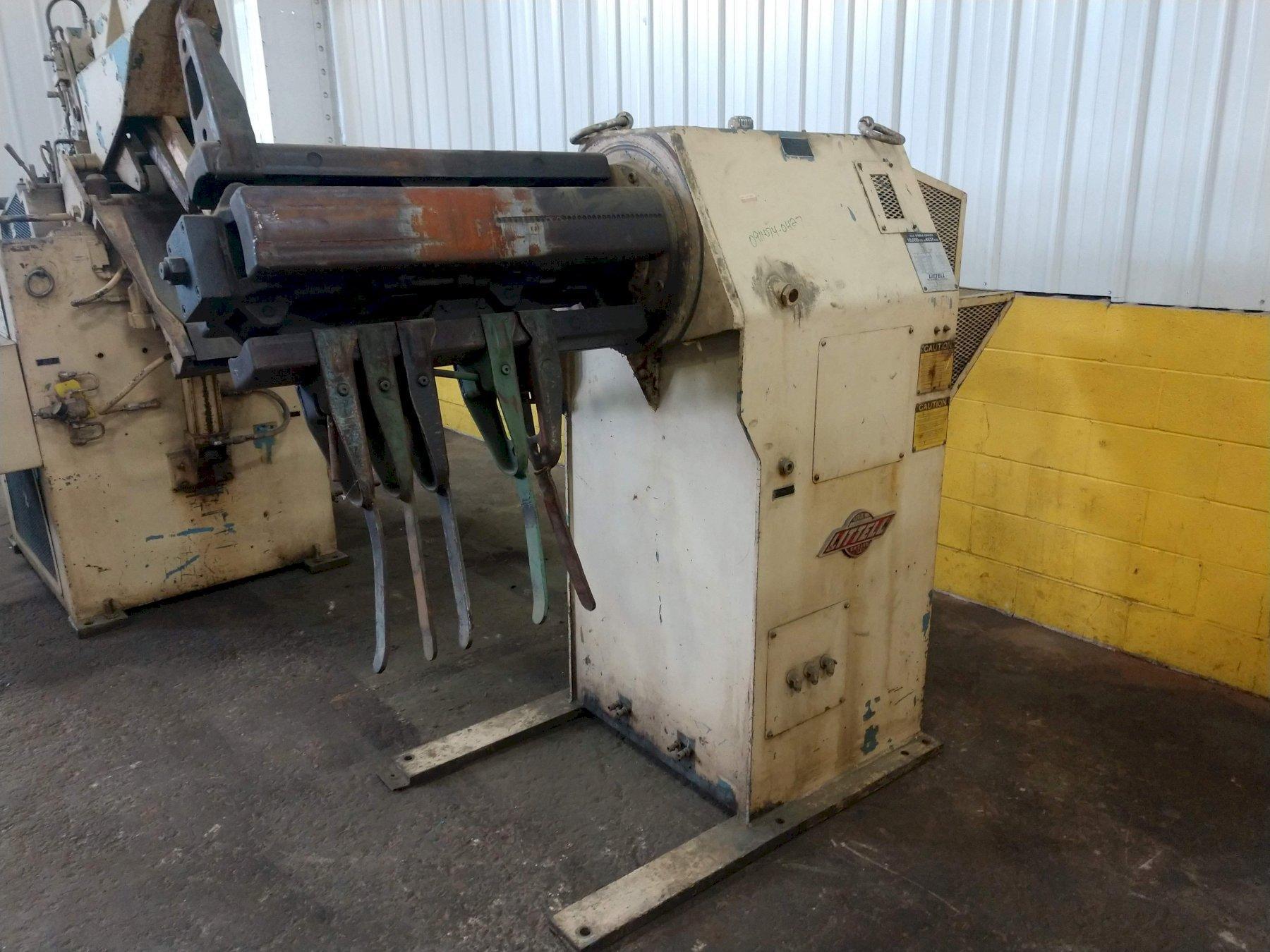

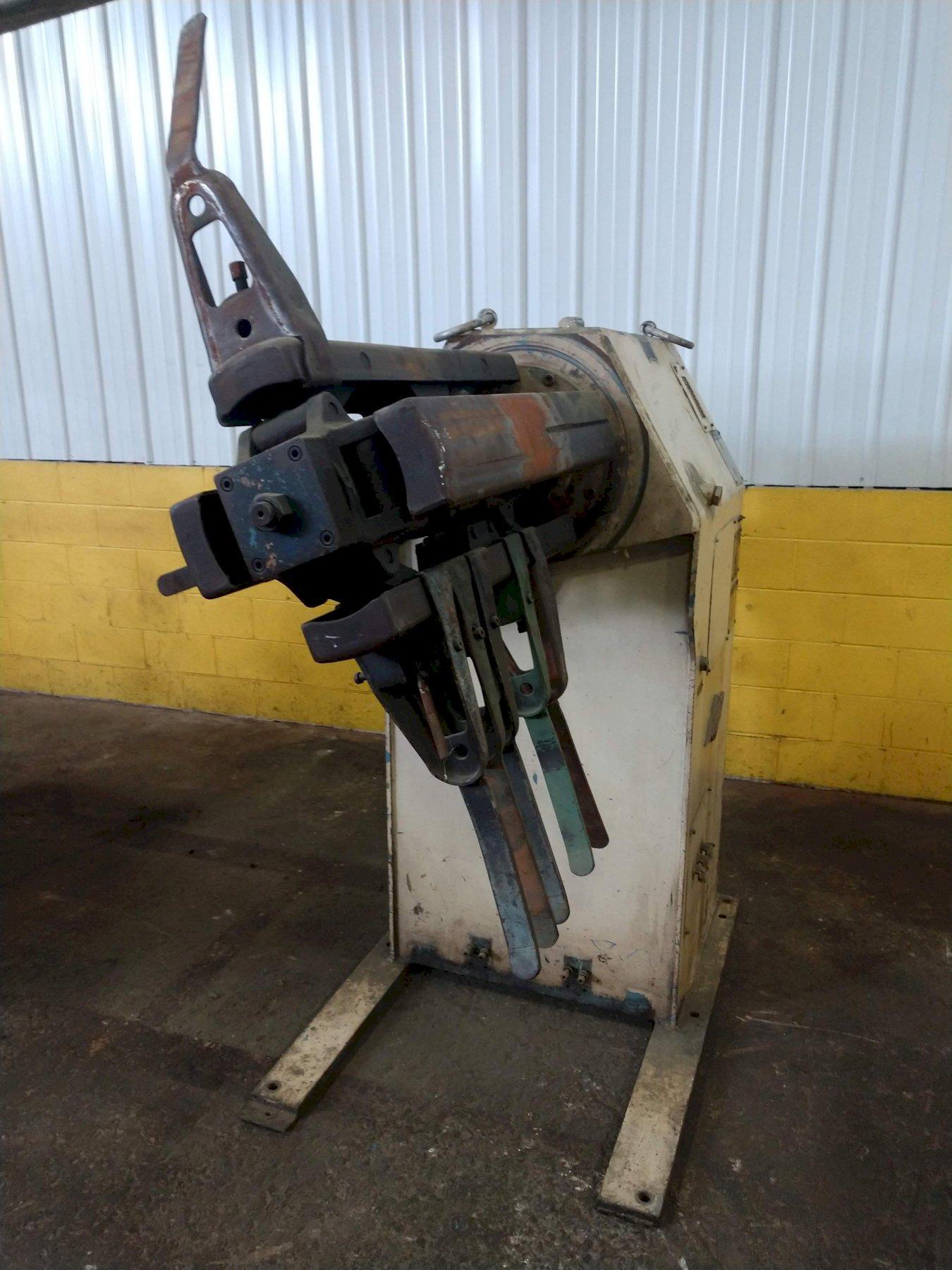

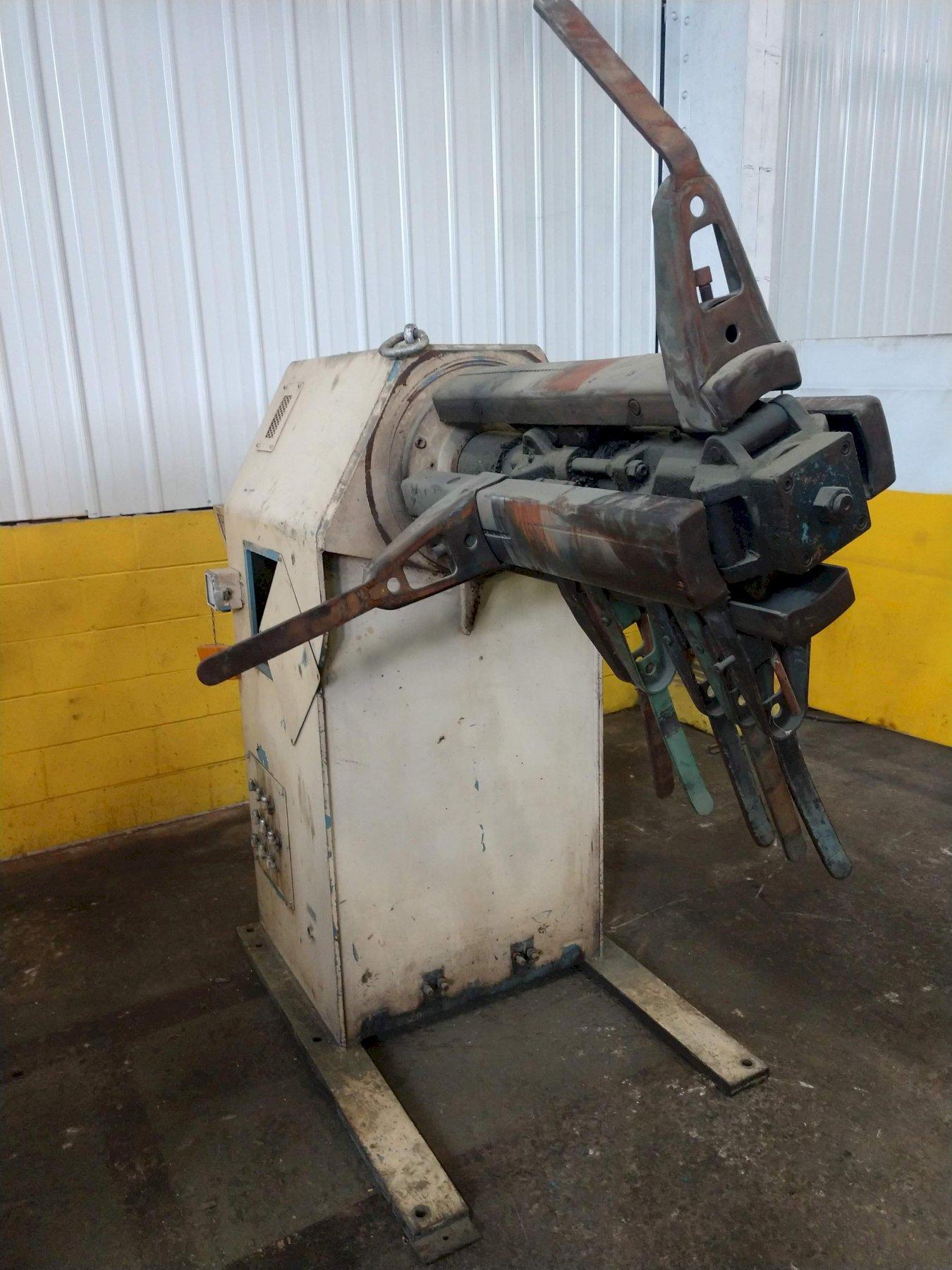

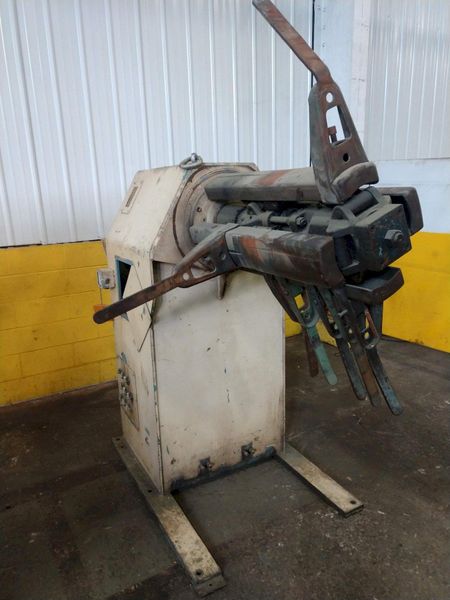

Littell Coil Reel Uncoiler Model No.: 90
Four leaf mandrel coil reel
Hydraulic coil reel mandrel expansion
Thread drive for jog forward and reverse
Air brake mounted on main coil reel spindle
Adjustable tensioning

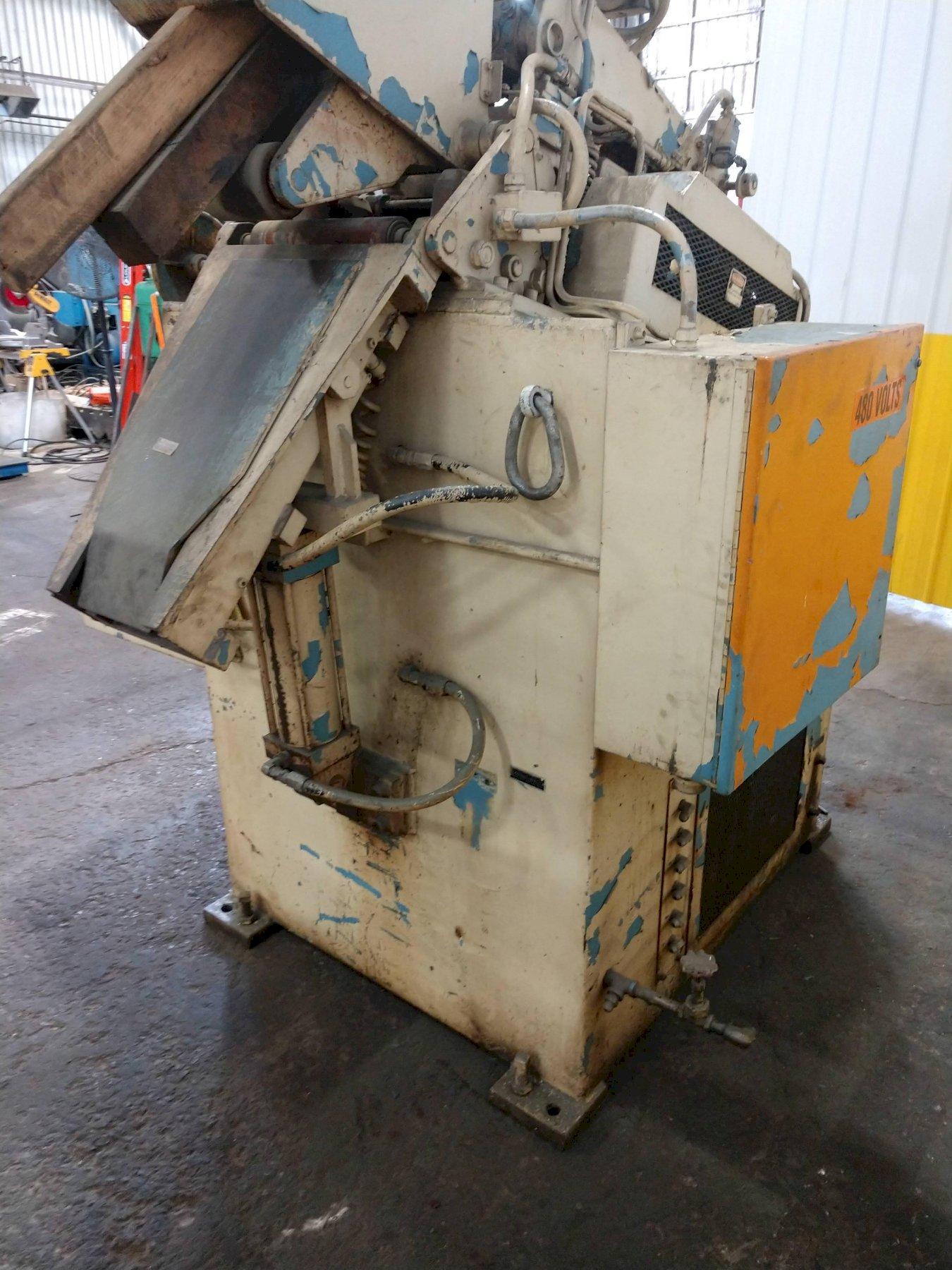

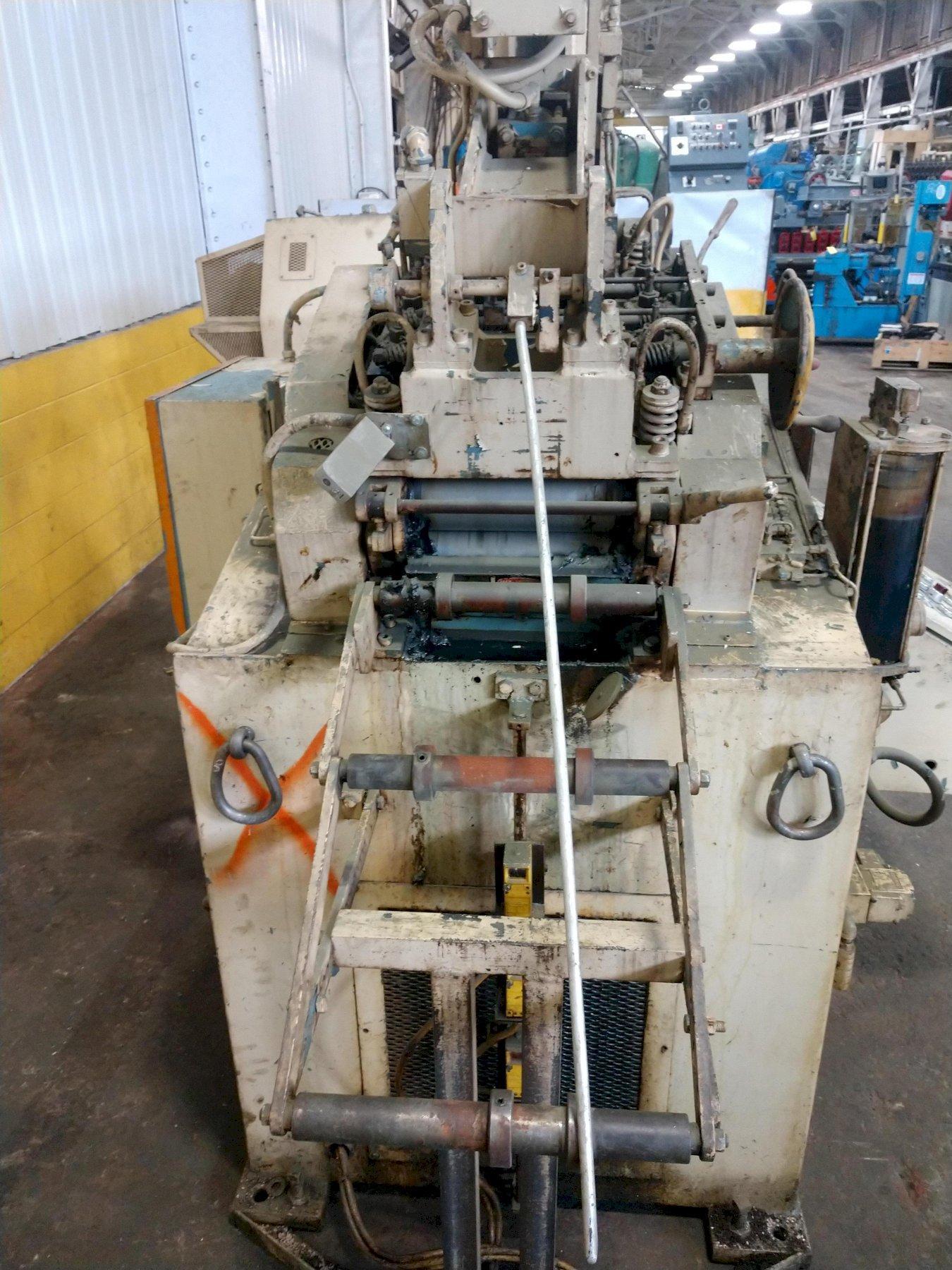

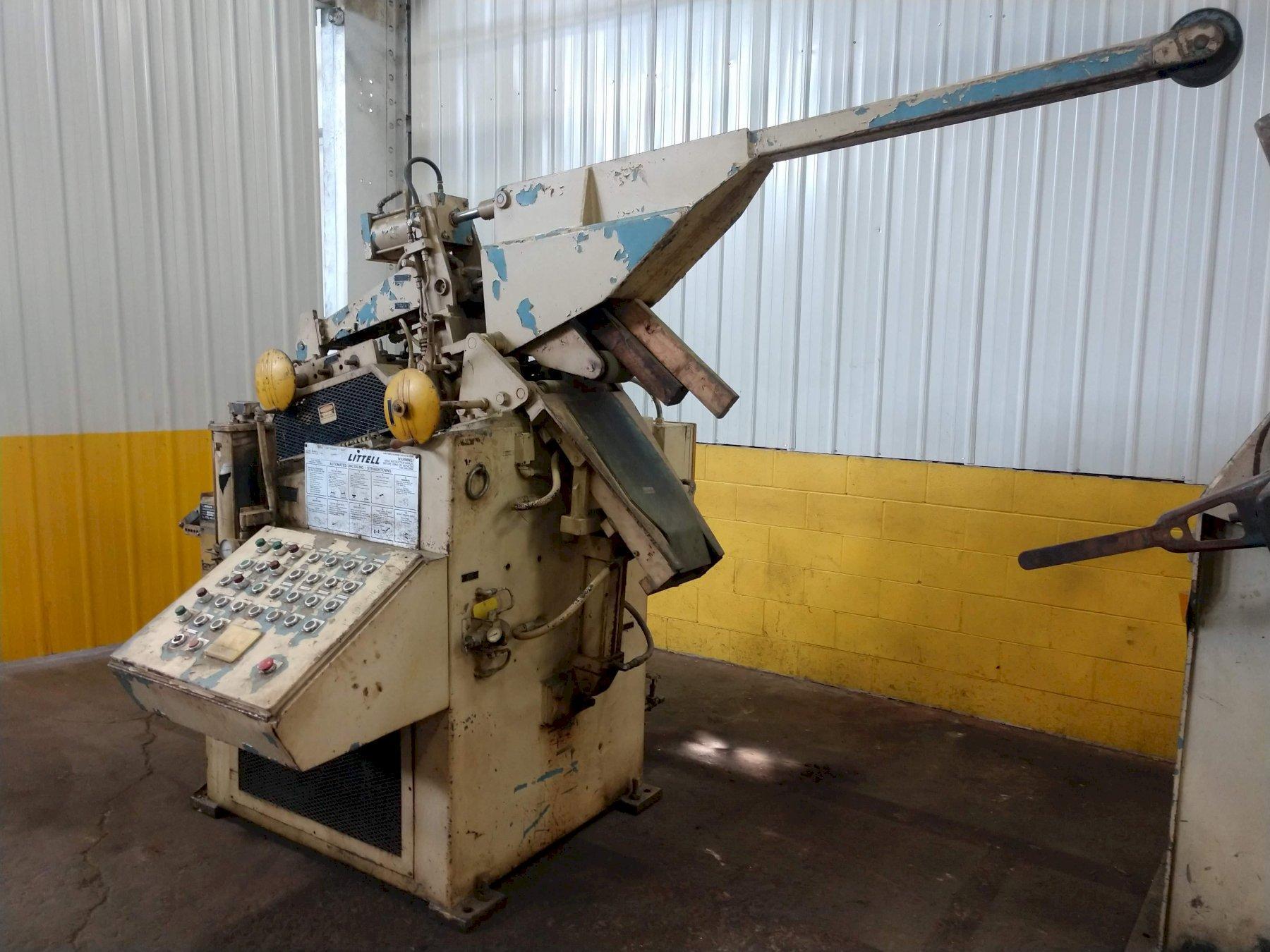

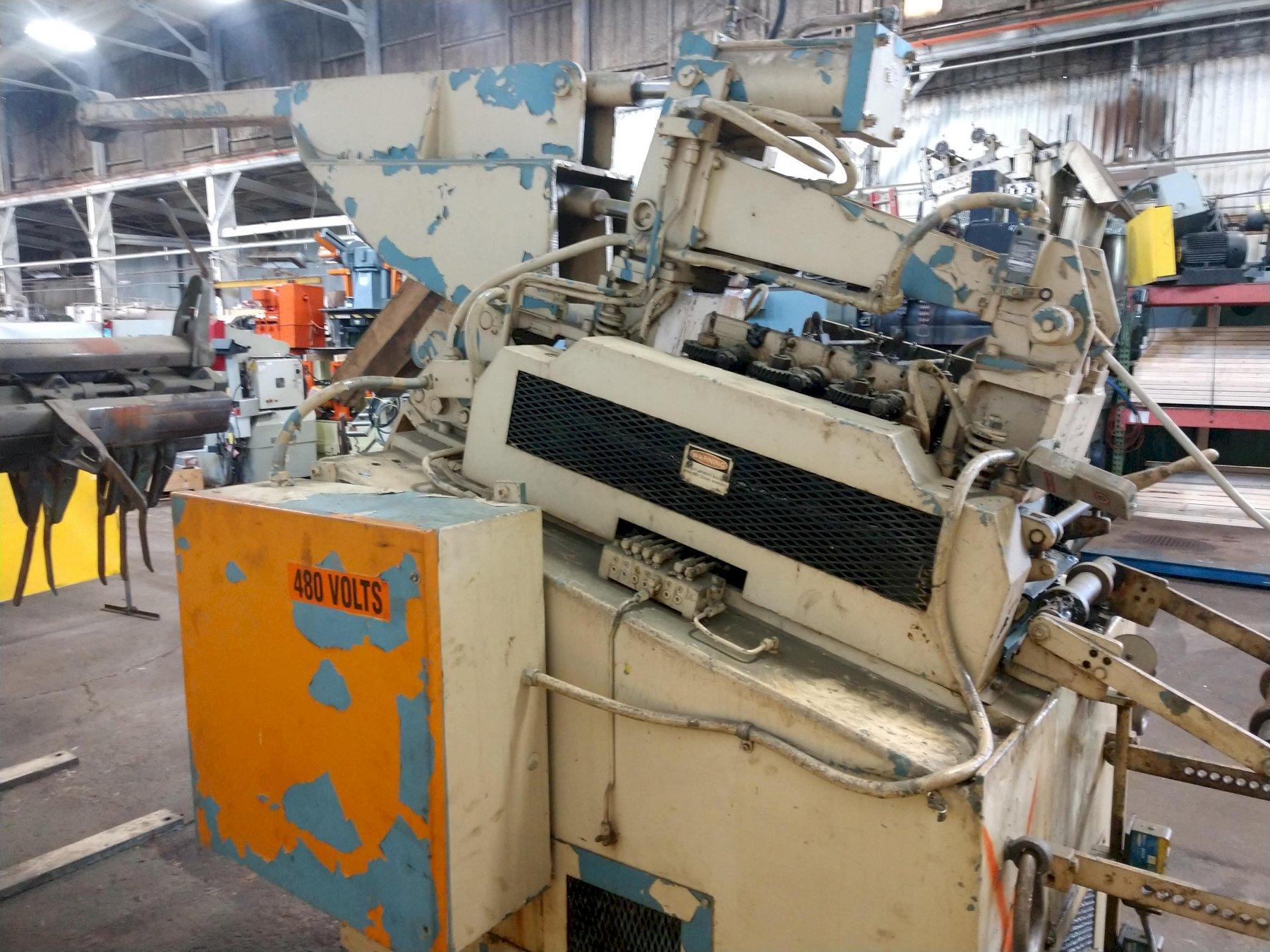

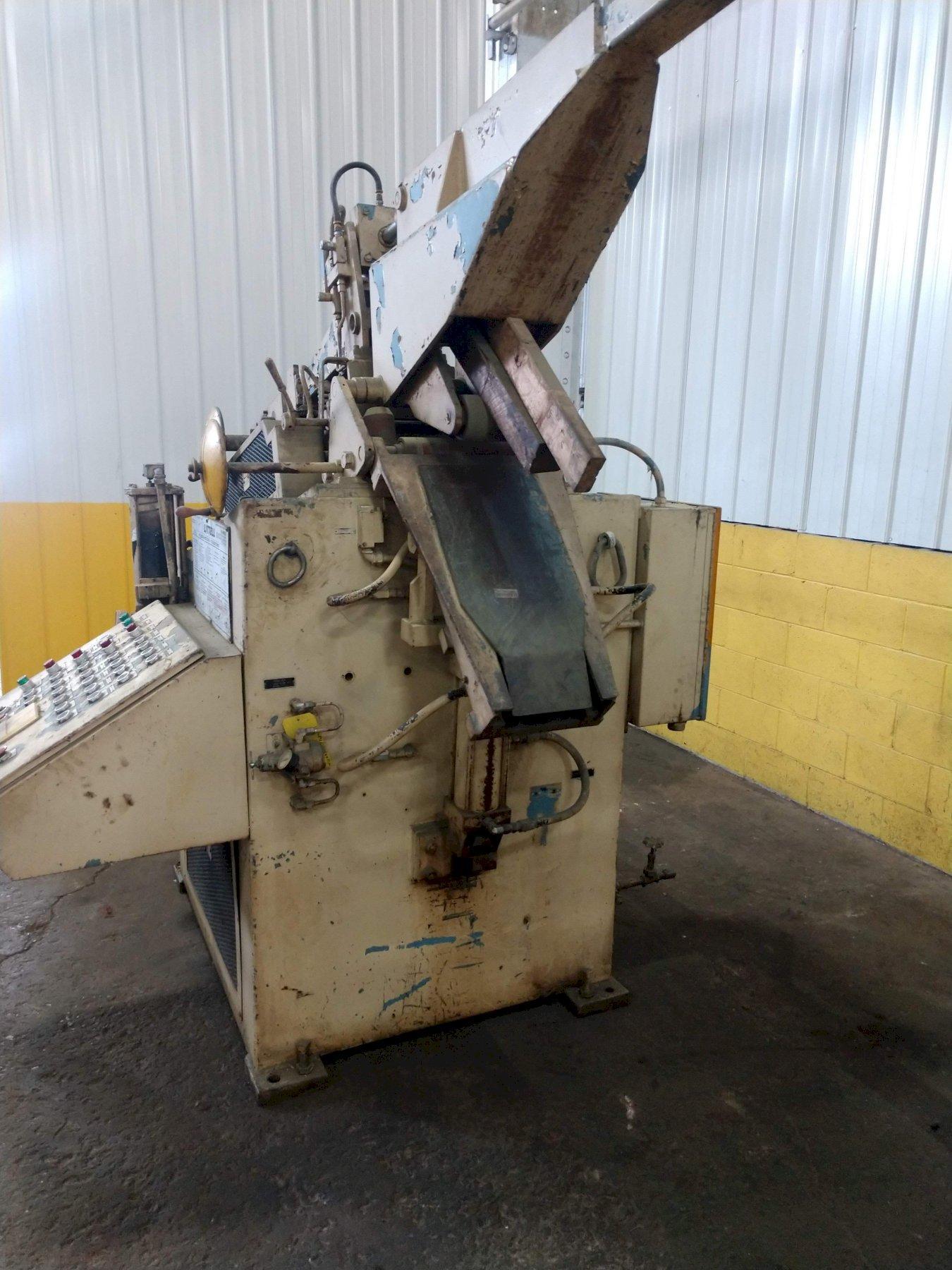

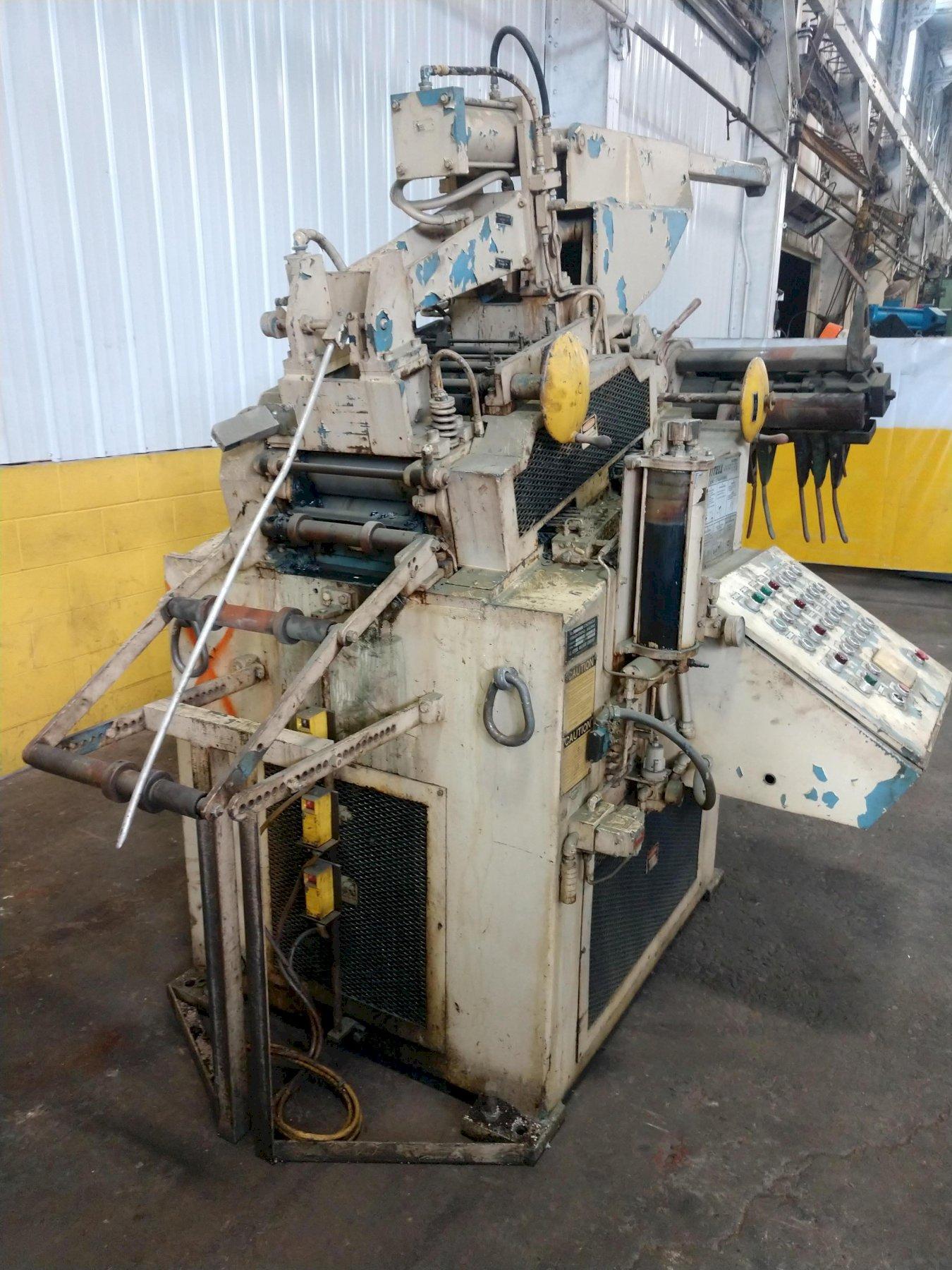

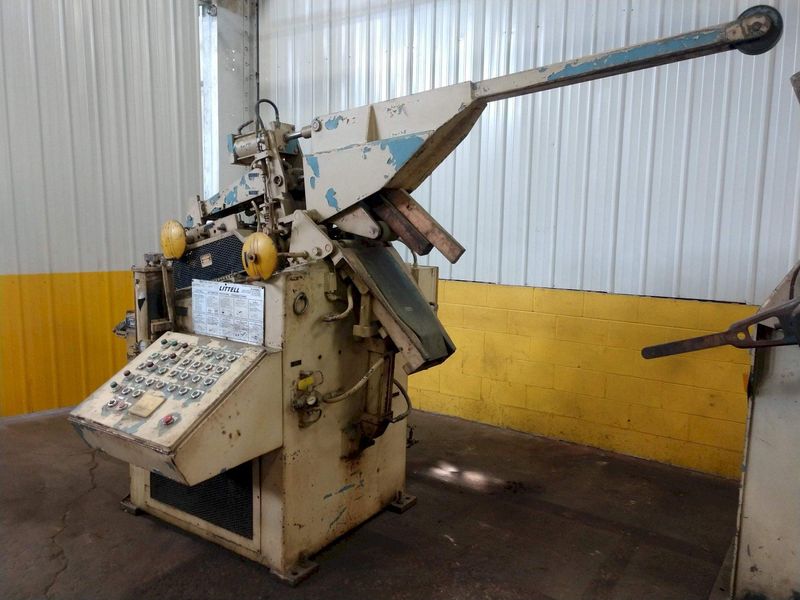

Littell Powered Coil Straightener Model No.: 412DH-7PDL
Entry and exit powered coil straightener pinch rolls

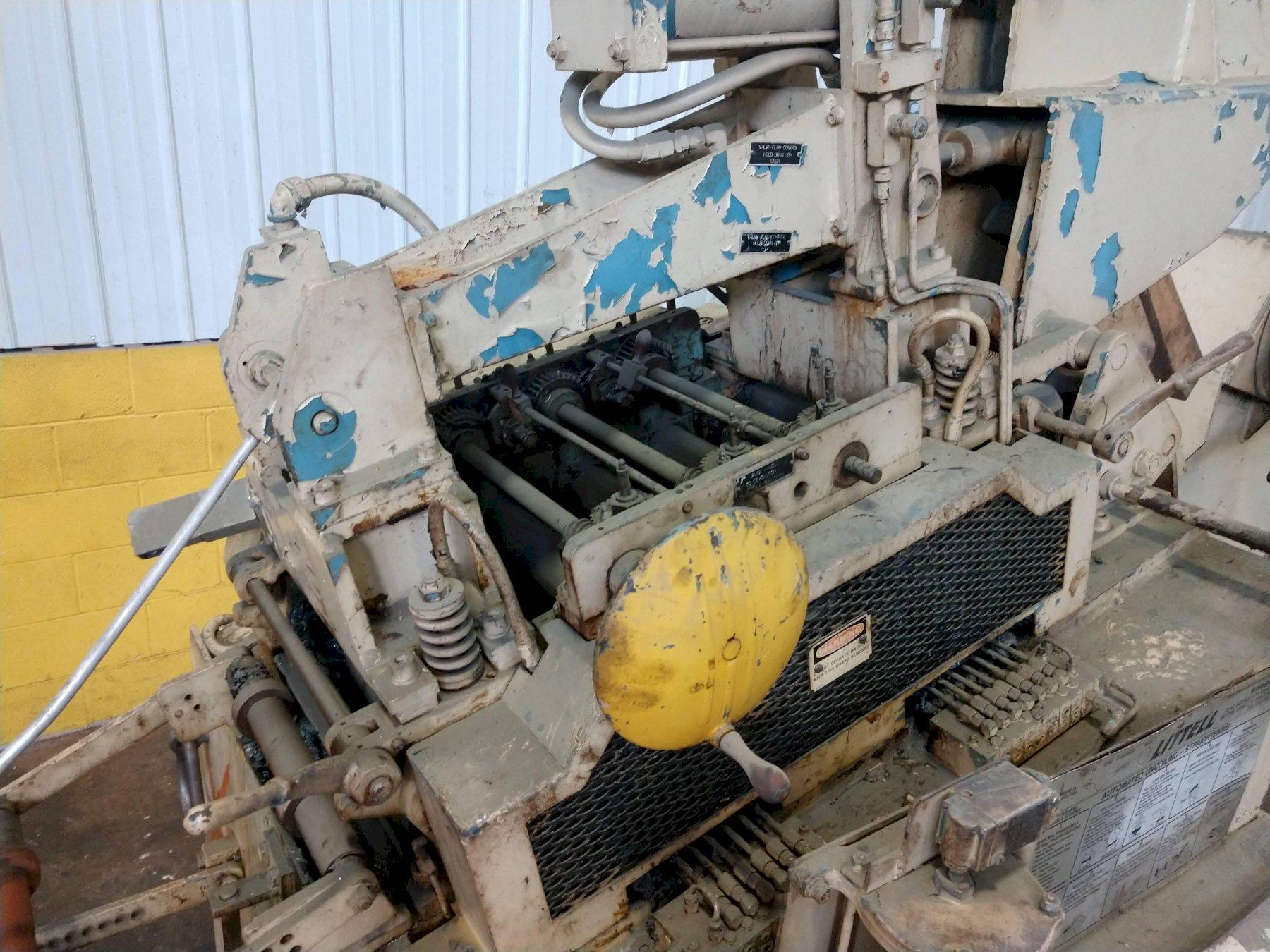

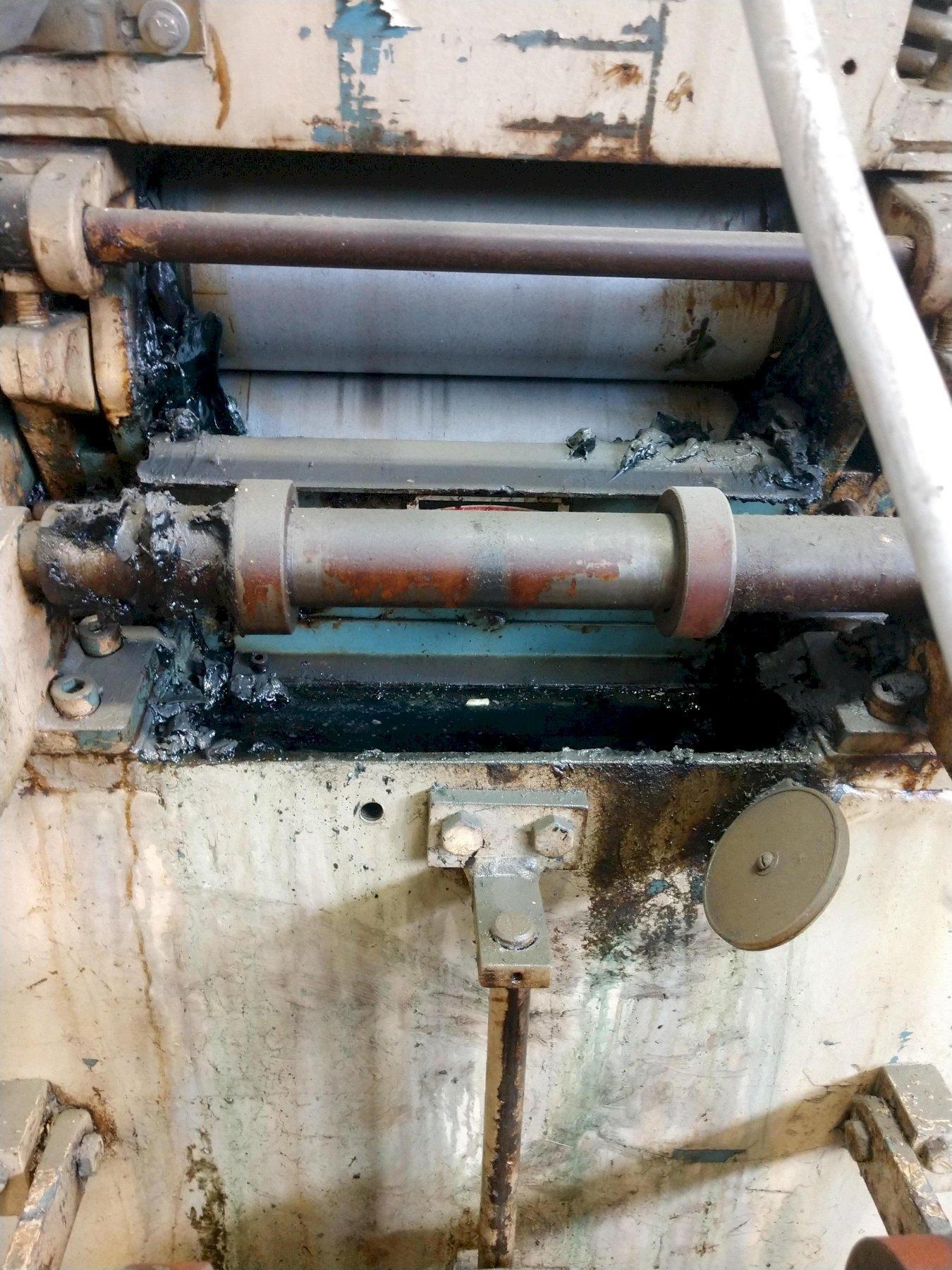

Seven coil straightening rolls x 3.125 diameter
Individual or simultaneous upper coil straightening roll adjustments
Hand crank adjustable stock width edge guides
Coil hold down arm

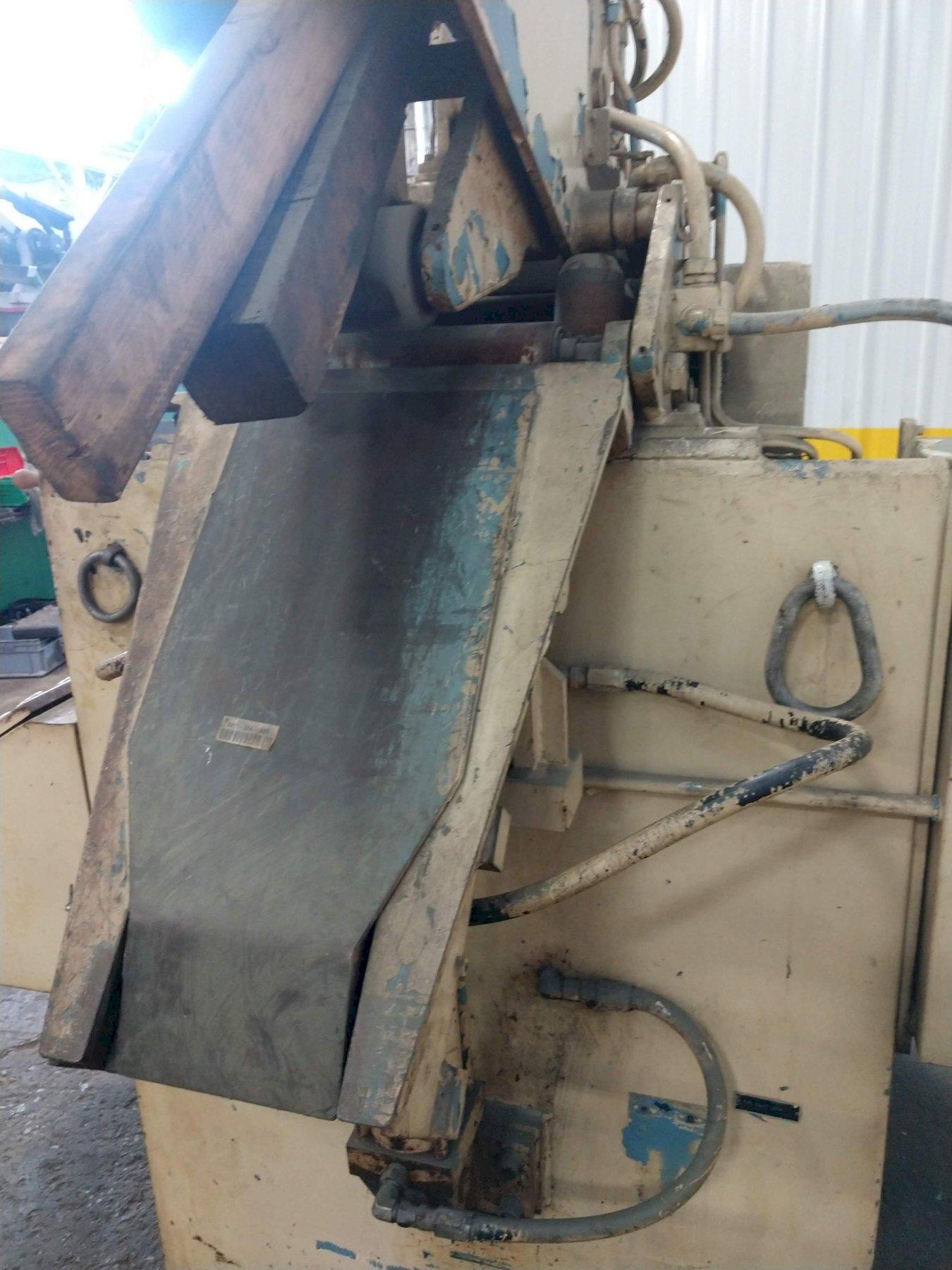

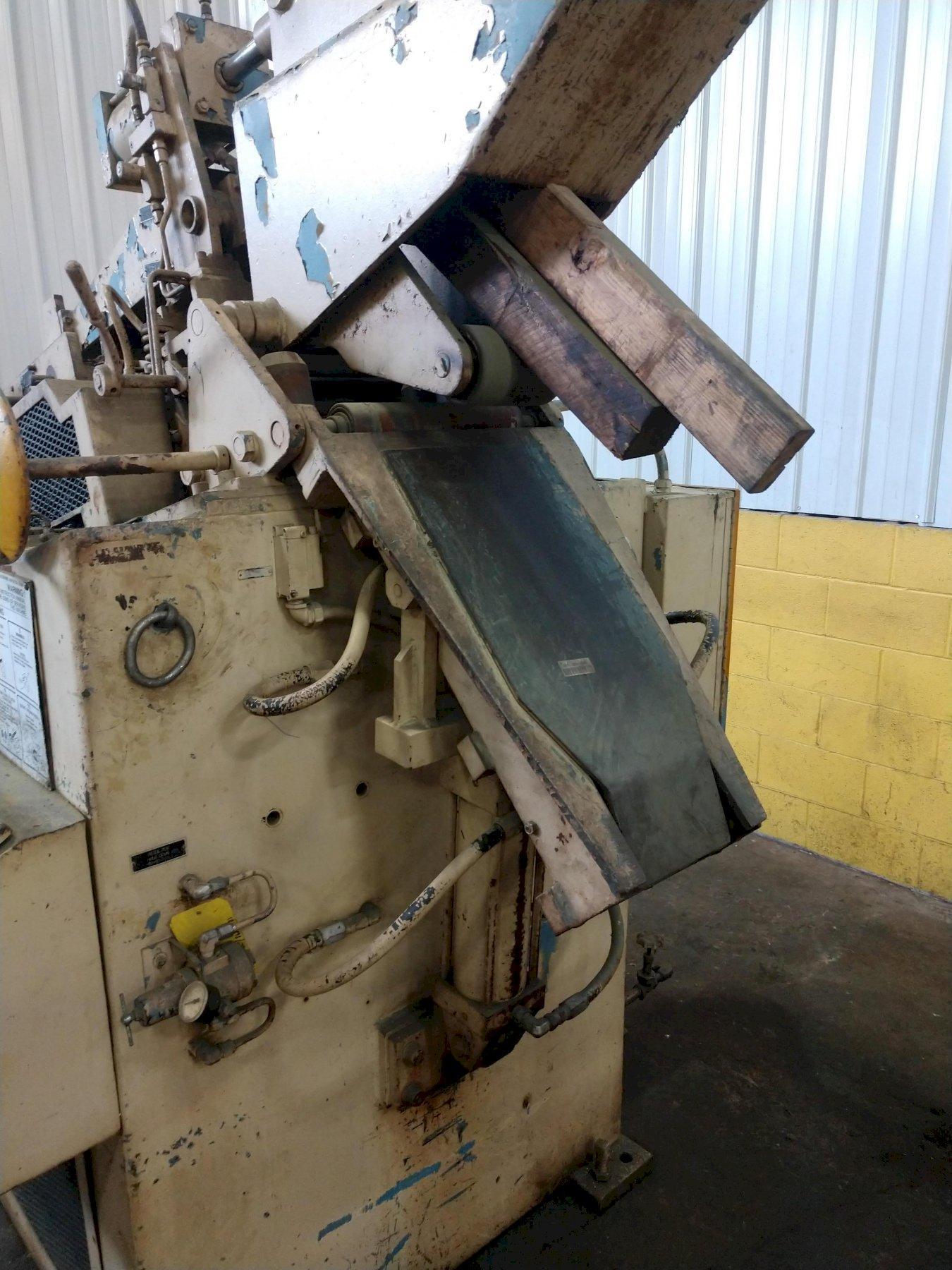

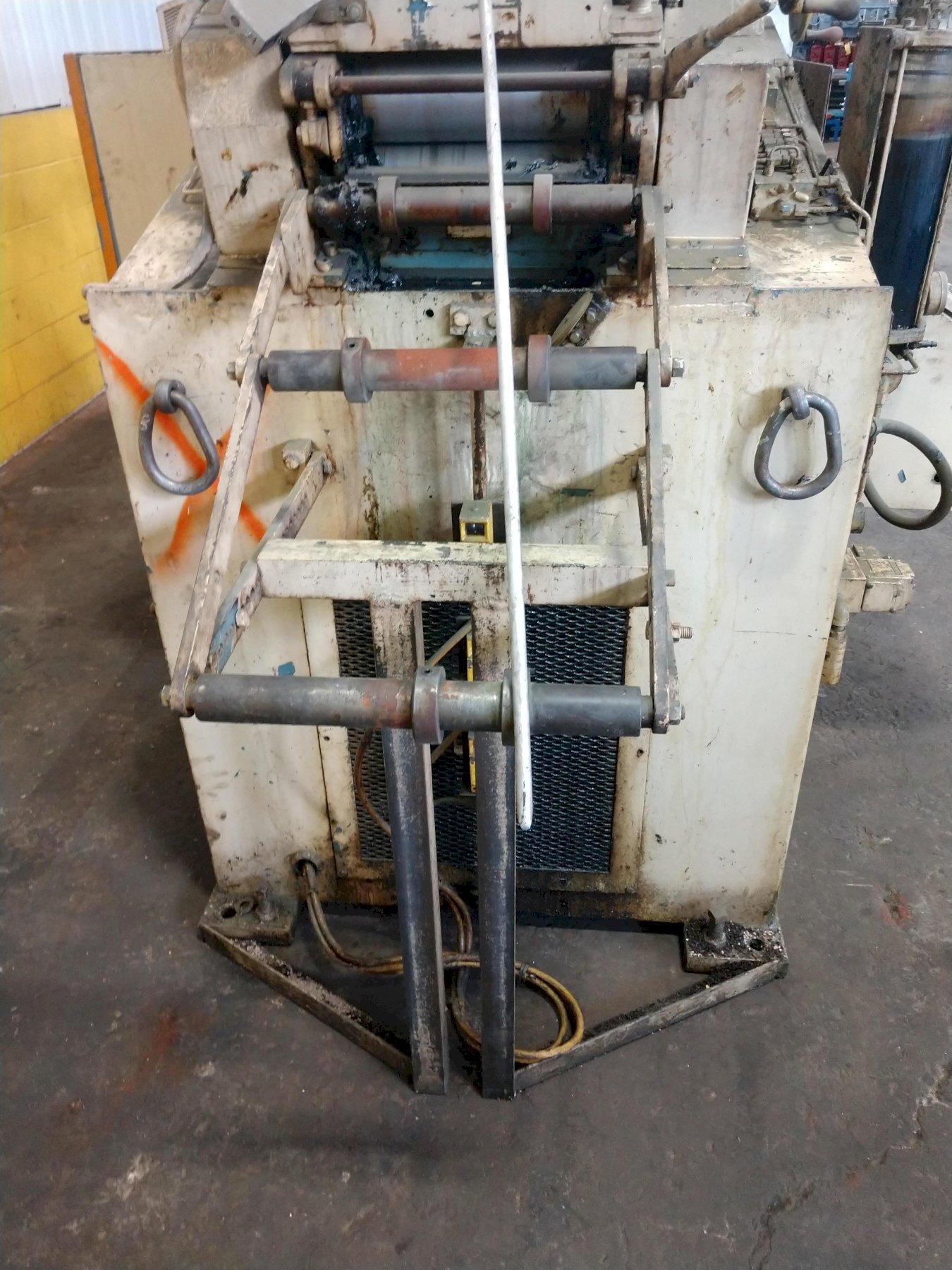

Stock peeler table
Stock end de-bender

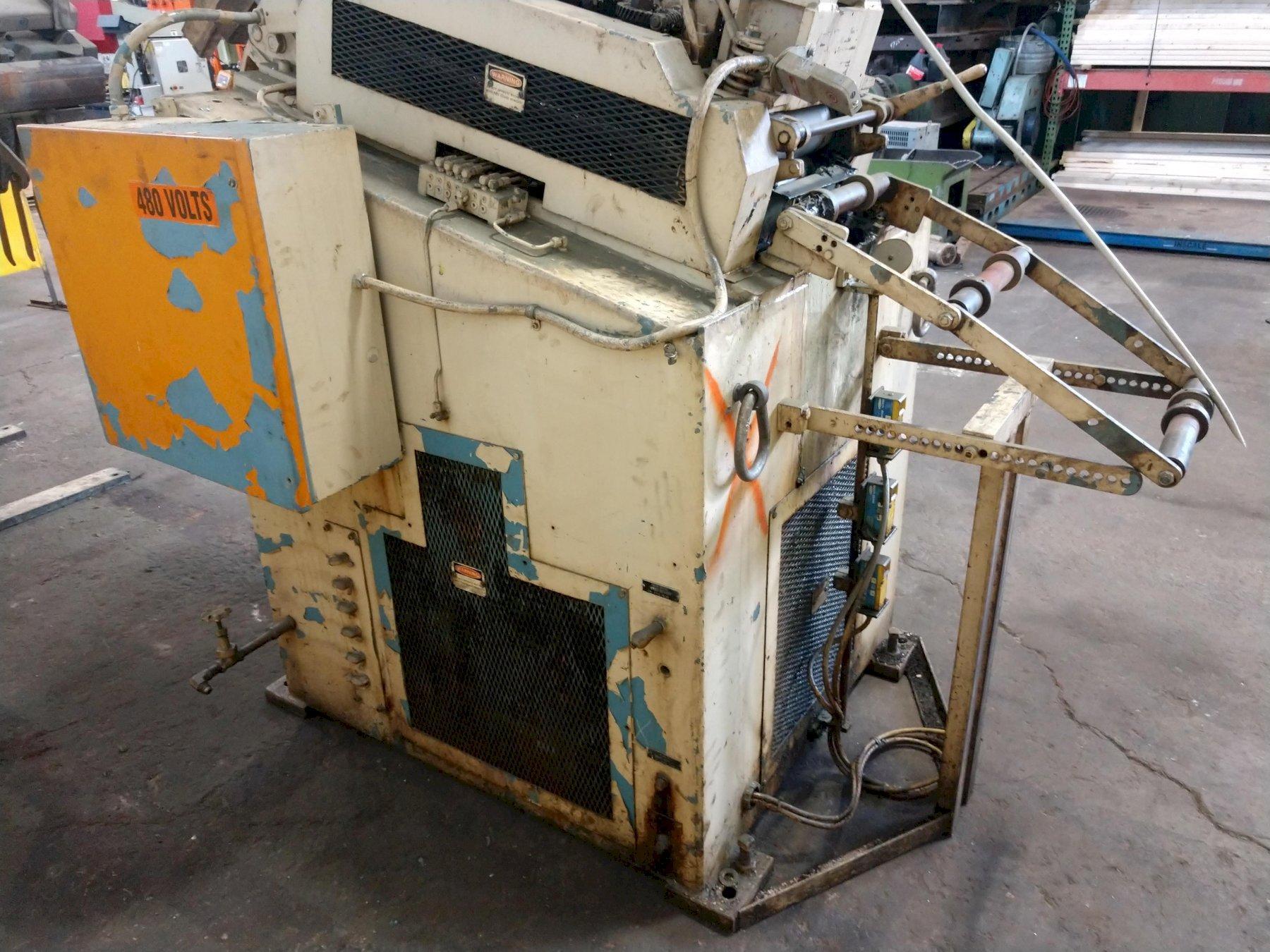

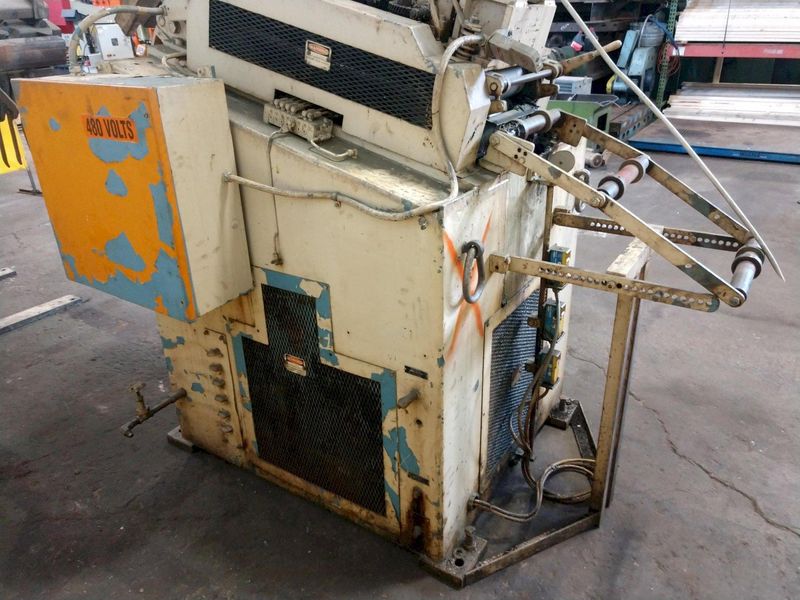

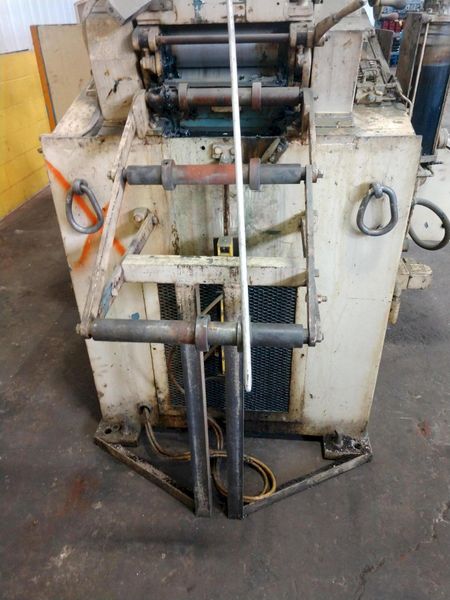

Exit cascade loop support rolls

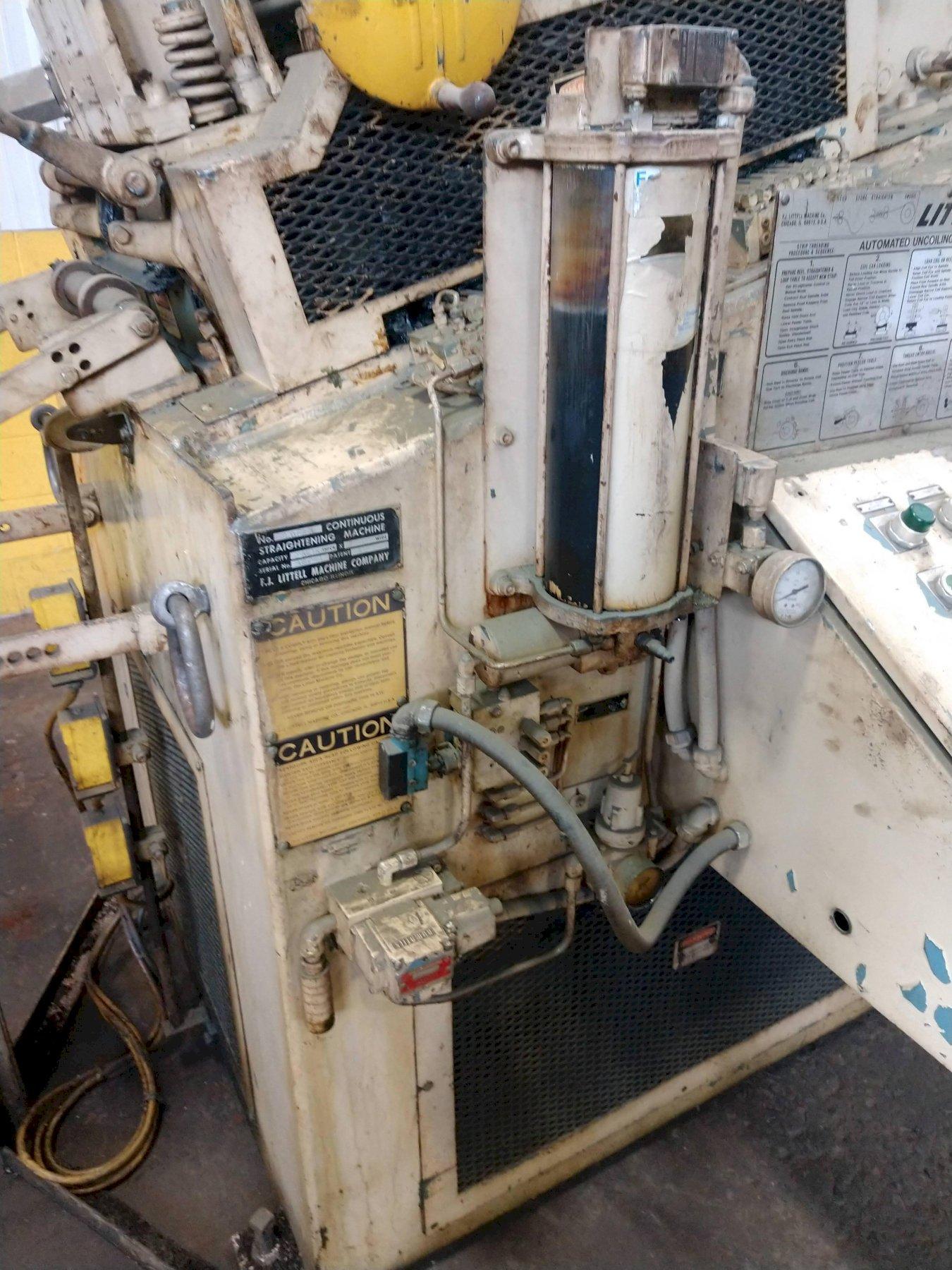

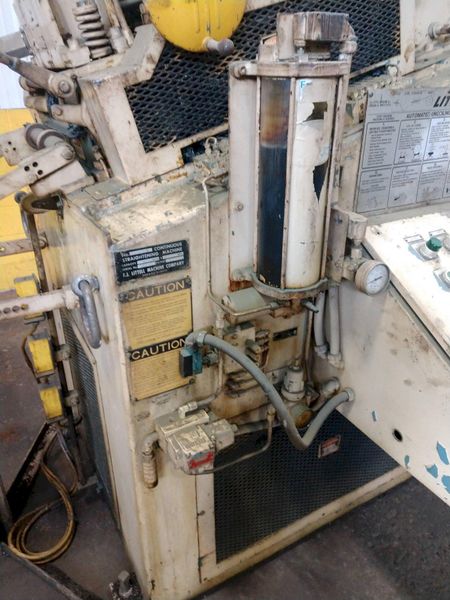

Automatic lubrication system
Jog forward and reverse
