Blanchard No. 26HD-48, 48" Magnetic Chuck, 36" Vertical, 56" Swing, Geared Head, 75 HP, New 1997, #32356

Manufacturer

BLANCHARD

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Vertical Spindle)

Stock

32356

Model

26HD48

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32356

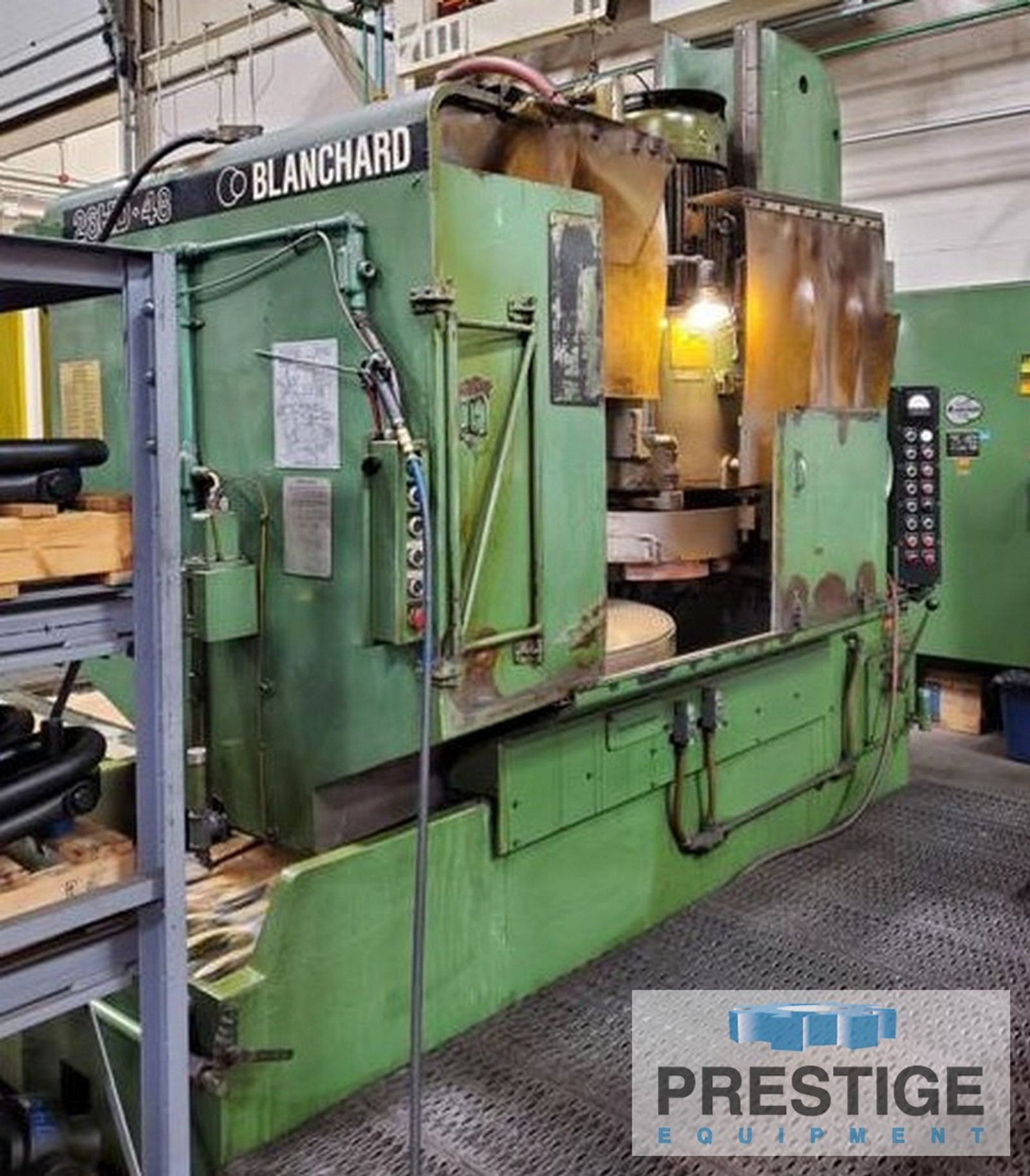

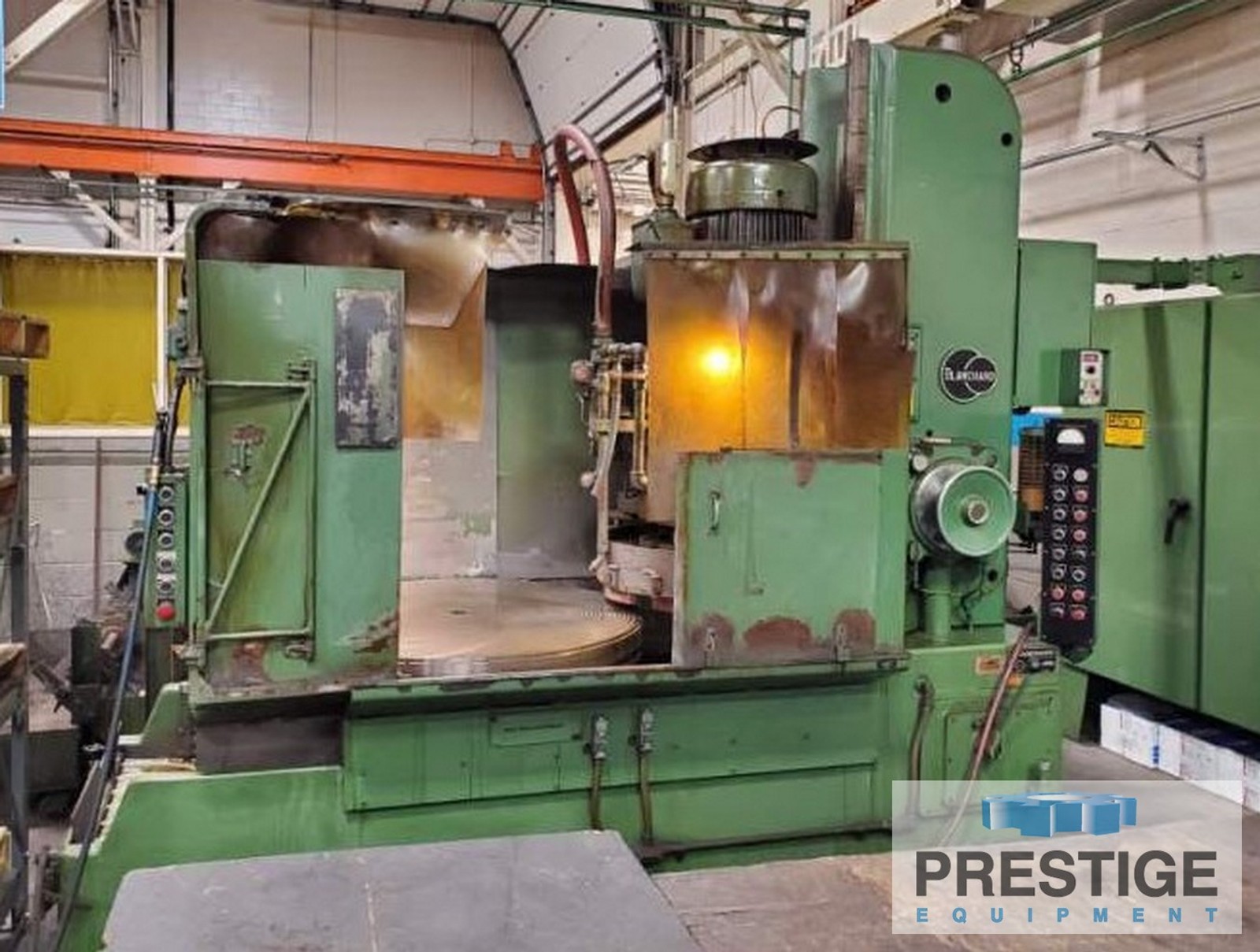

BLANCHARD 26HD48 48" ROTARY SURFACE GRINDER

SPECIFICATIONS:
Grinding Wheel Diameter ............... 26"

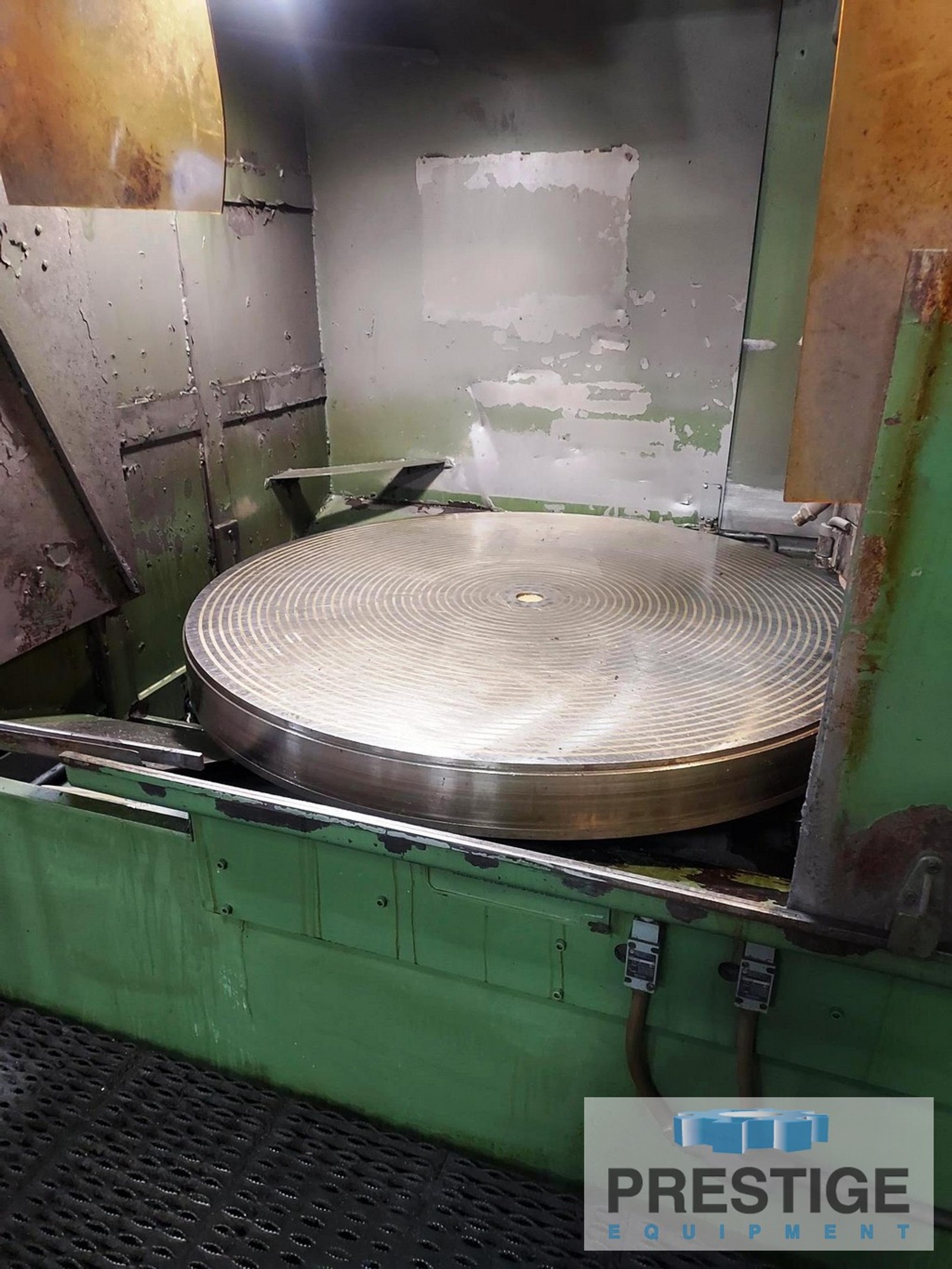

Magnetic Chuck Diameter ............... 48"
Chuck Life ............................ .625"
Swing Inside Water Guards ............. 56"
Vertical Range, Standard .............. 36"
Maximum Load on Chuck ................. 3,000 lbs.
Grinding Wheel Horsepower ............. 75 HP

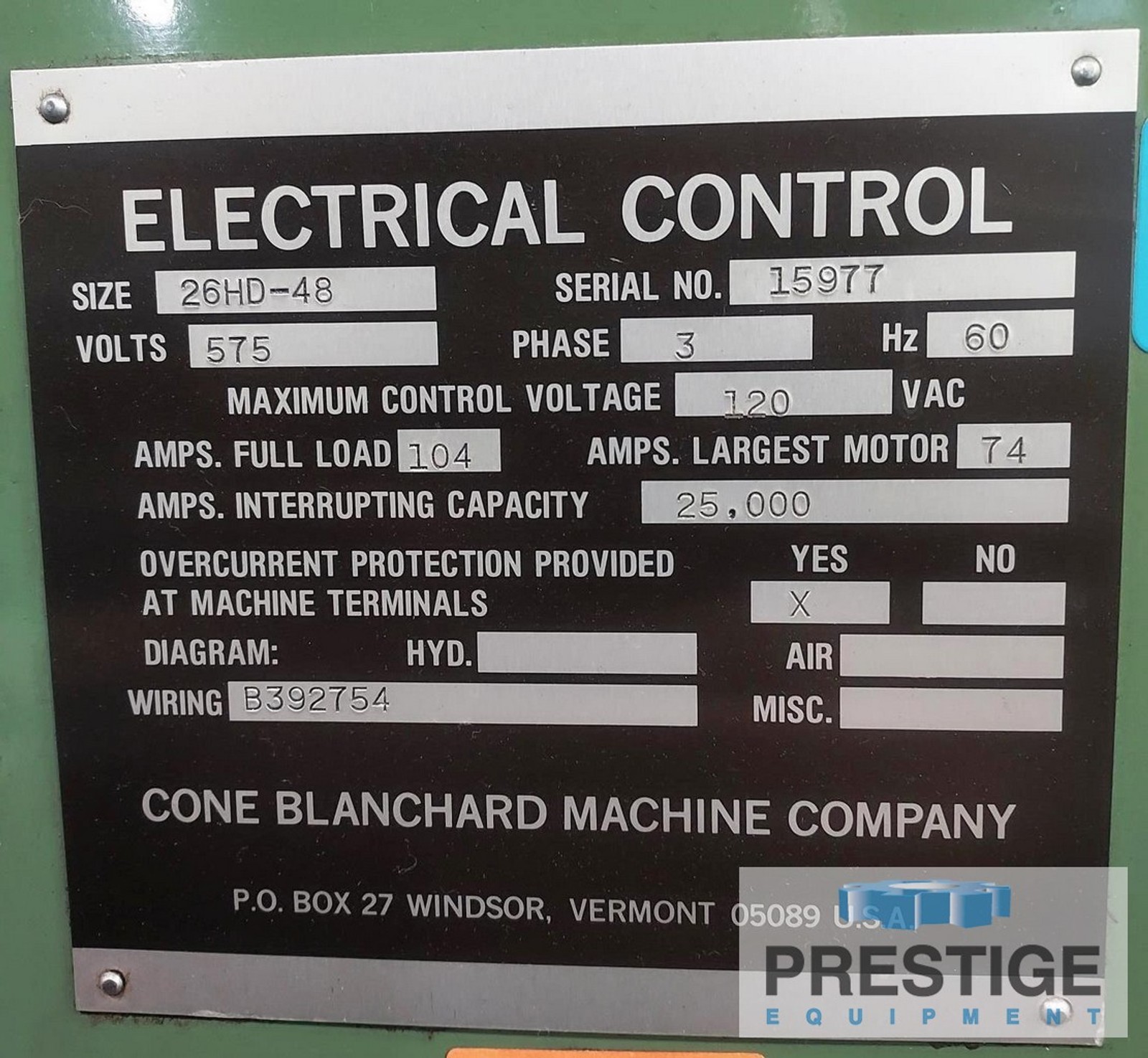

Electrics ............................. 575 Volt/3 PH/60 Hz

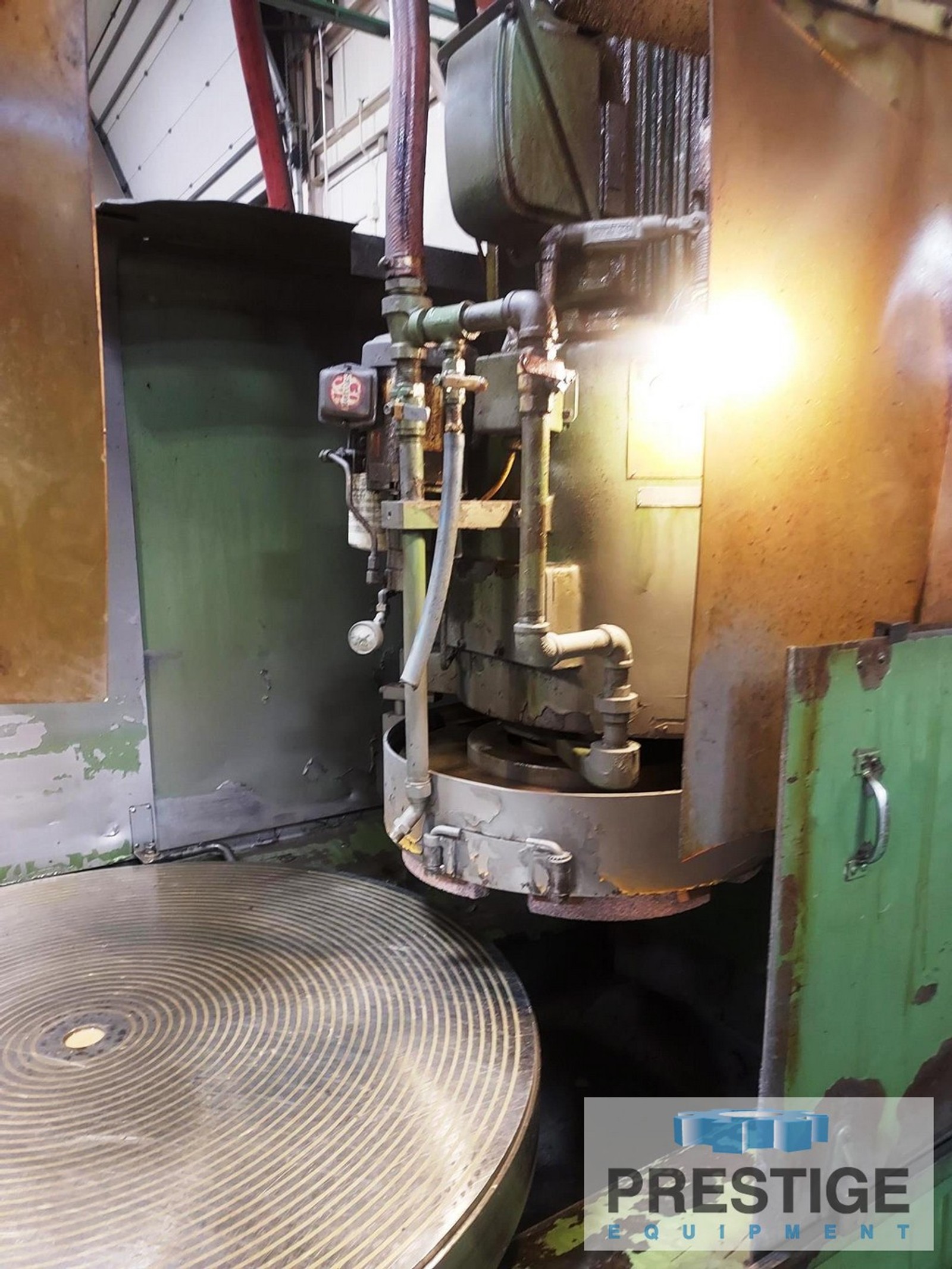

Head Design ........................... Geared
Pick-Feed Type of Down Feed System
Down Feed Rates ....................... .004-.080 IPM
Chuck Rotation Speeds ................. 6-33 RPM

Equipped with:

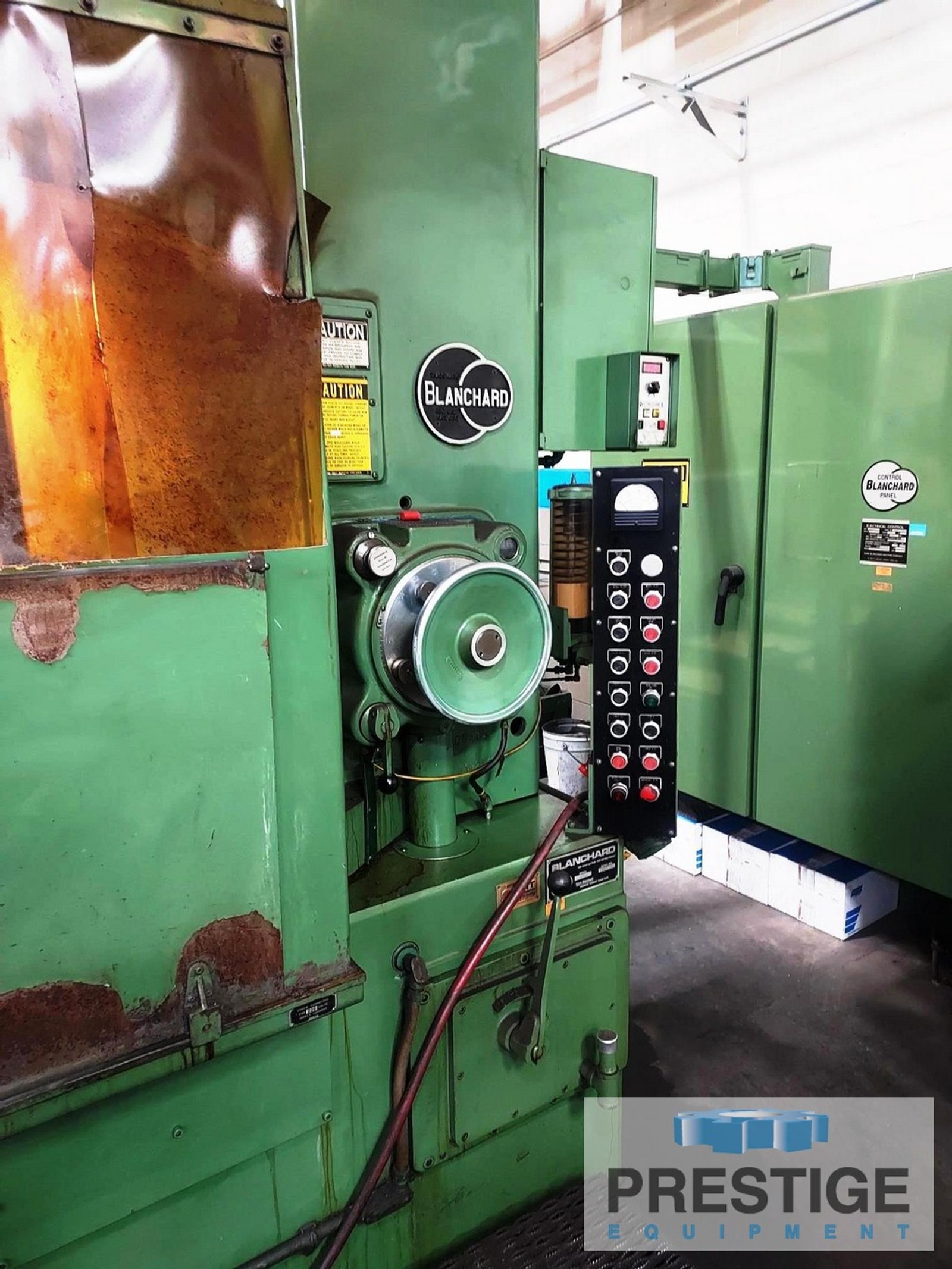

Magnetic Chuck Controls
Wheel Dresser
Automatic Lube System

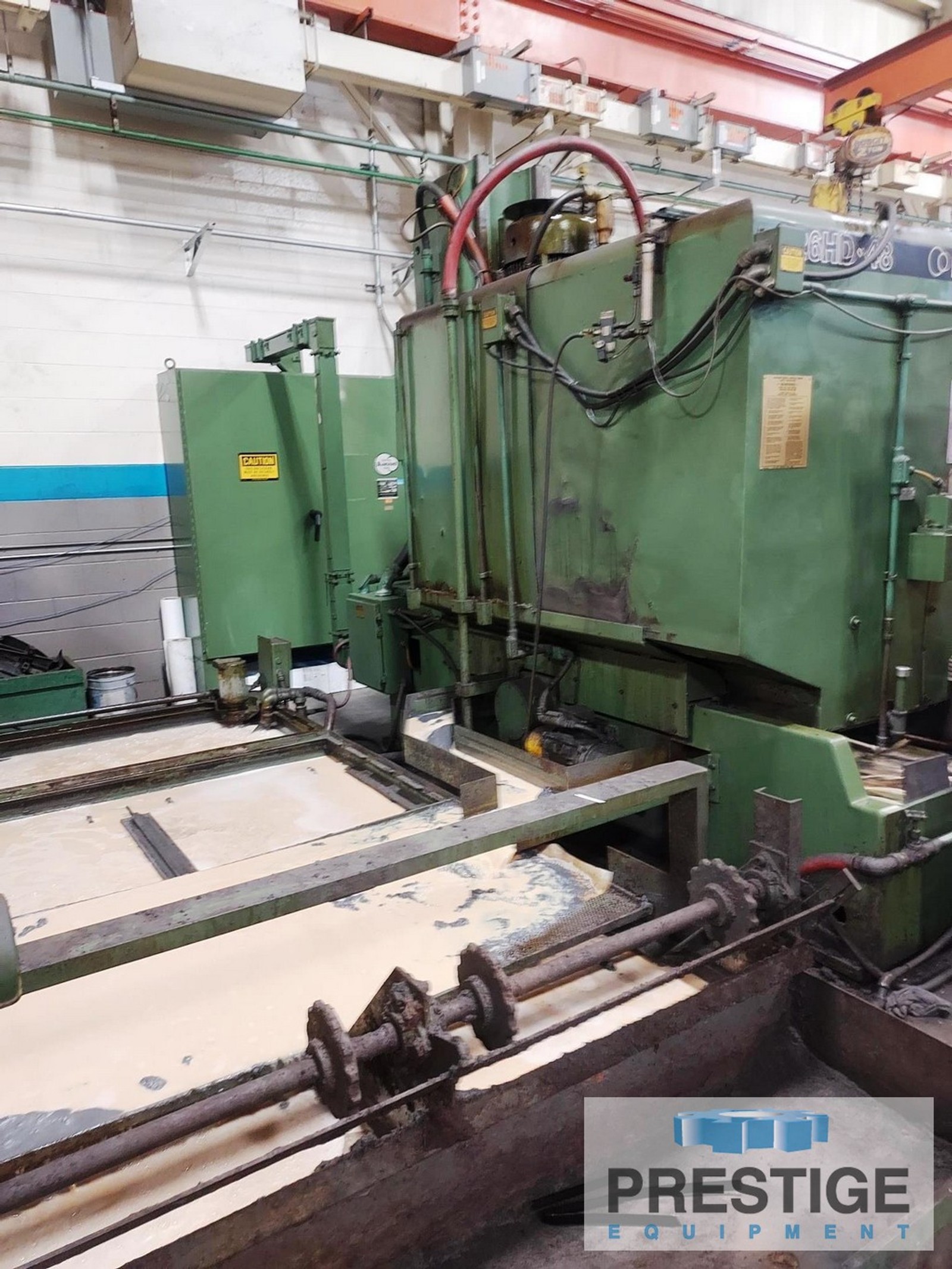

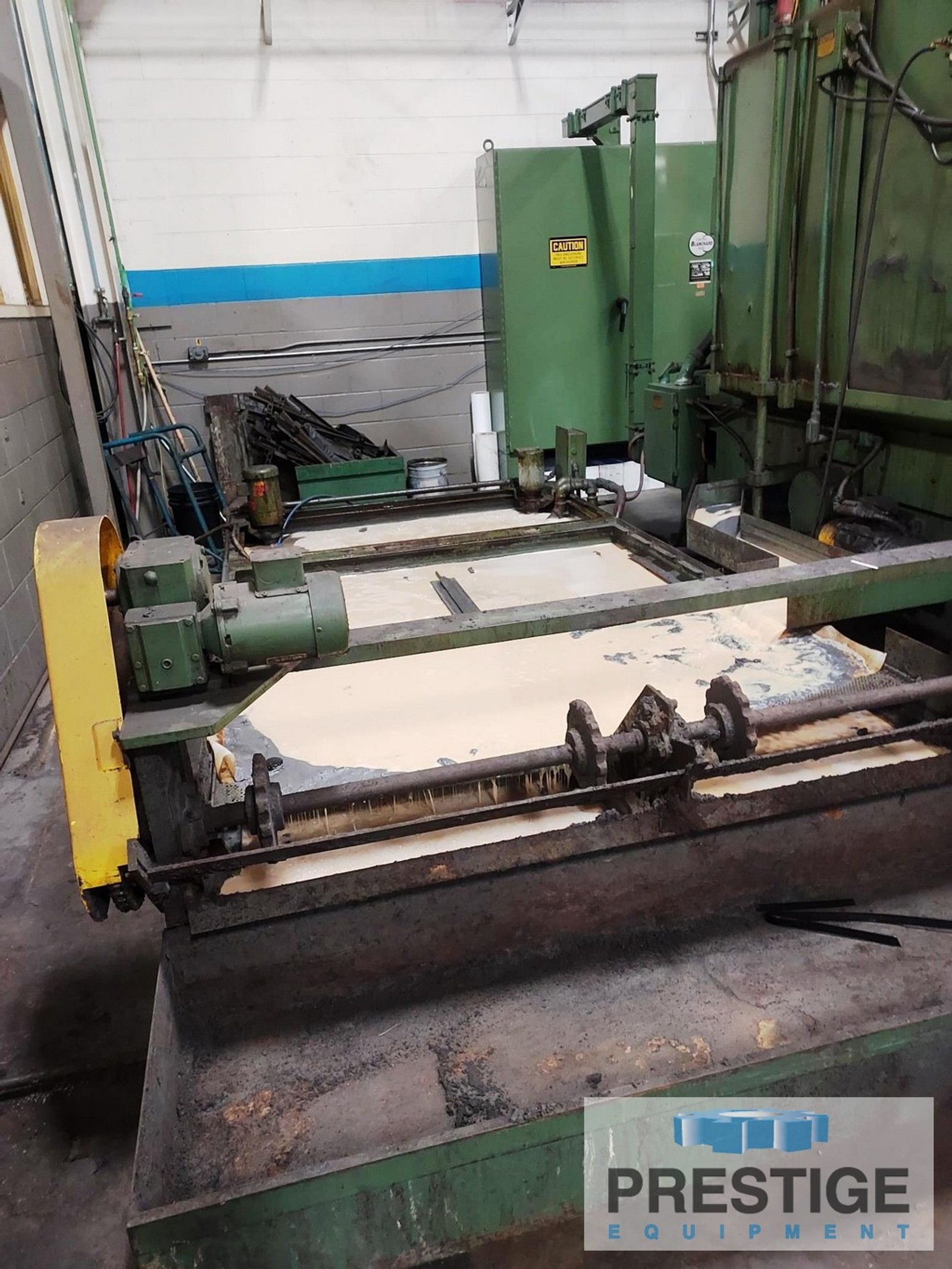

Coolant tank and pumps
14,600 LBS. Approximate Base Weight
Approximate Dimensions:
Grinder-64"D x 144"L x 114"H
Electrical Panel- 60"W x 78"H
One owner machine in excellent condition

Certified (Initial Scope of work):
Power up and test run
Inspect and determine all areas, if any, that need repair/rebuild.
Conduct repairs
Clean and Paint machine tool gray
Level machine, tram spindle and column to magnetic table
Precision grind magnet flat
Run test parts
Document tolerances
