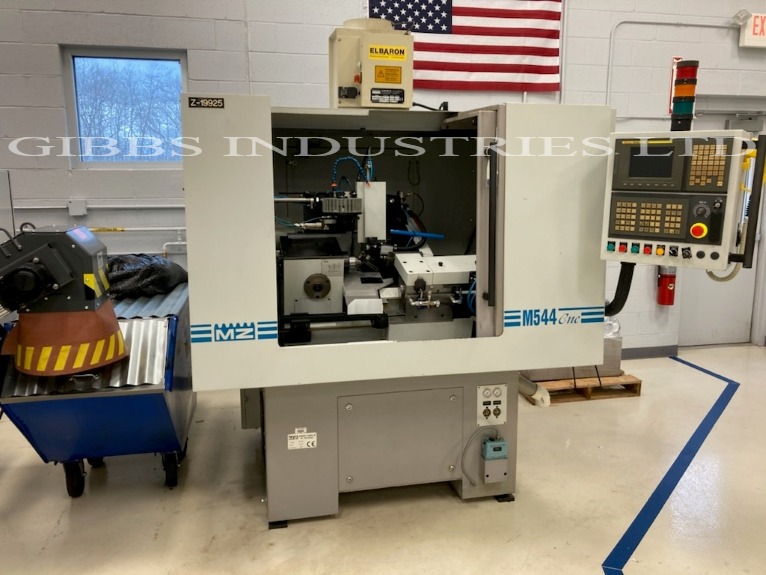

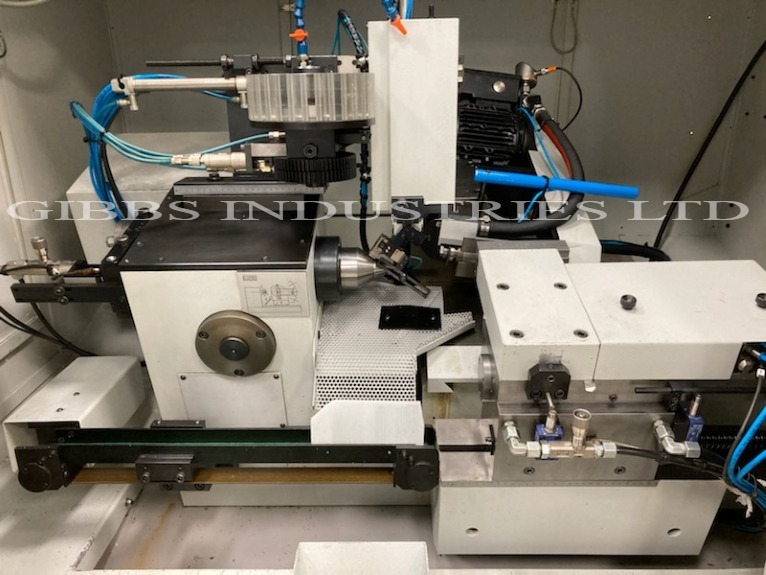

MONNIER & ZAHNER M544 CNC GEAR CUTTER, GASHER (THREAD MILL), FANUC 21-MB 4-AXIS CTRL., 2007

Manufacturer

Monnier & Zahner

Category

Milling Machines

Type

MILLERS, THREAD, CNC

Stock

129455

Model

M544

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

MONNIER & ZAHNER M544 CNC GEAR CUTTER, GASHER
Serial Number: 05 08 07
Year: 2007

Specifications:
Workpiece Diameter: 1.5 - 100 mm
Workpiece Length - Maximum: 300 mm
Cutting Length - Maximum: 180 mm
Cutter Diameter - Maximum: 70 mm
Setting Angle: +30 Degrees
Clamping System: W25/Carrier
Milling Motor: P=1.1 kW
Cutting Speed: 500 - 6,000 RPM
Hydraulic Aggregate: 0.37 kW
Coolant System: 60 in/min.
X-Axis, Longitudinal - Maximum: 200 mm
Y-Axis, Plunging - Maximum: 70 mm
X-Axis, Workpiece Spindle
X-Axis Rapid Advance: 6 m/min.
Y-Axis Rapid Advance: 6 m/min.
Z-Axis Rapid Advance: 50 m/min.

Equipped With:
Fanuc 21-MB 4-Axis CNC Control
Miscellaneous Tooling
Foot Pedal
