Trumpf TruLaser Weld 5000, 4KW, Kuka 6-Axis Robotic Welder, Rotary Table, Low Hours, New 2018, #31983

Manufacturer

TRUMPF

Category

Laser Cutting

Type

LASERS

Stock

31983

Model

TruLaser 5000

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31983

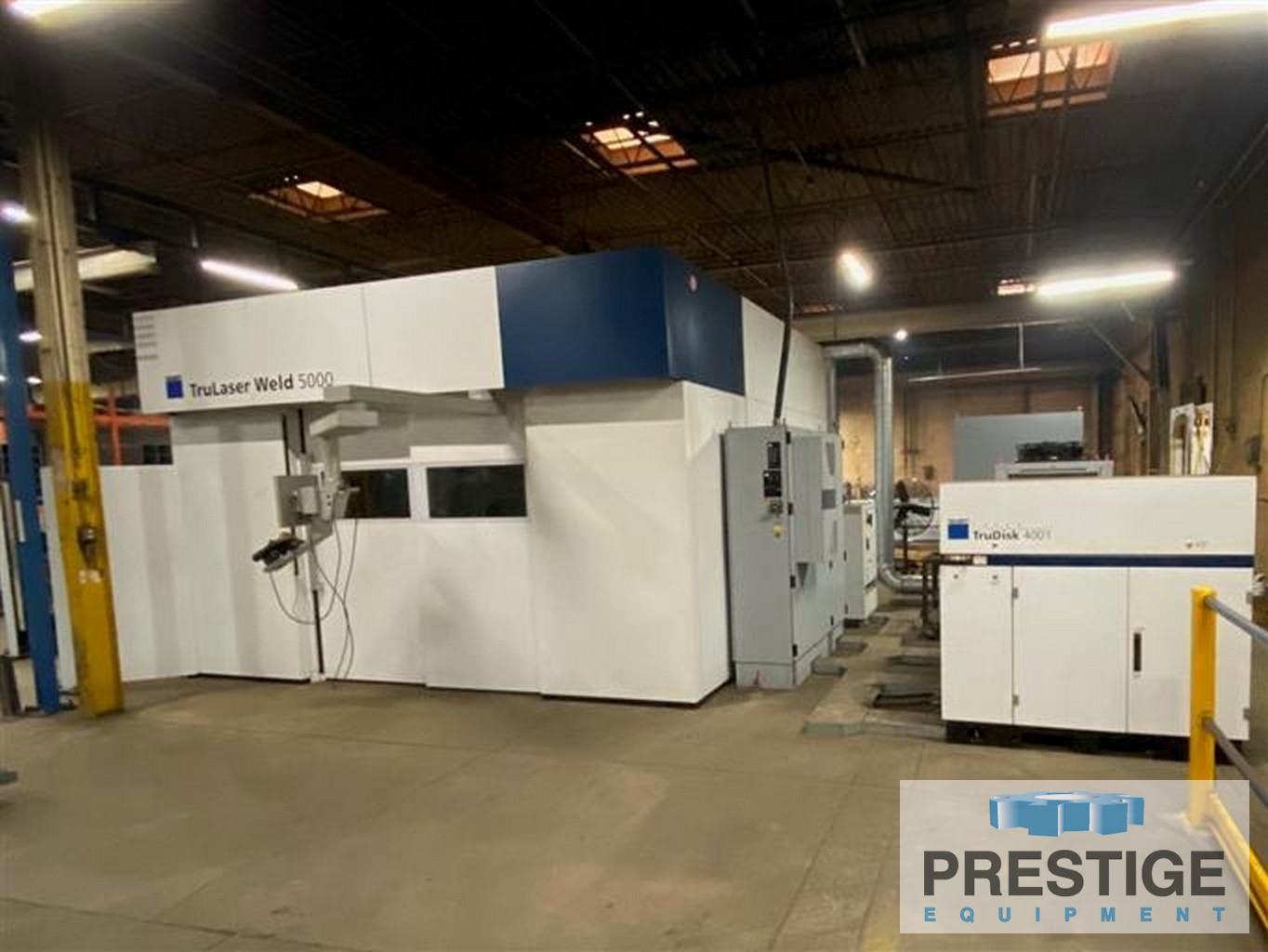

Trumpf TruLaser Weld 5000 Automatic Laser Welder

CAPACITY:
Laser Capacity ........................ 4000 Watt

ROBOT:
Number of Axes ........................ 6
Repeatability ......................... +/-.0019"

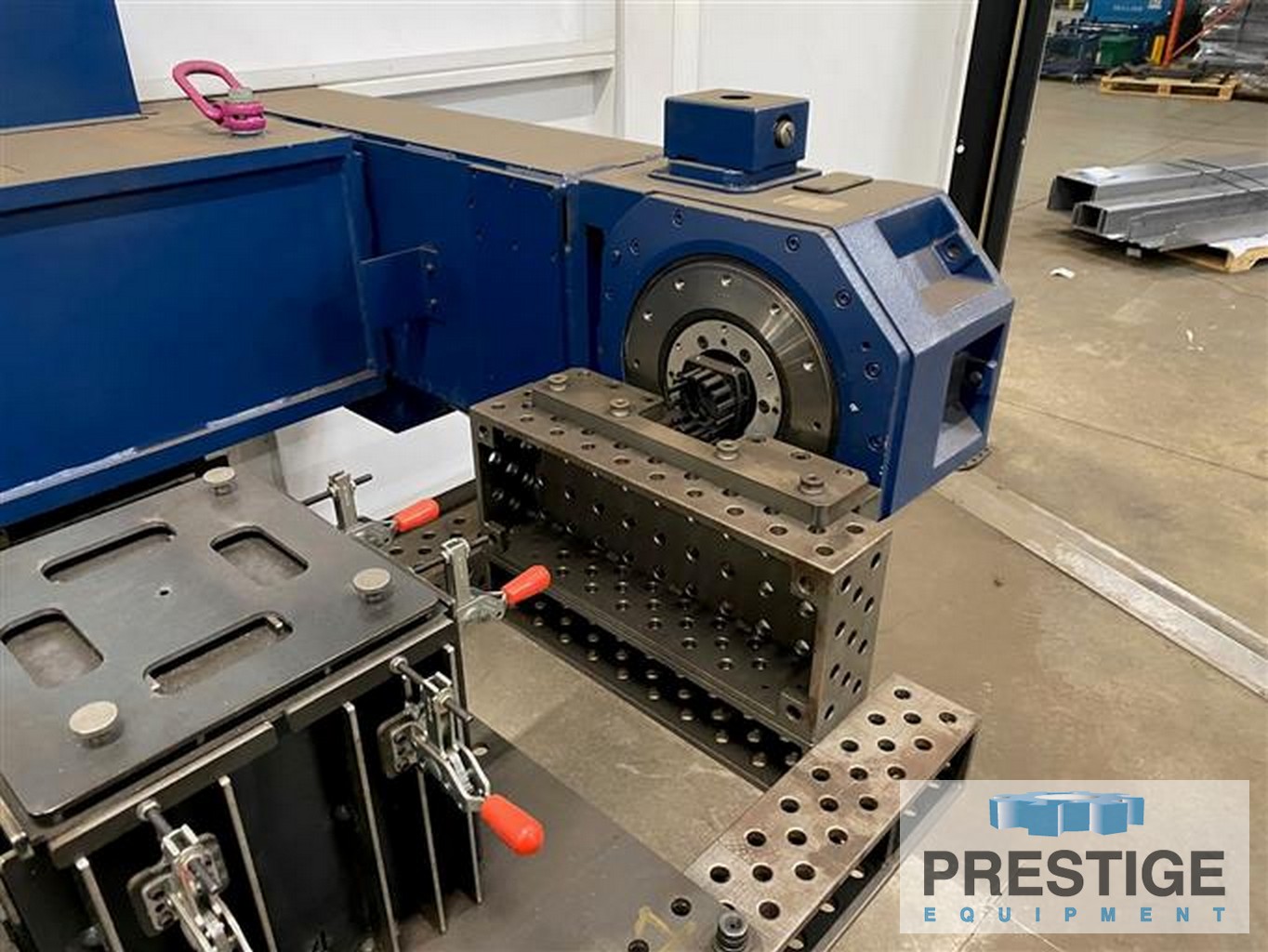

ROTATE & TILT POSITIONER:
Maximum Part Width .................... 78.75"
Maximum Part Height ................... 27.55"
Maximum Part Depth .................... 39.37"
Maximum Loading ....................... 880 Lbs.

ROTARY TABLE:
Maximum Work Area ..................... 63" x 31.5" x 47.2"
Maximum Loading (Per Side) ............ 550 Lbs.

ROTATIONAL CHANGER:
Maximum Work Area ..................... 78" x 39" x 43.3"
Maximum Loading (Per Side) ............ 1,650 Lbs.

TURNOVER POSITIONER:
Maximum Part Size ..................... 157" x 59" x 39"
Maximum Loading ....................... 2,200 Lbs.

EQUIPPED WITH:
TruDisk 4001

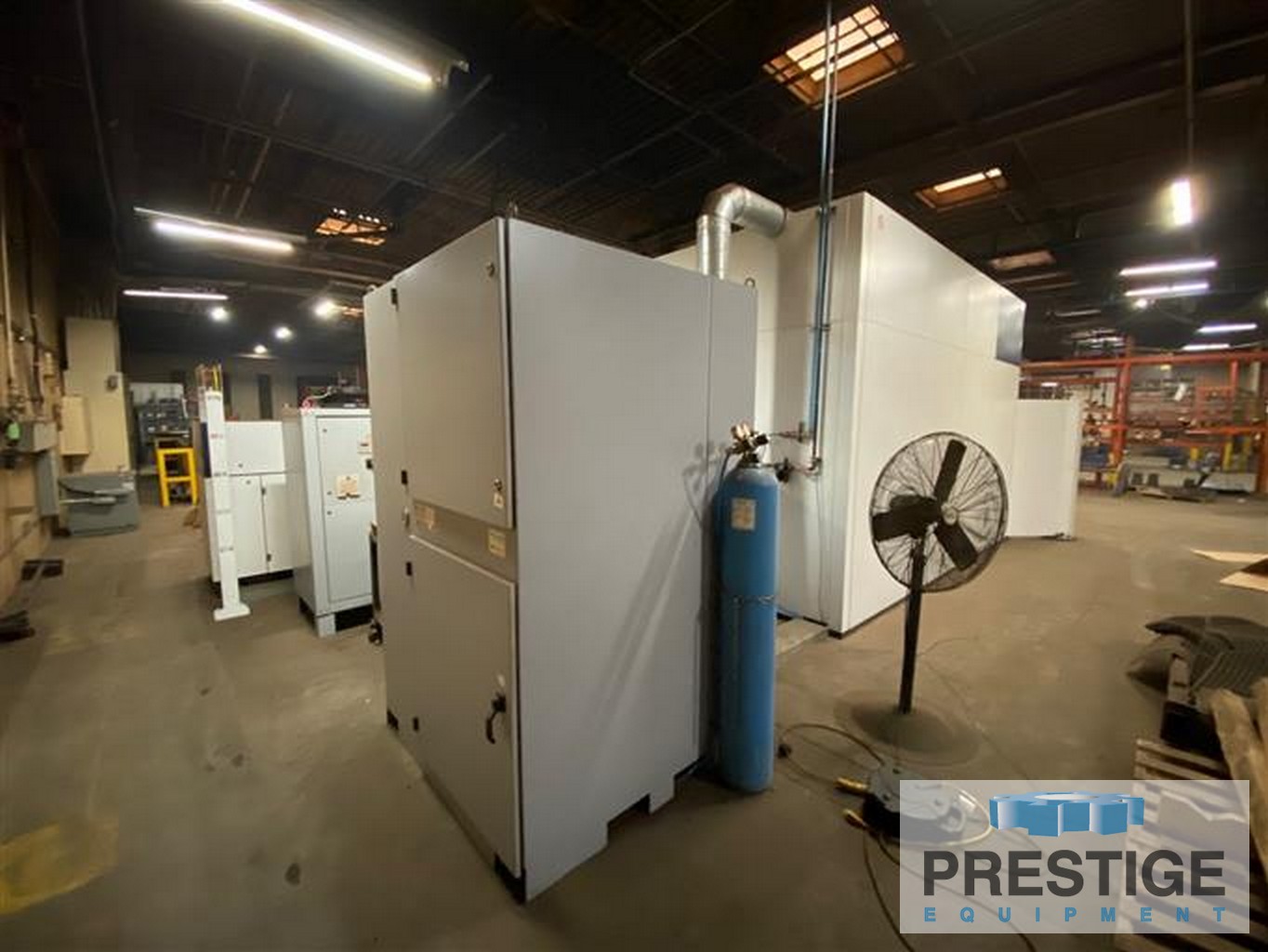

Chiller

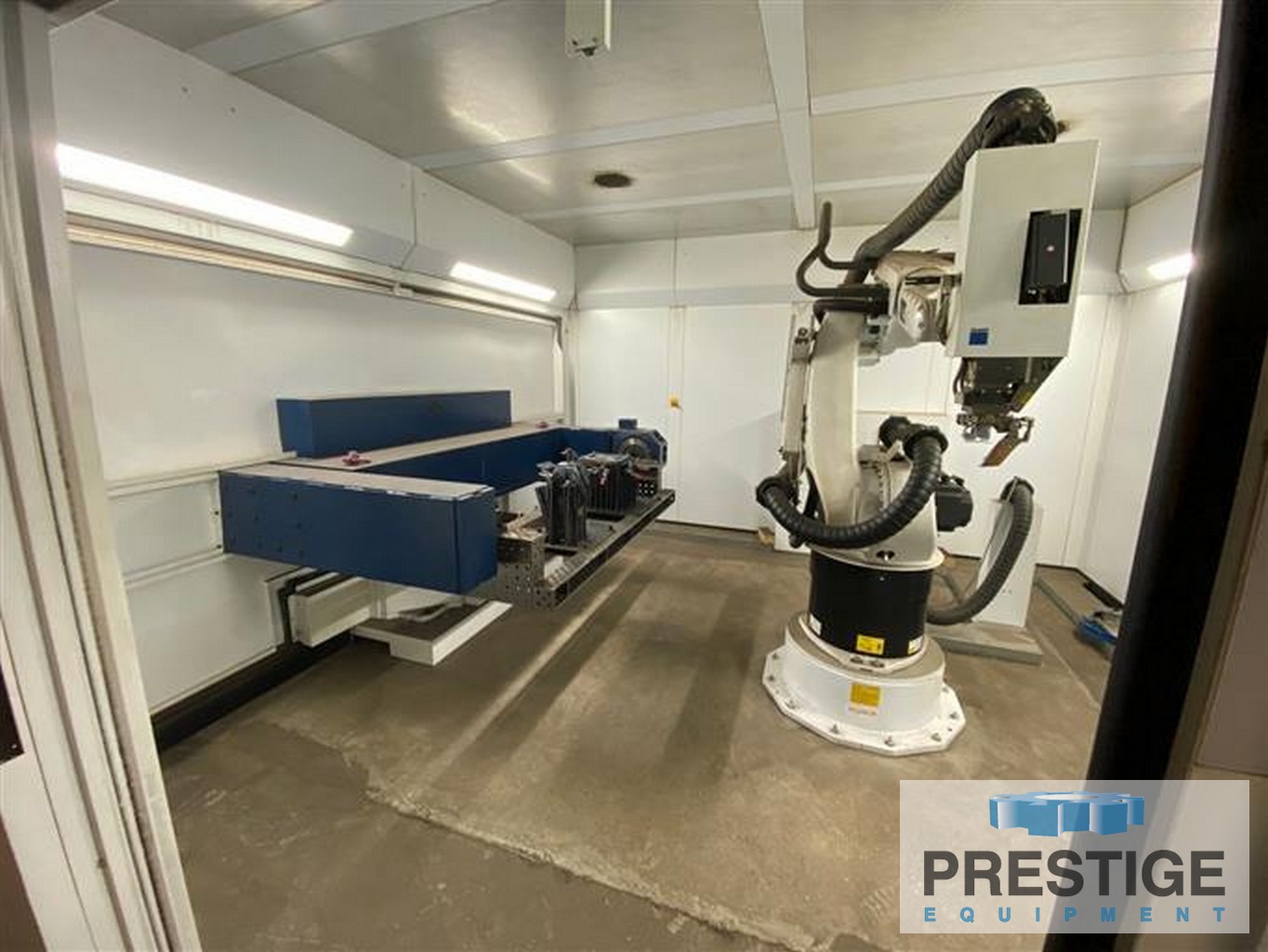

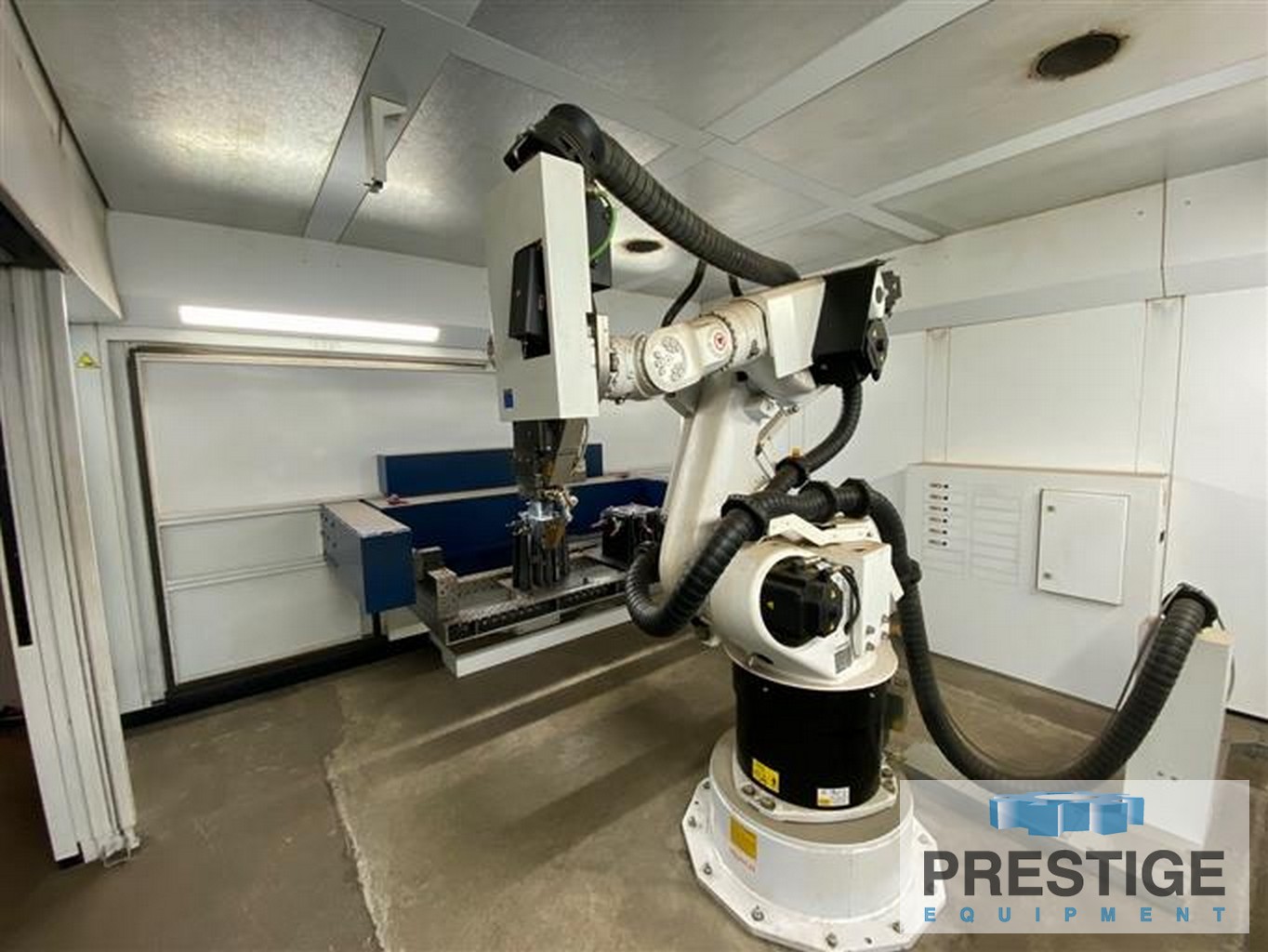

Kuka KR 30 High Accuracy Robot

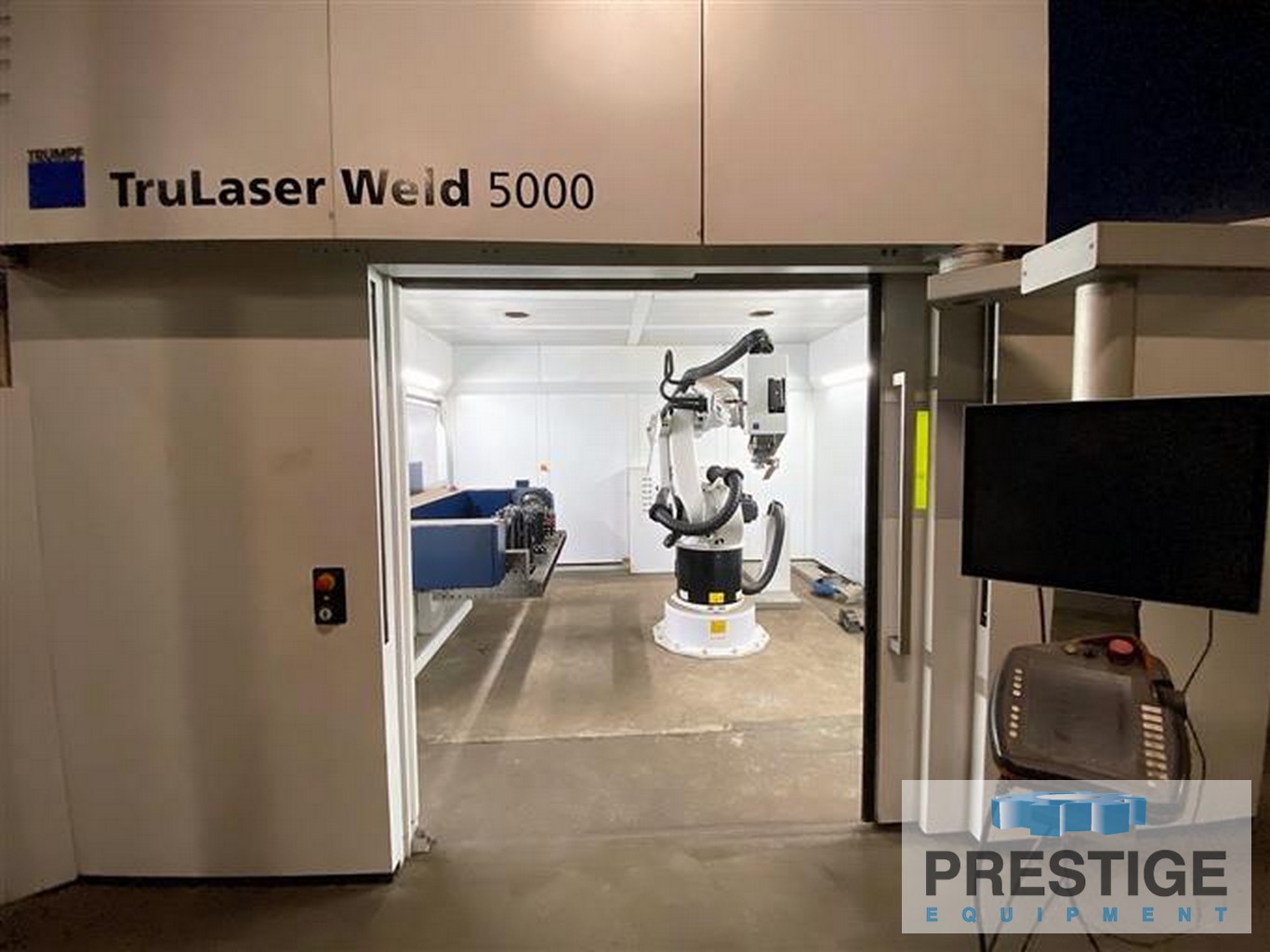

Enclosure with Power Door
Vacuum Unit
FusionLine
Rotary Module for shield gas (programmable)

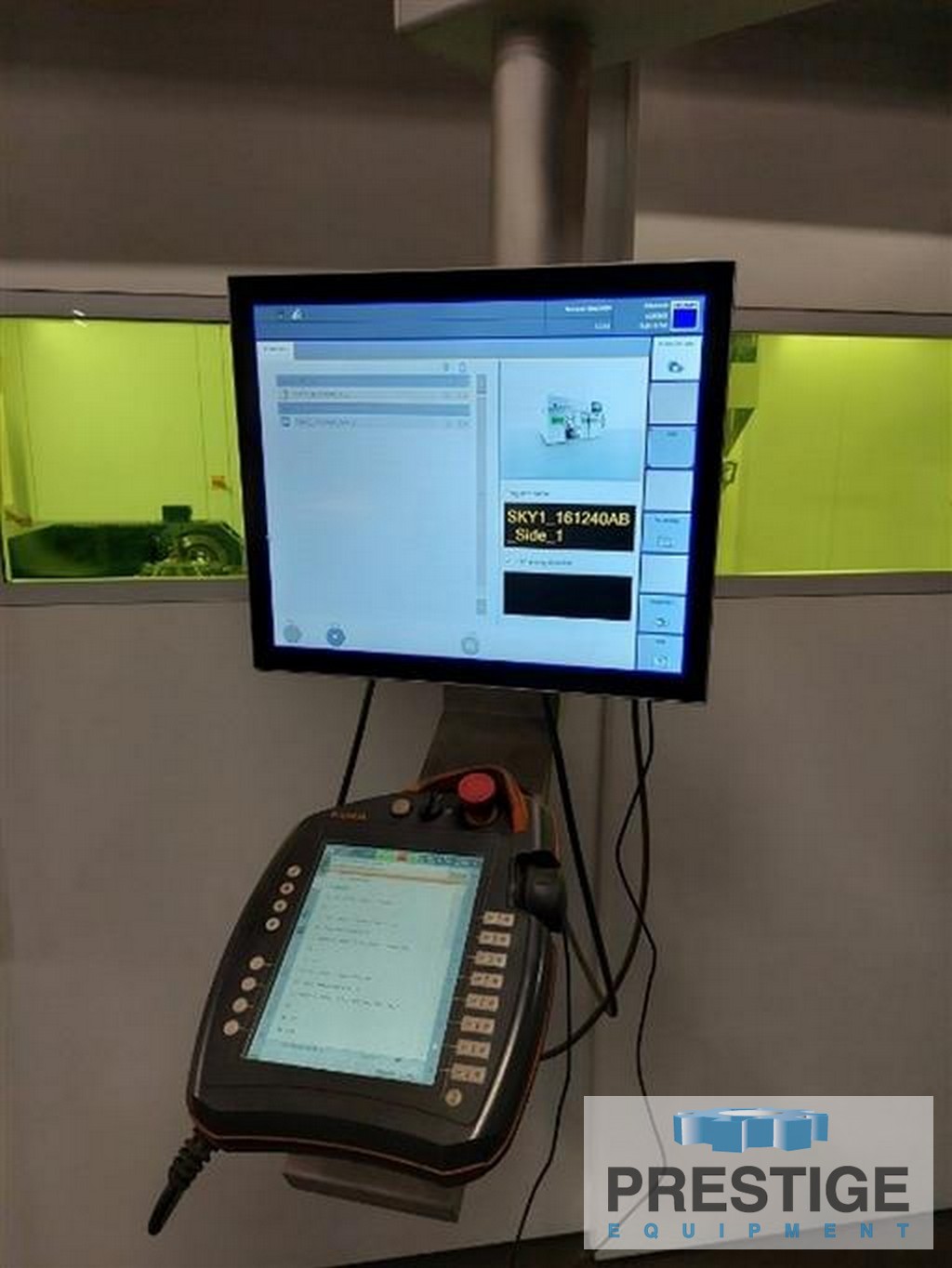

TeachLine

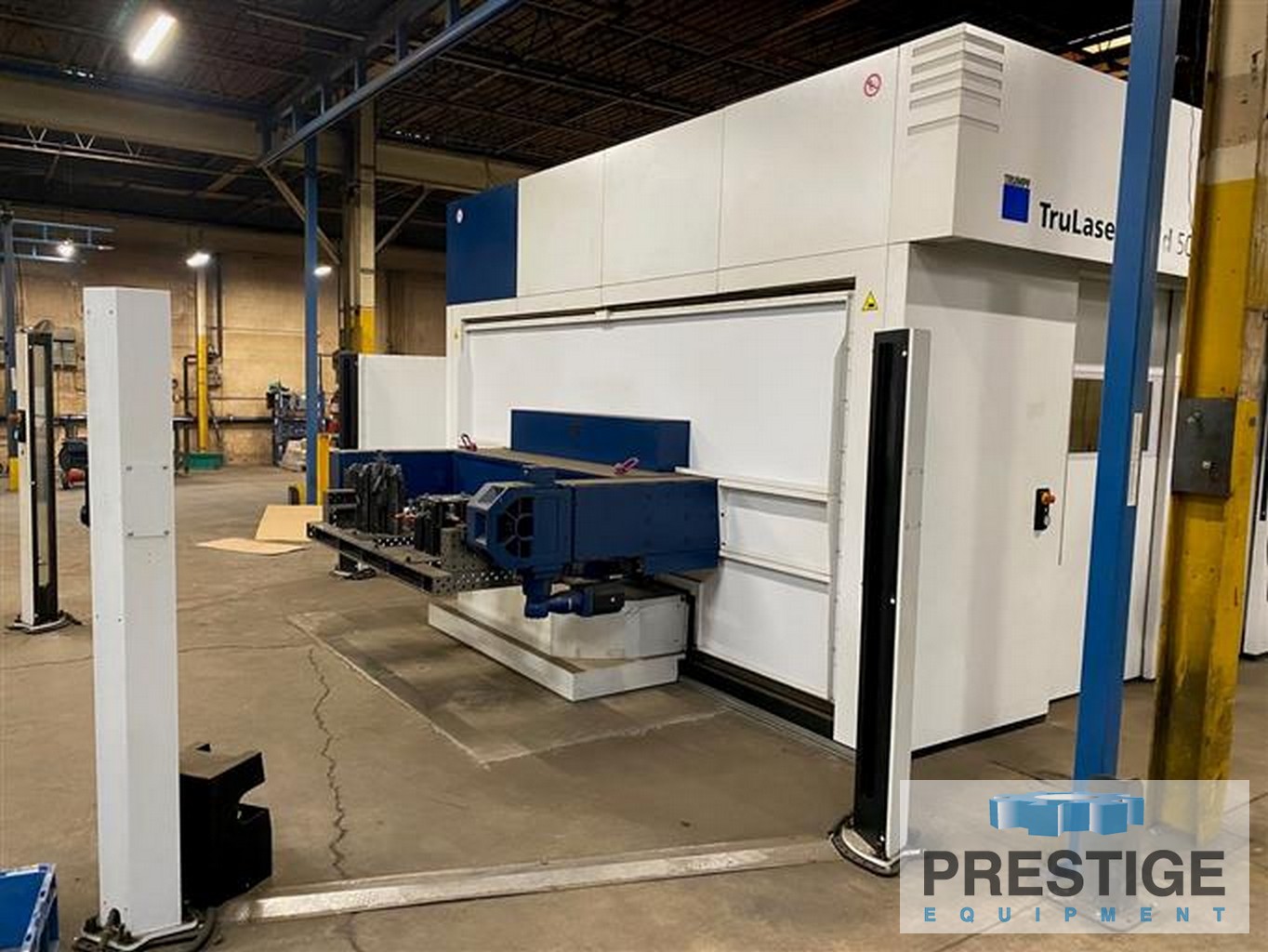

Automatic Rotary Changer

HOURS:
Operating Hours: 3,768
Laser On Hours: 1,380

NOTE:
Inspect In Plant Under Power

No Video Available
