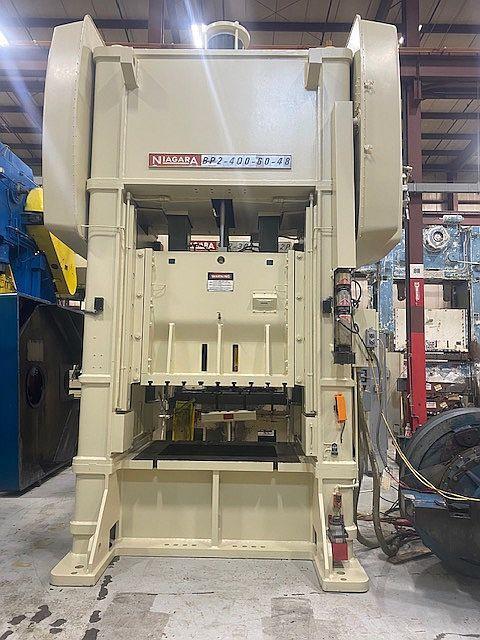

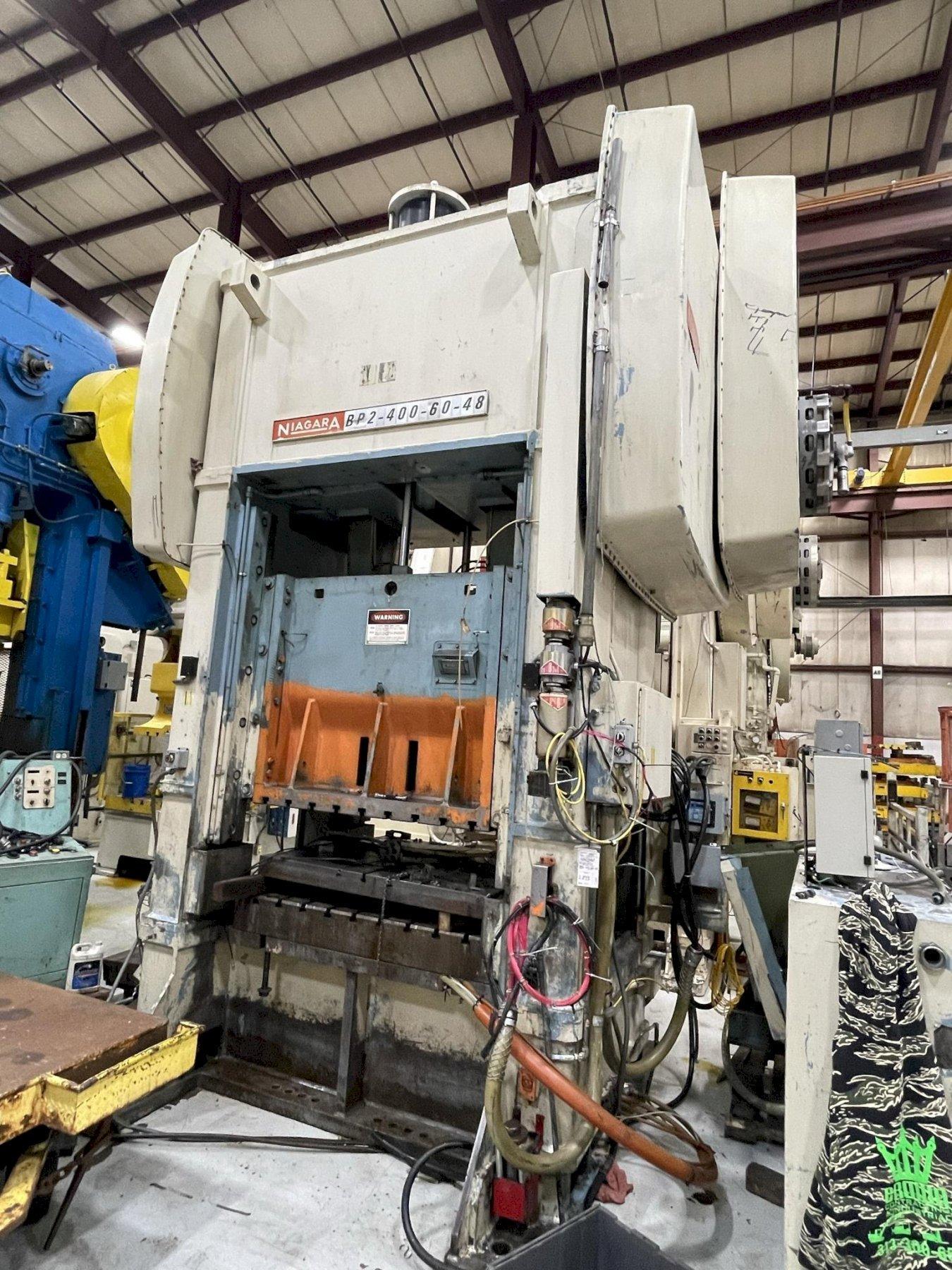

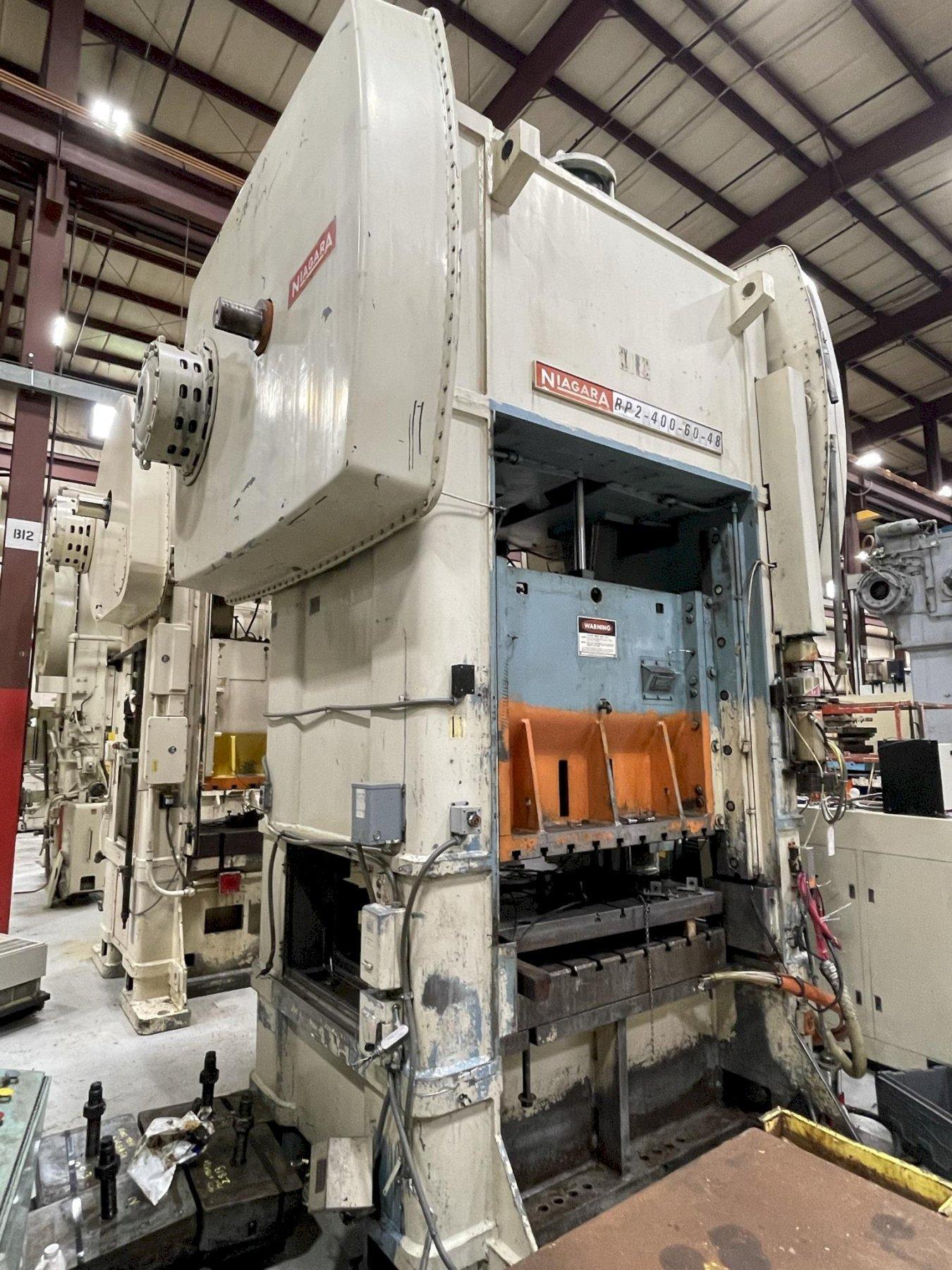

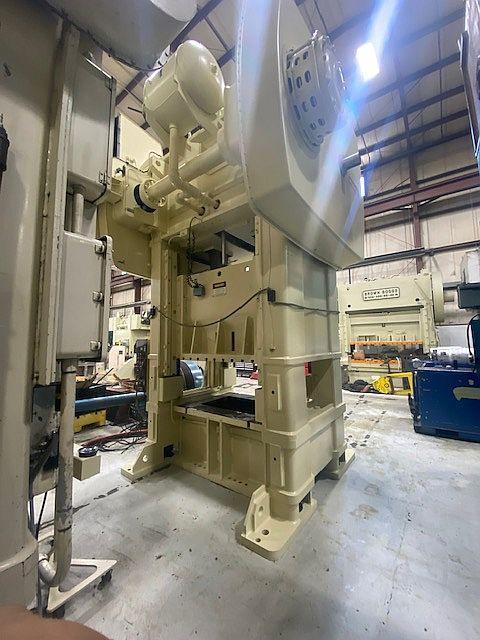

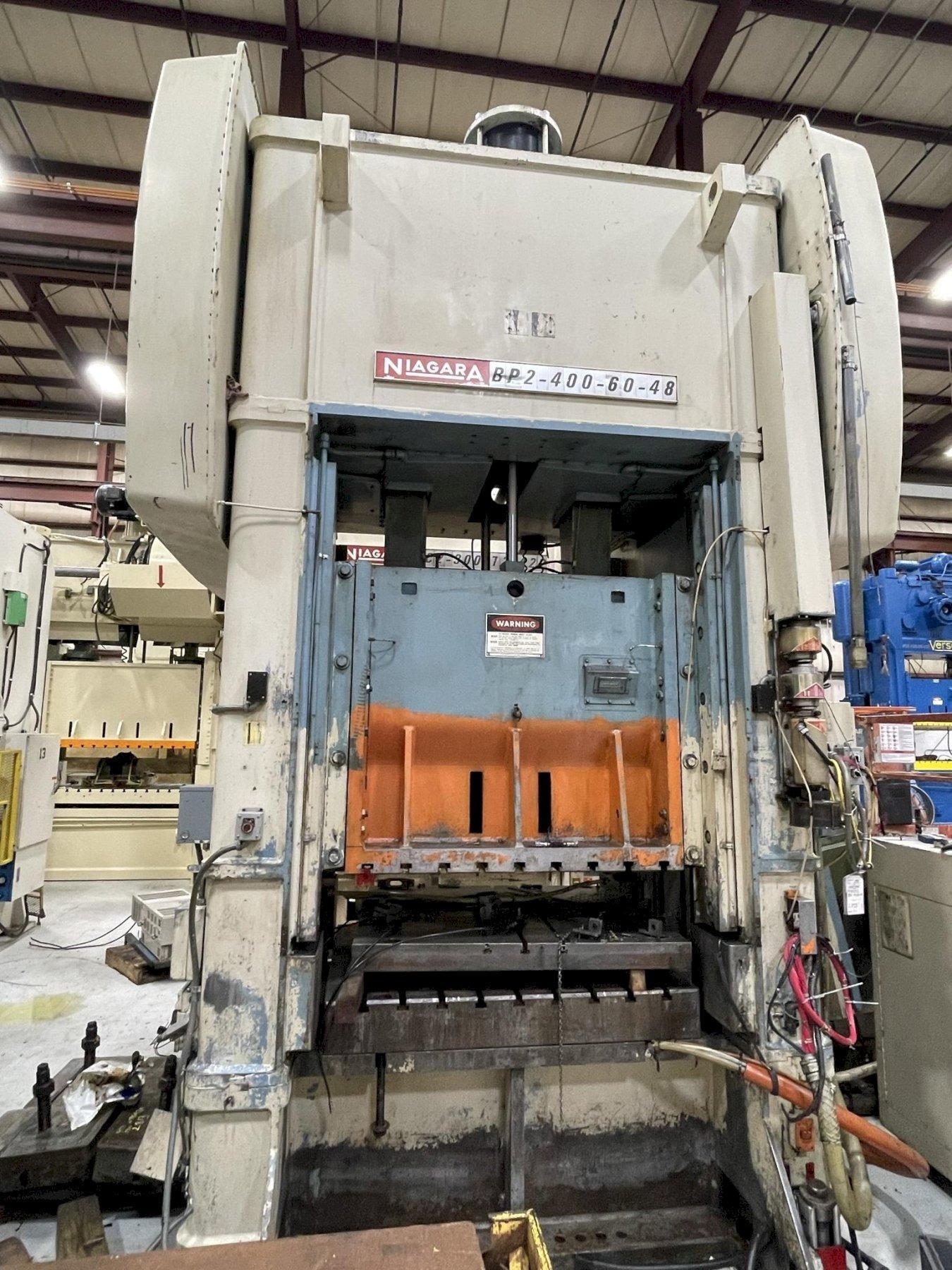

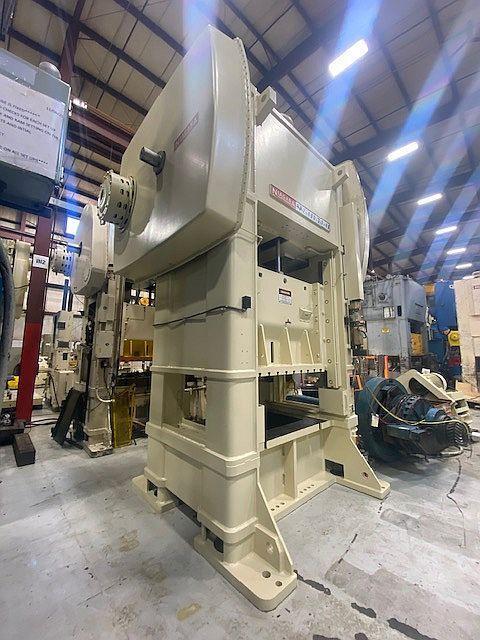

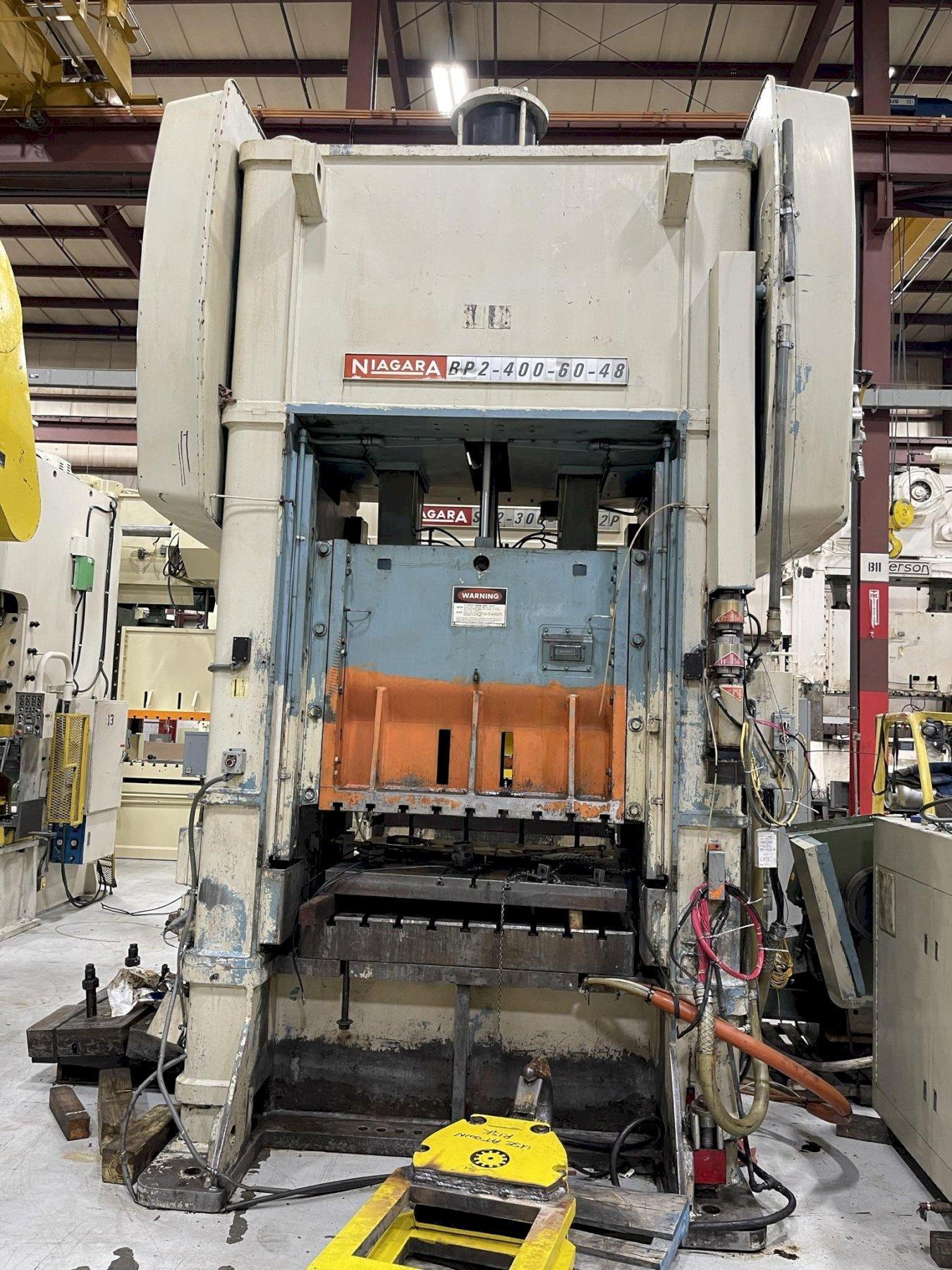

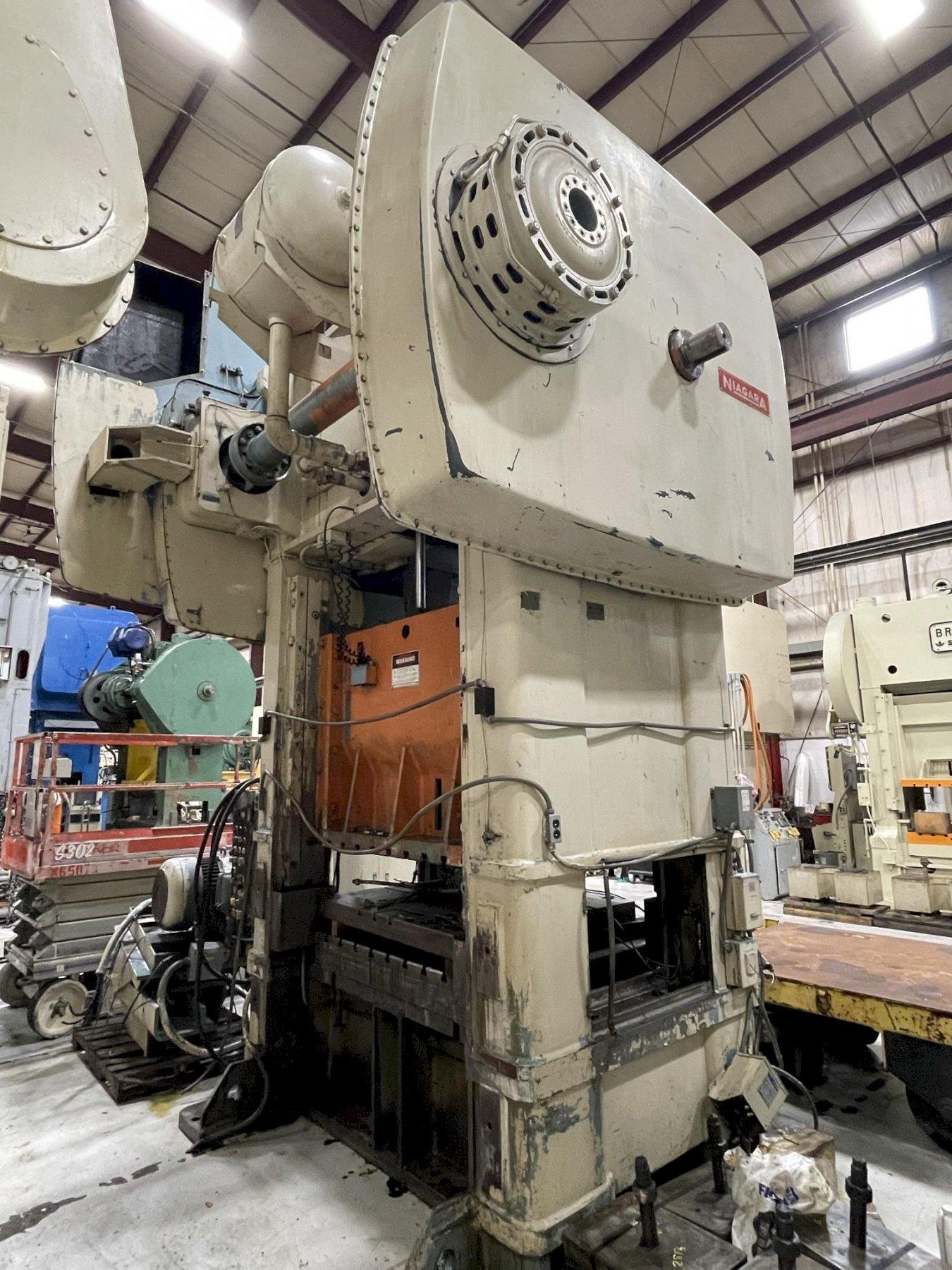

400 ton Niagara BP2-400-60-48 Used Straight Side Mechanical Metal Stamping Press For Sale, Year

Stock

2813

Model

BP2-400-60-48

Dealer Location

Michigan

Spec Sheet

Tonnage - 400
Stroke - 10 inches
Shut Height - 31.5 inches
Adjustment - 14 inches
Bed Size - 60" LR x 48" FB
Ram Area - 60" LR x 48" FB
SPM - 20-60 VSPM


Standard Specifications
Used 400-ton Niagara Press Model# BP2-400-60-48
Straight Side Double Crank Mechanical Press
400 ton Capacity
10" Stroke
31.5" Shut Height On Bed
14" Motorized Adjustment
60" LR x 48" FB Bed Area
60" LR X 48" FB Slide Area
20-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Presswatch PW "Plus" Production Monitor
35" Wide Windows
Free Standing Master Operators Station
Die Safety Blocks, Plugs and Receptacles
38" Floor To Top of Bolster
Floor Standing Design

Dimension:
Approximate Weight: 82,500 lbs.
Maximum Height Above Floor 217" Tall
Foot Print: 95.25" LR x 95" FB

This Used 400-ton Niagara Press can be seen under power in the S&G Press Livonia MI warehouse!

Used 400-ton Niagara Straight Side Press For Sale

No Video Available

Want to request a quote from the owner of this listing?

Request a Quote
