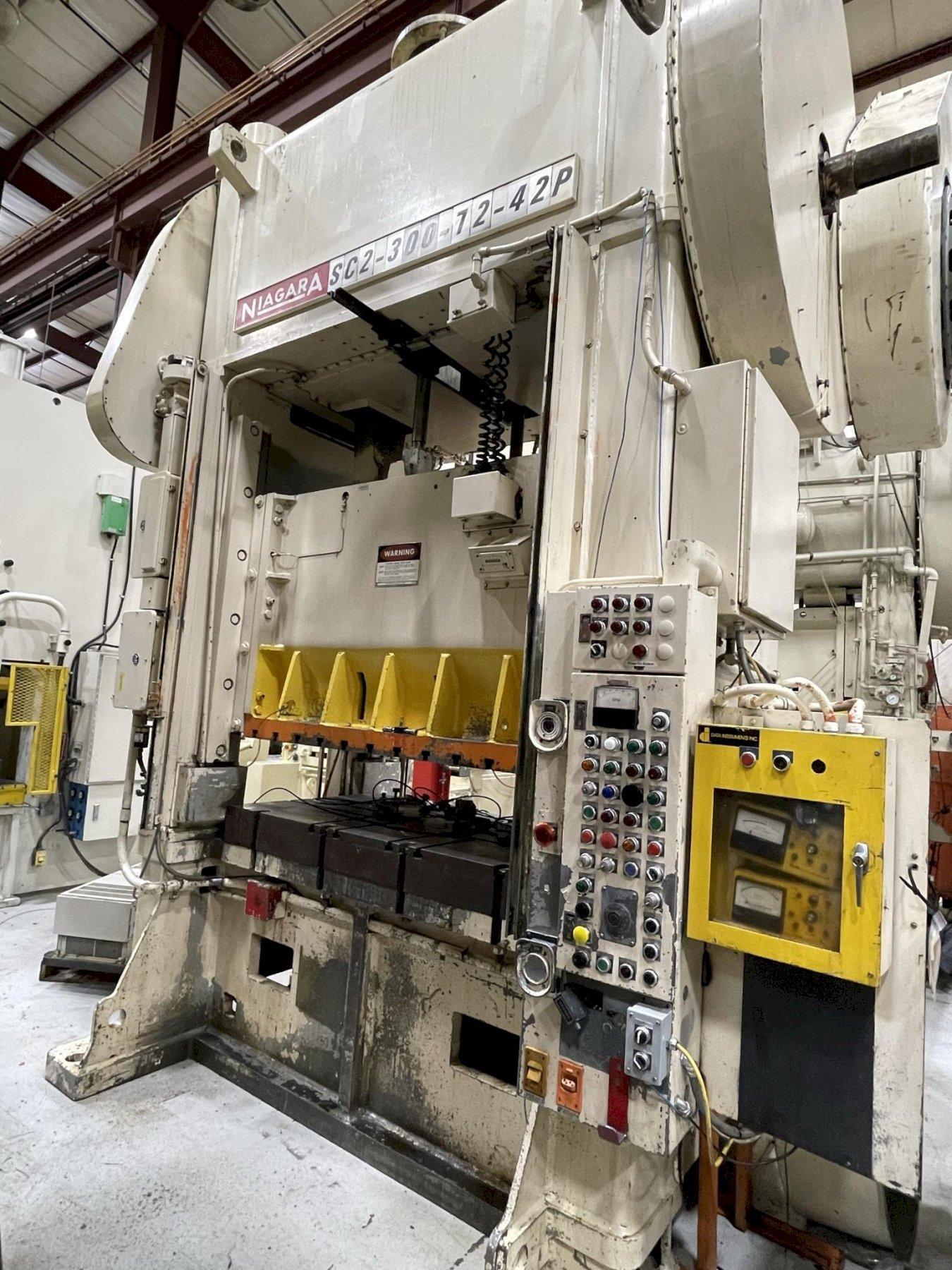

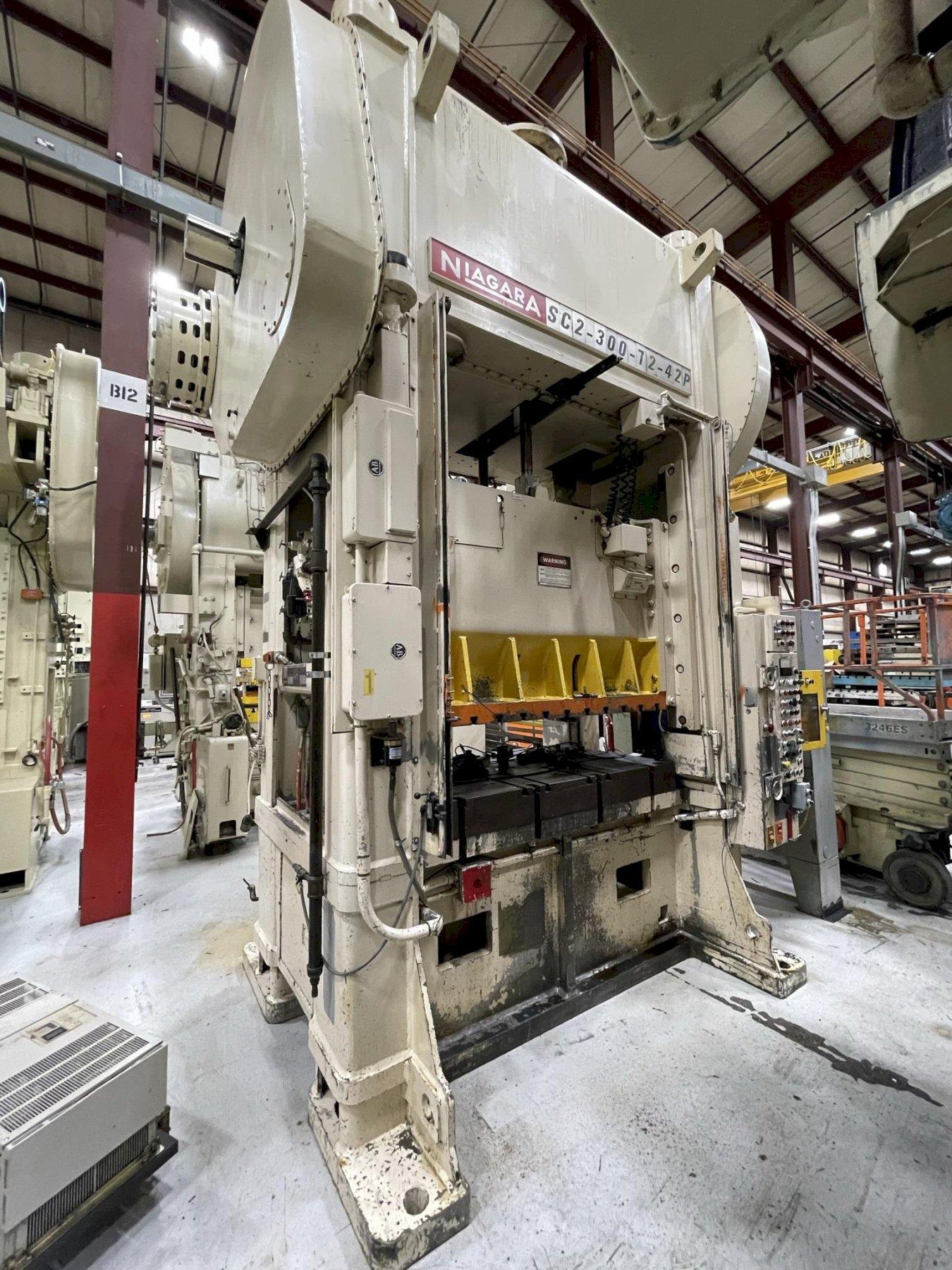

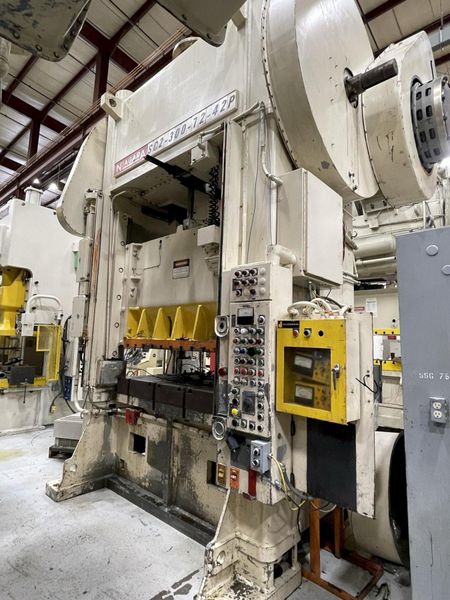

300 ton Niagara SC2-300-72-42P Used Straight Side Double Crank Mechanical Metal Stamping Press F

Stock

2814

Model

SC2-300-72-42

Dealer Location

Michigan

Spec Sheet

Tonnage - 300
Stroke - 8 inches
Shut Height - 27 inches
Adjustment - 12 inches
Bed Size - 72" LR x 42" FB
Ram Area - 72" LR x 42" FB
SPM - 30 - 60 VSPM


Standard Specifications

Used Niagara Press Model# SC2-300-72-42
Straight Side Mechanical Press
300 ton Capacity
8" Stroke
21" Die Height on Bolster
27" Shut Height on Bed
12" Adjustment
72" LR x 42" FB Bed Area
72" LR x 42" FB Slide Area
30-60 VSPM

Equipment and Features
Air Clutch and Brake
Air Counterbalances
Trabon Recirculating Lube System
Hydraulic Tie Rod Nuts
T-Slotted Ram and Bolster
6" thick Bolster Plate
50 HP Adjustable Speed Drive
7" Vibro Dynamic Floor Pads (not included in height)
32" Wide Windows
Free Standing Console Control
Floor Standing

Overall Press Height: 207.5"
Foot Print:  105.25" Wide x  85" Depth
Weight:  90,000 lbs.

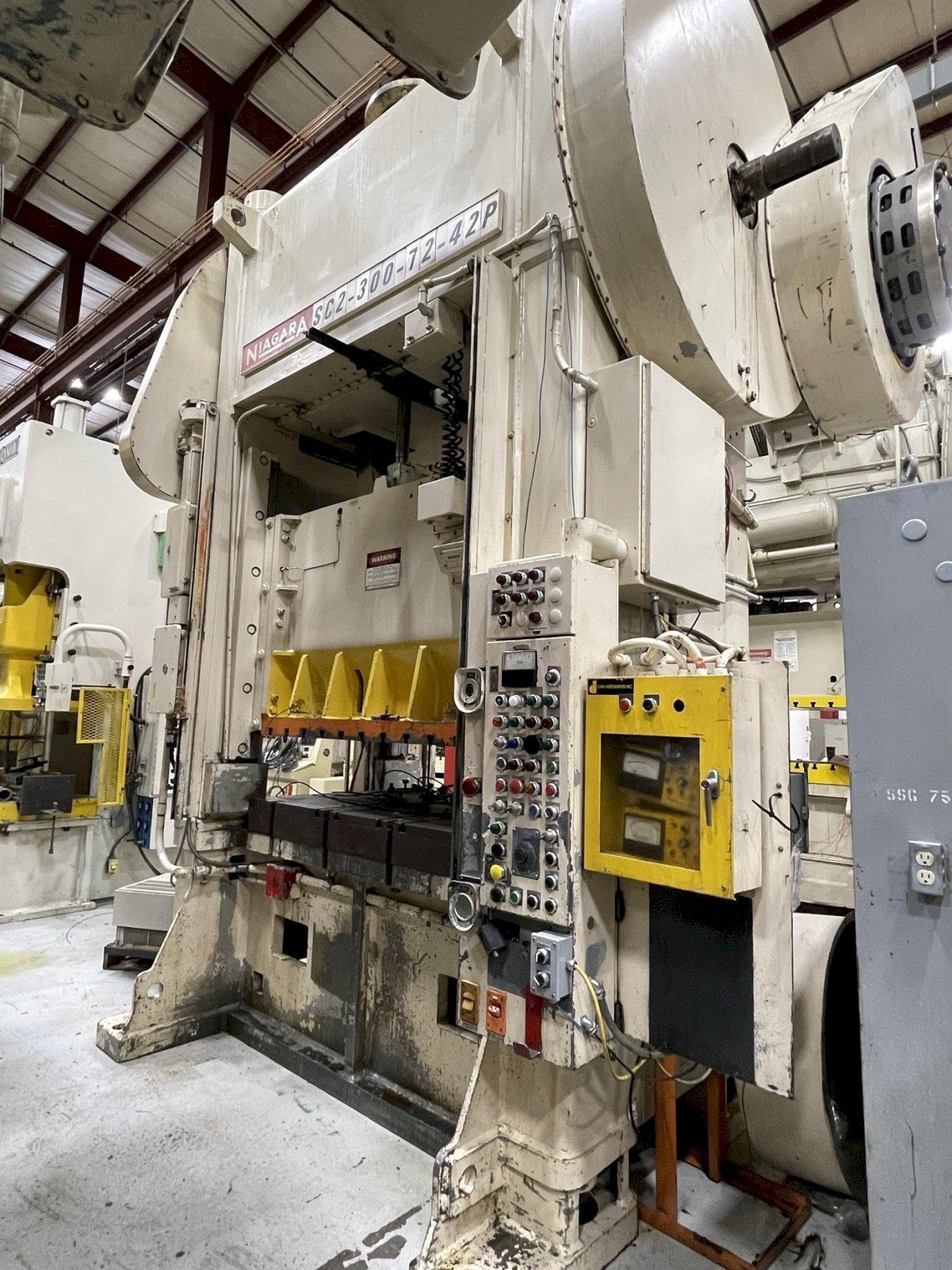

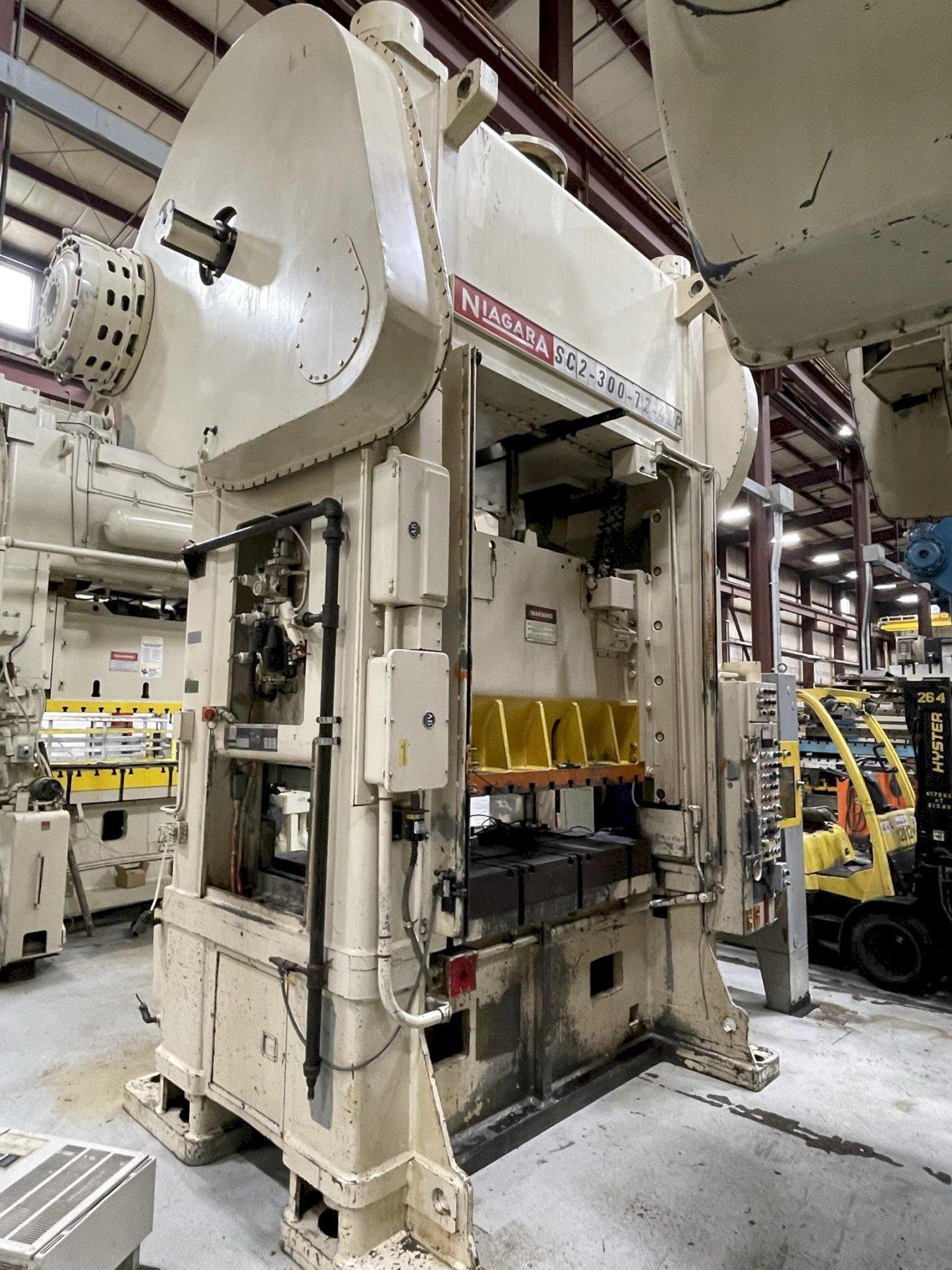

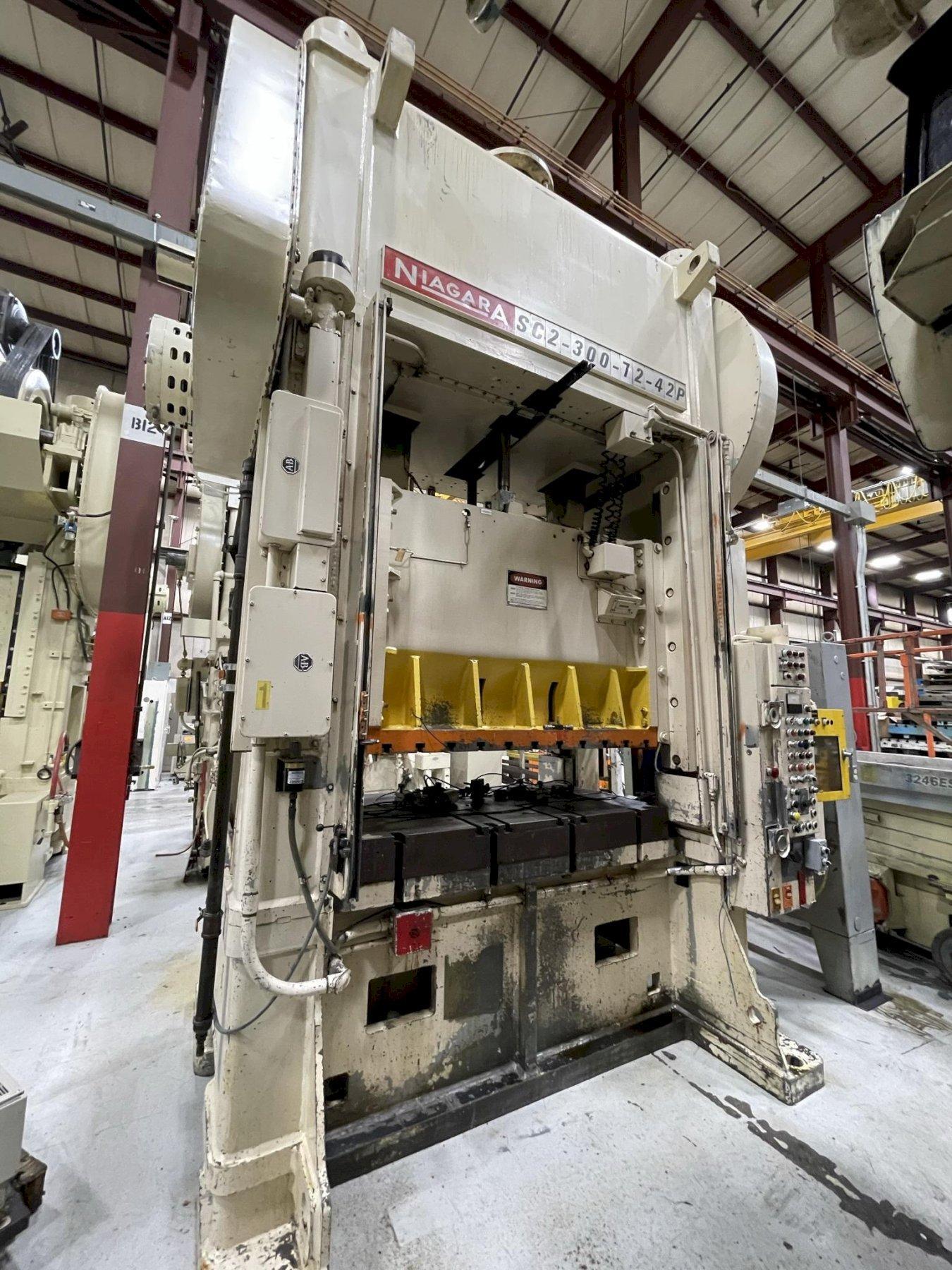

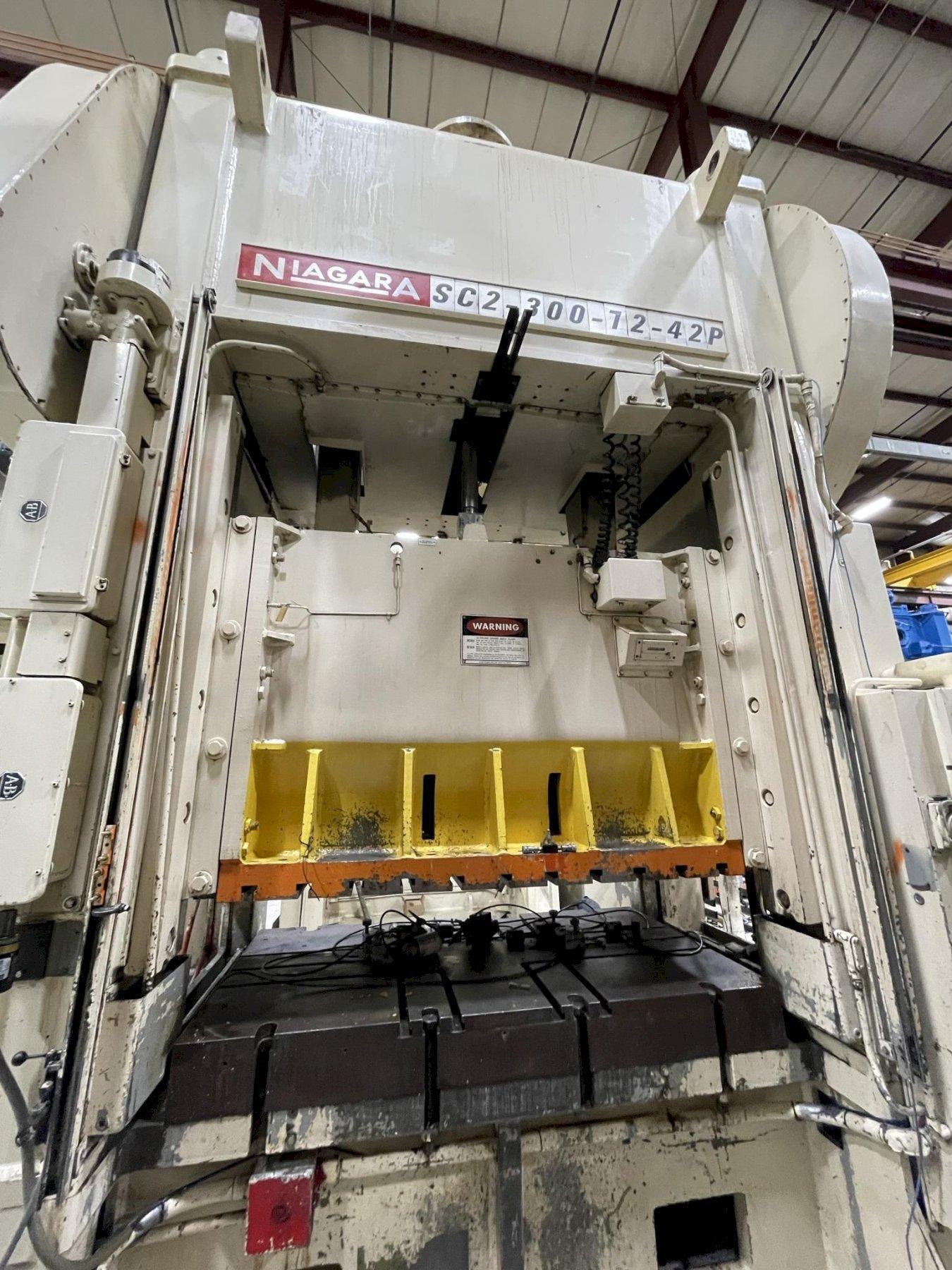

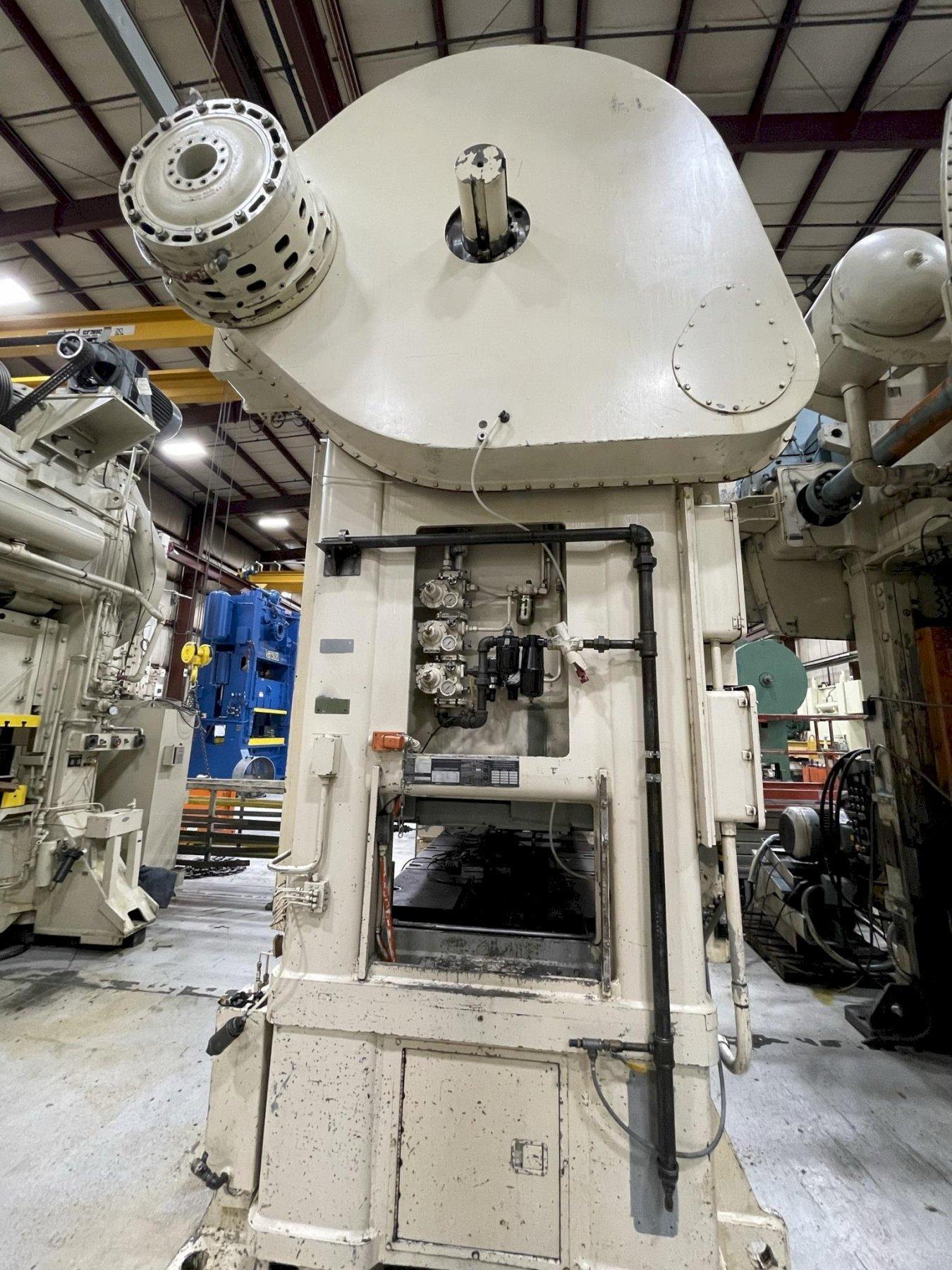

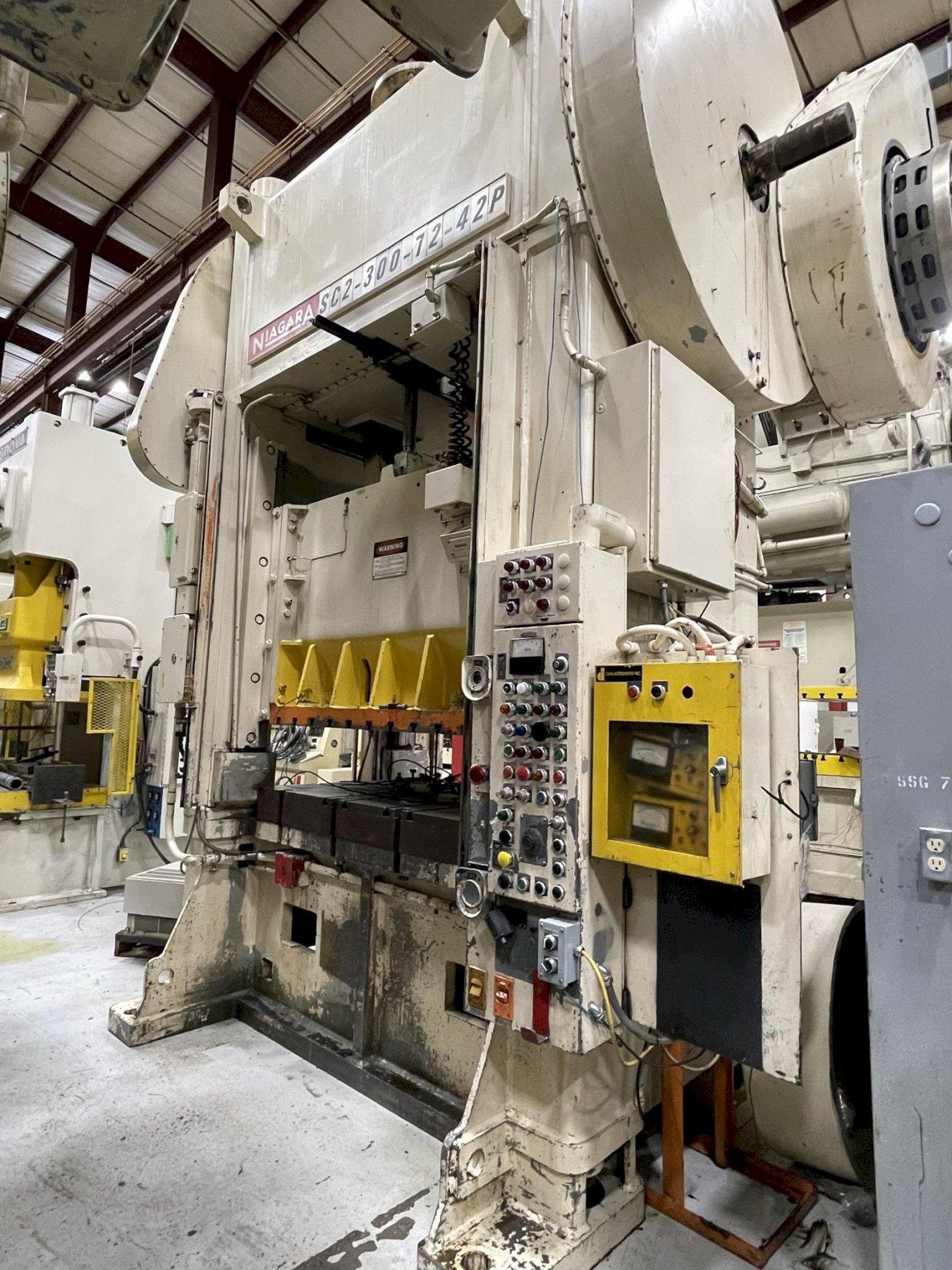

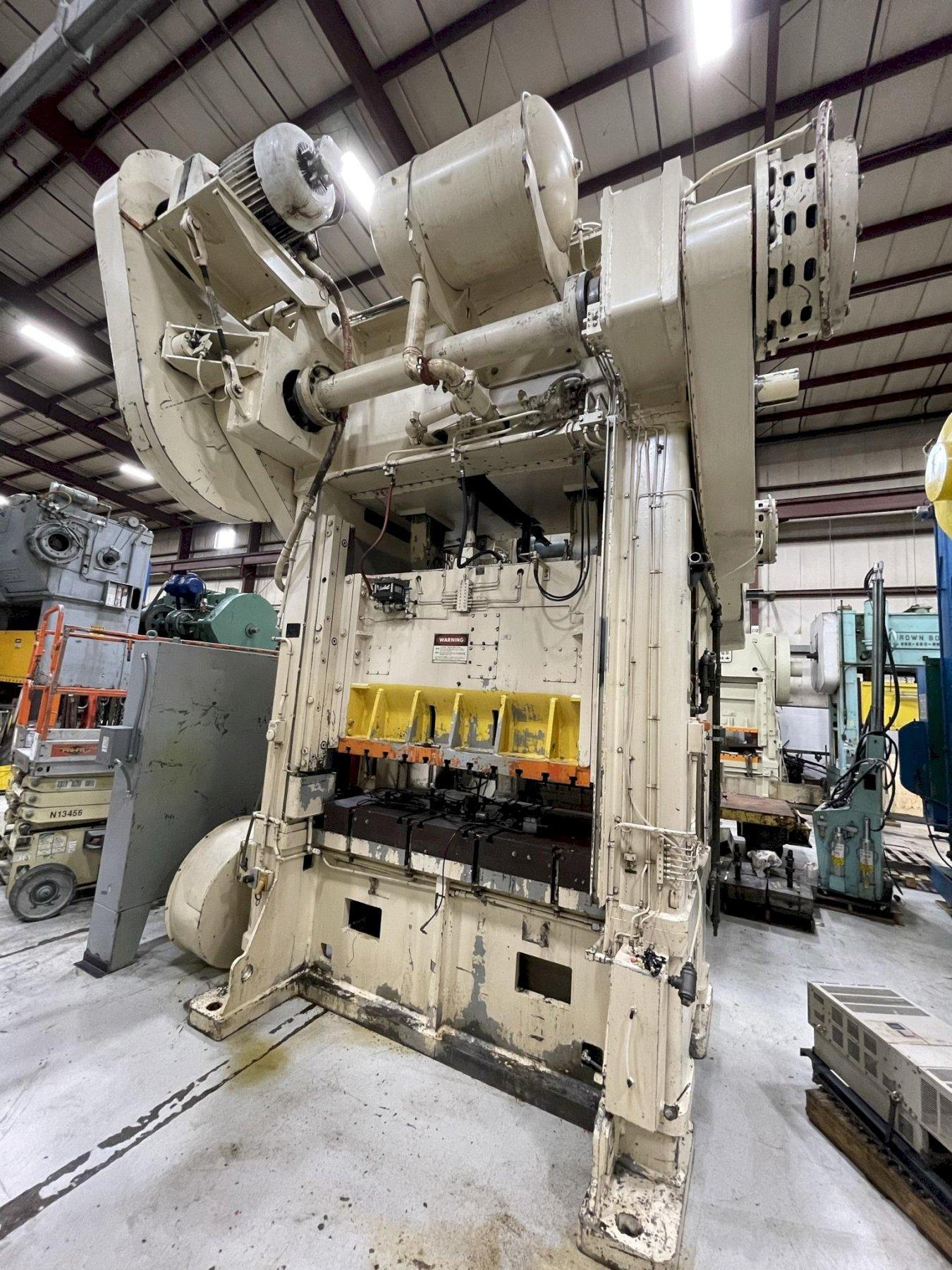

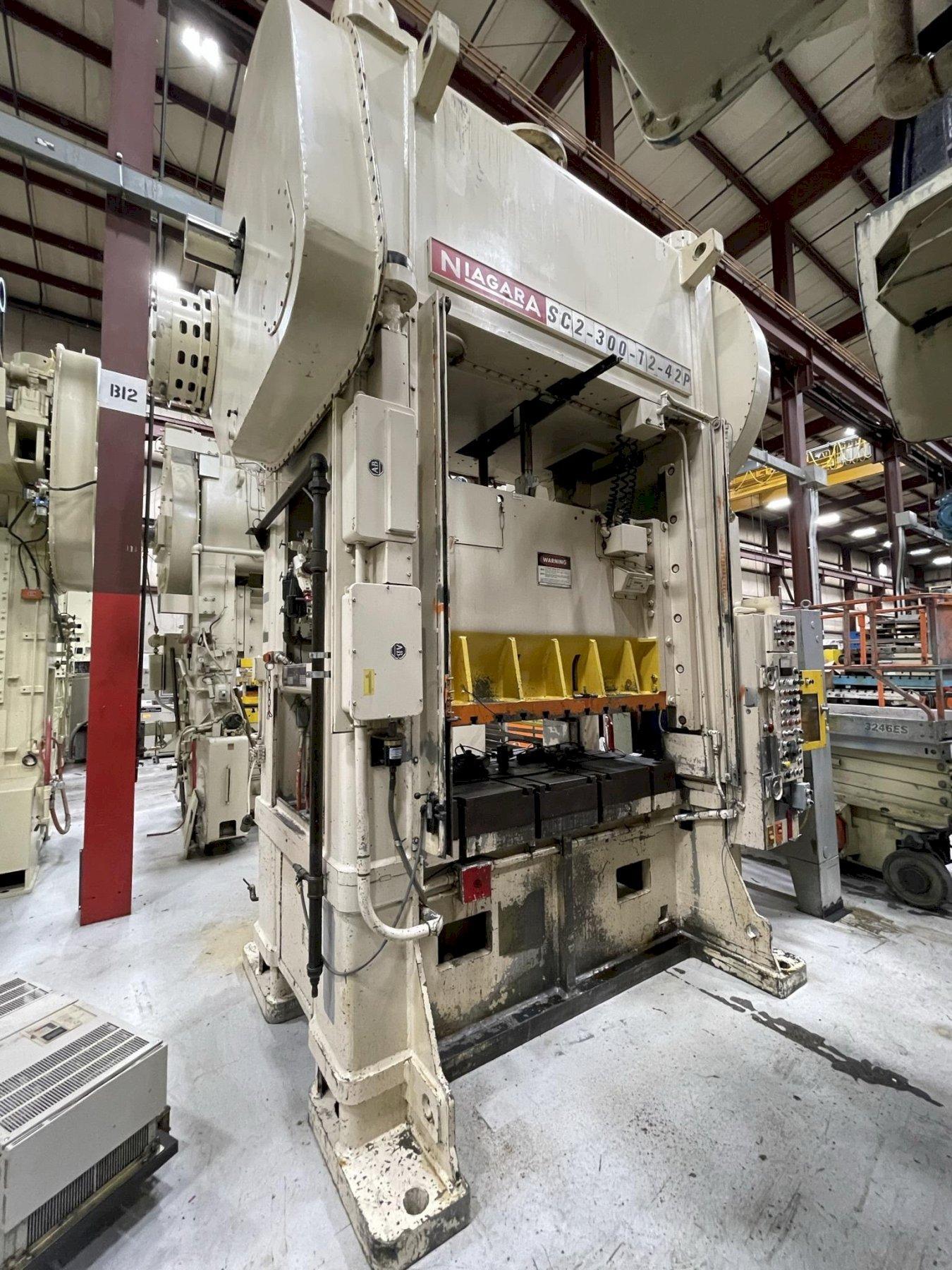

This 300-ton Niagara Press can be seen under power in the S&G Press Livonia Michigan Warehouse!
