FICEP 1103 DDV Drill, (3) 22 HP Drill Heads w/ 6-ATC, 22 HP, 65' Max Length, Ficep Pegaso CNC, Conveyor, 2015 #32160

Manufacturer

FICEP

Category

Miscellaneous Machines

Type

BEAM/DRILL LINES, CNC

Stock

32160

Model

1103 DDV

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32160

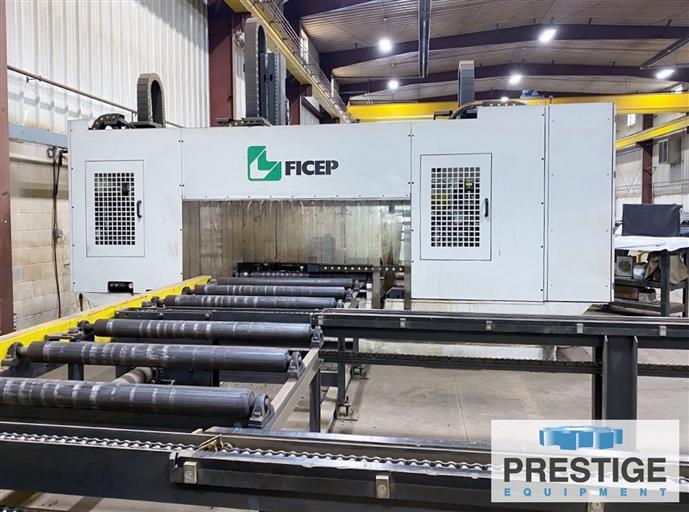

Ficep 1103 DDV 3-Spindle CNC Drill Line With Material Handling

FEATURES:
Ficep Pegaso CNC Control
(3)22 HP Drill Heads Each With 6-Station ATC
Underside Scribing

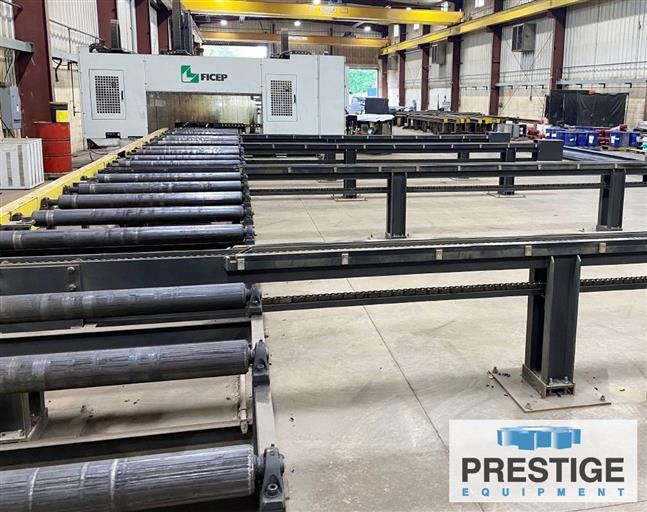

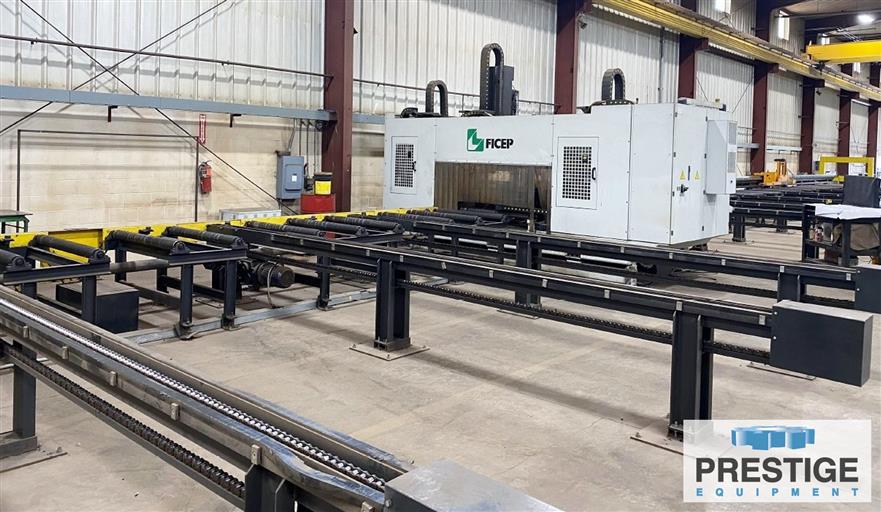

Infeed & Outfeed Drag Type Transfer Tables
Infeed & Outfeed Conveyor For Sections Up To 65' Long

CAPACITY:
ALL-BEAMS:
Min. Beam Depth ...................... 3-1/8"
Max. Beam Depth ...................... 44"
Min. Flange Height ................... 3/8"
Max. Flange Height ................... 19-3/4"
Min. Length To Be Transferred ........ 98"
Min. Length To Be Transferred ........ 65'
I-BEAMS (Without Camber):
Min. Beam Depth ...................... 3-1/8"
Max. Beam Depth ...................... 44"
Min. Flange Height ................... 1-5/8"
Max. Flange Height ................... 19-3/4"
CHANNELS (With Flanges Oriented Downward):
Min. Channel Depth ................... 3-1/8"
Max. Channel Depth ................... 44"
Min. Flange Height ................... 1-3/4"
Max. Flange Height ................... 11-3/4"
ANGLES:
Min. Leg Height ...................... 3-1/8" x 3-1/8" x 3/8"
Max. Leg Height ...................... 10" x 10" x 1-9/16"
FLATS:
Min. Width ........................... 4"
Max. Width ........................... 43-1/4"
SQUARE TUBES:
Min. Size ............................ 3-1/8" x 3-1/8"
Max. Size ............................ 19-3/4" x 19-3/4"
RECTANGULAR TUBE:
Min. Size ............................ 3-1/8" x 1-9/16"
Max. Size ............................ 44" x 17-3/4"
DRILLING:
No. Of Vertical Drill Heads .......... 1
No. Of Horizontal Drill Heads ........ 2
Spindles Per Drill Head .............. 1
Max. Hole Diameter ................... 1-9/16"
Spindle Rotation Motor Per Head ...... 22 HP
Spindle Speeds, Infinitely Variable .. 180 - 5000 RPM
Max. Carriage Speed .................. 164 FPM
Passline ............................. 33-1/2"
Max. Section Weight .................. 11,900 Lbs
Max. Weight Per Foot ................. 147 LBS/FT

EQUIPPED WITH:

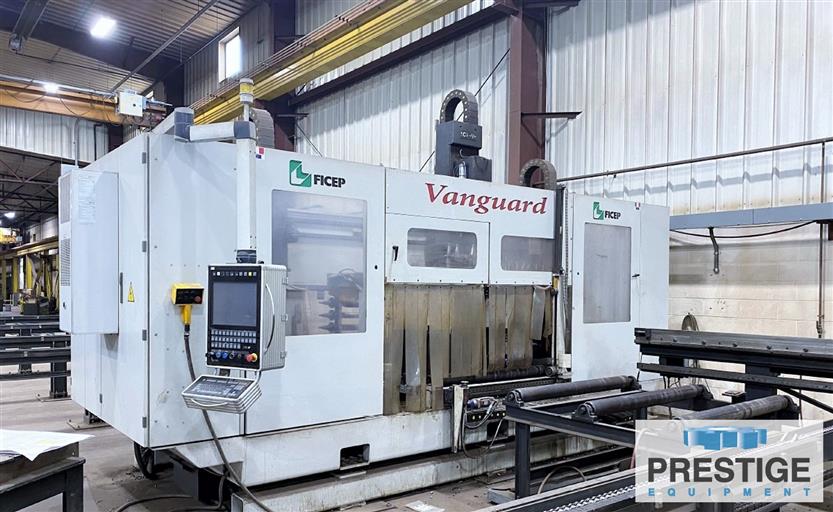

Ficep Pegaso CNC Control
(2)Horizontal & (1) Vertical Drill Heads Each With 6-Station ATC
Hydraulic Double Jaw Vice Assembly
Underside Scribing
Infeed & Outfeed Drag Type Transfer Tables
Infeed & Outfeed Conveyor For Sections Up To 65' Long

NOTE:
Inspect in Plant

No Video Available
