KEARNS & RICHARDS CNC TABLE TYPE HORIZONTAL BORING MILL

Manufacturer

KEARNS & RICHARDS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, TABLE TYPE, CNC

Stock

20069

Model

125L

Dealer Location

Pennsylvania

Price

$159,500.00

Request a Quote
View Contact Information

Spec Sheet

KEARNS & RICHARDS CNC TABLE TYPE HORIZONTAL BORING MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $159,500.00

HMC Stock # 20069-P
Machine Serial No.: 7297
Machine Model No.: 125L
Rebuilt and Retrofit: 2012

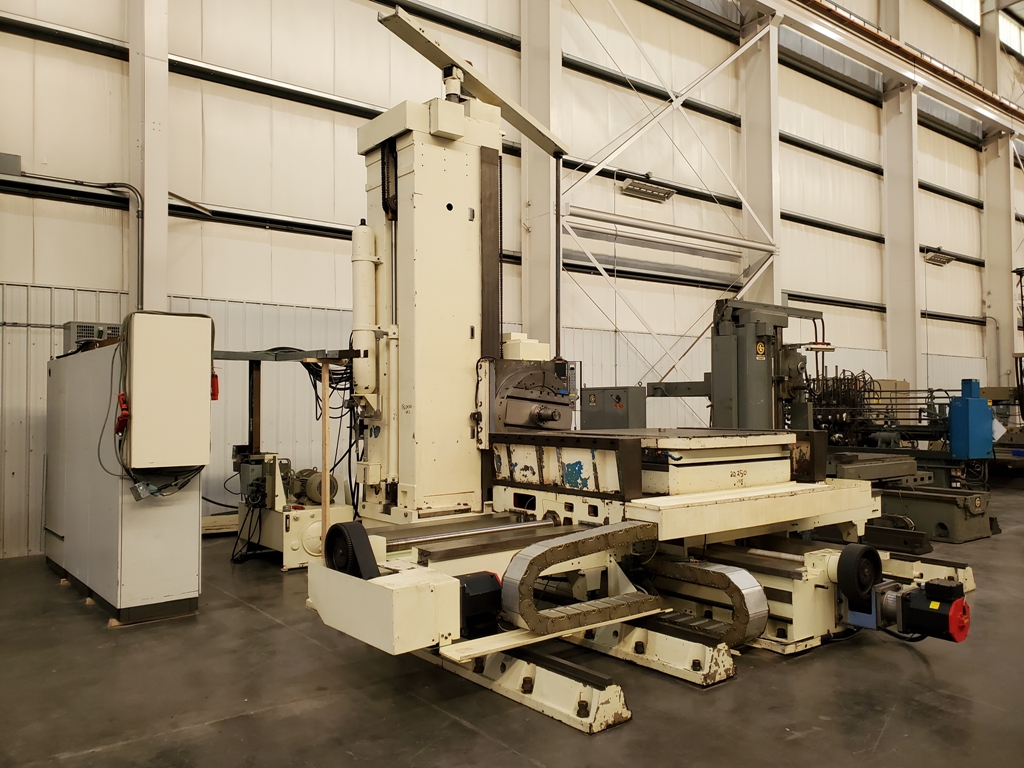

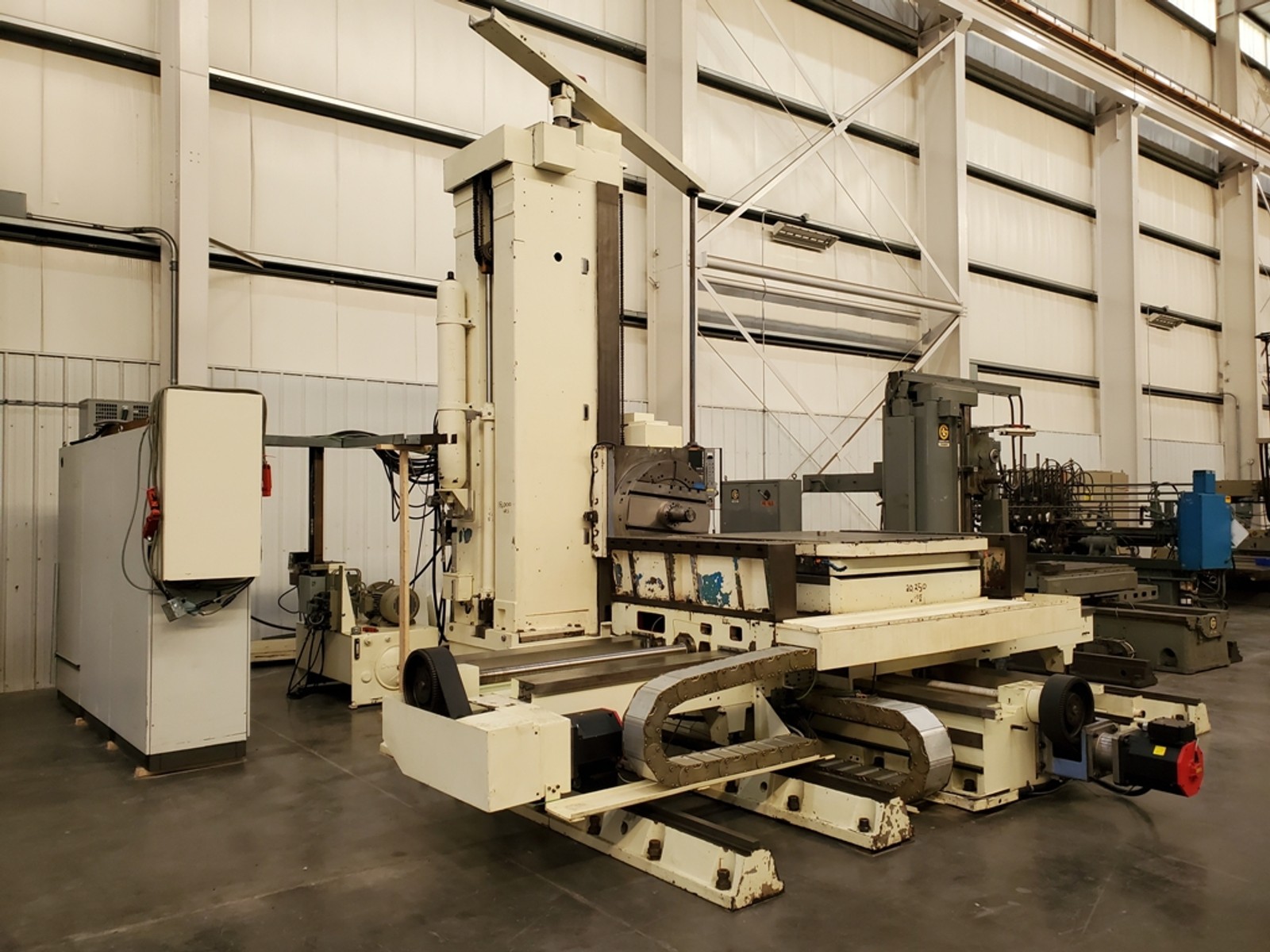

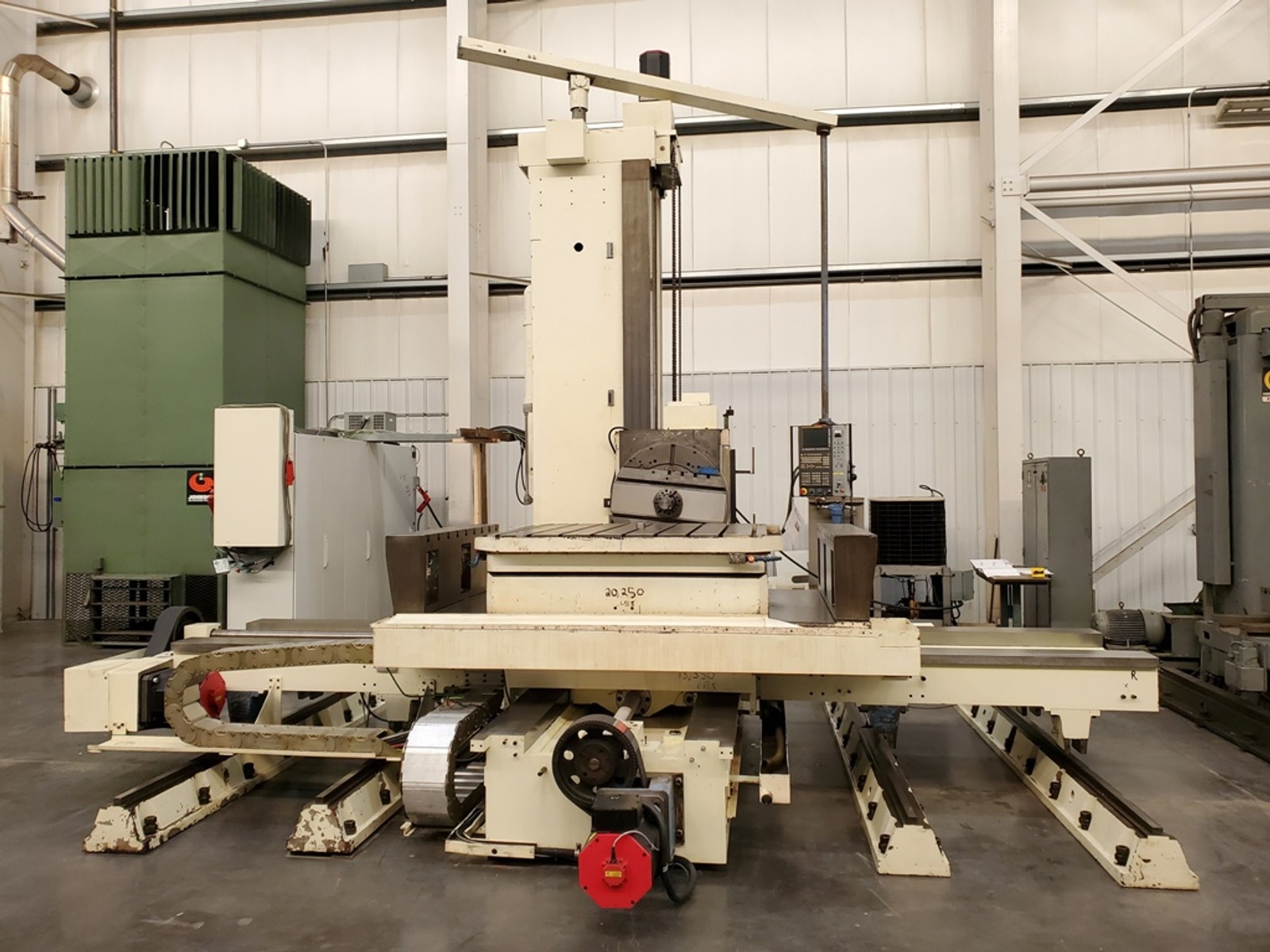

Pictures Show the Machine Without Guarding. We Do Have the Guarding.

Spindle Diameter: 4.92"
Table Size: 60" x 60"
Travels: X: 90.98"
Y: 71.20" (Vertical)
Z: 28" (Quill)
W: 58.70" (Saddle)
U: 7.60" (Facing Head)
Spindle Taper: #50
Spindle Speeds: Max. Speed Low Gear: 182 RPM
Max. Speed High Gear: 1230 RPM
Facing Head Speeds: Max. Speed Low Gear: 37 RPM
Max. Speed High Gear: 247 RPM

EQUIPPED WITH:

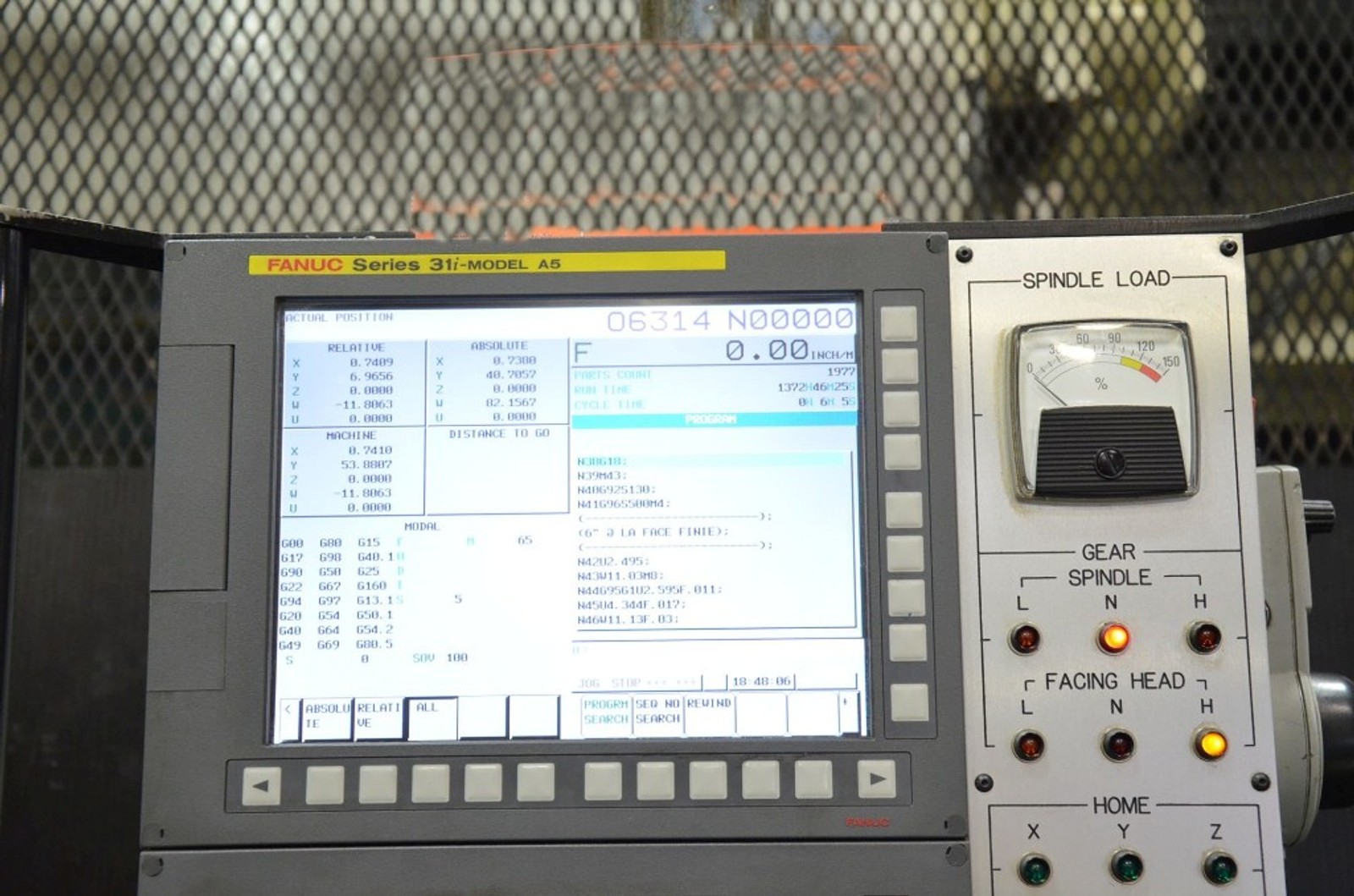

2012 Retrofit with Fanuc 31i-Model A5 5-Axis CNC Control
M-Code Features (Including But Not Limited To):
Flood Coolant
Coolant Thru Spindle
Spindle Orientation
Stop, Reset, Rewind
Facing Head Orientation: 0, 90, 180, 270 Degrees
Table Indexing: 90, 180, 270, 360 Degrees (Incremental)
Mirror Image: X, Y, Z
(4) Table Outriggers
Hydraulic System and Chiller
Control Cabinet
Steel Way Covers

Manuals for the following Machine Up Grades:
Electrical Schematic
PMC Program
Safety Unit
CNC Parameter List
Subroutines
M Codes List
General Documentation
Mechanical Schematics
Kearns & Richard Parts List

Individual Component Weights for Shipping:
Column: 18,000 Pounds

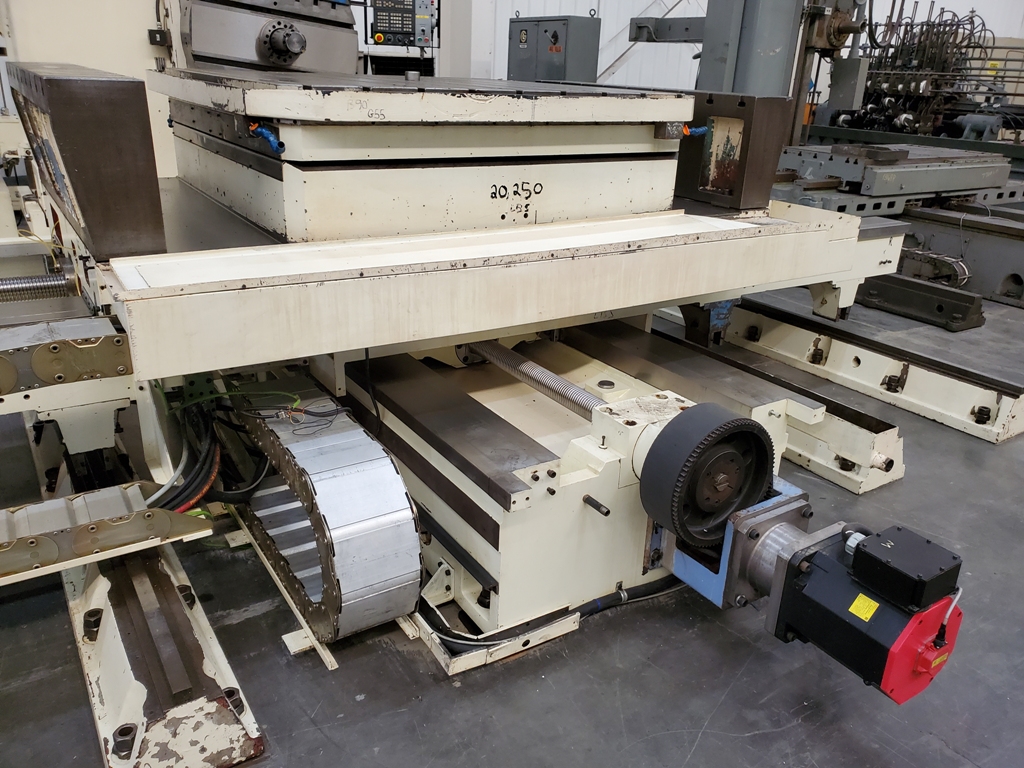

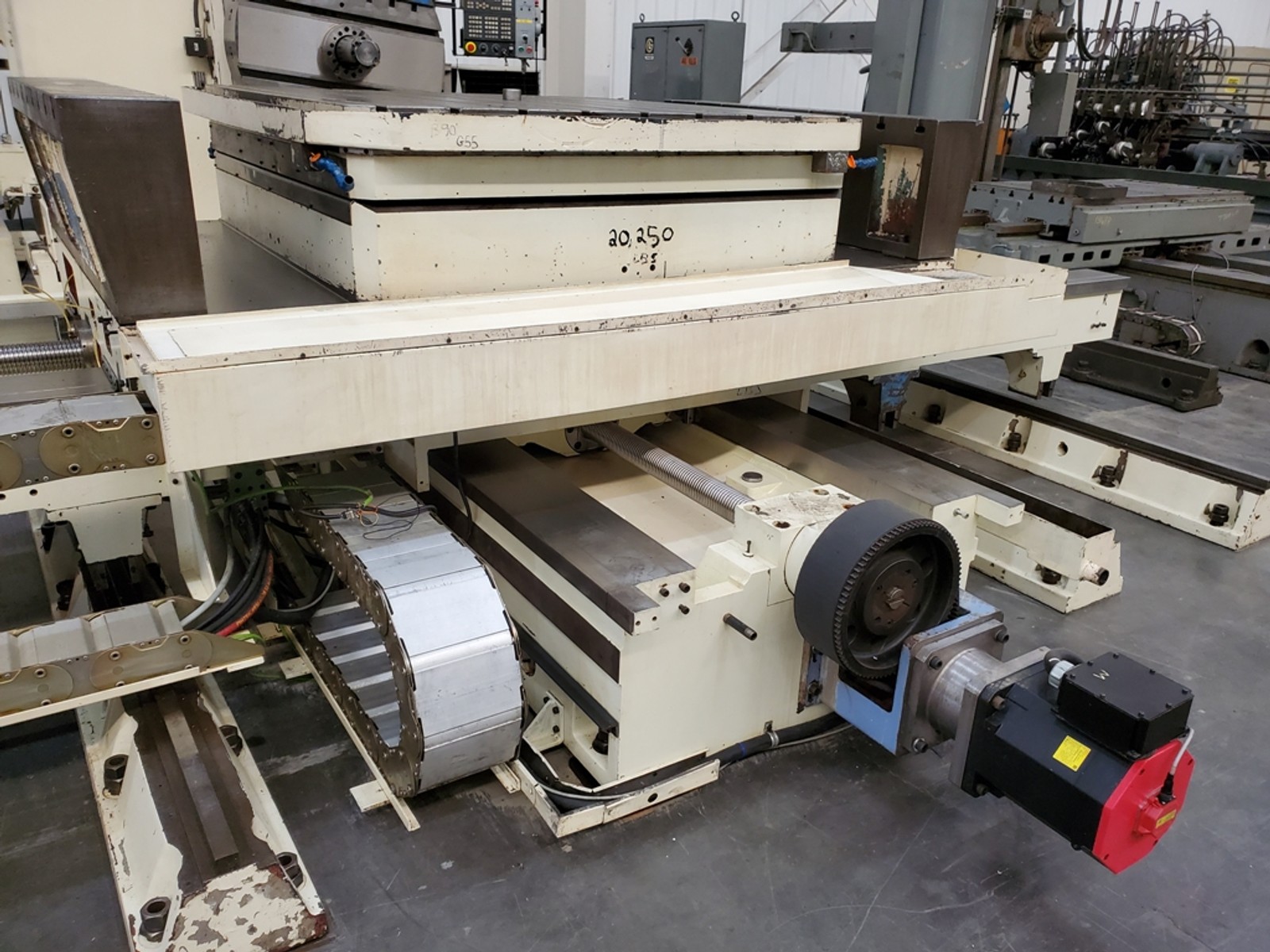

Table: 20,250 Pounds
Saddle: 13,350 Pounds
Head: 11,400 Pounds
Base: 12,500 pounds
Electrical Cabinet: 2,000 Pounds

Rebuilder for this Machine: DiPaolo Machine Tools. Nelson Martins | President
see: https://www.dipaolocnc.com

Control Retrofitter for this Machine: Velan Process Automation
Note: Fives (www.fivesgroup.com) is Now Supporting Kearns Richard Machines

CD Disc with Copies of All Manuals and Schematic. Contact Us to Request a Copy

THIS MACHINE CAN BE INSPECTED UNDER POWER IN OUR WAREHOUSE, YORK, PA

Condition Is Excellent

No Video Available
