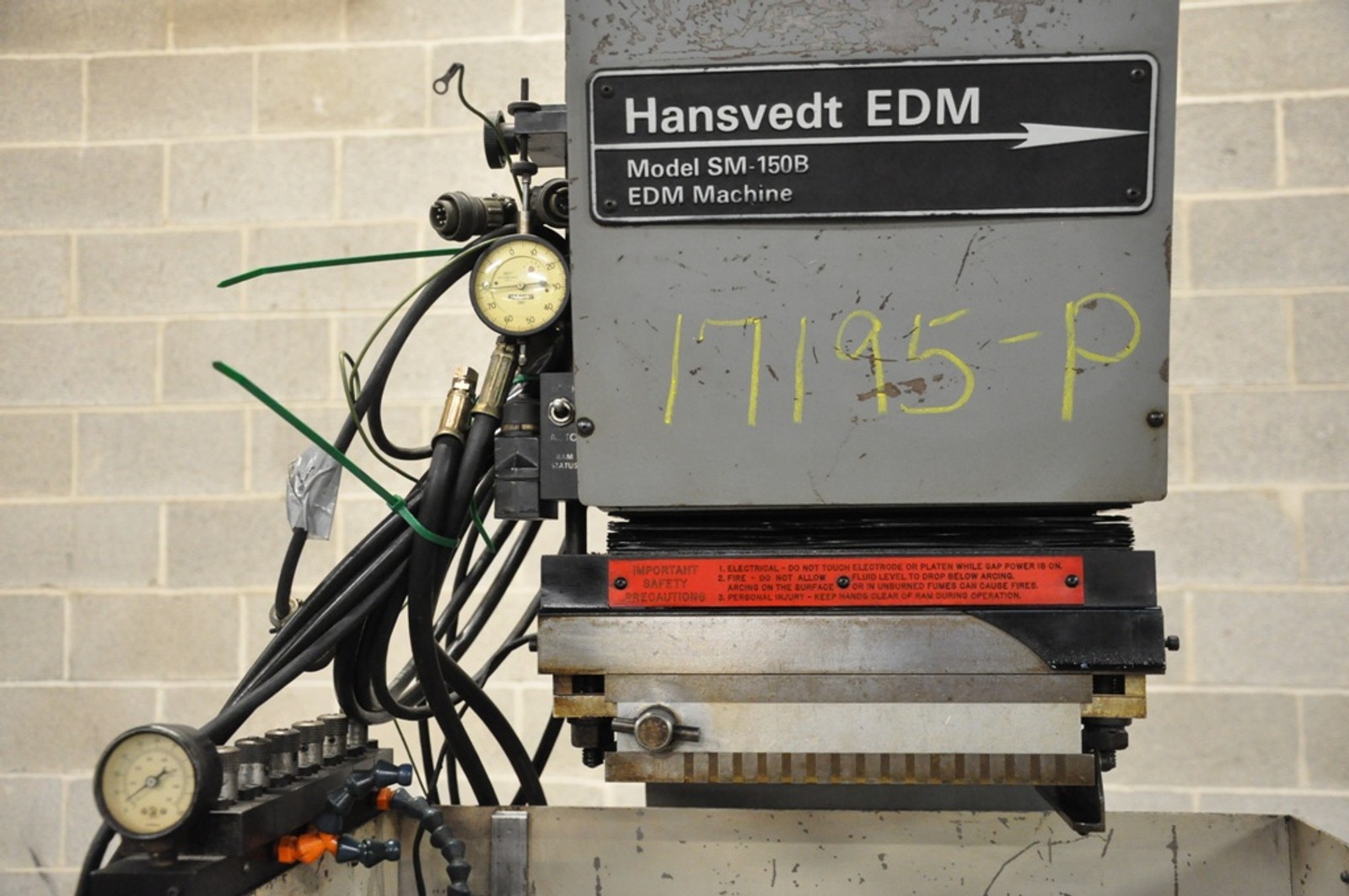

20 AMP HANSVEDT RAM TYPE EDM, BENCH TOP

Manufacturer

HANSVEDT

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, CONVENTIONAL, (Ram Type, Sinker)

Stock

17195

Model

SM-150B

Dealer Location

Pennsylvania

Price

$3,950.00

Request a Quote
View Contact Information

Spec Sheet

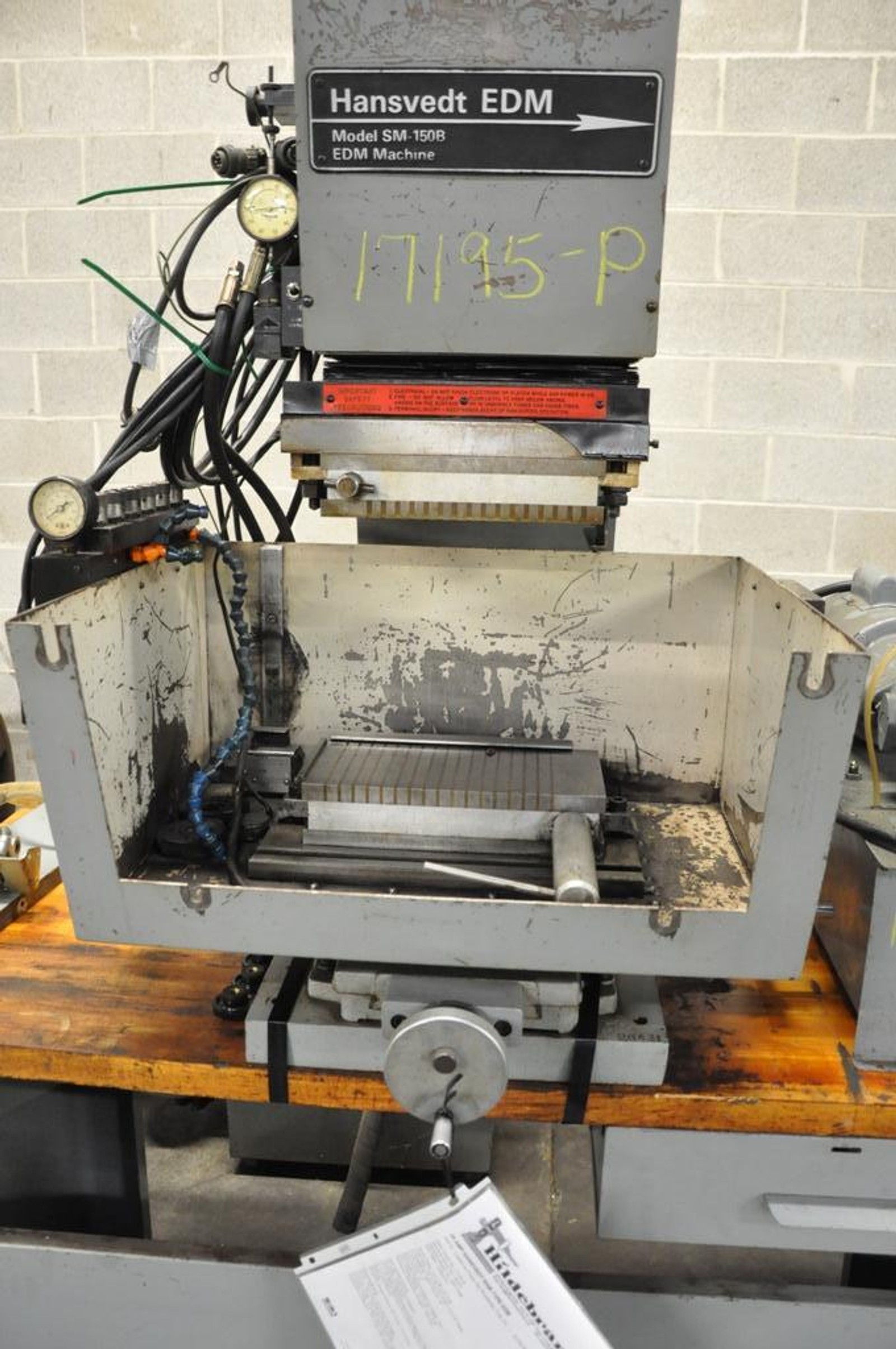

20 AMP HANSVEDT RAM TYPE EDM
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00

HMC Stock No. 17195-P
Machine Serial No. 26639
Machine Model No. SM-150B
New Date: Unknown

Work Table: 15" L-R x 9" F-B

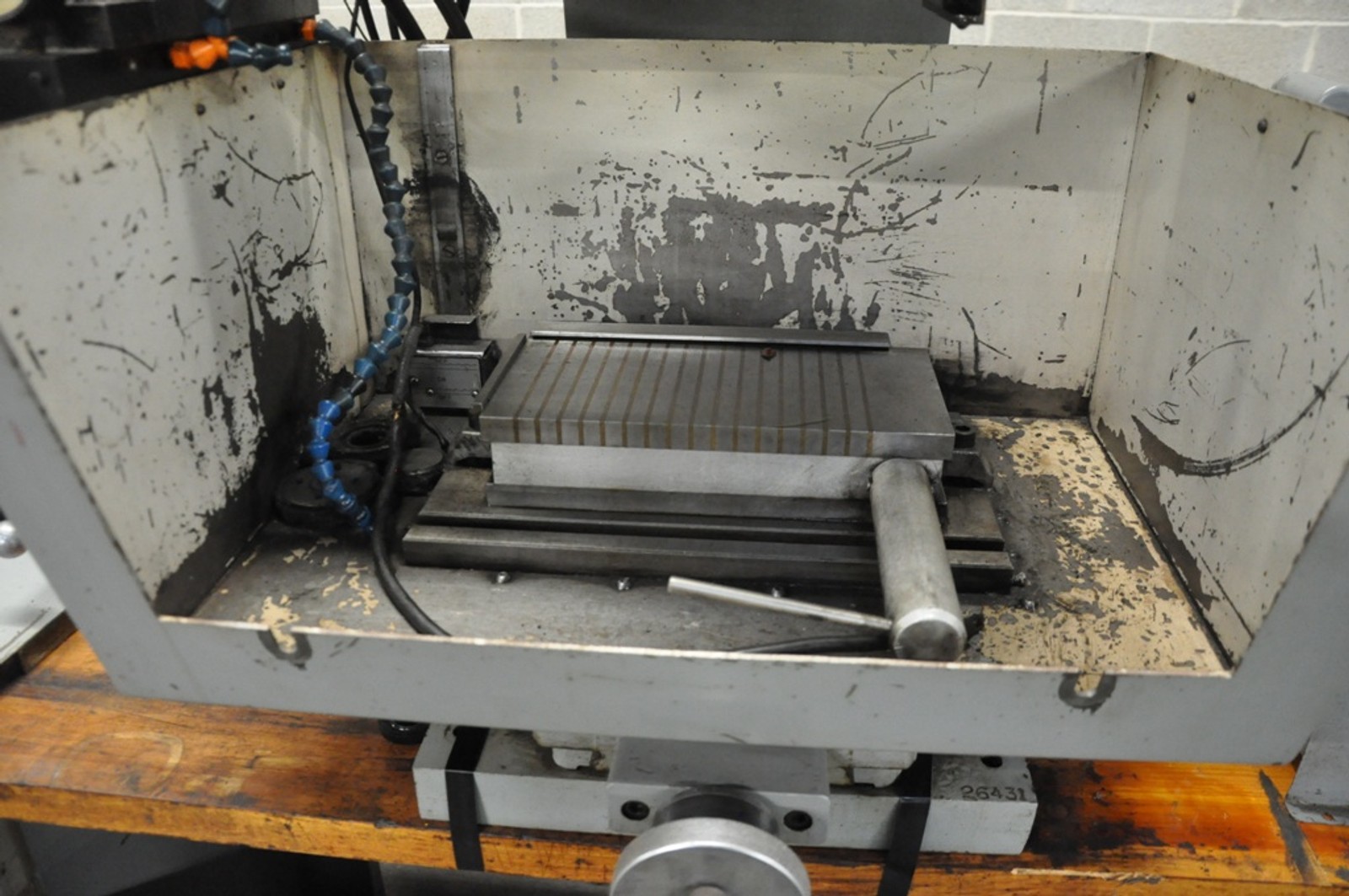

Tank Size: 24" L-R x 16" F-B x 11-1/2" Deep
Longitudinal Table Travel: 8"
Cross Travel: 6"
Ram Travel: 6"
Maximum Distance Platen to Table: 16"
Size of Ram Platen: 13" L-R x 5" F-B
Maximum Electrode Weight: 300 Lbs.

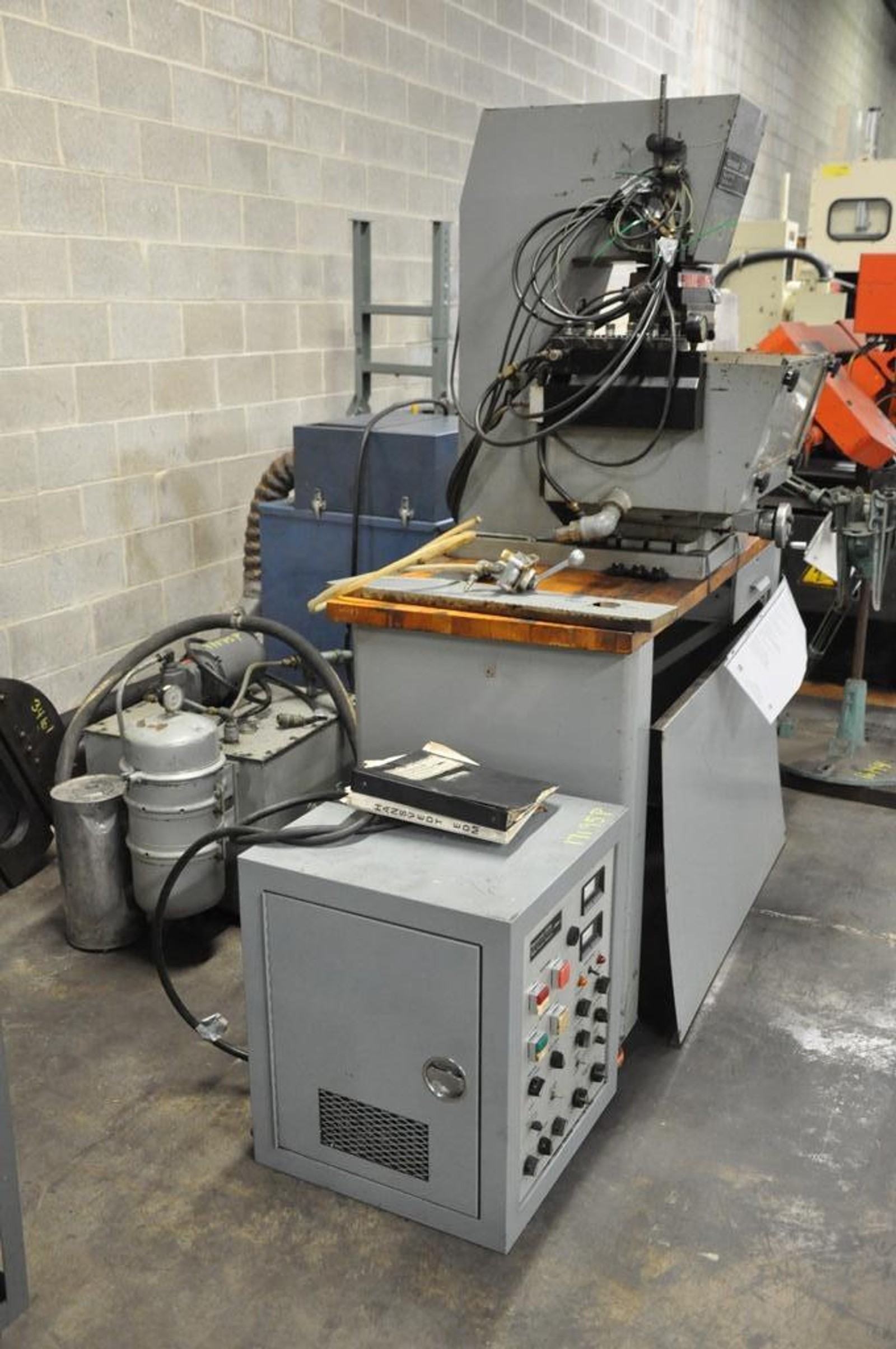

EQUIPPED WITH:

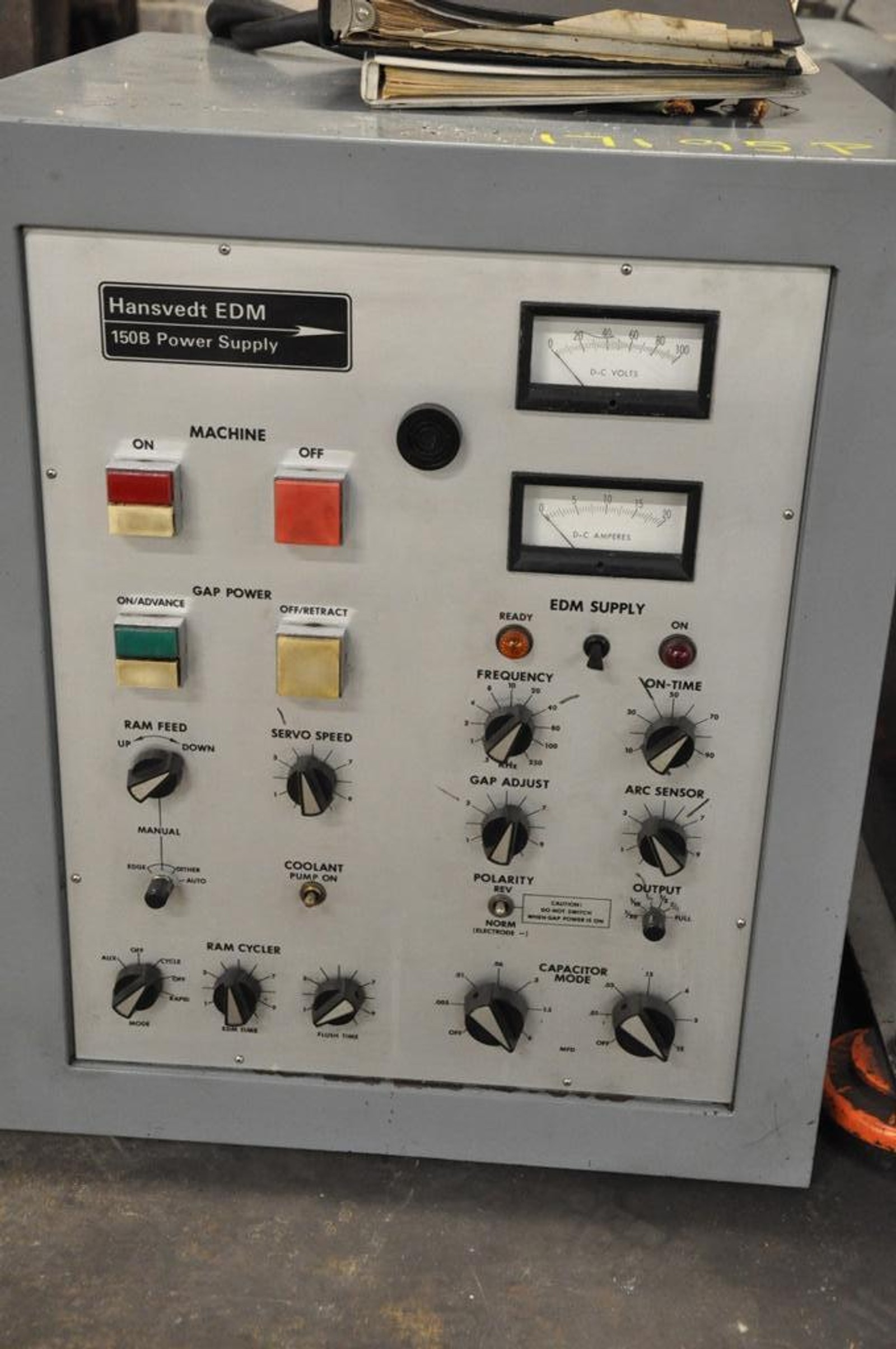

20 AMP, 150B Power Supply
Dielectric oil System
5" x 10" Ram Mounted Permanent Magnetic Chuck
6" x 12" Platen Mounted Permanent Magnetic Chuck

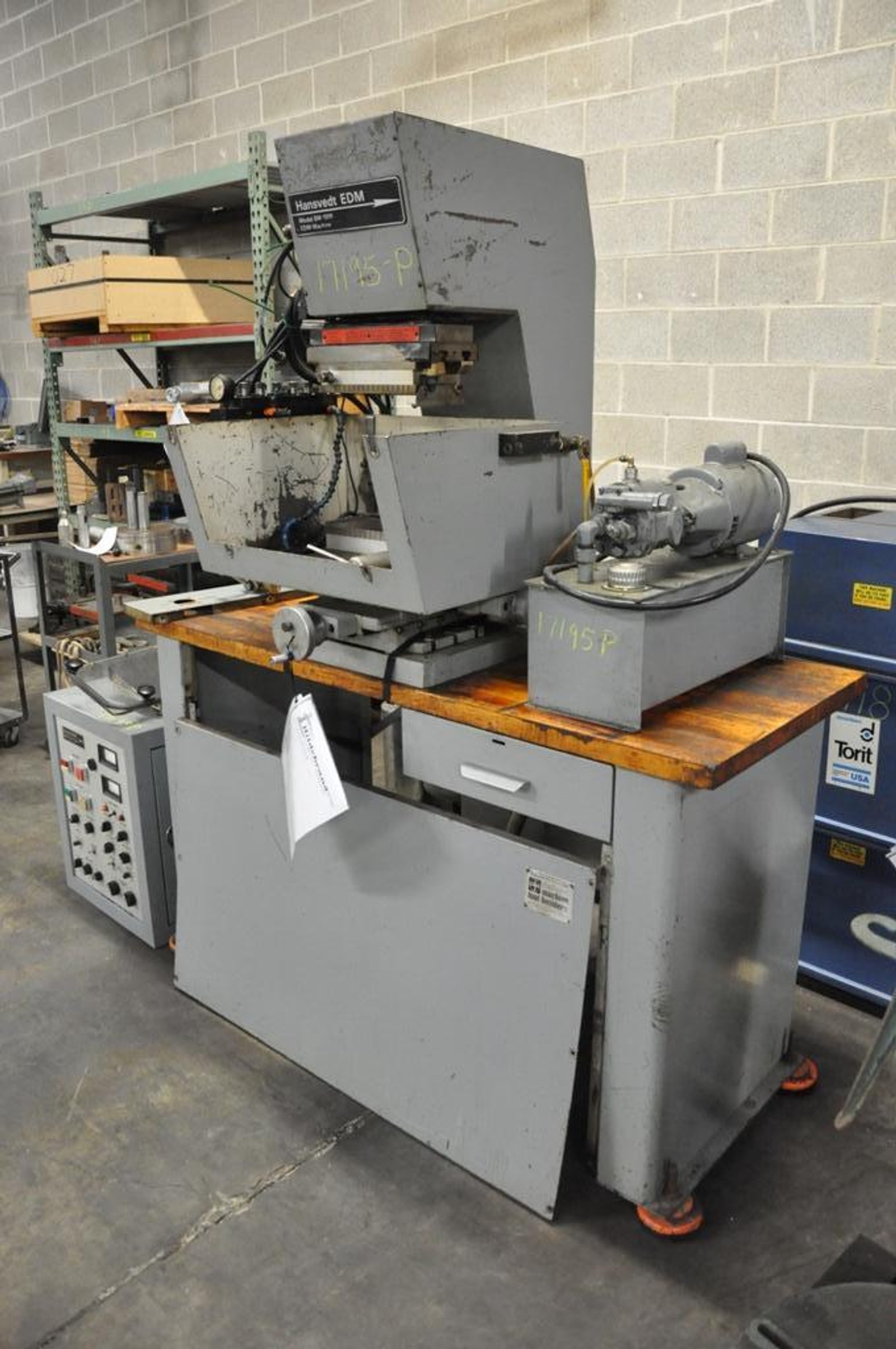

Maple Top Bench
Manuals
Wired for Single Phase, 60 Cycle, 110 Volts

DIMENSIONS:
EDM: 40" L-R x 36" F-B x 38" High
Control: 20" L-R x 20" F-B x 24" High
Dielectric Tank: 22" L-R x 33" F-B x 27" High

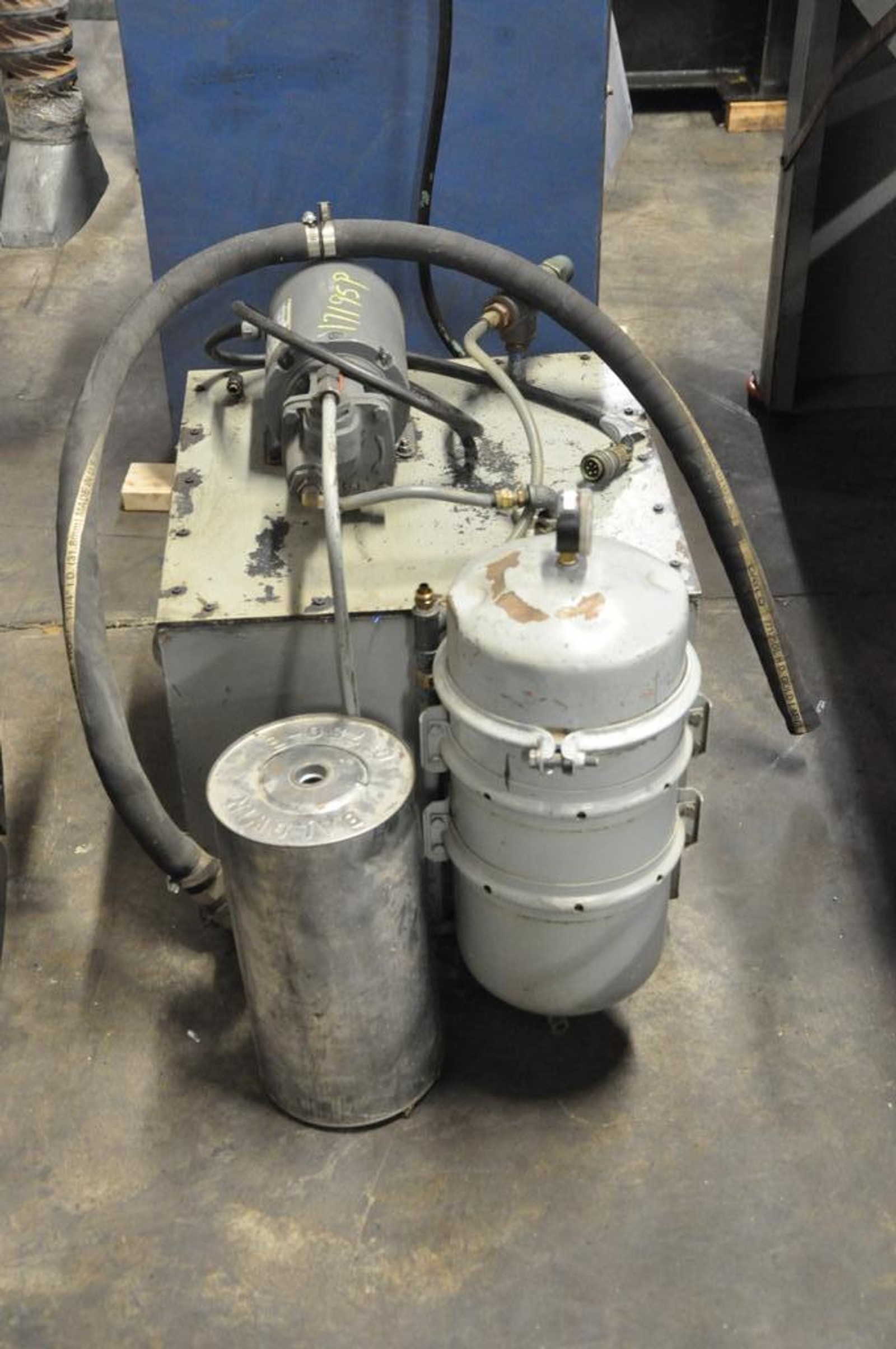

Hydraulic Tank: 9" L-R x 23" F-B x 17" High

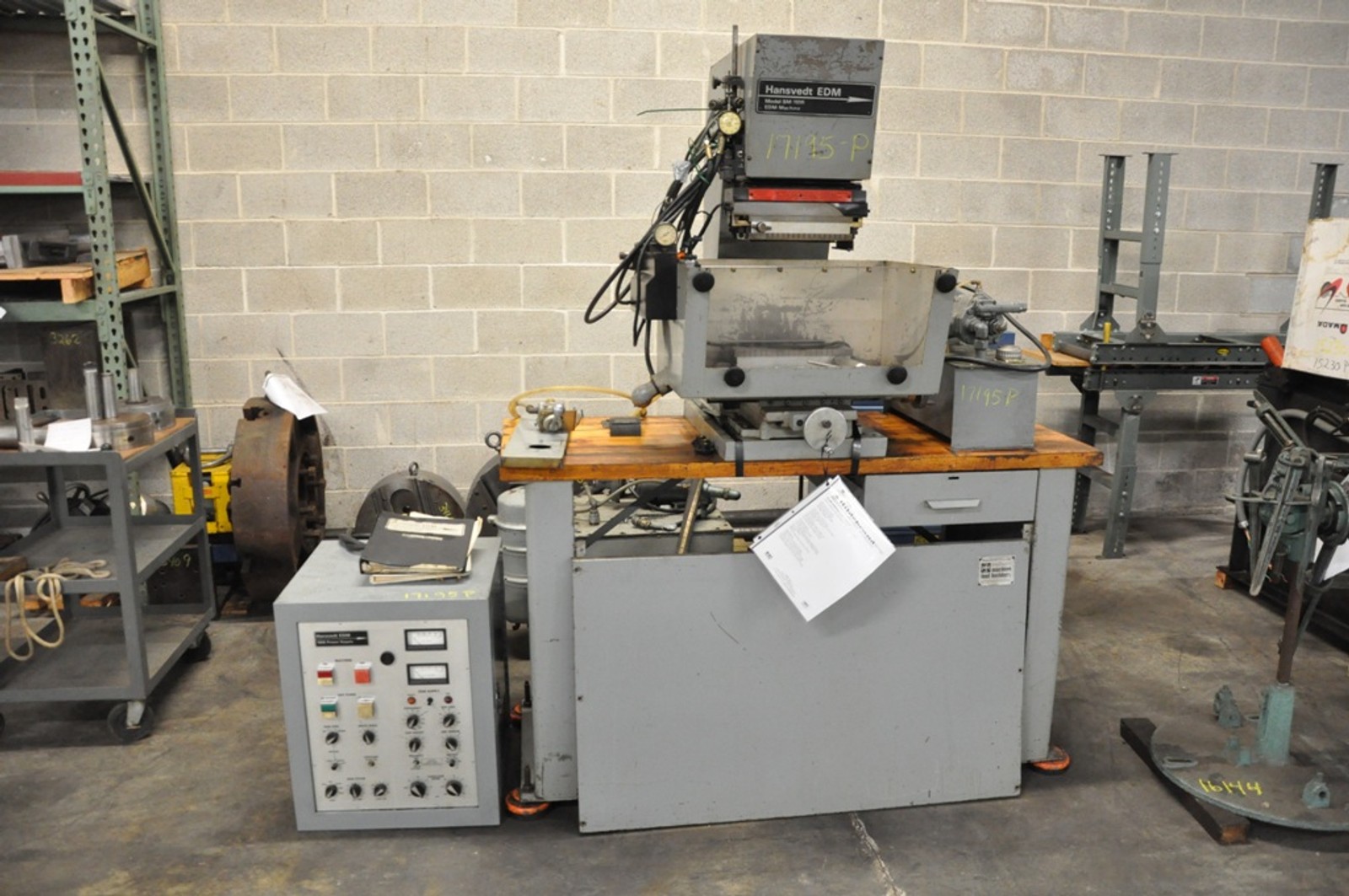

Assembled on Bench: 76" L-R x 48" F-B x 74" High
