Wele 1365 Stealth, X-51", Y-25.6", Z-23.6", 57" x 25.6" Tbl, 6,000 RPM, 50 Taper,Chip Blaster, Fanuc 0i-MD, 2014, #32390

Manufacturer

WELE

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

32390

Model

Stealth 1365

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32390
Wele 1365 Stealth CNC Vertical Machining Center

FEATURES:
Fanuc 0i-MD CNC Control
24-Station Automatic Tool Changer

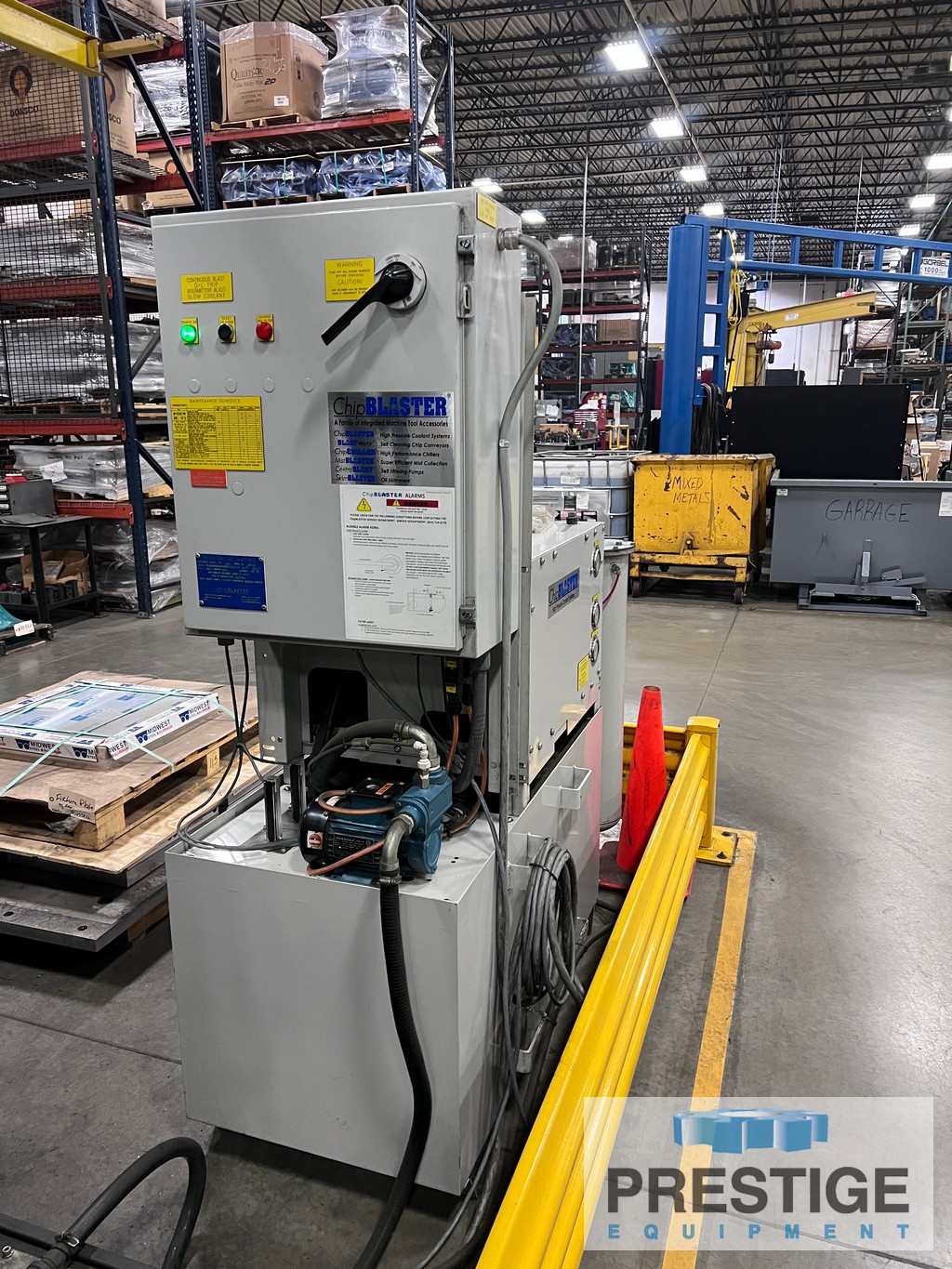

Chip Blaster High Pressure Coolant Pump
Thru Spindle Coolant

SPECIFICATION:
Table Dimensions ...................... 57.1" x 25.6"
X-Axis Travel ......................... 51.1"
Y-Axis Travel ......................... 25.6"
Z-Axis Travel ......................... 23.6"
Maximum Work Piece Weight ............. 2,866 Lbs

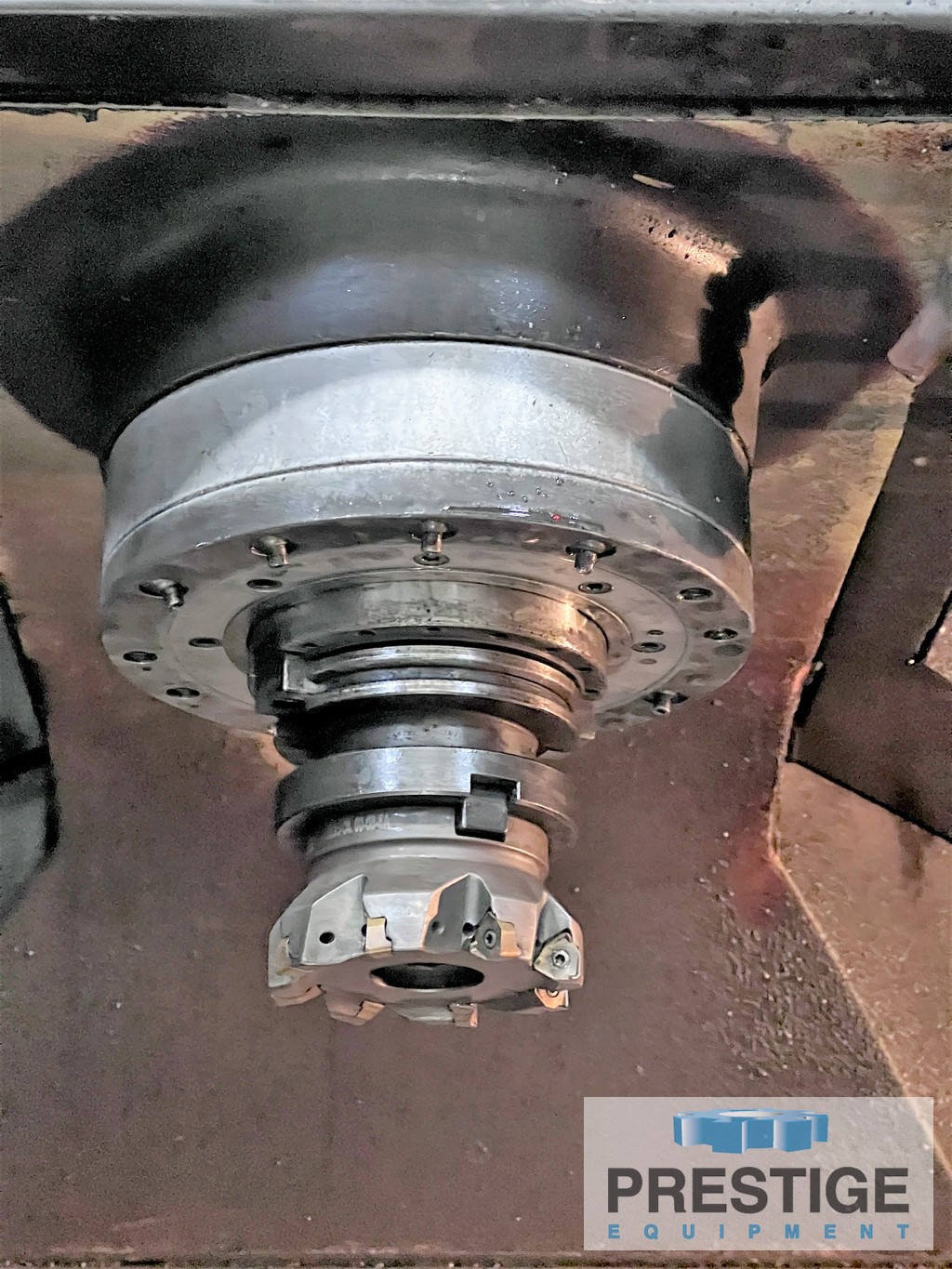

Spindle Speed ......................... 6,000 RPM
Spindle Taper ......................... CAT 50
Spindle Motor ......................... 20 HP

EQUIPPED WITH:
Fanuc 0i-MD CNC Control
24-Station Automatic Tool Changer
Chip Blaster High Pressure Coolant Pump
Thru Spindle Coolant
Flood Coolant
Box Way Design
Chip Conveyor

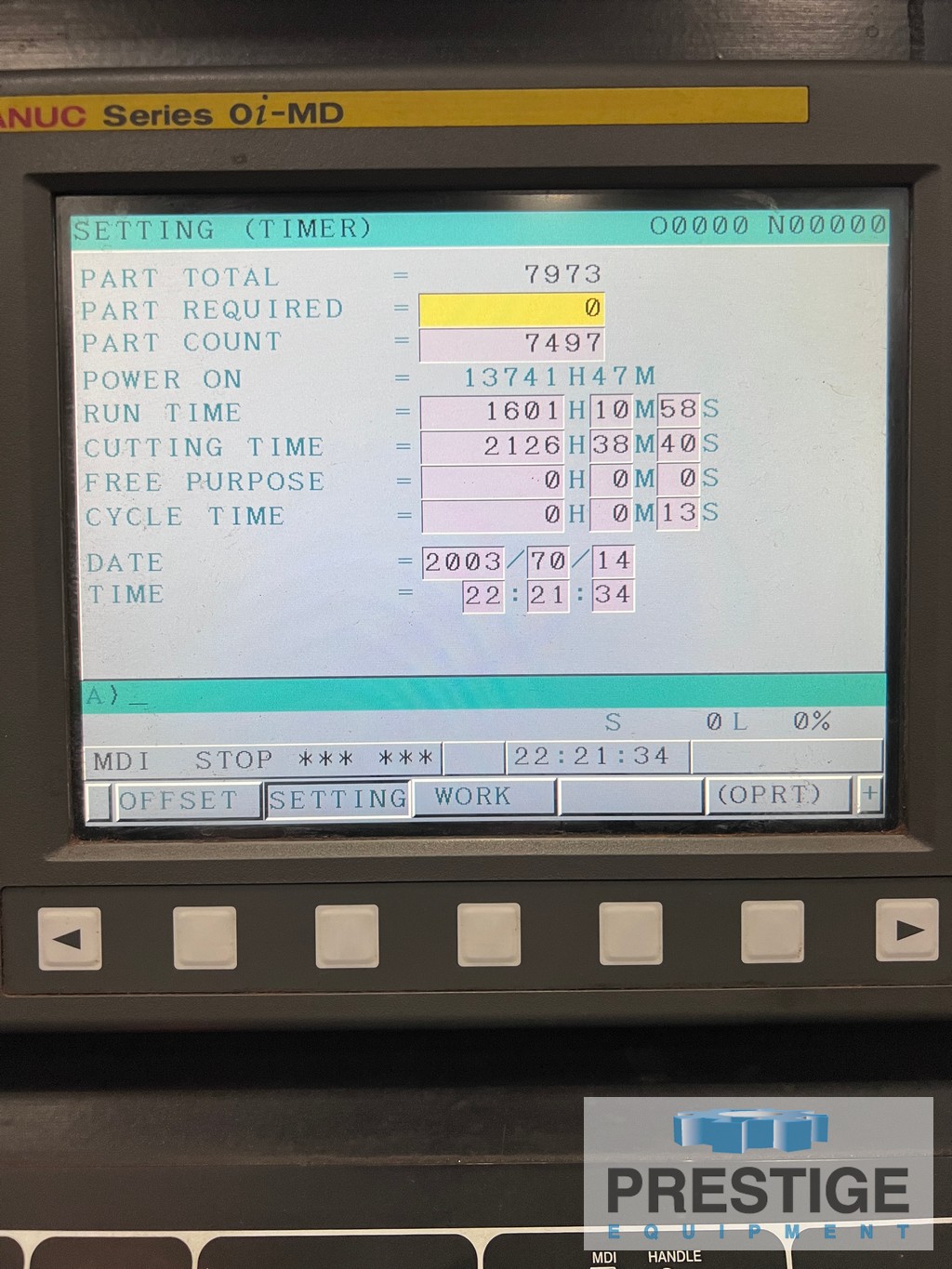

CUTTING HOURS:
2,100

NOTE:
Inspect in Plant Under Power

No Video Available
