Giddings & Lewis CH-8 Contouring Facing Head, 7.88" Slide, 1.5" Slide Stroke, 3" Spdl Travel, 15" Max. Bore Dia.,#31888

Manufacturer

GIDDINGS & LEWIS

Category

Tooling & Accessories

Type

TOOLING & ACCESSORIES

Stock

31888

Model

Davis CH-8 Contouring Facing Head

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #31888

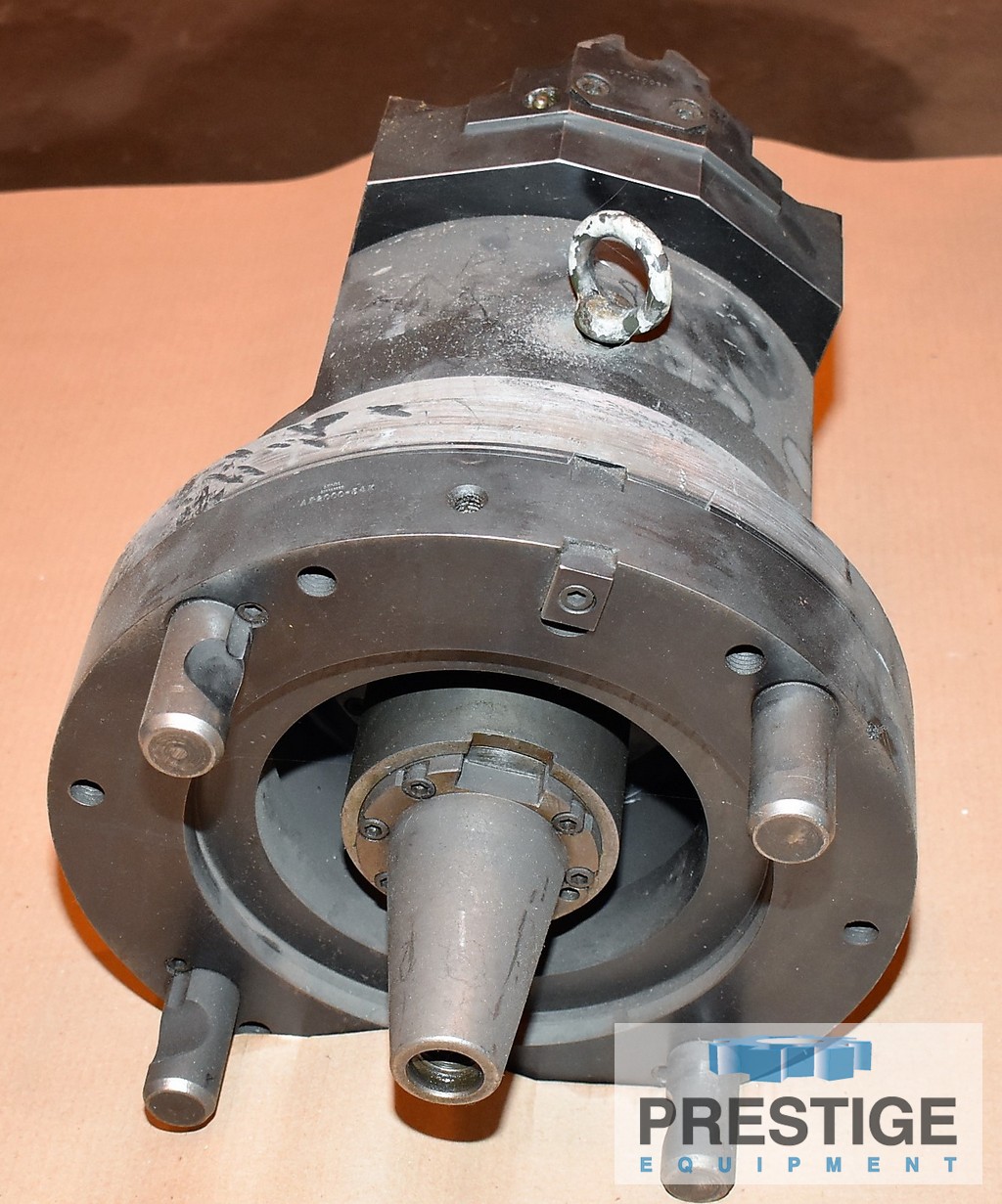

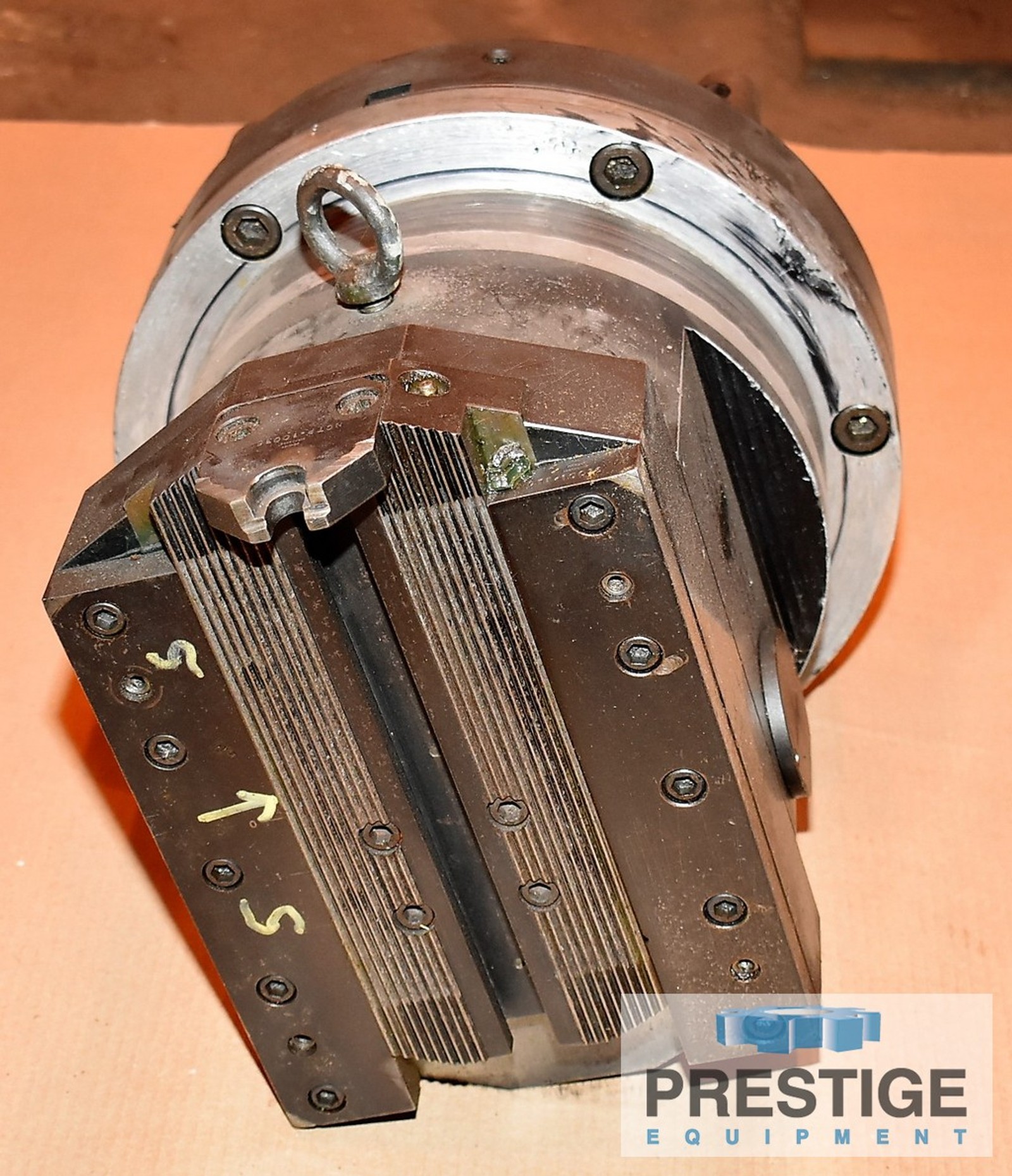

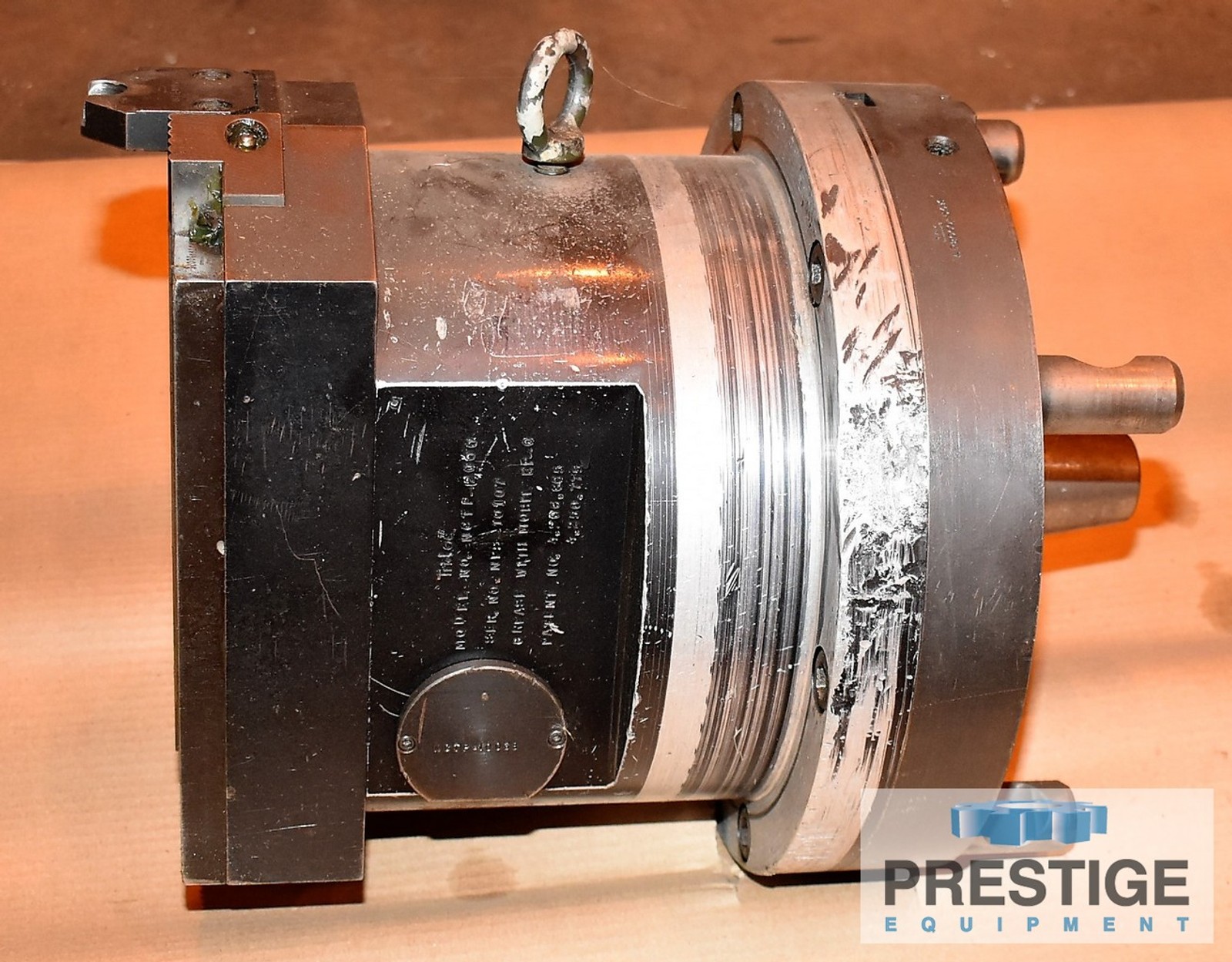

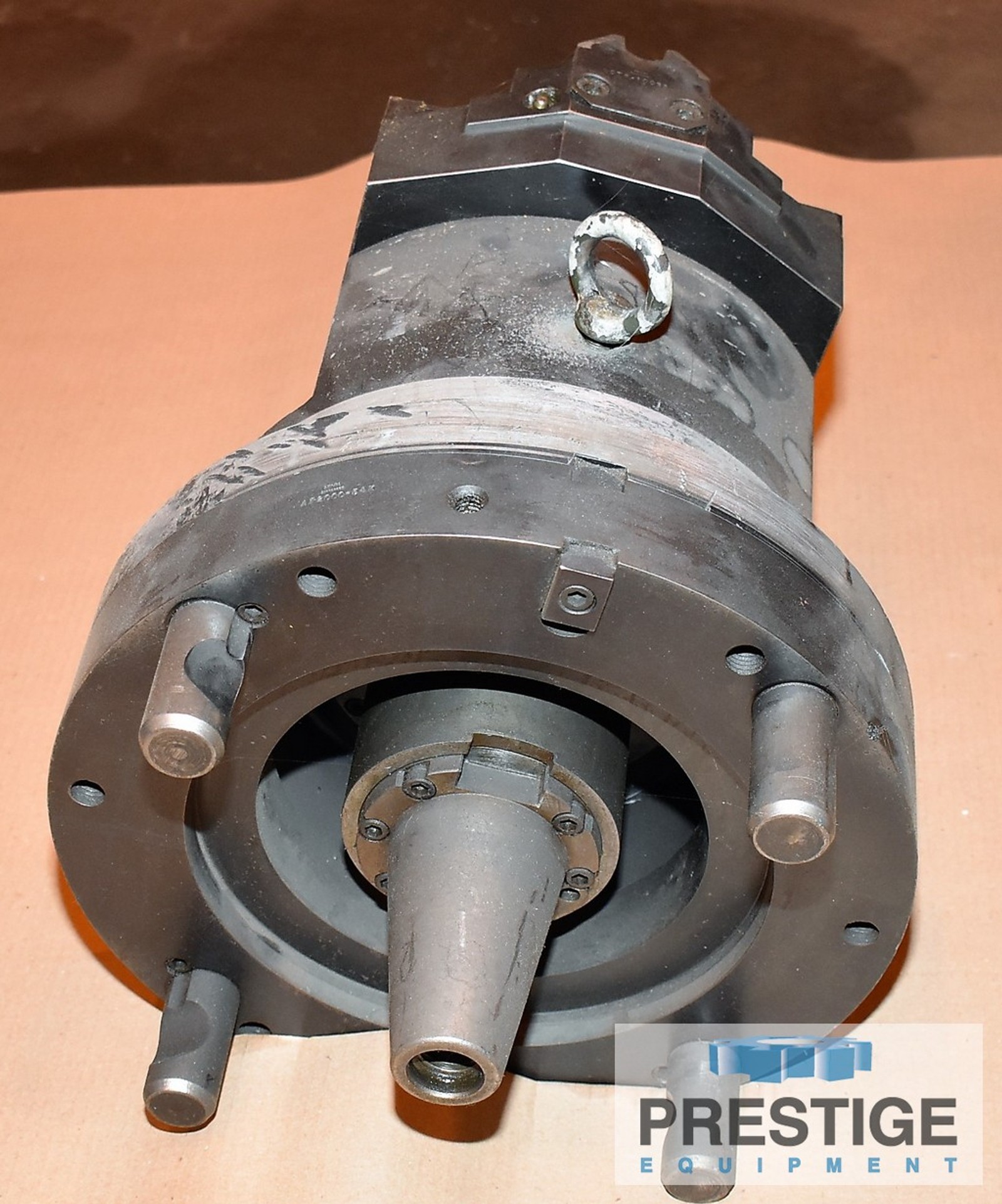

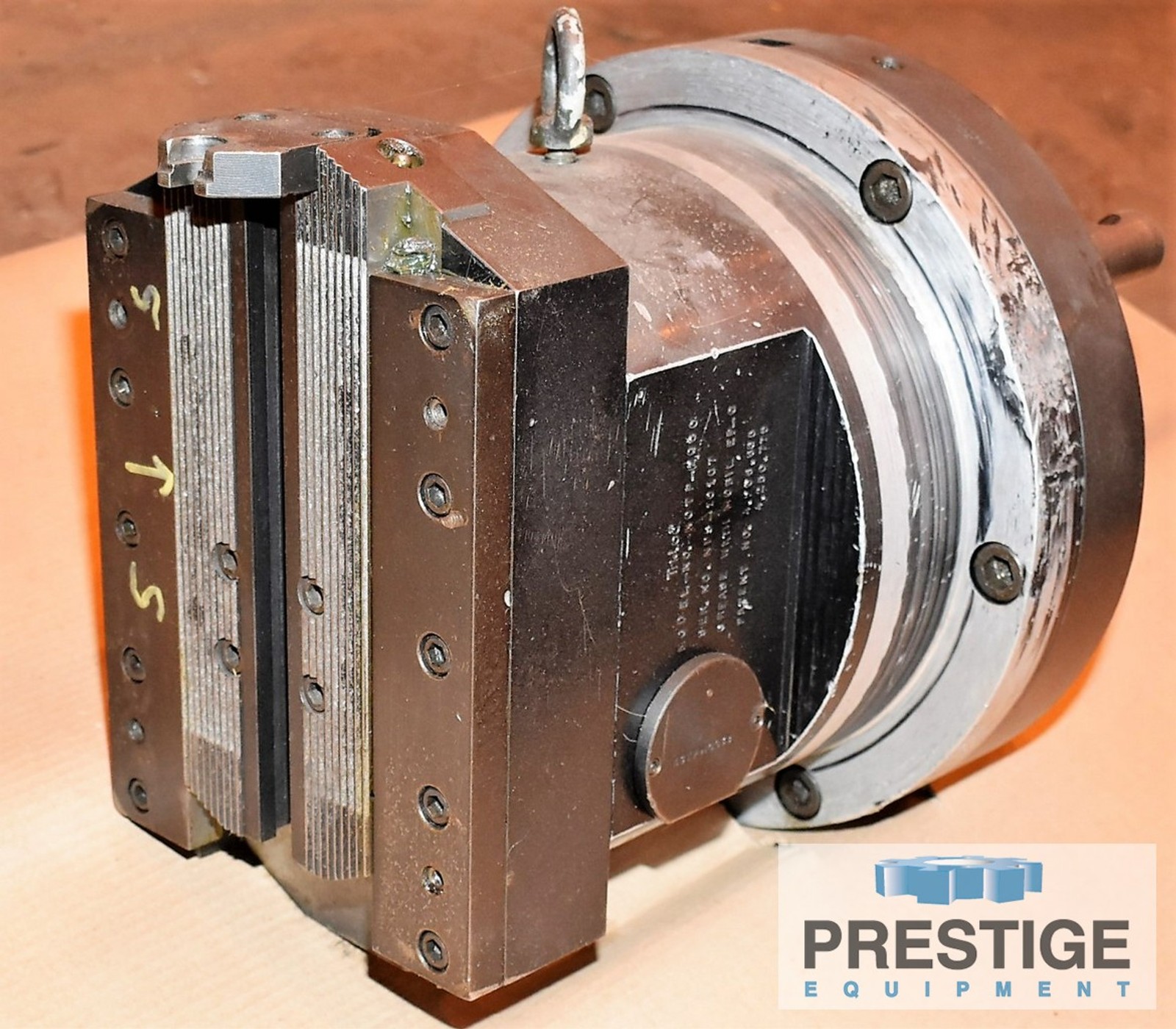

Giddings & Lewis Davis CH-8 CNC Contouring Facing Head

SPECIFICATION:
Slide Length .......................... 7.88"
Head Length ........................... 11.94"
Slide Stroke .......................... 1.5"
Spindle Travel ........................ 3.0"
Maximum Tooling Length ................ 8"
Maximum Turn/Face Diameter ............ 15"
Maximum Speed ......................... 800 RPM
Maximum Slide Feed Force .............. 4,500 Lbs
Maximum Torque ........................ .25 HP/RPM
Maximum Power ......................... 10 HP
Slide Actuation Device ................ Bell Crank
