S&T Dynamics TNL-120V, 40" Chuck, 61" Swing, 1 - 400 RPM, Fanuc 0i-TB, 40 HP, #32142

Manufacturer

S&T DYNAMICS

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32142

Model

TNL-120V

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32142

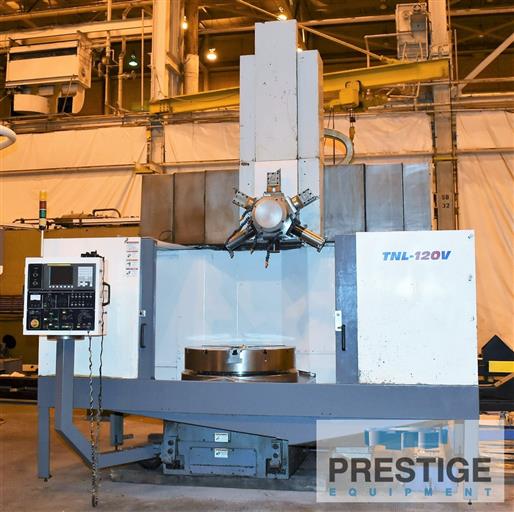

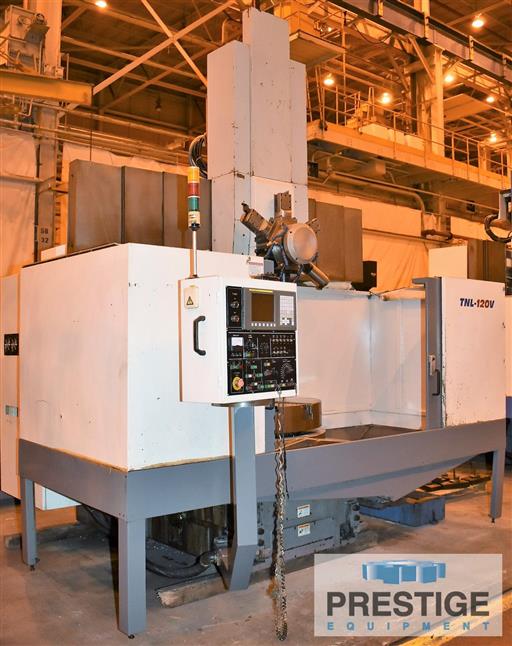

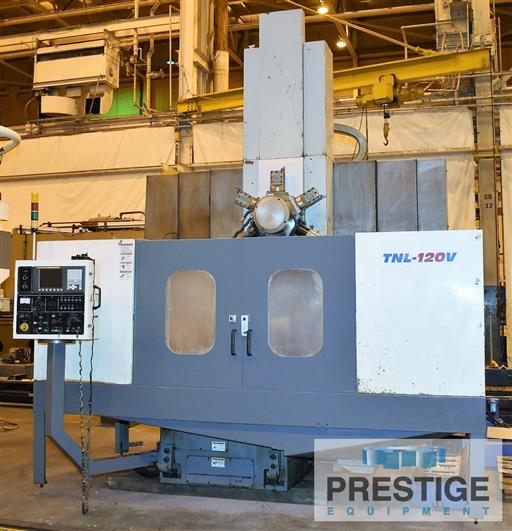

S&T Dynamics TNL-120V 39"/61" CNC Vertical Turret Lathe

FEATURES:
Fanuc 0i-TB CNC Control
Sauter 6-Position Turret

SPECIFICATION:
Table Diameter ........................ 39.37"
Maximum Swing ......................... 61.02"
Maximum Turning Diameter .............. 43.30"
Maximum Turning Height ................ 35.03"
X-Axis Traverse ....................... -7.87"/+31.10"
Z-Axis Traverse ....................... 29.13"
Maximum Load On Table ................. 8,800 Lbs
Feed Rate ............................. 0.04-197 IPM
Rapid Traverse ........................ 393 IPM
Spindle Speeds ........................ 1-400 RPM
Spindle Motor ......................... 40 HP/50 HP

EQUIPPED WITH:

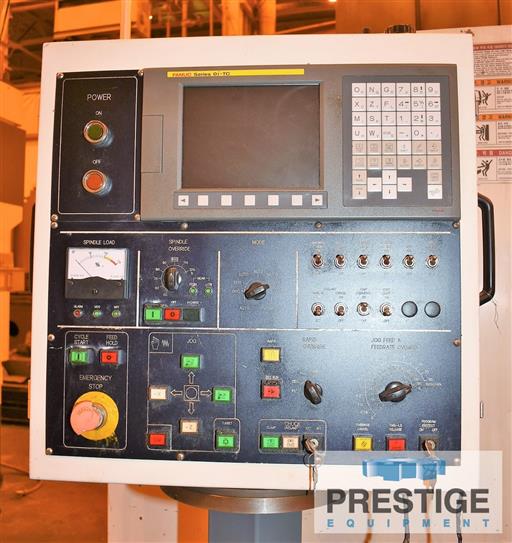

Fanuc 0i-TB CNC Control

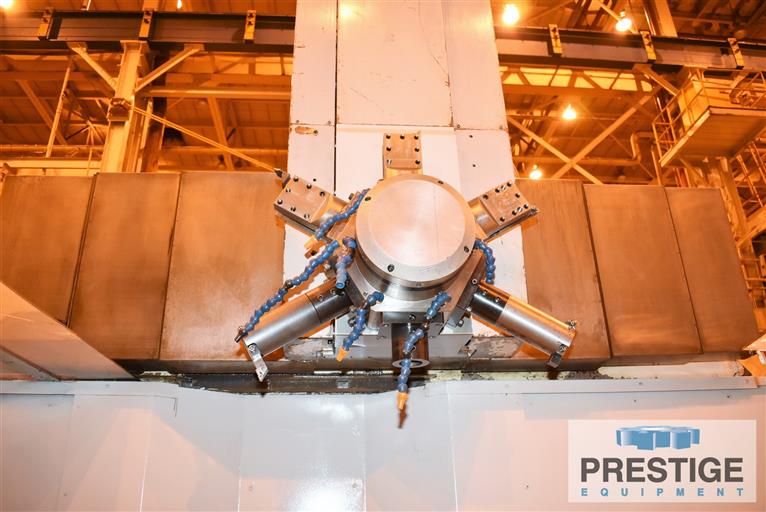

Sauter 6-Position Turret

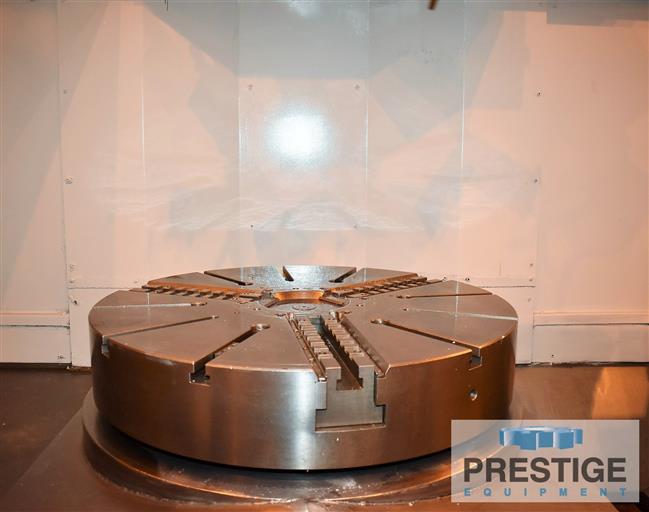

39.37" Autoblok 3-Jaw Hydraulic Power Chuck
Lubrication System
Splash Guard
50 HP Table Motor
