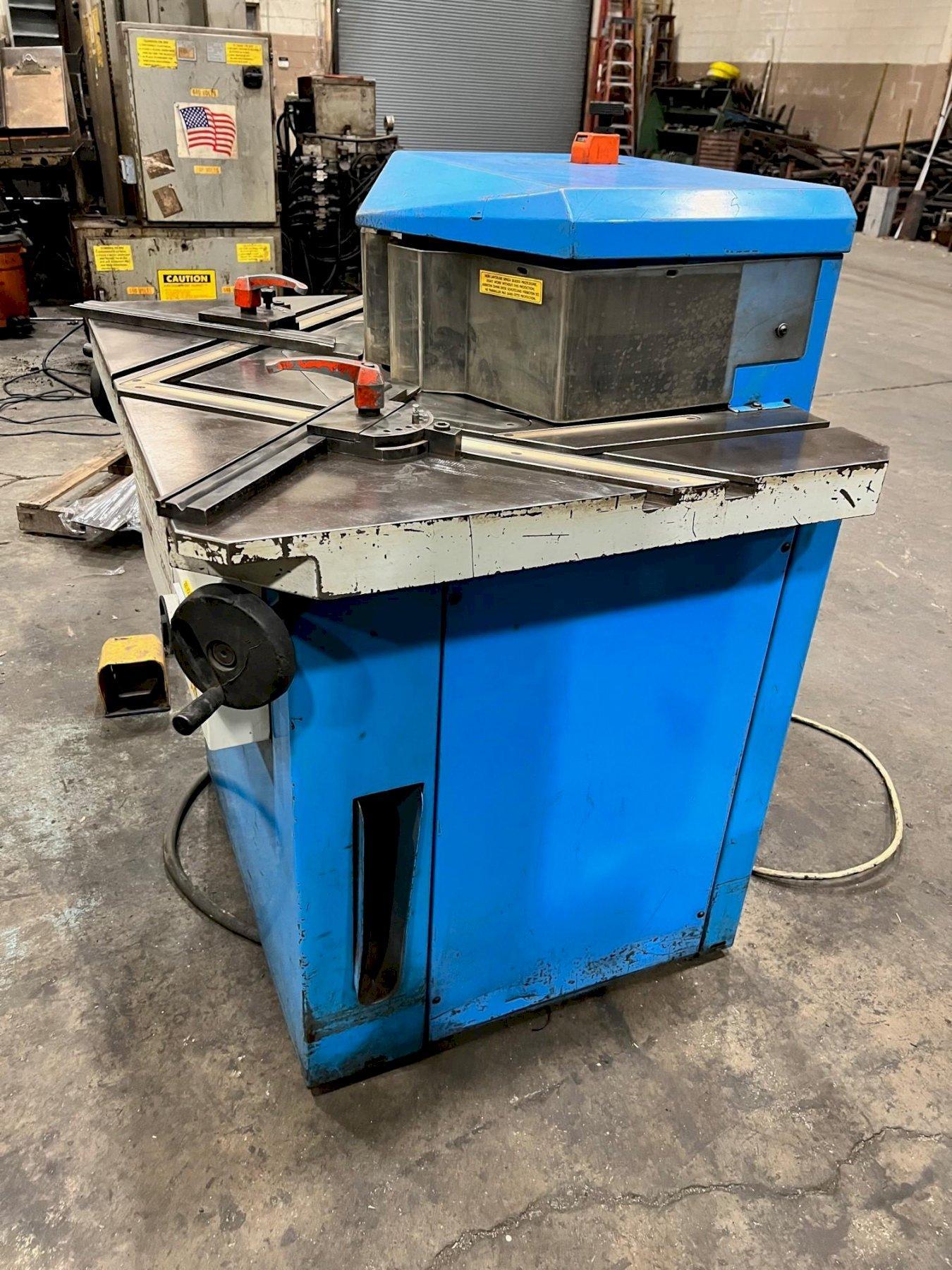

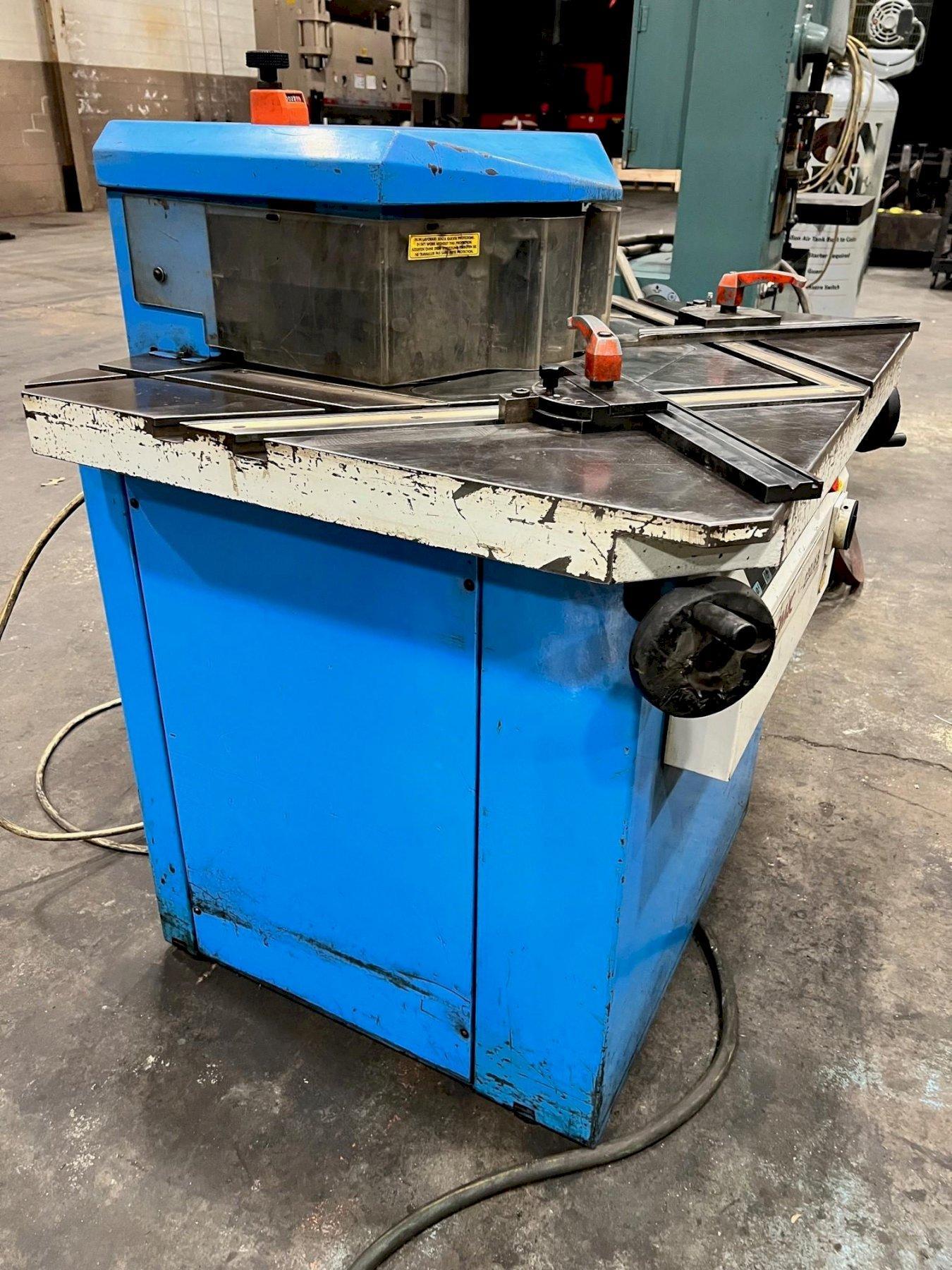

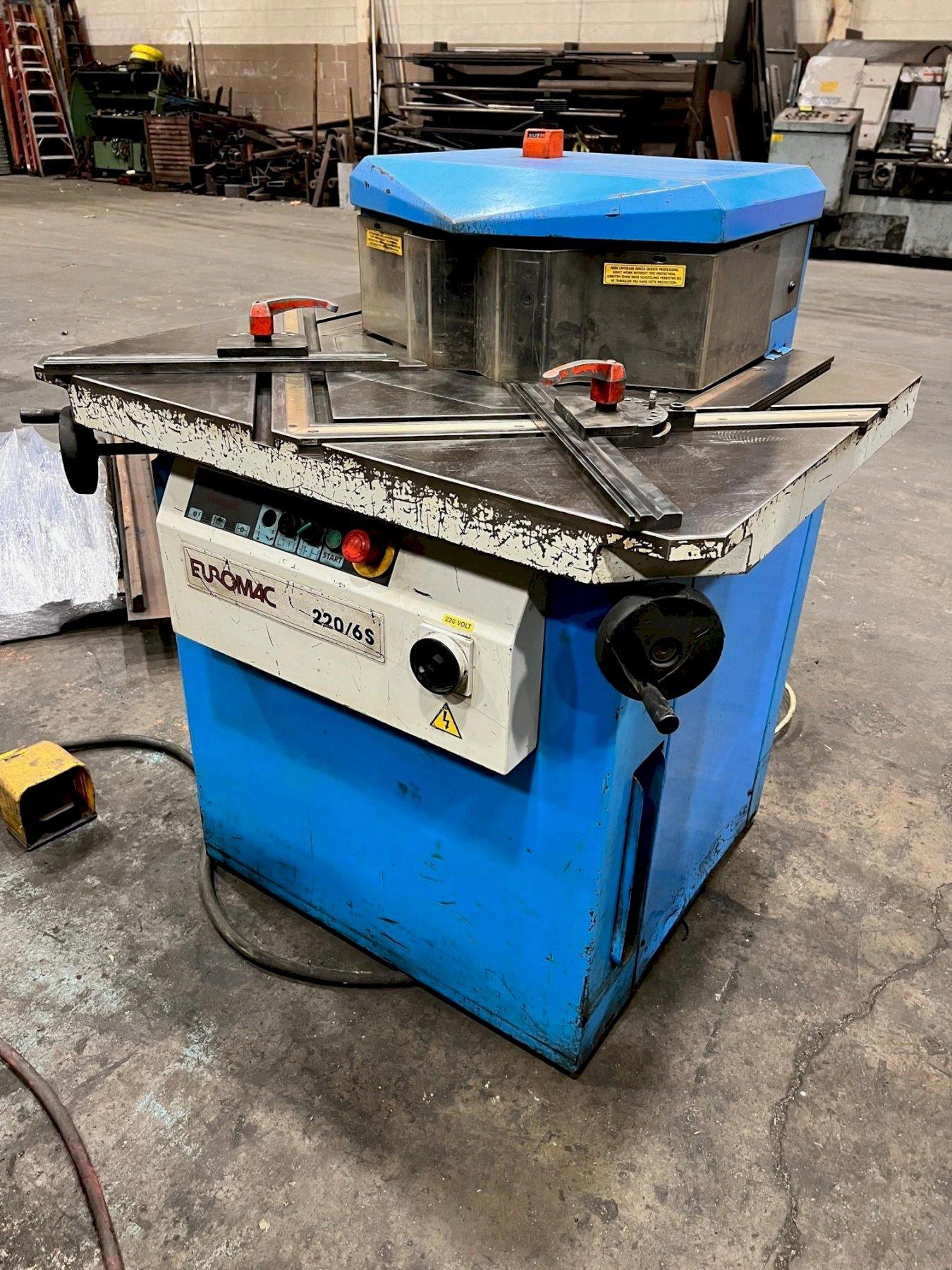

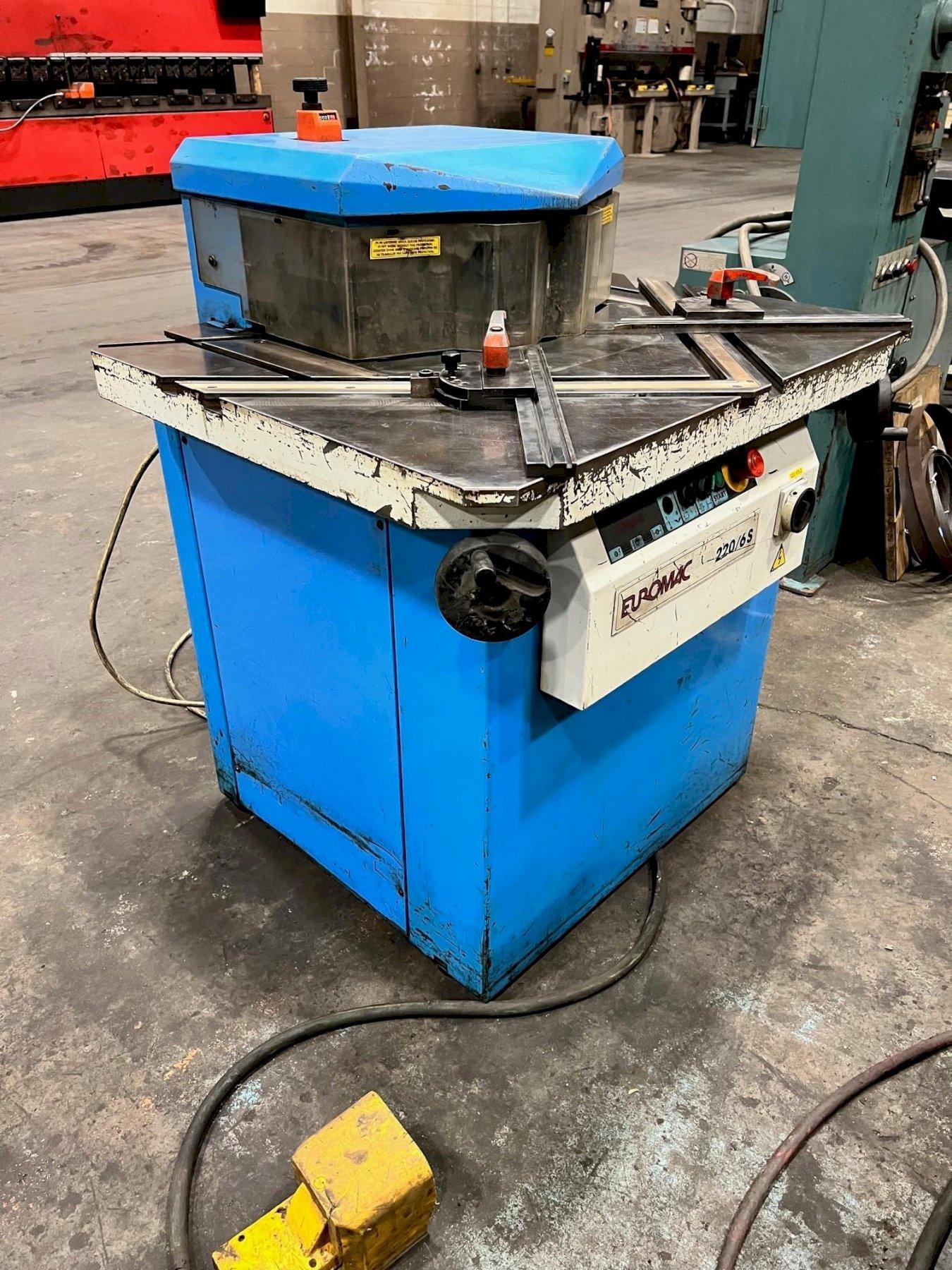

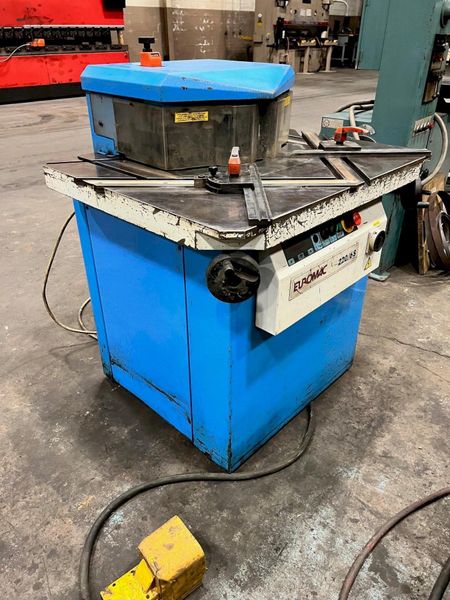

USED EUROMAC VARIABLE ANGLE 8" x 8" x 1/4" HYDRAULIC SHEET METAL NOTCHER, Stock# 10993, Year: 19

Manufacturer

EUROMAC

Category

Fabricating Machines

Type

NOTCHING MACHINES

Stock

10993

Model

220/6S

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet



Brand: Euromac
Model: 200/6S

Specifications:

Variable angle:

30° to 140°

Blade length:

8.6”

Cutting capacity in mild steel



   60° blades (negative blades):

0.253

   30° blades (positive blades):

0.136

Cutting capacity in stainless steel



   60° blades:

0.196”

   30° blades:

0.118”

Strokes/minute at 8.6” cutting length:

50

Work surface area:

39.0” x 31.2”

Table height:

36.75”

Overall machine dimensions:

40.2” x 33.5” x 48.8”

Approximate weight:

2,006 lbs.

Motor:

5.5 HP

Electrics:

3 phase  (220 or 440 volt) currently 220 volt

Oil tank reservoir:

16 gallons



Features and Benefits

Hydraulically powered

Ø  Ability to jog cutting head

Ø  Ability to reverse cutting head at any point in stroke

 Monoblock construction

Ø  Meehanite steel casting provides absolute rigidity

                  Variable angle capability

Ø  Allows operator to change angle of cut from 30° to 140° in seconds

 Automatic blade gap adjustment

Ø  Eliminates need for time consuming blade clearance settings

Ø  Prevents material roll over and jamming

Ø  Ensures a burr-free, high quality cut regardless of material thickness

Hydraulic clamping

 Sheet holding clamps

Ø  Eliminates any torque-related movement during cutting

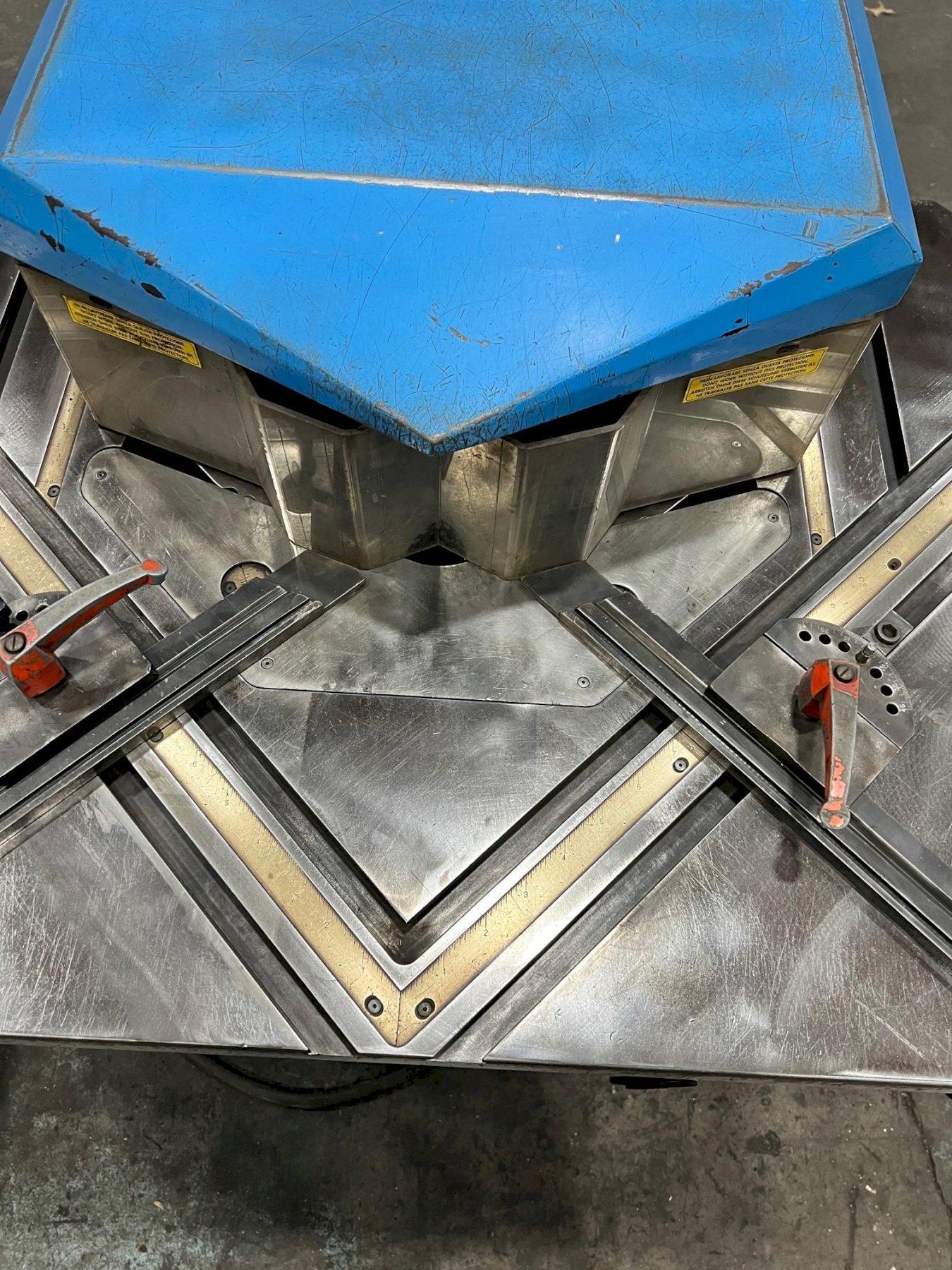

 Two protractors with heavy steel handles and pin-locking pre-set 15° intervals

Ø  Enables quick set-up of angles other than 90°

Engraved brass measuring scales

Ø  Precise, heavy-duty scales will still be readable after years of constant use

 Vertical stroke adjustment

Ø  Enables stroke travel of blades to be shortened to increase productivity
