6" Giddings & Lewis G60FX, 40 ATC, X-288", Y-108", Z-48", G & L 8000B, Retrofit'99 #25819

Manufacturer

GIDDINGS & LEWIS

Category

Boring Mills

Type

BORING MILLS, HORIZONTAL, FLOOR TYPE, CNC

Stock

25819

Model

G60FX

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #25819

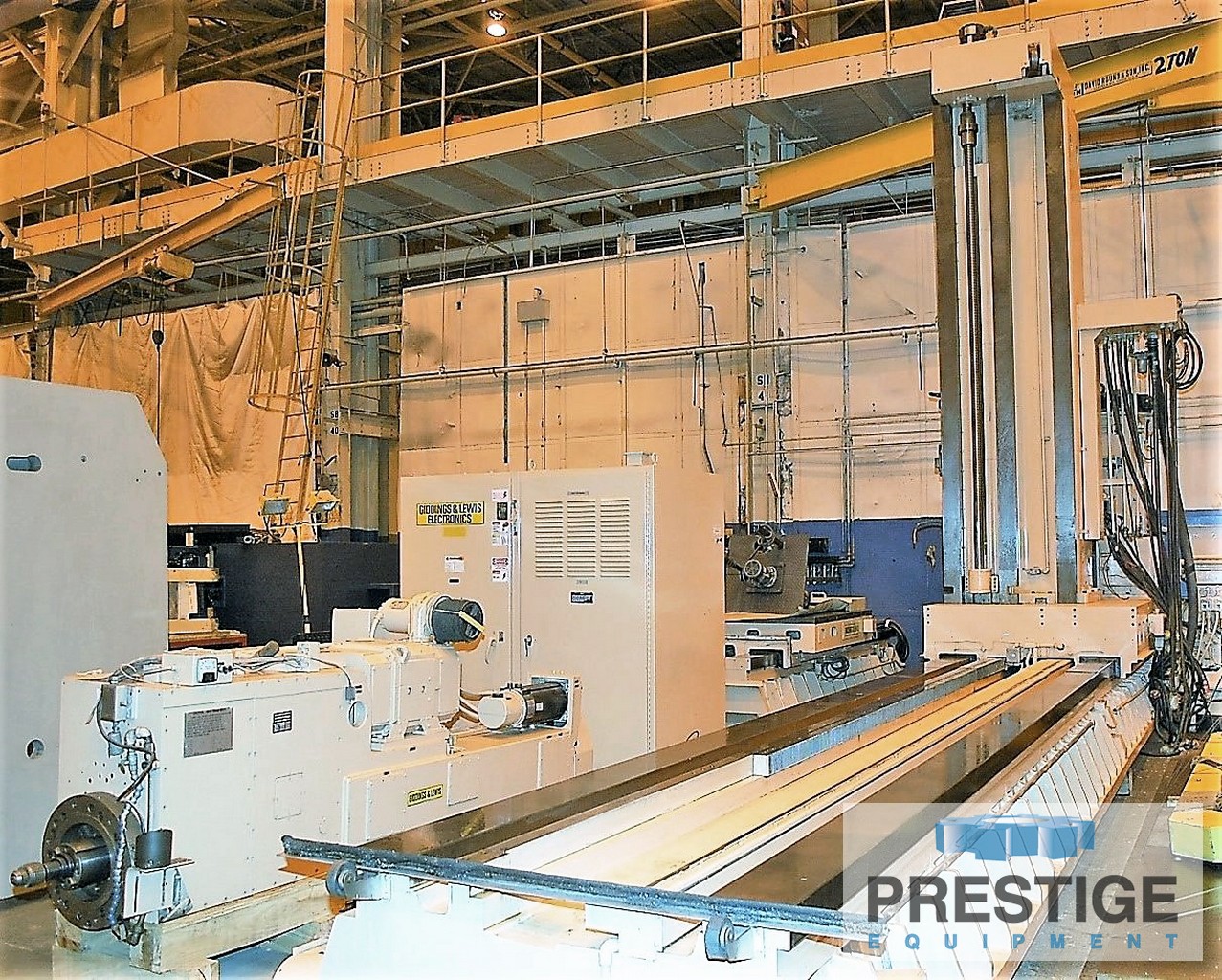

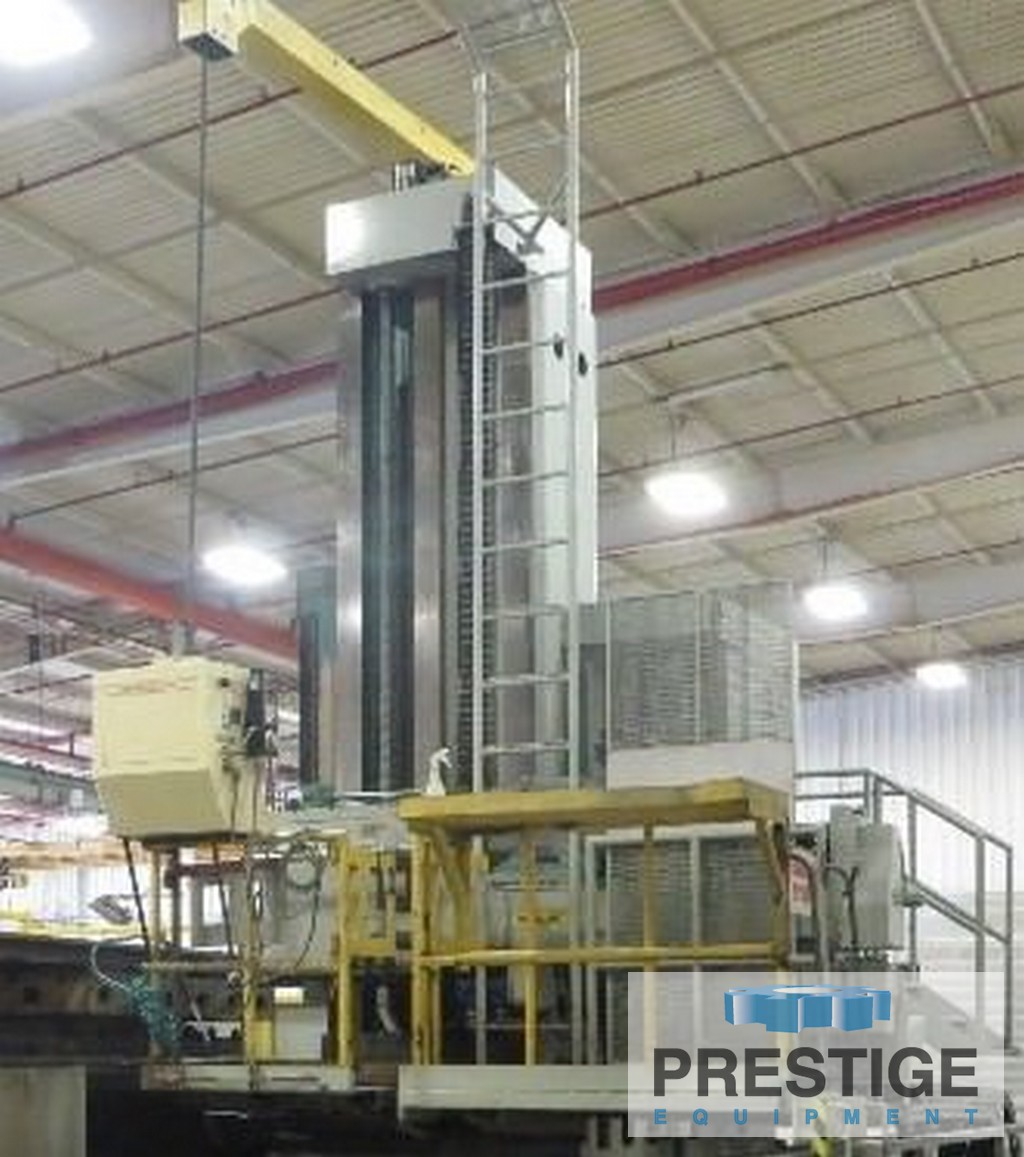

Giddings & Lewis G60-FX 6" CNC Floor Type Horizontal Boring Mill

FEATURES:
Rebuilt By Giddings & Lewis In 1999
Giddings & Lewis 8000B CNC Control
40 Station Automatic Tool Changer

CAPACITY:
Spindle Diameter ...................... 6"
Spindle Taper ......................... CAT 50
Vertical Headstock Travel, Y-Axis ..... 108"
Column Travel, X-Axis ................. 288"
Spindle Travel, Z-Axis ................ 48"
Spindle Speeds, Variable .............. 25-1120 RPM
Feeds, X & Y Axes ..................... .1-300 IPM
Feeds, Z-Axis ......................... .1-200 IPM
Feeds, W-Axis ......................... 1-120 IPM
Rapid Traverse ........................ 320 IPM


MACHINE EQUIPPED WITH:
Giddings & Lewis 8000B CNC Control (New 1999)
40 Station Automatic Tool Changer
Inductosyn Scales
Flood & Mist Coolant
Hardened Runway Ways
Adjustable Pendant For CRT
Operators Platform
Telescoping Steel Way Covers on X-Axis

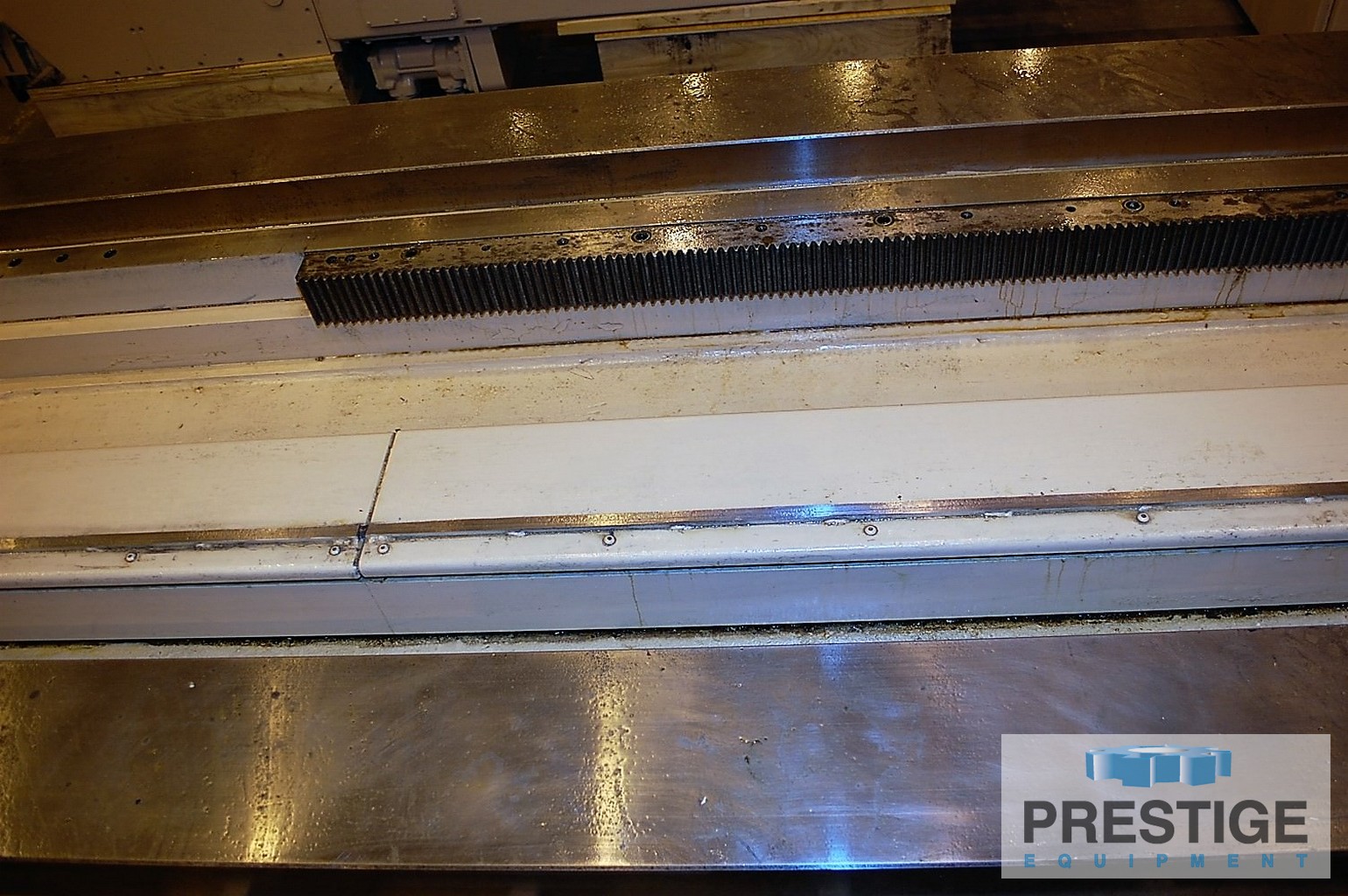

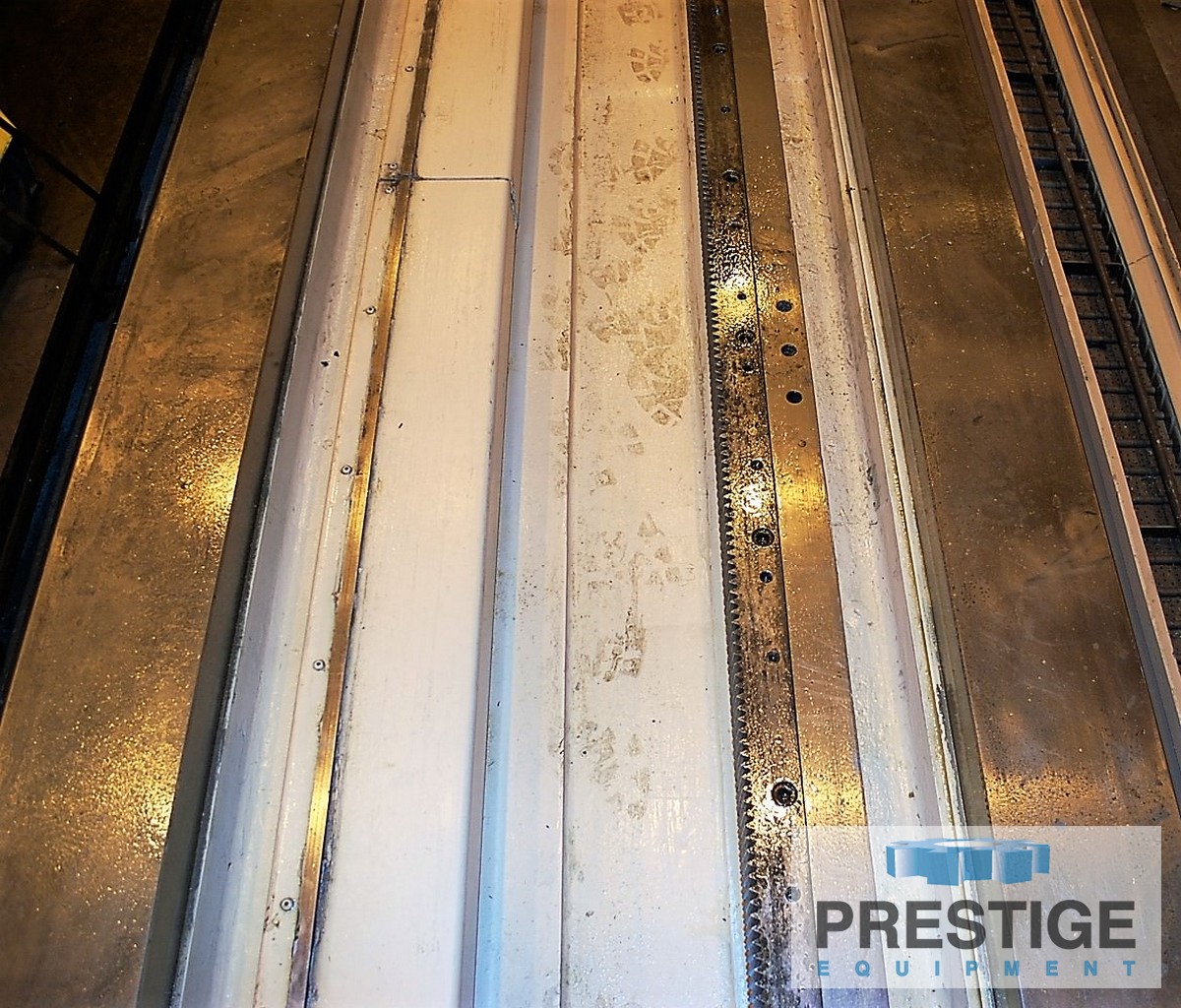

Double Anti-Backlash Rack And Pinion On X Axis
Lubricool System
3-Way Column
Full Length Chip Conveyor
40 HP Spindle Drive 460/3/60 Cycle

ALSO AVAILABLE AT ADDITIONAL COST:

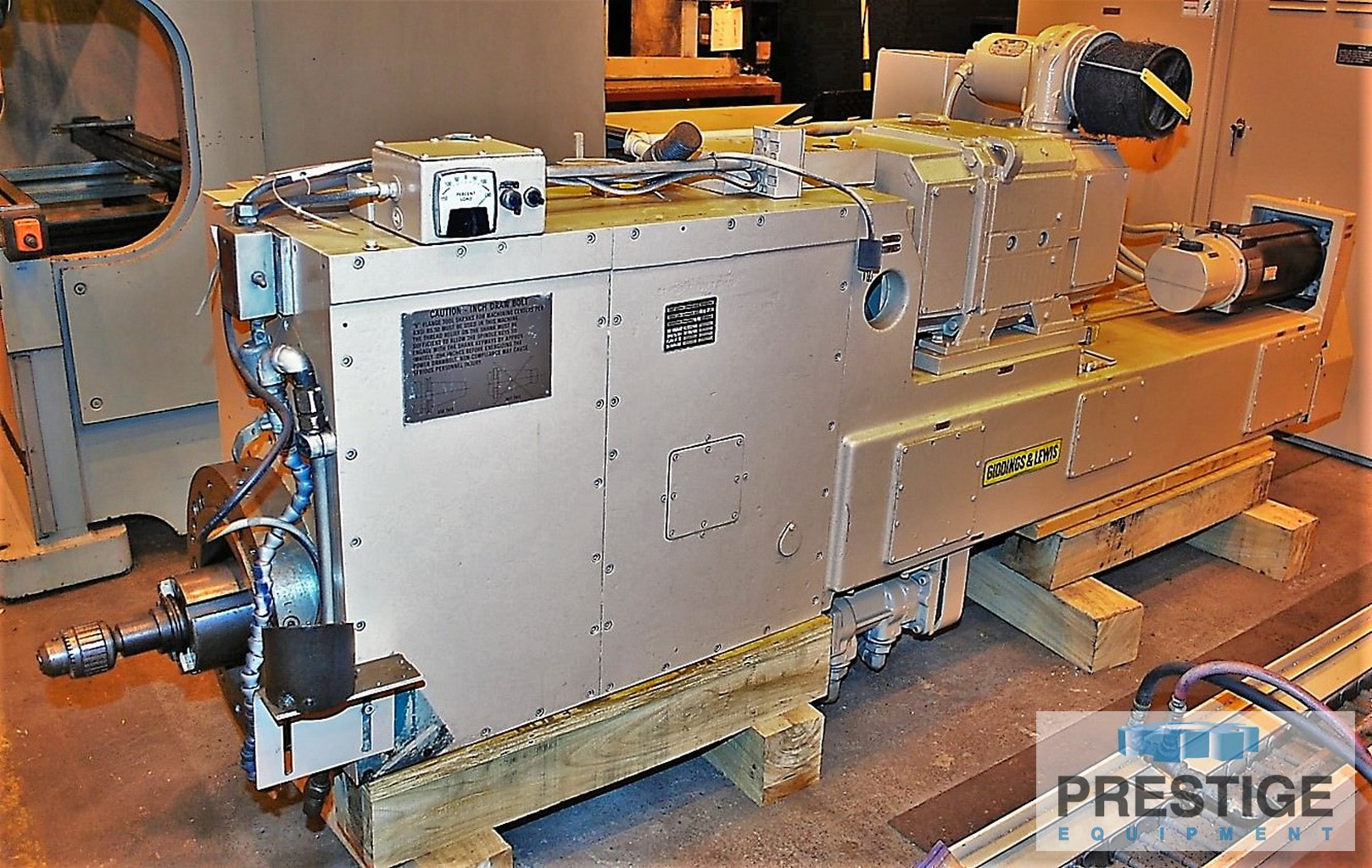

Giddings & Lewis Right Angle Heads, Giddings & Lewis Manual and CNC Rotary Tables, Floor Plates
