118" You Ji VTL3000ATC, 16 ATC, 141.7" Swing, 1-120 RPM, Chip Conveyor, 100 HP, Fanuc 18T CNC, 2008, #32207

Manufacturer

YOU JI

Category

Boring Mills

Type

BORING MILLS, VERTICAL, CNC

Stock

32207

Model

VTL3000ATC

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32207

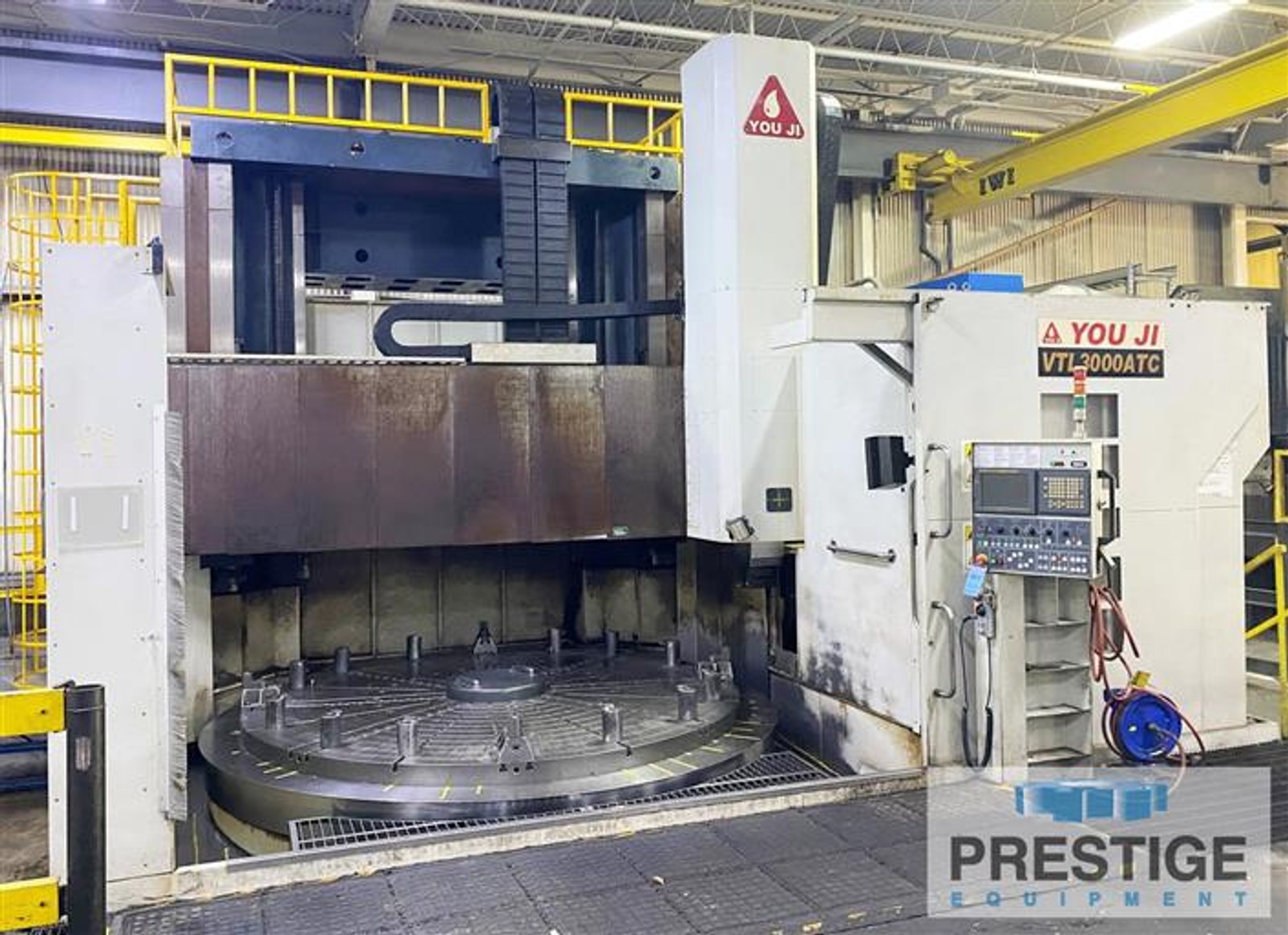

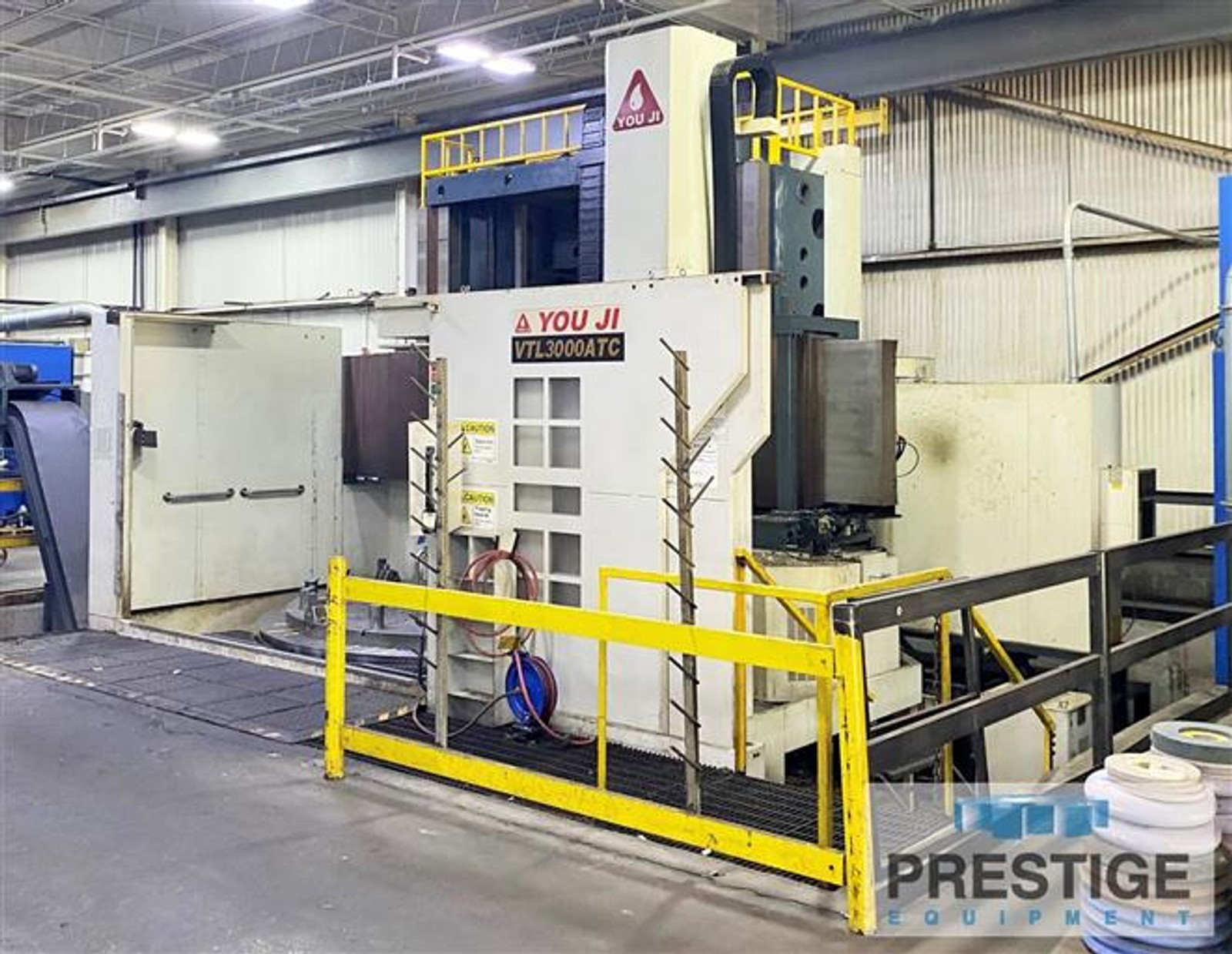

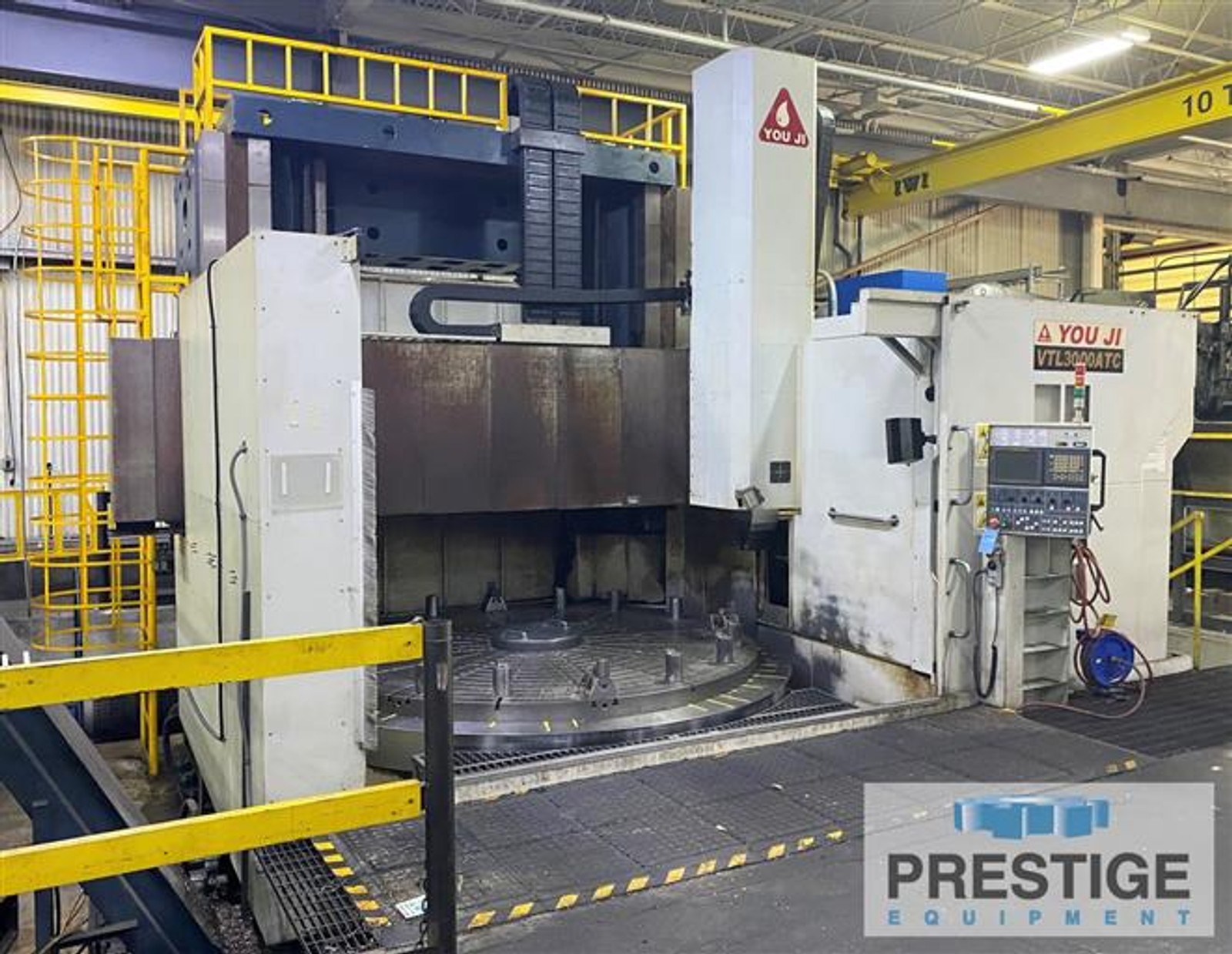

You Ji VTL3000ATC 118" CNC Vertical Turning Center

FEATURES:

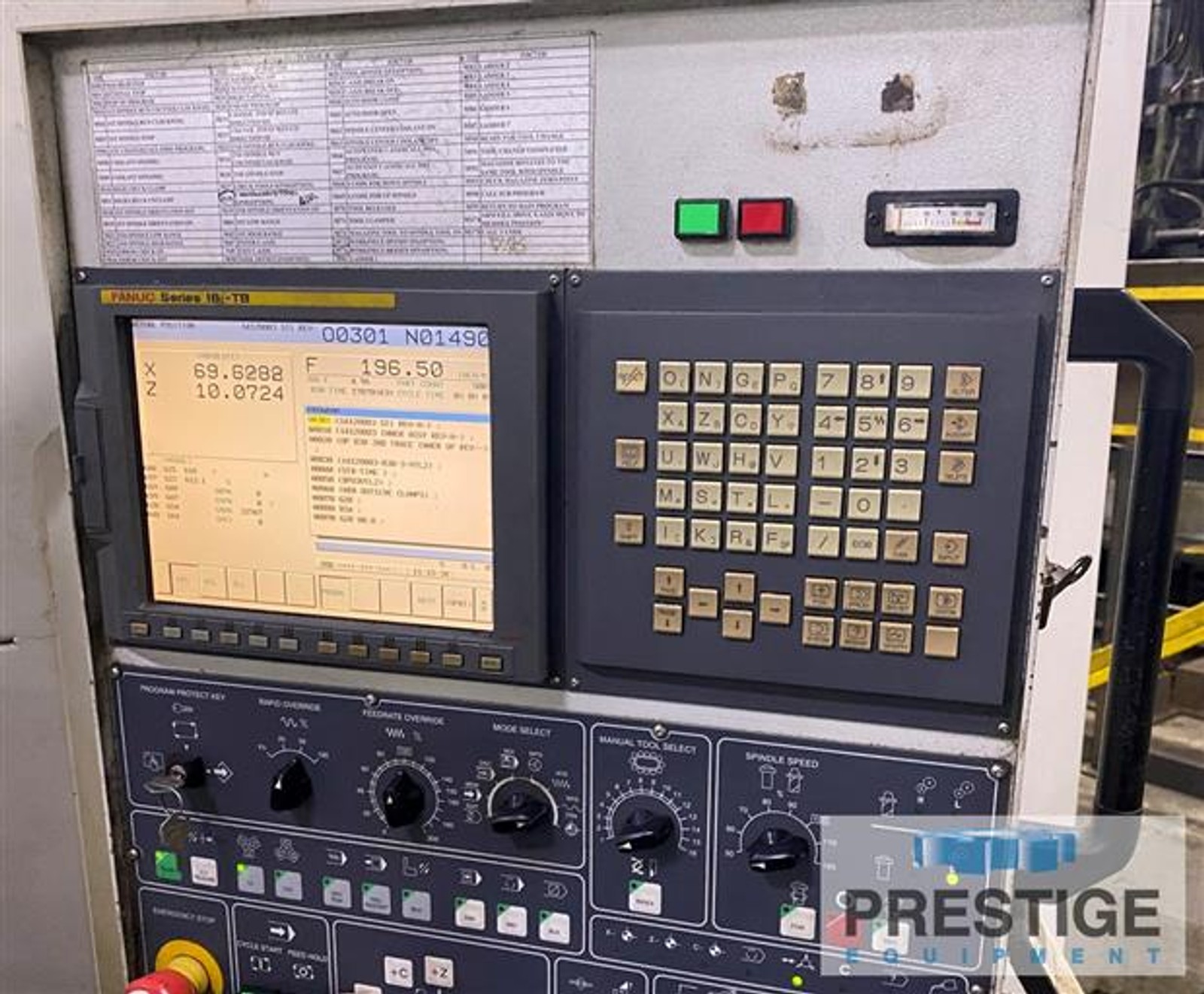

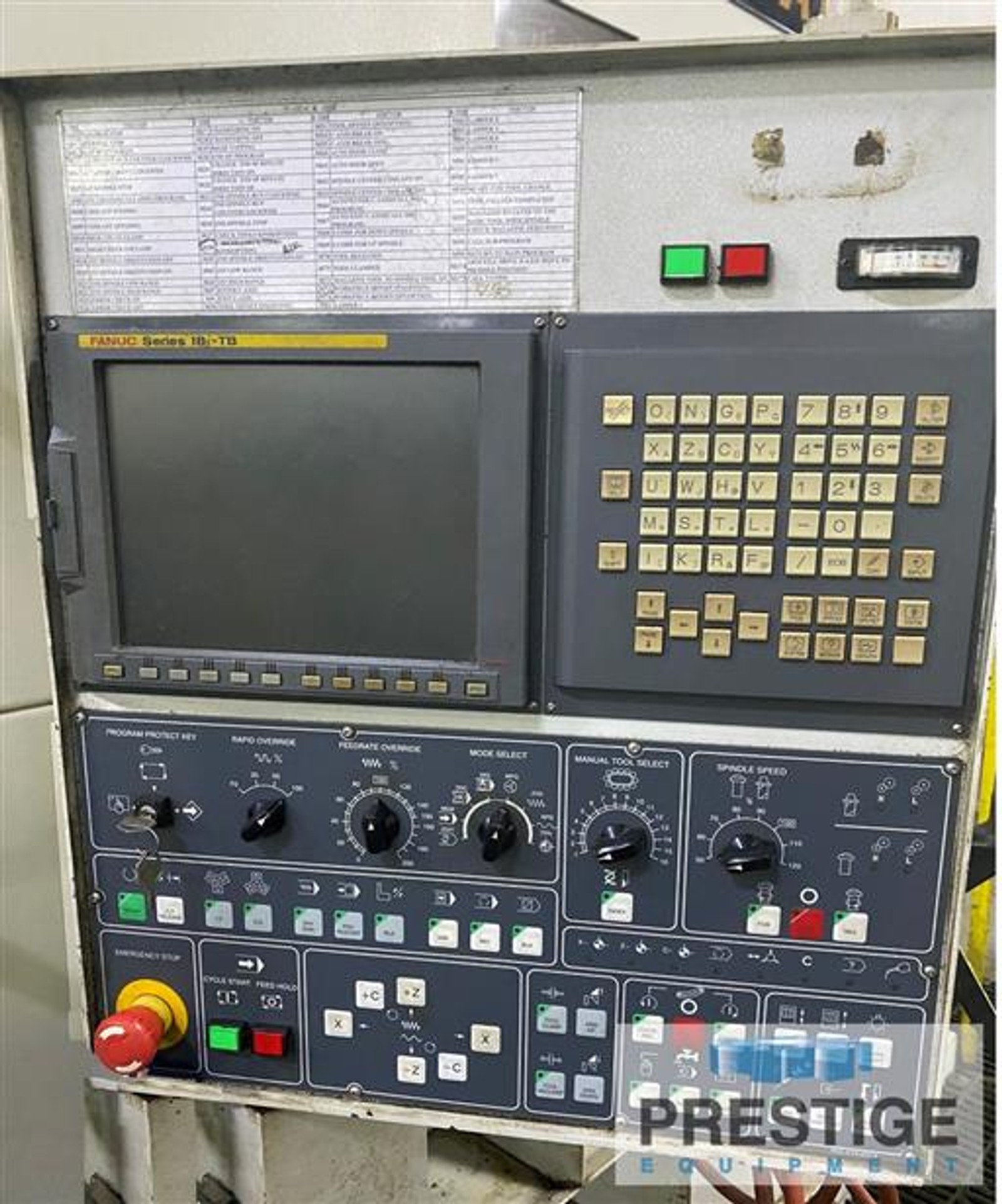

Fanuc 18i-TB CNC Control
Constant Surface Speed

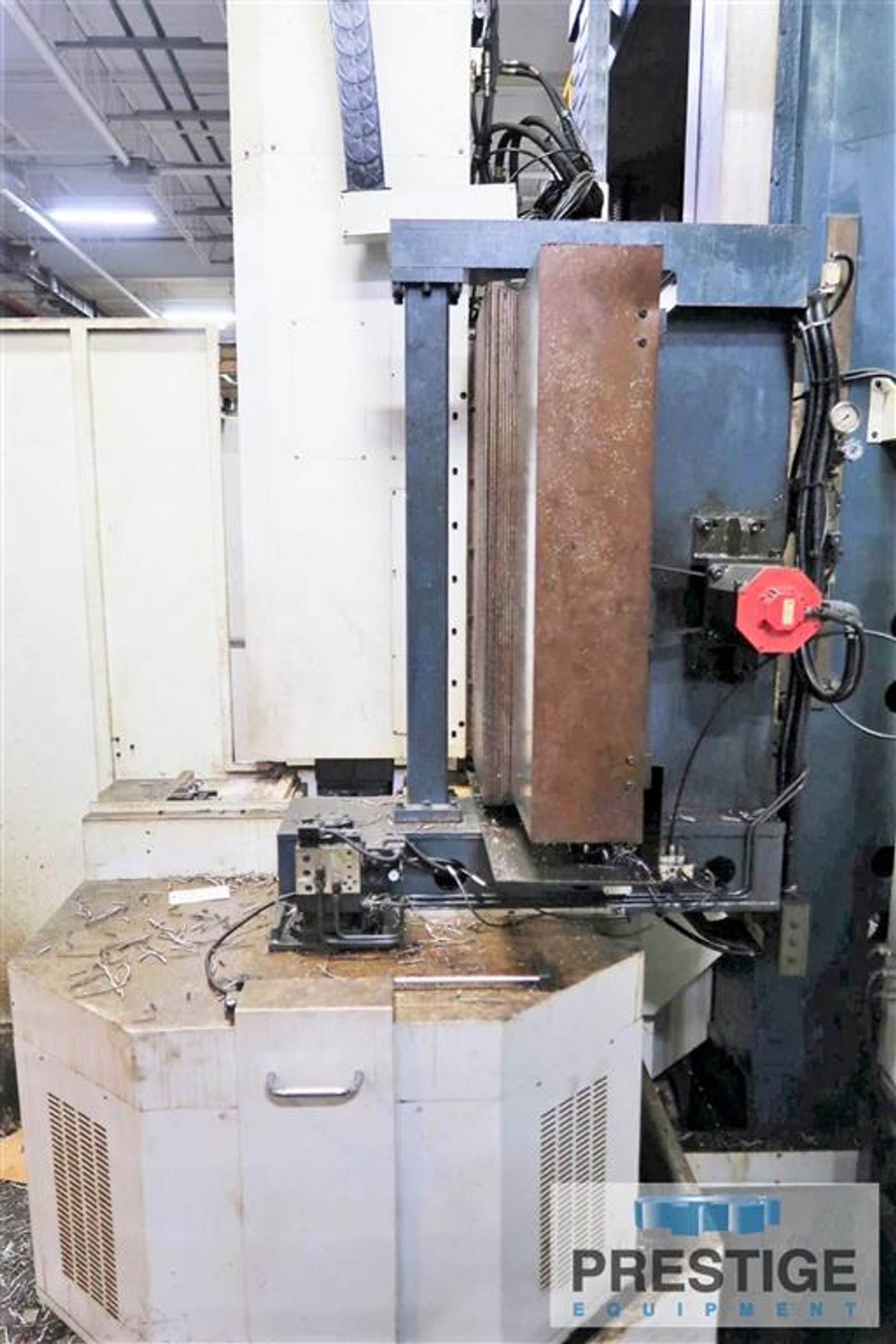

16-Station Automatic Tool Changer

SPECIFICATIONS:
Table Diameter ........................ 118.11"
Maximum Swing ......................... 141.7"
Maximum Turning Diameter .............. 133.8"
Maximum Turning Height ................ 70.8"
Table Speeds, 2-Ranges ................ 1-120 RPM
Table Weight Capacity ................. 44,000 Lbs
X-Axis Horizontal Ram Travel .......... -29.05",+71.85"
Z-Axis Vertical Ram Travel ............ 58.05"

FEED RATES:
X-Axis Rapid Traverse ................. 236.22" IPM
Z-Axis Rapid Traverse ................. 393.37" IPM
Cutting Feed Rate ..................... 0.0393 IPM
Manual Feed Rate ...................... 0236.22 IPM

MACHINE DIMENSIONS:
Floor Space, F-B X R-L ................ 219" x 275"
Machine Height Min/Max ................ 224"/278"
Weight ................................ 152,000 Lbs.

ELECTRICAL REQUIREMENTS:
Voltage ............................... 200/3/60 Cycle
Power Requirement ..................... 150 KVA

EQUIPPED WITH:
Fanuc 18i-TB CNC Control
16-Station Automatic Tool Changer

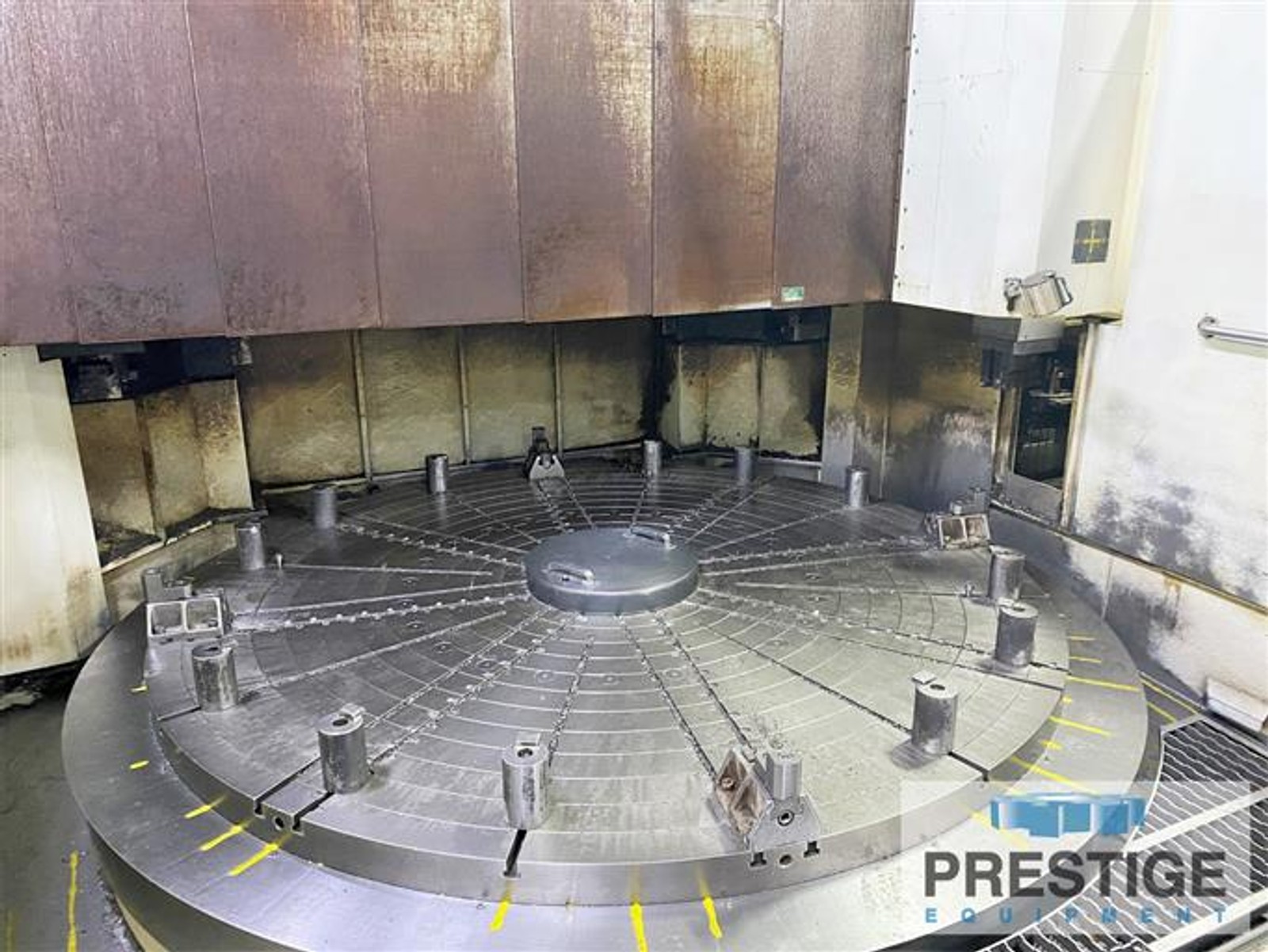

118.11" Face Plate Chuck W/4-Jaws
Renishaw Probe
10 Turning Tool Holders
ZF 2-Speed Gear Box
Constant Surface Speed

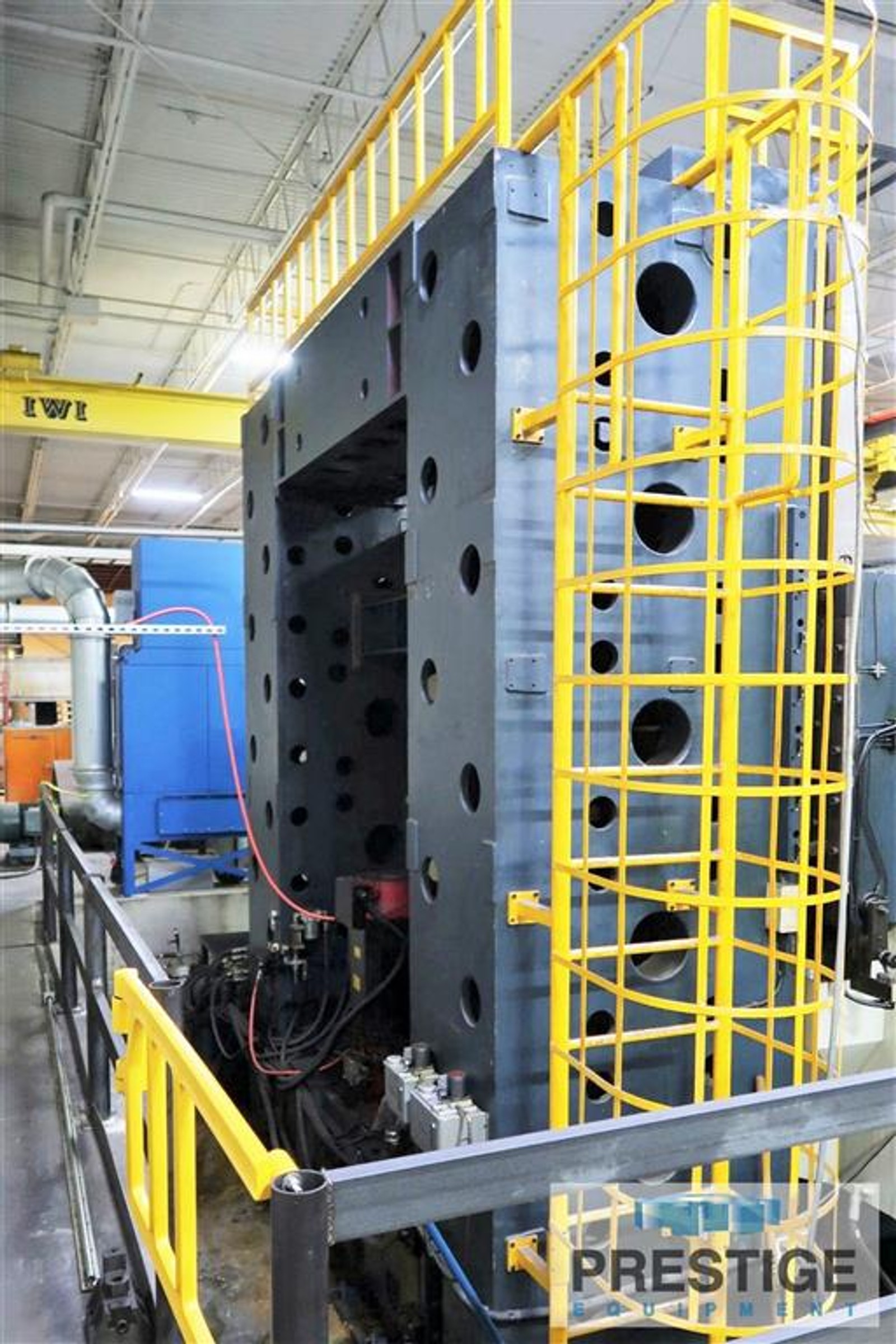

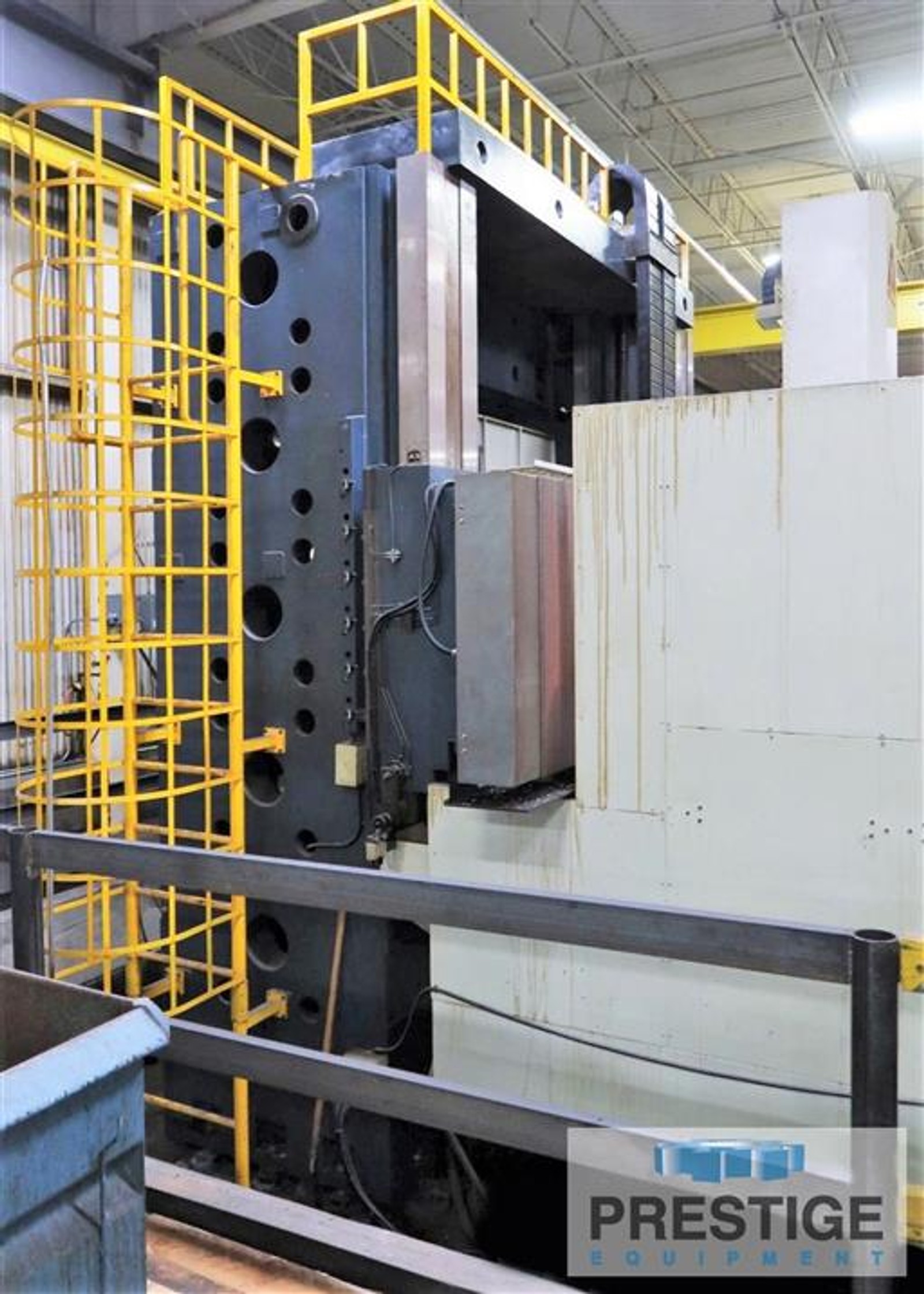

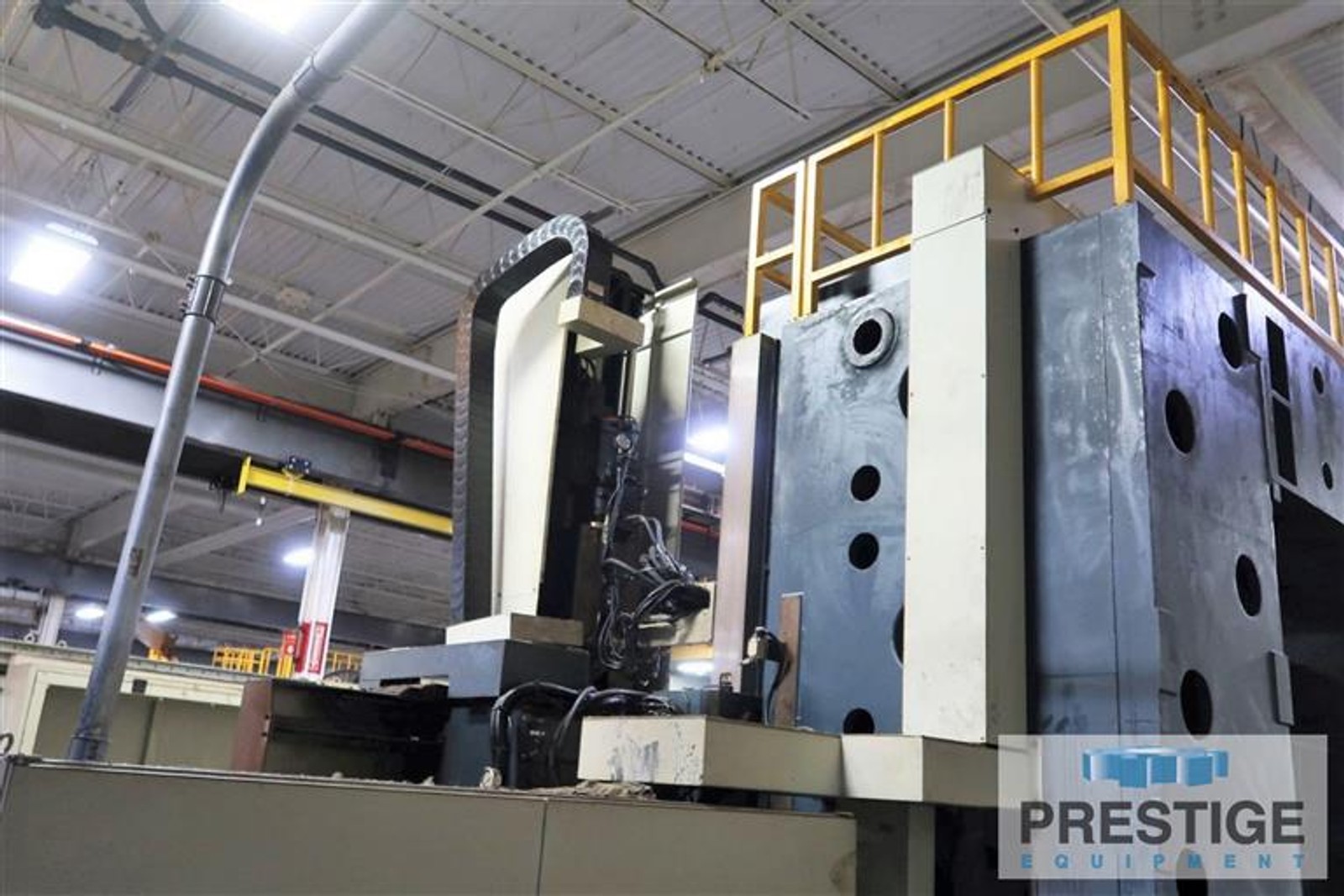

Heavy Duty Column with Box Ways
Precision Crossed Table Roller Bearing
Telescoping Steel Way Covers on Cross Rail
Coolant System with Chiller Unit
Operator, Parts and Electrical Manuals
Chip Conveyor, Coolant Tank

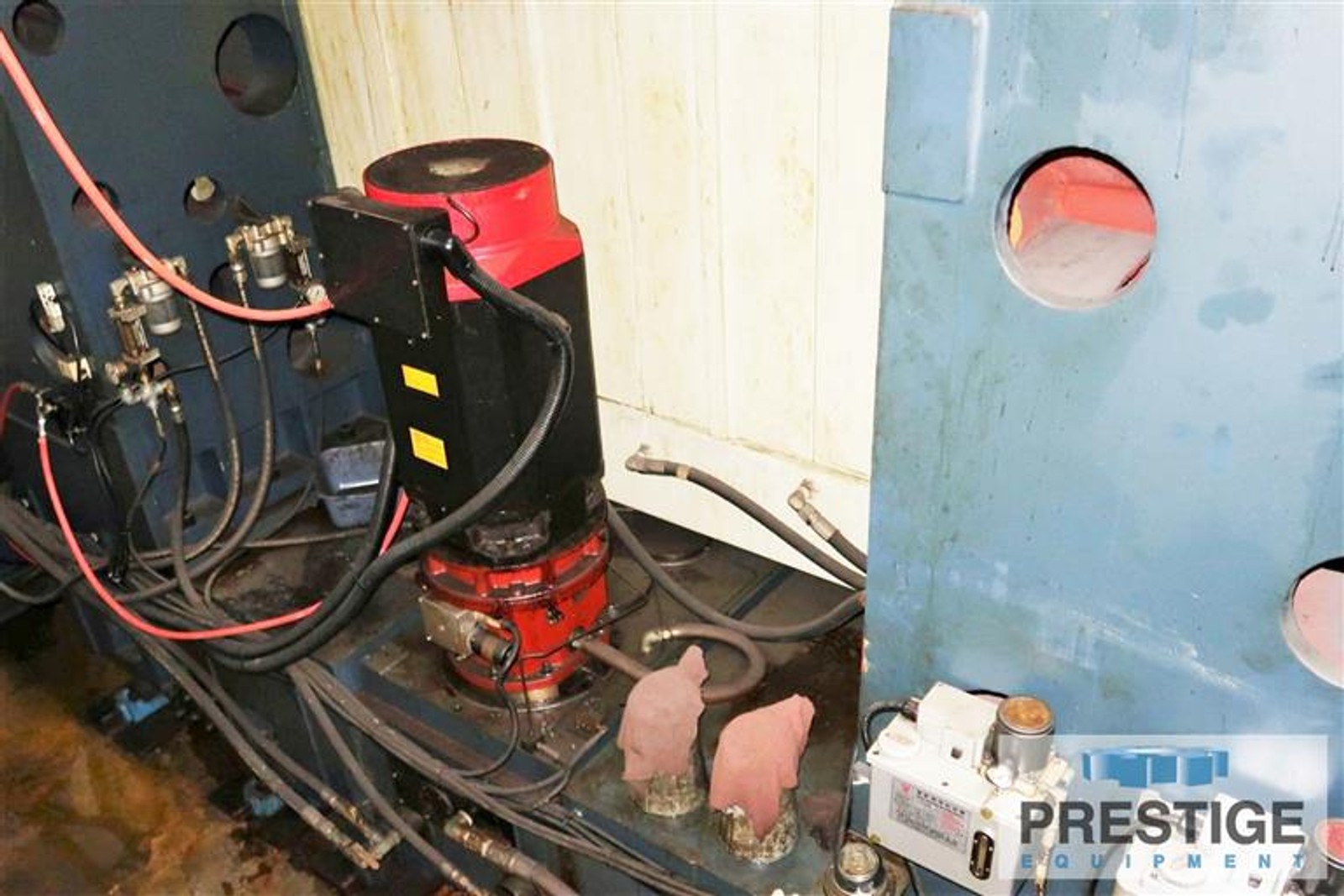

80 HP/100 HP Table Motor
