2001 Cincinnati CL-707 2.5KW Laser Cutting System (#4757)

Manufacturer

Category

Miscellaneous Machines

Type

MISCELLANEOUS

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet

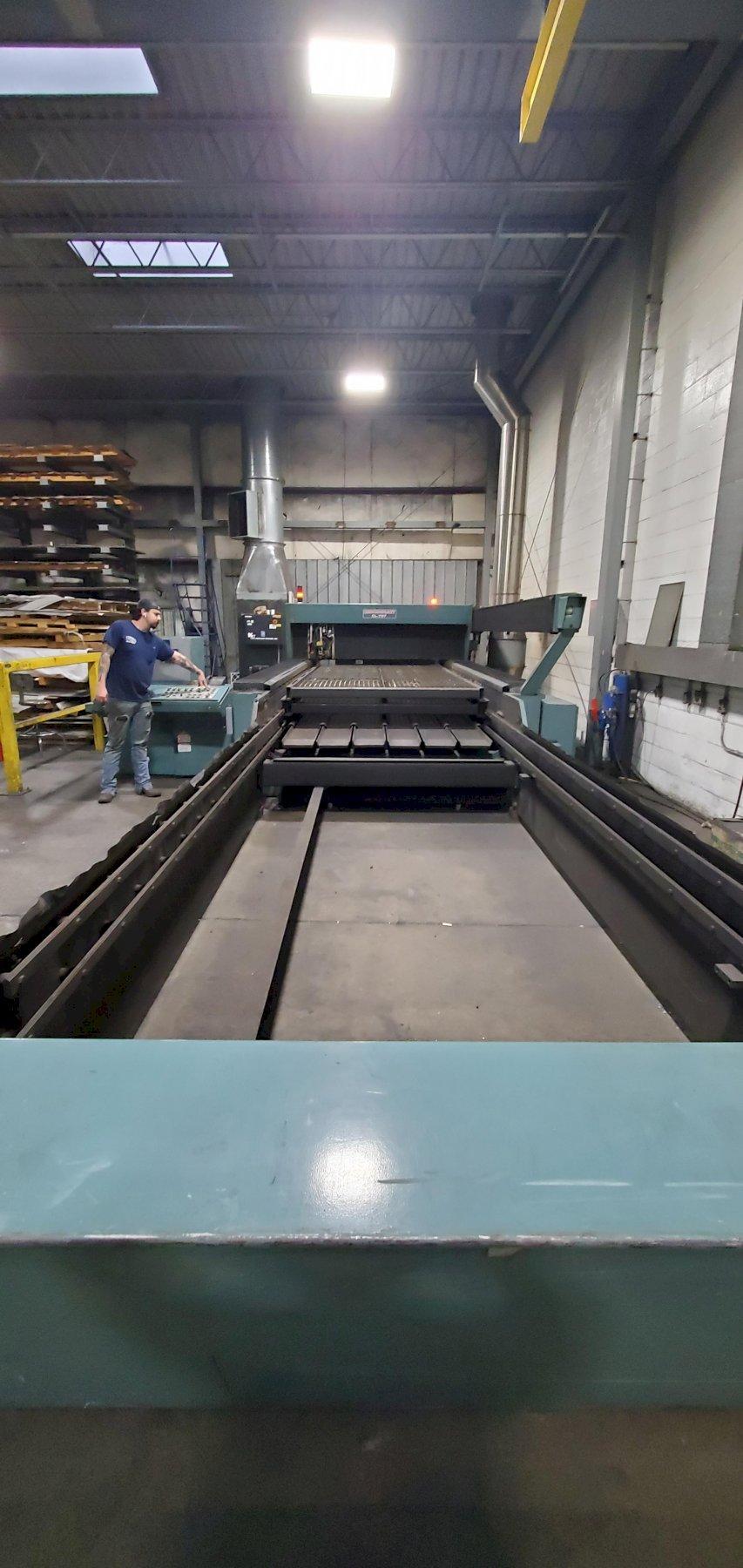

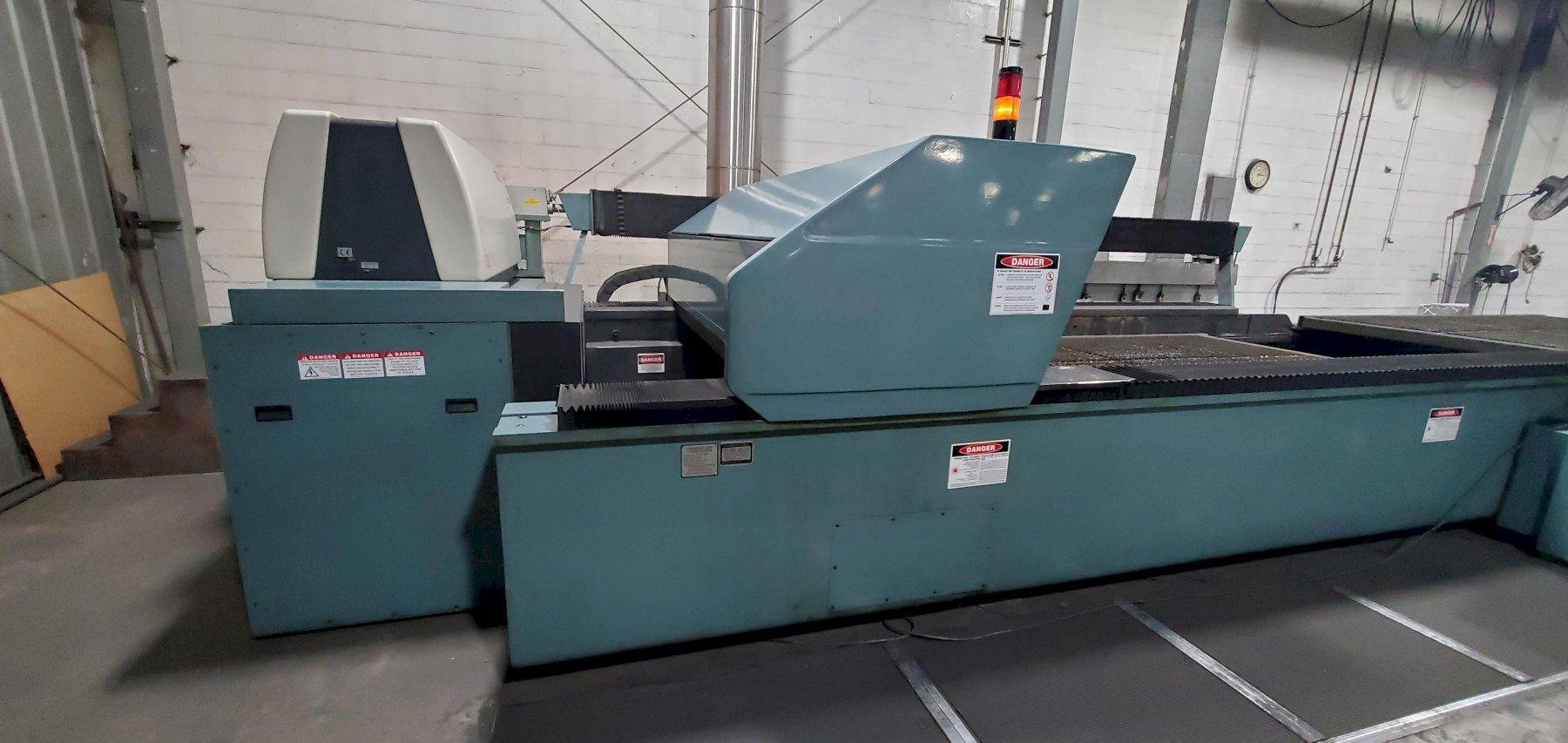

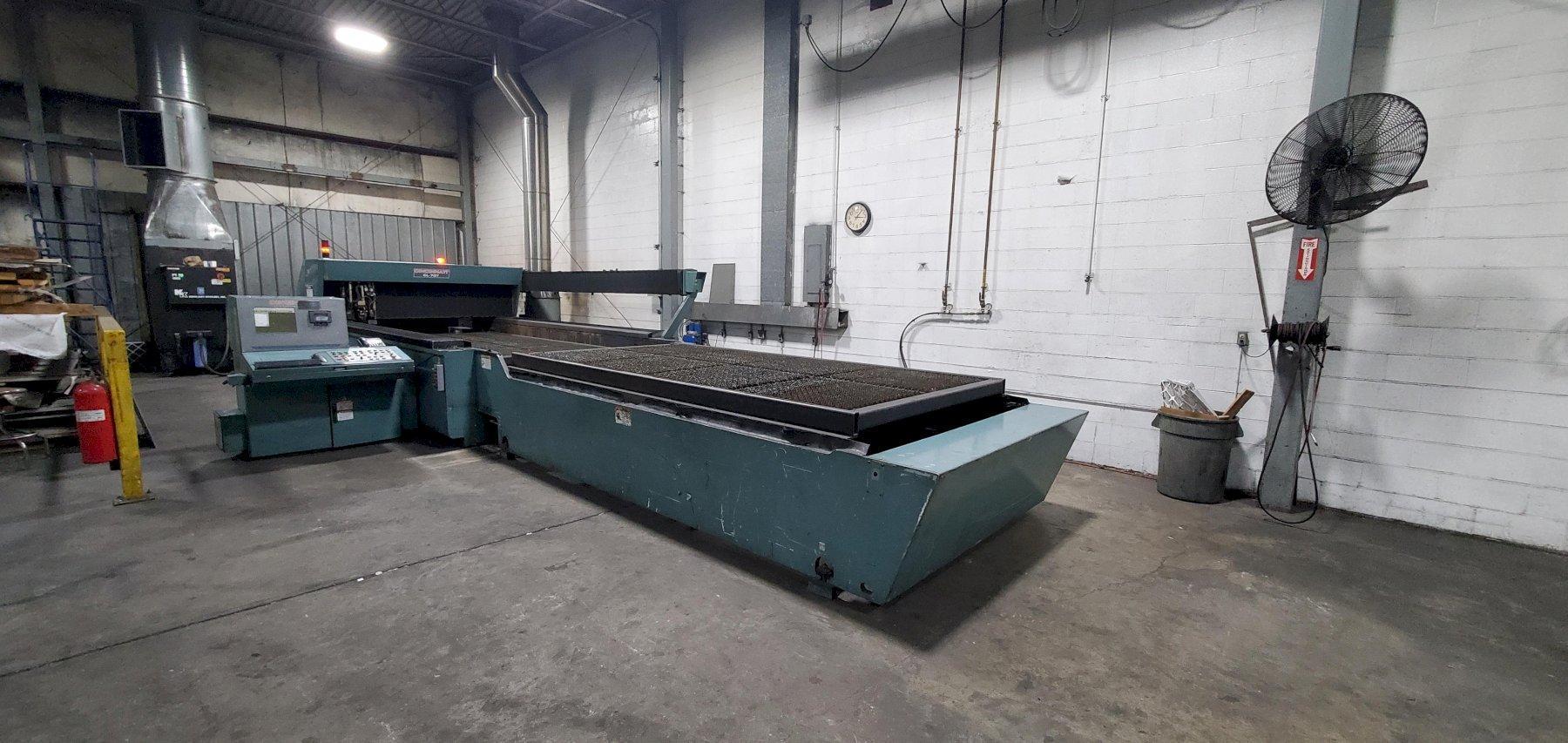

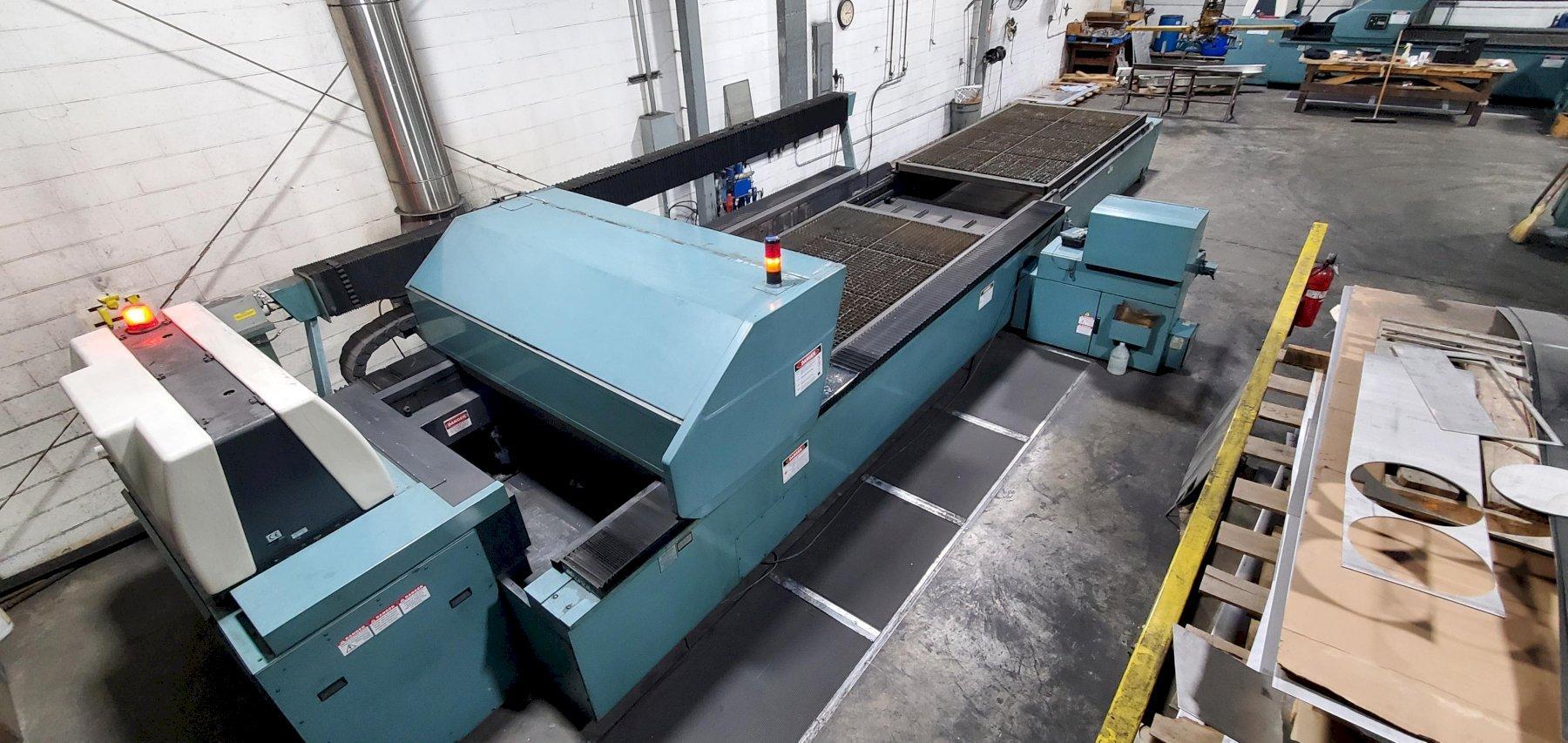

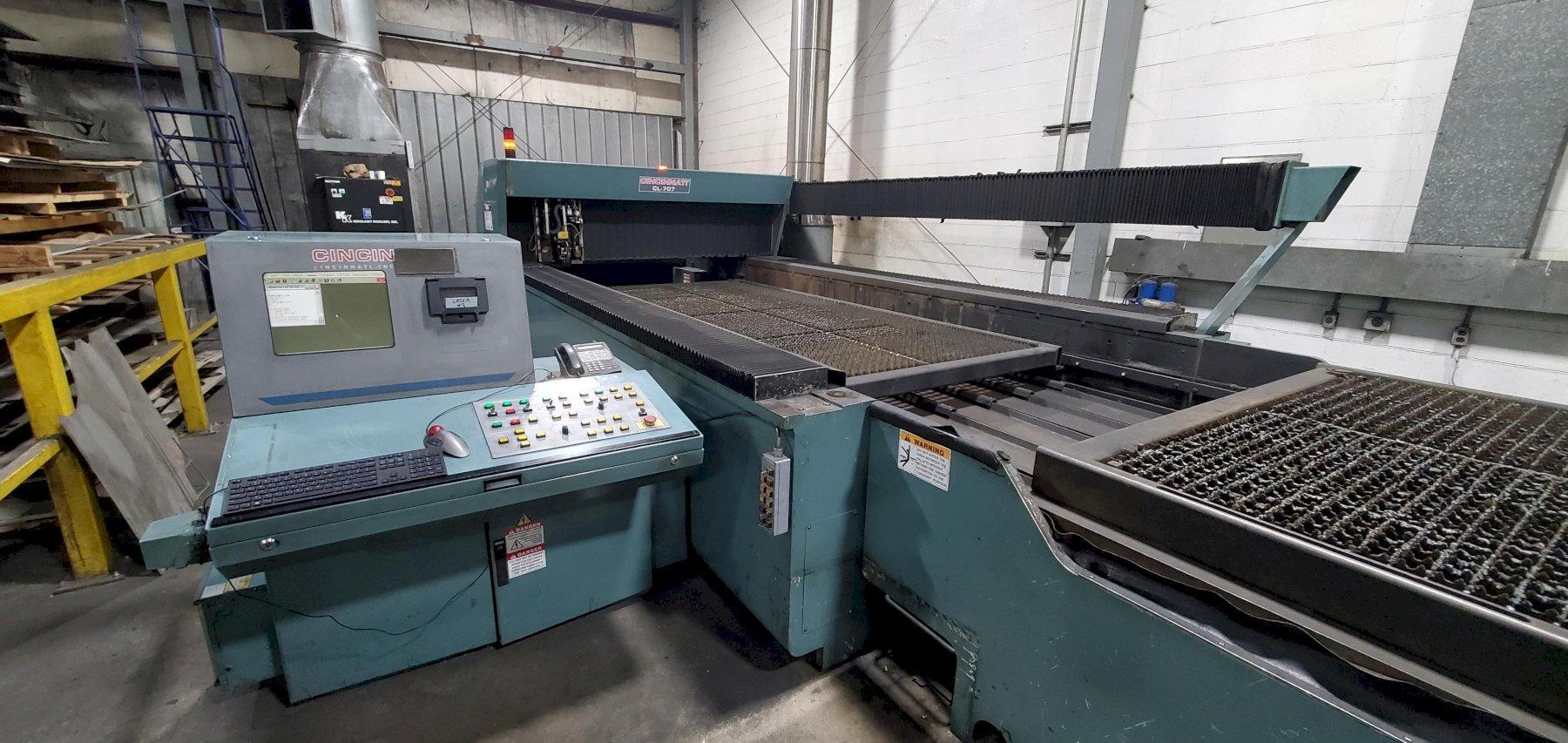

6’ X 12’ Capacity 2.5KW (2,500 Watt) Laser Cutting Systems with Cincinnati PC Based Controller, Rofin 2.5KW Slab Resonator, Koolant Koolers Chiller, Non-Contact Cutting Head, Just Serviced by Manufacturer (Serviced ONLY by Cincinnati and Coherent (Rofin)) with all external optics replaced less than 100 hours ago (again, all work performed by CI) and under 13K Hours Beam On Time. Inspect In-Plant and Under Power.

GENERAL SPECIFICATIONS
Travels:
X-Axis: 73”
Y-Axis: 145”
Z-Axis: 8”
Maximum Workpiece Size: 144” X 762” X 1”
Maximum Workpiece Weight: 3,000 LBS
Programmable Cutting Feedrate: 0-1,000IPM
Rapid Positioning Speeds: 6,000IPM (X-Y), 2,000 IPM (Z)
Material Exchange Type: Dual pallet
Cutting Head: NON-Contact Head

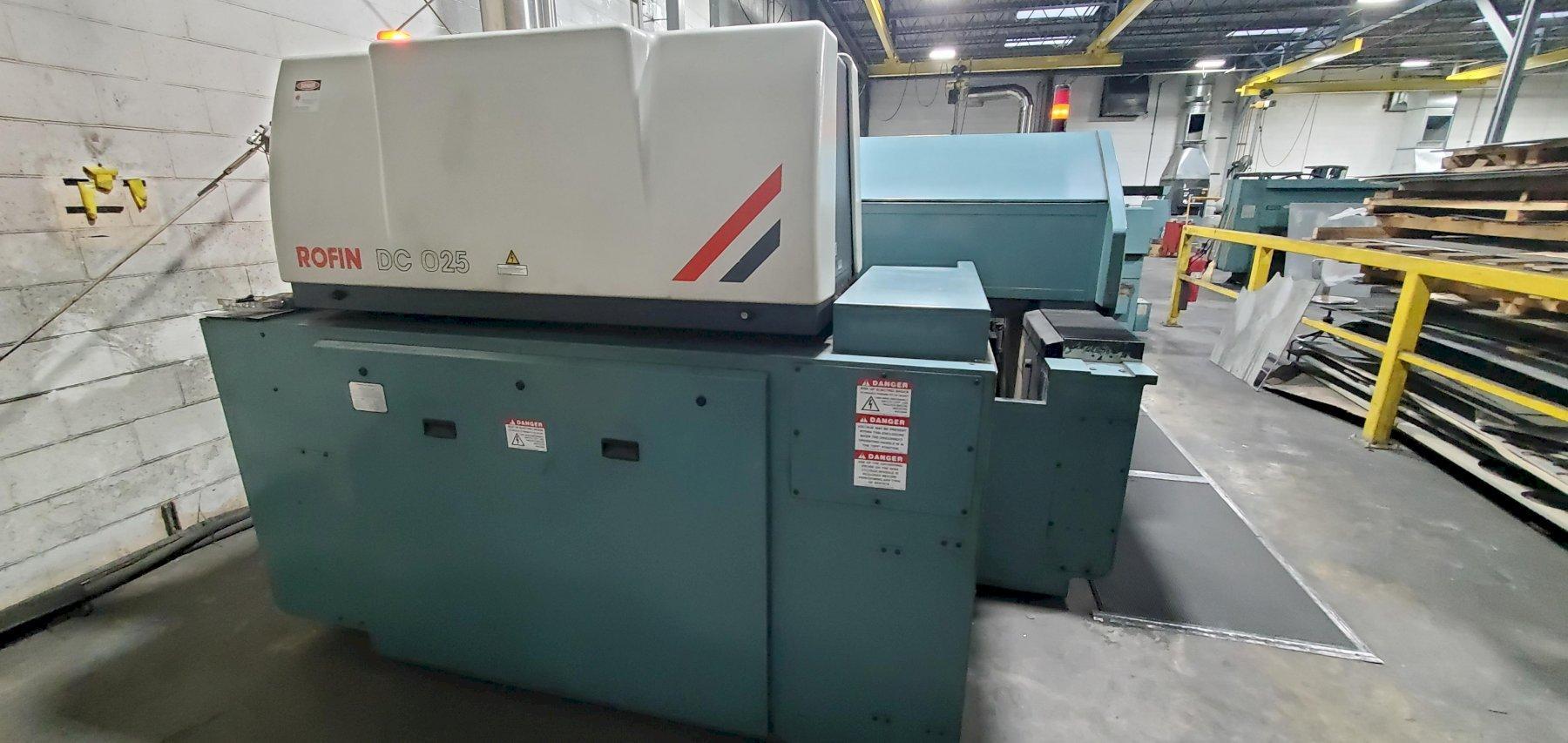

Resonator Make: Rofin/Coherent DC 025
Laser Resonator Type: Slab
Resonator Power: 2,500 Watts

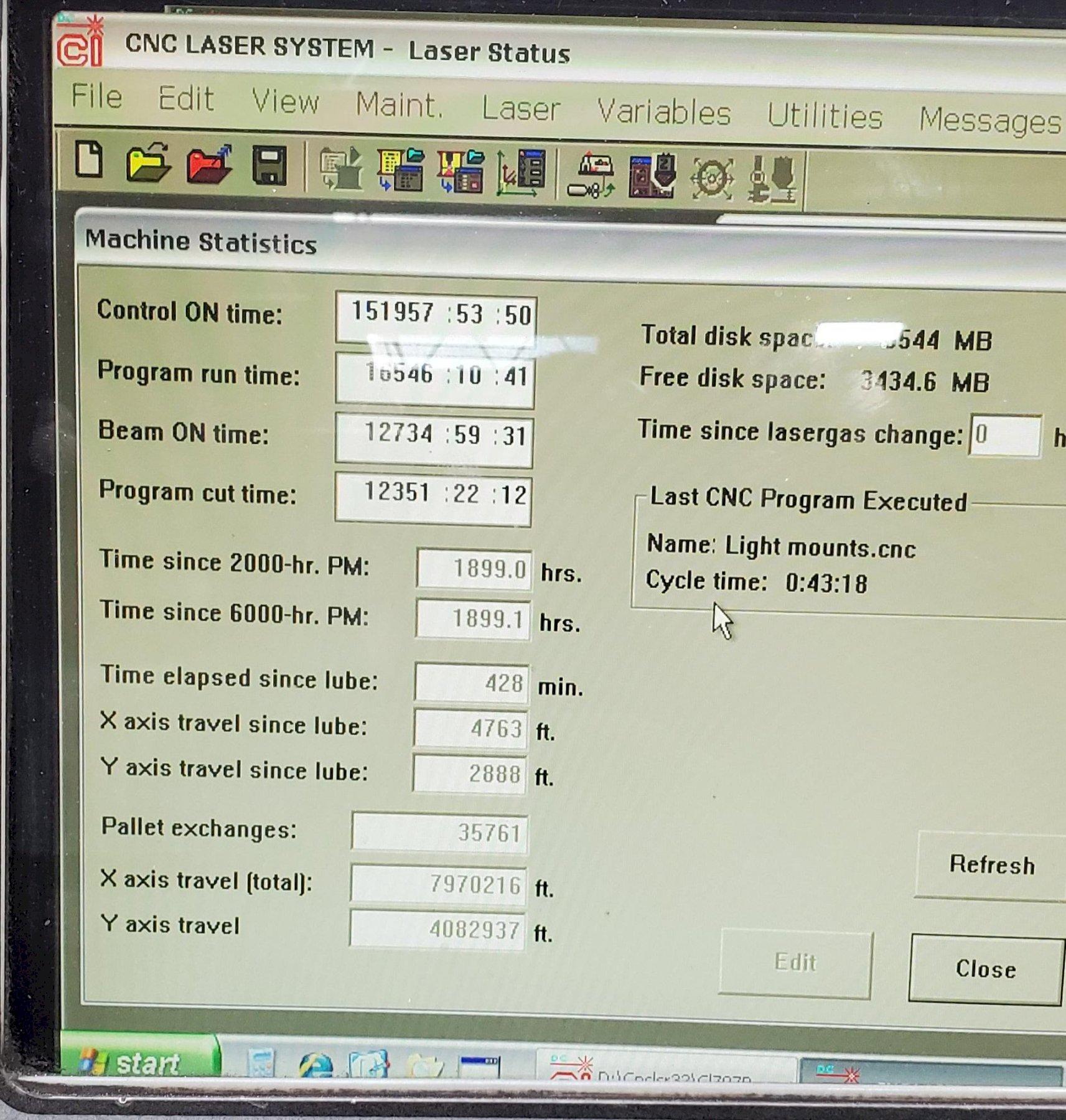

Resonator Hours: 12,734 Beam On (Subject to Change)
Cutting Capacities:
Max Cutting Capacity (Mild Steel): 5/8″
Max Cutting Capacity (Stainless): 3/8″
Max Cutting Capacity (Aluminum): 1/4″

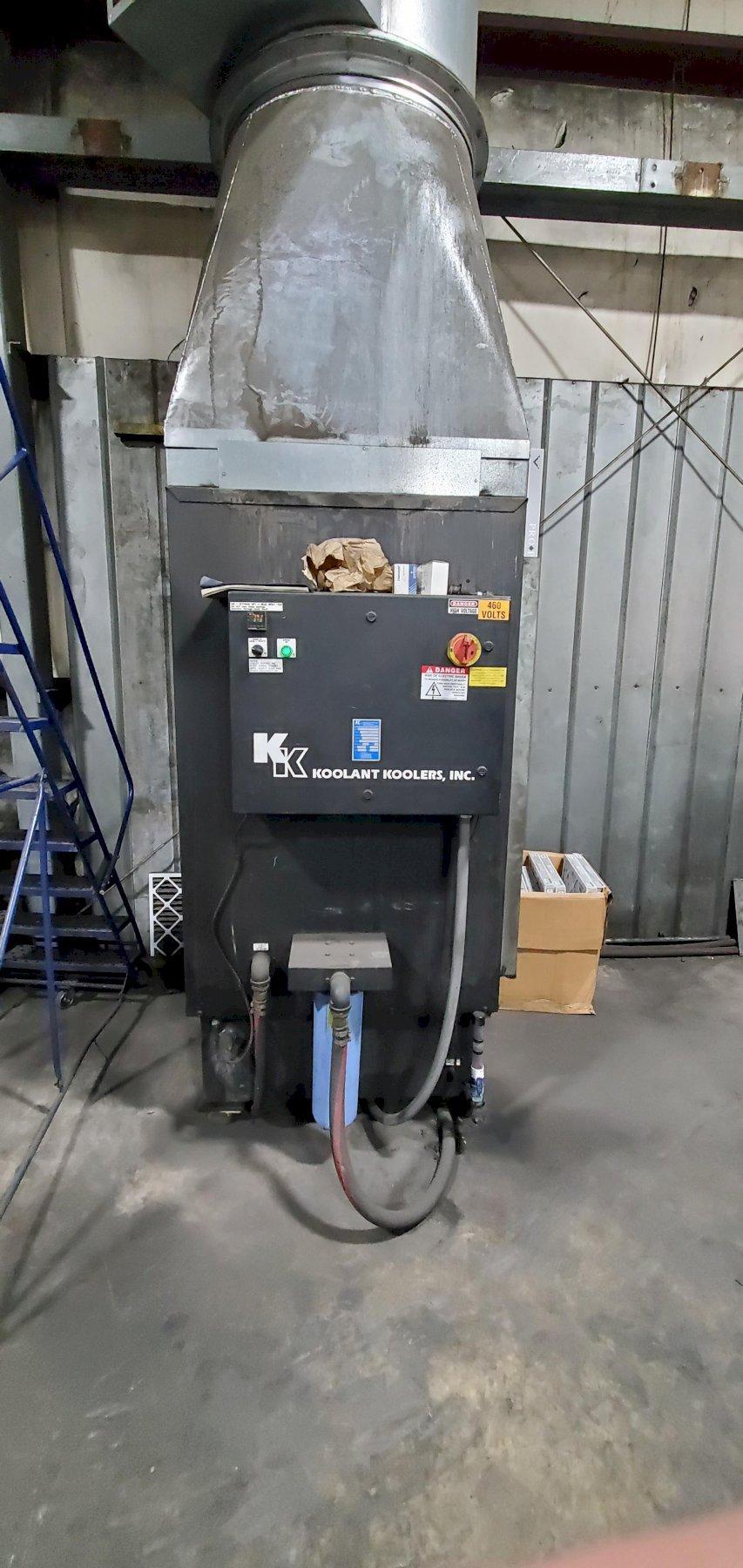

Chiller: Koolant Koolers
Chiller Capacity: 12,000 BTU’s
Voltage: 460V
Dimensions (Installed Machine/Shuttle): 204” X 348” X 83” / 89” X 148 X 40”
System Weight: 33,000 LBS


INCLUDES: Cincinnati PC Based Controller, Rofin 2.5KW Slab Resonator, Koolant Koolers Chiller, Non-Contact Cutting Head, Just Serviced by Manufacturer (Serviced ONLY by Cincinnati and Coherent (Rofin)) with all external optics replaced less than 100 hours ago (again work performed by CI) and under 13K Hours Beam On Time. Inspect In-Plant and Under Power


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
