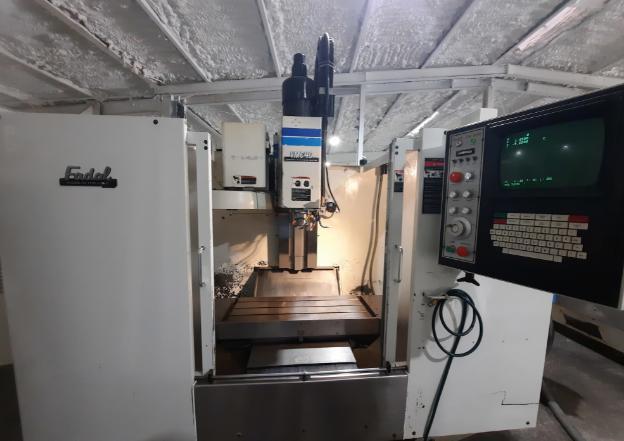

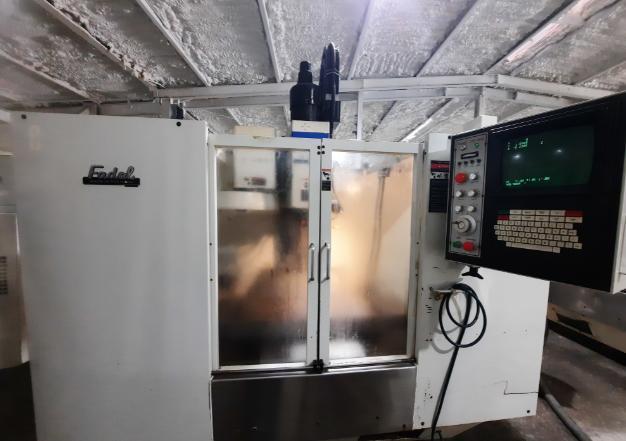

1994 Fadal 904 Vertical Machining Center (#4743)

Manufacturer

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

None

Model

None listed

Dealer Location

Florida

Request a Quote
View Contact Information

Spec Sheet



22” X 16” X 20” Vertical Machining Center with Fadal CNC88HS Control, Tool Holders to Fill the ATC, 21 Station Tool Changer and Manuals

GENERAL SPECIFICATIONS
# ATC: 21
Table-W: 16"
Table-L: 40"
Table Size: 39" X 16"
Maximum Table Load: 750 LBS
Distance Spindle Nose To Table Top: 4" - 24"
X-Axis Travel: 22"
Y-Axis Travel: 16"
Z-Axis Travel: 20"
Spindle Taper: Cat 40
Spindle Speeds: 10,000 RPM
Spindle Motor: 15 HP

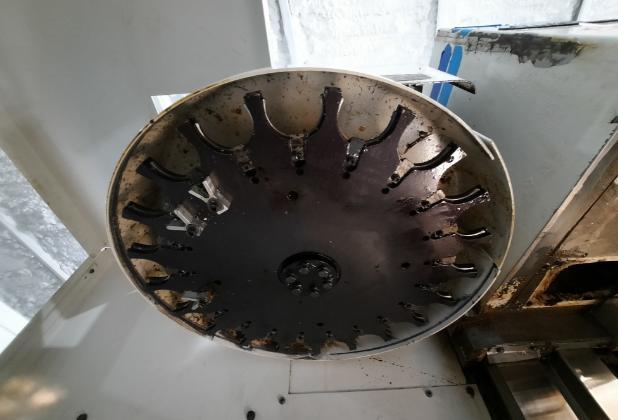

Tool Magazine Capacity: 21 Station Tool Changer
Maximum Tool Diameter / Length / Weight: 3" / 15" / 15 LBS
Rapid Traverse Rates: 400 IPM
Machine Dimensions L X W X H: 85" X 77" X 94"
Machine Weight: 8000 LBS

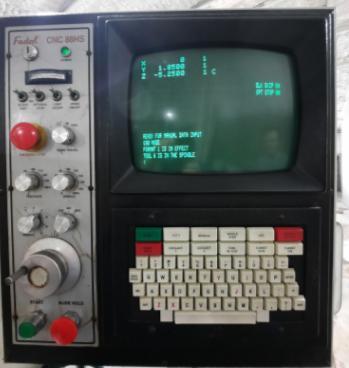

INCLUDES: Fadal CNC88HS Control, Tool Holders to Fill the ATC, 21 Station Tool Changer and Manuals


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
