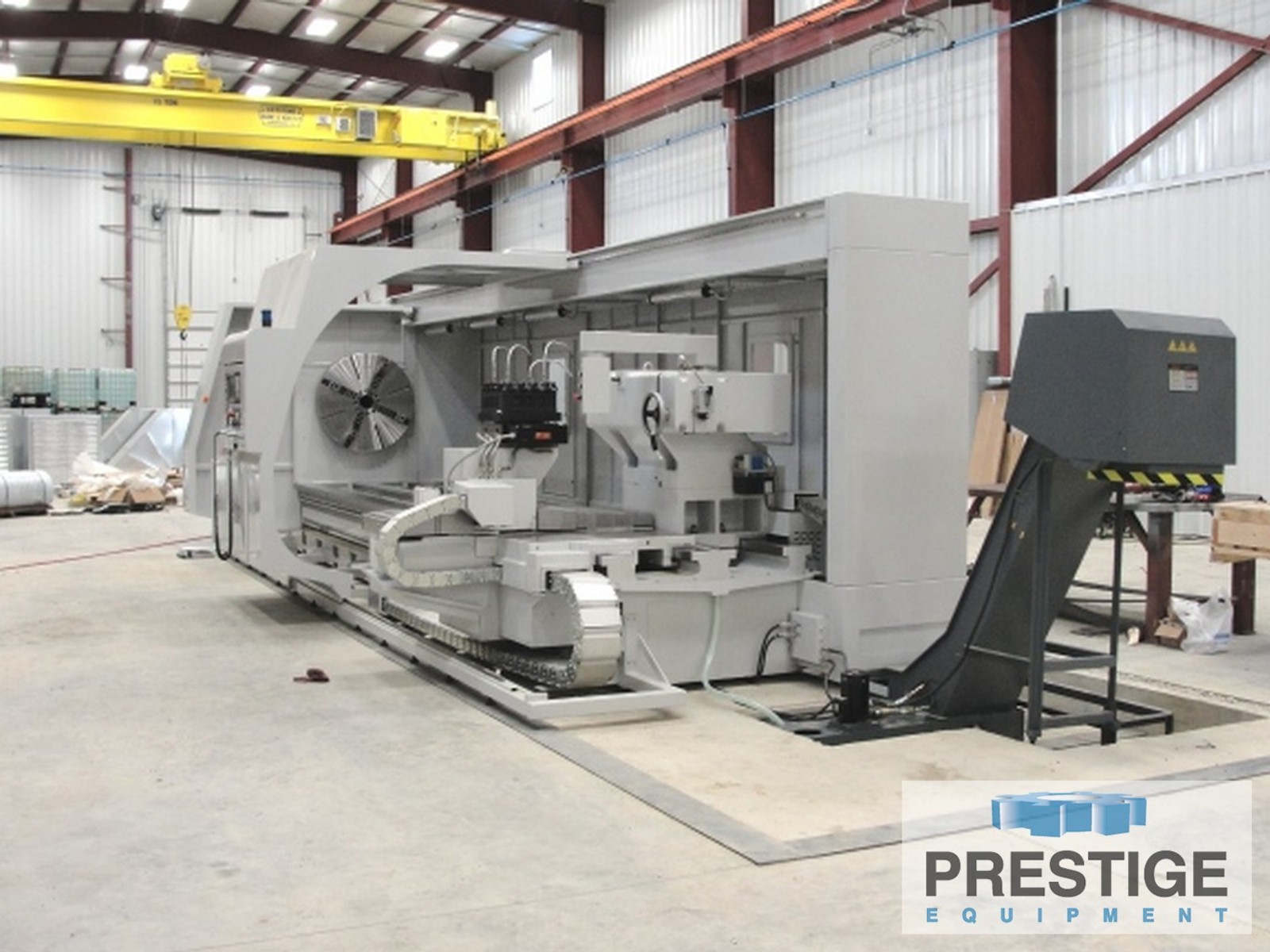

Microcut 51.18" Swing, 472.44" Centers, Four Way Bed, Fanuc OiTF CNC, 4 Pos. Turret, Linear Scales, New 2023, #32329

Manufacturer

MICROCUT

Category

Lathes

Type

LATHES, COMBINATION, CNC

Stock

32329

Model

BNC 5000 x 12M

Dealer Location

New York

Request a Quote
View Contact Information

Spec Sheet

Reference #32329

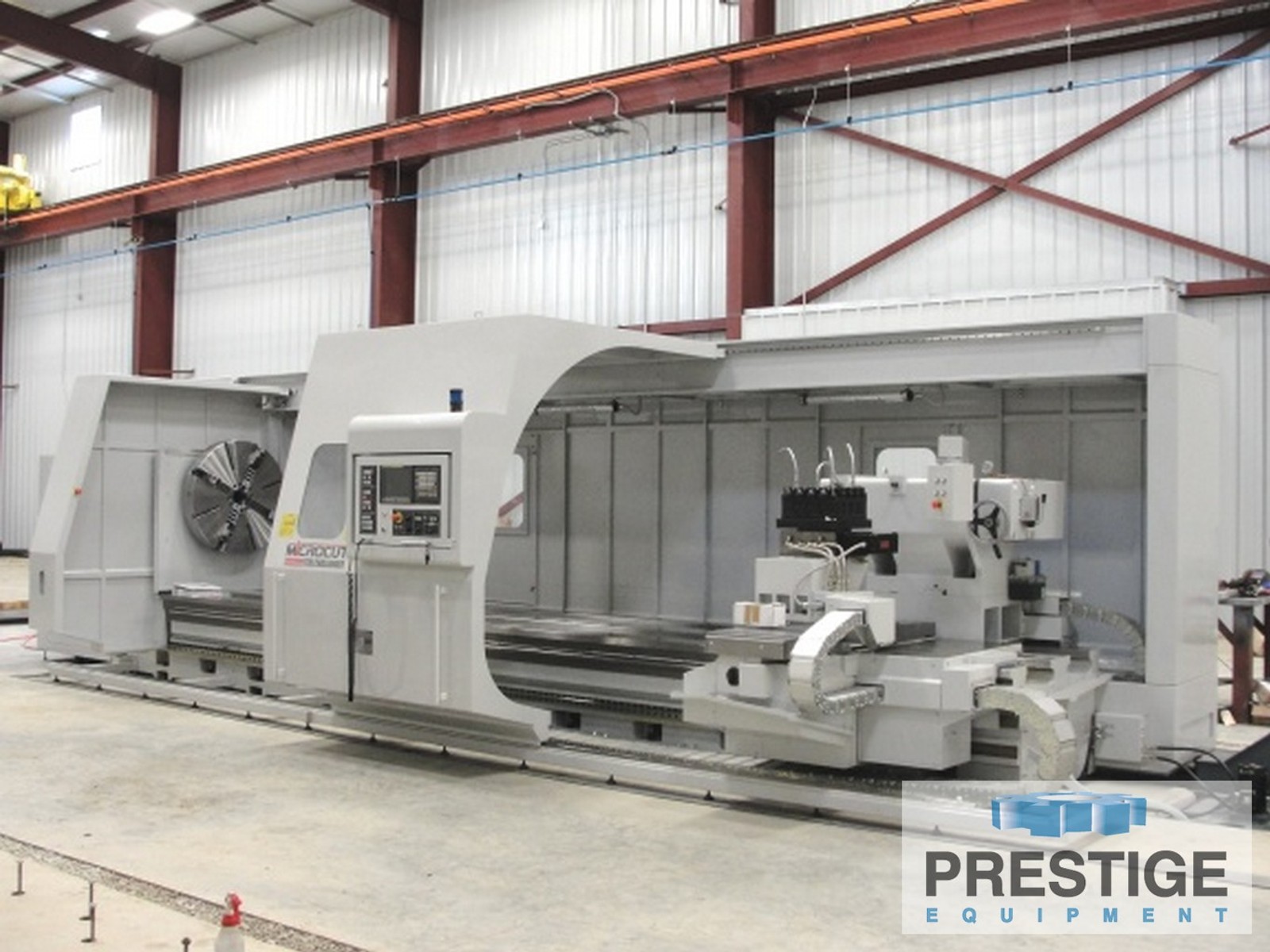

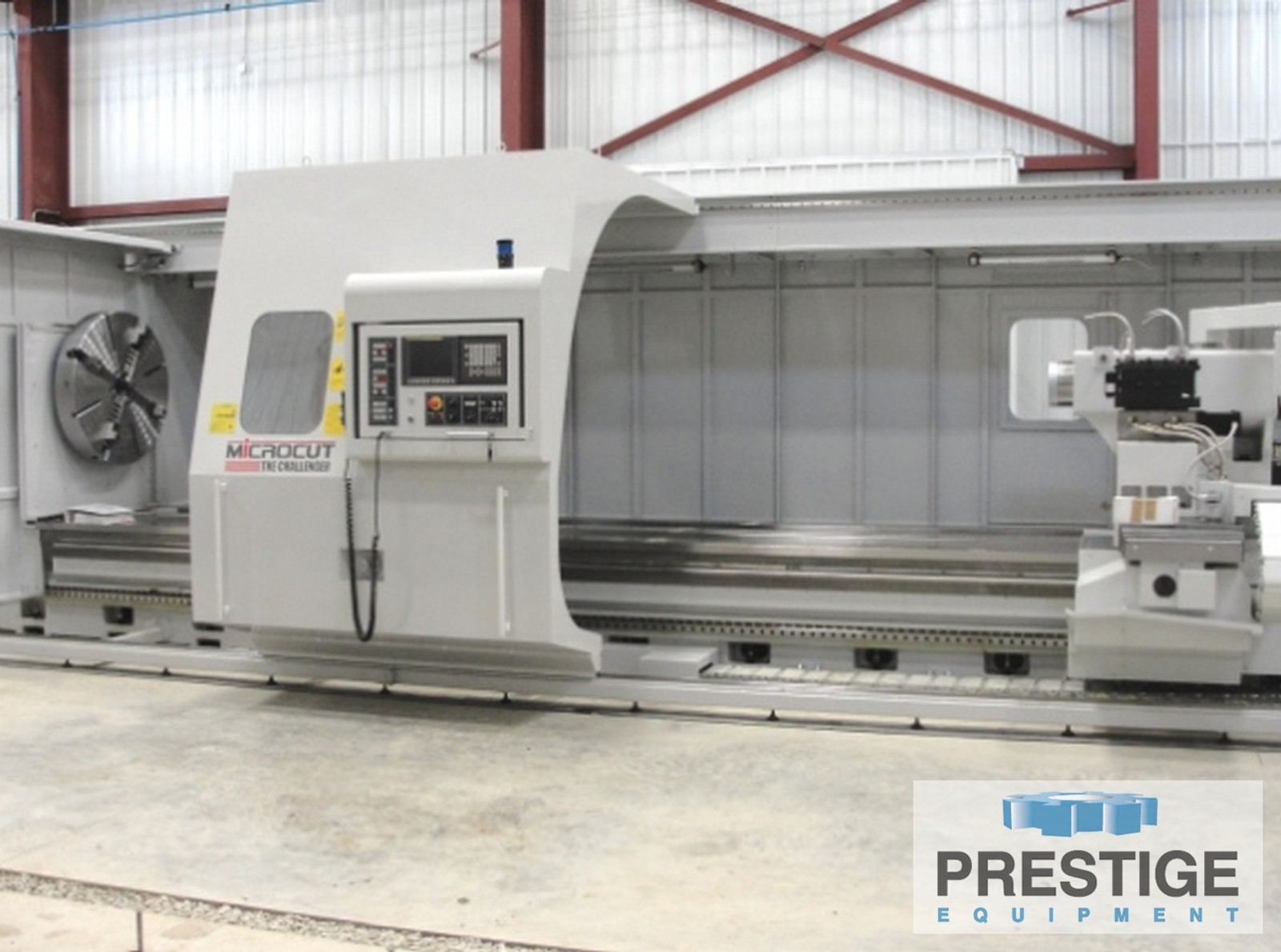

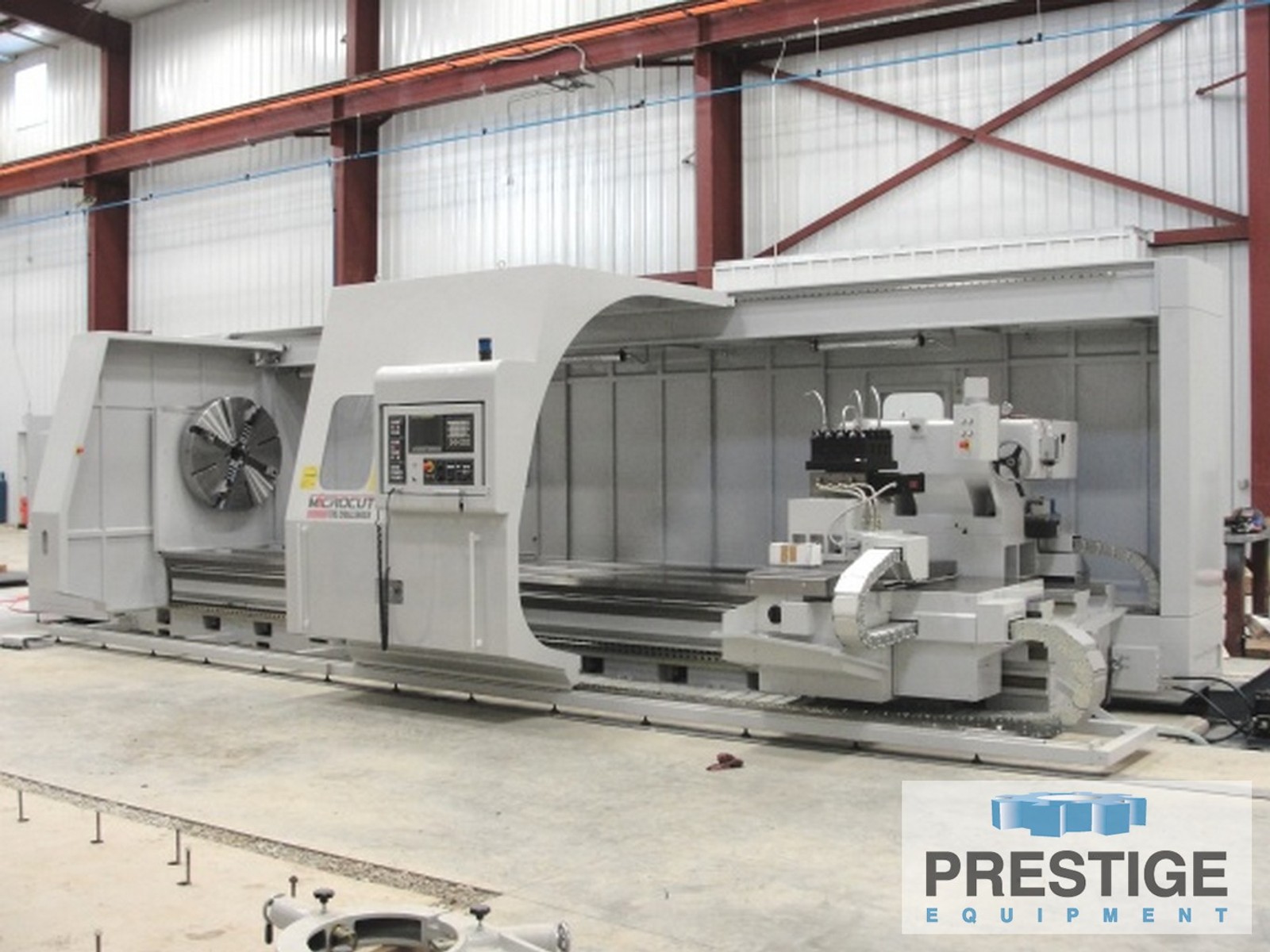

Microcut 51.18" x 472.44" CNC Lathe
New 2023

FEATURES:

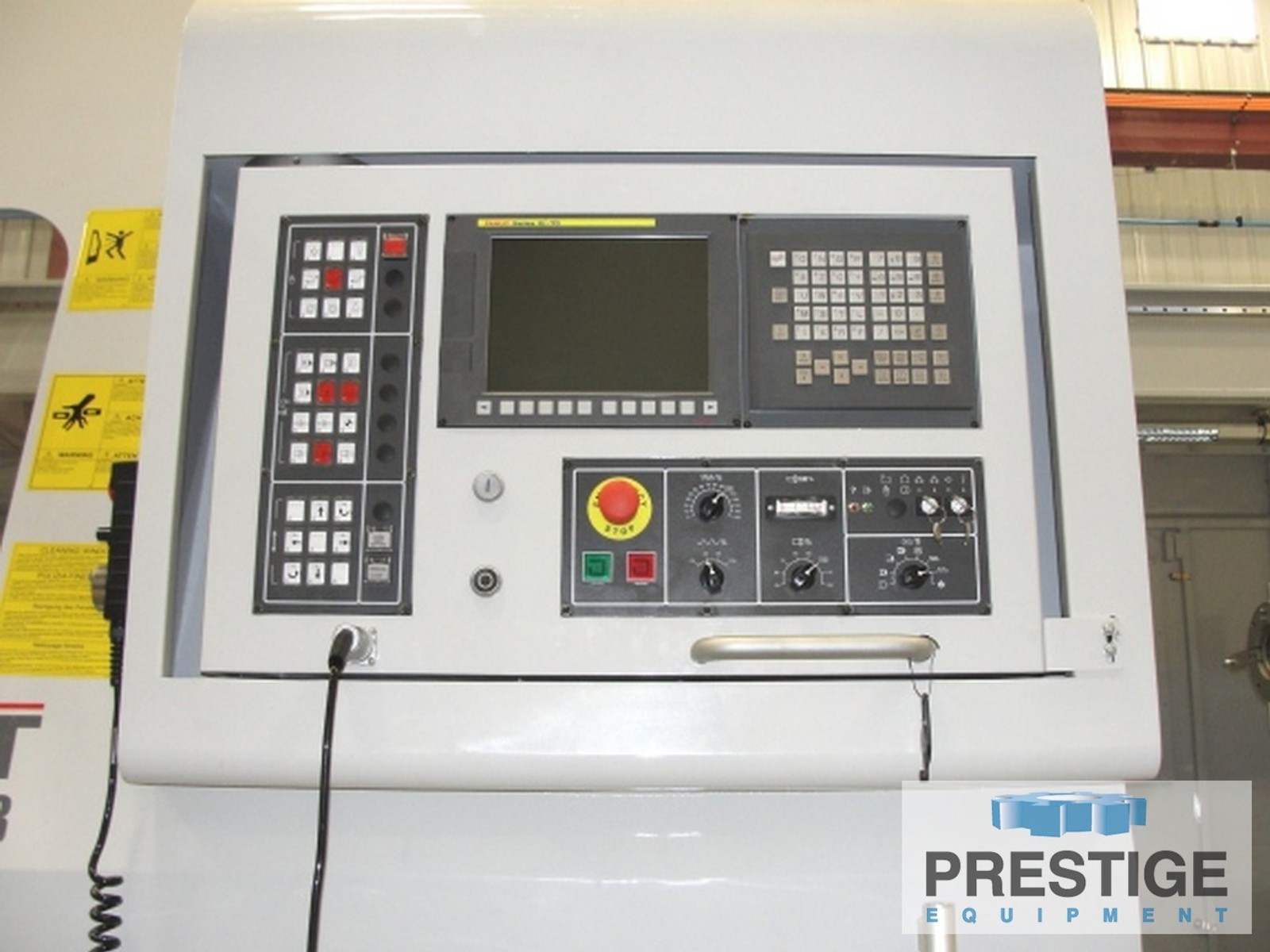

Fanuc OiTF Plus Control with 10.4" LCD & Manual Guide i

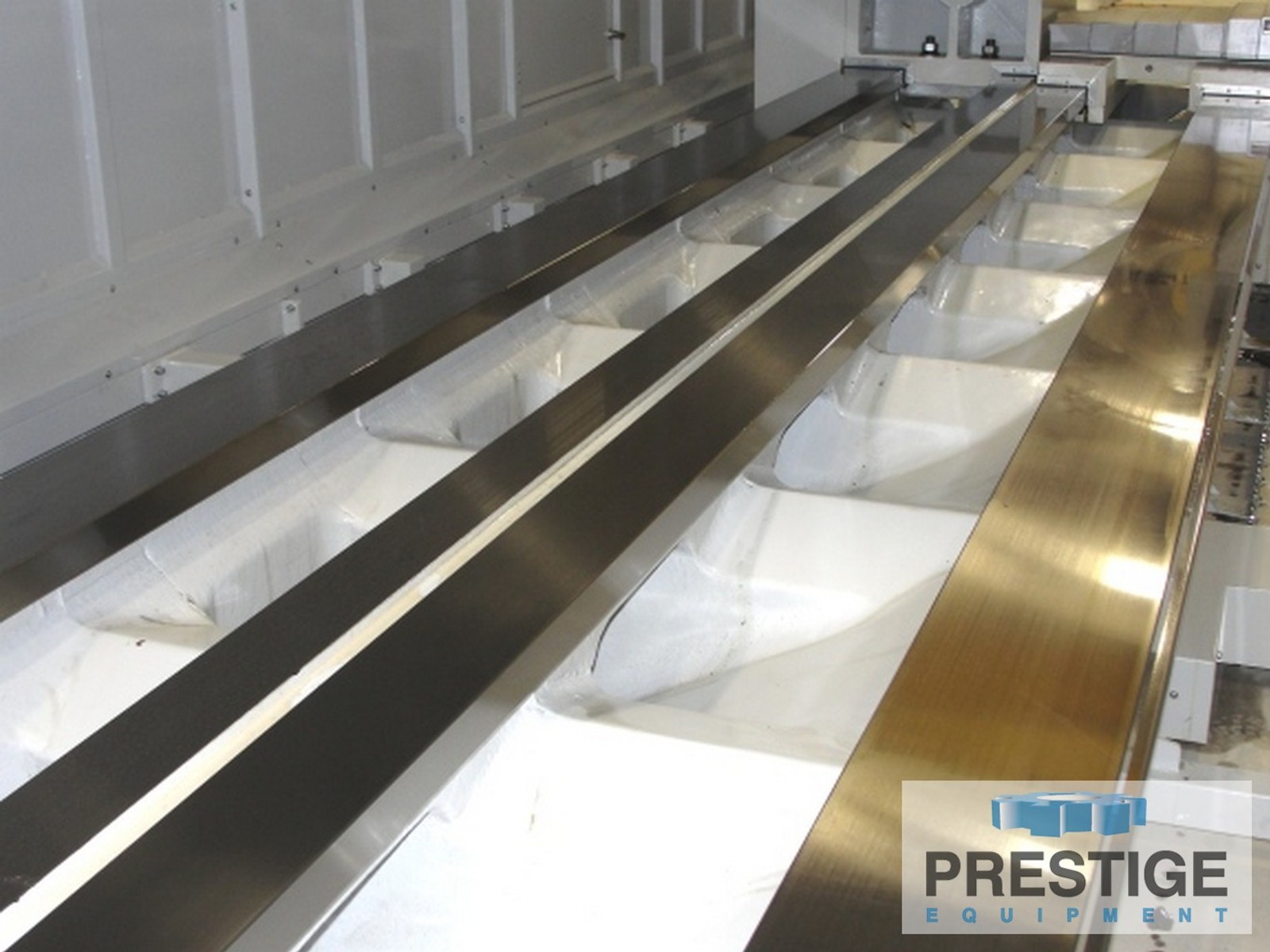

Four Wide Guide Ways in One Piece for Heavy Loading
Motorized Tailstock

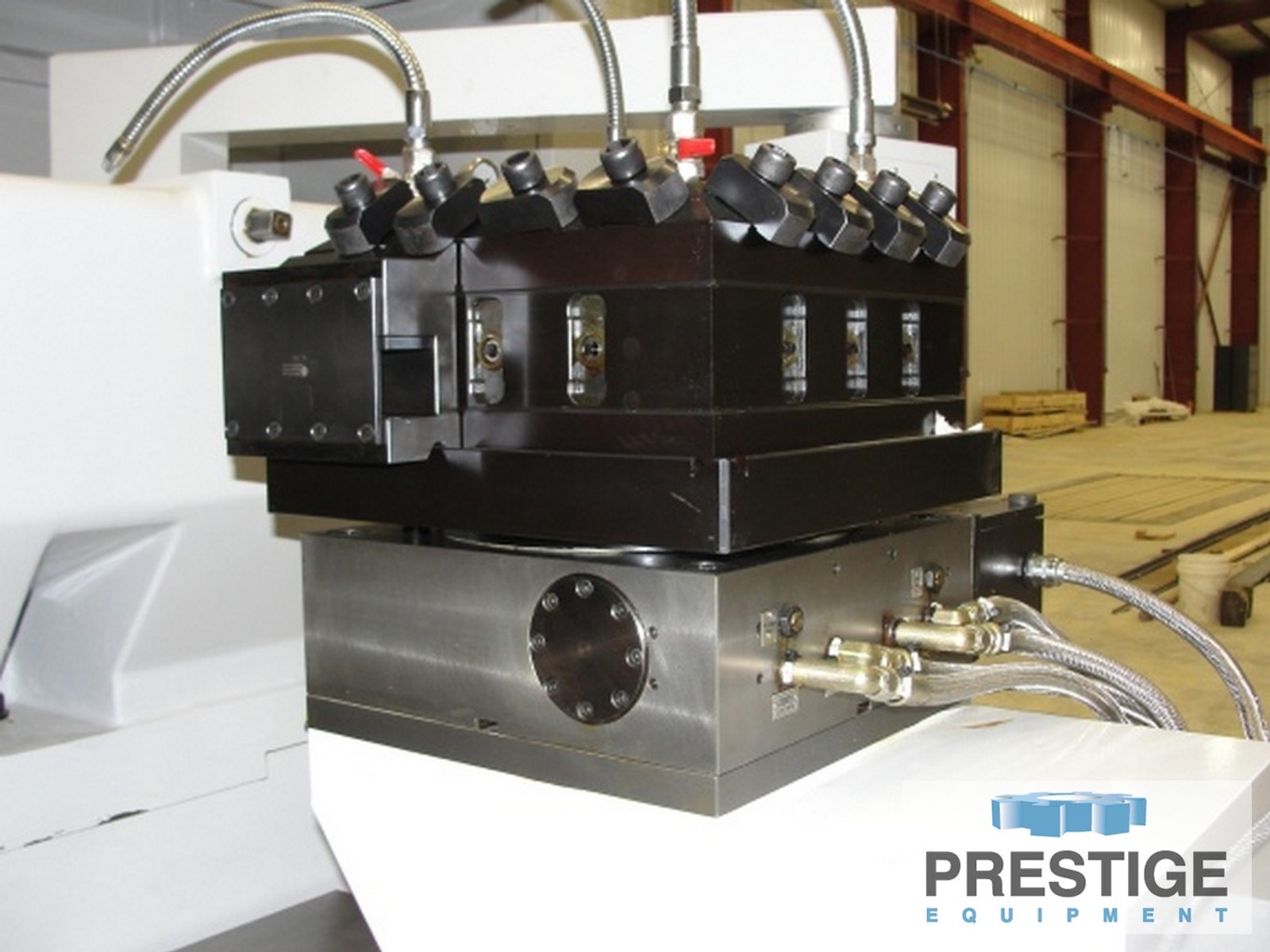

4-Position HP-350 Hydraulic Turret
Linear Scales for Z Axis
1.96"-15.7" Steady Rest
17.96"-23.62" Steady Rest
Full Length Chip Conveyor

CAPACITY:
Swing Over Bed ........................ 51.18"
Swing Over Cross Slide ................ 38.58"
Overall Bed Width ..................... 51.18"
Maximum Turning Length ................ 472.44"
Max. Work Piece Weight w/ Tailstock ... 22,000 Lbs
Spindle Speeds, 2-Ranges .............. RPM
Spindle Hole Diameter ................. 14.96"
Spindle Nose Mount .................... A2-20
X-Axis Travel ......................... 25.59"
Z-Axis Travel ......................... 472.44"
Main Motor ............................ 80 HP/100 HP
Quill Diameter ........................ 9.44"
Quill Stroke .......................... 9.05"
Quill Taper ........................... #6 MT
X/Z Rapid Traverse .................... 393 IPM
Overall Dimensions .................... 647" x 134" x 106"
Machine Weight ........................ 99,500 Lbs.

EQUIPPED WITH:
Fanuc OiTF Plus Control with 10.4" LCD & Manual Guide i
Four Wide Guide Ways in One Piece for Heavy Loading
Automatic Speed Changer
Chuck Sliding Guard with Interlock Device
Motorized Tailstock
Travelling Front Single Door Interlocked with carriage
4-Position HP-350 Hydraulic Turret
Coolant System
Lubrication System
Low Voltage Circuit System
Linear Scales for Z Axis
1.96"-15.7" Steady Rest
17.96"-23.62" Steady Rest
Full Length Chip Conveyor

NOTE:
Full 1-Year Parts on Machine
Full 2-Year Parts on CNC Control
**9 Month Lead Time from Order **
