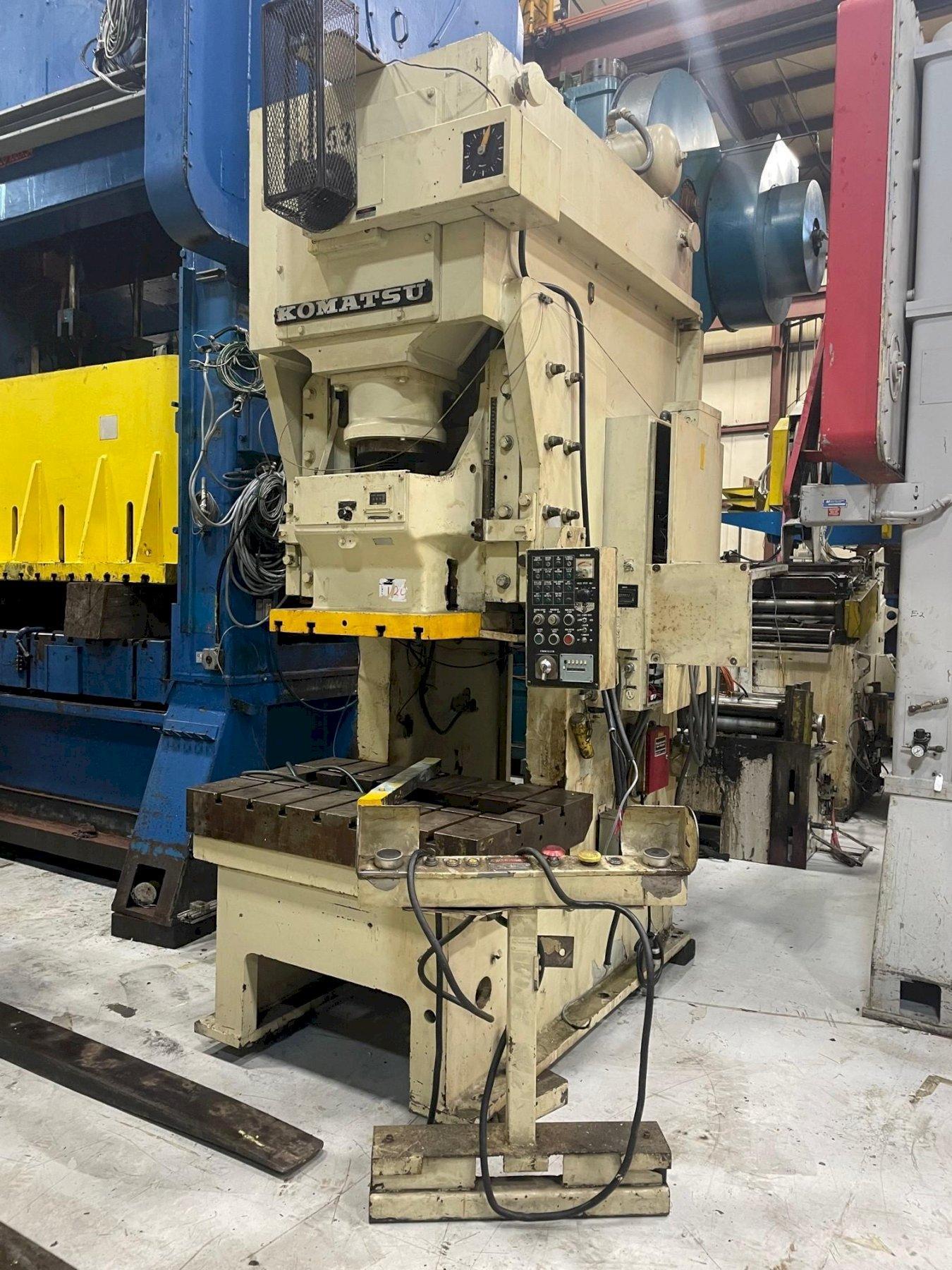

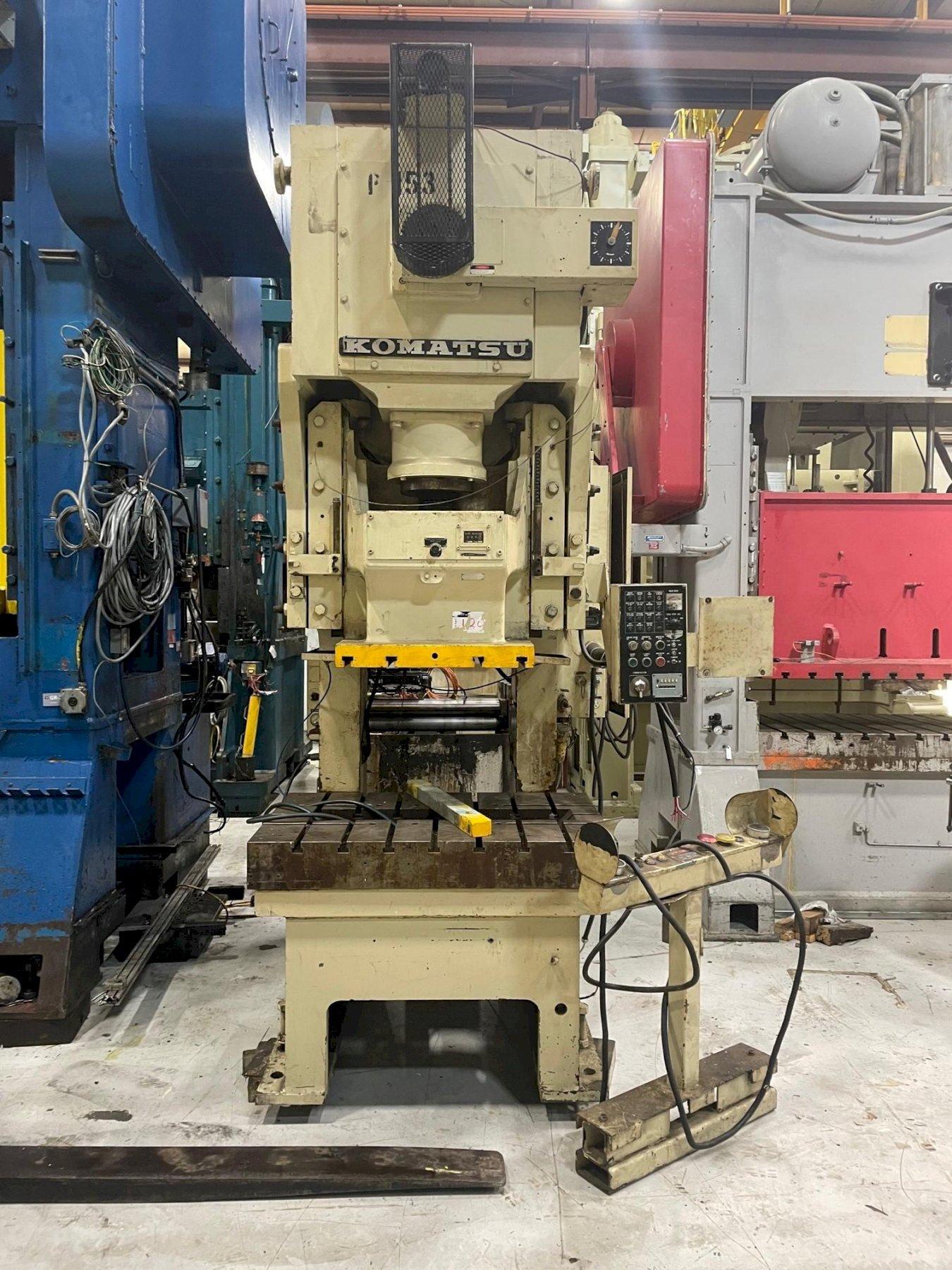

150 ton Komatsu Model OBS 150-2 Used Single Point Mechanical Metal Stamping Gap Frame Press For

Stock

2789

Model

OBS 150-2

Dealer Location

Michigan

Spec Sheet

Tonnage - 150
Stroke - 7.87 inches
Shut Height - 24.17 inches
Adjustment - 3.94 inches
Bed Size - 49.21" x 31.5"
Ram Area - 27.5" x 21.65"
SPM - 27-55 VSPM

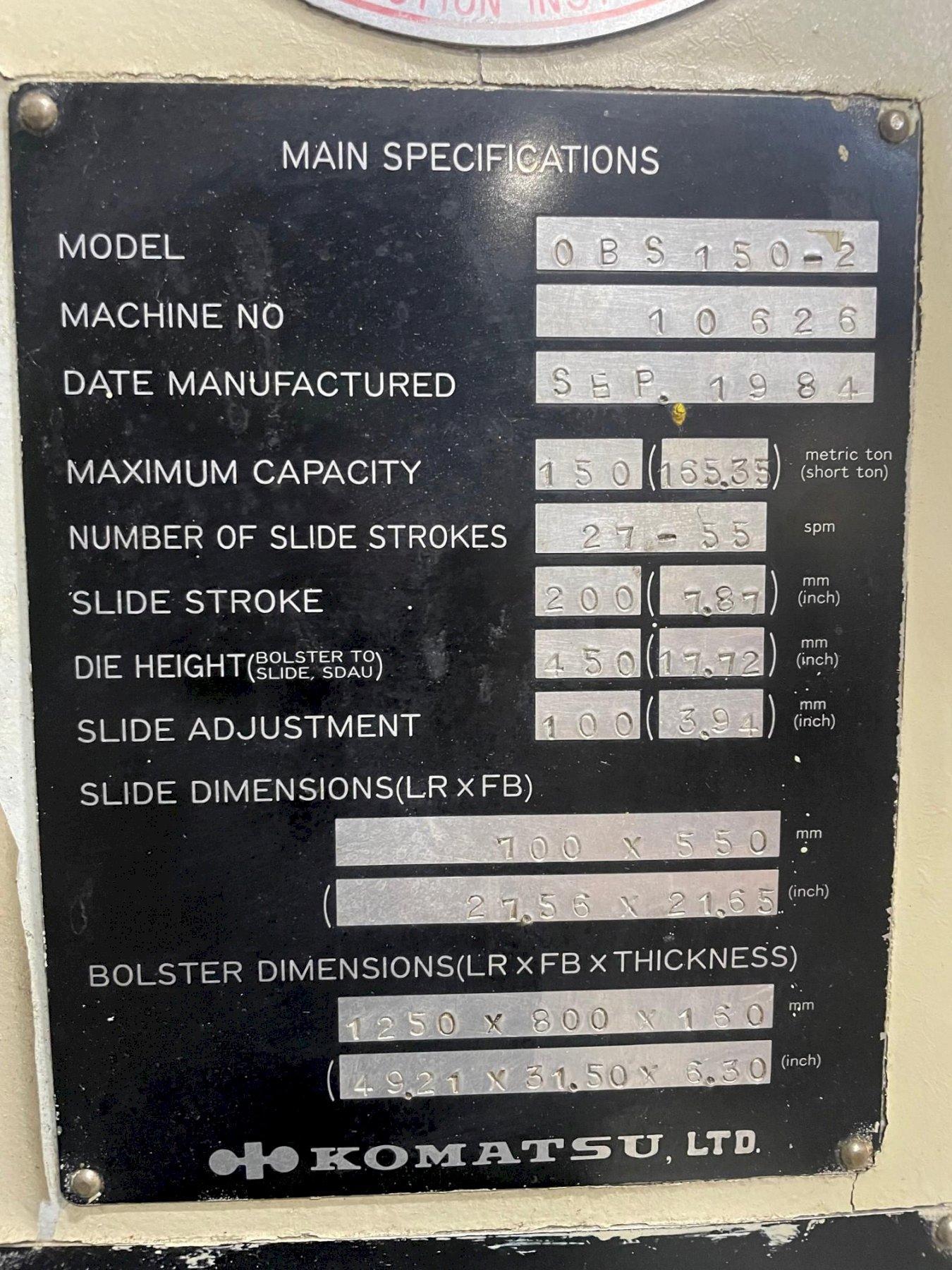

Standard Specifications
Komatsu Press Model OBS 150-2
Mechanical Gap Frame Press
150 ton Capacity
7.87 Stroke
24.17" Shut Height Over Bed
17.72" Die Height Over Bolster
3.94" Motorized Adjustment
27-55 VSPM

Equipment and Features
Wet Clutch and Brake
Air Counterbalances
Recirculating Lube System
Plunger Guided Ram
Hydraulic Overloads
T-Slotted Ram and Bolster
T-Stand Palm Buttons
6.3" Thick Bolster Plate

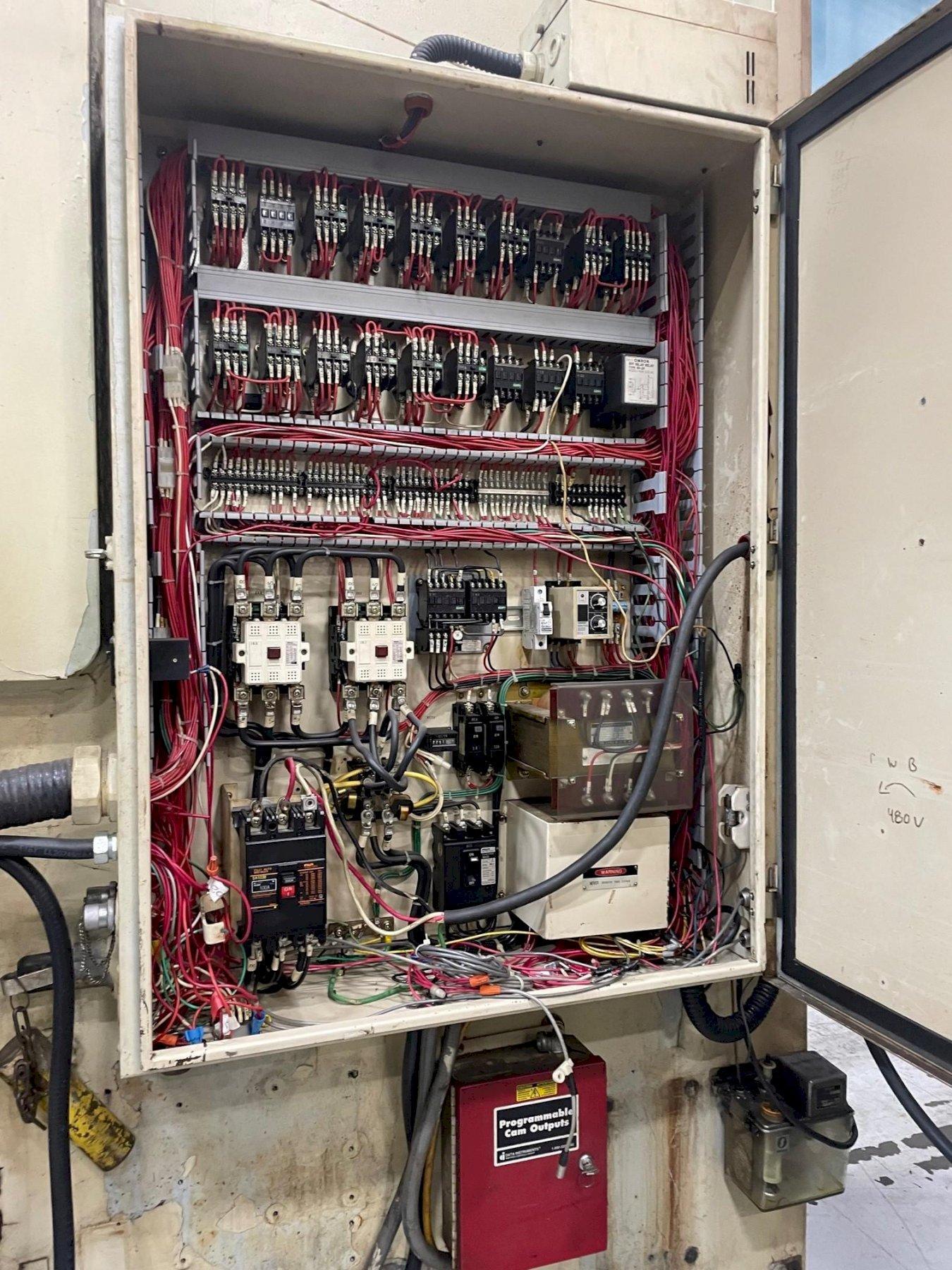

Wintriss Press Controls
Wintriss Programmable Cam Outputs

This Used 150 ton Komatsu Mechanical Metal Stamping Press can be seen under power upon request in the S&G Press Livonia Michigan Warehouse!

Used 150-ton Komatsu OBS Press For Sale
