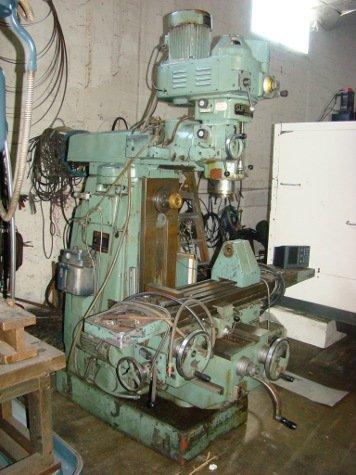

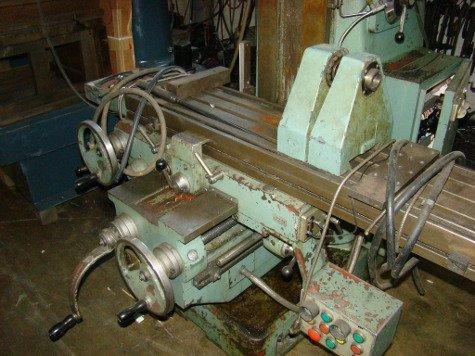

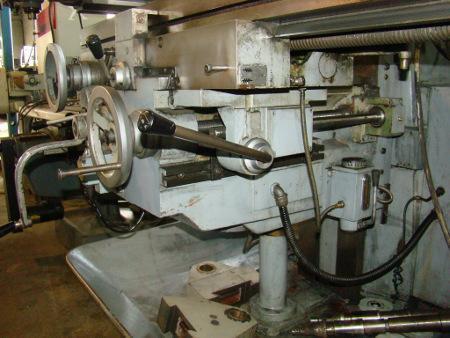

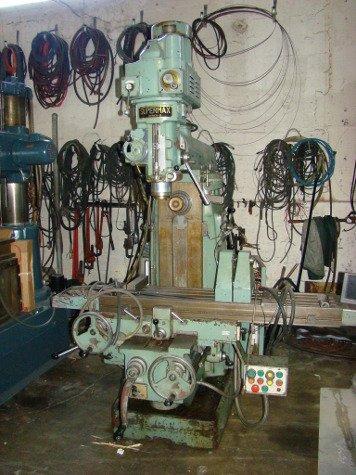

51.2” X 11” Horizontal and Vertical Milling Machine with Pendant Control, Horizontal Arbor Supports with Arbor, Coolant System and One Shot Lubrication
GENERAL SPECIFICATIONS
Table Working Size: 51.2" X 11"
Table Travel Longitudinal: 39.4"
Cross: 14.2"
Vertical: 17.7"
Table Feeds Number:
Longitudinal & Cross: .6 To 27.5 IPM
Rapid Traverse Longitudinal & Cross: 118 IPM
Vertical: 31 IPM
Horizontal Spindle:
Spindle Taper: #50 Taper
Number Of Speeds: 9
Range Of Speeds: 85 To 1300 RPM
Main Spindle Motor: 3 HP
Vertical Spindle:
Main Motor: 5 HP
Number Of Speeds: Variable
Range Of Speeds: 80 To 3,800 RPM
Spindle Nose Taper: #40 Taper
Quill Feeds, 3: .0014, .0028 & .0056 IPR
Quill Travel: 5-1/2"
Swivelling Angle Of Head (Left & Right): 90 Degrees
Electrics: 220/440/3/60
Machine Weight: 5,720 LBS
Dimensions (L X W X H): 74" X 62" X 94"
INCLUDES: Pendant Control, Horizontal Arbor Supports with Arbor, Coolant System and One Shot Lubrication
***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
