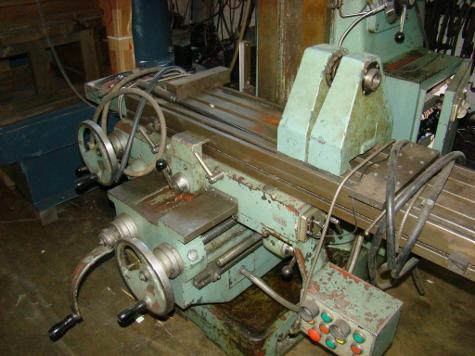

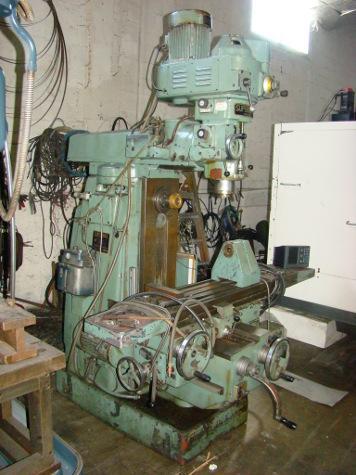

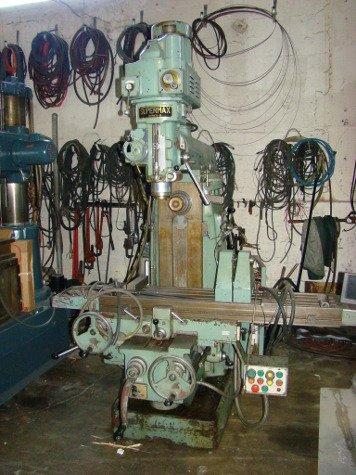

1981 Supermax YC-2GS Horizontal and Vertical Milling Machine (#4719)

Manufacturer

Stock

None

Model

None listed

Dealer Location

Florida

Spec Sheet



51.2” X 11” Knee Mill with Variable Speed, Spindle and Turret Head, Horizontal Arbor Supports with Arbor, Coolant System, One Shot Lubrication and
Bijur #UBA2 Spray Mist Coolant Unit

GENERAL SPECIFICATIONS
Table Working Size: 51.2" X 11"
Table Travel Longitudinal: 39.4"
Cross: 14.2"
Vertical: 17.7"
Table Feeds Number:
Longitudinal & Cross: 1/2 To 23-3/4 IPM
Rapid Traverse--Longitudinal & Cross: 118 IPM
Vertical: 31-1/2 IPM
Horizontal Spindle:
Spindle Taper: #40 Taper
Number Of Speeds: 9
Range Of Speeds: 85 To 1300 RPM
Main Spindle Motor: 5 Hp
Vertical Spindle:
Main Motor: 5 Hp
Range Of Speeds: 75 To 4,220 RPM
Spindle Nose Taper: #40 Taper
Quill Feeds, 3: .0015, .005 & .003 IPR
Quill Travel: 5-1/2"
Swiveling Angle Of Head (Left & Right): 90 Degrees
Electrics: 220 / 440 / 3 / 60
Machine Weight: 5,720 LBS
Dimensions (L X W X H): 74" X 62" X 94"

INCLUDES: Variable Speed, Spindle and Turret Head, Horizontal Arbor Supports with Arbor, Coolant System, One Shot Lubrication and Bijur #UBA2 Spray Mist Coolant Unit


***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
